CN112040407A - Beacon data processing method, apparatus, electronic device and readable storage medium - Google Patents

Abstract

The embodiment of the present invention discloses a beacon data processing method, device, electronic device and readable storage medium. By acquiring a target beacon list corresponding to a target task address, and determining a set of beacon signals scanned by a target task terminal, according to The matching state of the beacon signal set and the target beacon list generates prompt information, thereby improving the positioning accuracy of the target task terminal and the accuracy of the prompt information.

Description

Beacon data processing method, apparatus, electronic device and readable storage medium

technical field

The present invention relates to the field of computer technology, and more particularly, to a beacon data processing method, apparatus, electronic device and readable storage medium.

Background technique

At present, GPS is usually used to achieve positioning, but in some close-range scenarios, GPS positioning may have problems such as drift and inaccurate position.

SUMMARY OF THE INVENTION

In view of this, embodiments of the present invention provide a beacon data processing method, apparatus, electronic device, and readable storage medium, so as to improve the positioning accuracy of the target task terminal and the accuracy of prompt information.

In a first aspect, an embodiment of the present invention provides a beacon data processing method, the method comprising:

Obtain the target beacon list corresponding to the target task address;

Determine the set of beacon signals scanned by the target task terminal;

Prompt information is generated according to the matching state between the beacon signal set and the target beacon list.

Optionally, it is determined that the set of beacon signals scanned by the target task terminal includes:

In response to the arrival instruction being triggered, the set of beacon signals scanned by the target task terminal is determined.

Optionally, it is determined that the set of beacon signals scanned by the target task terminal includes:

The set of beacon signals is determined according to at least one beacon signal scanned by the target task terminal within a predetermined time before the arrival instruction is triggered and/or within a predetermined time after the arrival instruction is triggered.

Optionally, it is determined that the set of beacon signals scanned by the target task terminal includes:

controlling the target task terminal to scan the beacon signals in the target beacon list;

The set of beacon signals is determined according to the beacon signals in the target beacon list scanned by the target task terminal.

Optionally, according to the matching state between the beacon signal set and the target beacon list, generating prompt information includes:

In response to the ratio of the beacon signals in the beacon signal set to the same beacon signals in the target beacon list being greater than or equal to a preset value, generating legal arrival information, where the legal arrival information is used to represent the target task The terminal is located at the target task address.

Optionally, according to the matching state between the beacon signal set and the target beacon list, generating prompt information includes:

In response to the beacon signal set including a target beacon signal in the target beacon list, legal arrival information is generated, where the target beacon signal is a signal of a beacon device set at the target task address.

Optionally, generating the prompt information according to the matching state between the beacon signal set and the target beacon list further includes:

Illegal arrival information is generated in response to the set of beacon signals not matching the target beacon list.

Optionally, the target beacon list is determined according to a set of beacon signals scanned by multiple task terminals at the target task address.

Optionally, the beacon signals in the target beacon list are beacon signals scanned by multiple task terminals at the target task address for a continuous preset time.

Optionally, the method further includes:

Upload the set of beacon signals.

In a second aspect, an embodiment of the present invention provides a beacon data processing method, the method comprising:

In response to the arrival instruction being triggered, determine the set of beacon signals scanned by the task terminal;

Upload the set of beacon signals.

Optionally, determining the set of beacon signals scanned by the task terminal includes:

The set of beacon signals is determined according to at least one beacon signal scanned by the task terminal within a predetermined time before the arrival instruction is triggered and/or within a predetermined time after the arrival instruction is triggered.

In a third aspect, an embodiment of the present invention provides a method for processing beacon data, the method comprising:

Obtain at least one beacon signal set corresponding to at least one task address;

Aggregate each beacon signal set to determine a beacon list corresponding to each of the task addresses.

Optionally, acquiring at least one beacon signal set corresponding to at least one task address includes:

For a task address, obtain beacon signals scanned by a plurality of task terminals at the task address;

Screening the beacon signals scanned by the task terminals at the task address for a continuous preset time to determine a set of beacon signals of the task terminals at the task address.

Optionally, aggregating each of the beacon signal sets, and determining the beacon list corresponding to each of the task addresses includes:

For a task address, the beacon list corresponding to the task address is determined according to the same beacon signal in the beacon signal set of the task address of each task terminal.

Optionally, the method further includes:

Obtain the beacon signal set corresponding to the target task address;

determining the target beacon list corresponding to the target task address;

According to the matching state between the beacon signal set and the target beacon list, prompt information is generated and sent.

Optionally, according to the matching state between the beacon signal set and the target beacon list, generating and sending prompt information includes:

In response to the ratio of the beacon signals in the beacon signal set to the same beacon signals in the target beacon list being greater than or equal to a preset value, generating and sending legal arrival information, where the legal arrival information is used to characterize the The target task terminal is located at the target task address.

Optionally, according to the matching state between the beacon signal set and the target beacon list, generating and sending prompt information includes:

In response to the beacon signal set including the target beacon signal in the target beacon list, generating and sending legal arrival information, the target beacon signal is the signal of the beacon device set at the target task address .

Optionally, according to the matching state between the beacon signal set and the target beacon list, generating and sending prompt information includes:

In response to the set of beacon signals not matching the target beacon list, illegal arrival information is generated and transmitted.

In a fourth aspect, an embodiment of the present invention provides an apparatus for processing beacon data, the apparatus comprising:

a list acquisition unit, configured to acquire the target beacon list corresponding to the target task address;

a set determining unit, configured to determine the set of beacon signals scanned by the target task terminal;

The information generating unit is configured to generate prompt information according to the matching state between the beacon signal set and the target beacon list.

Optionally, the set determination unit is further configured to determine the set of beacon signals scanned by the target task terminal in response to the arrival instruction being triggered.

Optionally, the set determination unit includes:

The first set determination subunit is configured to determine according to at least one beacon signal scanned by the target task terminal within a predetermined time before the arrival instruction is triggered and/or within a predetermined time after the arrival instruction is triggered the set of beacon signals.

Optionally, the set determination unit includes:

a scanning subunit, configured to control the target task terminal to scan the beacon signals in the target beacon list;

The second set determination subunit is configured to determine the beacon signal set according to the beacon signals in the target beacon list scanned by the target task terminal.

Optionally, the information generating unit includes:

The first information generating subunit is configured to generate legal arrival information in response to the ratio of the beacon signals in the beacon signal set to the same beacon signals in the target beacon list being greater than or equal to a preset value, the The legal arrival information is used to indicate that the target task terminal is located at the target task address.

Optionally, the information generating unit includes:

The second information generating subunit is configured to generate legal arrival information in response to the target beacon signal in the target beacon list being included in the beacon signal set, and the target beacon signal is set at the target The signal of the beacon device for the task address.

Optionally, the information generating unit further includes:

A third information determination subunit is configured to generate illegal arrival information in response to the set of beacon signals not matching the target beacon list.

Optionally, the target beacon list is determined according to a set of beacon signals scanned by multiple task terminals at the target task address.

Optionally, the beacon signals in the target beacon list are beacon signals scanned by multiple task terminals at the target task address for a continuous preset time.

Optionally, the device further includes:

The first uploading unit is configured to upload the set of beacon signals.

In a fifth aspect, an embodiment of the present invention provides an apparatus for processing beacon data, the apparatus comprising:

a set determination unit, configured to be triggered in response to the arrival instruction, to determine the set of beacon signals scanned by the task terminal;

The second uploading unit is configured to upload the set of beacon signals.

Optionally, the set determination unit includes:

The set determination subunit is configured to determine the signal according to at least one beacon signal scanned by the task terminal within a predetermined time before the arrival instruction is triggered and/or within a predetermined time after the arrival instruction is triggered. Collection of beacon signals.

In a sixth aspect, an embodiment of the present invention provides an apparatus for processing beacon data, the apparatus comprising:

a set acquisition unit, configured to acquire at least one beacon signal set corresponding to at least one task address;

The aggregation unit is configured to aggregate each beacon signal set, and determine a beacon list corresponding to each of the task addresses.

Optionally, the set acquisition unit includes:

a signal acquisition subunit, configured to acquire, for a task address, beacon signals scanned by a plurality of task terminals at the task address;

The signal cleaning subunit is configured to screen the beacon signals scanned by each task terminal at the task address for a continuous preset time, so as to determine a set of beacon signals of each task terminal at the task address.

Optionally, the polymerization unit includes:

The aggregation subunit is configured to, for a task address, determine a beacon list corresponding to the task address according to the same beacon signal in the beacon signal set of the task address of each task terminal.

Optionally, the device further includes:

The target set acquisition unit is configured to acquire the beacon signal set corresponding to the target task address;

a target list determination unit, configured to determine a target beacon list corresponding to the target task address;

an information generating unit, configured to generate prompt information according to a matching state between the beacon signal set and the target beacon list;

an information sending unit, configured to send the prompt information.

Optionally, the information generating unit includes:

The first information generating subunit is configured to generate legal arrival information in response to the ratio of the beacon signals in the beacon signal set to the same beacon signals in the target beacon list being greater than or equal to a preset value, the The legal arrival information is used to indicate that the target task terminal is located at the target task address.

Optionally, the information generating unit includes:

The second information generating subunit is configured to generate legal arrival information in response to the target beacon signal in the target beacon list being included in the beacon signal set, and the target beacon signal is set at the target The signal of the beacon device for the task address.

Optionally, the information generating unit includes:

A third information generating subunit is configured to generate illegal arrival information in response to the set of beacon signals not matching the target beacon list.

In a seventh aspect, an embodiment of the present invention provides an electronic device, including a memory and a processor, where the memory is configured to store one or more computer program instructions, wherein the one or more computer program instructions are executed by the processor Execute to implement the method described in the first aspect of the embodiments of the present invention and/or the method described in the second aspect of the embodiments of the present invention and/or the method described in the third aspect of the embodiments of the present invention.

In an eighth aspect, an embodiment of the present invention provides a computer-readable storage medium on which computer program instructions are stored, the computer program instructions, when executed by a processor, implement the method and method described in the first aspect of the embodiment of the present invention. /or the method described in the second aspect of the embodiment of the present invention and/or the method described in the third aspect of the embodiment of the present invention.

In the embodiment of the present invention, the target beacon list corresponding to the target task address is obtained, the set of beacon signals scanned by the target task terminal is determined, and the prompt information is generated according to the matching state between the set of beacon signals and the target beacon list , thus, the positioning accuracy of the target task terminal and the accuracy of the prompt information can be improved.

Description of drawings

The above and other objects, features and advantages of the present invention will become more apparent from the following description of embodiments of the present invention with reference to the accompanying drawings, in which:

1 is a flowchart of a beacon data processing method according to an embodiment of the present invention;

2 is a schematic diagram of an application scenario of a beacon data processing method according to an embodiment of the present invention;

3 is a schematic diagram of an interface display of a target task terminal according to an embodiment of the present invention;

4 is a schematic diagram of an interface display of another target task terminal according to an embodiment of the present invention;

5 is a flowchart of another beacon data processing method according to an embodiment of the present invention;

6 is a flowchart of another beacon data processing method according to an embodiment of the present invention;

7 is a schematic diagram of the distribution of beacon devices according to an embodiment of the present invention;

8 is a flowchart of another beacon data processing method according to an embodiment of the present invention;

9 is a flowchart of another beacon data processing method according to an embodiment of the present invention;

10 is a schematic diagram of an apparatus for processing beacon data according to an embodiment of the present invention;

11 is a schematic diagram of another beacon data processing apparatus according to an embodiment of the present invention;

12 is a schematic diagram of another beacon data processing apparatus according to an embodiment of the present invention;

FIG. 13 is a schematic diagram of an electronic device according to an embodiment of the present invention.

Detailed ways

The present invention is described below based on examples, but the present invention is not limited to these examples only. In the following detailed description of the invention, some specific details are described in detail. The present invention can be fully understood by those skilled in the art without the description of these detailed parts. Well-known methods, procedures, procedures, components and circuits have not been described in detail in order to avoid obscuring the essence of the present invention.

Furthermore, those of ordinary skill in the art will appreciate that the drawings provided herein are for illustrative purposes and are not necessarily drawn to scale.

Unless clearly required by the context, words such as "including", "comprising" and the like in the specification should be construed in an inclusive rather than an exclusive or exhaustive sense; that is, in the sense of "including but not limited to".

In the description of the present invention, it should be understood that the terms "first", "second" and the like are used for descriptive purposes only, and should not be construed as indicating or implying relative importance. Also, in the description of the present invention, unless otherwise specified, "plurality" means two or more.

The beacon data processing method in this embodiment can be applied to any location-related scenarios for setting beacon devices, such as takeaway application scenarios, errand running application scenarios, etc. This embodiment does not limit the application scenarios. The following main takeaway application scenarios are used as an example to illustrate.

At present, users often order food through online platforms, and the corresponding online platforms deliver food to corresponding users through distribution resources. Among them, in order to determine the task node of the takeaway task, the network platform uploads node information, such as uploading information to the store, delivery information, etc., through the required distribution resources (including riders, terminals, vehicles, etc.). Usually, when the distribution resource reaches the merchant corresponding to the target task, click to upload the store information. In the related art, GPS positioning is usually used to obtain the distribution resource location, and the obtained distribution resource location is compared with the merchant location corresponding to the target task. Determines whether the delivery resource is currently located at the corresponding merchant. However, in a short-range positioning scenario, GPS positioning may have problems such as drift leading to inaccurate position. Therefore, in order to prevent the distribution resources from reporting false node information or misjudgment due to inaccurate positioning, this embodiment provides a beacon data processing method, so as to improve the positioning accuracy of the target task terminal through the beacon device and the accuracy of the prompt information.

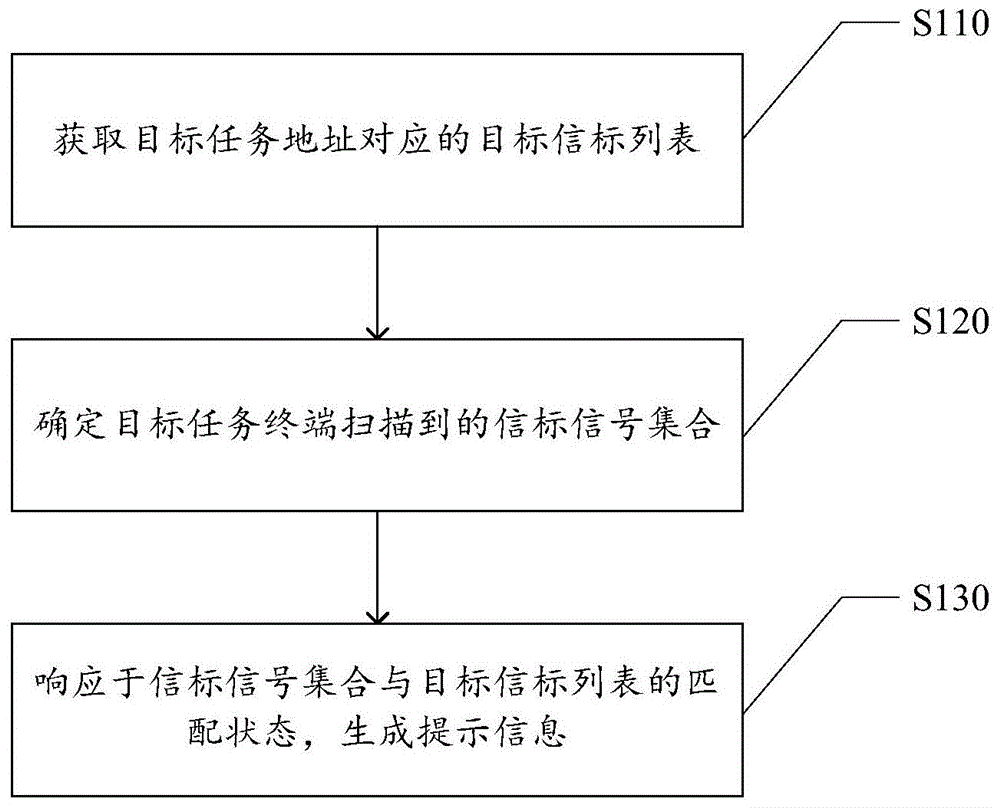

FIG. 1 is a flowchart of a beacon data processing method according to an embodiment of the present invention. As shown in FIG. 1 , the beacon data processing method according to the embodiment of the present invention includes the following steps:

Step S110, acquiring a target beacon list corresponding to the target task address. Optionally, the target beacon list may include beacon identifiers, beacon signal strength ranges, and location identifiers of beacon devices that can be scanned in the target task address.

In an optional implementation manner, after the target task terminal uploads the message bound to the target task, it receives the target beacon list corresponding to the target task address sent by the server or the network platform. In another optional implementation manner, after the target task terminal uploads the message reaching the target task address, it receives the target beacon list corresponding to the target task address sent by the server or the network platform. It should be understood that, in other optional implementation manners, the target task terminal may request a target beacon list corresponding to the target task address from the server or network platform at any time after it is bound to the target task, which is not performed in this embodiment. limit.

In an optional implementation manner, the target beacon list is determined according to a set of beacon signals scanned by multiple task terminals at the target task address. That is to say, according to the set of beacon signals scanned by each task terminal at the target task address obtained in the historical task, and the same beacon signal in the set of beacon signals corresponding to the target task address is determined as the target beacon list, which is defined by Therefore, a beacon association map between the target task address and other task addresses can be established to determine the position information of the target task terminal according to the beacon device of the target task address and/or its surrounding beacon devices, thereby improving the positioning accuracy. In another optional implementation manner, the beacon signals in the target beacon list are beacon signals scanned by multiple task terminals at the target task address for a continuous preset time, and the beacon signals corresponding to each task address are The same beacon signals in the set are determined as the target beacon list, so as to filter out the beacon signals accidentally scanned by the task terminal and improve the positioning accuracy. That is, in each historical task corresponding to the target task address, the beacon signals that can be scanned by each task terminal in a continuous period of time are determined as the beacon signals in the target beacon list. For example, task terminal A scans beacon signals a, b, and c at the target task address within a continuous preset time, task terminal B scans beacon signals a and b at the target task address within a continuous preset time, and task terminal C, D scans the beacon signals a and b at the task address within a continuous preset time, so the beacon signals a and b are determined as the beacon signals in the target beacon list. In this way, the beacon signals accidentally scanned by the task terminal can be filtered out, and the positioning accuracy can be improved.

Step S120, determining the set of beacon signals scanned by the target task terminal. In an optional implementation manner, after the target task terminal uploads the message bound to the target task, it periodically scans the set of beacon signals.

In another optional implementation manner, step S120 includes: in response to the arrival instruction being triggered, determining a set of beacon signals scanned by the target task terminal. Optionally, the arrival instruction is located in the task interface of the target task terminal in the form of a control. Optionally, in response to the arrival instruction being triggered, the beacon signal is determined according to at least one beacon signal scanned by the target task terminal within a predetermined time before the arrival instruction is triggered and/or within a predetermined time after the arrival instruction is triggered. gather. That is, after the arrival instruction is triggered, the target task terminal obtains beacon signals continuously scanned within a predetermined time (eg, within 5s) before the arrival instruction is triggered, to determine the beacon signal set. Or after the arrival instruction is triggered, the target task terminal acquires beacon signals scanned within a predetermined time (for example, within 5s) after the arrival instruction is triggered, to determine the beacon signal set. Or after the arrival command is triggered, the target task terminal acquires the information scanned continuously within a predetermined time (for example, within 5s) before the arrival command is triggered and within a predetermined time (for example, within 5s) after the arrival command is triggered. beacon signal to determine the set of beacon signals. For example, if the target task terminal receives the message that the arrival instruction is triggered at 12:00:00, the beacon signal set is determined according to the beacon signals continuously scanned from 11:59:55-12:00:00, or the set of beacon signals is determined according to 12 : 00:00-12:00:05 continuously scanned beacon signals determine a beacon signal set, or determine a beacon signal set according to continuously scanned beacon signals from 11:59:55-12:00:05. It should be understood that this embodiment does not limit the predetermined time before the arrival instruction is triggered and the predetermined time after the arrival instruction is triggered, which may be the same or different.

In another optional implementation manner, step S120 includes: controlling the target task terminal to scan the beacon signals in the target beacon list acquired by the target task terminal, and determining the corresponding beacon signal according to the beacon signals in the target beacon list scanned by the target task terminal collection of beacon signals. Optionally, after the server receives the arrival instruction and is triggered, it sends the target beacon list to the target task terminal, the target task terminal scans the beacon signals in the target beacon list, and adds the scanned beacon signals to the beacon. Signal collection. Therefore, in this embodiment, the target task terminal scans according to the beacon signals in the target beacon list, and marks the scanned beacon signals, so that the matching state between the beacon signal set and the target beacon list can be quickly determined, and further The positioning accuracy of the target task terminal and the accuracy of the prompt information are improved. For example, the target beacon list includes three beacon signals a, b, and c. After receiving the target beacon list, the target task terminal scans the beacon signals a, b, and c. If the target task terminal can scan the beacon signals Signals a, b, and c, that is, after scanning, if the beacon signal set includes beacon signals a, b, and c, it is determined that the beacon signal and the target beacon list are completely matched, and then the target can be determined according to the matching state. The task terminal is currently located at the target task address, and a prompt message of legal arrival is generated.

Step S130: Generate prompt information according to the matching state between the beacon signal set and the target beacon list. In an optional implementation manner, after the target task terminal uploads the message bound to the target task, obtains the target beacon list corresponding to the target task address, periodically scans the beacon signal set, and collects the beacon signal set. Match with the target beacon list, determine the matching state, until the beacon signal set and the target beacon list, generate legal arrival prompt information. Therefore, this embodiment can achieve more accurate automatic arrival by periodically matching the scanned beacon signal set and the target beacon list after the target task terminal accepts the task, and improves the efficiency of uploading arrival node information.

In another optional implementation manner, in response to the arrival instruction being triggered, the set of beacon signals scanned by the target terminal is determined, the set of beacon signals is matched with the target beacon list, and the corresponding matching status is obtained, according to The matching status generates a prompt message. The prompt information includes prompt information for legal arrival and prompt information for illegal arrival. Therefore, the present embodiment determines the arrival information through the beacon signal, improves the accuracy of positioning and the accuracy of the arrival information, and only needs to start the target task terminal beacon device when the arrival command is triggered, saving terminal energy consumption.

In an optional implementation manner, if a beacon device is not set at the target task address, or the beacon device set at the target task address is not turned on or damaged, the target task address can be monitored by beacon devices around the target task address. task terminal for positioning. Step S130 may specifically include: in response to the ratio of the beacon signals in the beacon signal set and the same beacon signals in the target beacon list being greater than or equal to a preset value, generating legal arrival information. The legal arrival information is used to indicate that the target task terminal is located at the target task address. Optionally, the above ratio may be the ratio of the number of identical beacon signals to the number of beacon signals in the target beacon list, and it should be understood that the above ratio may also be the number of identical beacon signals to the beacon signal set in the beacon signal set. The ratio of the number of signals is not limited in this embodiment. Optionally, the setting range of the preset value may be 60%-100%. For example, the target beacon list includes beacon signals a, b, c, and d, and the acquired beacon signal set includes beacon signals a, b, c, f, and g, then the beacon signals in the beacon signal set are the same as The ratio of the same beacon signal in the target beacon list is 3/4*100%=75%. Assuming that the above preset value is 70%, it can be determined that the target task terminal is located at the target task address, that is, the target task terminal is here It is legal to upload messages that arrive at the target task address.

In another optional implementation manner, if a beacon device is set at the target task address and the beacon device is working normally, the target task terminal can be located through the beacon device at the target task address. Step S130 may specifically include: in response to the beacon signal set including the target beacon signal in the target beacon list, generating legal arrival information, that is, determining that the target task terminal is located at the target task address. The target beacon signal is the signal of the beacon device set at the target task address. That is, if the target task terminal scans the target beacon signal, it can be determined that the target task terminal is located at the target task address. In other optional implementation manners, when a beacon device is set at the target task address and the beacon device is working normally, the signal of the beacon device around it can also be used as a reference to determine the position of the target task terminal. This is not restricted.

In an optional implementation manner, step S130 may further include: in response to the set of beacon signals not matching the target beacon list, generating illegal arrival information. Optionally, when the ratio of beacon signals in the beacon signal set to the same beacon signal in the target beacon list is less than a preset value, or when the beacon signal set does not include the target beacon signal in the target beacon list , determine that the target task terminal is not at the target task address, and generate illegal arrival information. For example, the illegal arrival information may be "the currently sent message reaching the target task address is an illegal behavior" and the like.

FIG. 2 is a schematic diagram of an application scenario of a beacon data processing method according to an embodiment of the present invention. Take the takeaway application scenario as an example, after the delivery resource accepts the takeaway delivery task through the delivery resource terminal (that is, the target task terminal), or after the delivery resource is uploaded to the store information through the delivery resource terminal, the target information corresponding to the merchant to which the delivery task belongs is received. list of labels. The delivery resource clicks to the store (that is, triggers the arrival instruction), and the delivery resource terminal is triggered in response to the arrival instruction, and acquires the scanned beacon signal set. As described above, the set of beacon signals may be a set of beacon signals that are continuously scanned within a predetermined time before the arrival instruction is triggered and/or within a predetermined time after the arrival instruction is triggered. The distribution resource terminal (or the network platform APP installed on the distribution resource terminal) matches the target beacon list with the scanned beacon signal set to determine the arrival status of the distribution resource. Wherein, if a beacon device is installed in the merchant and the beacon device is in normal use, the target beacon signal is determined from the target beacon list, and it is determined whether the scanned beacon signal set includes the target beacon signal, and if so, Then it is determined that the delivery resource has arrived at the store, that is, the arrival message uploaded by the delivery resource terminal is legal. If not included, it is determined that the delivery resource has not arrived at the store, that is, the arrival message uploaded by the delivery resource terminal is invalid. If the beacon device is not set in the merchant or the set beacon device is not in normal use, determine whether the ratio of the beacon signal set to the same beacon signal in the target beacon list is greater than or equal to the preset value, if not less than the preset value , then it is determined that the delivery resource is in the state of having arrived at the store, that is, the arrival message uploaded by the delivery resource terminal is legal. If it is less than the preset value, it is determined that the delivery resource has not arrived at the store, that is, the arrival message uploaded by the delivery resource terminal is invalid. .

As shown in Figure 2, among merchants A, B, C, D, E, and F, merchant A, merchant B, merchant C, merchant D, and merchant F are respectively provided with beacon equipment a, beacon equipment b, and beacon equipment. Beacon device c, beacon device d, and beacon device f, merchant E does not have beacon devices. The target merchant corresponding to the target delivery task of the delivery resource q1 is merchant E, and the target beacon list corresponding to merchant E is [b, d, f], assuming that the above preset value is 70%. Optionally, the beacon symbol "b" in the target beacon list may be an array or vector, including the beacon identifier of the corresponding beacon device, the identifier of the corresponding business, and the like. If the distribution resource q1 clicks to the store through the distribution resource terminal at the current location, the current corresponding set of beacon signals is obtained as [b, c, f]. Then the ratio of the beacon signal set corresponding to the distribution resource q1 to the same beacon signal in the target beacon list is 2/3*100%=66.67%, which is less than the preset value of 70%, and it is determined that the distribution resource q1 has not yet reached the target Merchant E determines that the delivery resource q1 is falsely clicked to the store. Optionally, when it is determined that the distribution resource is falsely clicked to the store, prompt information such as failure to sign in to the store may be displayed through the display interface of the distribution resource terminal APP.

The target merchant corresponding to the target delivery task of the delivery resource q2 is merchant B. There is a beacon device b in merchant B and the beacon device b is currently in normal use. The target beacon list corresponding to merchant B is [a,b,c,e ]. Since each beacon symbol in the target beacon list includes a beacon ID and a corresponding merchant ID, when determining the location of the delivery resources, the target beacon list of the target merchant can be traversed first to determine whether the target merchant has a beacon set equipment. In this embodiment, the target beacon list [a, b, c, e] of merchant B is traversed, and the target beacon signal b of merchant B is obtained. If the distribution resource q2 clicks to the store through the distribution resource terminal at the current location, the current corresponding set of beacon signals is obtained as [a, b, c, e]. It can be seen that the set of beacon signals corresponding to the delivery resource q2 includes the target beacon signal b. Therefore, it can be determined that the delivery resource q2 has reached the merchant B, and the click-to-store behavior is legal. Optionally, when it is determined that the distribution resource is legitimately clicked to the store, prompt information such as successful sign-in to the store may be displayed through the display interface of the distribution resource terminal APP. Therefore, the present embodiment determines the location of the distribution resources through at least one beacon of the surrounding merchants, which improves the positioning accuracy and avoids the false clicks of the distribution resources to the store, or the misjudgment of the distribution resources due to the inaccurate positioning. Case.

FIG. 3 is a schematic diagram of interface display of a target task terminal according to an embodiment of the present invention. FIG. 4 is a schematic diagram of interface display of another target task terminal according to an embodiment of the present invention. This embodiment is described as an example of a takeaway application scenario. As shown in FIG. 3 , the delivery resource terminal interface 31 includes the current task 1 and task 2 and the store arrival controls 311 and 312 corresponding to each task. Among them, the delivery resources can be checked in the store by clicking on the store space. Assuming that the delivery resource currently triggers the arrival control 311 of task 1, the currently scanned beacon signal set is obtained through the delivery resource terminal, and the location information of the delivery resource terminal is determined according to the beacon signal set and the obtained target beacon list. , and generate prompt information according to the location information and target task address of the distribution resource terminal, and display the prompt information on the distribution resource terminal interface 31 . As shown in FIG. 3 , if it is determined that the current click-to-store behavior of the distribution resource is illegal, the prompt information displayed on the distribution resource terminal interface 31 is “currently illegal to the store, please click to the store again”. As shown in FIG. 4 , assuming that the current click-to-store behavior of the distribution resource is determined to be a legal behavior, the prompt information displayed on the distribution resource terminal interface 31 is “legally arrived at the store”. It should be understood that the distribution resource terminal interface and the prompt information in FIG. 3 and FIG. 4 are only exemplary, and are not limited in this embodiment.

In an optional implementation manner, the beacon data processing method according to the embodiment of the present invention further includes: uploading the scanned beacon signal set, so that the server or the corresponding network platform can periodically according to the acquired beacon signal set Update the beacon list corresponding to each task address to improve the accuracy of the beacon list corresponding to each task address.

In this embodiment, by acquiring the target beacon list corresponding to the target task address, determining the beacon signal set scanned by the target task terminal, and generating prompt information according to the matching state between the beacon signal set and the target beacon list, thereby , which can improve the positioning accuracy of the target task terminal and the accuracy of the prompt information.

FIG. 5 is a flowchart of another beacon data processing method according to an embodiment of the present invention. As shown in FIG. 5 , the beacon data processing method according to the embodiment of the present invention includes the following steps:

Step S210, in response to the arrival instruction being triggered, determine the set of beacon signals scanned by the task terminal. In an optional implementation manner, step S210 may include: in response to the arrival instruction being triggered, according to the target task terminal scans within a predetermined time before the arrival instruction is triggered and/or within a predetermined time after the arrival instruction is triggered At least one beacon signal determines a set of beacon signals. That is, after the arrival instruction is triggered, the target task terminal obtains beacon signals continuously scanned within a predetermined time (eg, within 5s) before the arrival instruction is triggered, to determine the beacon signal set. Or after the arrival instruction is triggered, the target task terminal acquires beacon signals scanned within a predetermined time (for example, within 5s) after the arrival instruction is triggered, to determine the beacon signal set. Or after the arrival command is triggered, the target task terminal acquires the information scanned continuously within a predetermined time (for example, within 5s) before the arrival command is triggered and within a predetermined time (for example, within 5s) after the arrival command is triggered. beacon signal to determine the set of beacon signals. It should be understood that this embodiment does not limit the predetermined time before the arrival instruction is triggered and the predetermined time after the arrival instruction is triggered, which may be the same or different. Optionally, the arrival instruction is located in the task interface of the target task terminal in the form of a control.

Step S220, upload the beacon signal set. Optionally, upload the beacon signal set to the server or the corresponding network platform, so that the server or network platform determines the beacon list of each task address according to each beacon signal set uploaded by each task terminal.

Taking the takeaway application scenario as an example, in the data accumulation stage, the distribution resource terminal is made to upload the set of beacon signals scanned in the current period in response to the store arrival instruction. As a result, the server or the corresponding network platform can obtain a large number of beacon signal sets scanned by distribution resources at various merchants, aggregate multiple beacon signal sets scanned by a merchant, and obtain the same type of beacon signal sets for each beacon signal set. The beacon signal constitutes the beacon list corresponding to the merchant. Therefore, in the subsequent judgment of the store arrival state, the store arrival prompt is generated according to the matching state of the predetermined beacon list and the beacon signal set scanned by the distribution resources. information, which improves the positioning accuracy of distribution resources and the accuracy of prompt information.

This embodiment implements the accumulation of beacon signal sets corresponding to each task address by using a large number of beacon signal sets uploaded by task terminals after the arrival instruction is triggered, so that the server or the corresponding network platform can obtain a large number of beacon signals according to the collection of beacon signals. The beacon list corresponding to each task address is determined collectively, so as to improve the accuracy of subsequent target task terminal positioning and arrival status judgment.

FIG. 6 is a flowchart of another beacon data processing method according to an embodiment of the present invention. In an optional implementation manner, the method for determining a beacon list in this embodiment includes the following steps:

Step S310, acquiring at least one beacon signal set corresponding to at least one task address. Optionally, in the process of task execution by the task terminal, at least one beacon signal set scanned by each task terminal when it arrives at each task address is acquired. In an optional implementation manner, for a task address, the beacon signals scanned by a plurality of task terminals at the task address are obtained, and the beacon signals scanned by each task terminal at the task address for a continuous preset time are screened, To determine the beacon signal set of each task terminal at the task address. In this way, the beacon signals accidentally scanned by the task terminal can be filtered out, and the positioning accuracy can be improved.

Step S320: Aggregate each beacon signal set to determine a beacon list corresponding to each task address. In an optional implementation manner, the beacon list corresponding to the task address is determined according to the same beacon signal in the beacon signal set of the task address of each task terminal. For example, for historical task records in a continuous week, the set of beacon signals scanned by task terminal A at the task address is [a, b, c], and the set of beacon signals scanned by task terminal B at the task address is [a ,b,c], the set of beacon signals scanned by task terminal C at the task address is [a,b], then aggregate the beacon signal sets of each task terminal at the task address to obtain the signal set of the task address. The list of labels is [a,b].

FIG. 7 is a schematic diagram of distribution of beacon devices according to an embodiment of the present invention. Taking the takeaway application scenario as an example, the server or network platform obtains the beacon information of each merchant with beacon devices, and obtains the set of beacon signals scanned by each distribution resource terminal (target task terminal) when clicking to the store. The beacon signal set of the corresponding distribution resource terminals determines the beacon list corresponding to the merchant. As shown in Fig. 7, among merchants A, B, C, D, E, and F, merchants A, B, C, E and F are respectively provided with beacon equipment a, beacon equipment b, and beacon equipment. Beacon device c, beacon device d and beacon device f, merchant B is not provided with beacon device. Take confirming the beacon list of merchant E as an example, obtain the beacon signal set uploaded when each distribution resource terminal corresponding to merchant E clicks to reach merchant E, and determine according to the same beacon signal in the beacon signal set corresponding to each distribution resource terminal. Merchant E's list of beacons. For example, for merchant E, the set of beacon signals uploaded by the delivery resource terminal q1 is [b, d, f], the set of beacon signals uploaded by the delivery resource terminal q2 is [a, b, d, f], and the set of beacon signals uploaded by the delivery resource terminal q3 is [a, b, d, f]. The uploaded beacon signal set is [b,c,d,f], and the beacon signal set uploaded by the delivery resource terminal q4 is [a,b,c,d,f], then the beacon list of merchant E is determined as [b,d,f].

In this embodiment, by screening the beacon signals scanned by each task terminal at the task address for a continuous preset time, the set of beacon signals of each task terminal at the task address is determined, and according to the beacon signals of each task terminal at the task address The same beacon signal in the signal set determines the beacon list corresponding to the task address, so that the beacon signals that are accidentally scanned by the task terminal can be filtered out to ensure that when the task terminal reaches the target task address, the target task list can be scanned All or most of the beacon signals in, improving location accuracy.

FIG. 8 is a flowchart of another beacon data processing method according to an embodiment of the present invention. As shown in FIG. 8 , the beacon data processing method according to the embodiment of the present invention includes the following steps:

Step S410, acquiring a beacon signal set corresponding to the target task address. Optionally, the set of beacon signals is a set of beacon signals continuously scanned by the target task terminal in the current period.

Step S420, determining a target beacon list corresponding to the target task address. The target beacon list is determined from the predetermined beacon lists according to the identifier of the target task address.

In an optional implementation manner, the beacon signal sets corresponding to each task address of a plurality of task terminals are obtained, and the beacon signal sets are aggregated to determine the beacon list corresponding to each task address, so as to determine the beacon list corresponding to each task address according to each beacon signal set. The set of beacon signals determines the beacon association map between each task address. Wherein, each task address is set with a beacon device or no beacon device.

Step S430: Generate and send prompt information according to the matching state between the beacon signal set and the target beacon list.

In an optional implementation manner, if a beacon device is not set at the target task address, or the beacon device set at the target task address is not turned on or damaged, the target task address can be monitored by beacon devices around the target task address. task terminal for positioning. Step S430 includes: in response to the ratio of the beacon signals in the beacon signal set to the same beacon signals in the target beacon list being greater than or equal to a preset value, generating and sending legal arrival information. The legal arrival information indicates that the target task terminal is located at the target task address. Optionally, the above ratio may be the ratio of the number of identical beacon signals to the number of beacon signals in the target beacon list, and it should be understood that the above ratio may also be the number of identical beacon signals to the beacon signal set in the beacon signal set. The ratio of the number of signals is not limited in this embodiment. Optionally, the setting range of the preset value may be 60%-100%.

In another optional manner, if the target task address is provided with a beacon device and the beacon device is working normally, the target task terminal can be located through the beacon device of the target task address. Step S330 includes: in response to the target beacon signal in the target beacon list being included in the beacon signal set, generating and sending legal arrival information. Wherein, the target beacon signal is the signal of the beacon device set at the target task address. That is, if the target task terminal scans the target beacon signal, it can be determined that the target task terminal is located at the target task address. In other optional implementation manners, when a beacon device is set at the target task address and the beacon device is working normally, the signal of the beacon device around it can also be used as a reference to determine the position of the target task terminal. This is not restricted.

In an optional implementation manner, step S330 further includes: in response to the set of beacon signals not matching the target beacon list, generating and sending illegal arrival information. In an optional implementation manner, the beacon data processing method in this embodiment further includes: in response to a beacon signal set not matching the target beacon list, generating and sending illegal arrival information. Optionally, when the ratio of beacon signals in the beacon signal set to the same beacon signal in the target beacon list is less than a preset value, or when the beacon signal set does not include the target beacon signal in the target beacon list , determine that the target task terminal is not at the target task address, and generate illegal arrival information. For example, the illegal arrival information may be "the currently sent message reaching the target task address is an illegal behavior" and the like.

In this embodiment, the target beacon list corresponding to the target task address is determined by acquiring the beacon signal set corresponding to the target task address, and prompt information is generated and sent according to the matching state between the beacon signal set and the target beacon list, Therefore, it can be determined whether the target task terminal legally reaches the target task address according to the beacon correlation map between the target task address and surrounding task addresses, which improves the positioning accuracy of the target task terminal and the accuracy of the generated prompt information.

FIG. 9 is a flowchart of another beacon data processing method according to an embodiment of the present invention. As shown in FIG. 9 , the beacon data processing method according to the embodiment of the present invention includes the following steps:

Step S1: In response to the arrival instruction being triggered, the target task terminal 91 determines the set of beacon signals scanned by the target task address terminal. In an optional implementation manner, step S1 may include: in response to the arrival instruction being triggered, according to the target task terminal 91 within a predetermined time before the arrival instruction is triggered and/or within a predetermined time after the arrival instruction is triggered The scanned at least one beacon signal determines a set of beacon signals.

Step S2: The target task terminal 91 sends a beacon signal set to the server 92.

Step S3: The server 92 determines the target beacon list corresponding to the target task terminal. Optionally, the identifier of the target task address is determined according to the target task corresponding to the target task terminal 91, and the target beacon list is determined from the predetermined beacon lists according to the identifier of the target task address.

Step S4: The server 92 generates prompt information according to the matching state between the beacon signal set and the target beacon list. In an optional implementation manner, if a beacon device is not set at the target task address, or the beacon device set at the target task address is not turned on or damaged, the target task address can be monitored by beacon devices around the target task address. task terminal for positioning. Step S4 includes: in response to the ratio of the beacon signals in the beacon signal set and the same beacon signals in the target beacon list being greater than or equal to a preset value, generating and sending legal arrival information. The legal arrival information indicates that the target task terminal is located at the target task address. In another optional manner, if the target task address is provided with a beacon device and the beacon device is working normally, the target task terminal can be located through the beacon device of the target task address. Step S4 includes: in response to the target beacon signal in the target beacon list being included in the beacon signal set, generating and sending legal arrival information. Wherein, the target beacon signal is the signal of the beacon device set at the target task address. In another optional implementation manner, illegal arrival information is generated and sent in response to the set of beacon signals not matching the target beacon list.

Step S5 , the server 92 sends prompt information to the target task terminal 91 . In an optional implementation manner, the prompt information is legal arrival information or illegal arrival information.

Step S6: The target task terminal 91 displays prompt information on its display interface. Specifically, as shown in FIG. 3 and FIG. 4 , details are not repeated in this embodiment. In other optional implementation manners, the prompt may also be given according to voice information, which is not limited in this embodiment.

In this embodiment, the target task terminal determines the beacon signal set corresponding to the target task address, the server determines the target beacon list corresponding to the target task address, and generates and generates a beacon signal set according to the matching state between the beacon signal set and the target beacon list. Sending prompt information to the target task terminal, thus, it can be determined whether the target task terminal legally reaches the target task address according to the beacon correlation map between the target task address and the surrounding task addresses, which improves the positioning accuracy of the target task terminal and the generated prompt information. accuracy.

FIG. 10 is a schematic diagram of an apparatus for processing beacon data according to an embodiment of the present invention. As shown in FIG. 10 , the beacon data processing apparatus 10 according to the embodiment of the present invention includes a list acquisition unit 101 , a set determination unit 102 , and an information generation unit 103 .

The list obtaining unit 101 is configured to obtain the target beacon list corresponding to the target task address. In an optional implementation manner, the target beacon list is determined according to a set of beacon signals scanned by multiple task terminals at the target task address. Optionally, the beacon signals in the target beacon list are beacon signals scanned by multiple task terminals at the target task address for a continuous preset time.

The set determination unit 102 is configured to determine the set of beacon signals scanned by the target task terminal. In an optional implementation manner, the set determining unit 102 is further configured to determine the set of beacon signals scanned by the target task terminal in response to the arrival instruction being triggered. In an optional implementation manner, the set determining unit 102 includes a first set determining subunit 1021 . The first set determination subunit 1021 is configured to determine according to at least one beacon signal scanned by the target task terminal within a predetermined time before the arrival instruction is triggered and/or within a predetermined time after the arrival instruction is triggered the set of beacon signals. In another optional implementation manner, the set determining unit 102 includes a scanning subunit and a second set determining subunit. The scanning subunit is configured to control the target task terminal to scan the beacon signals in the target beacon list. The second set determining subunit is configured to determine the set of beacon signals according to the beacon signals in the target beacon list scanned by the target task terminal.

The information generating unit 103 is configured to generate prompt information according to the matching state between the beacon signal set and the target beacon list.

In an optional implementation manner, the information generating unit 103 includes a first information generating subunit 1031 . The first information generating subunit 1031 is configured to generate legal arrival information in response to the ratio of the beacon signals in the beacon signal set to the same beacon signals in the target beacon list being greater than or equal to a preset value, the The legal arrival information is used to indicate that the target task terminal is located at the target task address.

In an optional implementation manner, the information generating unit 103 includes a second information generating subunit 1032 . The second information generating subunit 1032 is configured to generate legal arrival information in response to the target beacon signal in the target beacon list being included in the beacon signal set, and the target beacon signal is set at the target The signal of the beacon device for the task address.

In an optional implementation manner, the information generating unit 103 includes a third information determining subunit 1033 . The third information determination subunit 1033 is configured to generate illegal arrival information in response to the set of beacon signals not matching the target beacon list.

In an optional implementation manner, the beacon data processing apparatus 10 in this embodiment further includes a first uploading unit 104 . The first uploading unit 104 is configured to upload the beacon signal set so that the server or the corresponding network platform can periodically update the beacon list corresponding to each task address according to the acquired beacon signal set, and improve the beacon list corresponding to each task address. accuracy of the list of targets.

In this embodiment, by acquiring the target beacon list corresponding to the target task address, determining the beacon signal set scanned by the target task terminal, and generating prompt information according to the matching state between the beacon signal set and the target beacon list, thereby , which can improve the positioning accuracy of the target task terminal and the accuracy of the prompt information.

FIG. 11 is a schematic diagram of another beacon data processing apparatus according to an embodiment of the present invention. As shown in FIG. 11 , the beacon data processing apparatus 11 according to the embodiment of the present invention includes a set determining unit 111 and a second uploading unit 112 .

The set determining unit 111 is configured to determine the set of beacon signals scanned by the task terminal in response to the arrival instruction being triggered. In an optional implementation manner, the set determination unit 111 includes a set determination subunit 1111 . The set determination subunit 1111 is configured to determine the signal according to at least one beacon signal scanned by the task terminal within a predetermined time before the arrival instruction is triggered and/or within a predetermined time after the arrival instruction is triggered. Collection of beacon signals.

The second uploading unit 112 is configured to upload the set of beacon signals.

This embodiment implements the accumulation of beacon signal sets corresponding to each task address by using a large number of beacon signal sets uploaded by task terminals after the arrival instruction is triggered, so that the server or the corresponding network platform can obtain a large number of beacon signals according to the collection of beacon signals. The beacon list corresponding to each task address is determined collectively, so as to improve the accuracy of subsequent target task terminal positioning and arrival status judgment.

FIG. 12 is a schematic diagram of another beacon data processing apparatus according to an embodiment of the present invention. As shown in FIG. 12 , the beacon data processing unit 12 in this embodiment includes a set acquisition unit 121 and an aggregation unit 122 . The set acquisition unit 121 is configured to acquire at least one beacon signal set corresponding to at least one task address. The aggregation unit 122 is configured to aggregate each beacon signal set to determine a beacon list corresponding to each of the task addresses.

In an optional implementation manner, the set acquisition unit 121 includes a signal acquisition subunit 1211 and a cleaning subunit 1212 . The signal acquisition subunit 1211 is configured to, for a task address, acquire beacon signals scanned by a plurality of task terminals at the task address. The cleaning subunit 1212 is configured to screen the beacon signals scanned by the task terminals at the task address for a continuous preset time to determine a set of beacon signals of the task terminals at the task address.

In an optional implementation manner, the aggregation unit 122 includes an aggregation sub-unit 1221 . The aggregation subunit 1221 is configured to, for a task address, determine a beacon list corresponding to the task address according to the same beacon signal in the beacon signal set of the task address of each task terminal.

In an optional implementation manner, the beacon data processing unit 12 in this embodiment further includes a target set acquiring unit 123 , a target list determining unit 124 , an information generating unit 125 and an information sending unit 126 .

The target set obtaining unit 123 is configured to obtain the beacon signal set corresponding to the target task address. The target list determination unit 124 is configured to determine a target beacon list corresponding to the target task address. The information generating unit 125 is configured to generate prompt information according to the matching state between the beacon signal set and the target beacon list. The information sending unit 126 is configured to send the prompt information.

In an optional implementation manner, the information generating unit 125 includes a first information generating subunit 1251 .

The first information generating subunit 1251 is configured to generate legal arrival information in response to the ratio of the beacon signals in the beacon signal set to the same beacon signals in the target beacon list being greater than or equal to a preset value, the The legal arrival information is used to indicate that the target task terminal is located at the target task address.

In an optional implementation manner, the information generating unit 125 includes a second information generating subunit 1252 . The second information generating subunit 1252 is configured to generate legal arrival information in response to the target beacon signal in the target beacon list being included in the beacon signal set, the target beacon signal being set at the target The signal of the beacon device for the task address.

In an optional implementation manner, the information generating unit 125 includes a third information generating subunit 1253 . The third information generating subunit 1253 is configured to generate illegal arrival information in response to the set of beacon signals not matching the target beacon list.

In this embodiment, by screening the beacon signals scanned by each task terminal at the task address for a continuous preset time, the set of beacon signals of each task terminal at the task address is determined, and according to the beacon signals of each task terminal at the task address The same beacon signal in the signal set determines the beacon list corresponding to the task address, so that the beacon signals that are accidentally scanned by the task terminal can be filtered out to ensure that when the task terminal reaches the target task address, the target task list can be scanned All or most of the beacon signals in, improving location accuracy.

FIG. 13 is a schematic diagram of an electronic device according to an embodiment of the present invention. In this embodiment, the electronic device 13 includes a server, a terminal, and the like. As shown in FIG. 13 , the electronic device 13: includes at least one processor 131; and, a memory 132 that is communicatively connected to the at least one processor 131; Receive and send data under the control of the beacon 131; wherein, the memory 132 stores instructions executable by the at least one processor 131, and the instructions are executed by the at least one processor 131 to implement the beacon data processing method.

Specifically, the electronic device includes: one or more processors 131 and a memory 132 , and one processor 131 is taken as an example in FIG. 13 . The processor 131 and the memory 132 may be connected through a bus or in other ways, and the connection through a bus is taken as an example in FIG. 13 . The memory 132, as a non-volatile computer-readable storage medium, can be used to store non-volatile software programs, non-volatile computer-executable programs and modules. The processor 131 executes various functional applications and data processing of the device by running the non-volatile software programs, instructions and modules stored in the memory 132, ie, implements the beacon data processing method described above.

The memory 132 may include a storage program area and a storage data area, wherein the storage program area may store an operating system, an application program required for at least one function; the storage data area may store an option list and the like. Additionally, memory 132 may include high-speed random access memory, and may also include non-volatile memory, such as at least one magnetic disk storage device, flash memory device, or other non-volatile solid state storage device. In some embodiments, memory 132 may optionally include memory located remotely relative to processor 131, which may be connected to external devices via a network. Examples of such networks include, but are not limited to, the Internet, an intranet, a local area network, a mobile communication network, and combinations thereof.

One or more modules are stored in the memory 132, and when executed by one or more processors 131, perform the beacon data processing method in any of the above method embodiments.

The above product can execute the methods provided by the embodiments of the present application, and have functional modules and beneficial effects corresponding to the execution methods. For technical details not described in detail in the present embodiments, reference may be made to the methods provided by the embodiments of the present application.

In the embodiment of the present invention, the target beacon list corresponding to the target task address is obtained, the set of beacon signals scanned by the target task terminal is determined, and the prompt information is generated according to the matching state between the set of beacon signals and the target beacon list , thus, the positioning accuracy of the target task terminal and the accuracy of the prompt information can be improved.

Another embodiment of the present invention relates to a non-volatile storage medium for storing a computer-readable program, the computer-readable program being used for a computer to execute some or all of the above method embodiments.

That is, those skilled in the art can understand that all or part of the steps in the method of implementing the above embodiments can be completed by specifying relevant hardware through a program, and the program is stored in a storage medium and includes several instructions to make a device ( It may be a single chip microcomputer, a chip, etc.) or a processor (processor) to execute all or part of the steps of the methods described in the embodiments of the present application. The aforementioned storage medium includes: U disk, removable hard disk, Read-Only Memory (ROM, Read-Only Memory), Random Access Memory (RAM, Random Access Memory), magnetic disk or optical disk and other media that can store program codes.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. For those skilled in the art, the present invention may have various modifications and changes. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included within the protection scope of the present invention.

The embodiment of the present invention discloses A1, a beacon data processing method, wherein the method includes:

Obtain the target beacon list corresponding to the target task address;

Determine the set of beacon signals scanned by the target task terminal;

Prompt information is generated according to the matching state between the beacon signal set and the target beacon list.

A2. The method according to A1, wherein determining the set of beacon signals scanned by the target task terminal includes:

In response to the arrival instruction being triggered, the set of beacon signals scanned by the target task terminal is determined.

A3. The method according to A2, wherein determining the set of beacon signals scanned by the target task terminal includes:

The set of beacon signals is determined according to at least one beacon signal scanned by the target task terminal within a predetermined time before the arrival instruction is triggered and/or within a predetermined time after the arrival instruction is triggered.

A4. The method according to A1 or A2, wherein determining the set of beacon signals scanned by the target task terminal includes:

controlling the target task terminal to scan the beacon signals in the target beacon list;

The set of beacon signals is determined according to the beacon signals in the target beacon list scanned by the target task terminal.

A5. The method according to A1, wherein generating the prompt information according to the matching state between the beacon signal set and the target beacon list includes:

In response to the ratio of the beacon signals in the beacon signal set to the same beacon signals in the target beacon list being greater than or equal to a preset value, generating legal arrival information, where the legal arrival information is used to represent the target task The terminal is located at the target task address.

A6. The method according to A1, wherein generating the prompt information according to the matching state between the beacon signal set and the target beacon list includes:

In response to the beacon signal set including a target beacon signal in the target beacon list, legal arrival information is generated, where the target beacon signal is a signal of a beacon device set at the target task address.

A7. The method according to A1, wherein generating the prompt information according to the matching state between the beacon signal set and the target beacon list further comprises:

Illegal arrival information is generated in response to the set of beacon signals not matching the target beacon list.

A8. The method according to A1, wherein the target beacon list is determined according to a set of beacon signals scanned by a plurality of task terminals at the target task address.

A9. The method according to A1, wherein the beacon signals in the target beacon list are beacon signals scanned by multiple task terminals at the target task address for a continuous preset time.

A10. The method according to A1, wherein the method further comprises:

Upload the set of beacon signals.

The embodiment of the present invention also discloses B1, a beacon data processing method, wherein the method includes:

In response to the arrival instruction being triggered, determine the set of beacon signals scanned by the task terminal;

Upload the set of beacon signals.

B2. The method according to B1, wherein determining the set of beacon signals scanned by the task terminal includes:

The set of beacon signals is determined according to at least one beacon signal scanned by the task terminal within a predetermined time before the arrival instruction is triggered and/or within a predetermined time after the arrival instruction is triggered.

The embodiment of the present invention also discloses C1, a beacon data processing method, wherein the method includes:

Obtain at least one beacon signal set corresponding to at least one task address;

Aggregate each beacon signal set to determine a beacon list corresponding to each of the task addresses.

C2. The method according to C1, wherein acquiring at least one beacon signal set corresponding to at least one task address includes:

For a task address, obtain beacon signals scanned by a plurality of task terminals at the task address;

Screening the beacon signals scanned by the task terminals at the task address for a continuous preset time to determine a set of beacon signals of the task terminals at the task address.

C3. The method according to C1, wherein aggregating each of the beacon signal sets to determine the beacon list corresponding to each of the task addresses includes:

For a task address, the beacon list corresponding to the task address is determined according to the same beacon signal in the beacon signal set of the task address of each task terminal.

C4. The method according to C1, wherein the method further comprises:

Obtain the beacon signal set corresponding to the target task address;

determining the target beacon list corresponding to the target task address;

According to the matching state between the beacon signal set and the target beacon list, prompt information is generated and sent.

C5. The method according to C4, wherein, according to the matching state between the beacon signal set and the target beacon list, generating and sending prompt information includes:

In response to the ratio of the beacon signals in the beacon signal set to the same beacon signals in the target beacon list being greater than or equal to a preset value, generating and sending legal arrival information, where the legal arrival information is used to characterize the The target task terminal is located at the target task address.

C6. The method according to C4, wherein, according to the matching state between the beacon signal set and the target beacon list, generating and sending prompt information includes:

In response to the beacon signal set including the target beacon signal in the target beacon list, generating and sending legal arrival information, the target beacon signal is the signal of the beacon device set at the target task address .

C7. The method according to C4, wherein, according to the matching state between the beacon signal set and the target beacon list, generating and sending prompt information includes:

In response to the set of beacon signals not matching the target beacon list, illegal arrival information is generated and transmitted.

The embodiment of the present invention also discloses D1, a beacon data processing device, wherein the device includes:

a list acquisition unit, configured to acquire the target beacon list corresponding to the target task address;

a set determining unit, configured to determine the set of beacon signals scanned by the target task terminal;

The information generating unit is configured to generate prompt information according to the matching state between the beacon signal set and the target beacon list.

D2. The apparatus according to D1, wherein the set determination unit is further configured to determine the set of beacon signals scanned by the target task terminal in response to the arrival instruction being triggered.

D3. The apparatus according to D1, wherein the set determining unit comprises:

The first set determination subunit is configured to determine according to at least one beacon signal scanned by the target task terminal within a predetermined time before the arrival instruction is triggered and/or within a predetermined time after the arrival instruction is triggered the set of beacon signals.

D4. The apparatus according to D1 or D2, wherein the set determination unit includes:

a scanning subunit, configured to control the target task terminal to scan the beacon signals in the target beacon list;

The second set determination subunit is configured to determine the beacon signal set according to the beacon signals in the target beacon list scanned by the target task terminal.

D5. The device according to D1, wherein the information generating unit comprises:

The first information generating subunit is configured to generate legal arrival information in response to the ratio of the beacon signals in the beacon signal set to the same beacon signals in the target beacon list being greater than or equal to a preset value, the The legal arrival information is used to indicate that the target task terminal is located at the target task address.

D6. The device according to D1, wherein the information generating unit comprises:

The second information generating subunit is configured to generate legal arrival information in response to the target beacon signal in the target beacon list being included in the beacon signal set, and the target beacon signal is set at the target The signal of the beacon device for the task address.

D7. The device according to D1, wherein the information generating unit further comprises:

A third information determination subunit is configured to generate illegal arrival information in response to the set of beacon signals not matching the target beacon list.

D8. The device according to D1, wherein the target beacon list is determined according to a set of beacon signals scanned by a plurality of task terminals at the target task address.

D9. The device according to D1, wherein the beacon signals in the target beacon list are beacon signals scanned by multiple task terminals at the target task address for a continuous preset time.

D10. The device according to D1, wherein the device further comprises:

The first uploading unit is configured to upload the set of beacon signals.

The embodiment of the present invention also discloses E1, a beacon data processing device, wherein the device includes:

a set determination unit, configured to be triggered in response to the arrival instruction, to determine the set of beacon signals scanned by the task terminal;

The second uploading unit is configured to upload the set of beacon signals.

E2. The apparatus according to E1, wherein the set determining unit comprises:

The set determination subunit is configured to determine the signal according to at least one beacon signal scanned by the task terminal within a predetermined time before the arrival instruction is triggered and/or within a predetermined time after the arrival instruction is triggered. Collection of beacon signals.

The embodiment of the present invention also discloses F1, a beacon data processing device, wherein the device includes:

a set acquisition unit, configured to acquire at least one beacon signal set corresponding to at least one task address;

The aggregation unit is configured to aggregate each beacon signal set, and determine a beacon list corresponding to each of the task addresses.

F2. The apparatus according to F1, wherein the set acquisition unit comprises:

a signal acquisition subunit, configured to acquire, for a task address, beacon signals scanned by a plurality of task terminals at the task address;

The signal cleaning subunit is configured to screen the beacon signals scanned by each task terminal at the task address for a continuous preset time, so as to determine a set of beacon signals of each task terminal at the task address.

F3. The apparatus according to F1, wherein the polymerization unit comprises:

The aggregation subunit is configured to, for a task address, determine a beacon list corresponding to the task address according to the same beacon signal in the beacon signal set of the task address of each task terminal.

F4. The apparatus according to F1, wherein the apparatus further comprises:

The target set acquisition unit is configured to acquire the beacon signal set corresponding to the target task address;

a target list determination unit, configured to determine a target beacon list corresponding to the target task address;

an information generating unit, configured to generate prompt information according to a matching state between the beacon signal set and the target beacon list;

an information sending unit, configured to send the prompt information.

F5. The device according to F4, wherein the information generating unit comprises:

The first information generating subunit is configured to generate legal arrival information in response to the ratio of the beacon signals in the beacon signal set to the same beacon signals in the target beacon list being greater than or equal to a preset value, the The legal arrival information is used to indicate that the target task terminal is located at the target task address.

F6. The device according to F4, wherein the information generating unit comprises:

The second information generating subunit is configured to generate legal arrival information in response to the target beacon signal in the target beacon list being included in the beacon signal set, and the target beacon signal is set at the target The signal of the beacon device for the task address.

F7. The apparatus according to F4, wherein the information generating unit comprises:

A third information generating subunit is configured to generate illegal arrival information in response to the set of beacon signals not matching the target beacon list.

The embodiment of the present invention also discloses G1, an electronic device including a memory and a processor, where the memory is used to store one or more computer program instructions, wherein the one or more computer program instructions are executed by the processor Performed to achieve the method of any of A1-A10 and/or the method of any of B1-B2 and/or the method of any of C1-C7.

The embodiment of the present invention also discloses H1, a computer-readable storage medium storing computer program instructions thereon, wherein the computer program instructions, when executed by a processor, are to implement any one of A1-A10. The method and/or the method of any one of B1-B2 and/or the method of any one of C1-C7.

Claims (10)

1. A method for beacon data processing, the method comprising:

acquiring a target beacon list corresponding to a target task address;

determining a beacon signal set scanned by a target task terminal;

and generating prompt information according to the matching state of the beacon signal set and the target beacon list.

2. The method of claim 1, wherein determining a set of beacon signals scanned by a target task terminal comprises:

and determining the beacon signal set scanned by the target task terminal in response to the arrival instruction being triggered.

3. The method of claim 2, wherein determining the set of beacon signals scanned by the target task terminal comprises:

and determining the beacon signal set according to at least one beacon signal scanned by the target task terminal within a preset time before the arrival instruction is triggered and/or within a preset time after the arrival instruction is triggered.

4. A method for beacon data processing, the method comprising:

in response to the arrival instruction being triggered, determining a beacon signal set scanned by the task terminal;

and uploading the beacon signal set.

5. A method for beacon data processing, the method comprising:

acquiring at least one beacon signal set corresponding to at least one task address;

and aggregating each beacon signal set, and determining a beacon list corresponding to each task address.

6. A beacon data processing apparatus, characterized in that the apparatus comprises:

the list acquisition unit is configured to acquire a target beacon list corresponding to the target task address;

a set determination unit configured to determine a set of beacon signals scanned by a target task terminal;

an information generating unit configured to generate prompt information according to a matching state of the beacon signal set and the target beacon list.

7. A beacon data processing apparatus, characterized in that the apparatus comprises:

a set determination unit configured to determine a set of beacon signals scanned by the task terminal in response to the arrival instruction being triggered;

a second uploading unit configured to upload the set of beacon signals.

8. A beacon data processing apparatus, characterized in that the apparatus comprises:

the device comprises a set acquisition unit, a task address acquisition unit and a task processing unit, wherein the set acquisition unit is configured to acquire at least one beacon signal set corresponding to at least one task address;

and the aggregation unit is configured to aggregate the beacon signal sets and determine a beacon list corresponding to each task address.

9. An electronic device comprising a memory and a processor, wherein the memory is configured to store one or more computer program instructions, wherein the one or more computer program instructions are executed by the processor to implement the method of any of claims 1-5.

10. A computer-readable storage medium on which computer program instructions are stored, which computer program instructions, when executed by a processor, are to implement a method according to any one of claims 1-5.

Images
