CN112006436A - Intelligent storage wardrobe facilitating clothes taking and placing - Google Patents
Intelligent storage wardrobe facilitating clothes taking and placing Download PDFInfo
- Publication number
- CN112006436A CN112006436A CN202010929432.6A CN202010929432A CN112006436A CN 112006436 A CN112006436 A CN 112006436A CN 202010929432 A CN202010929432 A CN 202010929432A CN 112006436 A CN112006436 A CN 112006436A
- Authority
- CN
- China
- Prior art keywords
- driving motor
- cabinet
- lifting mechanism
- cabinet door
- top box
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
Images
Classifications
-
- A—HUMAN NECESSITIES
- A47—FURNITURE; DOMESTIC ARTICLES OR APPLIANCES; COFFEE MILLS; SPICE MILLS; SUCTION CLEANERS IN GENERAL
- A47B—TABLES; DESKS; OFFICE FURNITURE; CABINETS; DRAWERS; GENERAL DETAILS OF FURNITURE
- A47B61/00—Wardrobes
-
- A—HUMAN NECESSITIES
- A47—FURNITURE; DOMESTIC ARTICLES OR APPLIANCES; COFFEE MILLS; SPICE MILLS; SUCTION CLEANERS IN GENERAL
- A47B—TABLES; DESKS; OFFICE FURNITURE; CABINETS; DRAWERS; GENERAL DETAILS OF FURNITURE
- A47B51/00—Cabinets with means for moving compartments up and down
-
- A—HUMAN NECESSITIES
- A47—FURNITURE; DOMESTIC ARTICLES OR APPLIANCES; COFFEE MILLS; SPICE MILLS; SUCTION CLEANERS IN GENERAL
- A47B—TABLES; DESKS; OFFICE FURNITURE; CABINETS; DRAWERS; GENERAL DETAILS OF FURNITURE
- A47B61/00—Wardrobes
- A47B61/04—Wardrobes for shoes, hats, umbrellas, or the like
-
- A—HUMAN NECESSITIES
- A47—FURNITURE; DOMESTIC ARTICLES OR APPLIANCES; COFFEE MILLS; SPICE MILLS; SUCTION CLEANERS IN GENERAL
- A47B—TABLES; DESKS; OFFICE FURNITURE; CABINETS; DRAWERS; GENERAL DETAILS OF FURNITURE
- A47B88/00—Drawers for tables, cabinets or like furniture; Guides for drawers
-
- E—FIXED CONSTRUCTIONS
- E06—DOORS, WINDOWS, SHUTTERS, OR ROLLER BLINDS IN GENERAL; LADDERS
- E06B—FIXED OR MOVABLE CLOSURES FOR OPENINGS IN BUILDINGS, VEHICLES, FENCES OR LIKE ENCLOSURES IN GENERAL, e.g. DOORS, WINDOWS, BLINDS, GATES
- E06B3/00—Window sashes, door leaves, or like elements for closing wall or like openings; Layout of fixed or moving closures, e.g. windows in wall or like openings; Features of rigidly-mounted outer frames relating to the mounting of wing frames
- E06B3/32—Arrangements of wings characterised by the manner of movement; Arrangements of movable wings in openings; Features of wings or frames relating solely to the manner of movement of the wing
- E06B3/48—Wings connected at their edges, e.g. foldable wings
- E06B3/481—Wings foldable in a zig-zag manner or bi-fold wings
- E06B3/482—Wings foldable in a zig-zag manner or bi-fold wings specially adapted for furniture
Landscapes
- Engineering & Computer Science (AREA)
- Civil Engineering (AREA)
- Structural Engineering (AREA)
- Power-Operated Mechanisms For Wings (AREA)
Abstract
The invention discloses an intelligent storage wardrobe convenient for taking and placing clothes, which comprises a wardrobe body, a wardrobe door opening and closing mechanism, a top box lifting mechanism, a drawer group, a wardrobe lifting mechanism, a jacket rack translation mechanism, a trousers hanging lifting mechanism and a control part, wherein the wardrobe door opening and closing mechanism comprises a wardrobe door, a first driving motor and a connecting rod mechanism; the top box lifting mechanism comprises a top box, a lifting frame body and a second driving motor; the drawer group and shoe cabinet lifting mechanism comprises a drawer group, a shoe cabinet, a pulley steel wire rope group and a third driving motor; the coat hanger translation mechanism comprises a coat hanger and a fourth driving motor; the trouser hook lifting mechanism comprises a trouser hook, a synchronous belt transmission component and a fifth driving motor; the cabinet body is also provided with a touch screen matched with the control part. The invention is convenient for opening and closing the cabinet door; and a top box lifting mechanism is designed at the top, a coat rack translation mechanism is designed in the middle, and a drawer group, a shoe cabinet lifting mechanism and a trouser hanging lifting mechanism are designed at the lower layer, so that people can conveniently take and place clothes at all layers.
Description
Technical Field
The invention belongs to the field of intelligent furniture, and particularly relates to an intelligent storage wardrobe convenient for taking and placing clothes.
Background
The household intelligent mechanical product just follows the development of the era and the requirements of users, and can improve the living standard of the users. In the process of daily life, inconvenience is caused to a user in the using process due to the insufficient functions of the existing wardrobe.
The wardrobe door adopts push-and-pull door structure more, if: patent CN209391400U, although the sliding door mechanism runs smoothly, it is inconvenient to ventilate all the clothes in the wardrobe because the two doors cannot be opened simultaneously; some wardrobes adopt a belt transmission mechanism, such as patent CN111329245A, although the belt transmission mechanism has smooth transmission and good flexibility, the belt transmission mechanism is easy to have elastic sliding and slipping after working for a period of time.
In the existing common household wardrobe, a top box positioned at the top of the wardrobe cannot be lowered, and clothes stored at a high layer of the wardrobe need to be taken and placed by means of a stool or a ladder; the storage cabinet at the bottom of the wardrobe cannot rise, and the clothes stored at the lower layer of the wardrobe need to be stooped down to be taken and put on the people with mobility inconvenience (especially the old).
The clothes stored in the high-rise or low-rise can be delivered to a wardrobe which can be easily taken by people through a certain mechanism, and related records are not seen at present.
Disclosure of Invention
In order to overcome the defects and shortcomings in the prior art, the invention provides a cabinet door opening and closing mechanism which is designed on a cabinet body and facilitates the opening and closing of a cabinet door; and a top box lifting mechanism is designed at the top, a coat rack translation mechanism is designed in the middle, a drawer group, a shoe cabinet lifting mechanism and a trouser hanging lifting mechanism are designed at the lower layer, and the actions of the mechanisms can be controlled by a control part by operating a touch screen, so that people (especially the old with inconvenient actions) can conveniently take and place clothes at all layers.
The technical scheme of the invention is as follows: an intelligent wardrobe convenient for taking and placing clothes comprises a wardrobe body, a wardrobe door opening and closing mechanism, a top box lifting mechanism, a drawer group, a shoe cabinet lifting mechanism, a jacket frame translation mechanism, a trouser hanging lifting mechanism and a control part matched with the wardrobe door opening and closing mechanism, the top box lifting mechanism, the drawer group lifting mechanism, the jacket frame translation mechanism and the trouser hanging lifting mechanism,
the cabinet door opening and closing mechanism comprises a cabinet door, a first driving motor for driving the cabinet door to move and a connecting rod mechanism for connecting the cabinet door and the first driving motor;
the top box lifting mechanism comprises a top box, a lifting frame body driving the top box to lift and a second driving motor driving the lifting frame body to move;
the drawer group and shoe cabinet lifting mechanism comprises a drawer group, a shoe cabinet, a pulley steel wire rope group for driving the drawer group and the shoe cabinet to lift and a third driving motor for driving the pulley steel wire rope group to move;
the coat hanger translation mechanism comprises a coat hanger and a fourth driving motor for driving the coat hanger to translate;
the trouser hook lifting mechanism comprises a trouser hook, a synchronous belt transmission assembly for driving the trouser hook to lift and a fifth driving motor for driving the synchronous belt transmission assembly to move;
the cabinet body is also provided with a touch screen matched with the control part.
The cabinet body is provided with the cabinet door opening and closing mechanism, so that the cabinet door can be conveniently opened and closed; and the top box lifting mechanism is designed at the top, the upper garment frame translation mechanism is designed at the middle, the drawer group, the shoe cabinet lifting mechanism and the trouser hanging lifting mechanism are designed at the lower layer, and the control part can control the actions of all the mechanisms by operating the touch screen, so that people (especially the old with inconvenient actions) can conveniently take and place clothes at all layers.
Preferably, the first driving motor is a servo motor and is fixed on the cabinet body, the first driving motor rotates and drives the L-shaped connecting rod to rotate through the coupler, the L-shaped connecting rod drives the connecting rod mechanism to move, the connecting rod mechanism is fixedly connected with the cabinet door, the cabinet door is composed of four door panels which are not connected with each other, and the cabinet door rotates for a certain angle in the opening and closing processes.
Preferably, when the link mechanism moves, the opening and closing of the cabinet door is driven, when the cabinet door is opened, the cabinet door is in two V shapes when viewed from the top, in the opening process of the cabinet door, the included angle between the V shapes is smaller and smaller until the cabinet door is completely opened, and when the cabinet door is closed, the included angle between the V shapes is larger and larger until the cabinet door is completely closed.
Preferably, the second driving motor is a stepping motor, and is installed on the lifting frame body, and the second driving motor rotates to drive the lifting frame body to move, so that the top box rolls along the track of the guide groove through the roller.
Preferably, when the top box moves to a certain position, the end of the lifting frame body hooks the counterweight block, and the air pressure rod also supports the lifting frame body, so that the weight of the top box and the weight of clothes in the box are balanced; when the lifting frame body continues to rotate, the guide blocks on the lifting frame body enter the tracks extending out of the guide sliding grooves to guide the lifting frame body to descend and extend out, the lifting frame body continues to rotate, and the top box descends to the lowest position.
Preferably, the lifting mechanism of the drawer set and the shoe cabinet realizes the lifting function of the drawer set and the shoe cabinet through the pulley steel wire rope set, wherein a winding wheel positioned at the upper right side is connected with a third driving motor, the third driving motor is a speed reducing motor, the winding wheel is connected with two pulleys at the lower side through a steel wire rope, one end of the steel wire rope is fixed on the winding wheel, and the other end of the steel wire rope is fixed at a position, corresponding to the height of the winding wheel, on the cabinet body through a steel wire rope fixing block.
Preferably, two pulleys located below are fixedly connected with the drawer set through a fixed connecting piece, the shoe cabinet is fixed at the bottom of the drawer set, three first optical axes are arranged on the inner wall of the cabinet body, first sliding blocks matched with the first optical axes are arranged on the drawer set and the shoe cabinet, and when the third driving motor drives the rolling wheel to rotate, the drawer set and the shoe cabinet are driven to ascend and descend along the first optical axes through the steel wire rope and the pulleys.
Preferably, the upper clothes rack is of a parallel four-bar structure, the whole upper clothes rack is driven to translate through rotation of a fourth driving motor fixed to the lower end of the upper clothes rack, and the purpose of sending clothes out of the wardrobe is achieved, and the fourth driving motor is a speed reduction motor.
Preferably, be equipped with three second optical axes on the inner wall of the cabinet body, be equipped with the second slider of cooperation second optical axis on the trousers are hung, the lift that the trousers were hung is realized by the transmission of hold-in range, and the rotation of rotatory driving pulley and hold-in range through fifth driving motor to reach the purpose that the trousers were hung along the lift of second optical axis, fifth driving motor is gear motor, and it installs on the cabinet body through motor fixed bolster.
Preferably, the wardrobe can send the clothes which the user wants to take to a reasonable position only by inputting instructions on the touch screen by the user, and the wardrobe can input corresponding instructions when the user wants to store the clothes.
The cabinet body is provided with the cabinet door opening and closing mechanism, so that the cabinet door can be conveniently opened and closed; and the top box lifting mechanism is designed at the top, the upper garment frame translation mechanism is designed at the middle, the drawer group, the shoe cabinet lifting mechanism and the trouser hanging lifting mechanism are designed at the lower layer, and the control part can control the actions of all the mechanisms by operating the touch screen, so that people (especially the old with inconvenient actions) can conveniently take and place clothes at all layers.
Drawings

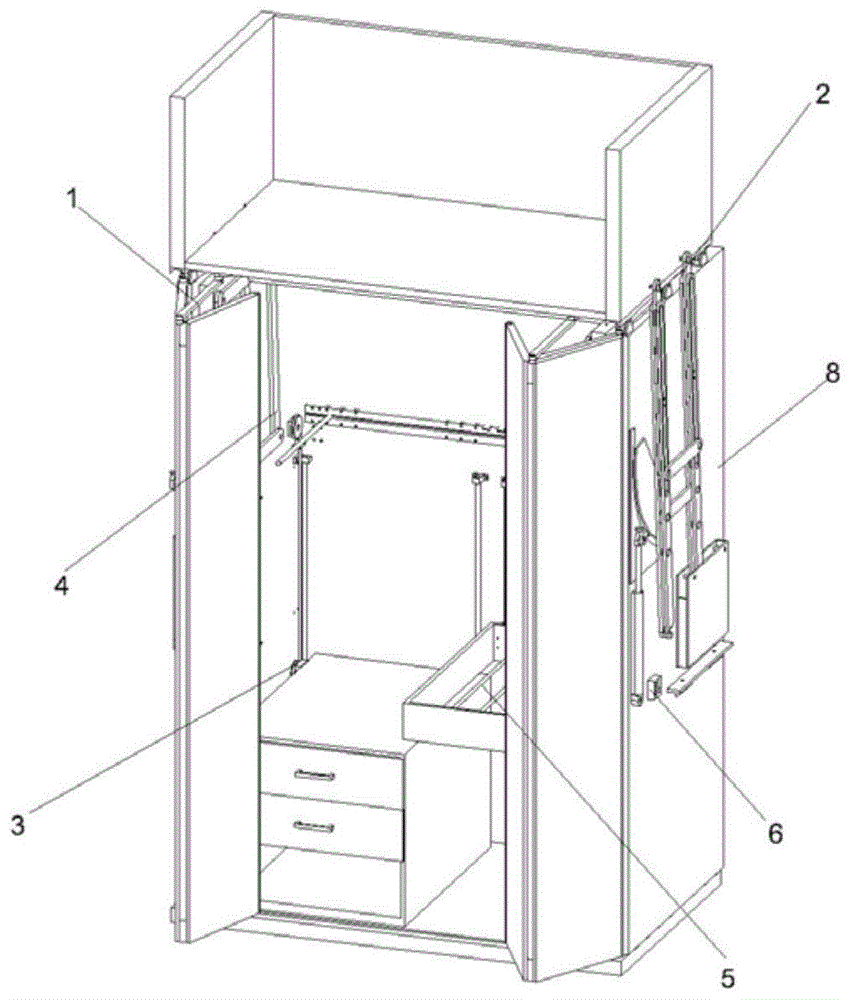

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural view of a cabinet door opening and closing mechanism according to the present invention;
FIG. 3 is a schematic structural view of a top box lifting mechanism according to the present invention;
FIG. 4 is a schematic structural view of the top box of the present invention after being lowered to a certain position;
FIG. 5 is a schematic structural view of a drawer set and a shoe cabinet lifting mechanism according to the present invention;
FIG. 6 is a schematic view of the translation mechanism of the jacket stand according to the present invention;
FIG. 7 is a schematic view of the lifting mechanism for hanging pants according to the present invention;
FIG. 8 is a schematic view of the installation of a touch screen according to the present invention;
in the figure, 1, a cabinet door opening and closing mechanism, 11, a cabinet door, 12, an L-shaped connecting rod, 13, a connecting rod mechanism, 14, a first driving motor, 15, a coupler, 2, a top box lifting mechanism, 21, a top box, 22, a roller, 23, a guide groove, 24, a lifting frame body, 25, a balancing weight, 26, a guide sliding groove, 27, a guide block, 28, a pneumatic rod, 29, a limiting strip, 210, a second driving motor, 3, a drawer group and a shoe cabinet lifting mechanism, 31, a drawer group, 32, a shoe cabinet, 33, a steel wire rope, 34, a first optical axis, 35, a pulley, 36, a third driving motor, 37, a rolling wheel, 38, a first sliding block, 39, a steel wire rope fixing block, 310, a fixing connecting piece, 4, a rack translation mechanism, 41, an upper hanger, 42, a fourth driving motor, 5, a trousers hanging lifting mechanism, 51, a synchronous belt transmission component, 52, a trousers hanger, 53, a second optical axis, 54, a fifth driving motor, 55. the electric cabinet comprises a motor fixing support, 56 parts of a second sliding block, 6 parts of a control part, 7 parts of a touch screen and 8 parts of a cabinet body.
Detailed Description
The present invention will be described in further detail with reference to the attached drawings, but the present invention is not limited thereto.
As shown in figures 1-8, an intelligent wardrobe convenient for taking and placing clothes comprises a wardrobe body 8, a wardrobe door opening and closing mechanism 1, a top box lifting mechanism 2, a drawer group and a wardrobe lifting mechanism 3, a coat hanger translation mechanism 4, a trouser hanging lifting mechanism 5, and a control part 6 matched with the wardrobe door opening and closing mechanism 1, the top box lifting mechanism 2, the drawer group lifting mechanism 3, the coat hanger translation mechanism 4 and the trouser hanging lifting mechanism 5,
the cabinet door opening and closing mechanism 1 comprises a cabinet door 11, a first driving motor 14 for driving the cabinet door 11 to move and a link mechanism 13 for connecting the cabinet door 11 and the first driving motor 14;
the top box lifting mechanism 2 comprises a top box 21, a lifting frame body 24 for driving the top box 21 to lift and a second driving motor 210 for driving the lifting frame body 24 to act;
the drawer set and shoe cabinet lifting mechanism 3 comprises a drawer set 31, a shoe cabinet 32, a pulley steel wire rope set for driving the drawer set 31 and the shoe cabinet 32 to lift and a third driving motor 36 for driving the pulley steel wire rope set to move;
the coat hanger translation mechanism 4 comprises an upper coat hanger 41 and a fourth driving motor 42 for driving the upper coat hanger 41 to translate;
the trouser hook lifting mechanism 5 comprises a trouser hook 52, a synchronous belt transmission component 51 for driving the trouser hook 52 to lift and a fifth driving motor 54 for driving the synchronous belt transmission component 51 to move;
the cabinet body 8 is also provided with a touch screen 7 matched with the control part 6.
The first driving motor 14 is a servo motor and is fixed on the cabinet body 8, the first driving motor 14 rotates and drives the L-shaped connecting rod 12 to rotate through the coupler 15, the L-shaped connecting rod 12 drives the connecting rod mechanism 13 to move, the connecting rod mechanism 13 is fixedly connected with the cabinet door 11, the cabinet door 11 is composed of four door panels which are not connected with each other, and the cabinet door 11 rotates for a certain angle in the opening and closing processes.
When the link mechanism 13 moves, the cabinet door 11 is driven to open and close, when the cabinet door 11 is opened, the cabinet door 11 is in two V shapes as seen from the upper side, in the opening process of the cabinet door 11, the included angle between the V shapes is smaller and smaller until the cabinet door 11 is completely opened, and when the cabinet door 11 is closed, the included angle between the V shapes is larger and larger until the cabinet door 11 is completely closed.
The second driving motor 210 is a stepping motor, and is installed on the lifting frame body 24, and the second driving motor 210 rotates to drive the lifting frame body 24 to move, so that the top box 21 rolls along the rail of the guide groove 23 through the roller 22.
When the top box 21 moves to a certain position, the end of the lifting frame body 24 hooks up the counterweight 25, and the air pressure rod 28 also supports against the lifting frame body 24, so that the weight of the top box 21 and the weight of clothes in the box are balanced; when the lifting frame body 24 continues to rotate, the guide block 27 on the lifting frame body 24 enters the track extending out of the guide chute 26, the lifting frame body 24 is guided to descend and extend, the lifting frame body 24 continues to rotate, and the top box 21 is lowered to the lowest position.
The drawer set and the shoe cabinet lifting mechanism 3 realize the lifting function of the drawer set 31 and the shoe cabinet 32 through a pulley steel wire rope set, wherein a rolling wheel 37 positioned at the upper right is connected with a third driving motor 36, the third driving motor 36 is a speed reducing motor, the rolling wheel 37 is connected with two pulleys 35 at the lower part through a steel wire rope 33, one end of the steel wire rope 33 is fixed on the rolling wheel 37, and the other end of the steel wire rope 33 is fixed on the cabinet body 8 through a steel wire rope fixing block 39 at a position corresponding to the height of the rolling wheel 37.
The two pulleys 35 located below are fixedly connected with the drawer set 31 through a fixed connecting piece 310, the shoe cabinet 32 is fixed at the bottom of the drawer set 31, three first optical axes 34 are arranged on the inner wall of the cabinet body 8, first sliding blocks 38 matched with the first optical axes 34 are arranged on the drawer set 31 and the shoe cabinet 32, and when the third driving motor 36 drives the rolling wheel 37 to rotate, the drawer set 31 and the shoe cabinet 32 are driven to lift along the first optical axes 34 through the steel wire rope 33 and the pulleys 35.
The upper clothes rack 41 is of a parallel four-bar structure, the whole upper clothes rack 41 is driven to translate through the rotation of a fourth driving motor 42 fixed with the lower end of the upper clothes rack 41, the purpose of sending clothes out of the wardrobe is achieved, and the fourth driving motor 42 is a speed reducing motor.
Be equipped with three second optical axes 53 on the inner wall of the cabinet body 8, be equipped with the second slider 56 of cooperation second optical axis 53 on the trousers are hung 52, and the lift of trousers are hung 52 and are realized by the transmission of hold-in range, and the rotation of rotatory driving pulley and hold-in range through fifth driving motor 54 to reach the purpose that trousers are hung 52 and are gone up and down along second optical axis 53, fifth driving motor 54 is gear motor, and it passes through the motor fixed bolster and installs on the cabinet body.
When the wardrobe is used, a user only needs to input an instruction on the touch screen, the wardrobe can send clothes which the user wants to take to a reasonable position, and when the wardrobe wants to store the clothes, the wardrobe also can input a corresponding instruction.
The control part in the invention can directly use a PLC controller, and can also adopt a conventional controller to be matched with an operation interface (a touch screen).
Claims (10)
1. The utility model provides a conveniently get intelligent storing wardrobe of putting clothing which characterized in that: which comprises a cabinet body, a cabinet door opening and closing mechanism arranged on the cabinet body, a top box lifting mechanism, a drawer group, a shoe cabinet lifting mechanism, a jacket rack translation mechanism, a trouser hanging lifting mechanism and a control part matched with the cabinet door opening and closing mechanism, the top box lifting mechanism, the drawer group lifting mechanism, the jacket rack translation mechanism and the trouser hanging lifting mechanism,
the cabinet door opening and closing mechanism comprises a cabinet door, a first driving motor for driving the cabinet door to move and a connecting rod mechanism for connecting the cabinet door and the first driving motor;
the top box lifting mechanism comprises a top box, a lifting frame body driving the top box to lift and a second driving motor driving the lifting frame body to move;
the drawer group and shoe cabinet lifting mechanism comprises a drawer group, a shoe cabinet, a pulley steel wire rope group for driving the drawer group and the shoe cabinet to lift and a third driving motor for driving the pulley steel wire rope group to move;
the coat hanger translation mechanism comprises a coat hanger and a fourth driving motor for driving the coat hanger to translate;
the trouser hook lifting mechanism comprises a trouser hook, a synchronous belt transmission assembly for driving the trouser hook to lift and a fifth driving motor for driving the synchronous belt transmission assembly to move;
the cabinet body is also provided with a touch screen matched with the control part.
2. The intelligent storage wardrobe convenient for clothes taking and placing according to claim 1, characterized in that: the first driving motor is a servo motor and is fixed on the cabinet body, the first driving motor rotates and drives the L-shaped connecting rod to rotate through the coupler, the L-shaped connecting rod drives the connecting rod mechanism to move, the connecting rod mechanism is fixedly connected with the cabinet door, the cabinet door is composed of four door panels which are not connected with each other, and the cabinet door rotates for a certain angle in the opening and closing process.
3. The intelligent storage wardrobe convenient for clothes taking and placing according to claim 2, characterized in that: when the connecting rod mechanism moves, the cabinet door is driven to be opened and closed, when the cabinet door is opened, the cabinet door is seen from the upper side to form two V-shaped structures, in the process of opening the cabinet door, the included angle between the V-shaped structures is smaller and smaller until the cabinet door is completely opened, and when the cabinet door is closed, the included angle between the V-shaped structures is larger and larger until the cabinet door is completely closed.
4. The intelligent storage wardrobe convenient for clothes taking and placing according to claim 1, characterized in that: the second driving motor is a stepping motor and is arranged on the lifting frame body, and the second driving motor rotates to drive the lifting frame body to move, so that the top box rolls along the track of the guide groove through the idler wheel.
5. The intelligent storage wardrobe convenient for clothes taking and placing according to claim 4, characterized in that: when the top box moves to a certain position, the end of the lifting frame body hooks the balancing weight, and the air pressure rod also supports the lifting frame body, so that the weight of the top box and the weight of clothes in the box are balanced; when the lifting frame body continues to rotate, the guide blocks on the lifting frame body enter the tracks extending out of the guide sliding grooves to guide the lifting frame body to descend and extend out, the lifting frame body continues to rotate, and the top box descends to the lowest position.
6. The intelligent storage wardrobe convenient for clothes taking and placing according to claim 1, characterized in that: the drawer set and the shoe cabinet lifting mechanism realize the lifting function of the drawer set and the shoe cabinet through the pulley steel wire rope set, wherein a rolling wheel positioned at the upper right side is connected with a third driving motor, the third driving motor is a speed reducing motor, the rolling wheel is connected with two pulleys at the lower side through a steel wire rope, one end of the steel wire rope is fixed on the rolling wheel, and the other end of the steel wire rope is fixed at the position, corresponding to the height of the rolling wheel, on the cabinet body through a steel wire rope fixing block.
7. The intelligent storage wardrobe convenient for clothes taking and placing according to claim 6, characterized in that: the two pulleys located below are fixedly connected with the drawer set through a fixed connecting piece, the shoe cabinet is fixed to the bottom of the drawer set, three first optical axes are arranged on the inner wall of the cabinet body, first sliding blocks matched with the first optical axes are arranged on the drawer set and the shoe cabinet, and when the third driving motor drives the rolling wheels to rotate, the drawer set and the shoe cabinet are driven to ascend and descend along the first optical axes through the steel wire ropes and the pulleys.
8. The intelligent storage wardrobe convenient for clothes taking and placing according to claim 1, characterized in that: the upper clothes rack is of a parallel four-bar structure, the whole upper clothes rack is driven to translate through the rotation of a fourth driving motor fixed to the lower end of the upper clothes rack, the purpose of sending clothes out of the wardrobe is achieved, and the fourth driving motor is a speed reduction motor.
9. The intelligent storage wardrobe convenient for clothes taking and placing according to claim 1, characterized in that: be equipped with three second optical axes on the inner wall of the cabinet body, be equipped with the second slider of cooperation second optical axis on the trousers are hung, and the lift that the trousers were hung is realized by the transmission of hold-in range, and the rotation of rotatory driving pulley and hold-in range through fifth driving motor to reach the purpose that the trousers were hung and are gone up and down along the second optical axis, fifth driving motor is gear motor, and it is installed on the cabinet body through motor fixed bolster.
10. The intelligent storage wardrobe convenient for clothes taking and placing according to claim 1, characterized in that: the user only needs to input an instruction on the touch screen, the wardrobe can send clothes which the user wants to take to a reasonable position, and when the user wants to store the clothes, the wardrobe can input a corresponding instruction.
