Simulation training device for ship power station Download PDFInfo
- Publication number
- CN111932971A CN111932971A CN202010835442.3A CN202010835442A CN111932971A CN 111932971 A CN111932971 A CN 111932971A CN 202010835442 A CN202010835442 A CN 202010835442A CN 111932971 A CN111932971 A CN 111932971A
- Authority
- CN
- China
- Prior art keywords
- groove
- wall
- adjusting seat
- power station
- training device
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Classifications
-
- G—PHYSICS
- G09—EDUCATION; CRYPTOGRAPHY; DISPLAY; ADVERTISING; SEALS
- G09B—EDUCATIONAL OR DEMONSTRATION APPLIANCES; APPLIANCES FOR TEACHING, OR COMMUNICATING WITH, THE BLIND, DEAF OR MUTE; MODELS; PLANETARIA; GLOBES; MAPS; DIAGRAMS
- G09B9/00—Simulators for teaching or training purposes
-
- H—ELECTRICITY
- H05—ELECTRIC TECHNIQUES NOT OTHERWISE PROVIDED FOR
- H05K—PRINTED CIRCUITS; CASINGS OR CONSTRUCTIONAL DETAILS OF ELECTRIC APPARATUS; MANUFACTURE OF ASSEMBLAGES OF ELECTRICAL COMPONENTS
- H05K5/00—Casings, cabinets or drawers for electric apparatus
- H05K5/02—Details
- H05K5/03—Covers
Landscapes
- Engineering & Computer Science (AREA)
- Theoretical Computer Science (AREA)
- Microelectronics & Electronic Packaging (AREA)
- Business, Economics & Management (AREA)
- Physics & Mathematics (AREA)
- Educational Administration (AREA)
- Educational Technology (AREA)
- General Physics & Mathematics (AREA)
- Transmission Devices (AREA)
Abstract
The invention belongs to the field of practical training devices, in particular to a ship power station simulation practical training device, which aims at the problems of poor dustproof effect, equipment interface and easy dust accumulation of the existing ship power station simulation practical training device and comprises a placing seat, wherein the top of the placing seat is provided with an adjusting seat, one side of the adjusting seat is provided with a plurality of inserting ports, one side of the adjusting seat, which is close to the inserting ports, is provided with a baffle in a sliding manner, the top of the adjusting seat is provided with a display screen, the top of the adjusting seat is provided with a groove, a lifting plate is arranged in the groove in a sliding manner, the top of the lifting plate is provided with a plurality of control keys, the inner wall of one side of the groove is provided with a transverse hole, a protective plate is arranged in the transverse hole in a sliding manner, the bottom of the protective plate is provided with an installation groove, and the, avoid the accumulation of dust, satisfy the user demand.
Description
Technical Field
The invention relates to the technical field of practical training devices, in particular to a simulation practical training device for a ship power station.
Background
A ship power station refers to a device which is arranged on a ship and used for converting mechanical energy into electric energy and monitoring, controlling, measuring, distributing and protecting the electric energy. The ship power supply protection device comprises a ship power supply, a ship power network, power distribution system equipment, power system protection equipment and the like. Can divide into main power source (main generating set), emergency power source (emergency generating set, storage battery, light current power supply), auxiliary power source (auxiliary generating set) and shore power case according to the power, distribution network can divide into main electric wire netting, emergency electric wire netting, lighting electric wire netting and light current electric wire netting, distribution and protection equipment have main distribution screen, emergency distribution screen, generator protection equipment and electric wire netting protection equipment etc. the real device of instructing of boats and ships power station emulation can make student's convenient and fast's grasp boats and ships power station, by real standard operation panel, main switch board, emergency switch board, shore power case, divide the power case, inverter cabinet and generator are constituteed.
The existing simulation training device for the ship power station is poor in dustproof effect, and dust is easy to accumulate at an equipment interface, so that the simulation training device for the ship power station is provided and used for solving the problems.
Disclosure of Invention
The invention aims to solve the defects that a simulation training device of a ship power station in the prior art is poor in dustproof effect and easy to accumulate dust at an equipment interface.
In order to achieve the purpose, the invention adopts the following technical scheme:
a simulation training device for a ship power station comprises a placing seat, wherein an adjusting seat is arranged at the top of the placing seat, a plurality of sockets are arranged on one side of the adjusting seat, a baffle is slidably mounted on one side, close to the sockets, of the adjusting seat, a display screen is arranged at the top of the adjusting seat, a groove is formed in the top of the adjusting seat, a lifting plate is slidably arranged in the groove, a plurality of control keys are arranged at the top of the lifting plate, a transverse hole is formed in the inner wall of one side of the groove, a protection plate is slidably mounted in the transverse hole, a mounting groove is formed in the bottom of the protection plate, a rack is fixedly mounted on the side wall of the mounting groove, a placing groove is formed in the inner wall of the bottom of the transverse hole, a motor is fixedly mounted on the inner wall of the bottom of the placing groove, a transmission rod, one side of push-and-pull plate and one side fixed connection of baffle, rotate on the top inner wall of lift groove and the bottom inner wall and install same drive screw, drive screw and push-and-pull plate threaded connection, the fixed cover in the outside of drive screw is equipped with fourth bevel gear, has seted up same mounting hole on the one side inner wall that lift groove and standing groove are close to each other, and the rotation is installed in the mounting hole has the horizontal pole, and the one end fixed mounting of horizontal pole has the third bevel gear who meshes with fourth bevel gear, and the other end fixed mounting of horizontal pole has the second bevel gear who is located the standing groove, and the fixed cover in the outside of transfer line is equipped with the first bevel gear who meshes with second bevel gear, the top fixed mounting of transfer line has the gear.
Preferably, a circular groove is formed in the inner wall of the bottom of the groove, a circular rod is slidably mounted in the circular groove, the top of the circular rod is fixedly connected with the bottom of the lifting plate, an annular block is rotatably mounted in the circular groove, and the annular block is in threaded connection with the circular rod.
Preferably, the top of the annular block is fixedly provided with a second chain wheel, the bottom end of the round rod penetrates through the second chain wheel, the outer side of the transmission rod is fixedly sleeved with a first chain wheel, and the first chain wheel and the second chain wheel are meshed with a same chain.
Preferably, the inner wall of the groove is fixedly provided with a slide rail, the outer side of the lifting plate is fixedly provided with a slide block, and the slide block is connected with the slide rail in a sliding manner.
Preferably, a bearing is fixedly mounted on the inner wall of one side of the placing groove, and the outer side of the cross rod is fixedly connected with an inner ring of the bearing.
Preferably, two fixed slots have been seted up at the top of placing the seat, all fixed being provided with the cylinder in two fixed slots, the output shaft of two cylinders all with the bottom fixed connection who adjusts the seat.
Preferably, the bottom fixed mounting who adjusts the seat has the slide, places the top of seat and has seted up the spout, the outside of slide and the inner wall sliding connection of spout.
Preferably, the inner wall of the annular block is provided with an internal thread, the outer side of the round rod is provided with an external thread, and the internal thread is matched with the external thread.
Compared with the prior art, the invention has the beneficial effects that:
when the scheme is used, the motor drives the transmission rod to rotate, the transmission rod drives the first bevel gear to rotate, the second bevel gear rotates along with the first bevel gear, the second bevel gear drives the transverse rod to rotate, the transverse rod drives the third bevel gear to rotate, the third bevel gear drives the fourth bevel gear to rotate, the fourth bevel gear drives the transmission screw to rotate, a push-pull plate in threaded connection with the transmission screw moves downwards, the push-pull plate drives the baffle to move downwards, and the jack is shielded and dustproof through the baffle;
according to the scheme, the transmission rod can drive the first chain wheel and the gear to rotate simultaneously, the first chain wheel drives the second chain wheel to rotate through the chain, the second chain wheel drives the annular block to rotate, the round rod in threaded connection with the annular block moves downwards, the round rod drives the lifting plate to move downwards, the lifting plate drives the plurality of control keys to move downwards, meanwhile, the rack moves rightwards through the rotation of the gear, the rack drives the guard plate to move rightwards to seal the groove, and therefore dust prevention is conducted on the control keys;
the dustproof device can prevent dust on the socket and the control key, avoids dust accumulation and meets the use requirement.
Drawings

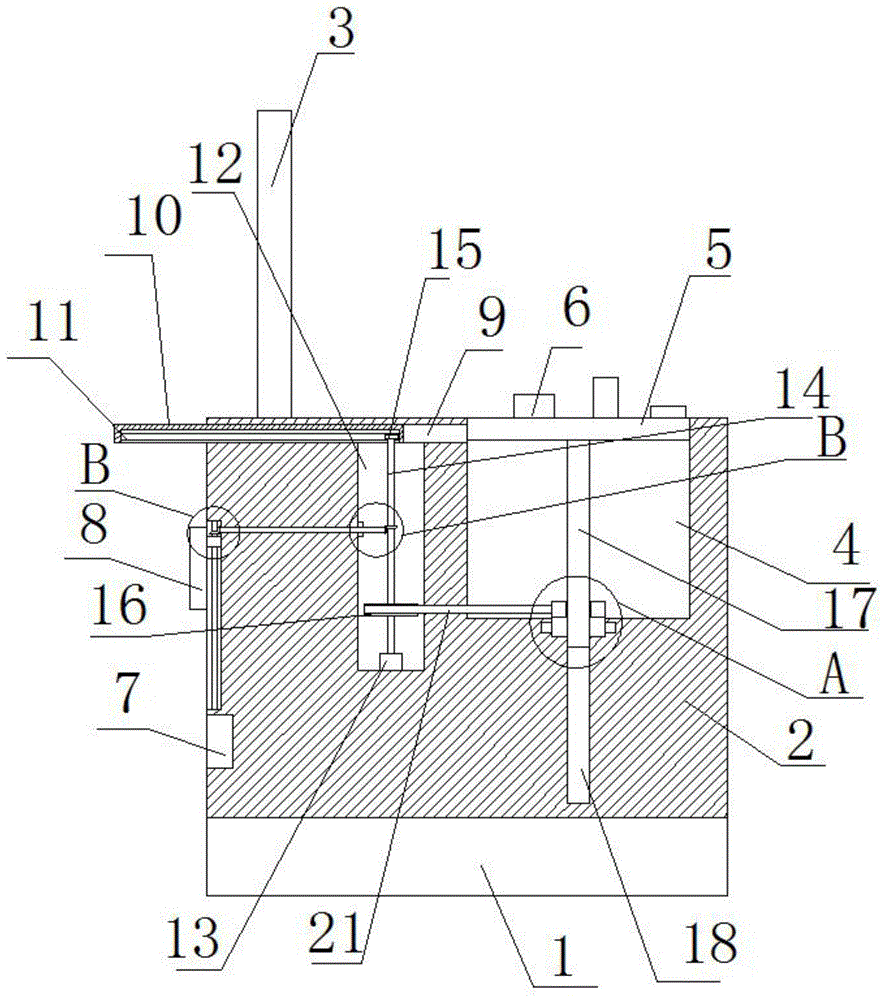

Fig. 1 is a schematic structural diagram of a simulation training device for a ship power station according to the present invention;
fig. 2 is a schematic side view of a simulation training device for a ship power station according to the present invention;
fig. 3 is a schematic structural diagram of a part a of a simulation training device for a marine power station according to the present invention;
fig. 4 is a schematic structural diagram of a part B of a simulation training device for a marine power station according to the present invention;
fig. 5 is a schematic structural diagram of a part C of the simulation training device for the marine power station according to the present invention.
In the figure: the device comprises a placing seat 1, an adjusting seat 2, a display screen 3, a groove 4, a lifting plate 5, a control key 6, a socket 7, a baffle 8, a transverse hole 9, a guard plate 10, a rack 11, a placing groove 12, a motor 13, a transmission rod 14, a gear 15, a first chain wheel 16, a round rod 17, a round groove 18, an annular block 19, a second chain wheel 20, a chain 21, a lifting groove 22, a push-pull plate 23, a transmission screw 24, a transverse rod 25, a first bevel gear 26, a second bevel gear 27, a third bevel gear 28, a fourth bevel gear 29 and a cylinder 30.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Example one
Referring to fig. 1-5, a simulation training device for a ship power station comprises a placing seat 1, an adjusting seat 2 is arranged at the top of the placing seat 1, a plurality of sockets 7 are arranged at one side of the adjusting seat 2, a baffle 8 is slidably mounted at one side of the adjusting seat 2 close to the sockets 7, a display screen 3 is arranged at the top of the adjusting seat 2, a groove 4 is formed at the top of the adjusting seat 2, a lifting plate 5 is slidably arranged in the groove 4, a plurality of control keys 6 are arranged at the top of the lifting plate 5, a transverse hole 9 is formed in the inner wall of one side of the groove 4, a guard plate 10 is slidably mounted in the transverse hole 9, a mounting groove is formed at the bottom of the guard plate 10, a rack 11 is fixedly mounted on the side wall of the mounting groove, a placing groove 12 is formed in the inner wall of the bottom of the transverse hole 9, a motor 13 is fixedly mounted on the inner wall, a push-pull plate 23 is slidably mounted in the lifting groove 22, one side of the push-pull plate 23 is fixedly connected with one side of the baffle 8, the same transmission screw 24 is rotatably mounted on the inner wall of the top and the inner wall of the bottom of the lifting groove 22, the transmission screw 24 is in threaded connection with the push-pull plate 23, a fourth bevel gear 29 is fixedly sleeved on the outer side of the transmission screw 24, the same mounting hole is formed in the inner wall of one side, close to the placing groove 12, of the lifting groove 22, a cross rod 25 is rotatably mounted in the mounting hole, a third bevel gear 28 meshed with the fourth bevel gear 29 is fixedly mounted at one end of the cross rod 25, a second bevel gear 27 located in the placing groove 12 is fixedly mounted at the other end of the cross rod 25, a first bevel gear 26 meshed with the second bevel gear 27 is fixedly sleeved on the outer side of the transmission.
In the invention, a circular groove 18 is formed on the inner wall of the bottom of the groove 4, a circular rod 17 is slidably mounted in the circular groove 18, the top of the circular rod 17 is fixedly connected with the bottom of the lifting plate 5, an annular block 19 is rotatably mounted in the circular groove 18, the annular block 19 is in threaded connection with the circular rod 17, and the circular rod 17 can vertically move by the rotation of the annular block 19.
According to the invention, a second chain wheel 20 is fixedly installed at the top of the annular block 19, the bottom end of the round rod 17 penetrates through the second chain wheel 20, a first chain wheel 16 is fixedly sleeved on the outer side of the transmission rod 14, the first chain wheel 16 and the second chain wheel 20 are meshed with a same chain 21, the first chain wheel 16 drives the second chain wheel 20 to rotate through the chain 21, and the second chain wheel 20 drives the annular block 19 to rotate.
In the invention, a slide rail is fixedly arranged on the inner wall of the groove 4, a slide block is fixedly arranged on the outer side of the lifting plate 5, the slide block is connected with the slide rail in a sliding manner, and the slide rail and the slide block enable the lifting plate 5 to stably and vertically slide.
In the invention, a bearing is fixedly arranged on the inner wall of one side of the placing groove 12, the outer side of the cross rod 25 is fixedly connected with the inner ring of the bearing, and the cross rod 25 stably rotates due to the arrangement of the bearing.
According to the invention, two fixing grooves are formed in the top of the placing seat 1, the air cylinders 30 are fixedly arranged in the two fixing grooves, the output shafts of the two air cylinders 30 are fixedly connected with the bottom of the adjusting seat 2, and the air cylinders 30 can adjust the height of the adjusting seat 2.
In the invention, the bottom of the adjusting seat 2 is fixedly provided with a sliding plate, the top of the placing seat 1 is provided with a sliding groove, and the outer side of the sliding plate is in sliding connection with the inner wall of the sliding groove.
In the invention, the inner wall of the annular block 19 is provided with internal threads, the outer side of the round rod 17 is provided with external threads, and the internal threads are matched with the external threads.
Example two
Referring to fig. 1-5, a simulation training device for a ship power station comprises a placing seat 1, an adjusting seat 2 is arranged at the top of the placing seat 1, a plurality of sockets 7 are arranged at one side of the adjusting seat 2, a baffle 8 is slidably mounted at one side of the adjusting seat 2 close to the sockets 7, a display screen 3 is arranged at the top of the adjusting seat 2, a groove 4 is formed at the top of the adjusting seat 2, a lifting plate 5 is slidably arranged in the groove 4, a plurality of control keys 6 are arranged at the top of the lifting plate 5, a transverse hole 9 is formed in the inner wall of one side of the groove 4, a guard plate 10 is slidably mounted in the transverse hole 9, a mounting groove is formed at the bottom of the guard plate 10, a rack 11 is fixedly mounted on the side wall of the mounting groove through a bolt, a placing groove 12 is formed in the inner wall of the bottom of the transverse hole 9, a motor 13, the lifting groove 22 is formed in one side of the adjusting seat 2, the push-pull plate 23 is slidably mounted in the lifting groove 22, one side of the push-pull plate 23 is fixedly connected with one side of the baffle 8, the same transmission screw 24 is rotatably mounted on the inner wall of the top and the inner wall of the bottom of the lifting groove 22, the transmission screw 24 is in threaded connection with the push-pull plate 23, a fourth bevel gear 29 is fixedly sleeved on the outer side of the transmission screw 24, the same mounting hole is formed in the inner wall of one side, close to the placing groove 12, of the lifting groove 22, a cross rod 25 is rotatably mounted in the mounting hole, a third bevel gear 28 meshed with the fourth bevel gear 29 is fixedly mounted at one end of the cross rod 25 through a bolt, a second bevel gear 27 located in the placing groove 12 is fixedly mounted at the other end of the cross rod 25 through a bolt, a first bevel gear 26 meshed with the second bevel gear 27 is fixedly sleeved on the.
In the invention, a circular groove 18 is formed on the inner wall of the bottom of the groove 4, a circular rod 17 is slidably mounted in the circular groove 18, the top of the circular rod 17 is fixedly connected with the bottom of the lifting plate 5, an annular block 19 is rotatably mounted in the circular groove 18, the annular block 19 is in threaded connection with the circular rod 17, and the circular rod 17 can vertically move by the rotation of the annular block 19.
According to the invention, a second chain wheel 20 is fixedly installed at the top of the annular block 19 through a bolt, the bottom end of the round rod 17 penetrates through the second chain wheel 20, a first chain wheel 16 is fixedly sleeved on the outer side of the transmission rod 14, the first chain wheel 16 and the second chain wheel 20 are meshed with a same chain 21, the first chain wheel 16 drives the second chain wheel 20 to rotate through the chain 21, and the second chain wheel 20 drives the annular block 19 to rotate.
In the invention, a slide rail is fixedly arranged on the inner wall of the groove 4 through a bolt, a slide block is fixedly arranged on the outer side of the lifting plate 5 through a bolt, the slide block is connected with the slide rail in a sliding manner, and the slide rail and the slide block enable the lifting plate 5 to stably and vertically slide.
In the invention, a bearing is fixedly arranged on the inner wall of one side of the placing groove 12 through a bolt, the outer side of the cross rod 25 is fixedly connected with the inner ring of the bearing, and the cross rod 25 stably rotates due to the arrangement of the bearing.
According to the invention, two fixing grooves are formed in the top of the placing seat 1, the air cylinders 30 are fixedly arranged in the two fixing grooves, the output shafts of the two air cylinders 30 are fixedly connected with the bottom of the adjusting seat 2, and the air cylinders 30 can adjust the height of the adjusting seat 2.
In the invention, the bottom of the adjusting seat 2 is fixedly provided with a sliding plate through a bolt, the top of the placing seat 1 is provided with a sliding groove, and the outer side of the sliding plate is connected with the inner wall of the sliding groove in a sliding manner.
In the invention, the inner wall of the annular block 19 is provided with internal threads, the outer side of the round rod 17 is provided with external threads, and the internal threads are matched with the external threads.
In the invention, when in use, the motor 13 is started through a switch, the motor 13 drives the transmission rod 14 to rotate, the transmission rod 14 drives the first bevel gear 26 to rotate, the second bevel gear 27 rotates along with the first bevel gear 26, the second bevel gear 27 drives the cross rod 25 to rotate, the cross rod 25 drives the third bevel gear 28 to rotate, the third bevel gear 28 drives the fourth bevel gear 29 to rotate, the fourth bevel gear 29 drives the transmission screw 24 to rotate, the push-pull plate 23 in threaded connection with the transmission screw 24 moves downwards, the push-pull plate 23 drives the baffle plate 8 to move downwards, the baffle plate 8 shields and prevents dust for the socket 7, the transmission rod 14 also drives the first chain wheel 16 and the gear 15 to rotate simultaneously, the first chain wheel 16 drives the second chain wheel 20 to rotate through the chain 21, the second chain wheel 20 drives the annular block 19 to rotate, the round rod 17 in threaded connection with the annular block 19 moves downwards, and the round rod 17 drives the lifting plate 5, the lifting plate 5 drives the control keys 6 to move downwards, meanwhile, the rack 11 is moved rightwards through the rotation of the gear 15, the rack 11 drives the guard plate 10 to move rightwards to seal the groove 4, the control keys 6 are prevented from dust, the adjusting seat 2 can be pushed to vertically move through the two cylinders 30, and therefore the height of the control keys 6 is adjusted.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and the technical solutions and the inventive concepts thereof according to the present invention should be equivalent or changed within the scope of the present invention.
