Abstract
The invention discloses a drainage tube fixing paste for surgical nursing, which comprises a paste application, a base, support frames and an adhesive tape, wherein a double-faced adhesive tape is arranged at the edge close to the bottom surface of the paste application, the base is fixed at the center of the top surface of the paste application, a plurality of support frames are sequentially fixed on the base from bottom to top, each support frame comprises a support plate and a support rod, the support rods are arranged at the edge close to the bottom surface of the support plate in a surrounding manner, the centers of the paste application, the base and the support plate are respectively provided with a paste body through hole, a base body through hole and a plate body through hole for a drainage tube to pass through, two ends of the adhesive tape are respectively wound and adhered on the support rods and the drainage tube, the adhesive tape is matched by arranging the support frames upwards at the top surface of the paste application, so that a, Bending to avoid secondary damage to the skin cannula mouth and ensure the drainage effect.
Description
[ technical field ] A method for producing a semiconductor device
The invention relates to the technical field of medical equipment, in particular to the technical field of a drainage tube fixing patch for surgical nursing.
[ background of the invention ]
The drainage tube is a medical appliance for clinical surgery drainage, which guides pus, blood and other liquid accumulated in human tissues or body cavities to the outside of the body, prevents postoperative infection and promotes wound healing. The drainage tube is generally made of silicon rubber or polyurethane and other materials, when in use, one end of the catheter is inserted into the drainage position in vivo or on a wound surface, the other end of the catheter can be mechanically connected with other external apparatuses in vitro, and drainage is carried out in vitro through the action of internal pressure, gravity or negative pressure suction isopiestic pressure. Patients in the department of severe medical science have serious illness, a plurality of drainage tubes are remained after operation, and sometimes 1 patient has more than 10 drainage tubes on the body. In order to prevent the drain tube from moving in the cannula opening of the skin and even falling out of the tube and to avoid pressure injury of the drain tube to the local skin, people usually fix the drain tube vertically to the skin surface by means of an adhesive tape. However, because the supporting force of the adhesive plaster is limited, the drainage tube is easy to bend and move under the unintentional touch of a patient or other people, so that secondary damage to the opening of the skin cannula is caused, and the drainage effect is also influenced.
[ summary of the invention ]
The invention aims to solve the problems in the prior art, and provides a drainage tube fixing paste for surgical nursing, which can form a plurality of supporting points for the drainage tube from top to bottom, has strong supporting force, and can effectively prevent one section of the drainage tube close to the skin from moving and bending.
In order to achieve the purpose, the invention provides a drainage tube fixing paste for surgical nursing, which comprises a paste application, a base, supporting frames and an adhesive tape, wherein a double-faced adhesive tape is arranged at the edge of the bottom surface of the paste application, the base is fixed in the center of the top surface of the paste application, the supporting frames are sequentially fixed on the base from bottom to top, the supporting frames comprise supporting plates and supporting rods, the supporting rods are arranged on the edge of the bottom surface of the supporting plate in a surrounding manner, a paste body through hole, a base body through hole and a plate body through hole for a drainage tube to pass through are respectively arranged in the centers of the paste application, the base and the supporting plates, and two ends of the adhesive tape are respectively.
Preferably, a seat body cavity is arranged in the base, a cotton block mass is arranged in the seat body cavity, and a cotton body through hole which is communicated with the body-attached through hole and the seat body through hole is formed in the center of the cotton block mass.
Preferably, at least two oppositely arranged support rods in the same support frame are respectively fixed with the drainage tube through adhesive tapes.
Preferably, still include length extension subassembly, length extension subassembly includes outer sleeve, inner skleeve, down tube and elastic ring, the bottom mounting of inner skleeve is located the superiors the backup pad top surface of support frame, the outer skleeve is established outside the inner skleeve, a plurality of the top of down tube encircles and articulates on the outer wall of outer skleeve, is located the superiors the backup pad top surface of support frame is equipped with a plurality of blend stops, the bottom of down tube supports on one of them blend stop, the open-top department at the outer skleeve is fixed to the elastic ring.
Preferably, the bottom end of the outer sleeve is provided with an inward turned flanging, and the top end of the inner sleeve is provided with an outward turned flanging.
Preferably, the bottom end of the barrier strip is provided with a double-faced adhesive tape.
Preferably, the number of the barrier strips is at least two.
The invention has the beneficial effects that: according to the invention, the plurality of support frames are arranged upwards on the top surface of the application paste and matched with the adhesive tape, so that a plurality of support points are formed on the drainage tube from top to bottom, the support force is strong, and a section of the drainage tube close to the skin can be effectively prevented from moving and bending, so that the secondary damage to the skin cannula opening is avoided, and the drainage effect is ensured; the cotton ball is arranged in the inner cavity of the base, so that partial exudate can be absorbed; through set up the double sleeve in the backup pad that is located the support frame of the superiors, utilize the down tube to support the double sleeve simultaneously, utilize the elastic ring to fix the drainage tube to can be in certain extent, the extension is to the fixed of drainage tube.
The features and advantages of the present invention will be described in detail by embodiments in conjunction with the accompanying drawings.
[ description of the drawings ]
FIG. 1 is a schematic view of the operation of a drainage tube fixing patch for surgical nursing of the present invention;

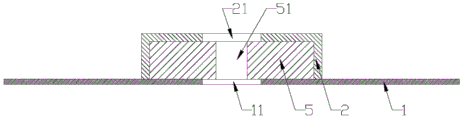

FIG. 2 is a front cross-sectional view of an applicator, a base and a cotton ball of a drainage tube securement strip for surgical care of the present invention after attachment;
FIG. 3 is a top view of a length extension assembly and a support plate of a surgical care drainage tube securement strip of the present invention after attachment;
FIG. 4 is a front cross-sectional view of a length extension assembly and a support plate of a surgical care drainage tube attachment strip of the present invention after attachment.
In the figure: 1-application, 11-body-fitting through hole, 2-base, 21-base body through hole, 3-support frame, 31-support plate, 311-plate body through hole, 312-barrier strip, 32-support rod, 4-adhesive tape, 5-cotton block, 51-cotton body through hole, 6-length extension component, 61-outer sleeve, 611-inner flanging, 62-inner sleeve, 621-outer flanging, 63-diagonal rod, 64-elastic ring and 7-drainage tube.
[ detailed description ] embodiments
Referring to fig. 1 to 4, the drainage tube fixing paste for surgical nursing of the invention comprises a paste 1, a base 2, support frames 3 and an adhesive tape 4, wherein a double-faced adhesive tape is arranged at the edge of the bottom surface of the paste 1, the base 2 is fixed at the center of the top surface of the paste 1, a plurality of support frames 3 are sequentially fixed on the base 2 from bottom to top, the support frames 3 comprise a support plate 31 and support rods 32, a plurality of support rods 32 are arranged at the edge of the bottom surface of the support plate 31 in a surrounding manner, the centers of the paste 1, the base 2 and the support plate 31 are respectively provided with a paste body through hole 11, a base body through hole 21 and a plate body through hole 311 for the drainage tube 7 to pass through, and two ends of a plurality of the adhesive tapes 4 are.
A seat body cavity is arranged in the base 2, a cotton block 5 is arranged in the seat body cavity, and a cotton through hole 51 which is respectively communicated with the close body through hole 11 and the seat body through hole 21 is arranged in the center of the cotton block 5.
At least two oppositely arranged support rods 32 in the same support frame 3 are respectively fixed with the drainage tube 7 through the adhesive tape 4.
Still include length extension subassembly 6, length extension subassembly 6 includes outer sleeve 61, inner skleeve 62, down tube 63 and elastic ring 64, the bottom mounting of inner skleeve 62 is located the superiorly the backup pad 31 top surface of support frame 3, outer skleeve 61 cover is established outside inner skleeve 62, a plurality of the top of down tube 63 encircles and articulates on the outer wall of outer skleeve 61, is located the superiorly the backup pad 31 top surface of support frame 3 is equipped with a plurality of blend stops 312, the bottom of down tube 63 supports on one of them blend stop 312, elastic ring 64 is fixed at the open-top of outer skleeve 61.
The bottom end of the outer sleeve 61 is provided with an inward turned inner flange 611, and the top end of the inner sleeve 62 is provided with an outward turned outer flange 621.
The bottom end of the barrier strip 312 is provided with a double-faced adhesive tape.
The number of the barrier ribs 312 is at least two.
The working process of the invention is as follows:
firstly, the double-sided adhesive plaster on the bottom surface of the plaster 1 is torn off and is stuck on the skin of a patient, and the drainage tube 7 inserted on the body of the patient sequentially penetrates upwards along the plaster through hole 11, the cotton body through hole 51, the seat body through hole 21, the plate body through hole 311 and the elastic ring 64. Then, both ends of the adhesive tape 4 are respectively wound around and adhered to the support bar 32 and the drainage tube 7, thereby tightening and supporting the drainage tube 7.
If the extension of the supporting section of the drainage tube 7 is needed, firstly, the double-faced adhesive tape at the bottom end of the inclined rod 63 is torn off, then the outer sleeve 61 is slid upwards along the inner sleeve 62, and then the inclined rod 63 is rotated and the bottom end of the inclined rod 63 is abutted against and adhered with the stop strip 312.
According to the invention, the plurality of support frames are arranged upwards on the top surface of the application paste and matched with the adhesive tape, so that a plurality of support points are formed on the drainage tube from top to bottom, the support force is strong, and a section of the drainage tube close to the skin can be effectively prevented from moving and bending, so that the secondary damage to the skin cannula opening is avoided, and the drainage effect is ensured; the cotton ball is arranged in the inner cavity of the base, so that partial exudate can be absorbed; through set up the double sleeve in the backup pad that is located the support frame of the superiors, utilize the down tube to support the double sleeve simultaneously, utilize the elastic ring to fix the drainage tube to can be in certain extent, the extension is to the fixed of drainage tube.
The above embodiments are illustrative of the present invention, and are not intended to limit the present invention, and any simple modifications of the present invention are within the scope of the present invention.
Claims (7)
1. The utility model provides a fixed subsides of drainage tube for surgical nursing which characterized in that: including applying ointment or plaster (1), base (2), support frame (3) and sticky tape (4), the bottom surface of applying ointment or plaster (1) is close to the edge and is equipped with the double faced adhesive tape and pastes, base (2) are fixed in the top surface central authorities of applying ointment or plaster (1), and supreme fixing is in proper order on base (2) down followed in a plurality of support frame (3), support frame (3) are including backup pad (31) and bracing piece (32), and a plurality of bracing piece (32) encircle to be set up and are close to the edge in the bottom surface of backup pad (31), the central authorities of applying ointment or plaster (1), base (2) and backup pad (31) are equipped with respectively and supply paster body through-hole (11), pedestal through-hole (21) and plate body through-hole (311) that drainage tube (7) passed, a plurality of the both ends of sticky tape (4.
2. The drainage tube fixing patch for surgical nursing according to claim 1, wherein: the novel seat is characterized in that a seat body cavity is arranged in the base (2), a cotton block mass (5) is arranged in the seat body cavity, and a cotton body through hole (51) which is communicated with the close body through hole (11) and the seat body through hole (21) is formed in the center of the cotton block mass (5).
3. The drainage tube fixing patch for surgical nursing according to claim 1, wherein: at least two oppositely arranged support rods (32) in the same support frame (3) are respectively fixed with the drainage tube (7) through an adhesive tape (4).
4. The drainage tube fixing patch for surgical nursing according to claim 1, wherein: still include length extension subassembly (6), length extension subassembly (6) include outer sleeve (61), inner skleeve (62), down tube (63) and elastic ring (64), the bottom mounting of inner skleeve (62) is located the superiors backup pad (31) top surface of support frame (3), outer sleeve (61) cover is established outside inner skleeve (62), a plurality of the top of down tube (63) is around articulating on the outer wall of outer sleeve (61), is located the superiors backup pad (31) top surface of support frame (3) is equipped with a plurality of blend stops (312), the bottom of down tube (63) supports on one of them blend stop (312), the open-top department at outer sleeve (61) is fixed in elastic ring (64).
5. The drainage tube fixing patch for surgical nursing according to claim 4, wherein: the bottom end of the outer sleeve (61) is provided with an inward turned inner flange (611), and the top end of the inner sleeve (62) is provided with an outward turned outer flange (621).
6. The drainage tube fixing patch for surgical nursing according to claim 4, wherein: the bottom end of the barrier strip (312) is provided with a double-faced adhesive tape.
7. The drainage tube fixing patch for surgical nursing according to claim 4, wherein: the number of the barrier strips (312) is at least two.
