Abstract
The invention discloses a surgical nursing washing frame which comprises a fixed base, wherein a universal wheel with a brake is fixedly connected to the lower surface of the fixed base, a supporting rod is fixedly connected to the upper surface of the fixed base, the supporting rod is of a hollow tubular structure, the two supporting rods are fixedly connected with a hand-push cross rod to form a working frame, a nursing article placing box is fixedly connected to the surface of the supporting rod, and an outward-opening box door is rotatably connected to the front side of the nursing article placing box through a hinge. This frame is washed in surgical nursing, through area brake universal wheel and hand push horizontal pole, enable this nursing and wash the frame and be convenient for remove and fix in a certain position, through area brake universal wheel, make this work frame be convenient for remove, through lift slide bar and spacing jackscrew, be convenient for adjust the height of nursing frame under the condition of difference, through the suspender, limbs pass the suspender, are in antiseptic solution drain pipe below with the affected part, make limbs continuously keep certain position, the medical staff of being convenient for is convenient for wrap up the affected part.
Description
Technical Field
The invention relates to the technical field of medical instruments, in particular to a surgical nursing flushing frame.
Background
Surgery is the science of studying the occurrence, development law and clinical manifestations, diagnosis, prevention and treatment of surgical diseases, is a professional department taking surgical excision and repair as main treatment means, and is greatly developed along with the application of microsurgery technology. The special setting principle of each hospital surgery is similar to that of the internal medicine, and generally corresponds to the internal medicine. Surgical diseases are divided into five major groups, trauma, infection, tumor, deformity and dysfunction.
In hospital's surgical ward, dressing change for inpatient washs the affected part and wraps the most common nursing mode, needs medical staff to wrap to the affected part manually, but the affected part of general surgery patient mostly all takes place in four limbs department, in the operation process of changing dressings for this type of patient, requires patient's limbs can stably keep in certain position at first to the surface of a wound is handled.
When a patient who cannot move is encountered, the medical staff is required to lift and clean the wrapped place, so that the time spent on treating the affected part by the medical staff is prolonged, and the working difficulty and the working load of the medical staff are increased.
In response to the above problems, we have devised a surgical care irrigation frame.
Disclosure of Invention
The present invention is directed to a surgical nursing irrigation frame that solves the problems set forth above in the background art.
In order to achieve the purpose, the invention provides the following technical scheme: a surgical nursing washing frame comprises a fixed base, wherein the lower surface of the fixed base is fixedly connected with universal wheels with brakes, the upper surface of the fixed base is fixedly connected with supporting rods, the supporting rods are of a hollow tubular structure, the two supporting rods are fixedly connected with a hand-push cross rod to form a working frame, the surface of each supporting rod is fixedly connected with a nursing article placing box, the front surface of each nursing article placing box is provided with an outward-opening box door in a rotating connection through a hinge, the surface of each supporting rod is fixedly connected with a limiting jackscrew, a lifting slide rod is inserted into the top of each supporting rod, the top end of each lifting slide rod is fixedly connected with a nursing frame, the upper surface of the right side of the nursing frame is provided with a disinfection box, each disinfection box comprises a disinfection tube fixed base fixedly connected to the upper surface of the nursing frame, the upper surface of each disinfection tube fixed base is provided with a disinfection tube, a plurality of ultraviolet ray disinfection lamp equidistance sets up the inner wall at the disinfection pipe, antiseptic solution holding vessel has been placed to nursing frame upper surface, and antiseptic solution holding vessel is located the disinfect box left side, the bottom fixedly connected with antiseptic solution drain pipe of antiseptic solution holding vessel, the lower fixed surface of nursing frame is connected with the telescopic link, the bottom fixedly connected with lamp shade of telescopic link, roof fixedly connected with a plurality of LED fluorescent tube in the lamp shade, the rubbish waste liquid bucket has been placed to unable adjustment base's upper surface, the last fixed surface of bracing piece is connected with the support frame, the support frame includes support column and diagonal brace, support frame top fixedly connected with backup pad, the wash platform has been placed to the backup pad upper surface.
Preferably, the material of external-open chamber door is transparent plastic, the positive fixedly connected with chamber door handle of external-open chamber door, chamber door locking hole has been seted up in the front of external-open chamber door, the inner wall fixedly connected with horizontal baffle of case is placed to nursing materials, the middle part fixedly connected with of horizontal baffle erects the baffle, horizontal baffle and perpendicular baffle are placed the case evenly divided formation nursing materials and are placed the region with nursing materials, the box is placed to the positive fixedly connected with label of external-open chamber door, and the position that the box was placed to the label is placed regional corresponding with nursing materials.
Preferably, the material of disinfection pipe is plastics, the front of disinfection pipe is provided with the external-open lid, the side of disinfection pipe unable adjustment base is provided with the ultraviolet lamp switch, the right-hand member of disinfection pipe unable adjustment base is seted up and is put the wire hole, the inside fixedly connected with lithium ion battery of disinfection pipe unable adjustment base.
Preferably, the antiseptic solution holding vessel is the cylinder type structure, the antiseptic solution inlet has been seted up to the upper surface of antiseptic solution holding vessel, and the upper surface threaded connection of antiseptic solution inlet has rather than the sealed lid of looks adaptation.
Preferably, the material of antiseptic solution drain pipe is rubber, the one end fixedly connected with control flap that antiseptic solution holding vessel was kept away from to the antiseptic solution drain pipe, the bottom fixed mounting of antiseptic solution drain pipe has the disinfection handle.
Preferably, the upper surface of the left side of the lampshade is provided with a lighting switch, and the inside of the lampshade is fixedly connected with a lithium ion battery.
Preferably, the surface of the supporting column is fixedly connected with an inclined supporting rod, and one end of the inclined supporting rod, which is far away from the supporting column, is fixedly connected to the lower surface of the supporting plate.
Preferably, the material of the flushing table is plastic, a drain pipe is fixedly connected to the right end of the flushing table, and the drain end of the drain pipe extends to the interior of the garbage waste liquid barrel.
Preferably, the lower surface of the nursing frame is fixedly connected with a suspension belt used for suspending the injured part of the human body, and the suspension belt is made of terylene.
Advantageous effects
The invention provides a surgical nursing washing frame, which has the following beneficial effects:
1. this surgical nursing washes frame, through setting up area brake universal wheel and hand push horizontal pole, enable this nursing and wash frame and be convenient for remove and fix in a certain position, through setting up area brake universal wheel, make this work frame be convenient for remove, through setting up lift slide bar and spacing jackscrew, be convenient for adjust the height of nursing frame under the condition of difference, through setting up the suspender, the limbs passes the suspender, be in antiseptic solution drain pipe below with the affected part, make the limbs continuously keep certain position, the medical staff of being convenient for is convenient for wrap up the affected part.
2. This frame is washed in surgical nursing places case, disinfection pipe and ultraviolet ray disinfection lamp through setting up nursing articles for use, enables the bandage disinfection and prevents that the bandage from infecting taking of the nursing articles for use of being convenient for to the wound of affected part, through setting up the telescopic link, enables to adjust the height of needs in needs, through setting up the disinfect box, carries out disinfection to the bandage and avoids causing the infection to the affected part when wrapping the wound.
Drawings

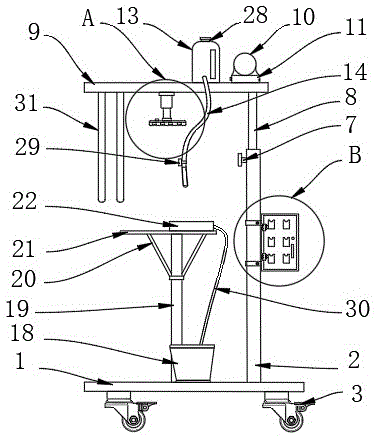

FIG. 1 is a schematic front view of the present invention;
FIG. 2 is a schematic side view of the present invention;
FIG. 3 is an enlarged view of the structure at A in FIG. 1;
FIG. 4 is an enlarged view of the structure at B in FIG. 1;
FIG. 5 is a schematic front sectional view of the bandage sterilization case of the present invention;
FIG. 6 is a schematic view of a front cross-sectional structure of the nursing material storage box of the present invention.
In the figure: the nursing care box comprises a fixing base 1, a supporting rod 2, a universal wheel with a brake 3, a hand-push cross rod 4, a nursing article placing box 5, a box door 6 opened outwards, a limit jackscrew 7, a lifting slide rod 8, a nursing frame 9, a disinfection tube 10, a disinfection tube fixing base 11, an ultraviolet disinfection lamp 12, a disinfectant storage tank 13, a disinfectant outlet tube 14, a telescopic rod 15, a lampshade 16, a LED lamp tube 17, a garbage waste liquid barrel 18, a supporting column 19, an inclined supporting rod 20, a supporting plate 21, a flushing table 22, a box door handle 23, a box door locking hole 24, a transverse baffle 25, a vertical baffle 26, a label placing box 27, a disinfectant liquid inlet 28, a control valve 29, a sewage discharge pipe 30 and a suspension belt 31.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides a technical solution: the utility model provides a frame is washed in surgical nursing, including unable adjustment base 1, unable adjustment base 1's lower fixed surface is connected with area brake universal wheel 3, unable adjustment base 1's last fixed surface is connected with bracing piece 2, bracing piece 2 is hollow tubular structure, and two bracing pieces 2 and hand push horizontal pole 4 fixed connection form the work frame, through setting up area brake universal wheel 3 and hand push horizontal pole 4, enable this nursing and wash the frame and be convenient for remove and fix in a certain position, through setting up area brake universal wheel 3, make this work frame be convenient for remove, the case 5 is placed to the fixed surface of bracing piece 2 is connected with nursing materials.
The front of nursing materials placing box 5 is through hinge rotation connection's outer door 6 that opens, the material of outer door 6 that opens is transparent plastic, the front fixedly connected with chamber door handle 23 of outer door 6 that opens, chamber door locking hole 24 has been seted up in the front of outer door that opens, nursing materials placing box 5's inner wall fixedly connected with horizontal baffle 25, baffle 26 is erected to the middle part fixedly connected with of horizontal baffle 25, horizontal baffle 25 with erect baffle 26 and place 5 evenly-divided formation nursing materials placing area with nursing materials placing box, box 27 is placed to the front fixedly connected with label of outer door 6, and the position that box 27 was placed to the label is corresponding with nursing materials placing area.
The fixed surface of bracing piece 2 is connected with spacing jackscrew 7, it has lift slide bar 8 to peg graft at the top of bracing piece 2, through setting up lift slide bar 8 and spacing jackscrew 7, can adjust different heights under the circumstances of difference, lift slide bar 8's top fixedly connected with nursing frame 9, fixed surface is connected with the suspender 31 that is used for hanging the injured part of people's health under nursing frame 9, suspender 31 material is the dacron, through setting up antiseptic solution drain pipe 14, control flap 29 and suspender 31, enable the patient when the certain position of holding that can not be stable, also enable the patient and keep certain position, be convenient for medical staff to the affected part cleaning and disinfecting and wrap.
The disinfect box has been placed to nursing frame 9's right side upper surface, and the disinfect box includes the disinfection pipe unable adjustment base 11 of fixed connection at nursing frame 9 upper surface, and the material of disinfection pipe 10 is plastics, and the front of disinfection pipe 10 is provided with the external-open lid, and the side of disinfection pipe unable adjustment base 11 is provided with the ultraviolet lamp switch, and the wire hole has been put to the right-hand member of disinfection pipe unable adjustment base 11, and the inside fixedly connected with lithium ion battery of disinfection pipe unable adjustment base 11.
Disinfection pipe unable adjustment base 11's upper surface is provided with disinfection pipe 10, the inner wall fixedly connected with a plurality of ultraviolet ray disinfection lamp 12 of disinfection pipe 10, a plurality of ultraviolet ray disinfection lamp 12 equidistance sets up the inner wall at disinfection pipe 10, place case 5 through setting up nursing materials, disinfection pipe 10 and ultraviolet ray disinfection lamp 12, enable the bandage disinfection and prevent that the bandage from infecting taking of the nursing materials of being convenient for to the wound of affected part, antiseptic solution holding vessel 13 has been placed to nursing frame upper surface, antiseptic solution holding vessel 13 is cylinder type structure, antiseptic solution inlet 28 has been seted up to antiseptic solution holding vessel 13's upper surface, and antiseptic solution inlet 28's upper surface threaded connection has the sealed lid rather than the looks adaptation.
And antiseptic solution holding vessel 13 is located the disinfection case left side, and the bottom fixedly connected with antiseptic solution drain pipe 14 of antiseptic solution holding vessel 13, antiseptic solution drain pipe 14 material are rubber, and the one end fixedly connected with control flap 29 that antiseptic solution drain pipe 14 kept away from antiseptic solution holding vessel 13, the bottom fixed mounting of antiseptic solution drain pipe 14 has the disinfection handle.
The lower surface of the nursing frame 9 is fixedly connected with a telescopic rod 15, the height can be adjusted to the required height when required by arranging the telescopic rod 15, and by arranging the disinfection box, the bottom end of the telescopic rod 15 is fixedly connected with a lampshade 16 for sterilizing the bandage to avoid infecting the affected part when the wound is bandaged, the upper surface of the left side of the lampshade 16 is provided with a lighting switch, a lithium ion battery is fixedly connected inside the lampshade 16, the inner top wall of the lampshade 16 is fixedly connected with a plurality of LED lamp tubes 17, the upper surface of the fixed base 1 is provided with a garbage waste liquid barrel 18, the upper surface of the supporting rod 2 is fixedly connected with a supporting frame which comprises a supporting column 19 and an inclined stay bar 20, the surface of the supporting column 19 is fixedly connected with the inclined stay bar 20, and the one end fixed connection that the bracing piece 20 kept away from support column 19 is in backup pad 21 lower surface, and support frame top fixedly connected with backup pad 21.
The washing platform 22 is placed on the upper surface of the supporting plate 21, the washing platform 22 is made of plastic, the right end of the washing platform 22 is fixedly connected with a drain pipe 30, and the drain end of the drain pipe 30 extends to the interior of the garbage waste liquid barrel 18.
The working principle is as follows: the medical staff pushes the nursing flushing frame to the position near the wounded needing to be bandaged, the universal wheel 3 with the brake is fixed well, the frame body can not move, the ultraviolet lamp switch is opened, the bandage is disinfected, the wounded limb of the patient passes through the suspension belt 31, the affected part is hung below the disinfectant liquid outlet pipe 14, the illuminating lamp is opened, the height of the illuminating lamp is adjusted to aim at the affected part, the outer box cover and the outer box door 6 are opened, the disinfected bandage and the needed objects are respectively taken out and bandaged, the bandage is placed on the surface of the supporting plate 21, the control valve 29 of the disinfectant liquid outlet pipe is opened, the affected part is cleaned and disinfected, the affected part is wrapped with the disinfection bandage, the unused bandage and the nursing articles are respectively placed into the disinfection pipe 10 and the nursing article placing box by the disinfection belt 31, the outer box door 6 and the outer box cover are closed, the illuminating lamp and the ultraviolet disinfection lamp 12 are closed, the illuminating lamp is pulled back to the, the waste fluid and waste from the waste fluid bin 18 is dumped into the trash bin and the medical personnel push the nursing rinse rack to a stationary location for placement and recharge the light and uv disinfection lamps 12.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. A surgical nursing washing frame comprises a fixed base (1), and is characterized in that: the lower surface of the fixing base (1) is fixedly connected with a universal wheel (3) with a brake, the upper surface of the fixing base (1) is fixedly connected with a support rod (2), the support rod (2) is of a hollow tubular structure, the two support rods (2) are fixedly connected with a hand-push cross rod (4) to form a working frame, the surface of the support rod (2) is fixedly connected with a nursing article placing box (5), the front surface of the nursing article placing box (5) is rotatably connected with an outward-opening box door (6) through a hinge, the surface of the support rod (2) is fixedly connected with a limiting jackscrew (7), a lifting slide rod (8) is inserted into the top of the support rod (2), the top end of the lifting slide rod (8) is fixedly connected with a nursing frame (9), a disinfection box is placed on the upper surface of the right side of the nursing frame (9), and comprises a disinfection tube fixing base (11) fixedly connected with the, the upper surface of the disinfection tube fixing base (11) is provided with a disinfection tube (10), the inner wall of the disinfection tube (10) is fixedly connected with a plurality of ultraviolet disinfection lamps (12), the ultraviolet disinfection lamps (12) are equidistantly arranged on the inner wall of the disinfection tube (10), the upper surface of the nursing frame is provided with a disinfectant storage tank (13), the disinfectant storage tank (13) is positioned on the left side of the disinfection box, the bottom of the disinfectant storage tank (13) is fixedly connected with a disinfectant liquid outlet pipe (14), the lower surface of the nursing frame (9) is fixedly connected with a telescopic rod (15), the bottom of the telescopic rod (15) is fixedly connected with a lampshade (16), the inner top wall of the lampshade (16) is fixedly connected with a plurality of LED lamp tubes (17), the upper surface of the fixing base (1) is provided with a garbage waste liquid barrel (18), and the upper surface of the support rod (2) is fixedly connected with, the support frame comprises a support column (19) and an inclined support rod (20), a support plate (21) is fixedly connected to the top end of the support frame, and a washing table (22) is placed on the upper surface of the support plate (21).
2. A surgical care irrigation rack as recited in claim 1, wherein: the material of outer division of chamber door (6) is transparent plastic, the positive fixedly connected with chamber door handle (23) of outer division of chamber door (6), chamber door locking hole (24) have been seted up in the front of outer division of chamber door, the inner wall fixedly connected with horizontal baffle (25) of case (5) are placed to nursing materials, baffle (26) are erect to the middle part fixedly connected with of horizontal baffle (25), horizontal baffle (25) and perpendicular baffle (26) are placed case (5) evenly to be cut apart and are formed nursing materials and place the region, the box (27) are placed to the positive fixedly connected with label of outer division of chamber door (6), and the position that box (27) was placed to the label is placed regional corresponding with nursing materials.
3. A surgical care irrigation rack as recited in claim 2, wherein: the material of disinfection pipe (10) is plastics, the front of disinfection pipe (10) is provided with the external-open lid, the side of disinfection pipe unable adjustment base (11) is provided with the ultraviolet lamp switch, the right-hand member of disinfection pipe unable adjustment base (11) is seted up and is put the wire hole, the inside fixedly connected with lithium ion battery of disinfection pipe unable adjustment base (11), antiseptic solution holding vessel (13) are cylinder type structure, antiseptic solution inlet (28) have been seted up to the upper surface of antiseptic solution holding vessel (13), and the upper surface threaded connection of antiseptic solution inlet (28) has the sealed lid rather than the looks adaptation.
4. A surgical care irrigation rack as recited in claim 3, wherein: the material of antiseptic solution drain pipe (14) is rubber, the one end fixedly connected with control flap (29) of antiseptic solution holding vessel (13) is kept away from to antiseptic solution drain pipe (14), the bottom fixed mounting of antiseptic solution drain pipe (14) has the disinfection handle.
5. A surgical care irrigation rack as recited in claim 4, wherein: the lighting switch is arranged on the upper surface of the left side of the lampshade (16), the lithium ion battery is fixedly connected inside the lampshade (16), the inclined supporting rod (20) is fixedly connected to the surface of the supporting column (19), and one end, far away from the supporting column (19), of the inclined supporting rod (20) is fixedly connected to the lower surface of the supporting plate (21).
6. A surgical care irrigation rack as recited in claim 5, wherein: the material of the flushing table (22) is plastic, a sewage discharge pipe (30) is fixedly connected to the right end of the flushing table (22), and the sewage discharge end of the sewage discharge pipe (35) extends to the interior of the garbage waste liquid barrel (18).
7. A surgical care irrigation rack as recited in claim 5, wherein: the nursing frame (9) lower surface fixedly connected with be used for hanging person's body injured part suspender (31), suspender (31) material is the dacron.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202010491750.9A CN111870759A (en) | 2020-06-02 | 2020-06-02 | Surgical nursing flushing rack |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202010491750.9A CN111870759A (en) | 2020-06-02 | 2020-06-02 | Surgical nursing flushing rack |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN111870759A true CN111870759A (en) | 2020-11-03 |
Family
ID=73154037
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202010491750.9A Withdrawn CN111870759A (en) | 2020-06-02 | 2020-06-02 | Surgical nursing flushing rack |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN111870759A (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN114469536A (en) * | 2022-01-27 | 2022-05-13 | 平顶山市第一人民医院 | Multifunctional nursing device for surgical nursing |
-
2020
- 2020-06-02 CN CN202010491750.9A patent/CN111870759A/en not_active Withdrawn
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN114469536A (en) * | 2022-01-27 | 2022-05-13 | 平顶山市第一人民医院 | Multifunctional nursing device for surgical nursing |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN112190782A (en) | General surgery department operation wound nursing instrument | |
| CN111658389A (en) | Surgical integrated emergency debridement equipment | |
| CN111870759A (en) | Surgical nursing flushing rack | |
| CN112386424A (en) | Wound cleaning, disinfecting and dressing changing device for orthopedic clinical nursing | |
| CN210931940U (en) | Hand disinfection device for oral cavity outpatient nurse | |
| CN214388079U (en) | Clinical debridement device for dermatology department | |
| CN110559084A (en) | Clinical interventional therapy device for neurosurgery | |
| CN215193301U (en) | Nursing information dressing table | |
| CN211797489U (en) | Emergency call first aid nursing device | |
| CN212118527U (en) | Nursing dressing change device | |
| CN213910518U (en) | Telescopic medical instrument frame | |
| CN113476250A (en) | Waste collection nursing device in operating room nursing | |
| CN210447515U (en) | Intracardiac branch of academic or vocational study operation table | |
| CN217566860U (en) | Disinfection pond with disinfection and support function | |
| CN207390024U (en) | A kind of Medical device box of clinical laboratory with sterilizing function | |
| CN110720989A (en) | Movable operating room nursing device | |
| CN221357516U (en) | Combined nursing device | |
| CN214318448U (en) | Surgical nursing dressing change support | |
| CN215504760U (en) | Wound debridement disc for emergency department | |
| CN214017813U (en) | Wound surface debridement operation tool set for trauma surgery | |
| CN209270174U (en) | A kind of novel clinical bracket for nursing | |
| CN211356445U (en) | Operating room itinerant nursing vehicle | |
| CN214231882U (en) | Supporting and fixing device for dressing change during operation nursing | |
| CN216934257U (en) | Medical treatment belt cleaning device for orthopedics | |
| CN212522487U (en) | Disinfection device for treating lung diseases |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| WW01 | Invention patent application withdrawn after publication |
Application publication date: 20201103 |
|
| WW01 | Invention patent application withdrawn after publication |
