Abstract
The invention discloses a double-layer curtain wall connecting structure which comprises a mounting seat, a buffer block, a steering ball, a connecting piece, an inner curtain wall board and an outer curtain wall board, wherein the buffer block is arranged on the mounting seat and is connected with the mounting seat through a plurality of first elastic pieces, a hemispherical groove for accommodating the steering ball is arranged on the buffer block, the steering ball is rotationally clamped in the hemispherical groove and is connected with the connecting piece through a connecting column, and the inner curtain wall board and the outer curtain wall board are sequentially assembled on the connecting piece. According to the double-layer curtain wall connecting structure, the buffer block is arranged and is connected with the mounting seat through the first elastic piece, so that the double-layer curtain wall connecting structure has good anti-collision buffer performance, and meanwhile, the double-layer curtain wall connecting structure has the advantages of reasonable structure and convenience in mounting and adjusting.
Description
Technical Field
The invention relates to the technical field of curtain walls, in particular to a double-layer curtain wall connecting structure.
Background
The double-layer curtain wall is also called a hot channel curtain wall, a breathing type curtain wall, a ventilation type curtain wall, an energy-saving curtain wall and the like. The inner layer can be composed of an exposed frame, a hidden frame curtain wall or a door and window with an opening sash and an access passage. The glass surface layers can be arranged on two sides of an independent supporting structure to form a double-layer vertical face structure with a small space distance.
Among the prior art, current double curtain wall installation is adjusted conveniently inadequately, adjusts comparatively loaded down with trivial details, leads to the installer to waste time and energy, and curtain glass's connecting device in the double curtain wall that has now does not protect simultaneously, and double curtain wall is pressed the damage by the building easily after long-time the use, leads to interior curtain glass to break, and the above-mentioned problem is solved to the connection structure for the double curtain wall that now urgently needs a new.
Disclosure of Invention
The invention aims to provide a double-layer curtain wall connecting structure which is reasonable in structure and has an anti-collision buffering function.
In order to solve the problems, the invention provides a double-layer curtain wall connecting structure which comprises a mounting seat, a buffer block, a steering ball, a connecting piece, an inner curtain wall board and an outer curtain wall board, wherein the buffer block is arranged on the mounting seat and is connected with the mounting seat through a plurality of first elastic pieces, a hemispherical groove for accommodating the steering ball is arranged on the buffer block, the steering ball is rotationally clamped in the hemispherical groove and is connected with the connecting piece through a connecting column, and the inner curtain wall board and the outer curtain wall board are sequentially assembled on the connecting piece.
As a further improvement of the steering mechanism, a plurality of first teeth are arranged on the steering ball, a plurality of grooves are arranged in the hemispherical groove, second teeth meshed with the first teeth are arranged in the grooves, and the bottom of each second tooth is connected with the bottom of each groove through a limiting spring.
As a further improvement of the invention, a sliding groove is formed in the side wall of the mounting seat, a first rotating block is arranged in the sliding groove in a sliding manner, a second rotating block is arranged on the connecting piece, the first rotating block and the second rotating block are connected through a transmission rod, and the transmission rod drives the first rotating block to slide in the sliding groove.
As a further improvement of the present invention, a clamping groove is formed in the bottom of the sliding groove, a first impact block is arranged in the clamping groove, a compression groove is formed in the bottom of the first rotating block, a second impact block is arranged in the compression groove, the end surface of the second impact block is hemispherical, the bottom of the second impact block is connected with the bottom of the compression groove through a connecting spring, the first rotating block drives the second impact block when sliding, and when the compression groove is communicated with the clamping groove, the connecting spring drives the second impact block to partially extend into the clamping groove to abut against the first impact block.
As a further improvement of the invention, the connecting piece is I-shaped, the inner curtain wall board is inserted into the top board and the bottom board of the connecting piece for connection, and the outer curtain wall board is bonded outside the top board of the connecting piece.
As a further improvement of the invention, after the inner curtain wall board is connected with the connecting piece through a screw, the outer curtain wall board is connected with the inner curtain wall board through a screw.
As a further improvement of the invention, an elastic layer is arranged between the outer curtain wall board and the inner curtain wall board, and two sides of the elastic layer are respectively attached to the outer curtain wall board and the inner curtain wall board.
As a further improvement of the invention, the elastic layer comprises a middle elastic cotton cushion layer and two rubber cushion layers on two sides.
As a further improvement of the present invention, the first elastic member is a spring plate.
The invention has the beneficial effects that:
according to the double-layer curtain wall connecting structure, the buffer block is arranged and is connected with the mounting seat through the first elastic piece, so that the double-layer curtain wall connecting structure has good anti-collision buffer performance, and meanwhile, the double-layer curtain wall connecting structure has the advantages of reasonable structure and convenience in mounting and adjusting.
The foregoing description is only an overview of the technical solutions of the present invention, and in order to make the technical means of the present invention more clearly understood, the present invention may be implemented in accordance with the content of the description, and in order to make the above and other objects, features, and advantages of the present invention more clearly understood, the following preferred embodiments are described in detail with reference to the accompanying drawings.
Drawings

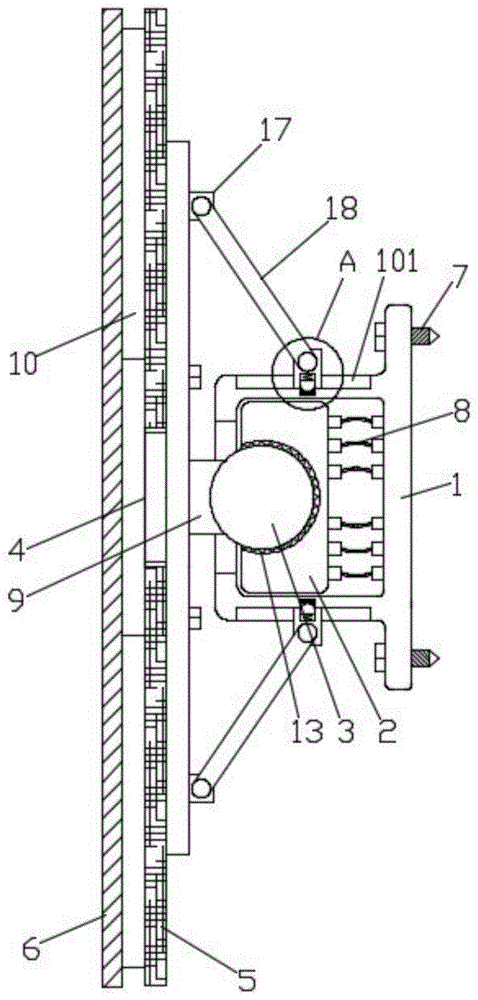

FIG. 1 is a schematic view showing the overall structure of a double-layered curtain wall attachment structure according to a preferred embodiment of the present invention;
FIG. 2 is a schematic diagram of a buffer block according to a preferred embodiment of the present invention;
FIG. 3 is an enlarged schematic view of the structure at A in FIG. 1;
fig. 4 is a schematic view of the structure of the elastic layer in the preferred embodiment of the present invention.
Description of the labeling: 1. a mounting seat; 101. a chute; 102. a card slot; 2. a buffer block; 201. a hemispherical groove; 202. a groove; 3. a steering ball; 4. a connecting member; 5. an inner curtain wall panel; 6. an outer curtain wall panel; 7. a screw; 8. a spring plate; 9. connecting columns; 10. an elastic layer; 11. an elastic cotton pad; 12. a rubber cushion layer; 13. a first tooth; 14. a second tooth; 15. a limiting spring; 16. a first rotating block; 1601. a compression groove; 17. a second turning block; 18. a transmission rod; 19. a first impact block; 20. a second impact block; 21. a spring is connected.
Detailed Description
The present invention is further described below in conjunction with the following figures and specific examples so that those skilled in the art may better understand the present invention and practice it, but the examples are not intended to limit the present invention.
As shown in fig. 1, the double-layer curtain wall connecting structure in the preferred embodiment of the present invention includes a mounting base 1, a buffer block 2, a steering ball 3, a connecting member 4, an inner curtain wall panel 5 and an outer curtain wall panel 6, wherein the mounting base 1 is mounted on a wall body through a screw 7, the buffer block 2 is disposed on the mounting base 1, the buffer block 2 is connected with the mounting base 1 through a plurality of first elastic members, a hemispherical groove 201 for accommodating the steering ball 3 is disposed on the buffer block 2, the steering ball 3 is rotatably clamped in the hemispherical groove 201, the steering ball 3 is further connected with the connecting member 4 through a connecting post 9, and the inner curtain wall panel 5 and the outer curtain wall panel 6 are sequentially assembled on the connecting member 4. Preferably, the first elastic member is a spring plate 8.
The steering ball 3 is provided with a plurality of first teeth 13, as shown in fig. 2, a plurality of grooves 202 are arranged in the hemispherical groove 201, second teeth 14 engaged with the first teeth 13 are arranged in the grooves 202, and the bottoms of the second teeth 14 are connected with the bottoms of the grooves 202 through limiting springs 15.
When interior curtain wallboard 5 and 6 rotations of outer curtain wallboard, connecting piece 4 drives spliced pole 9, spliced pole 9 drives and turns to ball 3, turn to ball 3 and drive first tooth 13 and rotate, first tooth 13 extrudees second tooth 14 to the recess 202 in realizes turning to the function of turning to ball 3, after turning to ball 3 and rotating, no exogenic action is when turning to ball 3, under limiting spring 15's effect, second tooth 14 can mesh first tooth 13, second tooth 14 restricts the motion of first tooth 13, the installation angle of double-deck curtain is adjusted in second tooth 14 and the cooperation of first tooth 13, and make and turn to ball 3 can not rotate under no exogenic action, when having guaranteed double-deck curtain's stability, guaranteed that double-deck curtain has certain nimble usability.
As shown in fig. 3, a sliding groove 101 is formed in a side wall of the mounting base 1, a first rotating block 16 is slidably disposed in the sliding groove 101, a second rotating block 17 is disposed on the connecting member 4, the first rotating block 16 and the second rotating block 17 are connected through a transmission rod 18, and the transmission rod 18 drives the first rotating block 16 to slide in the sliding groove 101.
The bottom of above-mentioned spout 101 is equipped with draw-in groove 102, be equipped with first striking piece 19 in the draw-in groove 102, the bottom of first rotation piece 16 is equipped with compression groove 1601, be provided with second striking piece 20 in the compression groove 1601, the terminal surface of second striking piece 20 is the hemisphere, the bottom of second striking piece 20 is passed through coupling spring 21 and is connected with the bottom of compression groove 1601, first rotation piece 16 drives second striking piece 20 when sliding, when compression groove 1601 and draw-in groove 102 intercommunication, coupling spring 21 drive second striking piece 20 part stretch into in the draw-in groove 102 with first striking piece 19 butt. When the second impact block 20 collides with the first impact block 19 in the clamping groove, the outer curtain wall board 6 and the inner curtain wall board 5 are parallel to the wall body, so that the reset function of the rotated double-layer curtain wall is realized.
In one embodiment, the connecting member 4 is in an i shape, the inner curtain wall panel 5 is inserted into the top plate and the bottom plate of the connecting member 4 for connection, and the outer curtain wall panel 6 is adhered to the outer side of the top plate of the connecting member 4.
The back is connected through screw and connecting piece 4 to above-mentioned interior curtain wallboard 5, and outer curtain wallboard 6 passes through the screw and is connected with interior curtain wallboard 5.
In one embodiment, an elastic layer 10 is further disposed between the outer curtain wall board 6 and the inner curtain wall board 5, and two sides of the elastic layer 10 are respectively attached to the outer curtain wall board 6 and the inner curtain wall board 5.
As shown in fig. 4, the elastic layer 10 includes a middle elastic cotton pad 11 layer and rubber pad layers 12 at both sides.
When double-deck curtain suffered the front striking, buffer block 2 can extrude spring leaf 8 and play buffer function to the impact force, if this double-deck curtain is close to when the part of edge bears the striking, elastic layer 10 can play preliminary cushioning effect to this striking, and spring leaf 8 plays further cushioning effect to this impact force, guarantees that this double-deck curtain can not be broken easily under the exogenic action.
The above embodiments are merely preferred embodiments for fully illustrating the present invention, and the scope of the present invention is not limited thereto. The equivalent substitution or change made by the technical personnel in the technical field on the basis of the invention is all within the protection scope of the invention. The protection scope of the invention is subject to the claims.
Claims (9)
1. The utility model provides a double-deck curtain connection structure, a serial communication port, including mount pad, buffer block, steering ball, connecting piece, interior curtain wallboard and outer curtain wallboard, be equipped with the buffer block on the mount pad, the buffer block through a plurality of first elastic components with the mount pad is connected, be equipped with on the buffer block and hold turn to the hemisphere groove of ball, the steering ball rotate the joint with in the hemisphere groove, the steering ball still through the spliced pole with the connecting piece is connected, interior curtain wallboard and outer curtain wallboard assemble in proper order on the connecting piece.
2. The double-layer curtain wall connecting structure as claimed in claim 1, wherein a plurality of first teeth are arranged on the steering ball, a plurality of grooves are arranged in the hemispherical groove, second teeth meshed with the first teeth are arranged in the grooves, and the bottoms of the second teeth are connected with the bottoms of the grooves through limiting springs.
3. The double-layer curtain wall connecting structure as claimed in claim 1, wherein the side wall of the mounting seat is provided with a sliding groove, a first rotating block is arranged in the sliding groove in a sliding manner, a second rotating block is arranged on the connecting piece, the first rotating block and the second rotating block are connected through a transmission rod, and the transmission rod drives the first rotating block to slide in the sliding groove.
4. The double-layer curtain wall connecting structure according to claim 3, wherein a clamping groove is formed in the bottom of the sliding groove, a first impact block is arranged in the clamping groove, a compression groove is formed in the bottom of the first rotating block, a second impact block is arranged in the compression groove, the end face of the second impact block is hemispherical, the bottom of the second impact block is connected with the bottom of the compression groove through a connecting spring, the first rotating block drives the second impact block when sliding, and when the compression groove is communicated with the clamping groove, the connecting spring drives the second impact block to partially extend into the clamping groove to abut against the first impact block.
5. The double-layer curtain wall connecting structure as claimed in claim 1, wherein the connecting member is in an I shape, the inner curtain wall panel is inserted into the top plate and the bottom plate of the connecting member to be connected, and the outer curtain wall panel is adhered to the outer side of the top plate of the connecting member.
6. The double-wall curtain wall connecting structure according to claim 5, wherein the outer curtain wall panel is connected to the inner curtain wall panel by screws after the inner curtain wall panel is connected to the connecting member by screws.
7. The double-layer curtain wall connecting structure as claimed in claim 5, wherein an elastic layer is further arranged between the outer curtain wall board and the inner curtain wall board, and two sides of the elastic layer are respectively attached to the outer curtain wall board and the inner curtain wall board.
8. The double-deck curtain wall connecting structure as claimed in claim 7, wherein the elastic layer comprises a middle elastic cotton pad layer and two side rubber pad layers.
9. The double-deck curtain wall attachment structure of claim 1, wherein the first elastic member is a spring plate.
