Abstract

本发明提供一种用于测温和消毒的卫生间结构，包括卫生间本体，所述卫生间本体内设有收容空间，所述收容空间的前侧和后侧分别设有前门口和后门口，所述卫生间本体的前侧设有测温装置，所述收容空间的一侧设有用于对所述收容空间喷雾化消毒液的消毒器，所述卫生间本体的顶部设有用于对所述测温装置和所述消毒器供电的光伏板。本发明采用上述结构，光伏板直接为测温装置和消毒器提供电源，使得卫生间投放后即可作为临时使用而直接使用，无需外接电源，使用起来非常方便。

Figure 202010765094

The present invention provides a toilet structure for temperature measurement and disinfection, including a toilet body, a receiving space is provided in the toilet body, a front door and a rear door are provided on the front and rear sides of the receiving space respectively, a temperature measuring device is provided on the front side of the toilet body, a disinfector for spraying disinfectant on the receiving space is provided on one side of the receiving space, and a photovoltaic panel for powering the temperature measuring device and the disinfector is provided on the top of the toilet body. The present invention adopts the above structure, and the photovoltaic panel directly provides power for the temperature measuring device and the disinfector, so that the toilet can be used directly for temporary use after being put into use, without the need for an external power supply, and is very convenient to use.

Figure 202010765094

Description

一种用于测温和消毒的卫生间结构A toilet structure for temperature measurement and disinfection

【技术领域】【Technical field】

本发明涉及一种用于测温和消毒的卫生间结构。The invention relates to a toilet structure for temperature measurement and disinfection.

【背景技术】【Background technique】

为达到防疫的目的，在人员进入某些场所前，一般需要先进行测温和消毒，目前常用的做法是在该场所的门前搭建消毒间，其搭建的时间长，还需要占用建筑空间，而且还需要外接较长的电源线。In order to achieve the purpose of epidemic prevention, temperature measurement and disinfection are generally required before personnel enter certain places. The common practice at present is to build a disinfection room in front of the place, which takes a long time to build and takes up building space. It also requires an external long power cord.

【发明内容】[Content of the invention]

本发明要解决的技术问题是提供可作为临时使用且无需外接电源线的一种用于测温和消毒的卫生间结构。The technical problem to be solved by the present invention is to provide a toilet structure for temperature measurement and disinfection that can be used temporarily and does not require an external power cord.

本发明的目的是这样实现的：The object of the present invention is achieved in this way:

一种用于测温和消毒的卫生间结构，包括卫生间本体，所述卫生间本体内设有收容空间，所述收容空间的前侧和后侧分别设有前门口和后门口，所述卫生间本体的前侧设有测温装置，所述收容空间的一侧设有用于对所述收容空间喷雾化消毒液的消毒器，所述卫生间本体的顶部设有用于对所述测温装置和所述消毒器供电的光伏板。A toilet structure for temperature measurement and disinfection, comprising a toilet body, a receiving space is arranged in the toilet body, a front door and a rear door are respectively provided on the front side and the rear side of the receiving space, and the toilet body is provided with a front door and a rear door respectively. A temperature measuring device is arranged on the front side, a sterilizer for spraying disinfectant to the receiving space is arranged on one side of the receiving space, and a top of the toilet body is provided with a temperature measuring device and a sterilizing device for photovoltaic panels powered by the device.

本发明采用上述结构，光伏板直接为测温装置和消毒器提供电源，使得卫生间投放后即可作为临时使用而直接使用，无需外接电源，使用起来非常方便。The present invention adopts the above structure, the photovoltaic panel directly provides power for the temperature measuring device and the sterilizer, so that the toilet can be directly used as a temporary use after being put in, no external power supply is required, and it is very convenient to use.

如上所述的一种用于测温和消毒的卫生间结构，所述卫生间本体包括底盘、可拆卸连接于所述底盘上的前门板、第一侧板、后门板、第二侧板和第三侧板以及可拆卸连接于所述前门板、第一侧板、后门板、第二侧板和第三侧板顶部上的顶板，所述光伏板设于所述顶板的顶部，卫生间本体的各部件之间均可拆卸，从而方便其转运并可快速临时搭建。A toilet structure for temperature measurement and disinfection as described above, the toilet body includes a chassis, a front door panel, a first side panel, a rear door panel, a second side panel and a third panel that are detachably connected to the chassis. Side panels and a top panel detachably connected to the tops of the front door panel, the first side panel, the rear door panel, the second side panel and the third side panel, the photovoltaic panel is arranged on the top of the top panel, and each of the toilet body The parts can be dismantled to facilitate their transport and quick temporary erection.

如上所述的一种用于测温和消毒的卫生间结构，所述光伏板电连接有逆变器和蓄电池，所述逆变器与所述测温装置和所述消毒器电连接，所述第二侧板和第三侧板之间形成有用于放置所述逆变器、蓄电池和消毒器的容置空间，从而使得收容空间与放置电器器件的容置空间有效地隔开。The above-mentioned toilet structure for temperature measurement and disinfection, the photovoltaic panel is electrically connected with an inverter and a battery, the inverter is electrically connected with the temperature measurement device and the sterilizer, and the An accommodating space for placing the inverter, battery and sterilizer is formed between the second side plate and the third side plate, so that the accommodating space is effectively separated from the accommodating space for placing electrical devices.

如上所述的一种用于测温和消毒的卫生间结构，所述前门板和所述后门板呈冂字型，所述前门口和所述后门口分别设于所述前门板和所述后门板上，所述前门板和所述后门板的侧部分别设有用于盖合所述容置空间的前盖板和后盖板，所述前盖板的上设有供所述测温装置安装的安装槽，逆变器、蓄电池、消毒器和测温装置等器件集中于由第二侧板、第三侧板、前盖板和后盖板所形成的空间里，从而使得整体结构紧凑美观。A kind of toilet structure for temperature measurement and disinfection as described above, the front door panel and the rear door panel are in the shape of a square, and the front door and the rear door are respectively arranged on the front door panel and the back door. The front and rear door panels are respectively provided with a front cover and a rear cover for covering the accommodating space, and the front cover is provided with the temperature measuring device. The installed installation slot, inverter, battery, sterilizer and temperature measuring device are concentrated in the space formed by the second side plate, the third side plate, the front cover and the rear cover, so that the overall structure is compact beautiful.

如上所述的一种用于测温和消毒的卫生间结构，所述前门板和所述后门板的两侧分别与所述第一侧板和所述第三侧板可拆卸连接，所述第二侧板的两侧分别与所述前盖板和后盖板可拆卸连接，从而保证使用时前门板和后门板与第一侧板、第二侧板和第三侧板之间连接的牢固性。The above-mentioned toilet structure for temperature measurement and disinfection, the two sides of the front door panel and the rear door panel are respectively detachably connected to the first side panel and the third side panel, and the first side panel and the third side panel are detachably connected. Both sides of the two side panels are detachably connected to the front cover panel and the rear cover panel respectively, so as to ensure the firm connection between the front door panel and the rear door panel and the first side panel, the second side panel and the third side panel during use. sex.

如上所述的一种用于测温和消毒的卫生间结构，所述第二侧板上设有供所述消毒器喷出消毒液的喷孔，消毒器通过喷孔对收容空间内的人员进行消毒和杀菌。A toilet structure for temperature measurement and disinfection as described above, the second side plate is provided with a spray hole for the sterilizer to spray the disinfectant, and the sterilizer carries out the operation of the personnel in the accommodating space through the spray hole. Disinfection and sterilization.

如上所述的一种用于测温和消毒的卫生间结构，所述第三侧板的外侧设有用于安装检修门的检修口，从而方便对放置于容置空间内的电器器件进行检修。In the above-mentioned toilet structure for temperature measurement and disinfection, the outer side of the third side plate is provided with an inspection opening for installing an inspection door, so as to facilitate the inspection of electrical devices placed in the accommodating space.

如上所述的一种用于测温和消毒的卫生间结构，所述底盘的底部设有滑轮，从而使得卫生间是可移动式，当某场所需要消毒间时，将本发明搬移至该场所的门前即可投入使用，当不需要时可随时撤走，非常方便快捷，非常适用临时使用的场所。The above-mentioned toilet structure for temperature measurement and disinfection, the bottom of the chassis is provided with pulleys, so that the toilet is movable, and when a certain place needs a disinfection time, the present invention is moved to the door of the place It can be put into use before, and can be withdrawn at any time when it is not needed. It is very convenient and fast, and it is very suitable for temporary use places.

如上所述的一种用于测温和消毒的卫生间结构，所述前门板和后门板上均设有门帘，从而将前门口和后门口遮挡住，提高了消毒杀菌的效果。In the above-mentioned toilet structure for temperature measurement and disinfection, the front door panel and the rear door panel are provided with door curtains, so as to block the front door and the rear door, and improve the effect of disinfection and sterilization.

如上所述的一种用于测温和消毒的卫生间结构，所述消毒器采用雾化器，所述消毒器内装设有消毒液，所述消毒器与所述喷孔之间连接有水管，消毒器将消毒液雾化，并驱动雾化后的消毒液通过水管和喷孔喷出，从而对收容空间内的使用人员进行消毒和杀菌。The above-mentioned toilet structure for temperature measurement and disinfection, the sterilizer adopts an atomizer, a disinfectant is installed in the sterilizer, and a water pipe is connected between the sterilizer and the spray hole, The sterilizer atomizes the disinfectant, and drives the atomized disinfectant to spray out through the water pipe and the nozzle hole, thereby sterilizing and sterilizing the users in the storage space.

【附图说明】【Description of drawings】

下面结合附图对本发明的具体实施方式作进一步详细说明，其中：The specific embodiments of the present invention will be described in further detail below in conjunction with the accompanying drawings, wherein:

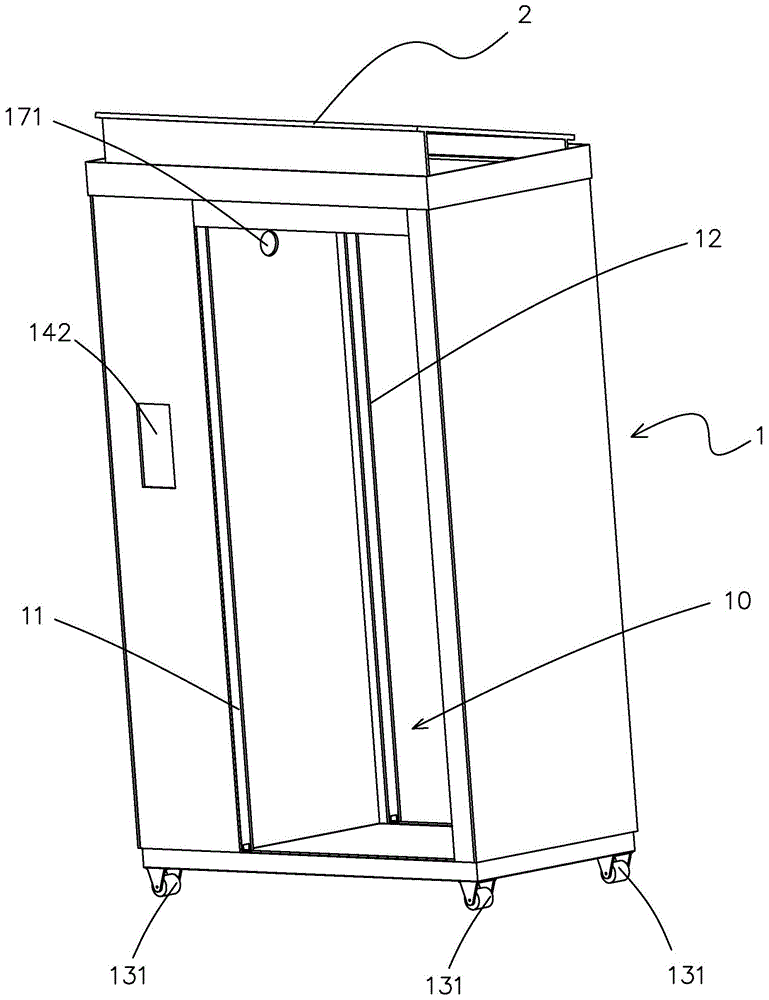

图1为本发明的立体结构示意图；Fig. 1 is the three-dimensional structure schematic diagram of the present invention;

图2为本发明的分解结构示意图；Fig. 2 is the exploded structure schematic diagram of the present invention;

图3为本发明的正面结构示意图；Fig. 3 is the front structure schematic diagram of the present invention;

图4为本发明的剖视结构示意图之一；Fig. 4 is one of the sectional structure schematic diagrams of the present invention;

图5为本发明的电路原理图；Fig. 5 is the circuit schematic diagram of the present invention;

图6为本发明的剖视结构示意图之二。FIG. 6 is the second schematic diagram of the cross-sectional structure of the present invention.

【具体实施方式】【Detailed ways】

一种用于测温和消毒的卫生间结构，包括卫生间本体1，卫生间本体1内设有收容空间10，收容空间10的前侧和后侧分别设有前门口11和后门口12，卫生间本体1的前侧设有测温装置101，收容空间10的一侧设有用于对收容空间10喷雾化消毒液的消毒器102，卫生间本体1的顶部设有用于对测温装置101和消毒器102供电的光伏板2。A toilet structure for temperature measurement and disinfection, comprising a toilet body 1, a receiving space 10 is arranged in the toilet body 1, a front door 11 and a rear door 12 are respectively provided on the front side and the rear side of the receiving space 10, and the toilet body 1 There is a temperature measuring device 101 on the front side of the toilet body 10, a sterilizer 102 for spraying disinfectant to the accommodating space 10 is arranged on one side of the accommodating space 10, and a top of the toilet body 1 is provided with a power supply for the temperature measuring device 101 and the sterilizer 102 photovoltaic panels 2.

为方便拆装和转运，卫生间本体1包括底盘13、可拆卸连接于底盘13上的前门板14、第一侧板15、后门板16、第二侧板17和第三侧板18以及可拆卸连接于前门板14、第一侧板15、后门板16、第二侧板17和第三侧板18顶部上的顶板19，光伏板2设于顶板19的顶部。为保证连接强度，前门板14、第一侧板15、后门板16、第二侧板17和第三侧板18的底部通过连接螺钉与底盘13固定，顶板19也通过连接螺钉与前门板14、第一侧板15、后门板16、第二侧板17和第三侧板18连接在一起。如图6所示，容置空间20内还设有用于将顶板19上的积水(因下雨而可能产生的积水)引流至底部的排水管201。In order to facilitate disassembly and transportation, the toilet body 1 includes a chassis 13, a front door panel 14 detachably connected to the chassis 13, a first side panel 15, a rear door panel 16, a second side panel 17 and a third side panel 18, and detachable Connected to the top panel 19 on top of the front door panel 14 , the first side panel 15 , the rear door panel 16 , the second side panel 17 and the third side panel 18 , the photovoltaic panel 2 is provided on top of the top panel 19 . In order to ensure the connection strength, the bottoms of the front door panel 14, the first side panel 15, the rear door panel 16, the second side panel 17 and the third side panel 18 are fixed to the chassis 13 by connecting screws, and the top panel 19 is also connected to the front door panel 14 by connecting screws. , the first side panel 15 , the rear door panel 16 , the second side panel 17 and the third side panel 18 are connected together. As shown in FIG. 6 , the accommodating space 20 is further provided with a drainage pipe 201 for draining the accumulated water on the top plate 19 (that may be generated due to rain) to the bottom.

光伏板2电连接有逆变器107和蓄电池105，逆变器107与测温装置101和消毒器102电连接(具体连接方式如图5所示)，为有效将电器器件与收容空间10隔开，第二侧板17和第三侧板18之间形成有用于放置逆变器107、蓄电池105和消毒器102的容置空间20。The photovoltaic panel 2 is electrically connected with an inverter 107 and a battery 105, and the inverter 107 is electrically connected with the temperature measuring device 101 and the sterilizer 102 (the specific connection method is shown in FIG. 5), in order to effectively isolate the electrical device from the accommodation space 10 Open, between the second side plate 17 and the third side plate 18 is formed an accommodating space 20 for placing the inverter 107 , the battery 105 and the sterilizer 102 .

前门板14和后门板16呈冂字型，前门口11和后门口12分别设于前门板14和后门板16上，前门板14和后门板16的侧部分别设有用于盖合容置空间20的前盖板141和后盖板161，前盖板141的上设有供测温装置101安装的安装槽142。如图3所示，安装槽142上设有用于安装测温装置101的壁龛140。The front door panel 14 and the rear door panel 16 are in the shape of a square, the front door 11 and the rear door 12 are respectively arranged on the front door panel 14 and the rear door panel 16, and the side parts of the front door panel 14 and the rear door panel 16 are respectively provided for covering the accommodation space. The front cover 141 and the rear cover 161 of the 20, the front cover 141 is provided with an installation slot 142 for the temperature measuring device 101 to be installed. As shown in FIG. 3 , the mounting groove 142 is provided with a niche 140 for mounting the temperature measuring device 101 .

前门板14和后门板16的两侧分别与第一侧板15和第三侧板18可拆卸连接，第二侧板17的两侧分别与前盖板141和后盖板161可拆卸连接。为方便拆装和保证连接强度，第一侧板15和第三侧板18的两侧设有供前门板14和后门板16的侧部卡入的连接槽100，而且前门板14和后门板16的两侧通过螺钉连接而与第一侧板15和第三侧板18固定在一起，第二侧板17的两侧也通过螺钉连接而与前盖板141和后盖板161固定在一起。Both sides of the front door panel 14 and the rear door panel 16 are detachably connected to the first side panel 15 and the third side panel 18 respectively, and both sides of the second side panel 17 are detachably connected to the front cover panel 141 and the rear cover panel 161 respectively. In order to facilitate disassembly and assembly and ensure the connection strength, both sides of the first side panel 15 and the third side panel 18 are provided with connection grooves 100 for the side parts of the front door panel 14 and the rear door panel 16 to be snapped into, and the front door panel 14 and the rear door panel. The two sides of 16 are fixed with the first side plate 15 and the third side plate 18 by screw connection, and the two sides of the second side plate 17 are also fixed together with the front cover plate 141 and the rear cover plate 161 by screw connection. .

为方便对收容空间10内的人员进行喷淋消毒和杀菌,第二侧板17上设有供消毒器102喷出消毒液的喷孔171。消毒器102采用雾化器，其内装设有消毒液103，其与喷孔171之间连接有水管104。消毒器102采用雾化器，消毒器102内装设有消毒液103，消毒器102与喷孔171之间连接有水管104。In order to facilitate spraying, sterilizing and sterilizing the personnel in the accommodation space 10, the second side plate 17 is provided with a spray hole 171 for the sterilizer 102 to spray the disinfectant. The sterilizer 102 adopts an atomizer, and a sterilizing liquid 103 is installed therein, and a water pipe 104 is connected between it and the spray hole 171 . The sterilizer 102 adopts an atomizer. The sterilizer 102 is equipped with a sterilizing liquid 103 , and a water pipe 104 is connected between the sterilizer 102 and the spray hole 171 .

为方便对放置于容置空间20内的电器器件进行检修,第三侧板18的外侧设有用于安装检修门的检修口181。In order to facilitate the maintenance of the electrical devices placed in the accommodating space 20, the outer side of the third side plate 18 is provided with an access port 181 for installing an access door.

为方便搬移，底盘13的底部设有滑轮131。For the convenience of moving, the bottom of the chassis 13 is provided with a pulley 131 .

为提高消毒杀菌的效果，前门板14和后门板16上均设有门帘106(采用透明磁吸门帘)。In order to improve the effect of disinfection and sterilization, the front door panel 14 and the rear door panel 16 are provided with door curtains 106 (transparent magnetic door curtains are used).

本发明使用时，使用人员站在测温装置101前面进行测温(测温装置101可采用现有的人脸测温识别终端，既可记录出入记录，还可以设置口罩识别以提醒进出人员佩戴口罩，而且还可以测温，并还可在体温异常时发出警报)，测温正常后使用人员从前门口11进入收容空间10内，消毒器102启动并将消毒液103雾化后通过喷孔171喷出，从而对收容空间10内的使用人员进行消毒和杀菌，消毒完毕后从后门口12走出并进入相应的场所。可在收容空间10内安装雷达感应器200，雷达感应器200感应到有人进入到收容空间10时自动开启消毒器102，当使用人员离开后延时自动关断消毒器102而使其停止运作。When the present invention is used, the user stands in front of the temperature measurement device 101 to measure the temperature (the temperature measurement device 101 can use the existing face temperature measurement and recognition terminal, which can not only record the entry and exit records, but also set the mask recognition to remind the entry and exit personnel to wear mask, and can also measure temperature, and can also issue an alarm when the body temperature is abnormal), after the temperature measurement is normal, the user enters the storage space 10 from the front door 11, the sterilizer 102 is activated, and the disinfectant 103 is atomized and passed through the nozzle hole 171 Spray out, so as to sterilize and sterilize the users in the storage space 10, and after the sterilization is completed, go out from the back door 12 and enter the corresponding place. A radar sensor 200 can be installed in the containment space 10 . The radar sensor 200 automatically turns on the sterilizer 102 when it senses that someone enters the containment space 10 , and automatically turns off the sterilizer 102 after a delay to stop the operation when the user leaves.

Claims (10)

1. The utility model provides a bathroom structure for temperature measurement and disinfection, its characterized in that includes bathroom body (1), be equipped with accommodating space (10) in bathroom body (1), door (11) and back door (12) before front side and the rear side of accommodating space (10) are equipped with respectively, the front side of bathroom body (1) is equipped with temperature measuring device (101), one side of accommodating space (10) is equipped with and is used for right sterilizer (102) of accommodating space (10) atomizing antiseptic solution, the top of bathroom body (1) is equipped with and is used for right temperature measuring device (101) with photovoltaic board (2) of sterilizer (102) power supply.
2. A toilet structure for temperature measurement and sterilization according to claim 1, wherein the toilet body (1) comprises a bottom plate (13), a front door panel (14), a first side panel (15), a rear door panel (16), a second side panel (17), and a third side panel (18) detachably connected to the bottom plate (13), and a top plate (19) detachably connected to the tops of the front door panel (14), the first side panel (15), the rear door panel (16), the second side panel (17), and the third side panel (18), and the photovoltaic panel (2) is provided on the top of the top plate (19).
3. A toilet structure for temperature measurement and disinfection according to claim 2, characterised in that the photovoltaic panel (2) is electrically connected with an inverter (107) and a storage battery (105), the inverter (107) is electrically connected with the temperature measurement device (101) and the disinfector (102), and a receiving space (20) for placing the inverter (107), the storage battery (105) and the disinfector (102) is formed between the second side panel (17) and the third side panel (18).
4. A toilet structure for measuring temperature and sterilizing according to claim 3, wherein the front door panel (14) and the rear door panel (16) are Jiong-shaped, the front door opening (11) and the rear door opening (12) are respectively arranged on the front door panel (14) and the rear door panel (16), the side portions of the front door panel (14) and the rear door panel (16) are respectively provided with a front cover plate (141) and a rear cover plate (161) for covering the accommodating space (20), and the front cover plate (141) is provided with a mounting groove (142) for mounting the temperature measuring device (101).
5. A toilet structure for measuring temperature and sterilizing according to claim 4, wherein both sides of the front door panel (14) and the rear door panel (16) are detachably connected with the first side panel (15) and the third side panel (18), respectively, and both sides of the second side panel (17) are detachably connected with the front cover plate (141) and the rear cover plate (161), respectively.
6. A bathroom structure for temperature measurement and disinfection according to any of claims 2 to 5, characterized in that said second side plate (17) is provided with spray holes (171) for spraying disinfection solution from said disinfector (102).
7. A toilet structure for temperature measurement and sterilization according to any one of claims 2 to 5, wherein the outside of the third side plate (18) is provided with an access opening (181) for installing an access door.
8. A toilet structure for temperature measurement and disinfection according to claim 2, characterised in that the bottom of the chassis (13) is provided with pulleys (131).
9. A toilet structure for temperature measurement and disinfection according to claim 2, characterised in that both the front door panel (14) and the rear door panel (16) are provided with curtains (106).
10. A bathroom structure for temperature measurement and disinfection according to claim 6, characterized in that said disinfector (102) uses an atomizer, said disinfector (102) is equipped with disinfecting liquid (103), and a water pipe (104) is connected between said disinfector (102) and said spray holes (171).
