Abstract

The invention discloses a multi-path gathering distribution box based on cloud computing intelligent monitoring, which comprises a box shell, a separated voltage and current transformer group, an indicator light group and a heat dissipation window, wherein a hinge is installed on the outer side of the box shell, a box door is connected to the outer side of the hinge, a camera is arranged on the inner side of the box door, a top partition plate is fixed on the top inside the box shell, a branch switch is installed on the outer side of a fixed vertical rod, a separated voltage and current transformer group is arranged on the outer side of a cable, a main switch located on the inner side of a main switch mounting groove is connected to the upper portion of the branch switch, and a temperature sensor is installed on the edge portion of the inner side of the box shell. This multichannel block terminal that gathers based on cloud calculates intelligent monitoring is convenient for synthesize the judgement to multiple information, can carry out intelligent monitoring, is favorable to ensureing safety, is favorable to supplementary safety simultaneously, is convenient for carry out operations such as threading fast, is convenient for guarantee the quick installation of electric power.

Description

Multichannel block terminal that gathers based on cloud calculates intelligent monitoring
Technical Field
The invention relates to the technical field of distribution boxes, in particular to a multi-path gathering distribution box based on cloud computing intelligent monitoring.
Background
With the development of energy technology, the application range of electric power is more and more extensive, in the process of using electric power, in order to ensure the standard management of electric power, a distribution box is generally required to be used for power distribution, and meanwhile, due to different use environments of the distribution box, the use of the distribution box is required to be monitored so as to ensure the long-term safe use of the distribution box;
and block terminal under the prior art background, at the in-process of carrying out work use, be not convenient for synthesize the judgement to multiple information, be unfavorable for guaranteeing to carry out intelligent monitoring, be unfavorable for guaranteeing safety, simultaneously when installing the use, be not convenient for carry out assistance-localization real-time, be not convenient for carry out quick installation to the switch, be not convenient for operation such as threading simultaneously, be unfavorable for electric power safety's quick completion, consequently, we propose a block terminal that gathers based on the multichannel of cloud computing intelligent monitoring to in the solution above-mentioned problem of proposing.
Disclosure of Invention
The invention aims to provide a multi-path summarizing distribution box based on cloud computing intelligent monitoring, and aims to solve the problems that the conventional distribution box provided by the background technology is inconvenient to comprehensively judge various information, guarantee intelligent monitoring and guarantee safety in the process of working and using, is inconvenient to assist in positioning, install a shunting switch quickly, perform threading and other operations and is not favorable for quickly completing electric power installation.
In order to achieve the purpose, the invention provides the following technical scheme: a multi-path collecting distribution box based on cloud computing intelligent monitoring comprises a box shell, a separated voltage and current transformer group, an indicator lamp group and a heat dissipation window, wherein hinges are installed on the outer side of the box shell, a box door is connected to the outer side of each hinge, a camera is arranged on the inner side of the box door, a top partition plate is fixed to the top of the inner portion of the box shell, a baffle is installed on the top surface of the top partition plate, a total opening installation groove is formed in the left side of the baffle, a lamp group installation groove is formed in the right side of the baffle, a fixed vertical rod is connected to the bottom surface of the top partition plate, a limiting groove is formed in the lateral side of the fixed vertical rod, a fixing groove is formed in the fixed vertical rod, a connecting rod is fixed to the bottom end of the fixed vertical rod, a limiting plate is installed on the inner side of the limiting groove, and a supporting plate is connected to the inner side of the limiting plate;
a branch switch is installed on the outer side of the fixed vertical rod, a cable is connected to the bottom end of the branch switch, a divided voltage and current transformer group is arranged on the outer side of the cable, a main switch located on the inner side of a main switch installation groove is connected to the upper portion of the branch switch, a main switch voltage and current transformer group is arranged on the upper portion of the branch switch, an indicating lamp group located inside the lamp group installation groove is arranged on the right side of the main switch, a bottom partition plate is arranged at the bottom of the inner side of the box shell, a side plate is fixed to the side of the bottom partition plate, an insertion groove is formed in the inner side of the bottom partition plate, and a threading hole is formed in the bottom partition plate;
temperature sensor is installed to the inboard limit portion of case casing, and temperature sensor's opposite position is provided with the humidity transducer who installs the inboard limit portion at the case casing equally to the heat dissipation window has been seted up to the avris of case casing.
Preferably, always open the mounting groove and be linked together between the lamp bank mounting groove all and the inside of case casing, and always open the mounting groove and the lamp bank mounting groove respectively with correspond the be assembled between switch and the pilot lamp group and be connected.
Preferably, the fixed vertical rods are symmetrically arranged at the left and right of the bottom of the top partition plate, a certain distance is reserved between the bottom ends of the fixed vertical rods and the bottom surface of the box shell, and the bottom end positions of the fixed vertical rods are lower than the bottom surface position of the bottom partition plate.
Preferably, spacing groove and fixed slot have been seted up to the inside equidistant of fixed montant, and are the one-to-one setting between spacing groove and the fixed slot to fixed montant passes through bolt fixed connection between fixed slot and the branch switch, and the fixed slot is rectangular form structure moreover.
Preferably, the limiting plates and the fixed vertical rods are in one-to-one correspondence and are connected in a pasting mode, the limiting plates are of L-shaped structures, the limiting plates and the supporting plates are in rotating connection, and the supporting plates are of bent I-shaped structures.
Preferably, the separated voltage and current transformer groups are arranged below the branch switches, the separated voltage and current transformer groups are correspondingly connected with the cable single bodies, the total open-voltage current transformer group is correspondingly arranged on the outer side of the cable assembly, and the separated voltage and current transformer groups and the total open-voltage current transformer group respectively comprise a voltage transformer and a current transformer.
Preferably, the bottom baffle corresponds the block through between limit curb plate and the case casing and constitutes and dismantle the structure, and the bottom baffle passes through to correspond between slot and the fixed montant to be connected to the bottom of fixed montant runs through and corresponds threaded connection between the bottom of slot and the stop nut.
Preferably, the temperature sensor and the humidity sensor are symmetrically arranged in the middle of the inner side of the box shell in an oblique and diagonal manner, and the temperature sensor, the humidity sensor, the split voltage and current transformer group, the total open voltage and current transformer group and the camera are arranged in parallel.
Preferably, the temperature sensor, the humidity sensor, the separated voltage and current transformer group, the total open voltage and current transformer group and the camera are all in one-way connection with the central processing unit, and the central processing unit is further connected with the wireless module, the audible and visual alarm and the indicating lamp group.
Compared with the prior art, the invention has the beneficial effects that: the multi-path collecting distribution box based on the cloud computing intelligent monitoring is convenient for comprehensively judging various information, can perform intelligent monitoring, is beneficial to ensuring safety, is beneficial to assisting safety, is convenient for rapidly performing operations such as threading and the like, and is convenient for ensuring the rapid installation of electric power;
1. through the parallel arrangement of the camera, the separated voltage and current transformer group, the total open voltage and current transformer group, the temperature sensor and the humidity sensor, the information in the distribution box can be uploaded conveniently, the voltage and current information of the cable can be monitored simultaneously, and meanwhile, the intelligent monitoring is facilitated and the safety is ensured by combining the preset threshold value;
2. the limiting plates are convenient to mount through corresponding bonding between the limiting grooves and the limiting plates, so that the support plate can bear the branch switch through the support plate after rotating outside the limiting plates, and meanwhile, the support plate can rotate inwards after the branch switch is threaded from the bottom of the fixed vertical rod, and the branch switch can be mounted and used through retraction of the support plate;
3. through the corresponding setting between slot and the fixed montant, be convenient for make the bottom of fixed montant alternate the below of bottom baffle, support the bottom baffle through the block between limit curb plate and the case casing and the threaded connection between stop nut and the connecting rod simultaneously, can install the cable arrangement of being convenient for to the bottom baffle after threading through the through wires hole.
Drawings

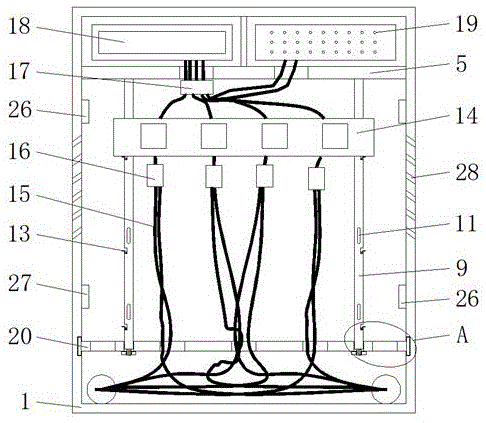

FIG. 1 is a front sectional view of the present invention;
FIG. 2 is a schematic front view of the present invention;
FIG. 3 is a schematic view of a top view of the present invention;
FIG. 4 is a schematic view of the overall structure of the fixing post of the present invention;
FIG. 5 is a schematic view of the overall structure of the bottom separator of the present invention;
FIG. 6 is an enlarged view of portion A of FIG. 1 according to the present invention;
FIG. 7 is a schematic flow chart of the system of the present invention 1;
FIG. 8 is a schematic flow chart of the system of the present invention 2.
In the figure: 1. a case housing; 2. a hinge; 3. a box door; 4. a camera; 5. a top baffle; 6. a baffle plate; 7. always opening a mounting groove; 8. a lamp group mounting groove; 9. fixing the vertical rod; 10. a limiting groove; 11. fixing grooves; 12. a limiting plate; 13. a support plate; 14. a branch switch; 15. a cable; 16. separating the groups of voltage-current transformers; 17. a total open voltage current transformer group; 18. a master switch; 19. an indicator light set; 20. a bottom partition; 21. a side plate; 22. a slot; 23. threading holes; 24. a connecting rod; 25. a limit nut; 26. a temperature sensor; 27. a humidity sensor; 28. and a heat dissipation window.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-8, the present invention provides a technical solution: a multi-path gathering distribution box based on cloud computing intelligent monitoring comprises a box shell 1, hinges 2, a box door 3, cameras 4, a top partition plate 5, a baffle plate 6, a total opening installation groove 7, a lamp group installation groove 8, a fixing vertical rod 9, a limiting groove 10, a fixing groove 11, a limiting plate 12, a supporting plate 13, a branch switch 14, a cable 15, a divided voltage and current transformer group 16, a total opening voltage and current transformer group 17, a total switch 18, an indicator lamp group 19, a bottom partition plate 20, a side plate 21, an inserting groove 22, a threading hole 23, a connecting rod 24, a limiting nut 25, a temperature sensor 26, a humidity sensor 27 and a heat dissipation window 28, wherein the hinges 2 are installed on the outer side of the box shell 1, the cameras 4 are arranged on the inner side of the box door 3, the top partition plate 5 is fixed on the inner top of the box shell 1, the baffle plate 6 is installed on the top surface of the top partition plate 5, a main opening installation groove 7 is formed in the left side of the baffle 6, a lamp group installation groove 8 is formed in the right side of the baffle 6, a fixed vertical rod 9 is connected to the bottom surface of the top partition plate 5, a limiting groove 10 is formed in the side of the fixed vertical rod 9, a fixing groove 11 is formed in the fixed vertical rod 9, a connecting rod 24 is fixed to the bottom end of the fixed vertical rod 9, a limiting plate 12 is installed on the inner side of the limiting groove 10, and a supporting plate 13 is connected to the inner side of the limiting plate 12;
a branch switch 14 is installed on the outer side of the fixed vertical rod 9, a cable 15 is connected to the bottom end of the branch switch 14, a divided voltage and current transformer group 16 is arranged on the outer side of the cable 15, a main switch 18 located on the inner side of the main switch installation groove 7 is connected to the upper side of the branch switch 14, a main switch voltage and current transformer group 17 is arranged on the upper side of the branch switch 14, an indicator lamp group 19 located inside the lamp group installation groove 8 is arranged on the right side of the main switch 18, a bottom partition plate 20 is arranged on the bottom of the inner side of the box shell 1, a side plate 21 is fixed to the side of the bottom partition plate 20, a slot 22 is formed in the inner side of the bottom partition plate 20, and a threading hole 23 is formed in the bottom partition plate 20;
a temperature sensor 26 is mounted on the inner side edge of the case 1, a humidity sensor 27 is mounted on the inner side edge of the case 1 at a position opposite to the temperature sensor 26, and a heat radiation window 28 is opened on the side of the case 1.
Always open mounting groove 7 and banks mounting groove 8 and all be linked together between the inside of case casing 1 as in fig. 1 and fig. 2, and always open mounting groove 7 and banks mounting groove 8 respectively with always switch 18 and the pilot lamp group 19 between correspond assembly connection, be convenient for correspond and install, can guarantee to accomodate.
As shown in fig. 1, 2 and 4, the fixing vertical rods 9 are symmetrically arranged at the bottom of the top partition 5, a certain distance is reserved between the bottom ends of the fixing vertical rods 9 and the bottom surface of the case shell 1, the bottom end positions of the fixing vertical rods 9 are lower than the bottom surface position of the bottom partition 20, so that the fixing vertical rods 9 are conveniently limited and fixed, the fixing vertical rods 9 are internally provided with limiting grooves 10 and fixing grooves 11 at equal intervals, the limiting grooves 10 and the fixing grooves 11 are arranged in a one-to-one correspondence manner, the fixing vertical rods 9 are fixedly connected with the branch switches 14 through bolts between the fixing grooves 11 and the branch switches 14, the fixing grooves 11 are in a strip-shaped structure, so that the branch switches 14 suitable for different models are conveniently positioned and fixed, as shown in fig. 6, the limiting plates 12 are correspondingly adhered to the fixing vertical rods 9, the limiting plates 12 are in an L-shaped structure, and the limiting plates 12 are rotatably connected with the supporting plate 13, and the support plate 13 is of a bent I-shaped structure, so that the branch switch 14 is conveniently carried, and the support plate 13 can automatically retract.
The split voltage and current transformer group 16 is provided with a plurality of groups below the branch switch 14 in fig. 1, the split voltage and current transformer group 16 is correspondingly connected with the single cable 15, the total split voltage and current transformer group 17 is correspondingly installed on the outer side of the cable 15, and the split voltage and current transformer group 16 and the total split voltage and current transformer group 17 comprise a voltage transformer and a current transformer, so that voltage and current can be monitored, and the intelligent monitoring safety is ensured.
As shown in fig. 1, 2, 3 and 5, the bottom partition plate 20 is correspondingly clamped with the case shell 1 through the side plate 21 to form a detachable structure, the bottom partition plate 20 is correspondingly connected with the fixed vertical rod 9 through the slot 22, and the bottom end of the fixed vertical rod 9 penetrates through the bottom of the slot 22 and is correspondingly in threaded connection with the limit nut 25, so that the fixed vertical rod 9 and the bottom partition plate 20 are conveniently limited, and the overall stability is ensured;
as shown in fig. 1, fig. 2, fig. 7 and fig. 8, the temperature sensor 26 and the humidity sensor 27 are symmetrically arranged in the middle of the inner side of the box shell 1 in a diagonal manner, and the temperature sensor 26, the humidity sensor 27, the separated voltage and current transformer group 16, the total open voltage and current transformer group 17 and the camera 4 are arranged in parallel, which is convenient for information monitoring, the temperature sensor 26, the humidity sensor 27, the separated voltage and current transformer group 16, the total open voltage and current transformer group 17 and the camera 4 are all connected with the central processing unit in a one-way manner, and the central processing unit is further connected with a wireless module, an audible and visual alarm and an indicator light group 19, which are beneficial to timely information processing and ensure safety performance.
The working principle is as follows: when the multipath summary distribution box based on cloud computing intelligent monitoring is used, firstly, the box shell 1 is fixed at a position suitable for use, the cable 15 penetrates through the bottom end of the box shell 1, so that the cable 15 correspondingly penetrates to the inner side of the threading hole 23 in the bottom partition plate 20, meanwhile, when the bottom partition plate 20 is not connected with the box shell 1, the branch switch 14 is installed in a penetrating manner through the bottom end of the fixed vertical rod 9 and the bottom surface of the box shell 1 through the non-contact between the bottom end of the fixed vertical rod 9 and the bottom surface of the box shell 1, as shown in fig. 1, 2 and 6, the branch switch 14 is lifted up on the outer side of the fixed vertical rod 9, when the branch switch 14 touches the support plate 13, the support plate 13 is rotated to retract towards the inside of the limiting groove 10, so that the branch switch 14 can be lifted up continuously, after the branch switch 14 is lifted up to the upper side of the support plate 13, the support plate 13 is rotated under the action of gravity, so that the bottom of the support plate 13 is supported by the limiting plate 12, the top surface of the supporting plate 13 is made horizontal, so that the branch switch 14 can be supported by the supporting plate 13, then the branch switch 14 can be fixed by penetrating through the fixing groove 11 through bolts, then the cable 15 is connected and installed with the branch switch 14 and the main switch 18, and meanwhile, the separated voltage and current transformer group 16 and the total open voltage and current transformer group 17 are respectively installed on the outer side of the cable 15, so that the voltage and the current are monitored;
then, as shown in fig. 1, 3 and 5, the bottom partition plate 20 and the box shell 1 are correspondingly clamped and connected through the side plates 21, so that the cables 15 are accommodated below the bottom partition plate 20 for standby, meanwhile, the bottom partition plate 20 is internally provided with a slot 22, the bottom end of the fixing vertical rod 9 can penetrate through the bottom of the bottom partition plate 20, the bottom partition plate 20 is conveniently tensioned through the corresponding threaded connection between the limiting nut 25 and the connecting rod 24, and meanwhile, the stability of the fixing vertical rod 9 and the bottom partition plate 20 is improved;
when the multi-path collecting distribution box is in work and use, the box door 3 is rotated and closed through the hinge 2, the picture, the temperature, the humidity and the voltage and current inside the box shell 1 are conveniently monitored through the camera 4, the split voltage and current transformer group 16, the total open voltage and current transformer group 17, the temperature sensor 26 and the humidity sensor 27 which are arranged in parallel, the intelligent monitoring is convenient for ensuring the safe use, meanwhile, the switch closing conditions of the split switch 14 and the total switch 18 are displayed through the indicating lamp group 19 when the multi-path collecting distribution box is overhauled, the safety of maintainers is favorably ensured, the whole working process of the multi-path collecting distribution box based on the cloud computing intelligent monitoring is the whole working process, and the content which is not described in detail in the specification belongs to the prior art known by professionals in the field.
The standard parts used in the invention can be purchased from the market, the special-shaped parts can be customized according to the description of the specification and the accompanying drawings, the specific connection mode of each part adopts conventional means such as bolts, rivets, welding and the like mature in the prior art, the machines, the parts and equipment adopt conventional models in the prior art, and the circuit connection adopts the conventional connection mode in the prior art, so that the detailed description is omitted.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that various changes in the embodiments and/or modifications of the invention can be made, and equivalents and modifications of some features of the invention can be made without departing from the spirit and scope of the invention.

Claims (1)

1. The utility model provides a block terminal is gathered to multichannel based on cloud calculates intelligent monitoring, includes case casing (1), separate voltage and current transformer group (16), pilot lamp group (19) and heat dissipation window (28), its characterized in that: the outer side of the box shell (1) is provided with a hinge (2), the outer side of the hinge (2) is connected with a box door (3), a camera (4) is arranged on the inner side of the box door (3), a top clapboard (5) is fixed on the top of the inner part of the box shell (1), a baffle (6) is arranged on the top surface of the top clapboard (5), a general opening installation groove (7) is arranged on the left side of the baffle (6), a lamp group installation groove (8) is arranged on the right side of the baffle (6), the bottom surface of the top baffle (5) is connected with a fixed vertical rod (9), the side of the fixed vertical rod (9) is provided with a limit groove (10), the inside of the fixed vertical rod (9) is provided with a fixed groove (11), a connecting rod (24) is fixed at the bottom end of the fixed vertical rod (9), a limiting plate (12) is installed on the inner side of the limiting groove (10), and a supporting plate (13) is connected to the inner side of the limiting plate (12);
the fixing vertical rods (9) are arranged at the bottom of the top partition plate (5) in a bilateral symmetry mode, a certain distance is reserved between the bottom ends of the fixing vertical rods (9) and the bottom surface of the box shell (1), the bottom end positions of the fixing vertical rods (9) are lower than the bottom surface position of the bottom partition plate (20), limiting grooves (10) and fixing grooves (11) are formed in the fixing vertical rods (9) at equal intervals, the limiting grooves (10) and the fixing grooves (11) are arranged in a one-to-one correspondence mode, the fixing vertical rods (9) are fixedly connected with the branch switches (14) through bolts between the fixing grooves (11), the fixing grooves (11) are of long strip-shaped structures, the limiting plates (12) are connected with the fixing vertical rods (9) in a one-to-one sticking mode, the limiting plates (12) are of L-shaped structures, and the limiting plates (12) are connected with the supporting plate (13) in a rotating mode, the supporting plate (13) is of a bent I-shaped structure;
a branch switch (14) is installed on the outer side of the fixed vertical rod (9), the bottom end of the branch switch (14) is connected with a cable (15), a divided voltage and current transformer group (16) is arranged on the outer side of the cable (15), a main switch (18) located on the inner side of the main switch mounting groove (7) is connected to the upper side of the branch switch (14), a main switch voltage and current transformer group (17) is arranged on the upper side of the branch switch (14), an indicating lamp group (19) located inside the lamp group mounting groove (8) is arranged on the right side of the main switch (18), a bottom partition plate (20) is arranged at the bottom of the inner side of the box shell (1), a side plate (21) is fixed to the side of the bottom partition plate (20), a slot (22) is formed in the inner side of the bottom partition plate (20), and a threading hole (23) is formed in the bottom partition plate (20);
a temperature sensor (26) is mounted on the inner side edge of the box shell (1), a humidity sensor (27) which is also mounted on the inner side edge of the box shell (1) is arranged at the opposite position of the temperature sensor (26), and a heat dissipation window (28) is formed in the side of the box shell (1); the main opening mounting groove (7) and the lamp group mounting groove (8) are communicated with the interior of the box shell (1), and the main opening mounting groove (7) and the lamp group mounting groove (8) are correspondingly assembled and connected with the main switch (18) and the indicating lamp group (19) respectively;
the multiple groups of the separated voltage and current transformer groups (16) are arranged below the branch switch (14), the separated voltage and current transformer groups (16) are correspondingly connected with the single cable (15), the total open-voltage current transformer group (17) is correspondingly arranged on the outer side of the cable (15) in total, and the separated voltage and current transformer groups (16) and the total open-voltage current transformer group (17) both comprise a voltage transformer and a current transformer;
the bottom partition plate (20) is correspondingly clamped with the box shell (1) through the side plate (21) to form a dismounting structure, the bottom partition plate (20) is correspondingly connected with the fixed vertical rod (9) through the slot (22), and the bottom end of the fixed vertical rod (9) penetrates through the bottom of the slot (22) and is correspondingly in threaded connection with the limiting nut (25);
the temperature sensors (26) and the humidity sensors (27) are arranged in the middle of the inner side of the box shell (1) in an oblique and diagonal symmetrical mode, and the temperature sensors (26), the humidity sensors (27), the split voltage and current transformer group (16), the total open voltage and current transformer group (17) and the camera (4) are arranged in parallel;
temperature sensor (26), humidity transducer (27), divide voltage current mutual inductor group (16), total voltage current mutual inductor group (17) and camera (4) all with central processing unit between one-way connection, and central processing unit still is connected with wireless module, audible-visual annunciator and pilot lamp group (19).
