Abstract

The utility model discloses an electronic equipment receiver belongs to communication technical field. The box body is provided with an accommodating cavity, and the box body also comprises an opening part communicated with the accommodating cavity; the first fixing component and the second fixing component are arranged in the accommodating cavity; the first fixing component comprises a base platform, a limiting part and a supporting part, the base platform is fixedly arranged on the inner bottom surface opposite to the opening part, the limiting part is arranged in the middle of the side surface of the base platform opposite to the opening part, and the supporting part is arranged beside the limiting part; the second fixing component is arranged opposite to the first fixing component along the first direction of the box body; the second fixing component comprises a first clamping part and a second clamping part, and the first clamping part and the second clamping part are oppositely arranged along the second direction of the box body. The electronic equipment storage box provided by the embodiment of the disclosure can provide fixing and supporting functions and effective protection for two electronic equipment.

Description

Electronic equipment storage box and electronic equipment assembly
Technical Field
The utility model belongs to the technical field of communication, concretely relates to electronic equipment receiver and electronic equipment subassembly.
Background
With the development of science and technology, intelligent electronic devices gradually enter thousands of households to become living necessities of people, and for example, various intelligent wearable devices are increasingly favored by consumers in recent years. Many intelligent electronic devices all need reasonable storage when not in use, otherwise damage or loss easily occurs. In the course of implementing the present disclosure, the inventors found that there are at least the following problems in the prior art: the storage box for the intelligent electronic equipment in the prior art can only contain one piece of single electronic equipment, and a plurality of storage boxes are needed to be used simultaneously when a plurality of pieces of electronic equipment need to be stored, so that the storage box is inconvenient to carry; moreover, the storage box in the prior art can only simply store the electronic equipment, and the electronic equipment cannot be effectively fixed.
Disclosure of Invention
The purpose of the disclosed embodiment is to provide an electronic equipment storage box and an electronic equipment assembly, so as to solve the technical problem that the electronic equipment storage box cannot store a plurality of electronic equipment.
In order to solve the technical problem, the present disclosure is implemented as follows:
in a first aspect, an embodiment of the present disclosure provides an electronic device storage box, which includes:
the box body is provided with an accommodating cavity and also comprises an opening part communicated with the accommodating cavity;
the first fixing component is used for fixing a first electronic device and is arranged in the accommodating cavity; the first fixing component comprises a base platform, a limiting part and a supporting part, the base platform is fixedly arranged at the inner bottom surface opposite to the opening part, the limiting part is arranged in the middle of the side surface of the base platform opposite to the opening part, and the supporting part is arranged beside the limiting part;
the second fixing component is used for fixing second electronic equipment, is arranged in the accommodating cavity and is opposite to the first fixing component along the first direction of the box body; the second fixing component comprises a first clamping part and a second clamping part, and the first clamping part and the second clamping part are oppositely arranged along the second direction of the box body.
In a second aspect, an embodiment of the present disclosure provides an electronic device assembly, which includes the electronic device storage box according to the first aspect, a first electronic device, and a second electronic device; the first electronic device and the second electronic device are arranged in the accommodating cavity of the box body, the first electronic device is connected with the first fixing component, and the second electronic device is connected with the second fixing component;
the middle part of the first electronic device is attached to the limiting part, and the side part of the first electronic device is attached to the supporting part;
two ends of the second electronic device are respectively clamped with the first clamping part and the second clamping part.
The technical scheme adopted by the disclosure can achieve the following beneficial effects:
in the electronic equipment storage box provided by the embodiment of the disclosure, the first fixing component and the second fixing component are arranged in the electronic equipment storage box, so that not only can electronic equipment of two different types be stored simultaneously, but also the first fixing component and the second fixing component can respectively provide fixing support effects for the electronic equipment of two different types, and therefore the two electronic equipment can be protected more effectively in the storage box.
Drawings

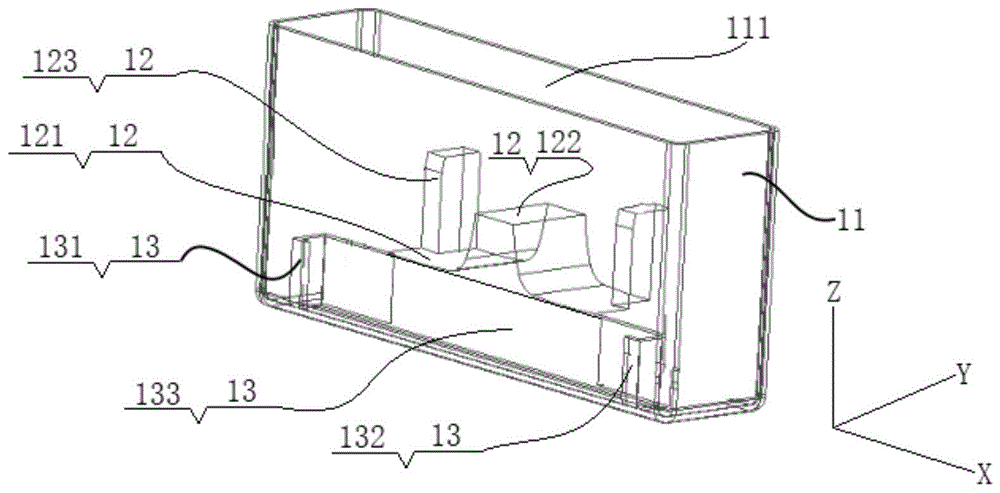

Fig. 1 is a schematic structural view of an electronic device storage box according to an embodiment of the disclosure;
fig. 2 is a usage state diagram of an electronic device storage box provided in the embodiment of the present disclosure;
fig. 3 is a first schematic structural diagram of an electronic device assembly according to an embodiment of the present disclosure;
fig. 4 is a schematic structural diagram of an electronic device assembly according to an embodiment of the present disclosure;
fig. 5 is a schematic structural diagram of a third electronic device assembly according to an embodiment of the disclosure.
Detailed Description
The technical solutions in the embodiments of the present disclosure will be clearly and completely described below with reference to the drawings in the embodiments of the present disclosure, and it is obvious that the described embodiments are some, but not all embodiments of the present disclosure. All other embodiments, which can be derived by a person skilled in the art from the embodiments disclosed herein without making any creative effort, shall fall within the protection scope of the present disclosure.
The terms first, second and the like in the description and in the claims of the present disclosure are used for distinguishing between similar elements and not necessarily for describing a particular sequential or chronological order. It is to be understood that the data so used is interchangeable under appropriate circumstances such that embodiments of the disclosure can be practiced in sequences other than those illustrated or described herein. In addition, "and/or" in the specification and claims means at least one of connected objects, a character "/" generally means that a preceding and succeeding related objects are in an "or" relationship.
The storage box for electronic devices provided by the embodiments of the present disclosure is described in detail below with reference to the accompanying drawings by specific embodiments and application scenarios thereof.
The present disclosure provides an electronic device storage box, as shown in fig. 1, the electronic device storage box includes a box body 11, a first fixing component 12 for fixing a first electronic device, and a second fixing component 13 for fixing a second electronic device, the box body 11 has an accommodating cavity, and the box body further includes an opening 111 communicating with the accommodating cavity; the first fixing assembly 12 is arranged in the accommodating cavity; the first fixing component 12 includes a base 121, a limiting portion 122 and a supporting portion 123, the base 121 is fixedly disposed at an inner bottom surface opposite to the opening 111, the limiting portion 122 is disposed at a middle position of a side surface of the base 121 opposite to the opening 111, and the supporting portion 123 is disposed beside the limiting portion 122; the second fixing component 13 is arranged in the accommodating cavity, and the second fixing component 13 is arranged opposite to the first fixing component 12 along the first direction of the box body 11; the second fixing component 13 includes a first engaging portion 131 and a second engaging portion 132, and the first engaging portion 131 and the second engaging portion 132 are disposed opposite to each other along the second direction of the box 11. Specifically, the first direction is a width direction of the cartridge body 11, i.e., a Y-axis direction shown in fig. 1; the second direction is the length direction of the box body 11, namely, the X-axis direction shown in fig. 1; the third direction is a height direction of the case 11, i.e., a Z-axis direction shown in fig. 1.
When the electronic equipment storage box provided by the embodiment of the disclosure is used for storing electronic equipment, two different types of electronic equipment can be stored simultaneously. Putting a first electronic device and a second electronic device into the accommodating cavity from the opening 111 of the box body 11, wherein optionally, the first electronic device is a pair of smart glasses, and the second electronic device is a mobile terminal, such as a mobile phone; placing the first electronic device at the first fixing component 12, and fixing the middle and side positions of the first electronic device by the base 121, the limiting part 122 and the supporting part 123 of the first fixing component 12 in a matching manner; the second electronic device is placed on the second fixing component 13, and the first engaging portion 131 and the second engaging portion 132 of the second fixing component 13 cooperate to fix two ends of the second electronic device. The electronic equipment storage box provided by the embodiment of the disclosure can be used for storing first electronic equipment and second electronic equipment simultaneously, and the first fixing component 12 and the second fixing component 13 arranged in the box body 11 can provide fixing support effects for the first electronic equipment and the second electronic equipment, so that the first electronic equipment and the second electronic equipment can be more effectively protected in the storage box. Alternatively, the base 121, the limiting portion 122 and the supporting portion 123 may be integrally formed.
Referring to fig. 1 and 2, in one embodiment, two supporting portions 123 are provided, and the two supporting portions 123 are symmetrically provided about the limiting portion 122. In one embodiment, the side surfaces of the limiting portion 122 facing the two supporting portions 123 are configured as arc surfaces. In one embodiment, the length of the supporting portion 123 along the third direction of the box body 11 is greater than the length of the limiting portion 122 along the third direction of the box body 11.
Referring to fig. 1 and 2, the two supporting portions 123 arranged symmetrically with respect to the limiting portion 122 can provide more balanced and stable support for two sides of the first electronic device; the side surface of the limiting part 122 facing the two supporting parts 123 is an arc surface, which is particularly suitable for the case that the first electronic device is an intelligent glasses, because generally, the side of the glasses frame of the intelligent glasses is an arc, and the arc structures on the two sides of the limiting part 122 can sufficiently fit the position from the side of the glasses frame of the intelligent glasses to the joint of the two glasses frames, so as to provide more stable support for the intelligent glasses; setting up supporting part 123 and being greater than spacing portion 122 along box body 11 direction of height's size and also being particularly suitable for the condition that first electronic equipment is intelligent glasses because general intelligent glasses are under fold condition, and the height that is close to middle part position department picture frame bottom to two picture frame junctions will be less than the height that both sides position department picture frame bottom to the mirror leg. On placing base station 121 with intelligent glasses, the avris that two picture frames are close to each other is laminated with two cambered surfaces of spacing portion 122 mutually, and avris and mirror leg department that two picture frames kept away from each other support and lean on two supporting parts 123, and from this, first fixed subassembly 12 provides firm reliable fixed bolster effect for intelligent glasses.
In one embodiment, the second fixing assembly 13 further includes a fixing portion 133, the fixing portion 133 is fixedly disposed at an inner bottom surface of the accommodating cavity opposite to the opening portion 111, and the first engaging portion 131 and the second engaging portion 132 are symmetrically disposed at two sides of the fixing portion 133 along the second direction of the box body 11.
A second electronic device, for example, a mobile terminal such as a mobile phone, is placed in the accommodating cavity, two ends of the second electronic device are respectively clamped on the first clamping portion 131 and the second clamping portion 132, and one side surface of the second electronic device abuts against the fixing portion 133, so that the second fixing component 13 provides a stable and reliable fixing and supporting function for the second electronic device.
In one embodiment, the first engaging portion 131 and the second engaging portion 132 are slidably connected to the fixing portion 133 along a second direction of the case 11.
The first engaging portion 131 and the second engaging portion 132 are configured to slide along the second direction of the box 11, so that the second fixing component 13 can be adapted to second electronic devices with different lengths; the first engaging portion 131 and the second engaging portion 132 can slide in a direction away from each other to be used for a second electronic device with a long fixed length, so that the second fixing element 13 has a good versatility.
In one embodiment, the second fixing assembly 13 further comprises a first elastic member and a second elastic member; along a second direction of the box body 11, the fixing portion 133 has a first side and a second side; one end of the first elastic member is connected to a first side of the fixing portion 133, and the other end of the first elastic member is connected to the first engaging portion 131; one end of the second elastic member is connected to the second side of the fixing portion 133, and the other end of the second elastic member is connected to the second engaging portion 132.
The first elastic member is used to connect the first engaging portion 131 and the fixing portion 133, and the second elastic member is used to connect the second engaging portion 132 and the fixing portion 133, the first elastic member is provided to ensure that the first engaging portion 131 can slide relative to the fixing portion 133 and can not be disengaged from each other, and similarly, the second elastic member is provided to ensure that the second engaging portion 132 can slide relative to the fixing portion 133 and can not be disengaged from each other, so as to provide stable support for second electronic devices with various length sizes. Specifically, optionally, the first elastic member and the second elastic member are springs. Further alternatively, a set of slide rails and slide grooves may be respectively disposed between the first engaging portion 131 and the fixing portion 133 and between the second engaging portion 132 and the fixing portion 133 as sliding guides, so as to ensure that the first engaging portion 131 and the fixing portion 133 and the second engaging portion 132 and the fixing portion 133 can only slide along the second direction without wobbling and shifting in other directions.
Referring to fig. 3, an embodiment of the present disclosure further provides an electronic device assembly, where the electronic device assembly includes the electronic device storage box 1, the first electronic device 2, and the second electronic device 3; the first electronic device 2 and the second electronic device 3 are arranged in an accommodating cavity of the box body 11, the first electronic device 2 is connected with the first fixing component 12, and the second electronic device 3 is connected with the second fixing component 13; the middle part of the first electronic device 2 is attached to the limiting part 122, and the side part of the first electronic device 2 is attached to the supporting part 123; both ends of the second electronic device 3 are engaged with the first engaging portion 131 and the second engaging portion 132, respectively.
The electronic equipment subassembly that this disclosed embodiment provided can accomodate first electronic equipment 2 and second electronic equipment 3 simultaneously owing to adopted above-mentioned electronic equipment receiver 1 to for first electronic equipment 2 and second electronic equipment 3 provide the fixed bolster effect, make first electronic equipment 2 and second electronic equipment 3 can obtain more effective protection in this electronic equipment receiver 1.
In one embodiment, the first electronic device 2 has a charging module, the second electronic device 3 has a discharging module, the charging module matches with the discharging module, and the second electronic device 3 can charge the first electronic device 2.
In this embodiment, the second electronic device 3 may be used to charge the first electronic device 2, for example, a mobile phone is used to charge the smart glasses. Therefore, when the first electronic device 2 and the second electronic device 3 are placed in the electronic device storage box 1, not only the first electronic device 2 and the second electronic device 3 are simply protected from being stored, but also the charging function can be realized. From this, electronic equipment storage box 1 itself can not have the function of charging, can reduce the cost and the weight of electronic equipment storage box 1 like this.
In one embodiment, the discharging module is a wireless discharging module, and the charging module is a wireless charging module.
In this embodiment, the second electronic device 3 may be adapted to wirelessly charge the first electronic device 2; the specific charging logic is as follows: the wireless discharging module in the second electronic device 3 enters a discharging mode, the second electronic device 3 is fixed on the second fixing component 13, the first electronic device 2 is fixed on the first fixing component 12, and the second electronic device 3 recognizes the first electronic device 2 and starts to wirelessly charge the first electronic device 2. Because the setting of the first fixed subassembly 12 and the fixed subassembly 13 of second in the electronic equipment receiver 1, can let the position relatively fixed of first electronic equipment 2 and second electronic equipment 3, ensure that the position can aim at when second electronic equipment 3 carries out wireless charging for first electronic equipment 2, make things convenient for wireless module of discharging and the wireless identification of charging the module to be connected.
Referring to fig. 4, in one embodiment, the discharging module is a wired discharging module and the charging module is a wired charging module; the electronic device assembly further comprises a charging connector 4, a discharging connector 5 and a charging cable 6, the discharging connector 5 is connected with the second electronic device 3 under the condition that the second electronic device 3 is in the charging state of the first electronic device 2, the charging connector 4 is connected with the first electronic device 2, and the charging cable 6 is respectively connected with the charging connector 4 and the discharging connector 5.
In this embodiment, the second electronic device 3 may be employed to perform wired charging for the first electronic device 2; the specific charging logic is as follows: the wired discharging module in the second electronic device 3 enters a discharging mode, the second electronic device 3 is fixed on the second fixing component 13, the discharging connector 5 is inserted into a corresponding interface of the second electronic device 3, the first electronic device 2 is fixed on the first fixing component 12, the charging connector 4 is inserted into a corresponding interface of the first electronic device 2, and the second electronic device 3 recognizes the first electronic device 2 and starts to wirelessly charge the first electronic device 2. Due to the arrangement of the first fixing component 12 and the second fixing component 13 in the electronic device storage box 1, the positions of the first electronic device 2 and the second electronic device 3 can be relatively fixed, and the positions of the second electronic device 3 can be aligned when the first electronic device 2 is charged in a wired mode.
In one embodiment, the first electronic device 2 is a pair of smart glasses, and the second electronic device 3 is a mobile terminal; the side of the box body 11 close to the second fixing component 13 along the first direction is made of transparent material.
In this embodiment, when the mobile terminal, such as a mobile phone, is fixed to the second fixing component 13, since the side of the box 11 close to the second fixing component 13 along the first direction is made of a transparent material, the user can view the content displayed on the screen of the mobile phone through the transparent side of the box 11, which is particularly convenient for use in a special emergency.
In one embodiment, the side of the case 11 close to the second fixing element 13 along the first direction is made of a touch-sensitive transparent material. Further, the second electronic device 3 is attached to the side surface of the box body 11 close to the second fixing component 13 along the first direction.
In this embodiment, when a mobile terminal, such as a mobile phone, is fixed to the second fixing element 13, since the side of the box 11 close to the second fixing element 13 along the first direction is made of a touch-controllable transparent material, and the second electronic device 3 is attached to the side of the touch-controllable transparent material, a user can view the content displayed on the screen of the mobile phone and operate the mobile phone through the touch-controllable transparent side of the box 11, which is particularly convenient for use in a special emergency.
In one embodiment, a side surface of the box body 11 close to the first fixing element 12 along the first direction is provided as an inclined surface, and an included angle between the inclined surface and the inner bottom surface of the box body 11 is an acute angle.
Referring to fig. 5, in this embodiment, two sides of the case 11 are trapezoidal, and a side of the case 11 close to the first fixing component 12 along the first direction is inclined, so that the case can be used as a support, and electronic devices such as a mobile phone or a tablet computer can lean on the inclined plane to operate, thereby expanding functions of the electronic device storage case 1.
While the present disclosure has been described with reference to the embodiments illustrated in the drawings, which are intended to be illustrative rather than restrictive, it will be apparent to those of ordinary skill in the art in light of the present disclosure that many more modifications may be made without departing from the spirit of the disclosure and the scope of the appended claims.

Claims (7)

1. An electronic equipment storage box, comprising:
the box body (11), the box body (11) has a containing cavity, the box body also includes an opening part (111) communicated with the containing cavity;
a first fixing component (12) for fixing a first electronic device, the first fixing component (12) being arranged in the accommodating cavity; the first fixing component (12) comprises a base table (121), a limiting part (122) and a supporting part (123), the base table (121) is fixedly arranged on the inner bottom surface opposite to the opening part (111), the limiting part (122) is arranged in the middle of the side surface of the base table (121) opposite to the opening part (111), and the supporting part (123) is arranged beside the limiting part (122);
the second fixing component (13) is used for fixing second electronic equipment, the second fixing component (13) is arranged in the accommodating cavity, and the second fixing component (13) is arranged opposite to the first fixing component (12) along the first direction of the box body (11); the second fixing component (13) comprises a first clamping part (131) and a second clamping part (132), and the first clamping part (131) and the second clamping part (132) are oppositely arranged along a second direction of the box body (11);
the number of the supporting parts (123) is two, and the two supporting parts (123) are symmetrically arranged relative to the limiting part (122);
the side surfaces of the limiting parts (122) facing the two supporting parts (123) are arranged to be cambered surfaces; the length of the supporting part (123) along the third direction of the box body (11) is greater than the length of the limiting part (122) along the third direction of the box body (11); the first direction is the width direction of the box body, the second direction is the length direction of the box body, and the third direction is the height direction of the box body;
the second fixing component (13) further comprises a fixing part (133), the fixing part (133) is fixedly arranged at the inner bottom surface of the accommodating cavity opposite to the opening part (111), and the first clamping part (131) and the second clamping part (132) are symmetrically arranged at two sides of the fixing part (133) along the second direction of the box body (11); the first clamping part (131) and the second clamping part (132) are connected with the fixing part (133) in a sliding mode along a second direction of the box body (11).
2. The electronic equipment storage box according to claim 1, wherein the second fixing member (13) further includes a first elastic member and a second elastic member;
the fixing part (133) is provided with a first side and a second side along a second direction of the box body (11);
one end of the first elastic piece is connected with the first side of the fixing part (133), and the other end of the first elastic piece is connected with the first clamping part (131);
one end of the second elastic piece is connected with the second side of the fixing part (133), and the other end of the second elastic piece is connected with the second clamping part (132).
3. The electronic equipment storage box according to claim 1, wherein a side of the box body (11) close to the second fixing member (13) in the first direction is made of a transparent material.
4. The electronic equipment storage box according to claim 3, wherein a side surface of the box body (11) close to the second fixing member (13) in the first direction is made of a touch-control transparent material.
5. The electronic equipment storage box according to claim 3, wherein a side surface of the box body (11) close to the first fixing member (12) in the first direction is provided as an inclined surface, and an included angle between the inclined surface and an inner bottom surface of the box body (11) is an acute angle.
6. An electronic equipment set, characterized in that it comprises an electronic equipment storage box (1) according to any one of claims 1 to 5, a first electronic equipment (2) and a second electronic equipment (3); the first electronic device (2) and the second electronic device (3) are arranged in an accommodating cavity of the box body (11), the first electronic device (2) is connected with the first fixing component (12), and the second electronic device (3) is connected with the second fixing component (13);
the middle part of the first electronic device (2) is attached to the limiting part (122), and the side part of the first electronic device (2) is attached to the supporting part (123);
both ends of the second electronic device (3) are engaged with the first engaging portion (131) and the second engaging portion (132), respectively.
7. The electronic device assembly according to claim 6, wherein the first electronic device (2) has a charging module and the second electronic device (3) has a discharging module, the charging module matching the discharging module, the second electronic device (3) being capable of charging the first electronic device (2).
