Abstract

本发明公开了一种稳定的心肺功能测试分析系统，包括支架，所述支架的正面右侧上下均加工有凹槽，所述支架的右侧安装有绕线机构，所述绕线机构包括圆杆、把手、槽轮、曲板、方块和第一弹簧，所述圆杆的外壁与支架的右侧转动相连，所述圆杆的右侧与把手的左侧相固接，所述圆杆的左侧与槽轮的右侧相固接。通过绕线机构通过槽轮对电源线收集，防止了其他设备电源线发生缠绕，便于整理，降低了工作难度，同时电源线收起后防止了电源线摩擦，避免了表面破损，防止发生漏电，提高了安全性，避免了弯折，延长使用寿命，解决了经常更换的问题，降低了成本，防止了工作晃动，保证了检测数值，保证了工作效率，提高了实用性，便于推广。

Figure 202010374901

The present invention discloses a stable cardiopulmonary function test and analysis system, comprising a bracket, wherein grooves are processed on the upper and lower sides of the right side of the front of the bracket, and a winding mechanism is installed on the right side of the bracket, wherein the winding mechanism comprises a round rod, a handle, a groove wheel, a curved plate, a block and a first spring, wherein the outer wall of the round rod is rotatably connected to the right side of the bracket, the right side of the round rod is fixedly connected to the left side of the handle, and the left side of the round rod is fixedly connected to the right side of the groove wheel. The winding mechanism collects the power cord through the groove wheel, thereby preventing the power cords of other devices from getting entangled, facilitating arrangement and reducing work difficulty. At the same time, after the power cord is put away, friction of the power cord is prevented, surface damage is avoided, leakage is prevented, safety is improved, bending is avoided, service life is extended, the problem of frequent replacement is solved, cost is reduced, working shaking is prevented, detection values are guaranteed, work efficiency is guaranteed, practicality is improved, and promotion is facilitated.

Figure 202010374901

Description

Stable cardiopulmonary function test analysis system
Technical Field
The invention relates to the technical field of novel stable cardiopulmonary function testing and analyzing devices, in particular to a stable cardiopulmonary function testing and analyzing system.
Background
The cardiopulmonary function test and analysis device is used for performing cardiopulmonary function test and tracking the health condition of the lungs, and can measure common cardiopulmonary function detection parameters including FVC, FEV1, FEV1/FVC and the like.
Current cardiopulmonary function test analytical equipment is using can't collect the power cord of overlength, take place the winding with the power cord of other equipment in the easy work, be not convenient for arrange in order, the work degree of difficulty has been increased, and twine the back and rub easily between the two, cause the surface damage, the easy electric leakage that takes place, danger has been increased, the power cord of being connected with equipment buckles easily simultaneously, service life is shortened, need often change, the cost is improved, and equipment can't support fixedly, the use takes place to rock, influence numerical value easily, work efficiency is reduced, the practicality is reduced, be not conform to modern's user demand.
Disclosure of Invention
The invention aims to provide a stable cardiopulmonary function test and analysis system, and aims to solve the problems that the conventional cardiopulmonary function test and analysis device cannot collect overlong power lines when in use, is easy to wind with power lines of other equipment during work, is inconvenient to arrange and increases the work difficulty in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme: a stable cardiopulmonary function test analysis system comprises a bracket, wherein grooves are formed in the upper part and the lower part of the right side of the front side of the bracket, and a winding mechanism is arranged on the right side of the bracket;
the winding mechanism comprises a round rod, a handle, a grooved pulley, a curved plate, a square block and a first spring;
the outer wall of round bar rotates with the right side of support and links to each other, the right side of round bar and the left side looks rigid coupling of handle, the left side of round bar and the right side looks rigid coupling of sheave, the upper and lower both sides of sheave all are equipped with bent plate, two the rear end face right side of bent plate all with the front looks rigid coupling of square, two the inner wall of square respectively with the inner wall slip joint of two recesses, two the outside of bent plate all with the inboard looks rigid coupling of first spring, two the outer wall of first spring respectively with the upper and lower both sides looks rigid coupling of the inner wall of support.
Preferably, the bent plate, the first spring and the bracket form an elastic mechanism.
Preferably, the inner wall top right side rigid coupling of support has the riser, the front processing of riser has the spout, the front below rigid coupling of riser has the wide board of second.
Preferably, the right side of the vertical plate is provided with a clamping mechanism;
the clamping mechanism comprises a threaded rod, a grip, a sleeve plate, an inclined plate, a round wheel, a short plate and a first wide plate;
the left side of threaded rod rotates with the right side top of riser and links to each other, the right side of threaded rod and the left side looks rigid coupling of handle, the outer wall of threaded rod and the inner wall threaded connection of lagging, the positive bottom of lagging rotates with the top of swash plate and links to each other, the bottom of swash plate rotates with the front of round wheel and links to each other, the outer wall of round wheel and the inner wall slip joint of spout, the positive below of round wheel and the top looks rigid coupling of short slab, the bottom of short slab and the top looks rigid coupling of first wide slab.
Preferably, the threaded rod and the sleeve plate constitute a translation mechanism.
Preferably, the round wheel and the sliding groove form a sliding mechanism.
Preferably, the top clearance fit of support has analytical equipment, analytical equipment's top rigid coupling has the diaphragm, the bottom left and right sides of diaphragm all offsets tightly with the top of support, the top rigid coupling of diaphragm has the handle, analytical equipment's right side below power cord offsets tightly with the top of second wide plate, the top of analytical equipment's right side below power cord offsets tightly with the bottom of first wide plate.
Preferably, the left side and the right side of the top of the bracket are both provided with a fixing mechanism;
the fixing mechanism comprises a short rod, a thick rod, an inclined groove, a thin plate, a second spring and a straight plate;
the outer wall below of quarter butt rotates with the top of support and links to each other, the top of quarter butt and the bottom rigid coupling of thick pole, the front processing of thick pole has the chute, the inner wall top of chute and the right side of sheet metal outstanding department slip joint, the bottom left side of sheet metal and the top looks rigid coupling of second spring, the bottom of second spring and the top left side of support rigid coupling mutually, the right side top of thick pole and the left side of straight board rigid coupling mutually, the bottom right side of straight board offsets tightly with the top left side of diaphragm.
Preferably, the thick rod, the inclined groove, the thin plate and the second spring constitute a restricting mechanism.
Compared with the prior art, the invention has the beneficial effects that: this novel stable cardiopulmonary function test analytical equipment, structure scientific and reasonable, convenience safe in utilization.
1. This novel stable cardiopulmonary function test analysis device is collected the power cord through the sheave through wire winding mechanism, has prevented that other equipment power cords from taking place the winding, and the arrangement of being convenient for has reduced the work degree of difficulty.
2. This novel stable cardiopulmonary function test analysis device, the power cord has prevented the power cord friction after packing up simultaneously, has avoided the surface damage, prevents to take place the electric leakage, has improved the security.
3. This novel stable cardiopulmonary function test analysis device, the centre gripping of power cord has been realized to the position of informing first wide board through fixture, can guarantee junction power cord level, has avoided buckling, and increase of service life has solved the problem of frequent change, the cost is reduced.
4. This novel stable cardiopulmonary function test analysis device, through the cooperation of fixed establishment and support, can support fixedly to analytical equipment, increased stability, prevented that work from rocking, guaranteed to detect numerical value, guaranteed work efficiency, improved the practicality, the facilitate promotion.
5. This novel stable cardiopulmonary function test analysis device, through the sheet metal of pressing both sides downwards, and then make the sheet metal remove downwards at the inner wall of chute, thereby make the quarter butt of thick pole through the bottom rotate to the outside, the pivoted thick butt drives the straight board and rotates to the outside, then make analytical equipment insert at the top of support, then loosen the sheet metal, the second spring provides elasticity, make the sheet metal kick-back, and then drive the thick butt and rotate, make the top both sides joint of straight board and diaphragm, then connect analytical equipment's power cord, realize connecting.
6. This novel stable cardiopulmonary function test analytical equipment, remove to the left side through making the lagging, and then make the swash plate drive the round wheel and slide downwards at the inner wall of spout, the top of bottom and power cord up to first wide board offsets the back stall handle tightly, when the power cord overlength was packed up, both sides promote the bent plate with this increase and the distance between the sheave, make the power winding at the outer wall of sheave afterwards, loosen the bent plate afterwards, first spring provides elasticity and makes the bent plate kick-back through the square at the inside slip of recess, it is tight to make the power cord of winding at the sheave outer wall press from both sides.
Drawings

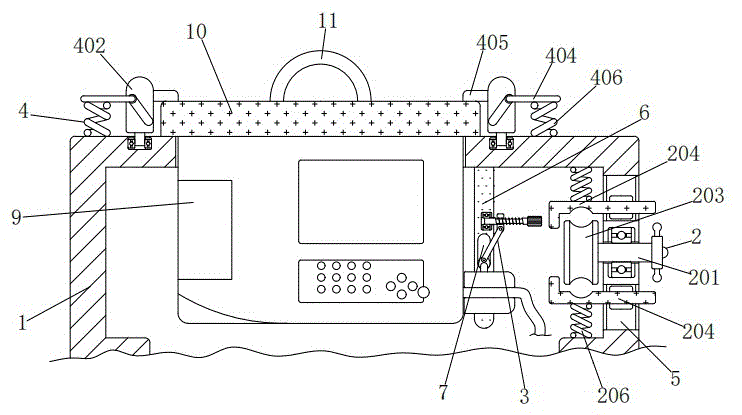

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view showing the connection structure of the bracket, the rod and the handle in FIG. 1;
FIG. 3 is a schematic view of the connection structure of the curved plate, the block and the first spring in FIG. 1;
FIG. 4 is a schematic view of the connection between the threaded rod, the grip and the strap of FIG. 1;
FIG. 5 is a schematic view of the connection structure of the analyzing device, the cross plate and the handle in FIG. 1;
fig. 6 is a schematic view showing the connection relationship between the short bar, the thick bar and the chute in fig. 1.
In the figure: 1. the device comprises a support, 2, a winding mechanism, 201, a round rod, 202, a handle, 203, a grooved wheel, 204, a curved plate, 205, a square, 206, a first spring, 3, a clamping mechanism, 301, a threaded rod, 302, a handle, 303, a sleeve plate, 304, a sloping plate, 305, a round wheel, 306, a short plate, 307, a first wide plate, 4, a fixing mechanism, 401, a short rod, 402, a thick rod, 403, a chute, 404, a thin plate, 405, a second spring, 406, a straight plate, 5, a groove, 6, a vertical plate, 7, a chute, 8, a second wide plate, 9, analysis equipment, 10, a transverse plate, 11 and a handle.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides a technical solution: a stable cardiopulmonary function test analysis system comprises a support 1, grooves 5 are processed on the upper and lower sides of the right side of the front face of the support 1, a winding mechanism 2 is installed on the right side of the support 1, the winding mechanism 2 comprises a round rod 201, a handle 202, a grooved pulley 203, a curved plate 204, a square block 205 and a first spring 206, the outer wall of the round rod 201 is rotatably connected with the right side of the support 1, the round rod 201 is stressed to rotate through a bearing on the right side of the support 1, the right side of the round rod 201 is fixedly connected with the left side of the handle 202, the handle 202 is convenient to rotate the round rod 201, the left side of the round rod 201 is fixedly connected with the right side of the grooved pulley 203, the curved plate 204 is arranged on the upper and lower sides of the grooved pulley 203, the right sides of the rear end faces of the two curved plates 204 are fixedly connected with the front face of the square block 205, the inner walls of the two square blocks 205 are respectively clamped with the inner walls of the, the outer walls of the two first springs 206 are fixedly connected with the upper side and the lower side of the inner wall of the bracket 1 respectively, the curved plate 204, the first springs 206 and the bracket 1 form an elastic mechanism, and the curved plate 204 is stressed to move outwards and then rebounds through the first springs 206.
The right side of the top of the inner wall of the bracket 1 is fixedly connected with a vertical plate 6, the front of the vertical plate 6 is processed with a sliding chute 7, the lower part of the front of the vertical plate 6 is fixedly connected with a second wide plate 8, the right side of the vertical plate 6 is provided with a clamping mechanism 3, the clamping mechanism 3 comprises a threaded rod 301, a grip 302, a sleeve plate 303, an inclined plate 304, a round wheel 305, a short plate 306 and a first wide plate 307, the left side of the threaded rod 301 is rotatably connected with the upper part of the right side of the vertical plate 6, the threaded rod 301 is rotated by a bearing above the right side of the vertical plate 6 under the stress, the right side of the threaded rod 301 is fixedly connected with the left side of the grip 302, the grip 302 facilitates the rotation of the threaded rod 301, the outer wall of the threaded rod 301 is in threaded connection with the inner wall of the sleeve plate 303, the bottom of the front of the sleeve plate 303 is rotatably connected with the top of the inclined plate 304, the, the outer wall of the round wheel 305 is clamped with the inner wall of the sliding groove 7 in a sliding manner, the lower part of the front side of the round wheel 305 is fixedly connected with the top of the short plate 306, the bottom of the short plate 306 is fixedly connected with the top of the first wide plate 307, the threaded rod 301 and the sleeve plate 303 form a translation mechanism, the threaded rod 301 rotates to drive the sleeve plate 303 to move left and right, the round wheel 305 and the sliding groove 7 form a sliding mechanism, the round wheel 305 is stressed to slide up and down through the inner wall of the sliding groove 7, the top of the support 1 is in clearance fit with the analysis equipment 9, the analysis equipment 9 is a cardiopulmonary function test analyzer with the model of FGC-A, the top of the analysis equipment 9 is fixedly connected with a transverse plate 10, the left side and the right side of the transverse plate 10 are tightly abutted against the top of the support 1, the top of the transverse plate 10 is fixedly connected with a handle 11, the handle 11 is convenient to pull the transverse plate 10, the power line below the right side of the analysis, the left side and the right side of the top of the bracket 1 are both provided with a fixing mechanism 4, the fixing mechanism 4 comprises a short rod 401, a thick rod 402, a chute 403, a thin plate 404, a second spring 405 and a straight plate 406, the lower part of the outer wall of the short rod 401 is rotatably connected with the top of the bracket 1, the short rod 401 is stressed to rotate through a bearing at the top of the bracket 1, the top of the short rod 401 is fixedly connected with the bottom of the thick rod 402, the front surface of the thick rod 402 is provided with the chute 403, the top of the inner wall of the chute 403 is slidably clamped with the right protrusion of the thin plate 404, the thin plate 404 is stressed to slide up and down through the inner wall of the chute 403, the left side of the bottom of the thin plate 404 is fixedly connected with the top of the second spring 405, the bottom of the second spring 405 is fixedly connected with the left side of the top of the bracket 1, the right top of the thick rod 402 is fixedly connected with the left side of the straight plate 406, the right side of the, the upward spring force of the second spring 405 causes the thin plate 404 to always restrict the rotation of the thick rod 401 at the top of the inner wall of the inclined groove 403.
In this example, when the device is used, the thin plates 404 on both sides are pressed downward, and then the thin plates 404 move downward on the inner wall of the chute 403, so that the thick rod 402 rotates outward through the short plate 401 at the bottom, the rotating thick rod 402 drives the straight plate 406 to rotate outward, then the analytical equipment 9 is inserted into the top of the bracket 1, then the thin plates 404 are released, the second spring 405 provides elastic force, the thin plates 404 rebound, and then the thick rod 402 is driven to rotate, the straight plate 406 is clamped with both sides of the top of the transverse plate 10, then the power lines of the analytical equipment 9 are connected (the plugging and unplugging of all the power lines on the analytical equipment are known and are not illustrated), then the power lines are placed on the top of the second wide plate 8, then the handle 302 is picked up to drive the threaded rod 301 to rotate, so that the sleeve plate 303 moves to the left side, and then the sloping plate 304 drives the round wheel 305 to slide downward on the inner wall, when the power cord is excessively retracted, the curved plate 204 is pushed upwards and downwards to increase the distance between the power cord and the grooved wheel 203, then the power cord is wound on the outer wall of the grooved wheel 203, then the curved plate 204 is loosened, the first spring 206 provides elasticity to enable the curved plate 204 to rebound through the sliding of the block 205 in the groove 5, and the power cord wound on the outer wall of the grooved wheel 203 is clamped.
In the description of the present invention, it is to be understood that the terms "coaxial", "bottom", "one end", "top", "middle", "other end", "upper", "one side", "top", "inner", "front", "center", "both ends", and the like, indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the referenced device or element must have a particular orientation, be constructed and operated in a particular orientation, and thus, are not to be construed as limiting the present invention.
In the present invention, unless otherwise explicitly specified or limited, the terms "mounted," "disposed," "connected," "fixed," "screwed" and the like are to be construed broadly, e.g., as fixed or detachable connections or as an integral part; can be mechanically or electrically connected; the terms may be directly connected or indirectly connected through an intermediate, and may be communication between two elements or interaction relationship between two elements, unless otherwise specifically limited, and the specific meaning of the terms in the present invention will be understood by those skilled in the art according to specific situations.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (6)

1.一种稳定的心肺功能测试分析系统，包括支架（1），其特征在于：所述支架（1）的正面右侧上下均加工有凹槽（5），所述支架（1）的右侧安装有绕线机构（2）；1. A stable cardiopulmonary function test and analysis system, comprising a bracket (1), characterized in that: grooves (5) are processed on the upper and lower sides of the front right side of the bracket (1), and the right side of the bracket (1) is machined with grooves (5). A winding mechanism (2) is installed on the side; 所述绕线机构（2）包括圆杆（201）、把手（202）、槽轮（203）、曲板（204）、方块（205）和第一弹簧（206）；The winding mechanism (2) comprises a round rod (201), a handle (202), a sheave (203), a curved plate (204), a block (205) and a first spring (206); 所述圆杆（201）的外壁与支架（1）的右侧转动相连，所述圆杆（201）的右侧与把手（202）的左侧相固接，所述圆杆（201）的左侧与槽轮（203）的右侧相固接，所述槽轮（203）的上下两侧均设有曲板（204），两个所述曲板（204）的后端面右侧均与方块（205）的正面相固接，两个所述方块（205）的内壁分别与两个凹槽（5）的内壁滑动卡接，两个所述曲板（204）的外侧均与第一弹簧（206）的内侧相固接，两个所述第一弹簧（206）的外壁分别与支架（1）的内壁上下两侧相固接；所述曲板（204）、第一弹簧（206）和支架（1）组成弹性机构；所述支架（1）的内壁顶部右侧固接有竖板（6），所述竖板（6）的正面加工有滑槽（7），所述竖板（6）的正面下方固接有第二宽板（8）；所述竖板（6）的右侧安装有夹持机构（3）；The outer wall of the round rod (201) is rotatably connected to the right side of the bracket (1), the right side of the round rod (201) is fixedly connected with the left side of the handle (202), and the The left side is fixedly connected to the right side of the sheave (203), the upper and lower sides of the sheave (203) are provided with curved plates (204), and the right side of the rear end surfaces of the two curved plates (204) are both It is fixedly connected with the front surface of the square (205), the inner walls of the two squares (205) are respectively slidably connected with the inner walls of the two grooves (5), and the outer sides of the two curved plates (204) are connected with the first The inner sides of a spring (206) are fixedly connected to each other, and the outer walls of the two first springs (206) are respectively fixed to the upper and lower sides of the inner wall of the bracket (1); the curved plate (204), the first spring (206) 206) and the bracket (1) to form an elastic mechanism; a vertical plate (6) is fixedly connected to the right side of the top of the inner wall of the bracket (1), and a chute (7) is processed on the front of the vertical plate (6). A second wide plate (8) is fixedly connected under the front of the vertical plate (6); a clamping mechanism (3) is installed on the right side of the vertical plate (6); 所述夹持机构（3）包括螺纹杆（301）、握把（302）、套板（303）、斜板（304）、圆轮（305）、短板（306）和第一宽板（307）；The clamping mechanism (3) includes a threaded rod (301), a handle (302), a sleeve plate (303), an inclined plate (304), a round wheel (305), a short plate (306) and a first wide plate (304). 307); 所述螺纹杆（301）的左侧与竖板（6）的右侧上方转动相连，所述螺纹杆（301）的右侧与握把（302）的左侧相固接，所述螺纹杆（301）的外壁与套板（303）的内壁螺纹连接，所述套板（303）的正面底部与斜板（304）的顶部转动相连，所述斜板（304）的底部与圆轮（305）的正面转动相连，所述圆轮（305）的外壁与滑槽（7）的内壁滑动卡接，所述圆轮（305）的正面下方与短板（306）的顶部相固接，所述短板（306）的底部与第一宽板（307）的顶部相固接。The left side of the threaded rod (301) is rotatably connected to the upper right side of the vertical plate (6), the right side of the threaded rod (301) is fixedly connected with the left side of the handle (302), and the threaded rod The outer wall of (301) is threadedly connected to the inner wall of the sleeve plate (303), the front bottom of the sleeve plate (303) is rotatably connected to the top of the inclined plate (304), and the bottom of the inclined plate (304) is connected to the round wheel (304). 305) are connected by rotation, the outer wall of the round wheel (305) is slidably clamped with the inner wall of the chute (7), and the bottom of the front of the round wheel (305) is fixedly connected with the top of the short plate (306), The bottom of the short board (306) is fixedly connected with the top of the first wide board (307). 2.根据权利要求1所述的一种稳定的心肺功能测试分析系统，其特征在于：所述螺纹杆（301）和套板（303）组成平移机构。2 . The stable cardiopulmonary function test and analysis system according to claim 1 , wherein the threaded rod ( 301 ) and the sleeve plate ( 303 ) constitute a translation mechanism. 3 . 3.根据权利要求1所述的一种稳定的心肺功能测试分析系统，其特征在于：所述圆轮（305）和滑槽（7）组成滑动机构。3. A stable cardiopulmonary function test and analysis system according to claim 1, characterized in that: the circular wheel (305) and the chute (7) constitute a sliding mechanism. 4.根据权利要求1所述的一种稳定的心肺功能测试分析系统，其特征在于：所述支架（1）的顶部间隙配合有分析设备（9），所述分析设备（9）的顶部固接有横板（10），所述横板（10）的底部左右两侧均与支架（1）的顶部相抵紧，所述横板（10）的顶部固接有提手（11），所述分析设备（9）的右侧下方电源线与第二宽板（8）的顶部相抵紧，所述分析设备（9）的右侧下方电源线的顶部与第一宽板（307）的底部相抵紧。4. A stable cardiopulmonary function test and analysis system according to claim 1, characterized in that: the top of the bracket (1) is fitted with an analysis device (9) in a gap, and the top of the analysis device (9) is fixed A horizontal plate (10) is connected, the left and right sides of the bottom of the horizontal plate (10) are abutted against the top of the bracket (1), and a handle (11) is fixedly connected to the top of the horizontal plate (10). The power line on the lower right side of the analysis device (9) is pressed against the top of the second wide board (8), and the top of the power line on the lower right side of the analysis device (9) is against the bottom of the first wide board (307). tight against each other. 5.根据权利要求1所述的一种稳定的心肺功能测试分析系统，其特征在于：所述支架（1）的顶部左右两侧均安装有固定机构（4）；5. A stable cardiopulmonary function test and analysis system according to claim 1, characterized in that: a fixing mechanism (4) is installed on the left and right sides of the top of the bracket (1); 所述固定机构（4）包括短杆（401）、粗杆（402）、斜槽（403）、薄板（404）、第二弹簧（405）和直板（406）；The fixing mechanism (4) includes a short rod (401), a thick rod (402), an inclined groove (403), a thin plate (404), a second spring (405) and a straight plate (406); 所述短杆（401）的外壁下方与支架（1）的顶部转动相连，所述短杆（401）的顶部与粗杆（402）的底部相固接，所述粗杆（402）的正面加工有斜槽（403），所述斜槽（403）的内壁顶部与薄板（404）的右侧突出处滑动卡接，所述薄板（404）的底部左侧与第二弹簧（405）的顶部相固接，所述第二弹簧（405）的底部与支架（1）的顶部左侧相固接，所述粗杆（402）的右侧顶部与直板（406）的左侧相固接，所述直板（406）的底部右侧与横板（10）的顶部左侧相抵紧。The bottom of the outer wall of the short rod (401) is rotatably connected to the top of the bracket (1), the top of the short rod (401) is fixedly connected with the bottom of the thick rod (402), and the front of the thick rod (402) A chute (403) is machined, the top of the inner wall of the chute (403) is slidably engaged with the right protrusion of the thin plate (404), and the bottom left of the thin plate (404) is connected to the second spring (405). The tops are fixedly connected to each other, the bottom of the second spring (405) is fixedly connected to the top left side of the bracket (1), and the right top of the thick rod (402) is fixedly connected to the left side of the straight plate (406). , the bottom right side of the straight plate (406) is tightly pressed against the top left side of the horizontal plate (10). 6.根据权利要求5所述的一种稳定的心肺功能测试分析系统，其特征在于：所述粗杆（402）、斜槽（403）、薄板（404）和第二弹簧（405）组成限制机构。6. A stable cardiopulmonary function test analysis system according to claim 5, characterized in that: the thick rod (402), the chute (403), the thin plate (404) and the second spring (405) constitute a limit mechanism.
