CN111466635A

CN111466635A - Motion-preventing mask

Info

Publication number: CN111466635A
Application number: CN202010309961.6A
Authority: CN
Inventors: 朱永永; 熊维; 苟枥文
Original assignee: Chongqing University of Education
Current assignee: Chongqing University of Education
Priority date: 2020-04-20
Filing date: 2020-04-20
Publication date: 2020-07-31
Anticipated expiration: 2040-04-20
Also published as: CN111466635B

Abstract

The invention discloses an anti-motion mask, which comprises a mask (5), wherein a first pouch (51) and a second pouch (52) are sewn on the inner wall of the mask (5); the first pouch (51) is positioned above the second pouch (52); wherein the first purse (51) corresponds to the nostril position of the user and the second purse (52) corresponds to the oral position of the user; the tops of the first pouch (51) and the second pouch (52) are both open; the first pouch (51) contains the medicinal towel soaked with the citrus tangor peel juice, and the second pouch (52) contains the medicinal towel soaked with the citrus tangor pulp juice; the first pouch (51) and the second pouch (52) are both made of air-permeable material. The invention provides an anti-motion mask which can relieve motion sickness symptoms of motion sickness people.

Description

Motion-preventing mask

Technical Field

The invention relates to the field of sanitary articles, in particular to an anti-dizziness gauze mask.

Background

Motion sickness is a disease which is caused by stimulating vestibular nerves of a human body by any form of accelerated motion such as jolting, swinging or rotating generated when an automobile, a ship or an airplane moves. The patient feels discomfort in the upper abdomen at the beginning, and then nausea, pale complexion, cold sweat, dizziness, mental depression, increased salivary secretion and vomiting occur, so that the work and the life of people are influenced.

The mandarin orange is also called as tangerine, and can refresh breath and remove halitosis;

the mandarin orange meat is rich in vitamin c, natural aromatic substances, tartaric acid, fructose and essential oil, the substances can promote gastric acid secretion, regulate spleen and stomach, improve the digestion function of intestines and stomach, effectively relieve dyspepsia, and reduce adverse symptoms such as incoordination between spleen and stomach or poor appetite and abdominal distension;

the mandarin orange peel and mandarin orange meat also have effects in regulating qi-flowing, eliminating phlegm, and invigorating spleen; can ventilate and refresh, can effectively treat carsickness, is widely used by people at present, and has definite curative effect.

Orange peel is pungent, bitter and warm in nature. The mandarin orange meat is fragrant and sweet, and can stimulate taste buds of human; promoting appetite, improving nervous excitation of human body, and effectively relieving carsickness symptoms.

The defect of the prior art is that an anti-motion mask is lacked, which is used for manufacturing an anti-motion mask and relieving motion sickness symptoms of motion sickness people.

Disclosure of Invention

In view of at least one of the drawbacks of the prior art, it is an object of the present invention to provide an anti-motion mask for alleviating motion sickness symptoms in motion-sick persons.

In order to achieve the purpose, the invention adopts the following technical scheme: the mask comprises a mask body, and is characterized in that a first pouch and a second pouch are sewn on the inner wall of the mask body; the first pouch is positioned above the second pouch; the first pouch corresponds to the nostril position of the user, and the second pouch corresponds to the oral position of the user;

the top parts of the first pouch and the second pouch are both opened;

the first pouch contains the medicinal towel soaked with the citrus grandis peel juice, and the second pouch contains the medicinal towel soaked with the citrus grandis flesh juice;

the first pouch and the second pouch are both made of breathable materials, and the breathing of a user is not affected.

The purse is also called a pocket and has the same structure as a pocket of clothes.

The orange peel juice is pungent and bitter in taste, and has a good carsickness treatment effect; wherein the beneficial medicinal components can effectively relieve the symptoms of carsickness after being inhaled through nostrils.

People with car sickness tend to catch a cold sometimes; the cold easily causes nasal obstruction, cough and gastroenteritis, deepens the symptoms of carsickness, and the carsickness is more severe after the cold, so the cold has to breathe by mouth;

the citrus pulp juice has fragrant and sweet taste except the effect of treating carsickness;

after the smell of the citrus pulp is inhaled by mouth, the carsickness symptom can be effectively relieved; the flavor and sweet taste of the mandarin orange meat juice are easy to stimulate taste buds in the mouth, and the mandarin orange skin juice is not as pungent and bitter in taste; reduce the symptoms of vomiting wanted by people with car sickness.

The medicinal towel soaked with the mandarin orange peel juice and the medicinal towel soaked with the mandarin orange meat juice are hermetically packaged in plastic bags, and when the medicinal towel is used, the plastic bags for packaging the medicinal towels need to be torn and thrown away, and the medicinal towels are reserved.

The carsickness symptom can be effectively relieved by wearing the anti-carsickness mouth cover before a user gets on a car.

A third pouch is sewn on the outer wall of the mask; the top of the third pouch is open, and the third pouch is made of a breathable material; the third pouch contains wet tissues soaked with hydrogen peroxide solution; the wet tissue is prepared by soaking a breathable cotton cloth in a hydrogen peroxide solution.

The hydrogen peroxide solution has the sterilization effect and prevents the people with carsickness from exhaling bacteria gas to spread in vehicles and ships. The third pouch is made of a breathable material, which does not affect the user's breathing.

The wet tissue is hermetically packaged in the plastic bag, and when the wet tissue packaging bag is used, the plastic bag for packaging the wet tissue needs to be torn and thrown away, and the wet tissue is kept.

The first pouch, the second pouch and the third pouch are all made of breathable cotton cloth and are provided with air holes.

The structure can increase the ventilation effect of the first pouch, the second pouch and the third pouch.

The anti-motion mask has the remarkable effect that the anti-motion mask is used for relieving the motion sickness symptoms of motion sickness people.

Drawings

FIG. 1 is a block diagram of a production line;

FIG. 2 is a view showing the construction of the liquid medicine preparing apparatus;

FIG. 3 is a left side view of FIG. 2;

FIG. 4 is a view showing a state of use of the liquid medicine preparing apparatus;

FIG. 5 is a structural view of the drum;

FIG. 6 is an external view of the drum;

FIG. 7 is a schematic diagram of an apparatus for preparing a medicated towel by the immersion method;

FIG. 8 is a block diagram of the clamping mechanism;

FIG. 9 is a top view of FIG. 8;

FIG. 10 is a view of the clamping mechanism in a use state;

FIG. 11 is a circuit diagram of a first P L C controller;

fig. 12 is a circuit diagram of a first oven;

FIG. 13 is a schematic view of a spray-coating apparatus for making medical tissues;

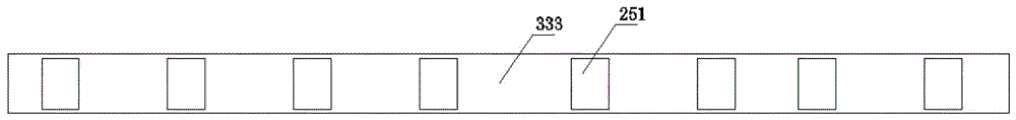

FIG. 14 is a schematic view of a position wire frame;

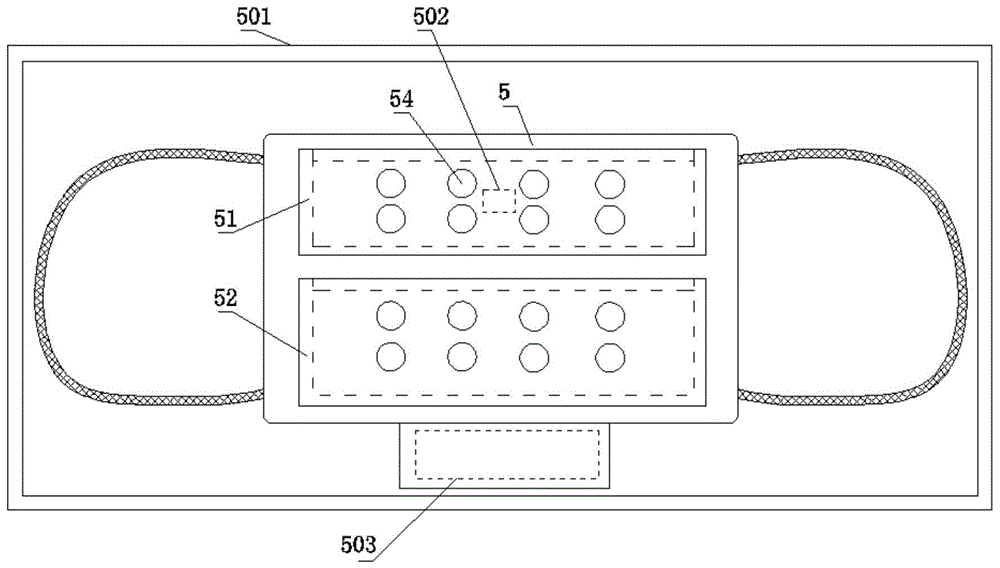

FIG. 15 is a schematic view of a first embodiment of the present invention;

FIG. 16 is a rear view of FIG. 15;

FIG. 17 is a block diagram of the device in the person pressing;

FIG. 18 is a top view of FIG. 17;

fig. 19 is a structural view of the massage device;

fig. 20 is a circuit configuration diagram of the alarm circuit.

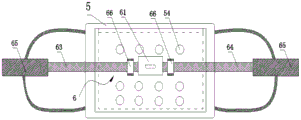

FIG. 21 is a second structural diagram of the present invention.

Detailed Description

The invention is described in further detail below with reference to the figures and specific examples.

As shown in fig. 1-21, an anti-dizziness mouth mask production line comprises a liquid medicine preparation device 1, a medicine towel preparation device and an assembling device, wherein the liquid medicine preparation device 1 is used for squeezing mandarin orange peel or mandarin orange meat to obtain mandarin orange peel juice or mandarin orange meat juice; preparing medicinal liquid of motion sickness preventing mask from Mandarin orange peel juice or Mandarin orange meat juice and water;

also comprises a medicine towel preparing device; the medicinal towel preparation equipment is used for adsorbing the liquid medicine by the gauze 25 and then drying to obtain the medicinal towel;

the assembling equipment is used for fixing the medicinal towel on the mask 5 to manufacture the motion-preventing mask.

Through the structural arrangement, the citrus grandis peel juice is obtained by squeezing citrus grandis peel through the liquid medicine preparation equipment 1; obtaining a citrus pulp juice by squeezing citrus pulp; mixing Mandarin orange peel juice or Mandarin orange meat juice with water to obtain medicinal liquid for preventing motion sickness; the gauze 25 is immersed in the liquid medicine or sprayed with the liquid medicine by the medicinal towel preparation equipment and then is baked; in the drying process, the gauze 25 can be completely dried or part of moisture can be dried, the drying of the part of moisture is equivalent to the preparation of wet tissues containing mandarin orange peel juice or mandarin orange meat juice, and the wet tissues are sterilized at high temperature to prepare the medicinal towels;

then the medicinal towel is fixed on the mask 5 by an assembling device to make the anti-motion mask.

The motion sickness prevention mask is worn by the motion sickness persons before boarding a car or on a ship, so that the motion sickness symptoms can be effectively relieved.

The water is preferably purified water and mandarin orange peel juice or mandarin orange meat juice, and is added into the first medicine tank 21 or the second medicine tank 31 for stirring and mixing.

The medicinal towel preparation equipment is either immersion medicinal towel preparation equipment 2 or spraying medicinal towel preparation equipment 3.

The impregnation method medicinal towel preparation equipment 2 is used for soaking the gauze 25 into the medicinal liquid, and then taking out and drying the gauze to obtain the medicinal towel; the spraying method medicinal towel preparation equipment 3 draws the liquid medicine to spray on the gauze 25, and then the medicinal towel is obtained by baking.

As shown in fig. 2, the liquid medicine preparing apparatus 1 includes a liquid storage tank 11, a support 12 is fixedly disposed on two sides of the liquid storage tank 11, a mesh-shaped roller 13 is disposed above the liquid storage tank 11, two ends of the roller 13 are rotatably mounted on the support 12, a first driving mechanism 14 is further mounted on the support 12, and the first driving mechanism 14 drives the roller 13 to rotate;

two ends of the roller 13 are open, two squeezing roller 17 are parallelly arranged in the roller 13 along the axial direction of the roller 13 in a penetrating manner, two ends of the squeezing roller 17 are rotatably arranged on the bracket 12, a second driving mechanism 15 is also arranged on the bracket 12, and the second driving mechanism 15 drives the two squeezing roller 17 to rotate;

a groove-shaped hopper 16 is rotatably mounted on the bracket 12, two ends of the hopper 16 are open, the inner end of the hopper 16 extends into the roller 13 from an opening on one side of the roller 13, and the outer end of the hopper 16 extends out of the roller 13; when the outer end of the hopper 16 is higher than the inner end, the hopper 16 is used for feeding; when the outer end of the hopper 16 is lower than the inner end, the hopper 16 is used for discharging;

the inner wall of the drum 13 is provided with at least one bucket 131;

the hopper 16 is used for adding the mandarin orange peel or the mandarin orange meat into the roller 13 and discharging the residue after the mandarin orange peel or the mandarin orange meat is squeezed out of the roller 13; the mandarin orange peel or the mandarin orange meat is squeezed into mandarin orange peel juice or mandarin orange meat juice by two squeezing wheel rollers 17, and the mandarin orange peel juice or the mandarin orange meat juice seeps out from the bottom of the roller 13 and enters the liquid storage tank 11;

the bucket 131 is driven by the roller 13 to rotate around the axis of the roller 13, and the bucket 131 drives the citrus peel or citrus pulp at the bottom of the roller 13 to enter the upper part of the press wheel roller 17 and throw towards the press wheel roller 17; repeatedly squeezing the citrus grandis peel or citrus grandis pulp by two squeezing roller 17 to obtain citrus grandis peel juice or citrus grandis pulp juice;

the mandarin orange peel juice or mandarin orange meat juice is mixed with water at a certain proportion to obtain medicinal liquid for the motion sickness preventing mask.

The liquid medicine preparation equipment has high squeezing speed and high squeezing efficiency, can realize repeated squeezing, and fully obtains beneficial medicinal components in the citrus grandiflora peel or citrus grandiflora flesh.

Of course, the squeezing can also be performed by a mature juicer in the prior art, and the prior juicer usually has one-time squeezing, more moisture content, less medicinal ingredients and good effect of no repeated squeezing.

Through the structure arrangement, the mandarin orange peel or the mandarin orange meat is added into the roller 13 through the hopper 16, and residue after the mandarin orange peel or the mandarin orange meat is squeezed is discharged out of the roller 13 through the hopper 16 after squeezing; squeezing mandarin orange peel or mandarin orange meat through two squeezing wheel rollers 17 to obtain mandarin orange peel juice or mandarin orange meat juice; the citrus reticulata peel or citrus reticulata flesh at the bottom of the roller 13 is driven by the bucket 131 to enter the upper part of the squeezing roller 17 and is thrown to the squeezing roller 17, repeated squeezing is realized, beneficial medicinal ingredients in the citrus reticulata peel or the citrus reticulata flesh are fully obtained, and the anti-motion mask is manufactured.

The two press rolls 17 are located in the lower part of the inner cavity of the drum 13, and the circumferences of the two press rolls abut against each other or have a small amount of gaps; the inner end of the hopper 16 is located above the two press wheel rolls 17.

With the above-described structural arrangement, the circumferences of the two press roll 17 abut against each other; the citrus grandis peel or citrus grandis pulp falling between the two squeezing roller 17 is squeezed to obtain citrus grandis peel juice or citrus grandis pulp juice, the inner end of the hopper 16 is positioned above the butt line or the gap of the two squeezing roller 17, the citrus grandis peel or the citrus grandis pulp added from the hopper 16 falls between the two squeezing roller 17, and the citrus grandis peel juice or the citrus grandis pulp juice is squeezed out.

The support 12 comprises two mounting plates 121, and the two mounting plates 121 are fixedly connected to two sides of the liquid storage tank 11 respectively;

the inner walls of the two mounting plates 121 are provided with circular mounting grooves 122 matched with the two ends of the roller 13, and the two ends of the roller 13 are inserted into the mounting grooves 122 and rotate in the mounting grooves 122;

one mounting plate 121 is provided with a through hole 123 into which the hopper 16 is inserted;

the first driving mechanism 14 includes a first motor 141 mounted on the bracket 12, and the first motor 141 drives the roller 13 to rotate via a belt mechanism 142 or a sprocket mechanism.

The structure is arranged; the first motor 141 drives the roller 13 to rotate through a belt mechanism 142 or a chain wheel mechanism; the drum 13 drives the bucket 131 to rotate around the axis of the drum 13, and the bucket 131 drives the citrus peel or citrus pulp at the bottom of the drum 13 to enter the upper part of the press wheel roller 17 and throw towards the press wheel roller 17; the mandarin orange peel or the mandarin orange meat falls into the bottom of the roller 13 after being squeezed by the two squeezing roller 17, and the bucket 131 drives the mandarin orange peel or the mandarin orange meat to rise and repeatedly squeeze; fully obtaining the beneficial medicinal components in the citrus grandis peel or citrus grandis flesh.

The first motor 141 is connected to a first motor control circuit, which belongs to a mature technology and is not shown in the drawing.

The second driving mechanism 15 includes a second motor 151 mounted on the frame 12, and the second motor 151 drives the two press roll 17 to rotate via a gear mechanism 152.

The second motor 151 drives the two press wheel rolls 17 to rotate through the gear mechanism 152; repeatedly squeezing mandarin orange peel or mandarin orange meat.

The second motor 151 is connected to a second motor control circuit, which belongs to a mature technology and is not shown in the drawing.

As shown in FIG. 2, the left press roll 17 rotates clockwise, and the right press roll 17 rotates counterclockwise, so that the mandarin orange peel or mandarin orange meat thrown thereon is caught between the two press rolls 17, and the beneficial pharmaceutical ingredients are repeatedly squeezed out.

The roller 13 comprises a rigid framework 132, and two ends of the framework 132 are rotatably arranged in the mounting grooves 122; the inner wall or the outer wall of the frame 132 is provided with a first screen 133.

Through the above structural arrangement, the framework 132 plays a supporting role, can increase the rigidity of the roller 13, prevent deformation, rotatably support the roller 13 on the mounting groove 122 of the bracket 12, and filter the mandarin orange peel or the mandarin orange meat by the first filter screen 133; the mandarin orange peel juice or the mandarin orange flesh juice is exuded from the bottom of the drum 13.

The bucket 131 is in the shape of L, and the bucket 131 is fixedly connected with the framework 132.

The bucket 131 constructed as described above is convenient to manufacture and manufacture. The fixed connection of the bucket 131 and the framework 132 is driven by the framework 132 to rotate.

As shown in fig. 2, the drum 13 rotates clockwise; the bucket 131 is adapted to the rotation direction of the drum 13. One end is fixed to the drum 13 and the other end faces the rotation direction of the drum 13.

An overflow hole 111 is formed in the upper portion of the side wall of the liquid storage tank 11, a second filter screen 112 is arranged in the overflow hole 111, and the overflow hole 111 is connected with a delivery pipe 113.

The juice of the peel or the pulp of the mandarin orange in the liquid storage tank 11 flows out through the overflow hole 111 and is input into the medicinal towel preparation equipment through the conveying pipe 113. The second screen 112 functions as a secondary filter.

Preferably, the delivery pipe 113 is provided with a gate valve.

As shown in fig. 3, the middle of the hopper 16 rests on the bottom of the through hole 123, the outer end of the hopper 16 is connected with the hydraulic cylinder 18, the bottom end of the hydraulic cylinder 18 is fixedly connected with the support 12, the piston rod of the hydraulic cylinder 18 is connected with the hopper 16 to drive the hopper 16 to rotate on the support 12, and when the outer end of the hopper 16 is higher than the inner end, the hopper 16 is used for feeding; the hopper 16 is used for discharge when the outer end of the hopper 16 is lower than the inner end.

When the orange peel or orange meat needs to be added into the roller 13, the piston rod of the hydraulic cylinder 18 is connected with the hopper 16 to drive the hopper 16 to rotate on the bracket 12, so that the outer end of the hopper 16 is higher than the inner end; when the residue after squeezing the citrus grandis peel or citrus grandis flesh in the roller 13 needs to be discharged, the piston rod of the hydraulic cylinder 18 is connected with the hopper 16 to drive the hopper 16 to rotate on the bracket 12, so that the outer end of the hopper 16 is lower than the inner end.

Hopper 16 is rotatable about the line of contact between hopper 16 and the bottom of via 123 and hydraulic cylinder 18 is a manual hydraulic cylinder.

Wherein the through-hole 123 is sized larger than the hopper 16 to allow the hopper 16 to rotate on the support 12.

The hydraulic cylinder 18 is fixedly connected with the bracket 12 through a sliding seat 181; the bottom end of the hydraulic cylinder 18 is slidably arranged on the sliding base 181, the hydraulic cylinder 18 can slide on the sliding base 181 to be close to or far away from the roller 13 so as to adjust the depth of the inner end of the hopper 16 inserted into the roller 13, and the hydraulic cylinder 18 is locked on the sliding base 181 through a locking screw 182.

Through the structural arrangement, when the hopper 16 adds the mandarin orange peel or the mandarin orange meat into the roller 13, the hydraulic cylinder 18 is retreated, so that the inner end of the hopper 16 is close to the middle part of the press wheel roller 17; and then locked to the slider 181 by the locking screw 182.

When the hopper 16 discharges the residues of the mandarin orange peel or the mandarin orange meat out of the roller 13, the hydraulic cylinder 18 is advanced, so that the inner end of the hopper 16 is close to one end of the press wheel roller 17 away from the through hole 123; then locked on the sliding seat 181 by the locking screw 182; the unloading is convenient.

The slide 181 is provided with a row of adjustment holes, so that the bottom end of the hydraulic cylinder 18 is aligned with the corresponding adjustment hole, and then the bottom end of the hydraulic cylinder 18 is locked on the corresponding adjustment hole by the locking screw 182, so that the depth of the inner end of the hopper 16 inserted into the roller 13 can be adjusted.

The equipment 2 for preparing the medicinal towel by the immersion method comprises a first medicine pool 21, a first oven 22 and a first conveying chain 23, wherein carsickness-preventing liquid medicine is filled in the first medicine pool 21, and the carsickness-preventing liquid medicine comprises water, citrus reticulata peel juice or citrus reticulata pulp juice;

the left side of the first medicine pool 21 is provided with the first oven 22;

the first conveying chain 23 is triangular and comprises a first roller 231, a second roller 232 and a third roller 233 which are arranged in a triangular manner, wherein the first roller 231 is rotatably arranged in the first oven 22, and the second roller 232 is rotatably arranged at the right side of the first medicine pool 21 and is as high as the first roller 231; the second roller 232 is rotatably arranged on the frame, which is not shown;

the third roller 233 is rotatably disposed in the first medicine tank 21, and the third roller 233 is lower than the first roller 231 and the second roller 232;

a first rubber conveying belt 234 is wound on the first roller 231, the second roller 232 and the third roller 233, and the first rubber conveying belt 234 is provided with N clamping mechanisms 24; the clamping mechanism 24 is used for clamping gauze 25; n is an integer greater than 1; the number of N is determined according to the length of the first rubber conveyer belt 234.

The first oven 22 is provided with a first inlet 221 and a first outlet 222, the first rubber conveying belt 234 enters the first oven 22 through the first inlet 221, bypasses the first roller 231 and then extends out of the first oven 22 through the first outlet 222;

the second roller 232 is connected with a first stepping motor 26, the first stepping motor 26 drives a first rubber conveyer belt 234 to perform stepping motion, and the first rubber conveyer belt 234 drives gauze 25 to enter the first medicine pool 21 to soak the anti-carsickness medicine liquid, and then the gauze enters the first oven 22 to be baked to obtain the medicine towel.

The first oven 22 dries the gauze 25 or dries excessive moisture on the gauze 25, and performs high-temperature sterilization by hot air in the first oven 22.

The first stepping motor 26 is connected to a first stepping motor control circuit, the first stepping motor 26 is controlled by the first stepping motor control circuit to perform stepping motion, and the first stepping motor 26 drives the first rubber conveyor belt 234 to perform stepping motion.

The first stepping motor control circuit comprises a first P L C controller, the first P L C controller is connected with the first stepping motor 26 through a motor driving module, the first P L C controller can also be connected with a computer for control, and the first stepping motor control circuit can also adopt a circuit mode that a singlechip is connected with the stepping motor driving module.

A feeding station and a discharging station are arranged on the first conveying chain 23 between the first roller 231 and the second roller 232, the gauze 25 can be manually arranged on the clamping mechanism 24 at the feeding station, and is driven by the first rubber conveying belt 234 to gradually descend, enter the first medicine pool 21, soak the anti-carsickness medicine liquid, and then is driven by the first rubber conveying belt 234 to gradually ascend, enter the first oven 22 through the first inlet 221 for baking, and then exit the first oven 22 through the first outlet 222 to reach the discharging station;

at the unloading station, the gauze 25 is manually removed from the clamping mechanism 24 and sealed and packed by a plastic bag.

The first inlet 221 and the first outlet 222 are adapted to the holding mechanism 24, so as to minimize heat loss of the first oven 22 when the holding mechanism 24 is convenient to move in and out.

The first medicine pool 21 is filled with carsickness prevention liquid medicine, and the carsickness prevention liquid medicine comprises water, citrus reticulata peel juice or citrus reticulata pulp juice; the mandarin orange peel juice or the mandarin orange meat juice is a pure natural product, and can be used for treating motion sickness without any side effect.

The first oven 22 is provided with a first heating wire 224, a first fan 225 and a first temperature controller 223, and the first temperature controller 223 controls the first heating wire 224 and the first fan 225 to be powered on and powered off; wherein the temperature in first oven 22 is 120 degrees.

A first heating wire 224 is arranged in the first oven 22, the first oven 22 is heated, the gauze 25 is dried or excess moisture on the gauze 25 is dried and is sterilized by high-temperature hot air, the first fan 225 comprises a motor and fan blades, the motor is arranged at the top of the first oven 22, a main shaft of the motor penetrates into the first oven 22 through a through hole at the top of the first oven 22 and is connected with the fan blades, air circulation in the first oven 22 is promoted, the first temperature controller 223 is provided with a temperature sensor, the temperature of the first oven 22 is detected, and the first heating wire 224 and the first fan 225 are switched on and off according to the temperature of the first oven 22; when the temperature is higher than 120 ℃, the first heating wire 224 and the first fan 225 are turned off, otherwise, the first heating wire 224 and the first fan 225 are turned on; the temperature in the first oven 22 is set to 120 ℃, so that the gauze 25 can be dried and has a high-temperature sterilization effect.

The clamping mechanism 24 comprises a rubber block 241, a pull cable 242, an installation plate 243 and a pressing frame 244, the rubber block 241 is fixedly arranged on the first rubber conveyer belt 234, an arc through groove 2431 for containing gauze 25 is formed in the installation plate 243, the front end of the installation plate 243 is connected with the rubber block 241 through the pull cable 242, the rear end of the installation plate 243 is hinged with the pressing frame 244, the pressing frame 244 is rectangular, the rear end of the pressing frame 244 is a hinge shaft 2441, the hinge shaft 2441 penetrates through a hinge hole in the rear end of the installation plate 243, a coil spring 2442 is sleeved on the hinge shaft 2441, one end of the coil spring 2442 is connected with the hinge shaft 2441, the other end of the coil spring 2442 is connected with the installation plate 243, the front end of the pressing frame 244 is a pressing rod 2443, two ends of the pressing rod 2443 are connected with two ends of the hinge shaft 2441 through a connecting rod 2444, and the pressing rod 2443 presses the gauze.

Through the structural arrangement, the pressing rod 2443 at the front end of the pressing frame 244 is moved open by hand, the gauze 25 is placed in the circular arc through groove 2431, then the pressing rod 2443 is opened, and the pressing rod 2443 presses the gauze 25 in the circular arc through groove 2431 under the restoring force of the coil spring 2442.

After the clamping mechanism 24 passes through the second roller 232, the clamping mechanism 24 is driven by the first rubber conveyer belt 234 to gradually descend, the mounting plate 243 and the gauze 25 droop under the action of gravity, and are hung below the first rubber conveyer belt 234 through the inhaul cable 242 and the rubber block 241 to enter the first medicine pool 21;

wherein, the third cylinder 233 is disposed above the water level line of the car sickness prevention liquid medicine in the first medicine tank 21, and the mounting plate 243 and the gauze 25 can enter below the water level line of the car sickness prevention liquid medicine under the driving of the first rubber conveyer belt 234, so that the gauze 25 can be soaked in the car sickness prevention liquid medicine, and the third cylinder 233 and the first rubber conveyer belt 234 can be prevented from being soaked in the car sickness prevention liquid medicine.

The carsickness prevention liquid medicine comprises water, citrus reticulata peel juice or citrus reticulata pulp juice; the proportion of water, the citrus reticulata peel juice or the citrus reticulata pulp juice is 3: 2.

through the proportioning, the concentration of the carsickness-preventing liquid medicine is moderate, the medicine smell emitted by the soaked gauze 25 is moderate, the breathing is not influenced, the citrus grandis flesh juice has fragrant and sweet taste except the carsickness-treating effect, the citrus grandis peel juice has pungent and bitter taste, and the carsickness-treating effect is good.

The medicine towel packaging machine is characterized by further comprising a plastic packaging machine 4, wherein the plastic packaging machine 4 is used for packaging the medicine towels into plastic bags.

Through the structure, the shelf life of the medicinal towel can be prolonged.

The spraying method medicinal towel manufacturing equipment 3 comprises a second medicine pool 31, a second oven 32, a second conveying chain 33, a spraying box 34 and a spraying device 35, wherein the second medicine pool 31 is filled with anti-carsickness medicinal liquid, and the anti-carsickness medicinal liquid comprises water, citrus reticulata peel juice or citrus reticulata pulp juice;

the second conveyor chain 33 comprises a fourth roller 331, a fifth roller 332; the fourth roller 331 and the fifth roller 332 are rotatably arranged on the frame, a second rubber conveyer belt 333 is wound on the fourth roller 331 and the fifth roller 332, and gauze 25 is placed on the second rubber conveyer belt 333; the fifth roller 332 is connected with a second stepping motor 36, and the second stepping motor 36 drives the second rubber conveyer 333 to make stepping motion;

the spray tank 34 is provided with a third inlet 341 and a third outlet 342;

the second oven 32 is provided with a second inlet 321 and a second outlet 322,

the spraying device 35 comprises a suction pump 351, a suction pipe 352 is connected to the water inlet of the suction pump 351, the suction pipe 352 extends into the second medicine pool 31, a spray pipe 353 is connected to the water outlet of the suction pump 351, and the spray pipe 353 extends into the spraying box 34 and is connected with a shower nozzle 354;

the second rubber conveyer belt 333 with gauze 25 placed enters the spraying box 34 through the third inlet 341, the spraying device 35 draws the anti-carsickness liquid medicine in the second medicine pool 31 to spray on the gauze 25, extends out of the spraying box 34 through the third outlet 342, enters the second oven 32 through the second inlet 321 to be baked, and extends out of the second oven 32 through the second outlet 322; the gauze 25 is sprayed with anti-carsickness medicine liquid and is baked to obtain the medicinal towel.

The fifth roller 332 is connected with a second stepping motor 36, the second stepping motor 36 drives a second rubber conveyer 333 to make stepping motion, the second rubber conveyer 333 drives the gauze 25 to enter the spraying box 34 to spray the anti-carsickness liquid medicine, then the gauze enters the second oven 32 to be dried or to remove redundant moisture, and the high-temperature sterilization is carried out through hot air in the second oven 32.

The third inlet 341 and the third outlet 342 of the spraying box 34, the second inlet 321 and the second outlet 322 of the second oven 32 are matched with the second rubber conveyer 333 with gauze 25 placed thereon, so that when the gauze 25 is convenient to enter and exit, the heat loss of the second oven 32 is reduced as much as possible.

Wherein the second medicine pool 31 is filled with carsickness prevention liquid medicine, and the carsickness prevention liquid medicine comprises water, citrus reticulata peel juice or citrus reticulata pulp juice; the mandarin orange peel juice or the mandarin orange meat juice is a pure natural product, and can be used for treating motion sickness without any side effect.

The spraying box 34 and the second oven 32 are both fixedly arranged on the frame; a frame is not shown;

the second oven 32 is arranged on the right side of the spraying box 34;

the fourth roller 331 is located at the left side of the spraying box 34, and the fifth roller 332 is located at the right side of the second oven 32; the heights of the fourth roller 331 and the fifth roller 332 are equal;

the second rubber conveyer belt 333 is wound on the fourth roller 331 and the fifth roller 332 to form an oval hole-shaped second rubber conveyer belt 333; the upper conveying belt part of the second rubber conveying belt 333 enters the spraying box 34 through the third inlet 341, extends out of the spraying box 34 through the third outlet 342, enters the second oven 32 through the second inlet 321 for baking, and extends out of the second oven 32 through the second outlet 322; bypassing the fifth roller 332; the lower conveyor portion of the second rubber conveyor 333 is located outside the spray booth 34 and the second oven 32.

Wherein, the upper conveyor belt part positioned at the left side of the spraying box 34 is a feeding station, and the upper conveyor belt part positioned at the right side of the second oven 32 is a blanking station. And at the feeding station, the gauze 25 is manually placed on the upper conveying belt part, and at the discharging station, the gauze 25 is manually taken down from the upper conveying belt part and sealed and packaged by a plastic bag.

The top of the spray box 34 is provided with a through hole into which the spray tube 353 extends.

The second stepping motor 36 is connected to a second stepping motor control circuit, the second stepping motor 36 performs stepping motion under the control of the second stepping motor control circuit, and the second stepping motor 36 drives the second rubber conveyer 333 to perform stepping motion.

The second stepping motor control circuit is provided with a second P L C controller, the second P L C controller drives the second stepping motor 36 to make stepping movement through the stepping motor driving module, and the second P L C controller is the same as the first P L C controller in circuit diagram.

Preferably, the spray pipe 353 is provided with a solenoid gate valve, which is not shown in the figure, the solenoid gate valve is connected with a second P L C controller, the second P L C controller controls the gauze 25 to enter the spraying box 34, and then the solenoid gate valve is controlled to be opened to spray the anti-carsickness medicine liquid.

The second oven 32 is provided with a second heating wire 324, a second fan 325 and a second temperature controller 323, and the second temperature controller 323 controls the second heating wire 324 and the second fan 325 to be switched on and off; wherein the temperature in the second oven 32 is 120 degrees.

The second oven 32 is internally provided with a second heating wire 324 which heats the second oven 32, dries the gauze 25 or dries redundant moisture on the gauze 25 and sterilizes the gauze by high-temperature hot air, the second fan 325 promotes air circulation in the second oven 32, and the second temperature controller 323 controls the second heating wire 324 and the second fan 325 to be powered on and off according to the temperature of the second oven 32.

The second fan 325 comprises a motor and fan blades, the motor is arranged at the top of the second oven 32, a main shaft of the motor extends into the second oven 32 through a through hole at the top of the second oven 32 and is connected with the fan blades, air circulation in the second oven 32 is promoted, the second temperature controller 323 is provided with a temperature sensor, the temperature of the second oven 32 is detected, and the second heating wire 324 and the second fan 325 are controlled to be powered on and powered off according to the temperature of the second oven 32; when the temperature is higher than 120 ℃, the power supplies of the second heating wire 324 and the second fan 325 are turned off, otherwise, the power supplies of the second heating wire 324 and the second fan 325 are turned on; the temperature in the second oven 32 is set to 120 ℃, so that the gauze 25 can be used for drying excessive moisture and has a high-temperature sterilization effect.

The circuit diagram of the second oven 32 is the same as that of the first oven 22;

the second rubber conveying belt 333 is a toothed belt, and the fourth roller 331 and the fifth roller 332 are both toothed rollers;

a medicinal towel storage box 37 is arranged below the fifth roller 332.

The second rubber conveying belt 333 is a toothed belt, and the fourth roller 331 and the fifth roller 332 are toothed rollers; the accurate transmission ratio can be ensured, so that the gauze 25 placed on the second rubber conveyer belt 333 can accurately reach the position of the shower nozzle 354 to spray the anti-carsickness liquid medicine;

the gauze 25 enters the spraying box 34 from the second rubber conveyer 333 on the left side of the spraying box 34, passes through the second oven 32, passes through the position of the fifth roller 332, falls off from the outer side of the fifth roller 332, and enters the towel storage box 37.

A position wire frame 251 for placing gauze 25 is printed on the second rubber conveying belt 333.

The gauze 25 is manually placed in the position wire frame 251, so that the gauze 25 placed on the second rubber conveying belt 333 can accurately reach the position of the shower nozzle 354 to spray the carsickness-preventing liquid medicine.

The upper end of the suction pipe 352 is connected with a suction pump 351, the lower end of the suction pipe is connected with a tapered suction tube 355, the small end of the tapered suction tube 355 is connected with the lower end of the suction pipe 352, and the large end of the tapered suction tube 355 is provided with a third filter screen 356.

The third filter screen 356 is used for filtering impurities in the mandarin orange peel juice or the mandarin orange meat juice to prevent the shower nozzle 354 from being blocked; the third filter screen 356 is arranged at the large end of the conical suction tube 355, so that the filter surface is large, the blockage is not easy, and the replacement frequency is reduced.

The bottom of the spraying box 34 is connected with a recycling pipe 343, one end of the recycling pipe 343 is connected with the spraying box 34, and the other end is connected into the second medicine pool 31.

The redundant liquid medicine sprayed from the shower nozzle 354 flows back to the second medicine tank 31 through the recovery pipe 343.

The assembly device comprises a sewing machine; the sewing machine is used for sewing a first pouch 51 and a second pouch 52 on the inner wall of the mask 5; the sewing machine is also used for sewing a third pouch 53 on the outer wall of the mask 5;

the first pouch 51, the second pouch 52 and the third pouch 53 are all made of breathable cotton cloth and are provided with air holes 54;

the first pouch 51 is positioned above the second pouch 52, the first pouch 51 contains the medical towel soaked with the citrus reticulata peel juice, and the second pouch 52 contains the medical towel soaked with the citrus reticulata pulp juice;

the third pouch 53 is used to hold wet wipes soaked with hydrogen peroxide solution.

An anti-motion mask; the mask is manufactured by adopting the production line and comprises a mask 5, wherein a first pouch 51 and a second pouch 52 are sewn on the inner wall of the mask 5; a third pouch 53 is sewn on the outer wall of the mask 5;

the tops of the first pouch 51, the second pouch 52 and the third pouch 53 are all open;

drying the medicinal towel soaked with the mandarin orange peel juice, and packaging in plastic bag by plastic packaging machine 4. Into the first purse 51; the medicinal towel soaked with the mandarin orange juice is dried and packaged in a plastic bag by a plastic packaging machine 4. Into a second purse 52.

The purse is also called a pocket, and has the same structure as a pocket of clothes.

the third pouch 53 contains wet tissues soaked with hydrogen peroxide solution; the wet tissue is also made of breathable cotton cloth;

and packaging the wet tissues soaked with the hydrogen peroxide solution in a plastic bag through a plastic packaging machine 4. Into a third pouch 53. The medicated towel and wet towel can be processed with multiple pores to improve ventilation condition.

Wherein the first pouch 51 corresponds to the nostril position of the user and the second pouch 52 corresponds to the oral position of the user;

The hydrogen peroxide solution has the sterilization effect and prevents the people with carsickness from exhaling bacteria gas to spread in vehicles and ships.

When in use, the plastic bag for packaging the medicinal towel and the wet towel is torn open, the plastic bag is thrown away, and the medicinal towel and the wet towel are kept.

The outer wall of the mask 5 is further provided with a man-in-the-middle pressing device 6, the man-in-the-middle pressing device 6 comprises a pressing plate 61, a pressing head 62 is arranged on the inner side of the pressing plate 61, the inner end of the pressing head 62 is arc-shaped, the outer end of the pressing head 62 is fixedly connected with the pressing plate 61, and two sides of the pressing plate 61 are respectively connected with a first telescopic belt 63 and a second telescopic belt 64; the two binding belts 66 are vertically arranged at two sides of the pressure plate 61, and the device 6 for pressing the middle part of the person is bound on the outer wall of the mask 5;

wherein the upper and lower both ends of bandage 66 all make up on the outer wall of gauze mask 5, form the ligature via hole 661 that first telescopic band 63 and second telescopic band 64 passed between the outer wall of bandage 66 and gauze mask 5, the free end of first telescopic band 63 and second telescopic band 64 is passed through magic subsides subassembly 65 after stretching out through the ligature via hole 661 of clamp plate 61 both sides respectively.

The strap 66 is sewn to the outer wall of the third pouch 53 by a sewing machine.

When a person feels carsickness, the person can be enabled to be awake in extrusion, the device 6 in the person to be pressed can be bound on the outer wall of the third purse 53 through the sewing machine, the first telescopic belt 63 and the second telescopic belt 64 are connected through the magic tape component 65 after respectively passing through the binding through holes 661 to bypass the brain, the circle is enclosed, the first telescopic belt 63 and the second telescopic belt 64 are contracted, the pressing head 62 is enabled to be extruded in the person, and the person is enabled to be kept awake.

The upper end of the pressure plate 61 is higher than the nose tip, and the air inlet and outlet of the nostrils are not influenced.

The binding band 66 is made of an elastic telescopic belt, and the width of the magic tape component 65 is larger than the binding through hole 661.

Bandage 66 is also elastic expansion belt and makes, and elastic expansion can take place for the ligature via hole 661 that it formed, and tensile bandage 66 makes its ligature via hole 661's size grow, and bandage 66 is relaxed after magic subsides subassembly 65 passes ligature via hole 661, and bandage 66 shrink, ligature via hole 661 size diminish, blocks magic subsides subassembly 65, presses the people in device 6 can not take place to drop from gauze mask 5.

Still be provided with massage device on the gauze mask 5, massage device is including setting firmly in the battery case 67 of one of them magic subsides outer wall of magic subsides subassembly 65, is provided with battery 671 in the battery case 67, has still set firmly motor 672 in the battery case 67, and battery 671 supplies power for motor 672 through switch 674, and after the through-hole that battery case 67 outer wall was seted up was passed to the main shaft of motor 672, it was connected with massage head 673 to pass main shaft via hole 651 that magic subsides subassembly 65 was seted up again.

Through the above structure setting, put into battery 671 in the battery case 67, the user wears to press device 6 in the people, presses switch 674, and motor 672 drives massage head 673 rotatory, and massage head 673 massages the nerve root of people's back brain spoon, makes people's spirit clear-headed, breathes smoothly. Relieving car sickness symptoms.

Wherein the motor 672 is a miniature speed reduction motor.

As shown in fig. 20-21, gauze mask 5 sets up in vacuum seal bag 501, integrated into one piece has CO2 sensor 502 and alarm circuit 503 to be provided with in the gauze mask 5, CO2 sensor 502 sets up the position that is close to the nostril in the gauze mask 5, alarm circuit 503 includes baroswitch, button cell, comparison circuit, outage delay relay and bee calling organ, and button cell is CO2 sensor 502, comparison circuit, the power supply of outage delay relay through baroswitch, and CO2 sensor 502 output voltage signal gives comparison circuit, and comparison circuit control outage delay relay's coil is switched on or off, and button cell is the bee calling organ power supply through the normally closed switch of outage delay relay again behind the baroswitch.

Through the structure, the mask 5 is arranged in the vacuum sealing bag 501, so that the shelf life is prolonged, when the vacuum sealing bag 501 is disassembled, the air pressure switch is closed when contacting with the atmospheric pressure, the button battery supplies power to the buzzer through the normally closed switch of the power-off delay relay after passing through the air pressure switch, and the buzzer sounds; when a user wears the mask 5, the concentration of exhaled CO2 is high, the output voltage signal of the CO2 sensor 502 is high and is larger than the voltage threshold value of the comparison circuit, the comparison circuit outputs the voltage signal, the coil of the power-off delay relay is powered on, the normally closed switch of the power-off delay relay is instantly switched off, and the buzzer stops buzzing. The alarm device is prevented from being turned off randomly by a user through integral forming and the air pressure switch.

Finally, it is noted that: the above-mentioned embodiments are only examples of the present invention, and it is a matter of course that those skilled in the art can make modifications and variations to the present invention, and it is considered that the present invention is protected by the modifications and variations if they are within the scope of the claims of the present invention and their equivalents.

Claims

1. An anti-motion mask comprises a mask (5) and is characterized in that a first purse-string (51) and a second purse-string (52) are sewn on the inner wall of the mask (5); the first pouch (51) is positioned above the second pouch (52); wherein the first purse (51) corresponds to the nostril position of the user and the second purse (52) corresponds to the oral position of the user;

the tops of the first pouch (51) and the second pouch (52) are both open;

the first pouch (51) contains the medicinal towel soaked with the citrus tangor peel juice, and the second pouch (52) contains the medicinal towel soaked with the citrus tangor pulp juice;

the first pouch (51) and the second pouch (52) are both made of air-permeable material.

2. The anti-motion halo visor of claim 1, wherein: a third pouch (53) is sewn on the outer wall of the mask (5); the top of the third pouch (53) is open, and the third pouch (53) is made of a breathable material; the third pouch (53) contains wet tissues soaked with hydrogen peroxide solution; the wet tissue is prepared by soaking a breathable cotton cloth in a hydrogen peroxide solution.

3. The anti-motion halo visor of claim 2, wherein: the first pouch (51), the second pouch (52) and the third pouch (53) are all made of breathable cotton cloth and are provided with breathable holes (54).

4. The anti-motion halo visor of claim 1, wherein: the outer wall of the mask (5) is further provided with a middle pressing device (6), the middle pressing device (6) comprises a pressing plate (61), a pressing head (62) is arranged on the inner side of the pressing plate (61), the inner end of the pressing head (62) is arc-shaped, the outer end of the pressing head (62) is fixedly connected with the pressing plate (61), and two sides of the pressing plate (61) are respectively connected with a first telescopic belt (63) and a second telescopic belt (64); the two binding belts (66) are vertically arranged on two sides of the pressure plate (61) and used for binding the device (6) for pressing the user on the outer wall of the mask (5);

wherein the upper and lower both ends of bandage (66) are all made on the outer wall of gauze mask (5), form ligature via hole (661) that first telescopic band (63) and second telescopic band (64) passed between the outer wall of bandage (66) and gauze mask (5), and the free end of first telescopic band (63) and second telescopic band (64) is stretched out through ligature via hole (661) of clamp plate (61) both sides respectively and is followed through magic subsides subassembly (65) and link to each other.

5. The motion sickness prevention mask as set forth in claim 4, wherein: the bandage (66) is made of an elastic telescopic belt, and the width of the magic tape component (65) is larger than the binding through hole (661).

6. The anti-motion halo visor of claim 1, wherein: gauze mask (5) set up in vacuum seal bag (501), integrated into one piece has and is provided with CO2 sensor (502) and alarm circuit (503) in gauze mask (5), CO2 sensor (502) set up the position that is close to the nostril in gauze mask (5), alarm circuit (503) include baroswitch, button cell, comparison circuit, outage delay relay and bee calling organ, and button cell is CO2 sensor (502), comparison circuit, outage delay relay power supply through baroswitch, and CO2 sensor (502) output voltage signal gives comparison circuit, and the coil of comparison circuit control outage delay relay switches on and off, and button cell is the bee calling organ power supply through the normally closed switch of outage delay relay again behind baroswitch.
