Abstract
The invention discloses a nasal efficient liquid medicine flusher in the technical field of medical instruments, which comprises a liquid storage folding cylinder and a liquid receiving folding cylinder, wherein the tops of the liquid storage folding cylinder and the liquid receiving folding cylinder are fixedly connected with a top connecting disc, the top of the top connecting disc is fixedly connected with a connecting pipe, the outer wall of the connecting pipe is in threaded connection with a flushing pipe and a flow guiding pipe, the flushing pipe is communicated with the liquid storage folding cylinder, the flow guiding pipe is communicated with the liquid receiving folding cylinder, the outer wall of the flow guiding pipe is fixedly connected with an external expanding water receiving ring, the middle of the flow guiding pipe is connected with an internal connecting pipe through a fixed connecting sheet, the top of the top connecting disc is fixedly provided with a measuring assembly, the top of the top connecting disc is fixedly connected with a mouth part flow guiding cover, the mouth part flow guiding cover is communicated with the liquid receiving folding cylinder, the bottoms of, the convenient patient uses at any time, alone can operate, and the control of being convenient for uses cleanly clean and tidy.
Description
Technical Field
The invention relates to the technical field of medical instruments, in particular to a nasal efficient liquid medicine flusher.
Background
Otolaryngology branch of academic or vocational study is the surgery of diagnosis treatment ear, nose, throat and relevant neck region, needs the patient to wash ear, nose and throat earlier when examining patient's ear, nose and throat, avoids it to have foreign matter to influence doctor's diagnosis to need regularly to wash in the recovered stage after ear, nose and throat treatment, guarantee the inside health of ear, nose and throat, make recovered effect better, so the flusher is one of the indispensable equipment of otolaryngology branch of academic or vocational study. However, the existing syringe flushing method is inconvenient for the individual operation of the patient, wastes time and labor for preparing flushing articles, is large in size and inconvenient to carry, needs to find a basin to catch the flowing cleaning liquid during cleaning, is always disconcerting for the patient during cleaning, and is easy to dirty clothes and the surrounding environment.
Based on the above, the invention designs an efficient liquid medicine flusher for the department of rhinology to solve the problems.
Disclosure of Invention
The invention aims to provide an efficient liquid medicine flusher for nasal departments, and aims to solve the problems that the flusher is inconvenient for a patient to operate and use, other flushers are large in size and inconvenient to carry, a basin needs to be found to receive flowing washing liquid during washing, the patient is disconcerting during washing, and clothes and the surrounding environment are easily dirtied.
In order to achieve the purpose, the invention provides the following technical scheme:
the utility model provides a nasal branch of academic or vocational study is with high-efficient liquid medicine flusher, includes the folding section of thick bamboo of stock solution and connects the folding section of thick bamboo of liquid, the folding section of thick bamboo of stock solution top fixedly connected with top connection pad, top connection pad top fixedly connected with connecting pipe, connecting pipe outer wall threaded connection has flushing pipe and honeycomb duct, flushing pipe and the folding section of thick bamboo intercommunication of stock solution, honeycomb duct and the folding section of thick bamboo intercommunication of connecing liquid, the outer wall fixedly connected with of honeycomb duct expands the water ring outward, be connected with the nipple through fixed connection piece in the middle of the honeycomb duct, the fixed measuring component that is equipped with in top connection pad top, top connection pad top fixedly connected with mouth kuppe, mouth kuppe and the folding section of thick bamboo intercommunication of connecing liquid, the folding section of thick bamboo of stock solution and.
Preferably, a communication hole is formed in the middle of the top connecting disc, and the liquid storage folding cylinder and the liquid receiving folding cylinder are communicated with the connecting pipe through the communication hole.
Preferably, the bottoms of the flushing pipe and the flow guide pipe are fixedly connected with a communicating fixing seat, the communicating fixing seat is in threaded connection with a connecting pipe, and the bottoms of the flushing pipe and the flow guide pipe are connected with the communicating fixing seat through corrugated pipes.
Preferably, the flushing pipe end fixedly connected with expands the gasbag circle outward, internal connection pipe end fixedly connected with laminating rubber ring, expand outward and connect the water circle for the fill shape.
Preferably, the top of the top connecting disc is fixedly connected with a group of folding clamping frames, and the folding clamping frames are respectively matched with the flushing pipe and the flow guide pipe.
Preferably, the measuring assembly comprises an anti-lost ring fixedly connected to the top of the top connecting plate, and a small measuring cup is connected to the outer wall of the anti-lost ring in a threaded mode.
Preferably, a hidden pipe is communicated between the liquid receiving folding cylinder and the top connecting disc, the bottom of the mouth part flow guide cover is communicated with an adjusting bent pipe, and the adjusting bent pipe is in threaded connection and communicated with the hidden pipe.
Preferably, the liquid receiving folding cylinder and the bottom of the top connecting disc are fixedly connected with semicircular plates.
Compared with the prior art, the invention has the beneficial effects that:
1. when the multifunctional liquid storage folding device is used, the small measuring cup at the top is unscrewed, salt is poured into a proper amount, the liquid storage folding cylinder and the liquid receiving folding cylinder are stretched and opened, the communicating fixed seat at the top of the liquid storage folding cylinder is unscrewed, the measured salt is poured into the liquid storage folding cylinder and then added with water, and then the communicating fixed seat is screwed on to start use.
2. After the washing liquid is added, the washing pipe and the flow guide pipe are supported, the washing pipe and the inner connecting pipe are plugged into the nasal cavity, the adjusting elbow is screwed on, the mouth part flow guide cover is located on the lip part and attached to the lip part, the thumb upwards extrudes the semicircular plate of the liquid storage folding cylinder, the internal liquid is sprayed out from the washing pipe, the liquid flows out from the nasal cavity or the mouth part at the other side after being washed by the nasal cavity, a user can automatically control the hand extrusion force to change the washing force, the liquid storage folding cylinder can be folded and retracted, the washing liquid medicine in the liquid storage folding cylinder can be completely utilized, and the washing liquid medicine washing.
3. The washing liquid that flows out flows in and connects liquid folding section of thick bamboo from honeycomb duct and hidden pipe drainage respectively, in time connects liquid and avoids making dirty clothing or surrounding environment, need not external liquid basin or to the washing of appointed place of connecing, can use at any time, uses cleanly neatly.
4. After the cleaning solution is used, the cleaning solution which is not used up and the collected liquid after washing are discharged from the liquid storage folding cylinder and the liquid receiving folding cylinder respectively by opening the bottom sealing cover, the liquid storage folding cylinder and the liquid receiving folding cylinder are pressed and folded into a sheet shape, the cleaning pipe and the flow guide pipe are bent, put into the folding clamping frame, the adjusting bent pipe is unscrewed, folded and folded are completed, and the cleaning solution is put into a pocket or a bag, so that the cleaning solution bag is completely free from occupying space, is very portable and is convenient for a patient to use.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without creative efforts.

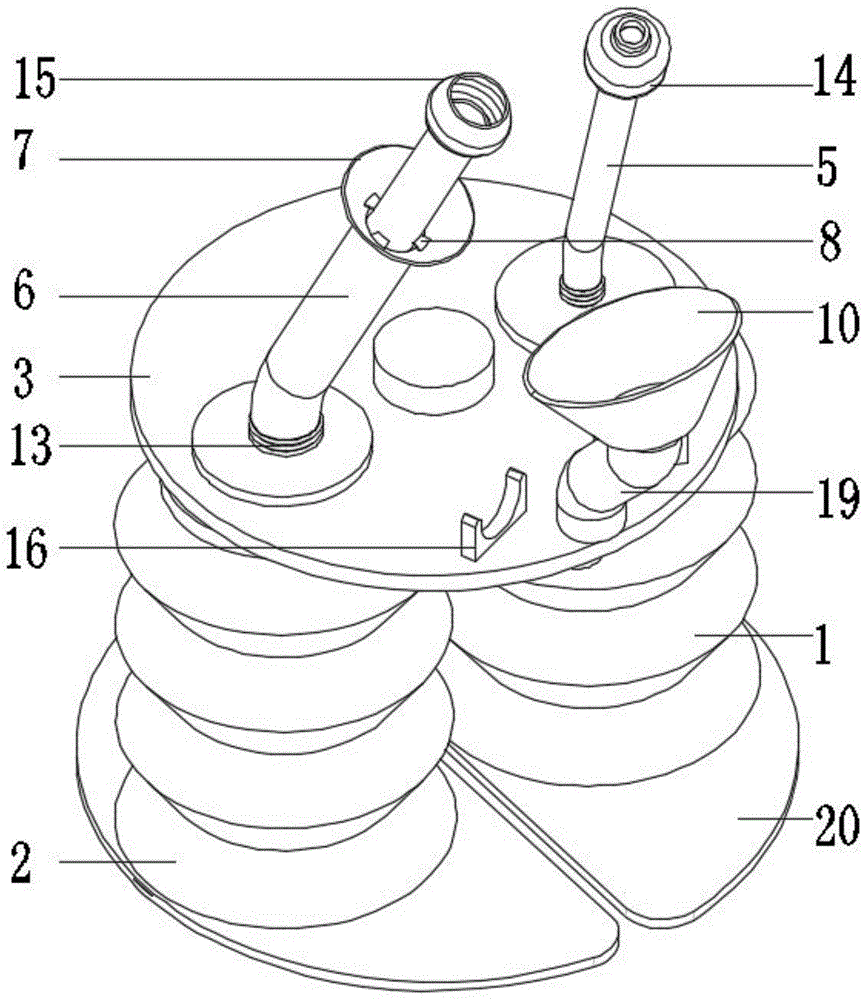

FIG. 1 is a schematic top view of the present invention;
FIG. 2 is a schematic rear view structure of the present invention;
FIG. 3 is a schematic bottom view of the present invention;
FIG. 4 is a schematic view of a bottom view partially cut-away view of the present invention.
In the drawings, the components represented by the respective reference numerals are listed below:
1-liquid storage folding cylinder, 2-liquid receiving folding cylinder, 3-top connecting disc, 4-connecting pipe, 5-flushing pipe, 6-flow guiding pipe, 7-external expanding water ring, 8-fixed connecting sheet, 9-internal connecting pipe, 10-mouth flow guiding cover, 11-sealing cover, 12-communication fixing seat, 13-corrugated pipe, 14-external expanding air bag ring, 15-laminating rubber ring, 16-folding clamping frame, 17-small measuring cup, 18-hidden pipe, 19-adjusting bent pipe and 20-semicircular plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution:
the utility model provides a nasal branch of academic or vocational study is with high-efficient liquid medicine flusher, including the folding section of thick bamboo of stock solution 1 with connect the folding section of thick bamboo 2 top fixedly connected with top connection pad 3 of liquid, 3 top fixedly connected with connecting pipes 4 of top connection pad, 4 outer wall threaded connection of connecting pipe have flushing pipe 5 and honeycomb duct 6, flushing pipe 5 and the folding section of thick bamboo 1 intercommunication of stock solution, honeycomb duct 6 and the folding section of thick bamboo 2 intercommunication of liquid receiving, 6 outer wall fixedly connected with of honeycomb duct expand water ring 7 outward, be connected with interior union coupling 9 through fixed connection piece 8 in the middle of the honeycomb duct 6, the fixed measuring component that is equipped with in 3 tops of top connection pad, 3 top fixedly connected with mouth kuppe 10 of top connection pad, mouth kuppe 10 and the folding section of thick bamboo 2 intercommunications of liquid receiving, the folding section of thick bamboo 1 of stock.
Wherein, the intercommunicating pore has been seted up in the middle of top connection pad 3, and the folding section of thick bamboo of stock solution 1 and the folding section of thick bamboo of connecing liquid pass through intercommunicating pore and connecting pipe 4 intercommunication. The bottoms of the flushing pipe 5 and the flow guide pipe 6 are fixedly connected with a communicating fixing seat 12, the communicating fixing seat 12 is in threaded connection with the connecting pipe 4, and the bottoms of the flushing pipe 5 and the flow guide pipe 6 are connected with the communicating fixing seat 12 through a corrugated pipe 13. The end part of the flushing pipe 5 is fixedly connected with an external expanding air bag ring 14, the end part of the internal connecting pipe 9 is fixedly connected with an attaching rubber ring 15, and the external expanding water receiving ring 7 is in a bucket shape. The top of the top connecting disc 3 is fixedly connected with a group of folding clamping frames 16, and the folding clamping frames 16 are respectively matched with the flushing pipe 5 and the flow guide pipe 6. The measuring assembly comprises an anti-lost ring fixedly connected to the top of the top connecting plate 3, and the outer wall of the anti-lost ring is in threaded connection with a small measuring cup 17. A hidden pipe 18 is communicated between the liquid receiving folding cylinder 2 and the top connecting disc 3, an adjusting bent pipe 19 is communicated with the bottom of the mouth part air guide sleeve 10, and the adjusting bent pipe 19 is in threaded connection and communication with the hidden pipe 18. The bottoms of the liquid receiving folding cylinder 2 and the top connecting disc 3 are fixedly connected with a semicircular plate 20.
One specific application of this embodiment is: when the table salt storage folding cylinder is used, the top small measuring cup 17 is unscrewed, salt is poured into a proper amount, the top connecting disc 3 and the semicircular plate 20 are pulled open, the liquid storage folding cylinder 1 and the liquid receiving folding cylinder 2 are stretched and opened, the sheet shape is changed into the three-dimensional cylinder shape, the communicating fixing seat 12 at the top of the liquid storage folding cylinder 1 is unscrewed, the measured salt is poured in and then water is added, the added water amount can be seen through the mark on the outer wall of the liquid storage folding cylinder 1, then the liquid storage folding cylinder is shaken uniformly, the flushing liquid medicine can be directly added, the communicating fixing seat 12 is screwed up to start use, the liquid adding is convenient, the physiological saline can be automatically configured for flushing, and the table salt storage folding table.
After the washing liquid is added, the washing tube 5 and the guide tube 6 are taken out of the folding clamping frame 16 and supported, the outer air expanding bag ring 14 at the end part of the washing tube 5 is plugged into a nasal cavity to be washed, the adhesive rubber ring 15 at the end part of the inner connecting tube 9 is plugged into the other nasal cavity, the adjusting bent tube 19 is screwed on the exposed part of the hidden tube 18 and is positioned at the lip part and attached to the lip part, then the top connecting disc 3 and the semicircular plate 20 are held by hands, the thumb upwards extrudes the semicircular plate 20 of the liquid storage folding cylinder 1, the internal liquid is sprayed out from the washing tube 5, the internal liquid flows out from the nasal cavity or the mouth at the other side after washing the nasal cavity, a user can automatically control the extrusion force of the hands so as to change the washing force, the liquid storage folding cylinder 1 can be folded, the washing liquid medicine in the liquid storage.
A large amount of cleaning fluid flowing out of a nasal cavity at the other side flows into the inner connecting pipe 9 through the attaching rubber ring 15 at the end part of the inner connecting pipe 9 and further enters the flow guide pipe 6, part of the fluid possibly flows down along the outer wall of the inner connecting pipe 9, the part of the fluid flows into the flow guide pipe 9 through the outer expanding water ring 7 and a gap between the flow guide pipe 6 and the inner connecting pipe 9, the cleaning fluid flowing out of the mouth part enters the hidden pipe 18 through the mouth part flow guide cover 10 through the adjusting bent pipe 19, the cleaning fluid flowing out in the way flows into the liquid receiving folding cylinder 2 through the flow guide pipe 6 and the hidden pipe 18 respectively, the fluid is received in time, clothes or the surrounding environment are prevented from being polluted, an external liquid receiving basin is not needed, the cleaning.
After use, the cleaning solution which is not used up and the collected liquid after washing are discharged from the liquid storage folding cylinder 1 and the liquid receiving folding cylinder 2 respectively by opening the bottom sealing cover 11, then the cleaning solution is screwed up again, the liquid storage folding cylinder 1 and the liquid receiving folding cylinder 2 are pressed and folded into a sheet shape, the flushing pipe 5 and the flow guide pipe 6 are bent and placed into the folding clamping frame 16, the adjusting bent pipe 19 is unscrewed, the folding is completed, and the cleaning solution is placed in a pocket or a bag, so that the cleaning solution bag is completely free from occupying space, is very portable and is convenient for a patient to use.
In the description herein, references to the description of "one embodiment," "an example," "a specific example" or the like are intended to mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The preferred embodiments of the invention disclosed above are intended to be illustrative only. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and the practical application, to thereby enable others skilled in the art to best utilize the invention. The invention is limited only by the claims and their full scope and equivalents.
Claims (8)
1. The utility model provides a ware is washed with high-efficient liquid medicine of nasal branch of academic or vocational study which characterized in that: the device comprises a liquid storage folding cylinder (1) and a liquid receiving folding cylinder (2), wherein the top parts of the liquid storage folding cylinder (1) and the liquid receiving folding cylinder (2) are fixedly connected with a top connecting disc (3), the top part of the top connecting disc (3) is fixedly connected with a connecting pipe (4), the outer wall of the connecting pipe (4) is in threaded connection with a flushing pipe (5) and a flow guide pipe (6), the flushing pipe (5) is communicated with the liquid storage folding cylinder (1), the flow guide pipe (6) is communicated with the liquid receiving folding cylinder (2), the outer wall of the flow guide pipe (6) is fixedly connected with an outer expanding water receiving ring (7), the middle of the flow guide pipe (6) is connected with an inner connecting pipe (9) through a fixed connecting sheet (8), the top part of the top connecting disc (3) is fixedly provided with a measuring component, the top part of the top connecting disc (3) is fixedly connected with a mouth flow guide, the bottom of the liquid storage folding cylinder (1) and the bottom of the liquid receiving folding cylinder (2) are communicated with liquid discharging pipes, and the outer wall of each liquid discharging pipe is in threaded connection with a sealing cover (11).
2. The nasal efficient liquid medicine irrigator according to claim 1, wherein: the middle of the top connecting disc (3) is provided with a communicating hole, and the liquid storage folding cylinder (1) and the liquid receiving folding cylinder (2) are communicated with the connecting pipe (4) through the communicating hole.
3. The nasal efficient liquid medicine irrigator according to claim 1, wherein: the bottom parts of the flushing pipe (5) and the flow guide pipe (6) are fixedly connected with a communicating fixing seat (12), the communicating fixing seat (12) is in threaded connection with the connecting pipe (4), and the bottom parts of the flushing pipe (5) and the flow guide pipe (6) are connected with the communicating fixing seat (12) through corrugated pipes (13).
4. The nasal efficient liquid medicine irrigator according to claim 1, wherein: the end part of the flushing pipe (5) is fixedly connected with an outer expanding air bag ring (14), the end part of the inner connecting pipe (9) is fixedly connected with a gluing rubber ring (15), and the outer expanding water receiving ring (7) is in a bucket shape.
5. The nasal efficient liquid medicine irrigator according to claim 1, wherein: the top of the top connecting plate (3) is fixedly connected with a group of folding clamping frames (16), and the folding clamping frames (16) are respectively matched with the flushing pipe (5) and the flow guide pipe (6).
6. The nasal efficient liquid medicine irrigator according to claim 1, wherein: the measuring assembly comprises an anti-lost ring fixedly connected to the top of the top connecting plate (3), and the outer wall of the anti-lost ring is in threaded connection with a small measuring cup (17).
7. The nasal efficient liquid medicine irrigator according to claim 1, wherein: a hidden pipe (18) is communicated between the liquid receiving folding cylinder (2) and the top connecting disc (3), an adjusting bent pipe (19) is communicated with the bottom of the mouth part air guide sleeve (10), and the adjusting bent pipe (19) is in threaded connection with the hidden pipe (18) and communicated with the hidden pipe.
8. The nasal efficient liquid medicine irrigator according to claim 1, wherein: the bottom of the liquid receiving folding cylinder (2) and the bottom of the top connecting disc (3) are fixedly connected with semicircular plates (20).
