CN111387785A - A hanger and method of use - Google Patents

Abstract

The present invention relates to the technical field of clothes hangers, in particular to a clothes hanger and a method of using the same. The technical problem to be solved by the present invention is that the existing clothes hanger is troublesome to fold, inconvenient to adjust the overall size and easy to wear clothes. In order to solve the above technical problems, the present invention provides a clothes hanger, which includes a clip head, the bottom of the clip head has an opening, the top of the clip head is fixedly connected with a hook, and both sides of the surface of the clip head are fixedly connected with oblique hooks. struts, and the bottom ends of the two diagonal struts are respectively connected with one end of the two connecting rods through the extension rods, the opposite ends of the two connecting rods are fixedly connected with inner shafts, and the two inner shafts are opposite to each other. One end is sleeved with a sleeve, and a plug block is sleeved in the sleeve. In the invention, the extension rod can be deformed to reduce the overall length of the hanger, and then the clip head is pressed down, and the opening at the bottom of the clip head is sleeved on the clip rod, which can reduce the height of the entire hanger, thereby facilitating the storage of the hanger. And the operation is simple and easy to use.

Description

A hanger and method of use

This application is a divisional application with an application date of October 27, 2018 and an application number of CN201811262974.1, whose name is a coat hanger.

technical field

The invention relates to the technical field of clothes hangers, in particular to a clothes hanger and a method of using the same.

Background technique

Clothes hangers are mainly used to dry clothes in daily life. The clothes hangers that arrive are generally simpler in function and simpler in shape.

For example, a deformed hanger proposed by CN 102273898 A is characterized in that it is formed by connecting several hanger components to form the shape of a common hanger, and the main technical problem to be solved is that most of the existing hangers are composed of hooks and tripods. However, the existing hangers are generally fixed in structure, and they need to occupy a large space during storage, which is not conducive to sorting. The hanger is connected by a universal joint between several hanger assemblies, and can be folded. However, during the folding process, because there are too many hanger assemblies, it is time-consuming to fully fold the hanger assembly, and the hanger assembly is inconvenient to adjust. Because of its overall length, it cannot accommodate more types of clothing. After being connected by a universal joint, there is a gap between the hanger components. If the gap is not leveled, it will easily cause wear to the clothing.

SUMMARY OF THE INVENTION

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the present invention provides a clothes hanger and a use method, which solve the problems of the existing clothes hanger being troublesome to fold, inconvenient to adjust the overall size and easy to wear clothes.

(2) Technical solutions

In order to achieve the above purpose, the present invention is achieved through the following technical solutions: a hanger and a method of use, comprising a clamp head, the bottom of the clamp head has an opening, for this reason, the bottom of the clamp head becomes a U-shaped groove, and the inner wall of the clamp head is There are lines on both sides of the clip, the top of the clip is fixed with hooks, and diagonal struts are welded on both sides of the surface of the clip. The material of the diagonal braces is hard plastic, and the bottom of the two diagonal braces The ends are respectively bonded with one end of the two connecting rods through the extension rods, the opposite ends of the two connecting rods are fixedly connected with inner shafts, and the opposite ends of the two inner shafts are sleeved with sleeves. Wrapped on the inner shaft, the sleeve is sleeved with a plug block, there is a certain frictional force between the side surface of the plug block and the inner wall of the sleeve, and the opposite ends of the two connecting rods are respectively connected with the two plug blocks. One side is bonded, the opposite sides of the two sleeves are connected by a clamping rod, the clamping rod is located just below the opening at the bottom of the clamping head, the surface of the extension rod is movably connected with a support piece, and the extension rod It is hollow, the extension rod is sleeved with a squeeze plug, the top of the squeeze plug is fixedly connected with the bottom end of the arc rod, the top end of the arc rod is fixedly connected with one end of the push rod, the The bottom of the inner wall of the extension rod is movably connected with a dial, the top of the dial penetrates the communication groove opened on the top of the extension rod and is overlapped on the inner wall of the support piece. A sliding block is slidably connected, and the other end of the push rod penetrates a through slot opened on one side of the dial and is movably connected with one side of the sliding block.

Further preferably, the surface of the clamping rod is provided with a number of lines, the lines on both sides of the inner wall of the clamping head just match the lines on the clamping rod, which can increase the stability between the two, and the depressions on the inner wall of the clamping head are just enough It is sleeved on the bulge on the surface of the clamping rod, and both the concave part and the raised surface are arc surfaces, which is convenient for disengagement and sleeve connection.

Further preferably, the material of the extension rod is soft rubber, for this reason, the extension rod is easily deformed.

Further preferably, the shape of the extension rod is an L shape, and after the extension rod is turned and connected to the diagonal strut and the connecting rod, a normal-shaped clothes hanger can be formed.

Further preferably, the bottom of the clamp head is made of soft rubber, and the bottom material of the clamp head tends to be moderately soft and hard, and can be deformed, but not easily deformed, so that it can be easily connected with the clamp rod, and it will not be too much. Stiff and fractured.

Further preferably, the inclination angle of the diagonal strut is between 50°-60°, and the angle will not make the clothes slip off easily.

Further preferably, the plug block can slide in the sleeve, and at this time, the depth of the inner shaft inside the sleeve can be changed, so that the extension rod can be deformed normally.

Further preferably, the two ends of the inner shaft are respectively located in the middle of the opposite side of the connecting rod and the plug. At this time, the connecting rod, the inner shaft, the sleeve and the clamping rod are all located on the same horizontal line, so that the overall The bottom has sufficient carrying capacity.

(3) Beneficial effects

The invention provides a hanger and a method of use, which have the following beneficial effects:

(1) After the two connecting rods enter the two sleeves respectively, the extension rod can be deformed. At this time, the overall length of the hanger can be reduced, and then the clip head is pressed down, so that the opening at the bottom of the clip head is sleeved on the On the clamping rod, the height of the entire hanger can be lowered, so that the hanger can be conveniently stored, and the operation is simple and easy to use.

(2) The material of the extension rod itself is relatively soft. When the two extension rods are in the extended state, after being inserted from the neckline of the clothing, they are just in the two shoulders. The material will not wear out the clothing, and the rubber After the extension rod of the material is folded in half, the longitudinal pressure itself has a certain strength, so it will not be easily deformed, and the clothes can be hung normally.

(3) The extension rod is in a normal half-folded state. The opening at the bottom of the clamp head is sleeved on the clamp rod, and the lines on it can make the two stably clamped. Under the action of longitudinal pressure, the bottom of the extension rod If the end does not move, the top of the hanger will expand to one side, thereby increasing the length of both ends of the hanger, so that the hanger can be adapted to large-sized clothes, and the clothes will not fall easily.

(4) Gradually insert the two inner shafts into the sleeve, so that the two ends of the bottom of the extension rod can move relative to each other, and the top of the extension rod does not move, so that the overall length of the hanger can be changed, and it can adapt to small clothes (such as children's clothes). clothing), it will not deform the clothing due to being too long.

(5) Since the inclination angle of the diagonal strut remains unchanged, when the chuck is pressed down, the bottom end of the extension rod will not move, and the top end will expand to one side. Therefore, under the action of pressure, the turning point of the extension rod will When it is lifted up and stuffed into the clothes, it can provide the support between the cuff and the cuff, so as to prevent the clothes from falling off easily.

(6) As we all know, the size of the windbreaker is large, and when the windbreaker is propped up, if the shoulders of the windbreaker are not propped up, the overall shape of the windbreaker is easily deformed, and the extension rod can be compressed when the two inner shafts are pulled to the outside at the same time. , at this time, the dial will be pushed to move, and one end of the two support pieces will gradually lift up. At this time, the friction between the dial and the extension rod can make the hanger support the shoulder of the windbreaker.

Description of drawings

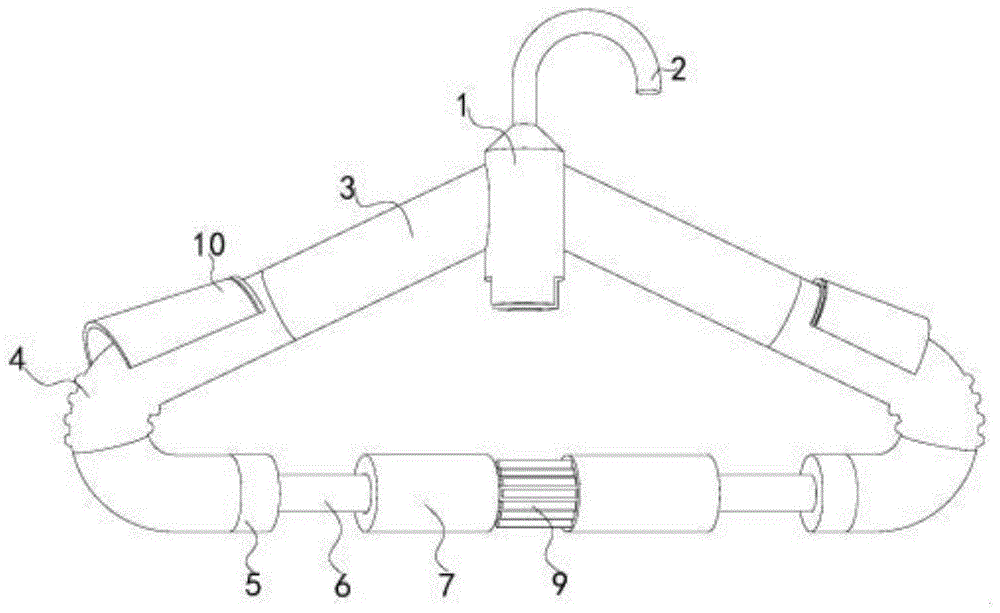

Fig. 1 is the front view of the structure of the present invention;

Fig. 2 is the sectional view of the front of the structural sleeve of the present invention;

Figure 3 is a front view of the interior of the extension rod of the structure of the present invention.

In the picture: 1 clamp, 2 hook, 3 diagonal strut, 4 extension rod, 5 connecting rod, 6 inner shaft, 7 sleeve, 8 plug block, 9 clamp rod, 10 strut, 11 extrusion plug, 12 arc Shape rod, 13 push rod, 14 dial, 15 communication groove, 16 chute, 17 slider.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to Figures 1-3, the present invention provides a technical solution: a hanger and a method of use, comprising a clip head 1, the bottom of the clip head 1 has an opening, for this purpose, the bottom of the clip head 1 becomes a U-shaped groove, And the two sides of the inner wall of the chuck 1 are provided with lines, the top of the chuck 1 is fixed with the hook 2, and both sides of the surface of the chuck 1 are welded with diagonal struts 3, and the material of the diagonal struts is hard plastic. The inclination angle of the rod 3 is 60°, which will not make the clothes slip off easily, and the bottom ends of the two diagonal struts 3 are respectively bonded to one end of the two connecting rods 5 through the extension rod 4. The material of the extension rod 4 It is soft rubber, for this reason, the extension rod 4 is easily deformed, the opposite ends of the two connecting rods 5 are fixedly connected with the inner shaft 6, and the opposite ends of the two inner shafts 6 are sleeved with a sleeve 7. The cylinder 7 is wrapped on the inner shaft 6, the sleeve 7 is sleeved with a plug block 8, there is a certain frictional force between the side surface of the plug block 8 and the inner wall of the sleeve 7, and the opposite ends of the two connecting rods 5 are respectively It is bonded with one side of the two plug blocks 8, and the opposite sides of the two sleeves 7 are connected by a clamping rod 9, and the clamping rod 9 is located directly below the bottom opening of the clamping head 1, and the plug block 8 can be in the sleeve 7. Sliding, at this time, the depth of the inner shaft 6 inside the sleeve 7 can be changed, so that the extension rod 4 can be deformed normally. After 5, a normal-shaped clothes hanger can be formed. The surface of the clamping rod 9 is provided with several lines. The lines on both sides of the inner wall of the clamping head 1 just match the lines on the clamping rod 9, which can increase the stability between the two. The depression on the inner wall of the head 1 can just be sleeved on the protrusion on the surface of the clamping rod 9, and the depression and the convex surface are both arc surfaces, which is convenient for detachment and sleeve connection, and the bottom of the clamping head 1 is soft rubber , the softness and hardness of the bottom material of the clip head 1 tends to be moderate, and it can be deformed, but it will not be easily deformed, so that it can be easily connected with the clip rod 9, and it will not break due to being too rigid, and the rubber material and the clip The friction between the rods 9 will increase, and the two ends of the inner shaft 6 are located in the middle of the opposite side of the connecting rod 5 and the plug block 8, respectively. At this time, the connecting rod 5, the inner shaft 6, the sleeve 7 and the clamping rod 9 All are located on the same horizontal line, so that the bottom of the hanger can have sufficient bearing capacity. The surface of the extension rod 4 is movably connected with a support piece 10, the extension rod 4 is hollow, and the extension rod 4 can be deformed after being compressed and stretched. , the extension rod 4 is sleeved with a squeeze plug 11, the top of the squeeze plug 11 is fixedly connected with the bottom end of the arc-shaped rod 12, the top of the arc-shaped rod 12 is fixedly connected with one end of the push rod 13, and the inner wall of the extension rod 4 is fixedly connected. The bottom is movably connected with a dial 14, the top of the dial 14 penetrates the communication groove 15 opened at the top of the extension rod 4 and overlaps the inner wall of the support piece 10, and the bottom end of the dial 14 passes through the pin shaft and the bottom of the inner wall of the extension rod 4. There is a certain frictional force between the bottom end of the lever 14 and the extension rod 4. A chute 16 is provided on the dial 14, a slider 17 is slidably connected in the chute 16, and the other end of the push rod 13 penetrates The through slot opened on one side of the dial plate 14 is movably connected with one side of the slider 17 .

When in use, hang the clothes on the diagonal strut 3. At this time, the depth of the inner shaft 6 inside the sleeve 7 can be changed, so that the extension rod 4 can be deformed normally. The shape of the extension rod 4 is L-shaped. After the rod 4 is turned and connected to the diagonal strut 3 and the connecting rod 5, a clothes hanger with a normal shape can be formed. The surface of the clamping rod 9 is provided with several lines, and the lines on both sides of the inner wall of the clamping head 1 just match the lines on the clamping rod 9. It can increase the stability between the two. The depression on the inner wall of the chuck 1 can just be sleeved on the protrusion on the surface of the clamping rod 9, and the depression and the raised surface are both arc surfaces, which is convenient for disengaging from the sleeve. At this time, the connecting rod 5, the inner shaft 6, the sleeve 7 and the clamping rod 9 are all located on the same horizontal line, so that the bottom of the whole hanger can have sufficient bearing capacity, and the height of the whole hanger can be reduced, so as to facilitate the hanger Store up.

Claims (7)

1. A hanger, comprising a clip (1), the bottom of the clip (1) has an opening, the top of the clip (1) is fixedly connected with a hook (2), and the surface of the clip (1) has an opening. Both sides are fixedly connected with diagonal struts (3), characterized in that: and the bottom ends of the two diagonal struts (3) are respectively connected with one end of the two connecting rods (5) through the extension rods (4), and the two The opposite ends of each of the connecting rods (5) are fixedly connected with inner shafts (6), and the opposite ends of the two inner shafts (6) are sleeved with sleeves (7), and the sleeves (7) A plug block (8) is connected to the inner sleeve, and the opposite ends of the two connecting rods (5) are respectively fixedly connected with one side of the two plug blocks (8), and the opposite side of the two sleeves (7) Connected by a clamping rod (9), the clamping rod (9) is located just below the bottom opening of the clamping head (1), the surface of the extension rod (4) is movably connected with a support piece (10), and the extension rod ( 4) It is hollow, a squeeze plug (11) is sleeved inside the extension rod (4), and the top of the squeeze plug (11) is fixedly connected with the bottom end of the arc-shaped rod (12). The top end of the shaped rod (12) is fixedly connected with one end of the push rod (13), the bottom of the inner wall of the extension rod (4) is movably connected with a dial (14), and the top of the dial (14) penetrates the extension rod (14). 4) The communication groove (15) opened at the top is overlapped on the inner wall of the support piece (10), the dial plate (14) is provided with a chute (16), and the chute (16) is slidably connected with The slider (17), the other end of the push rod (13) penetrates the through slot opened on one side of the dial plate (14) and is movably connected with one side of the slider (17); The surface of the clamping rod (9) is provided with several lines; The material of the extension rod (4) is soft rubber. 2 . The clothes hanger according to claim 3 , wherein the extension rod ( 4 ) is L-shaped. 3 . 3. A clothes hanger according to claim 4, characterized in that: the bottom of the clip (1) is made of soft rubber. 4 . The clothes hanger according to claim 5 , wherein the inclination angle of the diagonal strut ( 3 ) is between 50° and 60°. 5 . 5. A clothes hanger according to claim 6, characterized in that: the plug (8) can slide in the sleeve (7). 6 . The clothes hanger according to claim 7 , wherein the two ends of the inner shaft ( 6 ) are located in the middle of the opposite sides of the connecting rod ( 5 ) and the plug block ( 8 ), respectively. 7 . 7. A hanger according to any one of claims 1-6 and a method of use, characterized in that: when using, hang the clothes on the diagonal strut (3), and at this time, the inner shaft (3) can be changed. 6) The depth inside the sleeve (7), so that the extension rod (4) can be deformed normally. The shape of the extension rod (4) is L-shaped, and the extension rod (4) is turned and connected to the diagonal strut (3) and After connecting the rod (5), a clothes hanger with a normal shape can be formed. The surface of the clamping rod (9) is provided with several lines, and the lines on both sides of the inner wall of the clamping head (1) just match the lines on the clamping rod (9), which can To increase the stability between the two, the depression on the inner wall of the clamp head (1) can just be sleeved on the convex position on the surface of the clamping rod (9), and the depression and the convex surface are both arc surfaces, which is convenient for Disengagement and socket connection, at this time, the connecting rod (5), the inner shaft (6), the sleeve (7) and the clamping rod (9) are all located on the same horizontal line, so that the overall bottom of the hanger has sufficient bearing capacity, The height of the entire hanger can be lowered, so that the hanger can be conveniently stored.
