Abstract
The invention discloses an automatic sun cream filling device, which relates to the field of cosmetic production equipment and comprises a bottom support, a top support, a feeding conveying device and a discharging conveying device, wherein a limiting baffle is fixedly arranged at the edge of the top of the bottom support, a rotating disc is rotatably arranged on the bottom support, a plurality of limiting grooves are formed in the edge of the rotating disc at equal intervals, the rotating disc is driven by a servo motor arranged at the bottom of the bottom support, and the conveying tail end of the feeding conveying device is fixedly connected with the bottom support. According to the invention, the filling nozzles and the limiting grooves which are in one-to-one correspondence are arranged, and the filling nozzles and the limiting grooves synchronously and correspondingly rotate, so that the packaging bottles can be filled along with the rotation of the packaging bottles, the time for waiting for filling is eliminated, the filling can be more efficient, the sunscreen cream remained in the filling nozzles drops into the receiving box, and the sunscreen cream collected in the receiving box can be recovered and refilled, so that the pollution to a workbench can be avoided, the material waste can be avoided, and the cost is reduced.
Description
Technical Field
The invention relates to the field of cosmetic production equipment, in particular to an automatic filling device for sunscreen cream.
Background
Sunscreen cream is a cosmetic added with sunscreen agent capable of blocking or absorbing ultraviolet rays to prevent skin from being sunburned and sunburned. According to the sun protection principle, sun protection creams can be divided into physical sun protection creams and chemical sun protection creams.
The sun cream need carry out the filling to it in process of production, current filling equipment is mechanized, degree of automation is very high, still need at least an operative employee to take the packing bottle, fix a position to irritating mouth below, wait for the filling, shift the packing bottle that the filling is good to next technology, not only work efficiency is low, and the cost of labor has been increased, simultaneously in-process, because the filling needs certain time to go to wait for the packing article to be full of the sun cream, this period of time can't utilize, greatly reduced the efficiency of filling, and the filling mouth disposes the solenoid valve, reaction time is short, but still remain certain residual material in its mouth after closing the solenoid valve, the residual material drips to the workstation can lead to the environment clean and tidy of workstation, and cause the waste of material, increase manufacturing cost. Therefore, the automatic sun cream filling device is designed to solve the problems.
Disclosure of Invention
The invention aims to solve the defects in the prior art, and provides an automatic sun cream filling device.
In order to achieve the purpose, the invention adopts the following technical scheme:
an automatic sun cream filling device comprises a bottom support, a top support, a feeding conveying device and a discharging conveying device, wherein a limit baffle is fixedly arranged at the top edge of the bottom support, a rotating disc is rotatably arranged on the bottom support, a plurality of limit grooves are formed in the edge of the rotating disc at equal intervals, the rotating disc is driven by a servo motor arranged at the bottom of the bottom support, the conveying end of the feeding conveying device is fixedly connected with the bottom support, a feeding notch is formed in the joint, the conveying front end of the discharging conveying device is fixedly connected with one side of the bottom support, a discharging notch is formed in the joint, a push-out air cylinder corresponding to the limit grooves is arranged on the rotating disc in the radius direction of the rotating disc, a piston rod of the push-out air cylinder extends into the limit grooves and is fixedly connected with arc-shaped push-out pieces, the top support is fixedly arranged right above the bottom support through a support rod, the bottom of top support rotates installs driven turntable, driven turntable's downside edge equidistance is installed a plurality ofly and the filling mouth of spacing groove one-to-one, the rolling disc is located same vertical straight line with driven turntable's the centre of a circle, and passes through transfer line fixed connection between the centre of a circle, fixed mounting has curved bearing box under top support's the bottom is located the filling mouth, the top of bearing box has seted up the drippage notch along its radian direction.
Preferably, the width of feeding conveyer equals with the width of single sun cream packing bottle, the size of feeding breach and spacing groove and the size looks adaptation of single sun cream packing bottle.
Preferably, the discharging conveying device is arranged along the tangential direction of the bottom support, the discharging gap is arranged into an arc-shaped structure along the limiting baffle of the bottom support, and the central angle of the arc-shaped structure is 30-90 degrees.
Preferably, the central point of top support puts and is provided with the conveying pipeline, and the filling mouth passes through the lateral conduit and is connected with the conveying pipeline, and the other end and the sun cream storage tank of conveying pipeline are connected.
Preferably, the central angle of the receiving box is smaller than 180 degrees, and the receiving box is positioned right above a limiting groove without a sunscreen packaging bottle.
Preferably, feeding breach and ejection of compact breach department all have positioning probe through the support mounting, driven turntable's lateral wall is provided with quantity, position and filling mouth one-to-one's inductive probe, and produces sensing signal between positioning probe and the inductive probe.
Preferably, the bottom of each limiting groove is provided with a pressure sensor.
The invention has the beneficial effects that: according to the invention, feeding and discharging can be automatically completed through the arrangement of the feeding conveying device, the discharging conveying device and the ejection cylinder, manual operation is not needed, the labor cost is reduced, the filling nozzles and the limiting grooves which are in one-to-one correspondence are arranged, and the filling nozzles and the limiting grooves synchronously and correspondingly rotate, so that the filling can be performed along with the rotation of the packaging bottles, the time for waiting for filling is eliminated, the filling can be more efficient, when the filling nozzles rotate without filling and the lower limiting grooves have no packaging bottles, the sunscreen cream remained in the filling nozzles drops in the receiving box after being thrown out, the sunscreen cream collected in the receiving box can be recovered and refilled, the pollution to a workbench can be avoided, the material waste can be avoided, and the cost is reduced.
Drawings

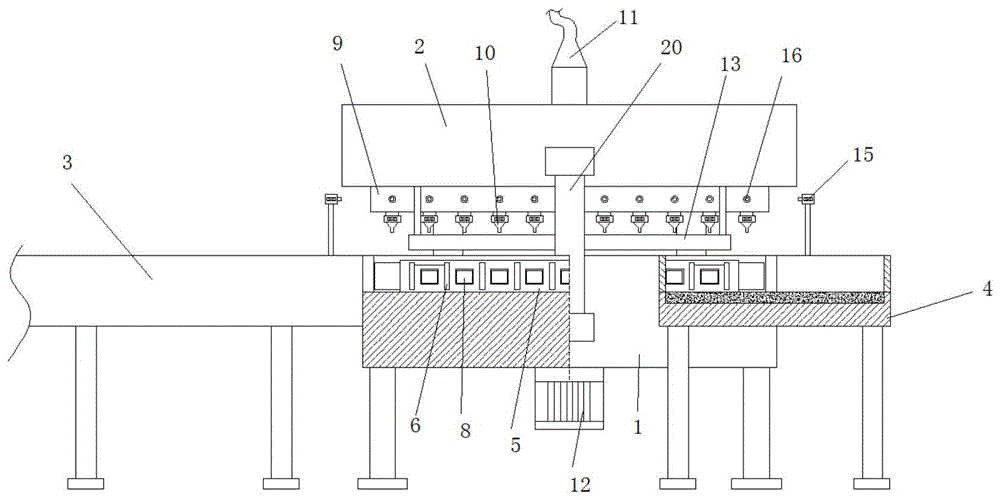

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic top view of the bottom bracket of the present invention;
FIG. 3 is a bottom view of the top bracket of the present invention;
fig. 4 is a schematic structural diagram of the receiving box of the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Referring to fig. 1-4, an automatic sun cream filling device comprises a bottom support 1, a top support 2, a feeding conveyer 3 and a discharging conveyer 4, wherein a limit baffle is fixedly arranged at the top edge of the bottom support 1, a rotating disc 5 is rotatably arranged on the bottom support 1, a plurality of limit grooves 6 are equidistantly arranged at the edge of the rotating disc 5, the rotating disc 5 is driven by a servo motor 12 arranged at the bottom of the bottom support 1, the conveying end of the feeding conveyer 3 is fixedly connected with the bottom support 1, a feeding gap is arranged at the joint, the width of the feeding conveyer 3 is equal to the width of a single sun cream packaging bottle, the sizes of the feeding gap and the limit grooves 6 are matched with the size of a single sun cream packaging bottle, the conveying front end of the discharging conveyer 4 is fixedly connected with one side of the bottom support 1, and a discharging gap is arranged at the joint, the discharging conveying device 4 is arranged along the tangential direction of the bottom bracket 1, the discharging gap is arranged into an arc-shaped structure along the limit baffle of the bottom bracket 1, the central angle of the arc-shaped structure is 30-90 degrees, the feeding gap and the discharging gap are both provided with positioning probes 15 through brackets, the side wall of the driven turntable 9 is provided with sensing probes 16 the number and the position of which are in one-to-one correspondence with the filling nozzles 10, sensing signals are generated between the positioning probes 15 and the sensing probes 16, the rotating disc 5 is provided with an ejection cylinder 7 corresponding to the limit groove 6 along the radius direction, the piston rod of the ejection cylinder 7 extends into the limit groove 6 and is fixedly connected with an arc ejection sheet 8, the top bracket 2 is fixedly arranged right above the bottom bracket 1 through a support rod 20, the bottom of the top bracket 2 is rotatably provided with the driven turntable 9, a plurality of filling nozzles 10 which are in one-to-one correspondence with the limit groove 6 are arranged, the central point of top support 2 puts and is provided with conveying pipeline 11, and filling nozzle 10 is connected with conveying pipeline 11 through lateral conduit 19, the other end and the sun protection frost storage tank of conveying pipeline 11 are connected, the centre of a circle of rolling disc 5 and driven turntable 9 is located same vertical straight line, and pass through transfer line 18 fixed connection between the centre of a circle, there is curved box 13 of accepting bottom support 2 is located filling nozzle 10 under fixed mounting, the top of accepting box 13 has seted up dripping notch 14 along its radian direction, the central angle of accepting box 13 is less than 180 degrees, and accept box 13 and be located inside not have the spacing groove 6 of sun protection frost packing bottle directly over, pressure sensor 17 is all installed to the bottom of every spacing groove 6.
When the invention is used, the feeding and conveying device 3 conveys empty sunscreen cream packaging bottles to the bottom bracket 1, because the width of the feeding and conveying device 3 is equal to the width of a single sunscreen cream packaging bottle, the feeding gap and the limiting groove 6 can only pass through one packaging bottle each time, the size of the feeding gap and the limiting groove 6 is matched with the size of the single sunscreen cream packaging bottle, the single packaging bottle enters the limiting groove 6 through the feeding gap, at the moment, the pressure sensor 17 senses the weight of the packaging bottle and transmits a weight signal to the controller, meanwhile, the induction probe 16 which corresponds to the filling nozzle 10 and is arranged right above the packaging bottle is aligned with the positioning probe 15 at the feeding gap to generate a positioning signal, the controller receives the weight signal and the positioning signal to open the filling nozzle 10 above the controller, the packaging bottle below the filling nozzle 10 is filled, and meanwhile, the rotating disc 5 is in transmission connection with the driven rotating disc 9 through the transmission rod, therefore, the rotating disc 5 and the driven rotating disc 9 rotate synchronously, the corresponding filling nozzle 10 rotates along with a packaging bottle to fill the packaging bottle, the time for waiting for filling is eliminated, the filling can be more efficient, after the filling is completed, the electromagnetic valve is closed, the filling nozzle 10 does not spray sun cream, when the filled packaging bottle rotates to a discharging gap, the ejecting cylinder 7 is started, the arc ejecting sheet 8 ejects the packaging bottle to the discharging conveying device 4, the packaging bottle is conveyed to the next process to be sealed and the like, the feeding conveying device 3, the discharging conveying device 4 and the ejecting cylinder 7 can automatically complete feeding and discharging without manual operation, the labor cost is reduced, when the filling nozzle 10 does not rotate during the filling and does not have packaging bottles in the limiting groove 6 below, the receiving box 13 is arranged at the position, when the filling nozzle 10 passes through the receiving box 13, the residual sun cream in the filling nozzle drops in the receiving box 13 after being thrown out, the sunscreen cream collected in the receiving box 13 can be recovered and refilled, so that the workbench is prevented from being polluted, the material waste is avoided, and the cost is reduced.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like, indicate orientations and positional relationships based on those shown in the drawings, and are used only for convenience of description and simplicity of description, and do not indicate or imply that the equipment or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be considered as limiting the present invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically defined otherwise.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and the technical solutions and the inventive concepts thereof according to the present invention should be equivalent or changed within the scope of the present invention.
Claims (7)
1. An automatic sun cream filling device comprises a bottom support (1), a top support (2), a feeding conveying device (3) and a discharging conveying device (4), and is characterized in that a limiting baffle is fixedly arranged at the edge of the top of the bottom support (1), a rotating disc (5) is rotatably arranged on the bottom support (1), a plurality of limiting grooves (6) are formed in the edge of the rotating disc (5) at equal intervals, the rotating disc (5) is driven by a servo motor (12) arranged at the bottom of the bottom support (1), the conveying end of the feeding conveying device (3) is fixedly connected with the bottom support (1), a feeding notch is formed in the joint, the conveying front end of the discharging conveying device (4) is fixedly connected with one side of the bottom support (1), a discharging notch is formed in the joint, an ejecting cylinder (7) corresponding to the limiting grooves (6) is arranged on the rotating disc (5) in the radius direction of the rotating disc, the piston rod of ejecting cylinder (7) extends to in spacing groove (6) and fixedly connected with arc ejection piece (8), top support (2) are through bracing piece (20) fixed mounting directly over bottom support (1), the bottom of top support (2) is rotated and is installed driven turntable (9), a plurality of filling mouths (10) with spacing groove (6) one-to-one are installed to the downside edge equidistance of driven turntable (9), the centre of a circle of rolling disc (5) and driven turntable (9) is located same vertical straight line, and passes through transfer line (18) fixed connection between the centre of a circle, the bottom of top support (2) is located filling mouth (10) directly below fixed mounting have curved holding box (13), the top of holding box (13) has been seted up along its radian direction and has been dripped notch (14).
2. The automatic sun cream filling device according to claim 1, wherein the width of the feeding conveying device (3) is equal to that of a single sun cream packaging bottle, and the sizes of the feeding notch and the limiting groove (6) are matched with the size of the single sun cream packaging bottle.
3. The automatic sun cream filling device according to claim 1, wherein the discharging conveying device (4) is arranged along the tangential direction of the bottom support (1), the discharging gap is arranged into an arc-shaped structure along the limit baffle of the bottom support (1), and the central angle of the arc-shaped structure is 30-90 degrees.
4. The automatic filling device for sunscreen according to claim 1, wherein the top support (2) is provided with a delivery pipe (11) at a central position, the filling nozzle (10) is connected with the delivery pipe (11) through a branch pipe (19), and the other end of the delivery pipe (11) is connected with a sunscreen storage tank.
5. The automatic sun cream filling device according to claim 1, wherein the central angle of the receiving box (13) is less than 180 degrees, and the receiving box (13) is positioned right above the limiting groove (6) without a sun cream packaging bottle.
6. The automatic sun cream filling device according to claim 1, wherein the feeding notch and the discharging notch are respectively provided with a positioning probe (15) through a bracket, the side wall of the driven turntable (9) is provided with sensing probes (16) which correspond to the filling nozzles (10) in number and position, and sensing signals are generated between the positioning probes (15) and the sensing probes (16).
7. The automatic filling device for sunscreen cream according to claim 1 is characterized in that a pressure sensor (17) is installed at the bottom of each limiting groove (6).
