Abstract

一种快速供料无纺布折叠切片机，包括：一墙板，在该墙板的左下端设置半自动接布装置，该半自动接布装置的右侧设置无纺布牵引引导装置，无纺布牵引引导装置对无纺布进行连续牵引，在该无纺布牵引引导装置的右侧设置一组主动对滚切刀辊和从动对滚切刀辊，该组主动对滚切刀辊和从动对滚切刀辊对无纺布进行连续滚动切片，该组主动对滚切刀辊和从动对滚切刀辊的右侧设置接布凹槽，接纳输送切片的无纺布片材。

Figure 202010055545

A non-woven folding and slicing machine for fast feeding, comprising: a wall panel, a semi-automatic cloth splicing device is arranged at the lower left end of the wall panel, and a non-woven pulling and guiding device is arranged on the right side of the semi-automatic cloth splicing device; The traction guide device continuously pulls the non-woven fabric, and a group of active counter-rolling cutter rollers and driven counter-roll cutter rollers are arranged on the right side of the non-woven fabric traction and guidance device. The non-woven fabric is continuously rolled and sliced by the moving pair of hobbing cutter rollers, and the right side of the active pair of hobbing cutter rollers and the driven pair of hobbing cutter rollers is provided with a cloth connection groove to receive the non-woven sheet for conveying slices.

Figure 202010055545

Description

Quick feed non-woven fabric folding slicer
Technical Field
The invention belongs to the technical field of medical dressing production equipment, and particularly relates to the technical field of a non-woven fabric folding and slicing machine capable of feeding materials quickly.
Background
The traditional gauze folding machine adopts a single unreeling shaft to unreel, when the coiled material is used up, the production needs to be stopped to replace the gauze roll, the product yield is influenced, and no good solution is provided for the defect.
Disclosure of Invention
The invention aims to overcome the defects of the prior art and provides a non-woven fabric folding and slicing machine capable of feeding materials quickly, which comprises: the semi-automatic cloth receiving device is arranged at the left lower end of the wallboard, the non-woven fabric traction guide device is arranged on the right side of the semi-automatic cloth receiving device and is used for continuously drawing the non-woven fabrics, the group of driving counter-hobbing cutter roller and driven counter-hobbing cutter roller are arranged on the right side of the non-woven fabric traction guide device and are used for continuously rolling and slicing the non-woven fabrics, and cloth receiving grooves are formed in the right sides of the driving counter-hobbing cutter roller and the driven counter-hobbing cutter roller and are used for receiving non-woven fabric sheets which are conveyed to be sliced by the driving counter-hobbing cutter roller and the driven counter-hobbing cutter roller; semi-automatic cloth device that connects includes: the left and right non-woven fabric cutters with downward edges are respectively arranged above the two non-woven fabric cutter arms and used for driving the non-woven fabric cutters; the left bonding pressing plate is arranged below the right side of the left cloth guide roller, the left pressing air cylinder for driving the left bonding pressing plate is arranged in the middle of the left side of the left bonding pressing plate, the right bonding pressing plate is arranged below the left side of the right cloth guide roller, the right pressing air cylinder for driving the right bonding pressing plate is arranged in the middle of the right side of the right bonding pressing plate, the head end of a non-woven fabric of a spare non-woven fabric roll is placed at the upper end of the middle surface of the left bonding pressing plate, the cutting tail end of the non-woven fabric of the used roll is placed at the lower end of the middle surface of the left bonding pressing plate 38, the transparent adhesive section is placed on the middle surface of the right bonding pressing plate, the adhesive surface faces the non-woven fabric, the left pressing air cylinder and the right pressing air cylinder are pressed by controlling a pneumatic switch, and the joint ends of the spare non-woven fabric and the non-woven fabric are bonded; a first unwinding shaft is arranged above the left side of the semi-automatic cloth receiving device, a standby non-woven cloth roll is placed on the first unwinding shaft, a second unwinding shaft is arranged above the right side of the semi-automatic cloth receiving device, a non-woven cloth roll is placed on the second unwinding shaft, a first tension control arm is arranged below the second unwinding shaft, an upper cloth guide roller is arranged on the first tension control arm, a second tension control arm is arranged below the first tension control arm, and a lower cloth guide roller is arranged on the second tension control arm; the right side of the wallboard is provided with a workbench, the workbench is provided with a cloth guide roller, the cloth guide roller is arranged on the workbench through respective brackets, the right side of the cloth guide roller is obliquely provided with a pair of folding cloth guide plates through a support rod fixed on the workbench, the right side of the folded non-woven fabric folded cloth guide plate formed by folding the non-woven fabric in half is provided with a pair of limiting vertical rollers, the right side of the limiting vertical roller is rotatably provided with a pair of rolling driving cloth guide vertical rollers and driven cloth guide vertical rollers, the roller shafts of the driving cloth guide vertical rollers and the driven cloth guide vertical rollers are driven by a first servo motor at the lower part of the workbench, the right sides of the driving cloth guide vertical rollers and the driven cloth guide vertical rollers are rotatably provided with driving rolling cutter rollers and driven rolling cutter rollers, the roller shafts of the driving rolling cutter rollers and the driven rolling cutter rollers are driven by a second servo motor at the lower part of the workbench, the right sides of the driving rolling cutter rollers and the driven rolling cutter rollers are provided with cloth receiving grooves, the bottom of the cloth receiving groove on the right side of the driving pair rolling cutter roller and the driven pair rolling cutter roller is provided with a counting electromagnetic valve, and the counting electromagnetic valve is popped up instantly to pop out a counting interval gauze piece, and a folding non-woven fabric is arranged between the two adjacent counting interval gauze pieces.
Preferably, a third servo motor for driving the shaft core is arranged corresponding to the shaft core of the first unreeling shaft 1 at the rear part of the wallboard, and a fourth servo motor for driving the shaft core is arranged corresponding to the shaft core of the second unreeling shaft 4 at the rear part of the wallboard.
Preferably, the workbench is provided with an electric control box, and the front end of the electric control box is provided with a control touch screen.
Preferably, the electric control box is electrically connected with a PLC (programmable logic controller) inside the workbench, and the PLC is electrically connected with the first servo motor, the second servo motor, the third servo motor, the fourth servo motor and the counting solenoid valve.
Has the advantages that:
the utility model discloses unreeling traditional technique's gauze folder all adopts single unreeling axle to unreel, changes into two unreels axle and can semi-automatic quick bonding pressfitting yardage roll and includes: the quick feed non-woven fabric folding and slicing machine for the non-woven fabric rolls of the gauze rolls has the advantages that after one cloth roll is used up, another spare cloth roll is bonded and pressed in time, continuous production is realized, the cloth roll is changed simultaneously in the production process, the time for changing the cloth roll is put into production and is carried out simultaneously, and the production efficiency is greatly improved.
Drawings

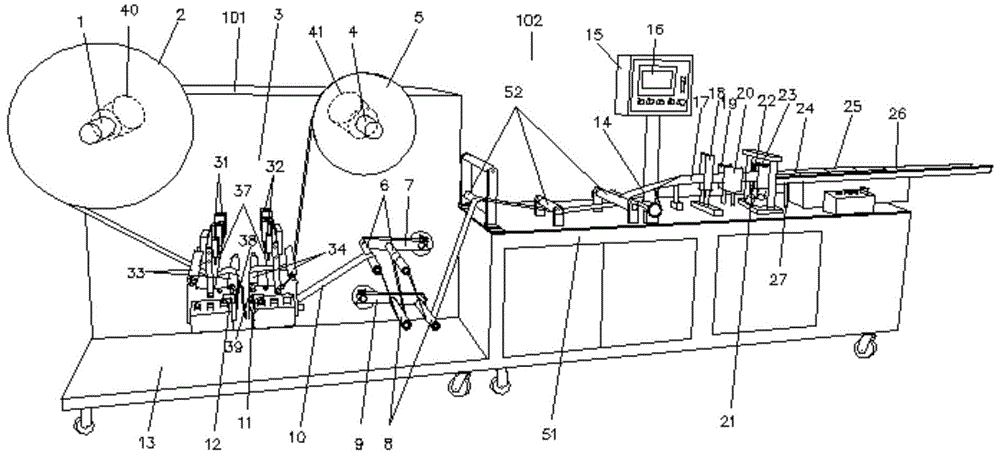

FIG. 1 is a schematic perspective view of a rapid feed nonwoven folding and slitting machine;
fig. 2 is a partially enlarged schematic structural diagram of the semi-automatic cloth receiving device.
In the figure:
1. the device comprises a first unwinding shaft, 2, a standby non-woven fabric roll, 3, a semi-automatic fabric receiving device, 31, a left air cylinder, 32, a right air cylinder, 33, a left fabric guide roller, 34, a right fabric guide roller, 37, a non-woven fabric cutter, 38, a left bonding pressure plate, 39, a right bonding pressure plate, 4, a second unwinding shaft, 40, a third servo motor, 41, a fourth servo motor, 5, a non-woven fabric roll, 51, a workbench, 52, a fabric guide roller, 6, an upper fabric guide roller, 7, a first tension control arm, 8, a lower fabric guide roller, 9, a second tension control arm, 10, non-woven fabrics, 101, a wallboard, 11, a right pressing air cylinder, 12, a left pressing air cylinder, 13, a pedal, 14, a folded fabric guide plate, 141, a supporting rod, 15, an electrical control box, 16, a touch screen, 17, folded fabric strips, 18, a limiting vertical roller, 19, a driving vertical fabric guide roller, 20, a driven vertical fabric guide roller, 21, a built-in pair rolling cutter, 22. the automatic cloth cutting machine comprises a driving pair of rolling cutter rollers, 23 a driven pair of rolling cutter rollers, 24 spacing gauze pieces, 25 folded non-woven fabrics, 26 cloth receiving grooves and 27 counting electromagnetic valves.
Detailed Description
The technical scheme of the invention is clearly and completely described in the following with reference to the accompanying drawings. In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc., indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; it may be a mechanical connection that is connected to,
or may be an electrical connection; can be directly connected with each other or indirectly connected with each other through an intermediate medium,
there may be communication between the interiors of the two elements. For those of ordinary skill in the art, can
The specific meanings of the above terms in the present invention are understood in specific cases.
An embodiment of the present invention is a rapid-feed nonwoven folding and slitting machine as shown in fig. 1 and 2, comprising: the semi-automatic cloth receiving device 3 is arranged at the left lower end of the wallboard 101, the non-woven fabric traction guide device 102 is arranged on the right side of the semi-automatic cloth receiving device 3, the non-woven fabric traction guide device 102 continuously pulls the non-woven fabric, a group of driving pair rolling cutter roller 22 and driven pair rolling cutter roller 23 are arranged on the right side of the non-woven fabric traction guide device 102, a built-in pair rolling cutter 21 is arranged on the driving pair rolling cutter roller 22 and the driven pair rolling cutter roller 23, the non-woven fabric is continuously rolled and sliced, a cloth receiving groove 26 is arranged on the right side of the driving pair rolling cutter roller 22 and the driven pair rolling cutter roller 23, and the cloth receiving groove 26 receives non-woven fabric sheets which are cut by the driving pair rolling cutter roller 22 and the driven pair rolling cutter roller 23; the semiautomatic fabric joining device 3 includes: the left and right non-woven fabric cutters 37 with downward knife edges are respectively arranged above the knife arms of the two non-woven fabric cutters 37 and used for driving the non-woven fabric cutters 37; the left guide roller 33 and the right guide roller 34 are used for guiding the conveying of the non-woven fabric, a left bonding pressing plate 38 is arranged below the right side of the left guide roller 33, a left pressing cylinder 12 for driving the left bonding pressing plate 38 is arranged in the middle of the left side of the left bonding pressing plate 38, a right bonding pressing plate 39 is arranged below the left side of the right guide roller 34, a right pressing cylinder 11 for driving the right bonding pressing plate 39 is arranged in the middle of the right side of the right bonding pressing plate 39, the head end of the non-woven fabric 10 of the standby non-woven fabric roll 2 is placed at the upper end of the middle surface of the left bonding pressing plate 38, the cutting tail end of the non-woven fabric which is used up is placed at the lower end of the middle surface of the left bonding pressing plate 38, a transparent adhesive section is placed on the middle surface of the right bonding pressing plate 39, the adhesive surface faces the non-woven fabric, a pneumatic switch is operated to press the left bonding cylinder 12 and the right bonding cylinder 11, and bond the standby non-woven fabric and the joint end of the non-woven fabric; a first unwinding shaft 1 is arranged above the left side of the semi-automatic cloth receiving device 3, a standby non-woven cloth roll 2 is placed on the first unwinding shaft 1, a second unwinding shaft 4 is arranged above the right side of the semi-automatic cloth receiving device 3, a non-woven cloth roll 5 is placed on the second unwinding shaft 4, a first tension control arm 7 is arranged below the second unwinding shaft 4, an upper cloth guide roller 6 is arranged on the first tension control arm 7, a second tension control arm 9 is arranged below the first tension control arm 7, and a lower cloth guide roller 8 is arranged on the second tension control arm 9; a workbench 51 is arranged on the right side of the wall plate 101, a cloth guide roller 52 is arranged on the workbench 51, the cloth guide roller 52 is arranged on the workbench 51 through respective brackets, a pair of cloth folding guide plates 14 are obliquely arranged on the right side of the cloth guide roller 52 through a support rod 141 fixed on the workbench 51, the non-woven fabric 10 is folded in half through the cloth folding guide plates 14 to form a folded non-woven fabric strip 17, a pair of limit vertical rollers 18 are arranged on the right side of the folded cloth guide plates 14, a pair of rolling driving cloth guide vertical rollers 19 and driven cloth guide vertical rollers 20 are rotatably arranged on the right side of the limit vertical rollers 18, the roll shafts of the driving cloth guide vertical rollers 19 and the driven cloth guide vertical rollers 20 are driven by a first servo motor at the lower part of the workbench 51 and are not marked, a driving pair of rolling cutter roller 22 and a driven pair of rolling cutter roller 23 are rotatably arranged on the right sides of the driving cloth guide vertical rollers 19 and the driven cloth guide vertical rollers 20, the roll shafts of the driving pair of rolling cutter rollers 22 and the driven pair of rolling cutter roller 23 are driven by a second servo motor at the lower part of the workbench 51, the right sides of the driving pair of hobbing cutter rollers 22 and the driven pair of hobbing cutter rollers 23 are provided with cloth receiving grooves 26, the bottoms of the right cloth receiving grooves 26 of the driving pair of hobbing cutter rollers 22 and the driven pair of hobbing cutter rollers 23 are provided with counting electromagnetic valves 27, and the counting electromagnetic valves 27 are popped up instantly to pop up a counting interval gauze piece 24, and a folding non-woven fabric 25 is arranged between the two adjacent counting interval gauze pieces 24.
Example one
At the rear of wallboard 101, correspond the axle center of first unreeling axle 1 and set up the third servo motor 40 of drive axle core, at the rear of wallboard 101, correspond the axle core of second unreeling axle 4 and set up the fourth servo motor 41 of drive axle core.
Example two
An electric control box 15 is provided on the table 51, and a control touch panel 16 is provided at the front end of the electric control box 15.
EXAMPLE III
The electrical control box 15 is electrically connected with a PLC controller inside the workbench 51, and the PLC controller is electrically connected with the first servo motor, the second servo motor, the third servo motor 40, the fourth servo motor 41 and the counting solenoid valve 27.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to cover the technical scope of the present invention, the equivalent substitution or change according to the technical solution and the concept of the present invention within the technical scope of the present invention.

Claims (4)

1.一种快速供料无纺布折叠切片机，其特征在于，包括：一墙板(101)，在该墙板(101)的左下端设置半自动接布装置(3)，该半自动接布装置(3)的右侧设置无纺布牵引引导装置(102)，无纺布牵引引导装置(102)对无纺布进行连续牵引，在该无纺布牵引引导装置(102)的右侧设置一组主动对滚切刀辊(22)和从动对滚切刀辊(23)，该组主动对滚切刀辊(22)和从动对滚切刀辊(23)对无纺布进行连续滚动切片，该组主动对滚切刀辊(22)和从动对滚切刀辊(23)的右侧设置接布凹槽(26)，该接布凹槽(26)接纳该组主动对滚切刀辊(22)和从动对滚切刀辊(23)输送切片的无纺布片材；1. a non-woven folding and slicing machine for fast feeding, is characterized in that, comprising: a wall panel (101), a semi-automatic cloth connecting device (3) is set at the lower left end of this wall panel (101), the semi-automatic cloth connecting A non-woven pulling and guiding device (102) is provided on the right side of the device (3), and the non-woven pulling and guiding device (102) continuously pulls the non-woven fabric, and is arranged on the right side of the non-woven pulling and guiding device (102). A set of active counter-rolling cutter rollers (22) and driven counter-rolling cutter rollers (23), the group of active counter-rolling cutter rollers (22) and the driven counter-rolling cutter rollers (23) are used for cutting the nonwoven fabric. Continuously rolling slices, a cloth receiving groove (26) is provided on the right side of the group of active counter-rolling cutter rollers (22) and the driven counter-rolling cutter roller (23), and the cloth joining groove (26) accepts the group of active counter-rolling cutter rollers (23). Conveying the sliced non-woven fabric sheet to the rolling cutter roller (22) and the driven counter rolling cutter roller (23); 该半自动接布装置(3)包括：刀口向下的左右两只无纺布切刀(37)，分别设置在该两只无纺布切刀(37)刀臂上方、用于驱动该无纺布切刀(37)的左气缸(31)和右气缸(32)；两组用于引导无纺布输送的左导布辊(33)和右导布辊(34)，在左导布辊(33)的右侧下方设置左粘接压板(38)，该左粘接压板(38)的左侧中部设置驱动该左粘接压板(38)的左压合气缸(12)，在右导布辊(34)的左侧下方设置右粘接压板(39)，在该右粘接压板(39)的右方中部设置驱动该右粘接压板(39)的右压合气缸(11),备用无纺布卷(2)的无纺布(10)布头端放置于左粘接压板(38)中部表面上端，将用完卷的无纺布裁切末端放置在左粘接压板(38)中部表面下端，右粘接压板(39)中部表面放置透明胶段，胶面朝向无纺布，操控气动开关致左压合气缸(12)与右压合气缸(11)压合，粘合备用无纺布和在用无纺布接头端；The semi-automatic cloth splicing device (3) comprises: two left and right non-woven cutting knives (37) with downward cutting edges, respectively arranged above the knife arms of the two non-woven cutting knives (37) for driving the non-woven cloth The left air cylinder (31) and the right air cylinder (32) of the cloth cutting knife (37); two sets of left cloth guide rollers (33) and right cloth guide rollers (34) for guiding the conveying of non-woven fabrics. A left bonding pressure plate (38) is arranged under the right side of the (33), and a left pressing cylinder (12) for driving the left bonding pressure plate (38) is arranged in the middle of the left side of the left bonding pressure plate (38). A right bonding pressure plate (39) is arranged below the left side of the cloth roller (34), and a right pressing cylinder (11) for driving the right bonding pressure plate (39) is arranged in the right middle of the right bonding pressure plate (39), The cloth head end of the non-woven fabric (10) of the spare non-woven fabric roll (2) is placed on the upper end of the middle surface of the left bonding pressure plate (38), and the cut end of the used up non-woven fabric is placed on the left bonding pressure plate (38). At the lower end of the middle surface, a transparent glue section is placed on the middle surface of the right bonding platen (39), and the glue surface faces the non-woven fabric. Operate the pneumatic switch to cause the left pressing cylinder (12) and the right pressing cylinder (11) to be pressed together, and the glue is ready for use. Non-woven fabrics and in-use non-woven fabric joint ends; 在该半自动接布装置(3)左侧上方设置第一放卷轴(1)，该第一放卷轴(1)上放置备用无纺布卷(2)，在该半自动接布装置(3)右侧上方设置第二放卷轴(4)，该第二放卷轴(4)上放置无纺布卷(5)，在第二放卷轴(4)下方设置第一张力控制臂(7)，第一张力控制臂(7)上设置上导布辊(6)，以及在第一张力控制臂(7)下方设置第二张力控制臂(9)，第二张力控制臂(9)上设置下导布辊(8)；该墙板(101)右侧设置有一工作台(51)，该工作台(51)上设导布辊(52)，该导布辊(52)通过各自的支架设置工作台(51)上，该导布辊(52)右侧通过固定在工作台(51)上的一支杆(141)倾斜设置一对折导布板(14)，无纺布(10)经过该对折导布板(14)对折后形成对折无纺布条(17)，该对折导布板(14)右侧设置一对限位立辊(18)，在该限位立辊(18)的右侧转动安装有一组对滚的主动导布立辊(19)和从动导布立辊(20)，该组主动导布立辊(19)和从动导布立辊(20)的辊轴由工作台(51)下部的第一伺服电机驱动，该组主动导布立辊(19)和从动导布立辊(20)的右侧转动安装主动对滚切刀辊(22)和成动对滚切刀辊(23)，主动对滚切刀辊(22)上安装对滚切刀(21)，该组主动对滚切刀辊(22)和从动对滚切刀辊(23)的辊轴由工作台(51)下部的第二伺服电机驱动，该组主动对滚切刀辊(22)和从动对滚切刀辊(23)的右侧设置接布凹槽(26)，该主动对滚切刀辊(22)和成动对滚切刀辊(23)的右侧接布凹槽(26)的底部设置一计数电磁阀(27)，该计数电磁阀(27)的瞬间弹起弹出一计数间隔纱布片(24)相邻两片计数间隔纱布片(24)之间为折叠无纺布(25)。A first unwinding shaft (1) is arranged above the left side of the semi-automatic cloth splicing device (3), and a spare non-woven roll (2) is placed on the first unwinding shaft (1). On the right side of the semi-automatic cloth splicing device (3) A second unwinding shaft (4) is arranged above the side, on which a non-woven roll (5) is placed, and a first tension control arm (7) is arranged below the second unwinding shaft (4), and the first An upper cloth guide roller (6) is arranged on the tension control arm (7), a second tension control arm (9) is arranged below the first tension control arm (7), and a lower cloth guide is arranged on the second tension control arm (9) Roller (8); a workbench (51) is arranged on the right side of the wall board (101), and a cloth guide roller (52) is arranged on the workbench (51), and the cloth guide roller (52) is provided with a workbench through their respective brackets (51), a pair of folded cloth guide plates (14) are inclined on the right side of the cloth guide roller (52) through a rod (141) fixed on the worktable (51), and the non-woven fabric (10) passes through the pair of folds. The cloth guide plate (14) is folded in half to form a half-folded non-woven fabric strip (17). A pair of limit vertical rollers (18) are arranged on the right side of the half-folded cloth guide plate (14). A set of counter-rolling active cloth guide vertical rollers (19) and driven cloth guide vertical rollers (20) are installed on the side rotation. Driven by the first servo motor at the lower part of the worktable (51), the right side of the group of active cloth guide vertical rollers (19) and driven cloth guide vertical rollers (20) is rotated to install the active hob cutter roller (22) and the forming part. A moving counter-rolling cutter roller (23), a counter-rolling cutter (21) is installed on the active counter-rolling cutter roller (22), and the group of active counter-rolling cutter rollers (22) and driven counter-rolling cutter rollers (23) ) roller shaft is driven by the second servo motor at the lower part of the worktable (51), and the right side of the group of active hob cutter rollers (22) and driven hob cutter rollers (23) are provided with cloth receiving grooves (26). ), a counting solenoid valve (27) is provided at the bottom of the right cloth connecting groove (26) of the active pair of hobbing cutter rollers (22) and the pair of moving pair of hobbing cutter rollers (23), and the counting solenoid valve (27) ) momentarily pops up and pops out a counting interval gauze sheet (24) between two adjacent counting interval gauze sheets (24) is a folded non-woven fabric (25). 2.根据权利要求1所述的快速供料无纺布折叠切片机，其特征在于：在该墙板(101)的后部,对应第一放卷轴(1)的轴芯设置驱动该轴芯的第三伺服电机(40),在该墙板(101)的后部,对应第二放卷轴(4)的轴芯设置驱动该轴芯的第四伺服电机(41)。2. The fast feeding nonwoven folding and slicing machine according to claim 1, characterized in that: at the rear of the wall panel (101), the shaft core corresponding to the first unwinding shaft (1) is arranged to drive the shaft core The third servo motor (40), at the rear of the wall panel (101), is provided with a fourth servo motor (41) for driving the shaft core corresponding to the shaft core of the second unwinding shaft (4). 3.根据权利要求1所述的快速供料无纺布折叠切片机，其特征在于：该工作台(51)上设电气控制箱(15)，该电气控制箱(15)的前端设控制触摸屏(16)。3. The fast-feeding nonwoven folding and slicing machine according to claim 1, characterized in that: an electrical control box (15) is arranged on the workbench (51), and a control touch screen is arranged at the front end of the electrical control box (15). (16). 4.根据权利要求2所述的快速供料无纺布折叠切片机，其特征在于：电气控制箱(15)电连接工作台(51)内部的PLC控制器，PLC控制器电连接第一伺服电机和第二伺服电机和第三伺服电机(40)和第四伺服电机(41)和计数电磁阀(27)。4. The fast feeding nonwoven folding and slicing machine according to claim 2 is characterized in that: the electrical control box (15) is electrically connected to the PLC controller inside the workbench (51), and the PLC controller is electrically connected to the first servo The motor and the second servo motor and the third servo motor (40) and the fourth servo motor (41) and the counting solenoid valve (27).
