Abstract

The invention belongs to the related technical field of lamp equipment, and particularly discloses a self-cleaning lamp and a using method thereof. The automatic cleaning device can automatically clean the lamp, is convenient to mount and dismount, and has good cleaning effect and strong practicability.

Description

Self-cleaning lamp and using method thereof
Technical Field
The invention relates to the field of lamp equipment, in particular to a self-cleaning lamp and a using method thereof.
Background
The lamp is a daily appliance for providing light, and a human civilization exists in a place with light, so that the lamp has a huge effect.
However, when the lamp is used for a long time, dust is easily adhered to the surface of the lampshade, which not only affects the beauty of the lamp, but also affects the brightness of the lamp, especially for the lamp suspended at high altitude, the cleaning work of the lamp becomes a difficult and complicated project, and the service life of the lamp is greatly shortened if the heat dissipation performance of the lamp is poor.
Disclosure of Invention
The present invention is directed to a self-cleaning lamp and a method for using the same, so as to solve the problems of the background art.
In order to achieve the purpose, the invention provides the following technical scheme: a self-cleaning lamp comprises a mounting plate, a lamp holder, a heat dissipation assembly, a cleaning assembly, a rotating assembly, a connecting assembly, a bulb mounting seat, a bulb protective cover, a lampshade and a PLC control device, wherein the lamp holder is mounted on the mounting plate, the heat dissipation assembly is symmetrically arranged on two sides of the lamp holder, the lamp holder bottom end is provided with the bulb mounting seat through the rotating assembly and the connecting assembly, the bulb is mounted on the bulb mounting seat, the bulb protective cover is mounted on the bulb mounting seat, the lamp holder is also provided with the cleaning assembly, the cleaning assembly comprises a sliding rail, a first cleaning rod is arranged in the sliding rail through a sliding block, a driving device is arranged on the sliding block, the bottom end of the first cleaning rod is provided with a second cleaning rod through a rotating shaft, the rotating shaft is provided with a rotating motor, the first cleaning rod and the second cleaning rod are provided with a, be provided with PLC controlling means in the lamp stand, radiator unit, rotating assembly and coupling assembling and PLC controlling means electric connection.
Preferably, the heat dissipation assembly comprises heat dissipation windows, the heat dissipation windows are symmetrically arranged on two sides of the lamp holder, dust screens are arranged on the heat dissipation windows, and heat dissipation fans are arranged on the inner sides of the heat dissipation windows.
Preferably, the rotating assembly comprises a connecting rod, an annular sliding rail, an annular sliding block, a driven gear, a driving motor and a driving gear, the annular sliding rail is arranged on the lamp holder, the annular sliding block is arranged on the bulb mounting seat through the connecting rod, the annular sliding block is arranged in the annular sliding rail, the driven gear is arranged on the inner side of the annular sliding block, the driving motor is arranged on one side of the annular sliding rail, and the driving gear of the driving motor acts on the driven gear.
Preferably, coupling assembling is including connecting ring and spliced pole, the spliced pole sets up in the lamp stand bottom, connect the ring setting on bulb mount pad top, the spliced pole clamps in connecting the ring.
Preferably, the bulb shield is screw-mounted on the bulb mounting base.
Preferably, the inner side of the lampshade is provided with a reflecting curved surface.
Preferably, the method comprises the following steps:
s1, mounting the lamp on a ceiling through a mounting plate, and switching on a power supply;
s2, when the lamp is started, the driving device in the cleaning assembly drives the first cleaning rod and the second cleaning rod to extend out of the lamp holder, and meanwhile, the rotating motor works to enable the second cleaning rod to rotate 90 degrees, so that the cleaning soft brushes on the first cleaning rod and the second cleaning rod are attached to the bulb protective cover;
s3, the rotating assembly works to drive the bulb mounting base to rotate and drive the bulb protective cover to rotate, so that the cleaning device cleans the bulb protective cover;
s4, radiating the heat of the lamp by the working of a radiating fan in the radiating assembly;
s5, the first cleaning rod and the second cleaning rod in the cleaning assembly are stored back into the lamp holder after cleaning, and the rotating assembly stops working.
Preferably, in the step S3, the rotating component works to rotate the bulb mounting base 3-5 times.
Compared with the prior art, the invention has the beneficial effects that: the invention relates to a self-cleaning lamp and a use method thereof.A rotating assembly and a cleaning assembly are arranged to work in a matched manner, so that a bulb protective cover can be effectively and automatically cleaned, the illumination brightness of the lamp is ensured, and meanwhile, a heat dissipation assembly is arranged to effectively perform heat dissipation operation on the lamp, so that the service life of the lamp is prolonged.
Drawings

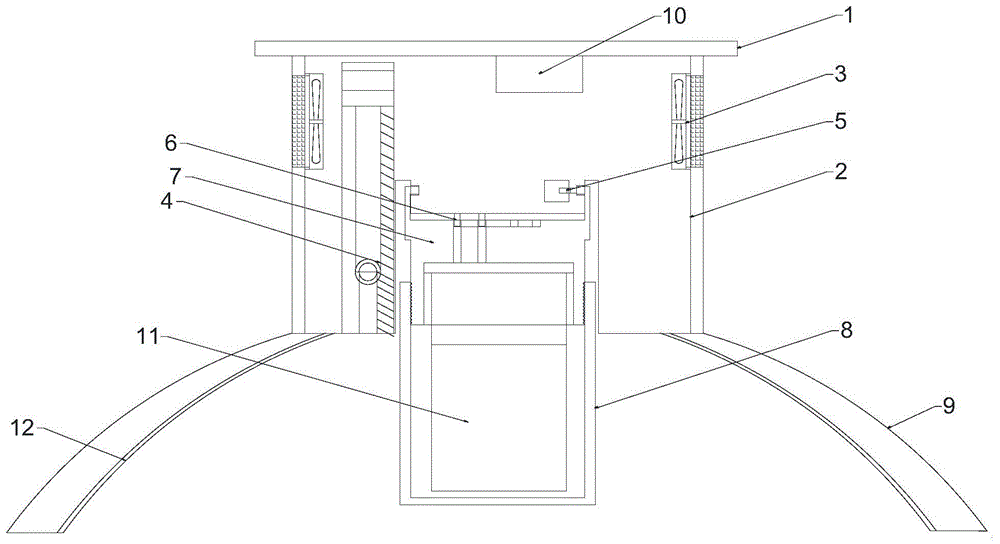

FIG. 1 is a schematic view of the present invention;
FIG. 2 is a schematic view of the present invention;
FIG. 3 is a schematic view of a connection assembly of the present invention;
FIG. 4 is a top view of the bulb mounting base of the present invention;
in the figure: 1. mounting a plate; 2. a lamp socket; 3. a heat dissipating component; 4. a cleaning assembly; 5. a rotating assembly; 6. A connecting assembly; 7. a bulb mounting base; 8. a bulb shield; 9. a lamp shade; 10. a PLC control device; 11. A bulb; 12. a light-reflecting curved surface; 13. a slide rail; 14. a slider; 15. a first cleaning rod; 16. a drive device; 17. a rotating shaft; 18. a second cleaning rod; 19. a rotating electric machine; 20. cleaning a soft brush; 21. a heat dissipation window; 22. a dust screen; 23. a heat radiation fan; 24. a connecting rod; 25. an annular slide rail; 26. an annular slider; 27. a driven gear; 28. a drive motor; 29. a drive gear; 30. connecting the circular rings; 31. connecting columns.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "vertical", "upper", "lower", "horizontal", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of describing the present invention and simplifying the description, but do not indicate or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention.
In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.
Referring to fig. 1-4, the present invention provides a technical solution: a self-cleaning lamp comprises a mounting plate 1, a lamp holder 2, a heat dissipation assembly 3, a cleaning assembly 4, a rotating assembly 5, a connecting assembly 6, a bulb mounting seat 7, a bulb protection cover 8, a lampshade 9 and a PLC control device 10, wherein the lamp holder 2 is mounted on the mounting plate 1, the heat dissipation assembly 3 is symmetrically arranged on two sides of the lamp holder 2, the bulb mounting seat 7 is mounted at the bottom end of the lamp holder 2 through the rotating assembly 5 and the connecting assembly 6, a bulb 11 is mounted on the bulb mounting seat 7, the bulb protection cover 8 is mounted on the bulb mounting seat 7, the cleaning assembly 4 is further arranged on the lamp holder 2, the cleaning assembly 4 comprises a sliding rail 13, a first cleaning rod 15 is arranged in the sliding rail 13 through a sliding block 14, a driving device 16 is arranged on the sliding block 14, a second cleaning rod 18 is arranged at the bottom end of the first cleaning, be provided with rotating electrical machines 19 in the pivot 17, be provided with clean soft brush 20 on first clean pole 15 and the clean pole 18 of second, 2 bottoms of lamp stands are provided with lamp shade 9, be provided with PLC controlling means 10 in the lamp stand 2, radiator unit 3, rotating component 5 and coupling assembling 6 and PLC controlling means 10 electric connection.
Further, the heat dissipation assembly 3 includes heat dissipation windows 21, the heat dissipation windows 21 are symmetrically disposed on two sides of the lamp holder 2, dust screens 22 are disposed on the heat dissipation windows 21, and heat dissipation fans 23 are disposed on inner sides of the heat dissipation windows 21.
Further, the rotating assembly 5 comprises a connecting rod 24, an annular slide rail 25, an annular slider 26, a driven gear 27, a driving motor 28 and a driving gear 29, the annular slide rail 25 is arranged on the lamp holder 2, the annular slider 26 is arranged on the lamp bulb mounting seat 7 through the connecting rod 24, the annular slider 26 is arranged in the annular slide rail 25, the driven gear 27 is arranged on the inner side of the annular slider 26, the driving motor 28 is arranged on one side of the annular slide rail 25, and the driving gear 29 of the driving motor 28 acts on the driven gear 27.
Further, the connecting assembly 6 comprises a connecting ring 30 and a connecting column 31, the connecting column 31 is arranged at the bottom end of the lamp holder 2, the connecting ring 30 is arranged at the top end of the bulb mounting seat 7, and the connecting column 31 is clamped in the connecting ring 30.
Further, the bulb shield 8 is screw-mounted on the bulb mounting base 7.
Further, a reflecting curved surface 12 is arranged on the inner side of the lampshade 9.
Further, the method comprises the following steps:
s1, mounting the lamp on the ceiling through the mounting plate 1, and switching on the power supply;
s2, when the lamp is started, the first cleaning rod 15 and the second cleaning rod 18 are driven by the driving device 16 in the cleaning assembly 4 to extend out of the lamp holder 2, and meanwhile, the rotating motor 19 works to rotate the second cleaning rod 18 by 90 degrees, so that the cleaning soft brush 20 on the first cleaning rod 15 and the second cleaning rod 18 is attached to the bulb shield 8;
s3, the rotating component 5 works to drive the bulb mounting base 7 to rotate and drive the bulb protective cover 8 to rotate, so that the cleaning component 4 cleans the bulb protective cover 8;
s4, radiating the lamp by the working of the radiating fan 23 in the radiating assembly 3;
s5, the first cleaning rod 15 and the second cleaning rod 18 in the cleaning assembly 4 are received back into the lamp holder 2 after cleaning, and the rotating assembly 5 stops working.
Further, in the step S3, the rotating assembly 5 operates to rotate the bulb mounting base 7 by 3-5 turns.
The working principle is as follows: the invention relates to a self-cleaning lamp and a using method thereof, when in use, the lamp is arranged on a ceiling or other places through a mounting plate 1, a power supply is switched on, when in starting, a bulb 11 works, simultaneously a driving device 16 in a cleaning component 4 works to extend a first cleaning rod 15 and a second cleaning rod 18 out of a lamp holder 2, then a rotating motor 19 works to drive a rotating shaft 17 and the second cleaning rod 18 to rotate 90 degrees, so that cleaning soft brushes 20 on the first cleaning rod 15 and the second cleaning rod 18 are attached to a bulb protective cover 8, then a driving motor 28 in the rotating component 5 works to drive a driving gear 29 to rotate, the driving gear 29 rotates to act on a driven gear 27 on an annular sliding block 26, so that the annular sliding block 26 rotates in an annular sliding rail 25, the annular sliding block 26 drives a bulb mounting seat 7 to rotate, the bulb mounting seat 7 rotates to drive the bulb protective cover 8 to rotate, therefore, the bulb protective cover 8 is cleaned by matching with the cleaning soft brush 20 on the first cleaning rod 15 and the second cleaning rod 18, after the bulb protective cover 8 rotates for 3-5 circles, the rotating assembly 5 stops working, then the cleaning assembly 4 works and is accommodated into the lamp holder 2, when the lamp is started, the heat dissipation fans 23 in the heat dissipation assemblies 3 arranged on two sides of the lamp holder 2 work to dissipate heat of the lamp holder 2, and the light reflection curved surface 12 arranged on the lamp shade 9 can effectively enhance the lighting effect of the lamp.
It is worth noting that: the whole device is controlled by the master control button, and the equipment matched with the control button is common equipment, so that the device belongs to the existing well-known technology, and the electrical connection relation and the specific circuit structure of the device are not repeated.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (8)

1. A self-cleaning light fixture, comprising: the lamp holder comprises a mounting plate (1), a lamp holder (2), a heat dissipation assembly (3), a cleaning assembly (4), a rotating assembly (5), a connecting assembly (6), a bulb mounting seat (7), a bulb protection cover (8), a lamp shade (9) and a PLC (programmable logic controller) control device (10), wherein the lamp holder (2) is mounted on the mounting plate (1), the heat dissipation assembly (3) is symmetrically arranged on two sides of the lamp holder (2), the bulb mounting seat (7) is mounted at the bottom end of the lamp holder (2) through the rotating assembly (5) and the connecting assembly (6), the bulb (11) is mounted on the bulb mounting seat (7), the bulb protection cover (8) is mounted on the bulb mounting seat (7), the cleaning assembly (4) is further arranged on the lamp holder (2), the cleaning assembly (4) comprises a sliding rail (13), a first cleaning rod (15) is arranged in the sliding rail (13), be provided with drive arrangement (16) on slider (14), first clean pole (15) bottom is provided with clean pole (18) of second through pivot (17), be provided with rotating electrical machines (19) on pivot (17), be provided with clean soft brush (20) on first clean pole (15) and the clean pole (18) of second, lamp stand (2) bottom is provided with lamp shade (9), be provided with PLC controlling means (10) in lamp stand (2), radiator unit (3), rotating component (5) and coupling assembling (6) and PLC controlling means (10) electric connection.
2. A self-cleaning light fixture as recited in claim 1, wherein: the heat dissipation assembly (3) comprises heat dissipation windows (21), the heat dissipation windows (21) are symmetrically arranged on two sides of the lamp holder (2), dust screens (22) are arranged on the heat dissipation windows (21), and heat dissipation fans (23) are arranged on the inner sides of the heat dissipation windows (21).
3. A self-cleaning light fixture as recited in claim 1, wherein: rotating assembly (5) include connecting rod (24), annular slide rail (25), annular slider (26), driven gear (27), driving motor (28) and drive gear (29), annular slide rail (25) set up on lamp stand (2), install on bulb mount pad (7) through connecting rod (24) annular slider (26), install in annular slide rail (25) annular slider (26), annular slider (26) inboard is provided with driven gear (27), annular slide rail (25) one side is provided with driving motor (28), drive gear (29) of driving motor (28) act on driven gear (27).
4. A self-cleaning light fixture as recited in claim 1, wherein: coupling assembling (6) are including connecting ring (30) and spliced pole (31), spliced pole (31) set up in lamp stand (2) bottom, connect ring (30) and set up on bulb mount pad (7) top, spliced pole (31) clamp in connecting ring (30).
5. A self-cleaning light fixture as recited in claim 1, wherein: the bulb protective cover (8) is installed on the bulb installation seat (7) in a threaded mode.
6. A self-cleaning light fixture as recited in claim 1, wherein: the inner side of the lampshade (9) is provided with a reflecting curved surface (12).
7. Use of a self-cleaning luminaire as claimed in any one of claims 1 to 6, characterized in that it comprises the steps of:
s1, mounting the lamp on a ceiling through the mounting plate (1) and switching on a power supply;
s2, when the lamp is started, the first cleaning rod (15) and the second cleaning rod (18) are driven by the driving device (16) in the cleaning assembly (4) to extend out of the lamp holder (2), and meanwhile, the rotating motor (19) works to enable the second cleaning rod (18) to rotate 90 degrees, so that the cleaning soft brushes (20) on the first cleaning rod (15) and the second cleaning rod (18) are attached to the bulb protective cover (8);
s3, the rotating component (5) works to drive the bulb mounting seat (7) to rotate to drive the bulb protective cover (8) to rotate, so that the cleaning component (4) cleans the bulb protective cover (8);
s4, radiating the lamp by the working of a radiating fan (23) in the radiating assembly (3);
s5, the first cleaning rod (15) and the second cleaning rod (18) in the cleaning assembly (4) are stored back into the lamp holder (2) after cleaning, and the rotating assembly (5) stops working.
8. Use of a self-cleaning light fixture according to claim 7, characterized in that: in the step S3, the rotating component (5) works to drive the bulb mounting seat (7) to rotate for 3-5 circles.
