Abstract
A preparation device of painting pigment slurry is prepared from the following raw materials, by weight, 100 portions of distilled water and 160 portions of auxiliary materials, 80 portions to 100 portions of pigment powder, 30 portions to 40 portions of polyacrylic acid, 20 portions to 30 portions of starch ether, 14 portions to 20 portions of ammonium bicarbonate, 10 portions to 20 portions of talcum powder, 6 portions to 10 portions of barium sulfate, 2 portions to 5 portions of polyvinylpyrrolidone, 0.1 portion to 0.4 portion of agar, and 1 portion to 3 portions of sodium citrate; sequentially adding the raw materials into a preparation device, stirring, grinding, centrifuging and stirring to obtain the finished product. The pigment prepared by the invention is not easy to fall off and change color when being illuminated, is resistant to steam and humid environment, does not contain harmful substances, has no harm to human body, is environment-friendly and has no pollution; agar and sodium citrate are added simultaneously, so that the dispersion degree and the adhesive force of the pigment are improved; and the moisture resistance and heat resistance are improved by adding starch ether.
Description
Technical Field
The invention belongs to the technical field of painting art supplies, and particularly relates to a preparation device of painting pigment paste.
Background
Pigments (pigments) are used for coloring powdery substances. It is insoluble in water, oil, resin, organic solvent and other medium, but can disperse homogeneously in these medium to color the medium and has certain covering power. The art pigment basically requires that the finer the particles, the brighter the color, and the longer the color. The existing painting pigment is generally manually adjusted and prepared when in use, has less quantity, lower efficiency and inconvenient use, thereby needing painting pigment slurry made of special equipment.
Disclosure of Invention
The invention provides a preparation device of painting pigment paste, which is used for overcoming the defects in the prior art.
The invention is realized by the following technical scheme:
a preparation device of painting pigment slurry is prepared from the following raw materials, by weight, 100 portions of distilled water and 160 portions of auxiliary materials, 80 portions to 100 portions of pigment powder, 30 portions to 40 portions of polyacrylic acid, 20 portions to 30 portions of starch ether, 14 portions to 20 portions of ammonium bicarbonate, 10 portions to 20 portions of talcum powder, 6 portions to 10 portions of barium sulfate, 2 portions to 5 portions of polyvinylpyrrolidone, 0.1 portion to 0.4 portion of agar, and 1 portion to 3 portions of sodium citrate; sequentially adding the raw materials into a preparation device, stirring, grinding, and centrifugally stirring to obtain a finished product; the preparation device comprises a first stirring box, wherein a first stirring box feeding port is formed in the top end of the first stirring box, a first stirring box discharging port is formed in the bottom end of the first stirring box, first inserting grooves are formed in the inner walls of the two sides of the first stirring box discharging port respectively, a horizontal first inserting plate is arranged in each first inserting groove, the two first inserting plates are fixedly connected through a first spring, two hinging seats are fixedly installed on the inner wall of the bottom end of the first stirring box and are respectively positioned on the two sides of the first stirring box discharging port, a horizontal supporting plate is arranged between the two hinging seats and is positioned above the first stirring box discharging port, a turntable with a power device is fixedly installed on the top surface of the supporting plate, a plurality of vertical rods are fixedly installed on the top surface of the turntable, one side of each vertical rod is hinged and connected with one end of a first connecting rod, and a sphere is fixedly installed at the other end of each first connecting rod, the two sides of the supporting plate are respectively fixedly connected with the other end of the corresponding first inserting plate through first connecting ropes, connecting rods are respectively hinged to the two sides of the supporting plate, the middle part of each connecting rod is hinged to a corresponding hinge seat, the inner walls of the two sides of the first stirring box are respectively fixedly provided with the installation frames, the two frames are positioned on the same horizontal plane, a vertical telescopic rod is arranged above each frame, the extending direction of each telescopic rod faces downwards, each telescopic rod is fixedly arranged on the inner wall of the first stirring box, each frame is internally provided with a stop block, each stop block is fixedly connected with one side face of the corresponding frame through a plurality of second springs, each second spring always provides an outward force for each stop block, the movable rod of each telescopic rod can be in contact fit with the other end of the corresponding connecting rod, the ball body can be in contact fit with the stop blocks, the grinding box is fixedly arranged below the first stirring box, the top end of the grinding box is provided with a grinding box feeding port which is communicated with the inside of a first stirring box discharging port, the bottom end of the grinding box is provided with a grinding box discharging port, the inner walls of the front end and the rear end of the grinding box are respectively provided with two vertical guide grooves, each guide groove is internally provided with a guide block, every two guide blocks positioned at the same end of the grinding box are fixedly connected through a vertical plate, a first rotating shaft with a power device is arranged between every two guide grooves positioned at the same end of the grinding box, the opposite ends of the two first rotating shafts are respectively and fixedly connected with one end of a first fixed rod, the other end of each first fixed rod is hinged and connected with one end of a second connecting rod, the other end of each second connecting rod is hinged and connected with the middle part of the top end of a corresponding vertical plate, the opposite surfaces of the two vertical plates are respectively provided with a horizontal long strip groove, each strip groove is internally provided with a sliding block, and the middle parts of the opposite surfaces of the two vertical plates are respectively and fixedly provided with a second rotating shaft with a power device, the second rotating shaft is positioned above the long groove, a second fixed rod is fixedly arranged at the end part of the second rotating shaft, the other end of each second fixed rod is hinged with one end of a third connecting rod, each third connecting rod is hinged with a corresponding slide block, vertical connecting shafts are respectively and fixedly arranged on the opposite surfaces of the two slide blocks, the bottoms of the two connecting shafts are fixedly connected through a horizontal grinding rod, vertical racks are respectively and fixedly arranged on the two sides of the bottom of each vertical plate, second slots are respectively arranged on the inner walls of the two sides of the discharge port of the grinding box, a horizontal second inserting plate is arranged in each second slot, the two second inserting plates are fixedly connected through a third spring, two grooves are respectively arranged on the two sides of the inner wall of the bottom of the grinding box, the two grooves positioned on the same side of the grinding box are respectively positioned at the front end and the rear end of the grinding box, and a vertical gear is fixedly arranged in each groove, gear rotation axis's front and back both ends respectively with the front and back both ends inner wall swing joint of recess, fixed mounting band pulley on the rotation axis of every gear, every rack can cooperate with a gear engagement that corresponds, lie in and grind case two band pulleys with one side respectively through second connection rope and a second picture peg fixed connection that corresponds, the second is connected the rope and can is passed the recess, the second slot, grind the bottom fixed mounting second agitator tank of case, it communicates with each other with second agitator tank inside through grinding the case discharge gate to grind the case, be equipped with centrifugal agitating unit in the second agitator tank, pipeline fixed connection sodium citrate storage device is passed through to one side of second agitator tank.
According to the preparation facilities of painting pigment thick liquid, the bottom movable mounting collecting box of second agitator tank, the export is seted up to the bottom inner wall of second agitator tank, export and collecting box inside communicate with each other, the exit fixed connection has the connecting pipe of valve.
According to the preparation device of the painting pigment paste, every two adjacent vertical rods are fixedly connected through one horizontal rod.
The preparation device of painting pigment paste, the collection box is a drawing structure.
The preparation device of the painting pigment paste is prepared from the following raw materials in parts by weight: 100 parts of distilled water, 90 parts of pigment powder, 35 parts of polyacrylic acid, 20 parts of starch ether, 17 parts of ammonium bicarbonate, 15 parts of talcum powder, 6 parts of barium sulfate, 3 parts of polyvinylpyrrolidone, 0.2 part of agar and 2 parts of sodium citrate.
The preparation device of the painting pigment paste is prepared from the following raw materials in parts by weight: 130 parts of distilled water, 80 parts of pigment powder, 30 parts of polyacrylic acid, 25 parts of starch ether, 14 parts of ammonium bicarbonate, 10 parts of talcum powder, 8 parts of barium sulfate, 5 parts of polyvinylpyrrolidone, 0.4 part of agar and 1 part of sodium citrate.
The preparation device of the painting pigment paste is prepared from the following raw materials in parts by weight: 160 parts of distilled water, 100 parts of pigment powder, 40 parts of polyacrylic acid, 30 parts of starch ether, 20 parts of ammonium bicarbonate, 20 parts of talcum powder, 10 parts of barium sulfate, 2 parts of polyvinylpyrrolidone, 0.1 part of agar and 3 parts of sodium citrate.
The invention has the advantages that: pouring various raw materials into a first stirring box, rotating a turntable to drive vertical rods to stir the raw materials in the first stirring box, when the raw materials in the first stirring box are in a sparse state, a first connecting rod on one side of each vertical rod is in a horizontal state under the action of centrifugal force, a ball is in contact with a stop block and enables the stop block to be in a frame, a telescopic rod is limited, when the raw materials in the first stirring box are gradually thickened, the rotating speed of the turntable is reduced, the first connecting rod turns over downwards at a hinge point under the gravity of the ball, the ball is separated from the stop block, the stop block is moved out of the frame and exposes an opening under the thrust of a second spring, the telescopic rod extends, a movable rod of the telescopic rod penetrates through the frame and is in contact with the other end of a connecting rod, one end of the connecting rod is hinged with a support plate, the middle of the connecting rod is hinged through a hinge seat, so that the support plate is lifted upwards, and the support plate is fixedly connected with a first inserting plate through a first connecting rope, moving the first inserting plate in the opposite direction to expose the discharge hole of the first stirring box; the stirred crude slurry flows into a grinding box, a vertical plate moves upwards or downwards as required through the connection among a first rotating shaft, a first fixed rod and a second connecting rod, meanwhile, a grinding rod can move horizontally through the connection among the second rotating shaft, the second fixed rod and a third connecting rod, the crude slurry is ground, when the grinding rod reaches the bottom end of the grinding box, a rack is inserted into a groove and meshed and matched with a gear to drive the gear to rotate, the gear is coaxially connected with a belt wheel, the belt wheel is fixedly connected with a second inserting plate through a second connecting rope, the second inserting plate can move back into a second inserting groove, and a discharge port of the grinding box is exposed; and then the ground slurry flows into a second stirring tank and is mixed and stirred with sodium citrate, so that a finished pigment product is prepared. Two first picture pegs block first agitator tank discharge gate, can make the raw materials form airtight space when stirring in first agitator tank, make raw materials stirring, and two first picture pegs pass through first spring fixed connection simultaneously, can make first picture peg reset when needs block first agitator tank discharge gate, and then block first agitator tank discharge gate once more. Can drive first dead lever through first pivot and rotate, first dead lever passes through the articulated connection of second connecting rod with the riser, can make the riser reciprocate, grinds thick liquids gradually. The pigment prepared by the invention is not easy to fall off and change color when being illuminated, is resistant to steam and humid environment, does not contain harmful substances, has no harm to human body, is environment-friendly and has no pollution; agar and sodium citrate are added simultaneously, so that the dispersion degree and the adhesive force of the pigment are improved; and the moisture resistance and heat resistance are improved by adding starch ether.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly introduced below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

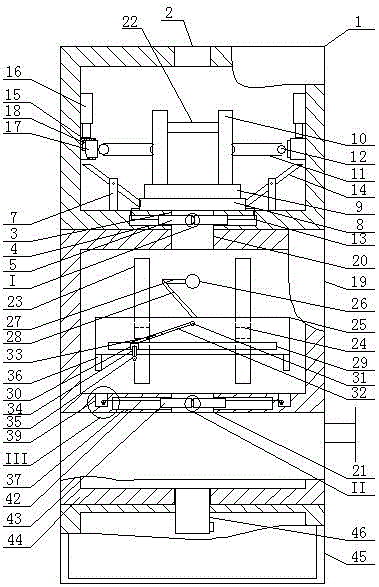

FIG. 1 is a schematic structural view of the present invention; FIG. 2 is an enlarged view of a portion I of FIG. 1; FIG. 3 is a partial enlarged view of II of FIG. 1; fig. 4 is a partially enlarged view of III of fig. 1.
Reference numerals: 1 first stirring box 2 first stirring box inlet 3 first stirring box outlet 4 first slot 5 first insert 6 first spring 7 hinged seat 8 support plate 9 rotating disc 10 vertical bar 11 first connecting rod 12 sphere 13 first connecting rope 14 connecting rod 15 frame 16 telescopic rod 17 stopper 18 second spring 19 grinding box 20 grinding box inlet 21 grinding box outlet 22 horizontal bar 23 guide groove 24 guide block 25 vertical bar 26 first rotating shaft 27 first fixing rod 28 second connecting rod 29 long bar groove 30 slide block 31 second rotating shaft 32 second fixing rod 33 third connecting rod 34 connecting shaft 35 grinding rod 36 rack 37 second slot 38 third spring 39 groove 40 gear 41 pulley 42 second connecting rope 43 second insert 44 second stirring box 45 collecting box 46 connecting pipe.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
A preparation device of painting pigment slurry is prepared from the following raw materials, by weight, 100 portions of distilled water and 160 portions of auxiliary materials, 80 portions to 100 portions of pigment powder, 30 portions to 40 portions of polyacrylic acid, 20 portions to 30 portions of starch ether, 14 portions to 20 portions of ammonium bicarbonate, 10 portions to 20 portions of talcum powder, 6 portions to 10 portions of barium sulfate, 2 portions to 5 portions of polyvinylpyrrolidone, 0.1 portion to 0.4 portion of agar, and 1 portion to 3 portions of sodium citrate; sequentially adding the raw materials into a preparation device, stirring, grinding, and centrifugally stirring to obtain a finished product; the preparation device comprises a first stirring box 1, wherein a first stirring box feeding port 2 is formed in the top end of the first stirring box 1, a first stirring box discharging port 3 is formed in the bottom end of the first stirring box 1, first inserting grooves 4 are respectively formed in the inner walls of the two sides of the first stirring box discharging port 3, a horizontal first inserting plate 5 is arranged in each first inserting groove 4, the two first inserting plates 5 are fixedly connected through a first spring 6, the two first inserting plates 5 block the first stirring box discharging port 3, so that a closed space can be formed when raw materials are stirred in the first stirring box 1, the raw materials are uniformly stirred, meanwhile, the two first inserting plates 5 are fixedly connected through the first springs 6, the first inserting plates 5 can reset when the first stirring box discharging port 3 needs to be blocked, the first stirring box discharging port 3 is further blocked again, two hinged seats 7 are fixedly installed on the inner wall of the bottom end of the first stirring box 1, two hinged seats 7 are respectively positioned at two sides of a first stirring box discharge port 3, a horizontal supporting plate 8 is arranged between the two hinged seats 7, the supporting plate 8 is positioned above the first stirring box discharge port 3, the first stirring box discharge port 3 can be further blocked by the supporting plate 8, raw materials are further prevented from flowing out of the first stirring box discharge port 3, a turntable 9 with a power device is fixedly arranged on the top surface of the supporting plate 8, a plurality of vertical rods 10 are fixedly arranged on the top surface of the turntable 9, one side of each vertical rod 10 is hinged and connected with one end of a first connecting rod 11, a ball 12 is fixedly arranged at the other end of each first connecting rod 11, the turntable 9 with the power device drives the vertical rods 10 to rotate, various raw materials in the first stirring box 1 are stirred by the vertical rods 10, the raw materials in the first stirring box 1 are uniformly stirred to prepare coarse slurry, two sides of the supporting plate 8 are respectively fixedly connected with the other ends of the corresponding first insertion plates 5 by first connecting ropes 13, connecting rods 14 are respectively hinged to two sides of a supporting plate 8, the middle of each connecting rod 14 is hinged to a corresponding hinged seat 7, the inner walls of two sides of a first stirring box 1 are respectively fixed with the installation frames 15, the two frames 15 are positioned on the same horizontal plane, a vertical telescopic rod 16 is arranged above each frame 15, the extending direction of each telescopic rod 16 faces downwards, after the telescopic rods 16 are extended, movable rods penetrate through the frames 15 and are contacted with the other ends of the connecting rods 14, the middle of each connecting rod 14 is hinged to the hinged seats 7, one end of each connecting rod 14 is hinged to the supporting plate 8, the supporting plate 8 can be lifted, further, a first stirring box discharge port 3 of the first stirring box 1 is exposed, slurry uniformly stirred flows out of the first stirring box 1, each telescopic rod 16 is fixedly installed on the inner wall of the first stirring box 1, a block 17 is arranged in each frame 15, each block 17 is fixedly connected with one side face of the corresponding frame 15 through a plurality of second springs 18, the second spring 18 always provides an outward force for the stop blocks 17, the two stop blocks 17 and the first connecting rod 11 in the horizontal state are positioned on the same horizontal plane, when the mixed concentration of the raw materials in the first stirring box 1 is sparse, the first connecting rod 11 is in the horizontal state under the action of centrifugal force, the ball 12 is in contact with the stop blocks 17, when the stop blocks 17 are positioned in the frame 15, the telescopic rod 16 is limited, when the raw materials in the first stirring box 1 are gradually thickened, the rotating speed of the rotating disc 9 is reduced, the first connecting rod 11 gradually falls down at a hinge point under the gravity of the ball 12, the stop blocks 17 move out of the frame 15 under the thrust of the second spring 18, the telescopic rod 16 extends and is in contact with the connecting rods 14, the support plate 8 is lifted, the movable rod of each telescopic rod 16 can be in contact fit with the other end of the corresponding connecting rod 14, the ball 12 can be in contact fit with the stop blocks 17, the grinding box 19 is fixedly installed below the first stirring box 1, the top end of the grinding box 19 is provided with a grinding box feeding port 20, the grinding box feeding port 20 is communicated with the interior of the first stirring box discharging port 3, the bottom end of the grinding box 19 is provided with a grinding box discharging port 21, the inner walls of the front end and the rear end of the grinding box 19 are respectively provided with two vertical guide grooves 23, each guide groove 23 is internally provided with a guide block 24, each two guide blocks 24 positioned at the same end of the grinding box 19 are fixedly connected through a vertical plate 25, a first rotating shaft 26 with a power device is arranged between each two guide grooves 23 positioned at the same end of the grinding box 19, opposite ends of the two first rotating shafts 26 are respectively and fixedly connected with one end of a first fixing rod 27, the other end of each first fixing rod 27 is hinged and connected with one end of a second connecting rod 28, the other end of each second connecting rod 28 is hinged and connected with the middle part of the top end of the corresponding vertical plate 25, and the first fixing rods 27 can be driven to rotate through the first rotating shaft 26, the first fixing rod 27 is hinged with the vertical plates 25 through a second connecting rod 28, so that the vertical plates 25 can move up and down to gradually grind slurry, horizontal strip grooves 29 are respectively formed on the opposite surfaces of the two vertical plates 25, a sliding block 30 is arranged in each strip groove 29, second rotating shafts 31 with power devices are respectively and fixedly arranged in the middle of the opposite surfaces of the two vertical plates 25, the second rotating shafts 31 are positioned above the strip grooves 29, second fixing rods 32 are fixedly arranged at the end parts of the second rotating shafts 31, the other end of each second fixing rod 32 is hinged with one end of a third connecting rod 33, each third connecting rod 33 is hinged with the corresponding sliding block 30, vertical connecting shafts 34 are respectively and fixedly arranged on the opposite surfaces of the two sliding blocks 30, the bottom ends of the two connecting shafts 34 are fixedly connected through a horizontal grinding rod 35, and the second rotating shafts 31 with power devices can drive the second fixing rods 32 to rotate, meanwhile, the second fixing rod 32 is hinged with the sliding block 30 through a third connecting rod 33, so that the sliding block 30 can horizontally move along the long-strip groove 29 to drive the grinding rod 35 to grind the slurry in the grinding box 19, vertical racks 36 are respectively and fixedly installed on two sides of the bottom end of each vertical plate 25, second slots 37 are respectively formed in two inner walls of the discharge port 21 of the grinding box, a horizontal second inserting plate 43 is arranged in each second slot 37, the two second inserting plates 43 are fixedly connected through a third spring 38, two grooves 39 are respectively formed in two sides of the inner wall of the bottom end of the grinding box 19, the two grooves 39 positioned on the same side of the grinding box 19 are respectively positioned at the front end and the rear end of the grinding box 19, a vertical gear 40 is fixedly installed in each groove 39, the front end and the rear end of the rotating shaft of the gear 40 are respectively movably connected with the inner walls at the front end and the rear end of the groove 39, and a belt wheel 41 is fixedly installed on the rotating shaft of each gear 40, each rack 36 can be engaged with a corresponding gear 40, two belt wheels 41 positioned at the same side of the grinding box 19 are respectively and fixedly connected with a corresponding second inserting plate 43 through second connecting ropes 42, the second connecting ropes 42 can pass through the grooves 39 and the second inserting grooves 37, when the grinding roller 35 reaches the bottom end of the grinding box 19, the rack 36 is inserted into the groove 39 and engaged with the gear 40 to drive the gear 40 to rotate, the gear 40 is coaxially connected with the belt wheel 41, the belt wheel 41 is fixedly connected with the second inserting plate 43 through the second connecting rope 42, the second inserting plate 43 can move back into the second inserting groove 37, the discharge hole 21 of the grinding box is exposed, the slurry enters the next operation, the second stirring box 44 is fixedly installed at the bottom end of the grinding box 19, the grinding box 19 is communicated with the inside of the second stirring box 44 through the discharge hole 21 of the grinding box, a centrifugal stirring device is arranged in the second stirring box 44, and one side of the second stirring box 44 is fixedly connected with a sodium citrate storage device through a pipeline. Pouring various raw materials into a first stirring box 1 in the invention, rotating a turntable 9 to drive vertical rods 10 to stir the raw materials in the first stirring box 1, when the raw materials in the first stirring box 1 are in a sparse state, a first connecting rod 11 on one side of each vertical rod 10 is in a horizontal state under the action of centrifugal force, a ball 12 is in contact with a stop block 17 and enables the stop block 17 to be in a frame 15, a telescopic rod 16 is limited, when the raw materials in the first stirring box 1 are gradually thickened, the rotating speed of the turntable 9 is reduced, the first connecting rod 11 is turned over downwards under the gravity of the ball 12 at a hinge point, the ball 12 is separated from the stop block 17, the stop block 17 is moved out of the frame 15 under the thrust of a second spring 18 and exposes an opening, the telescopic rod 16 is extended, a movable rod of the telescopic rod 16 penetrates through the frame 15 and is in contact with the other end of a connecting rod 14, one end of the connecting rod 14 is hinged with a supporting plate 8, and the middle part of the connecting rod 14 is hinged with a seat 7, the supporting plate 8 is lifted upwards, meanwhile, the supporting plate 8 is fixedly connected with the first inserting plate 5 through the first connecting rope 13, the first inserting plate 5 moves in the opposite direction, and the discharge hole 3 of the first stirring box is exposed; the stirred crude slurry flows into a grinding box 19, a vertical plate 25 moves upwards or downwards as required through the connection among a first rotating shaft 26, a first fixing rod 27 and a second connecting rod 28, meanwhile, a grinding rod 35 can move horizontally through the connection among a second rotating shaft 31, a second fixing rod 32 and a third connecting rod 33, the crude slurry is ground, when the grinding rod 35 reaches the bottom end of the grinding box 19, a rack 36 is inserted into a groove 39 and meshed and matched with a gear 40 to drive the gear 40 to rotate, the gear 40 is coaxially connected with a belt wheel 41, the belt wheel 41 is fixedly connected with a second inserting plate 43 through a second connecting rope 42, the second inserting plate 43 can move back into a second slot 37, and a grinding box discharge port 21 is exposed; the milled slurry then flows into the second agitator tank 44 and is mixed with sodium citrate and agitated to produce the finished pigment product. Two first picture pegs 5 block first agitator tank discharge gate 3, can make the raw materials form airtight space when stirring in first agitator tank 1, make raw materials stirring, and two first picture pegs 5 simultaneously can make first picture peg 5 reset when needs block first agitator tank discharge gate 3 through first spring 6 fixed connection, and then block first agitator tank discharge gate 3 once more. Can drive first dead lever 27 through first pivot 26 and rotate, first dead lever 27 passes through second connecting rod 28 with riser 25 and is connected in an articulated way, can make riser 25 reciprocate, grinds thick liquids gradually. The pigment prepared by the invention is not easy to fall off and change color when being illuminated, is resistant to steam and humid environment, does not contain harmful substances, has no harm to human body, is environment-friendly and has no pollution; agar and sodium citrate are added simultaneously, so that the dispersion degree and the adhesive force of the pigment are improved; and the moisture resistance and heat resistance are improved by adding starch ether.
Specifically, the collecting box 45 is movably mounted at the bottom end of the second stirring box 44, an outlet is formed in the inner wall of the bottom end of the second stirring box 44, the outlet is communicated with the inside of the collecting box 45, and a connecting pipe 46 with a valve is fixedly connected to the outlet. The second stirring box 44 is communicated with the inside of the collecting box 45 through an outlet, and after the stirring of the slurry in the second stirring box 44 is completed, the valve is opened, and the slurry flows into the collecting box 45 through the connecting pipe 46, so that the pigment slurry is collected.
Specifically, each two adjacent vertical rods 10 are fixedly connected to each other by a horizontal rod 22. Every two adjacent vertical rods 10 are fixedly connected through a horizontal rod 22, so that the vertical rods 10 are more stable in structure in rotation.
Further, the collecting box 45 of the present embodiment is a drawing structure. The collection box 45 of the drawing structure is convenient for taking out pigment slurry and is convenient to use.
A preparation device of painting pigment paste is prepared from the following raw materials in parts by weight:
the first embodiment is as follows: 100 parts of distilled water, 90 parts of pigment powder, 35 parts of polyacrylic acid, 20 parts of starch ether, 17 parts of ammonium bicarbonate, 15 parts of talcum powder, 6 parts of barium sulfate, 3 parts of polyvinylpyrrolidone, 0.2 part of agar and 2 parts of sodium citrate.
Example two: 130 parts of distilled water, 80 parts of pigment powder, 30 parts of polyacrylic acid, 25 parts of starch ether, 14 parts of ammonium bicarbonate, 10 parts of talcum powder, 8 parts of barium sulfate, 5 parts of polyvinylpyrrolidone, 0.4 part of agar and 1 part of sodium citrate.
Example three: 160 parts of distilled water, 100 parts of pigment powder, 40 parts of polyacrylic acid, 30 parts of starch ether, 20 parts of ammonium bicarbonate, 20 parts of talcum powder, 10 parts of barium sulfate, 2 parts of polyvinylpyrrolidone, 0.1 part of agar and 3 parts of sodium citrate.
Finally, it should be noted that: the above examples are only intended to illustrate the technical solution of the present invention, but not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it will be understood by those of ordinary skill in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; and such modifications or substitutions do not depart from the spirit and scope of the corresponding technical solutions of the embodiments of the present invention.
Claims (4)
1. A preparation facilities of drawing pigment thick liquids which characterized in that: the preparation device comprises a first stirring box (1), a first stirring box feeding port (2) is formed in the top end of the first stirring box (1), a first stirring box discharging port (3) is formed in the bottom end of the first stirring box (1), first inserting grooves (4) are formed in the inner walls of the two sides of the first stirring box discharging port (3) respectively, a horizontal first inserting plate (5) is arranged in each first inserting groove (4), the two first inserting plates (5) are fixedly connected through a first spring (6), two hinged seats (7) are fixedly installed on the inner wall of the bottom end of the first stirring box (1), the two hinged seats (7) are respectively located on the two sides of the first stirring box discharging port (3), a horizontal supporting plate (8) is arranged between the two hinged seats (7), the supporting plate (8) is located above the first stirring box discharging port (3), a rotary table (9) with a power device is fixedly installed on the top surface of the supporting plate (8), a plurality of vertical rods (10) are fixedly installed on the top surface of the rotary table (9), one side of each vertical rod (10) is hinged with one end of a first connecting rod (11), the other end of each first connecting rod (11) is fixedly installed with a ball body (12), two sides of the supporting plate (8) are respectively fixedly connected with the other end of the corresponding first inserting plate (5) through first connecting ropes (13), two sides of the supporting plate (8) are respectively hinged with connecting rods (14), the middle part of each connecting rod (14) is hinged with the corresponding hinged seat (7), inner walls of two sides of the first stirring box (1) are respectively fixedly installed with an installation frame (15), the two frames (15) are positioned on the same horizontal plane, a vertical telescopic rod (16) is arranged above each frame (15), the extending direction of each telescopic rod (16) faces downwards, each telescopic rod (16) is fixedly installed on the inner wall of the first stirring box (1), a block (17) is arranged in each frame (15), each block (17) is fixedly connected with one side face of the corresponding frame (15) through a plurality of second springs (18), the second springs (18) always give an outward force to the block (17), a movable rod of each telescopic rod (16) can be in contact fit with the other end of a corresponding connecting rod (14), a ball body (12) can be in contact fit with the block (17), a grinding box (19) is fixedly installed below the first stirring box (1), a grinding box feeding port (20) is formed in the top end of the grinding box (19), the grinding box feeding port (20) is communicated with the inside of the first stirring box discharging port (3), a grinding box discharging port (21) is formed in the bottom end of the grinding box (19), two vertical guide grooves (23) are respectively formed in the inner walls of the front end and the rear end of the grinding box (19), a guide block (24) is arranged in each guide groove (23), every two guide blocks (24) positioned at the same end of the grinding box (19) are fixedly connected through a vertical plate (25), a first rotating shaft (26) with a power device is arranged between every two guide grooves (23) positioned at the same end of the grinding box (19), opposite ends of the two first rotating shafts (26) are respectively and fixedly connected with one end of a first fixing rod (27), the other end of each first fixing rod (27) is hinged and connected with one end of a second connecting rod (28), the other end of each second connecting rod (28) is hinged and connected with the middle part of the top end of the corresponding vertical plate (25), opposite surfaces of the two vertical plates (25) are respectively provided with a horizontal long groove (29), a sliding block (30) is arranged in each long groove (29), second rotating shafts (31) with power devices are respectively and fixedly installed in the middle parts of the opposite surfaces of the two vertical plates (25), and the second rotating shafts (31) are positioned above the long grooves (29), a second fixed rod (32) is fixedly arranged at the end part of a second rotating shaft (31), the other end of each second fixed rod (32) is hinged with one end of a third connecting rod (33), each third connecting rod (33) is hinged with a corresponding sliding block (30), vertical connecting shafts (34) are respectively and fixedly arranged on opposite surfaces of the two sliding blocks (30), the bottom ends of the two connecting shafts (34) are fixedly connected through a horizontal grinding rod (35), vertical racks (36) are respectively and fixedly arranged on two sides of the bottom end of each vertical plate (25), second slots (37) are respectively arranged on the inner walls of two sides of a discharge port (21) of the grinding box, a horizontal second inserting plate (43) is arranged in each second slot (37), the two second inserting plates (43) are fixedly connected through a third spring (38), two grooves (39) are respectively arranged on two sides of the inner wall of the bottom end of the grinding box (19), two grooves (39) positioned on the same side of the grinding box (19) are respectively positioned at the front end and the rear end of the grinding box (19), a vertical gear (40) is fixedly arranged in each groove (39), the front end and the rear end of a rotating shaft of the gear (40) are respectively movably connected with the inner walls of the front end and the rear end of the groove (39), a belt wheel (41) is fixedly arranged on the rotating shaft of each gear (40), each rack (36) can be meshed and matched with one corresponding gear (40), the two belt wheels (41) positioned on the same side of the grinding box (19) are respectively and fixedly connected with one corresponding second inserting plate (43) through second connecting ropes (42), the second connecting ropes (42) can penetrate through the grooves (39) and the second inserting grooves (37), a second stirring box (44) is fixedly arranged at the bottom end of the grinding box (19), and the grinding box (19) is communicated with the inside of the second stirring box (44) through a grinding box discharging hole (21), a centrifugal stirring device is arranged in the second stirring box (44), and one side of the second stirring box (44) is fixedly connected with a sodium citrate storage device through a pipeline.
2. A device for preparing a pigment paste for painting according to claim 1, wherein: the bottom end of the second stirring box (44) is movably provided with a collecting box (45), the inner wall of the bottom end of the second stirring box (44) is provided with an outlet, the outlet is communicated with the inside of the collecting box (45), and the outlet is fixedly connected with a connecting pipe (46) with a valve.
3. A device for preparing a pigment paste for painting according to claim 1, wherein: every two adjacent vertical rods (10) are fixedly connected through a horizontal rod (22).
4. A device for preparing a pigment paste for painting according to claim 2, wherein: the collecting box (45) is of a drawing structure.
