Abstract
The invention discloses a sealing structure of a shell and a shell cover of an air conditioner motor, which comprises the shell cover, wherein the bottom of the shell cover is provided with the shell, a rubber pad is attached in a gap between the shell cover and the shell, the inner wall of the rubber pad is attached to the outer walls of the shell cover and the shell, the top and the bottom of the rubber pad are respectively provided with a limiting mechanism, each limiting mechanism comprises a T-shaped rubber block and a T-shaped groove, the T-shaped rubber blocks are pairwise processed at the top and the bottom of the rubber pad, the T-shaped grooves are pairwise processed at the top of the shell and the left and right sides of the bottom of the shell cover respectively, and the outer wall of each T-shaped rubber block is in interference fit. This air conditioner motor's casing and seal structure of cap pass through the cooperation between rubber pad, the gluey piece of T type and the T type groove for the rubber pad is installed to back between cap and the casing, makes the second kelly carry out the joint back with the fixture block, contacts through horizontal pole and second kelly, carries on spacingly with the second kelly, reinforcing second kelly to the fixture block fixity.
Description
Technical Field
The invention relates to the technical field of air conditioner motors, in particular to a sealing structure of a shell and a shell cover of an air conditioner motor.
Background
Motor is the basisElectromagnetic inductionLaw enforcementElectric energyAn electromagnetic device for conversion or transmission features that the motor is indicated by letter M in its circuit, its main function is to generate drive torque as power source of electric appliance or various machines, and the electric generator is arranged in the circuitUse letter G to represent in the circuit, its main effect utilizes mechanical energy to turn into the electric energy, though current air conditioner motor seal structure can realize the casing to the air conditioner motor and the sealed between the cap, but there is current rubber circle and only install between the casing and the cap of air conditioner motor, the rubber pad uses the back for a long time, can begin to oxidize from the outside, cause the problem of rubber circle leakproofness variation, but there is current rubber circle to advance the long time sealed, cause the rubber circle oxidation, and the rubber pad all passes through bolt fixed connection, dismantle the problem that changes and waste time and energy.
Disclosure of Invention
The invention aims to provide a sealing structure between a shell and a shell cover of an air-conditioning motor, which aims to solve the problem that although the existing sealing structure for the air-conditioning motor can realize the sealing between the shell and the shell cover of the air-conditioning motor, the existing rubber ring is only arranged between the shell and the shell cover of the air-conditioning motor, and after the rubber ring is used for a long time, the rubber ring is oxidized from the outside, so that the sealing performance of the rubber ring is poor.
In order to achieve the purpose, the invention provides the following technical scheme: a sealing structure of a shell and a shell cover of an air conditioner motor comprises the shell cover, wherein the bottom of the shell cover is provided with the shell, a rubber pad is attached to a gap between the shell cover and the shell, the inner wall of the rubber pad is attached to the outer walls of the shell cover and the shell, and the top and the bottom of the rubber pad are provided with limiting mechanisms;
the limiting mechanism comprises a T-shaped rubber block and a T-shaped groove;
the rubber gasket comprises a rubber gasket, a plurality of T-shaped rubber blocks, a plurality of shell covers and a plurality of T-shaped grooves, wherein the T-shaped rubber blocks are processed at the top and the bottom of the rubber gasket in pairs, the T-shaped grooves are processed at the left side and the right side of the top of the shell and the bottom of the shell cover in pairs respectively, and the outer walls of the T-shaped rubber blocks are in interference fit with the.
Preferably, the left side and the right side of the rubber pad are provided with connecting mechanisms;
the connecting mechanism comprises a vertical block, an inner cavity and a groove;
the two vertical blocks are respectively attached to the left side and the right side of the rubber pad, inner cavities are formed in the tops and the bottoms of the two vertical blocks, and grooves are formed in the middle points of the inner sides of the two vertical blocks.
Preferably, a fixing mechanism is arranged inside the inner cavity;
the fixing mechanism comprises a clamping groove block, a first clamping rod, a first pin shaft, a first spring, a screw rod and a handle;
it is a plurality of the equal rigid coupling in inboard left and right sides of casing and cap of draw-in groove piece, the outer wall of draw-in groove piece runs through in the inboard of erecting the piece and extends to the inside of inner chamber, the top and the equal joint in bottom of draw-in groove piece have first kelly, two first kelly rotates through first round pin axle and links to each other in the inner wall rear end face of inner chamber, two the inboard joint of first kelly has first spring, the outside the inner wall screw thread of first kelly links to each other there is the screw rod, the inboard of screw rod is laminated with the outer wall of the inboard first kelly mutually, the outside screw thread of screw rod links to each other in the inner wall outside of inner chamber, the outside rigid coupling of screw rod has the handle.
Preferably, the surface of the handle is processed with grains.
Preferably, a second fixing mechanism is arranged inside the groove;
the second fixing mechanism comprises a clamping block, a second clamping rod and a second pin shaft;
the two fixture blocks are fixedly connected to the left side and the right side of the rubber pad respectively, the outer walls of the fixture blocks are in clearance fit with the inner walls of the grooves, second clamping rods are clamped at the tops and the bottoms of the fixture blocks, and the two second clamping rods are connected to the rear end faces of the inner walls of the grooves through second hinge pins in a rotating mode.
Preferably, locking mechanisms are arranged on the outer sides of the two vertical blocks;
the locking mechanism comprises a cross rod, a handle and a second spring;
two the horizontal pole runs through respectively in the outside of two perpendicular pieces and extends to the inside of recess, the outer wall laminating of horizontal pole is in the inboard of two second kellies, the outside rigid coupling of horizontal pole has the handle, the outer wall clearance fit of horizontal pole has the second spring, the outside joint of second spring is in the inboard of handle, the inboard joint of second spring is in the outside of perpendicular piece.
Compared with the prior art, the invention has the beneficial effects that: the invention has scientific and reasonable structure and safe and convenient use.
This air conditioner motor's casing and seal structure of cap pass through the rubber pad, cooperation between T type rubber piece and the T type groove, make the rubber pad install back between cap and the casing, when the rubber pad oxidizes, need begin the oxidation from the outside, the live time of rubber pad has been increased, avoided although current air conditioner motor seal structure can realize the casing to air conditioner motor and the sealed between the cap, nevertheless there is current rubber circle and only install between air conditioner motor's casing and cap, the rubber pad uses the back for a long time, can begin to oxidize from the outside, cause the rubber circle leakproofness variation.
This air conditioner motor's casing and seal structure of cap pass through the cooperation between riser, draw-in groove piece and the first kelly for cap and shell machine need not to be connected through the bolt, have avoided having had current rubber circle to advance the sealed of overlength time, cause the rubber circle oxidation, and the rubber pad all passes through bolt fixed connection, and it wastes time and energy to dismantle the change.
This air conditioner motor's casing passes through the cooperation between horizontal pole, second kelly and the fixture block with the seal structure of cap for the second kelly carries out the joint back with the fixture block, contacts through horizontal pole and second kelly, carries on spacingly with the second kelly, reinforcing second kelly to the fixture block fixity.
Drawings

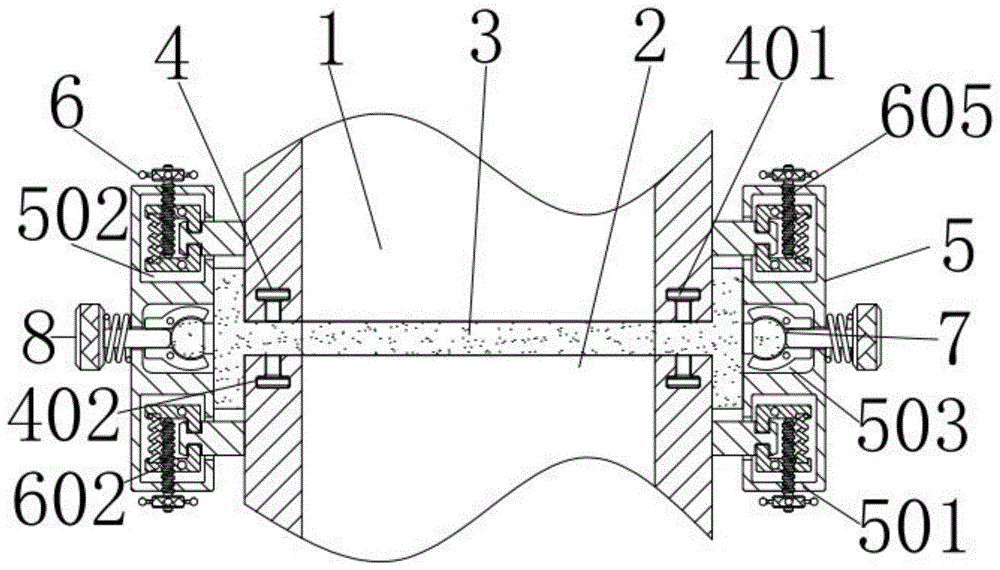

FIG. 1 is a schematic diagram of the connection relationship of the present invention;
FIG. 2 is a schematic view of the connection between the rubber pad, the T-shaped rubber block and the housing cover in FIG. 1;
FIG. 3 is a schematic view of the connection between the vertical block, the screw and the first clamping rod in FIG. 1;
fig. 4 is a schematic view showing the connection relationship of the rubber pad, the vertical block and the groove in fig. 1.
In the figure: 1. the shell cover, 2, the casing, 3, the rubber pad, 4, stop gear, 401, the gluey piece of T type, 402, T type groove, 5, coupling mechanism, 501, the riser, 502, the inner chamber, 503, the recess, 6, fixed establishment, 601, the draw-in groove piece, 602, first kelly, 603, first round pin axle, 604, first spring, 605, the screw rod, 606, the handle, 7, the second fixed establishment, 701, the fixture block, 702, the second kelly, 703, the second round pin axle, 8, the locking mechanism, 801, the horizontal pole, 802, the handle, 803, the second spring.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: the utility model provides a casing of air conditioner motor and seal structure of cap, including cap 1, the bottom of cap 1 is equipped with casing 2, the laminating has rubber pad 3 in the gap between cap 1 and the casing 2, the inner wall of rubber pad 3 all laminates with the outer wall of cap 1 with casing 2 mutually, the top and the bottom of rubber pad 3 all are equipped with stop gear 4, stop gear 4 includes T type rubber block 401 and T type groove 402, two liang of processing in the top and the bottom of rubber pad 3 of a plurality of T type rubber blocks 401, the quantity of T type rubber block 401 is four, two liang of processing respectively in the top of casing 2 and the bottom left and right sides of cap 1 in a plurality of T type grooves 402, the outer wall of T type rubber block 401 and the inner wall interference fit of T type groove 402, make T type rubber block 401 fix rubber pad 3 in gap department between cap 1 and casing 2.
The left and right sides of rubber pad 3 is equipped with coupling mechanism 5, and coupling mechanism 5 includes riser 501, inner chamber 502 and recess 503, and two riser 501 laminate respectively in the left and right sides of rubber pad 3, and the top and the bottom of two riser 501 are processed there is inner chamber 502, and the inboard midpoint department of two riser 501 is processed recess 503.
The fixing mechanism 6 is arranged in the inner cavity 502, the fixing mechanism 6 comprises slot blocks 601, first clamping rods 602, first pin shafts 603, first springs 604, screw rods 605 and a handle 606, the inner sides of the slot blocks 601 are fixedly connected to the left side and the right side of the shell 1 and the shell cover 2, the number of the slot blocks 601 is four, the outer walls of the slot blocks 601 penetrate through the inner sides of the vertical blocks 501 and extend into the inner cavity 502, so that the slot blocks 601 can be inserted into the vertical blocks 501 and the inner cavity 502, the top and the bottom of the slot blocks 601 are respectively clamped with the first clamping rods 602, so that the shell 2 and the shell cover 1 can be fixedly connected with the first clamping rods 602 through the slot blocks 601, the two first clamping rods 602 are rotatably connected to the rear end face of the inner wall of the inner cavity 502 through the first pin shafts 603, the first springs 604 are clamped on the inner sides of the two first clamping rods 602, the elastic coefficient of the first springs 604 is 5500 \ 6000N 604M, and the first springs give a force to the two first clamping rods 602 to approach each other, the inner wall thread of the first clamping rod 602 in the outside is connected with a screw rod 605, the inner side of the screw rod 605 is attached to the outer wall of the first clamping rod 602 in the inside, the screw rod 605 drives the two first clamping rods 602 to rotate through rotation, and further the first clamping rod 602 clamps the clamping groove block 601, the outer side thread of the screw rod 605 is connected to the outer side of the inner wall of the inner cavity 502, the outer side of the screw rod 605 is fixedly connected with a handle 606, the handle 606 is used for driving the screw rod 605 to rotate, the surface of the handle 606 is provided with grains, and the grains are used for increasing the friction between the handle and the hand.
The inside of recess 503 is equipped with second fixed establishment 7, second fixed establishment 7 includes fixture block 701, second kelly 702 and second round pin axle 703, two fixture blocks 701 rigid coupling respectively in the left and right sides of rubber pad 3, the outer wall of fixture block 701 and the inner wall clearance fit of recess 503, make fixture block 701 can insert the inner wall of recess 503, the top and the bottom of fixture block 701 all are connected with second kelly 702 in the joint, make the joint of rubber pad 3 accessible fixture block 701 and second kelly 702 fix on riser 501, two second kellies 702 all link to each other in the inner wall rear end face of recess 503 through second round pin axle 703 rotation.
The locking mechanisms 8 are arranged on the outer sides of the two vertical blocks 501, each locking mechanism 8 comprises a cross rod 801, a handle 802 and a second spring 803, the two cross rods 801 respectively penetrate through the outer sides of the two vertical blocks 501 and extend to the inner sides of the grooves 503, the outer walls of the cross rods 801 are attached to the inner sides of the two second clamping rods 702, so that the cross rods 801 can limit the second clamping rods 702, the clamping blocks 701 can be fixed by the second clamping rods 702, the handles 802 are fixedly connected to the outer sides of the cross rods 801, so that the cross rods 801 can be driven by the handles 802 to move left and right on the outer sides of the vertical blocks 501, the outer walls of the cross rods 801 are in clearance fit with the second springs 803, the elastic coefficients of the second springs 803 are 4500 + 0N 550m, the outer sides of the second springs 803 are clamped to the inner sides of the handles 802, the inner sides of the second springs 803 are clamped to the outer sides of the vertical blocks 501, and the second.
When the sealing structure of the housing and the housing cover of the air-conditioning motor is used, when the rubber pad 3 is used for a long time and the oxidation is seriously damaged, a user rotates the handle 606 to enable the handle 606 to drive the screw rod 605 to rotate, the screw rod 605 is not jointed with the outer wall of the second clamping rod 602 at the inner side when rotating, after jointing is cancelled, the two second clamping rods 602 rotate through the elastic deformation of the first spring 604, the clamping and fixing with the clamping groove block 601 are cancelled during the rotating process, after cancelling, the housing 2 is not fixedly connected with the housing cover 1, after cancelling, the user pulls the housing cover 1 to enable the T-shaped rubber block 401 to move out of the T-shaped groove 402, after cancelling, the user pulls the handle 802 to enable the handle 802 to drive the cross rod 801 to cancel jointing with the two second clamping rods 702, and then make horizontal pole 801 cancellation spacing to second kelly 702, cancel spacing back, the user separates two riser blocks 501 and rubber pad 3 for the rubber pad 3 dismantles and accomplishes, and then makes new rubber pad 3 change.
In the description of the present invention, it is to be understood that the terms "coaxial", "bottom", "one end", "top", "middle", "other end", "upper", "one side", "top", "inner", "front", "center", "both ends", and the like, indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the referenced device or element must have a particular orientation, be constructed and operated in a particular orientation, and thus, are not to be construed as limiting the present invention.
In the present invention, unless otherwise expressly specified or limited, the terms "mounted," "disposed," "connected," "secured," "screwed" and the like are to be construed broadly, e.g., as meaning fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; the terms may be directly connected or indirectly connected through an intermediate, and may be communication between two elements or interaction relationship between two elements, unless otherwise specifically limited, and the specific meaning of the terms in the present invention will be understood by those skilled in the art according to specific situations.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a casing of air conditioner motor and seal structure of cap, includes cap (1), the bottom of cap (1) is equipped with casing (2), the laminating has rubber pad (3) in the gap between cap (1) and casing (2), the inner wall of rubber pad (3) all laminates its characterized in that with the outer wall of cap (1) and casing (2) mutually: the top and the bottom of the rubber pad (3) are provided with a limiting mechanism (4);
the limiting mechanism (4) comprises a T-shaped rubber block (401) and a T-shaped groove (402);
the T-shaped rubber blocks (401) are processed at the top and the bottom of the rubber pad (3) in pairs, the T-shaped grooves (402) are processed at the top of the shell (2) and the left side and the right side of the bottom of the shell cover (1) in pairs respectively, and the outer walls of the T-shaped rubber blocks (401) are in interference fit with the inner walls of the T-shaped grooves (402).
2. A sealing structure of a casing and a casing cover of an air conditioner motor according to claim 1, wherein: the left side and the right side of the rubber pad (3) are provided with connecting mechanisms (5);
the connecting mechanism (5) comprises a vertical block (501), an inner cavity (502) and a groove (503);
two erect piece (501) are laminated in the left and right sides of rubber pad (3) respectively, two the top and the bottom processing of erect piece (501) have inner chamber (502), two the inboard midpoint department of erect piece (501) is processed fluted (503).
3. A sealing structure between a casing and a casing cover of an air conditioning motor according to claim 2, wherein: a fixing mechanism (6) is arranged in the inner cavity (502);
the fixing mechanism (6) comprises a clamping groove block (601), a first clamping rod (602), a first pin shaft (603), a first spring (604), a screw rod (605) and a handle (606);
the inner sides of the clamping groove blocks (601) are fixedly connected to the left side and the right side of the shell (1) and the shell cover (2), the outer walls of the clamping groove blocks (601) penetrate through the inner sides of the vertical blocks (501) and extend into the inner cavity (502), first clamping rods (602) are clamped at the top and the bottom of each clamping groove block (601), the two first clamping rods (602) are rotatably connected to the rear end face of the inner wall of the inner cavity (502) through first pin shafts (603), first springs (604) are clamped on the inner sides of the two first clamping rods (602), a screw rod (605) is connected to the inner wall of each first clamping rod (602) at the outer side in a threaded mode, the inner side of the screw rod (605) is attached to the outer wall of the first clamping rod (602) at the inner side in a threaded mode, the outer side of the screw rod (605) is connected to the outer side of the inner wall of the inner cavity (502) in a threaded mode, and handles (606) are fixedly connected to.
4. A sealing structure between a casing and a casing cover of an air conditioning motor according to claim 2, wherein: the surface of the handle (606) is processed with grains.
5. A sealing structure of a casing and a casing cover of an air conditioner motor, according to claim, wherein: a second fixing mechanism (7) is arranged in the groove (503);
the second fixing mechanism (7) comprises a clamping block (701), a second clamping rod (702) and a second pin shaft (703);
the two fixture blocks (701) are fixedly connected to the left side and the right side of the rubber pad (3) respectively, the outer wall of each fixture block (701) is in clearance fit with the inner wall of the corresponding groove (503), the top and the bottom of each fixture block (701) are respectively connected with the corresponding second fixture rod (702) in a clamping mode, and the two second fixture rods (702) are connected to the rear end face of the inner wall of the corresponding groove (503) through the second pin shaft (703) in a rotating mode.
6. A sealing structure between a casing and a casing cover of an air conditioning motor according to claim 3, wherein: the outer sides of the two vertical blocks (501) are provided with locking mechanisms (8);
the locking mechanism (8) comprises a cross rod (801), a handle (802) and a second spring (803);
two horizontal pole (801) run through respectively in the outside of two riser (501) and extend to the inside of recess (503), the outer wall laminating in the inboard of two second kellies (702) of horizontal pole (801), the outside rigid coupling of horizontal pole (801) has handle (802), the outer wall clearance fit of horizontal pole (801) has second spring (803), the outside joint of second spring (803) is in the inboard of handle (802), the inboard joint in the outside of riser (501) of second spring (803).
