Abstract
The invention discloses an intelligent driver, which belongs to the technical field of intelligent drivers and comprises a driver, wherein an inner shell is arranged outside the driver, a second radiating pipe is arranged at the bottom of the inner shell, the second radiating pipe is arranged at the outer side of the bottom of the driver in a surrounding manner, the head and the tail of the second radiating pipe are communicated to form a circulating pipe, the upper ends of two sides of the second radiating pipe are communicated with first radiating pipes, the first radiating pipe and the second radiating pipe absorb heat, a working fluid is filled in the second radiating pipe, the liquid state of the working fluid is volatilized into a vapor state when heated, the vapor state working fluid is blown by a fan, the vapor state working fluid moves upwards to the radiating fins and is converted into liquid when cooled, then the liquid flows into the second radiating pipe along the lower surfaces of the radiating fins, then the heat is absorbed and converted into the vapor state, and the process is repeated, a liquid-, the heat dissipation is fast and respond well.
Description
Technical Field
The invention belongs to the technical field of intelligent drivers, and particularly relates to an intelligent driver.
Background
The intelligent servo driver is also called as a programmable servo driver, is a full digital driver integrating a servo driving technology, a PLC technology and a motion control technology, can be programmed by a ladder diagram inside, completes the logic and data operation of the PLC, and realizes the synchronous control function of the multi-axis motor through a special motion control instruction. Intelligent servo driver belongs to some among the servo, mainly be applied to the high-end equipment, the core control part of intelligent machine, intelligent servo driver can wide application in textile machinery, fields such as wood working machine, current intelligent driver can produce a large amount of heats at the in-process of work, and current radiating mode is equipped with thermovent or radiator fan generally outside the shell, but the radiating effect is relatively poor, and this kind of mode leads to the easy stockpiling of intelligent driver to collect the dust, and intelligent driver is most more accurate, the dust can influence intelligent driver's life-span.
Disclosure of Invention
The invention provides an intelligent driver which has the characteristics of good heat dissipation effect and dust prevention.
In order to achieve the purpose, the invention provides the following technical scheme: the utility model provides an intelligent driver, includes the driver, the outside of driver is provided with the inner shell, the inner shell bottom is provided with the second cooling tube, the second cooling tube encloses the bottom outside of establishing at the driver, the head and the tail intercommunication of second cooling tube forms the circulating pipe, the both sides upper end intercommunication of second cooling tube has first cooling tube, the adjacent upper end outside of first cooling tube all is provided with radiating fin, a plurality of bracing pieces of bottom fixedly connected with of inner shell, the lower extreme of bracing piece is connected in the shell bottom, the inner shell forms the cavity with the outer shell, radiating fin runs through the inner shell and sets up in the cavity, the rigidity that corresponds with radiating fin on the outer wall of shell is provided with the fan.
Preferably, the upper end of first cooling tube is provided with the feed liquor pipe, the feed liquor pipe runs through the one end that extends to the shell and is provided with the closing cap.
Preferably, a protective cover is arranged outside the fan.
Preferably, the bottom of the shell is provided with a shock pad.
Preferably, a plurality of heat dissipation holes are formed in the surface of the shell at positions corresponding to the cavities.
Preferably, the lower surface of the heat dissipation fin faces the direction of the first heat dissipation pipe and is provided with an inclined surface.
Preferably, the first radiating pipe is tightly attached to the outer side of the driver.
Compared with the prior art, the invention has the beneficial effects that:
1. the first radiating pipe and the second radiating pipe absorb heat, the working fluid is filled in the second radiating pipe, the liquid state of the working fluid is volatilized into a vapor state when heated, the fan blows air, the vapor state working fluid moves upwards to the radiating fins and is converted into liquid when cooled, then the liquid flows into the second radiating pipe along the lower surfaces of the radiating fins, the heat absorption is converted into the vapor state again, and the process is repeated, so that a liquid-vapor circulation is formed to take away the heat, the driver can be ensured to radiate the heat efficiently, and the heat radiation is fast and has good effect.
2. The driver of the invention does not circulate with the outside air in the heat dissipation process, thereby preventing dust from entering the driver, ensuring that the driver is not influenced by the dust and prolonging the service life.
Drawings

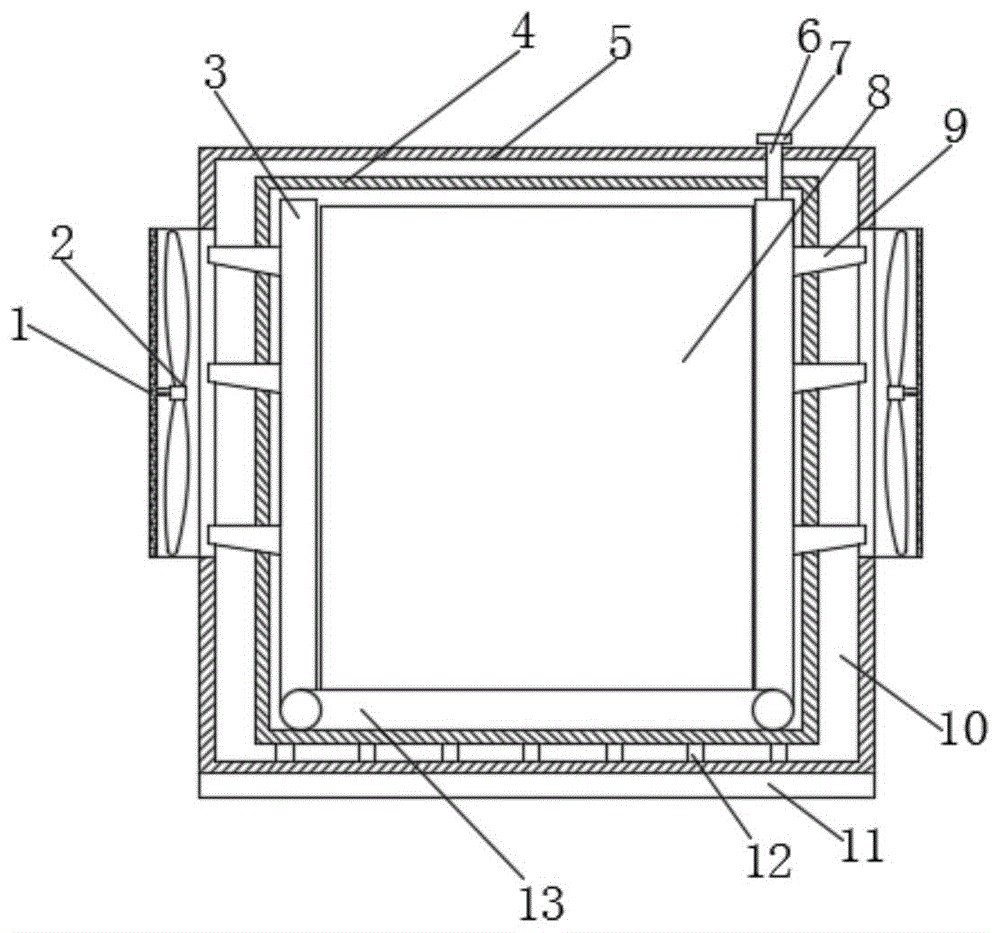

Fig. 1 is a schematic structural diagram of an intelligent driver according to the present invention.
FIG. 2 is a front view of the present invention;
FIG. 3 is a diagram of an internal circuit of the present invention.
In the figure: 1. a protective cover; 2. a fan; 3. a first radiating pipe; 4. an inner shell; 5. a housing; 6. a liquid inlet pipe; 7. sealing the cover; 8. a driver; 9. a heat dissipating fin; 10. a cavity; 11. a shock pad; 12. a support bar; 13. a second heat dissipation pipe; 14. and (4) heat dissipation holes.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides the following technical solutions: an intelligent driver comprises a driver 8, wherein an inner shell 4 is arranged outside the driver 8, a second radiating pipe 13 is arranged at the bottom of the inner shell 4, the second radiating pipe 13 is arranged at the outer side of the bottom of the driver 8 in a surrounding mode, the head and the tail of the second radiating pipe 13 are communicated to form a circulating pipe, working fluid is filled in the second radiating pipe 13, the upper ends of two sides of the second radiating pipe 13 are communicated with first radiating pipes 3, and the first radiating pipes 3 are tightly attached to the outer side of the driver 8 in order to improve the radiating effect; in order to supplement working fluid into the second radiating pipe 13 conveniently, the upper end of the first radiating pipe 3 is provided with a liquid inlet pipe 6, and one end of the liquid inlet pipe 6 extending to the shell 5 is provided with a sealing cover 7; the outer sides of the upper ends of the first radiating pipes 3 are provided with radiating fins 9, in order to facilitate the working fluid to move upwards in a vapor state to the radiating fins 9 and be converted into liquid when meeting cold and then flow downwards along the bottoms of the radiating fins 9, the lower surfaces of the radiating fins 9 are provided with inclined surfaces facing the first radiating pipes 3; the bottom of the inner shell 4 is fixedly connected with a plurality of support rods 12, the lower ends of the support rods 12 are connected to the bottom of the outer shell 5, and in order to prevent the shell from being damaged by pressure when the device is placed, the bottom of the outer shell 5 is provided with a shock pad 11; the inner shell 4 and the outer shell 5 form a cavity 10, the radiating fins 9 penetrate through the inner shell 4 and are arranged in the cavity 10, the fan 2 is fixedly arranged on the outer wall of the outer shell 5 at a position corresponding to the radiating fins 9, and the outer side of the fan 2 is provided with the protective cover 1 in order to block dust and prevent blades of the fan 2 from hurting people; in order to accelerate air circulation and improve heat dissipation speed, a plurality of heat dissipation holes 14 are formed in the surface of the shell 5 corresponding to the cavity 10;
the working principle and the using process of the invention are as follows: when the invention is used, the driver 8 generates heat when working, the first radiating pipe 3 and the second radiating pipe 13 absorb heat at the outer side of the driver 8, the second radiating pipe 13 is internally filled with working fluid, the liquid state of the working fluid is volatilized into a vapor state when being heated, the heat is taken away in the volatilization process, the vapor state working fluid moves upwards to the radiating fins 9, the fan 2 blows air, the vapor state working fluid moves upwards to the radiating fins 9 to be converted into liquid when being cooled and then flows downwards along the inner wall of the first radiating pipe 3 at the lower surface of the radiating fins 9 to enter the second radiating pipe 13, the heat absorption is converted into the vapor state again, the process is repeated, a liquid-vapor circulation is formed to take away the heat, thereby ensuring that the driver 8 can carry out high-efficiency heat dissipation, the heat dissipation is fast and the effect is good, and the driver 8 does not circulate with the outside air in the heat dissipation process, thereby ensuring that the dust cannot enter, the service life is prolonged.
As shown in fig. 3, a driving circuit is disposed inside the intelligent driver, and the debugging items and standards are as follows:
1. input voltage: 24Vdc
2. Drive current: 0 to 3A
3. And (4) fault alarm: without load
3. Aging at 70 deg.C for 6 hr
4. Shake vertically for 1 hour.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. An intelligent driver, comprising a driver (8), characterized in that: an inner shell (4) is arranged outside the driver (8), a second radiating pipe (13) is arranged at the bottom of the inner shell (4), the second radiating pipe (13) is arranged at the outer side of the bottom of the driver (8) in a surrounding way, the head and the tail of the second radiating pipe (13) are communicated to form a circulating pipe, the upper ends of the two sides of the second radiating pipe (13) are communicated with a first radiating pipe (3), the outer sides of the first radiating pipes (3) adjacent to the upper ends are provided with radiating fins (9), the bottom of the inner shell (4) is fixedly connected with a plurality of support rods (12), the lower ends of the support rods (12) are connected with the bottom of the outer shell (5), the inner shell (4) and the outer shell (5) form a cavity (10), the radiating fins (9) penetrate through the inner shell (4) and are arranged in the cavity (10), and a fan (2) is fixedly arranged on the outer wall of the shell (5) at a position corresponding to the radiating fins (9).
2. The intelligent drive of claim 1, wherein: the upper end of first cooling tube (3) is provided with feed liquor pipe (6), feed liquor pipe (6) run through the one end that extends to shell (5) and are provided with closing cap (7).
3. The intelligent drive of claim 1, wherein: and a protective cover (1) is arranged on the outer side of the fan (2).
4. The intelligent drive of claim 1, wherein: and a shock absorption pad (11) is arranged at the bottom of the shell (5).
5. The intelligent drive of claim 1, wherein: the surface of the shell (5) is provided with a plurality of heat dissipation holes (14) corresponding to the positions of the cavity (10).
6. The intelligent drive of claim 1, wherein: the lower surface of the radiating fin (9) is provided with an inclined surface towards the direction of the first radiating pipe (3).
7. The intelligent drive of claim 1, wherein: the first radiating pipe (3) is tightly attached to the outer side of the driver (8).
