The invention discloses a textile machine with a standby wire wheel, and belongs to the technical field of textile. A textile machine with a preparatory reel comprises a mounting seat, an adjusting component, a power component and a preparatory component; according to the invention, the adjusting component is arranged on the upper part of the mounting seat, the power component is arranged on the lower part of the mounting seat, the preparation component is arranged at the front end of the mounting seat, the power component is utilized to drive the adjusting component, the adjusting component drives one wire wheel in the preparation component to rotate and enable the wire wheel to wind yarns, when the wire wheel is fully wound, the adjusting component stops being meshed with the wire wheel and is meshed with the other wire wheel through the adjusting function, so that the multi-wire wheel can be continuously wound in a state without stopping. The winding device is reasonable in structural design, powerful in function, stable in winding and beneficial to improving the winding efficiency of the textile machine.
Description
Technical Field
The invention relates to the technical field of spinning, in particular to a spinning machine with a standby wire wheel.
Background
Textile machines process natural or chemical fibers into textile products using a variety of mechanical devices. Textile machines in the broadest sense also include chemical machines that produce chemical fibers. Textile machines are the production means and material bases of the textile industry, the technical level, quality and manufacturing costs of which are directly related to the development of the textile industry.
Most of the existing thread wheels of the textile machine are single take-up wheels, when the thread wheels are replaced, the machine needs to be stopped and replaced, time and labor are wasted, the textile efficiency of the textile machine is affected, and therefore how to provide textile equipment with the reserve thread wheels and capable of continuously producing is very important.
Disclosure of Invention
1. Technical problem to be solved
The invention aims to provide a textile machine with a reserve reel, which solves the problems in the prior art.
2. Technical scheme
A textile machine with a preparatory reel comprises a mounting seat, an adjusting component, a power component and a preparatory component;
the adjusting component is arranged on the upper part of the mounting seat and used for switching the preparatory wire wheels;
the power assembly is arranged at the lower part of the mounting seat and used for providing rolling power;
the preparation assembly is arranged at the front end of the mounting seat and used for winding the spinning thread.
Preferably, the mount pad includes the bottom plate, the perpendicular welding in bottom plate middle part has the baffle, the baffle front side is equipped with the end plate, the end plate forms spacing chamber with baffle clearance fit.
Preferably, the adjusting assembly comprises a cylinder seat fixedly arranged on the rear wall of the partition plate, a cylinder is fixedly arranged on the cylinder seat, the end part of a piston rod of the cylinder is rotatably connected with a push rod through a connecting seat, and the front end of the push rod sequentially penetrates through the partition plate and the end plate and extends to the front part.
Preferably, the middle part of the ejector rod is sleeved with a shaft sleeve, the shaft sleeve is limited in the limiting cavity and is rotationally connected with the limiting cavity, two limiting bulges integrally formed with the shaft sleeve are symmetrically arranged on the inner wall of the shaft sleeve, and the limiting bulges are slidably connected with a limiting groove on the outer wall of the ejector rod.
Preferably, a synchronizing wheel A is sleeved on the outer side of the shaft sleeve, a synchronizing belt is arranged on the outer side of the synchronizing wheel A, and two ends of the synchronizing belt respectively bypass the synchronizing wheel A and the end part of the power assembly and are in friction transmission with the synchronizing wheel A and the end part of the power assembly.
Preferably, power component is including setting firmly the motor cabinet in the bottom plate bottom surface, the motor cabinet bottom surface sets firmly the motor, motor output shaft tip passes the motor cabinet front end and extends to anterior and coaxial fixedly connected with synchronizing wheel B, synchronizing wheel B passes through hold-in range and synchronizing wheel A friction drive.
Preferably, prepare the subassembly including cup jointing in the skewed tooth post of ejector pin front end, skewed tooth post left and right sides symmetry is equipped with two roller, two the roller rear end all rotates with the end plate antetheca to be connected, two the roller front end is all spacing to have the spinning wheel.
Preferably, the rear end of the roll shaft positioned on the left side is sleeved with a bevel gear A, the middle part of the roll shaft positioned on the right side is sleeved with a bevel gear B, and the bevel gear B and the bevel gear A are in meshing transmission with a bevel gear column.
3. Advantageous effects
Compared with the prior art, the invention has the advantages that:
according to the invention, the adjusting component is arranged on the upper part of the mounting seat, the power component is arranged on the lower part of the mounting seat, the preparation component is arranged at the front end of the mounting seat, the power component is utilized to drive the adjusting component, the adjusting component drives one wire wheel in the preparation component to rotate and enable the wire wheel to wind yarns, when the wire wheel is fully wound, the adjusting component stops being meshed with the wire wheel and is meshed with the other wire wheel through the adjusting function, so that the multi-wire wheel can be continuously wound in a state without stopping. The winding device is reasonable in structural design, powerful in function, stable in winding and beneficial to improving the winding efficiency of the textile machine.
Drawings

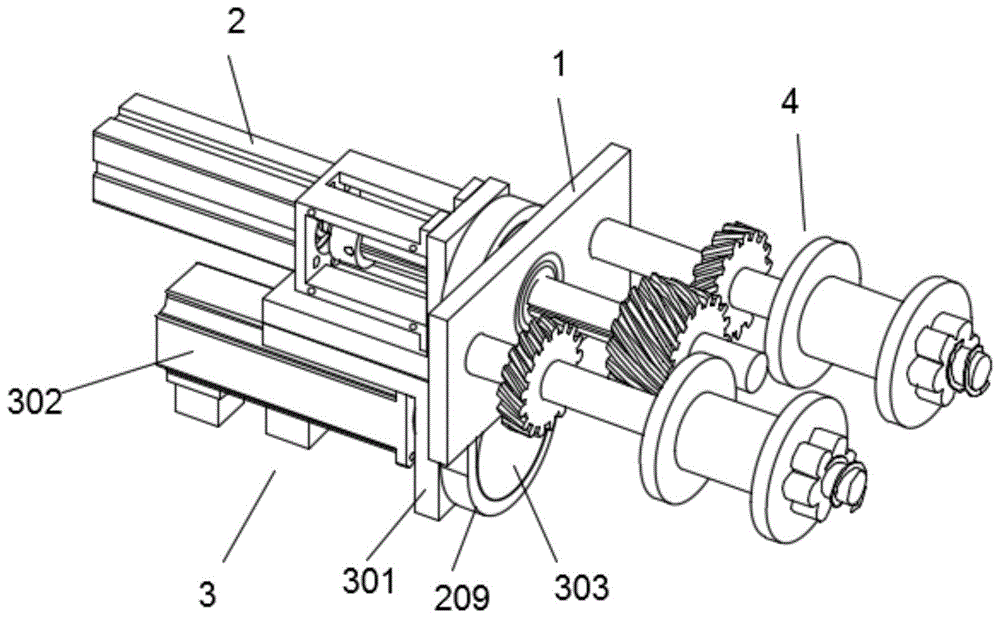

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of a partial structure of the present invention;
FIG. 3 is a schematic view showing the detachment of the ejector pin and the connection structure thereof according to the present invention;
FIG. 4 is a schematic, exploded view of a preliminary assembly according to the present invention;
the reference numbers in the figures illustrate: the device comprises a mounting seat 1, an adjusting component 2, a power component 3, a preparation component 4, a bottom plate 101, a partition plate 102, an end plate 103, a limiting cavity 104, a cylinder seat 201, a cylinder 202, a connecting seat 203, a push rod 204, a shaft sleeve 205, a limiting bulge 206, a limiting groove 207, a synchronizing wheel A208, a synchronous belt 209, a motor seat 301, a motor 302, a synchronizing wheel B303, a helical gear column 401, a roller shaft 402, a spinning wheel 403, a helical gear A404 and a helical gear B405.
Detailed Description
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like, indicate orientations and positional relationships based on those shown in the drawings, and are used only for convenience of description and simplicity of description, and do not indicate or imply that the equipment or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be considered as limiting the present invention.
In the description of the present invention, "a plurality" means two or more unless specifically defined otherwise.
Referring to fig. 1-4, the present invention provides a technical solution:
a textile machine with a preparatory reel comprises a mounting seat 1, an adjusting component 2, a power component 3 and a preparatory component 4;
the adjusting component 2 is arranged on the upper part of the mounting seat 1 and used for switching the preparatory wire wheel;
the power assembly 3 is arranged at the lower part of the mounting seat 1 and used for providing rolling power;
prepare subassembly 4 and install in mount pad 1 front end for the rolling is spun a thread.
The mounting seat 1 comprises a bottom plate 101, a partition plate 102 is vertically welded in the middle of the bottom plate 101, an end plate 103 is arranged on the front side of the partition plate 102, and the end plate 103 and the partition plate 102 are in clearance fit to form a limiting cavity 104.
The adjusting component 2 comprises a cylinder seat 201 fixedly arranged on the rear wall of the partition plate 102, a cylinder 202 is fixedly arranged on the cylinder seat 201, the end part of a piston rod of the cylinder 202 is rotatably connected with a push rod 204 through a connecting seat 203, and the front end of the push rod 204 sequentially penetrates through the partition plate 102 and the end plate 103 and extends to the front part.
The middle part of the top rod 204 is sleeved with a shaft sleeve 205, the shaft sleeve 205 is limited in the limiting cavity 104 and is rotationally connected with the limiting cavity, two limiting bulges 206 which are integrally formed with the shaft sleeve 205 are symmetrically arranged on the inner wall of the shaft sleeve 205, and the limiting bulges 206 are in sliding connection with a limiting groove 207 on the outer wall of the top rod 204.
A synchronous wheel A208 is sleeved on the outer side of the shaft sleeve 205, a synchronous belt 209 is arranged on the outer side of the synchronous wheel A208, and two ends of the synchronous belt 209 respectively bypass the synchronous wheel A208 and the end part of the power assembly 3 and are in friction transmission with the end part of the power assembly.
The power assembly 3 comprises a motor base 301 fixedly arranged on the bottom surface of the bottom plate 101, a motor 302 is fixedly arranged on the bottom surface of the motor base 301, the end part of an output shaft of the motor 302 penetrates through the front end of the motor base 301 to extend to the front part and is coaxially and fixedly connected with a synchronizing wheel B303, and the synchronizing wheel B303 is in friction transmission with a synchronizing wheel A208 through a synchronous belt 209.
The preparation component 4 comprises an oblique tooth column 401 sleeved at the front end of the ejector rod 204, two roller shafts 402 are symmetrically arranged on the left side and the right side of the oblique tooth column 401, the rear ends of the two roller shafts 402 are rotatably connected with the front wall of the end plate 103, and the front ends of the two roller shafts 402 are limited by spinning wheels 403.
The rear end of the roller shaft 402 positioned on the left side is sleeved with a bevel gear A404, the middle part of the roller shaft 402 positioned on the right side is sleeved with a bevel gear B405, and the bevel gear B405 and the bevel gear A404 are both in meshing transmission with the bevel gear column 401.
The working principle is as follows: a motor 302 is used for driving a synchronizing wheel B303, the synchronizing wheel B303 drives a synchronizing wheel A208 through a synchronous belt 209, the synchronizing wheel A208 drives a shaft sleeve 205, the shaft sleeve 205 drives a mandril 204, the mandril 204 drives a helical tooth post 401, the helical tooth post 401 drives a helical gear A404, the helical gear A404 drives a roller shaft 402 positioned on the right side, the roller shaft 402 drives a spinning wheel 403 movably arranged on the roller shaft, and the spinning wheel 403 starts to wind the spinning thread; after the spinning wheel 403 winds the full spinning thread, the cylinder 202 is used for pushing the push rod 204 which is rotatably connected with the cylinder, the push rod 204 pushes the helical gear column 401, so that the helical gear column 401 is meshed with the helical gear A404 and further meshed with the helical gear B405 on the right roller shaft 402, and the helical gear B405 drives the roller shaft 402 to rotate, thereby achieving the purpose of continuously winding the spinning thread.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, and the preferred embodiments of the present invention are described in the above embodiments and the description, and are not intended to limit the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (1)
1. A weaving machine with reserve line wheel which characterized in that: comprises a mounting seat (1), an adjusting component (2), a power component (3) and a preparation component (4);
the adjusting assembly (2) is arranged on the upper part of the mounting seat (1) and is used for switching the standby wire wheel;
the power assembly (3) is arranged at the lower part of the mounting seat (1) and is used for providing rolling power;
the preparation assembly (4) is arranged at the front end of the mounting seat (1) and used for winding the spinning thread;
the mounting seat (1) comprises a bottom plate (101), a partition plate (102) is vertically welded in the middle of the bottom plate (101), an end plate (103) is arranged on the front side of the partition plate (102), and the end plate (103) and the partition plate (102) are in clearance fit to form a limiting cavity (104);
the adjusting assembly (2) comprises a cylinder seat (201) fixedly arranged on the rear wall of the partition plate (102), a cylinder (202) is fixedly arranged on the cylinder seat (201), the end part of a piston rod of the cylinder (202) is rotatably connected with a push rod (204) through a connecting seat (203), and the front end of the push rod (204) sequentially penetrates through the partition plate (102) and the end plate (103) and extends to the front part;
the middle part of the ejector rod (204) is sleeved with a shaft sleeve (205), the shaft sleeve (205) is limited in the limiting cavity (104) and is rotationally connected with the limiting cavity, two limiting bulges (206) which are integrally formed with the shaft sleeve (205) are symmetrically arranged on the inner wall of the shaft sleeve (205), and the limiting bulges (206) are in sliding connection with a limiting groove (207) on the outer wall of the ejector rod (204);
a synchronous wheel A (208) is sleeved on the outer side of the shaft sleeve (205), a synchronous belt (209) is arranged on the outer side of the synchronous wheel A (208), and two ends of the synchronous belt (209) respectively bypass the synchronous wheel A (208) and the end part of the power assembly (3) and are in friction transmission with the synchronous wheel A (208) and the power assembly;
the power assembly (3) comprises a motor base (301) fixedly arranged on the bottom surface of the bottom plate (101), a motor (302) is fixedly arranged on the bottom surface of the motor base (301), the end part of an output shaft of the motor (302) penetrates through the front end of the motor base (301) to extend to the front part and is coaxially and fixedly connected with a synchronizing wheel B (303), and the synchronizing wheel B (303) is in friction transmission with a synchronizing wheel A (208) through a synchronous belt (209);
the preparation assembly (4) comprises an oblique tooth column (401) sleeved at the front end of the ejector rod (204), two roll shafts (402) are symmetrically arranged on the left side and the right side of the oblique tooth column (401), the rear ends of the two roll shafts (402) are rotatably connected with the front wall of the end plate (103), and spinning wheels (403) are limited at the front ends of the two roll shafts (402);
the rear end of the roll shaft (402) positioned on the left side is sleeved with a bevel gear A (404), the middle part of the roll shaft (402) positioned on the right side is sleeved with a bevel gear B (405), and the bevel gear B (405) and the bevel gear A (404) are in meshing transmission with a bevel gear column (401);
when the spinning device is used, a motor (302) is utilized to drive a synchronous wheel B (303), the synchronous wheel B (303) drives a synchronous wheel A (208) through a synchronous belt (209), the synchronous wheel A (208) drives a shaft sleeve (205), the shaft sleeve (205) drives a mandril (204), the mandril (204) drives a helical tooth post (401), the helical tooth post (401) drives a helical gear A (404), the helical gear A (404) drives a roller shaft (402) positioned on the right side, the roller shaft (402) drives a spinning wheel (403) movably mounted on the roller shaft, and the spinning wheel (403) starts to wind a spinning thread; after the spinning wheel (403) winds the spinning thread and is fully coiled, the cylinder (202) is used for pushing the ejector rod (204) which is rotatably connected with the spinning wheel (403), the ejector rod (204) pushes the helical gear column (401), so that the helical gear column (401) is meshed and separated with the helical gear A (404), and further meshed and connected with the helical gear B (405) on the right side roller shaft (402), and the helical gear B (405) drives the roller shaft (402) to rotate, so that the spinning thread can be continuously wound.
