CN110996187A

CN110996187A - An efficient cooling network switch cabinet

Info

Publication number: CN110996187A
Application number: CN201911328426.9A
Authority: CN
Inventors: 董永健
Original assignee: Changzhou Vocational Institute of Mechatronic Technology
Current assignee: Changzhou Vocational Institute of Mechatronic Technology
Priority date: 2019-12-20
Filing date: 2019-12-20
Publication date: 2020-04-10

Abstract

The present invention provides an efficient heat dissipation network switch cabinet. The front side of the switch cabinet is provided with split cabinet doors, several exhaust fans are installed on the top of the inside of the cabinet cabinet, and several suction fans are installed on the front of the bottom of the cabinet cabinet. Several rows of ribs and several rows of network cable hanging rods are installed horizontally inside, several switches are installed on several rows of ribs, and switch network cables are hung on several rows of network cable hanging rods. The invention solves the problem that the network switch cabinets in the prior art are designed to be installed horizontally layer by layer, which is not conducive to the air flow in the cabinet, that is, the problem of heat dissipation of the switches. In the present invention, the switch is designed to be installed and fixed vertically, and the vertical installation has no effect on the function of the switch. With the help of the space left between the switches, the upper and lower transparent patterns are formed inside the cabinet to facilitate air flow, and then the upper and lower sets of fans are used. The function forms a bottom-up air circulation route to achieve the purpose of efficient heat dissipation of switches and network cables.

Description

High-efficient heat dissipation network switch rack

Technical Field

The invention particularly relates to a high-efficiency heat-dissipation network switch cabinet, and belongs to the technical field of internet hardware products.

Background

Today, the internet is widespread, and network switch cabinets are widely used in enterprises, governments, schools, and the like. Traditional network switch rack designs the network switch into the configuration of layering level installation, is unfavorable for like this that the interior air flow of cabinet, and the switch dispels the heat promptly. If the switch is always in a high-temperature state, the service life of the switch can be greatly shortened, and the security and the stability of the network are threatened.

Disclosure of Invention

The invention provides an efficient heat dissipation network switch cabinet aiming at the technical problems.

The invention provides an efficient heat dissipation network exchange cabinet which comprises a cabinet, a cabinet door, a plurality of discharge fans, a plurality of rows of ribs, a plurality of rows of network cable hanging rods and a plurality of suction fans, wherein the front surface of the cabinet is provided with a split cabinet door, the top inside the cabinet is provided with the plurality of discharge fans, the front bottom of the cabinet is provided with the plurality of suction fans, the inside of the cabinet is horizontally provided with the plurality of rows of ribs and the plurality of rows of network cable hanging rods, a plurality of switches are arranged on the plurality of rows of ribs, and network cables of the switches are hung on the plurality of rows of network cable hanging rods.

Preferably, the ribs are provided with through holes.

Preferably, every two upper and lower ribs fix a row of switches, 4-5 switches are installed in each row, and a proper gap is left between every two adjacent switches to facilitate air flow.

Preferably, the switch realizes the installation and fixation with the ribs through the L-shaped buckles and the screws of the accessories.

Preferably, the network cable passes through the lower part of the switch, winds from the front to the rear side, is fixed by a support of a network cable hanging rod in the cabinet, is downwards connected to the cabinet bottom, and is in an S shape on the whole.

Preferably, the net wire hanging rod is provided with a groove, and the net wire penetrates through the groove, so that the net wire is prevented from being scattered, and the air in the cabinet is prevented from flowing up and down.

Preferably, two suction fans are installed in front of the bottom of the cabinet box and are responsible for sucking cool air into the cabinet box from the lower part of the cabinet box.

Preferably, two exhaust fans are installed at the top inside the cabinet box and are responsible for exhausting hot air in the cabinet out of the cabinet box from the top of the cabinet box.

The working principle of the high-efficiency heat dissipation network switch cabinet is as follows:

the network exchange cabinet creatively designs the exchanger to be vertically installed and fixed, the vertical installation has no influence on the function of the exchanger, the gap reserved between the exchangers is utilized to form an up-down through structure which is convenient for air flow in the cabinet, and then an air circulation route from bottom to top is formed by the action of an upper group of fans and a lower group of fans, so that the aim of efficiently radiating the exchanger and a network cable is fulfilled.

Compared with the prior art, the high-efficiency heat dissipation network switch cabinet has the beneficial effects that:

1. the efficient heat dissipation network switch cabinet has the advantages that the traditional method that the network switch is horizontally arranged in the cabinet layer by layer is broken through, the defect that air in the cabinet cannot effectively flow is overcome, the switch is creatively designed to be vertically installed and fixed, an up-and-down through structure which facilitates air flow is formed in the cabinet by virtue of gaps reserved between the switches, an air circulation route from bottom to top is formed by virtue of the action of two groups of fans, and the purpose of efficient heat dissipation of the switch and a network cable is achieved.

2. The efficient heat dissipation network switch cabinet provided by the invention realizes the purposes of air circulation and efficient heat dissipation in the cabinet by changing the internal pattern of the cabinet and adding the fan under the condition of not influencing the work of the switch, has a simple and popular principle and a novel design, creatively solves the heat dissipation problem of the switch, and has the advantages of good design stability, common production material, non-harsh process requirement and higher practicability.

Drawings

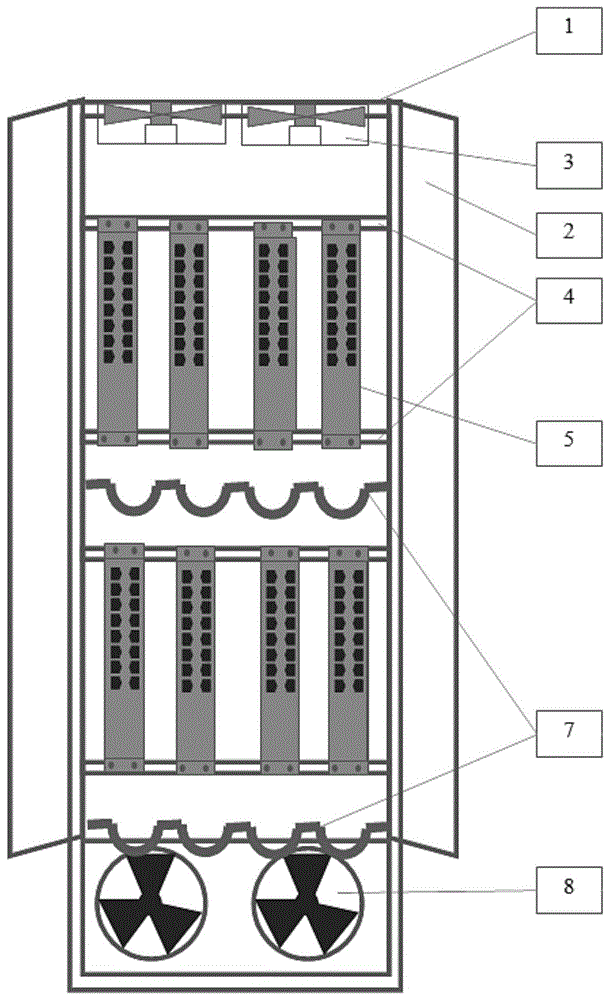

FIG. 1 is a front view of a high efficiency heat dissipation network switch cabinet according to the present invention

Fig. 2 is a side view of an efficient heat dissipation network switch cabinet according to the present invention;

in the figure: 1-cabinet and cabinet box; 2-cabinet door; 3-a discharge fan; 4-ribbed with holes; 5-a supply switch; 6-mesh wire; 7-a network cable hanging rod; 8-suction fan.

Detailed Description

The following detailed description of embodiments of the invention is provided in conjunction with the appended drawings:

the first embodiment is as follows: the present embodiment is explained with reference to fig. 1-2. This embodiment a high-efficient heat dissipation network switch rack include rack cabinet case 1, cabinet door 2, a plurality of exhaust fan 3, a plurality of rows of rib 4, a plurality of row net twine peg 7 and a plurality of suction fan 8, the cabinet door 2 of run from opposite directions is installed in rack cabinet case 1's front, a plurality of exhaust fan 3 are installed at rack cabinet case 1's inside top, a plurality of suction fan 8 are equipped with in front in rack cabinet case 1's bottom, rack cabinet case 1's inside horizontal installation has a plurality of rows of rib 4 and a plurality of row net twine peg 7, and a plurality of switches 5 are installed on a plurality of rows of rib 4, and the net twine 6 of switch 5 is hung on a plurality of rows of net twine pegs 7.

The edge strips 4 are provided with through holes.

The specific working principle of the high-efficiency heat dissipation network switch cabinet provided by the invention is as follows:

1. provided is an installation method of a switch. Fig. 1-2 are front and side views of the network switch cabinet, as shown in the figure, a perforated rib 4 for installing and fixing a switch 5 is arranged in the middle of a cabinet case 1, a row of switches 5 is fixed by every two ribs 4, 4-5 switches are installed in every row, and a proper gap is left between the switches 5 to facilitate air flow. The switch 5 is fixed with the installation of the inner edge strip 4 of the cabinet box through an L-shaped buckle of an accessory and a screw.

2. And setting the trend of the network cable. As shown in fig. 2, the network cable 6 passes from the lower part of the switch 5, is wound from the front to the rear side, is fixed by a wire hanging rod 7 in the cabinet, is connected to the bottom of the cabinet downward, and has an S-shape as a whole. The net wire hanging rod 7 is provided with a groove, so that the net wires can be prevented from being scattered, and the air in the cabinet can be prevented from flowing up and down.

3. And arranging a heat radiation fan. Two suction fans 8 are arranged on the front side surface of the lower part of the cabinet and are responsible for sucking cool air into the cabinet from the lower part of the cabinet. Two exhaust fans 3 are arranged at the top of the upper part of the cabinet and are responsible for exhausting hot air in the cabinet from the top of the cabinet. The power required by the four fans is realized by connecting a plug designed on the cabinet with a power supply socket, and the circuit trend and the like are not described in detail.

The above-mentioned embodiments further explain the objects, technical solutions and advantages of the present invention in detail. It should be understood that the above-mentioned embodiments are only examples of the present invention, and are not intended to limit the present invention, and that the reasonable combination of the features described in the above-mentioned embodiments can be made, and any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. An efficient heat dissipation network switch cabinet, characterized in that it comprises a cabinet cabinet (1), a cabinet door (2), a plurality of exhaust fans (3), a plurality of rows of ribs (4), and a plurality of rows of network cable hanging rods (7). ) and some suction fans (8),

The front side of the cabinet box (1) is provided with a split cabinet door (2), and a plurality of exhaust fans (3) are installed on the inner top of the cabinet box (1). Several suction fans (8) are installed in front of the bottom, several rows of ribs (4) and several rows of network cable hanging rods (7) are installed horizontally inside the cabinet box (1), and several switches (5) are installed on the On several rows of edges (4), network cables (6) of the switch (5) are hung on several rows of network cable hanging rods (7).

2 . The high-efficiency heat dissipation network switch cabinet according to claim 1 , wherein through holes are provided on the ribs ( 4 ). 3 .

3. The high-efficiency heat dissipation network switch cabinet according to claim 1 is characterized in that, every two upper and lower ribs (4) fix a row of switches (5), each row is installed with 4-5 switches, and two adjacent switches are installed (5) Appropriate gaps are left between them to facilitate air flow.

4. The high-efficiency heat dissipation network switch cabinet according to claim 1, wherein the switch (5) is installed and fixed with the rib (4) through fittings L-shaped buckles and screws.

5. The high-efficiency heat dissipation network switch cabinet according to claim 1, wherein the network cable (6) passes through the lower part of the switch (5), winds from the front to the rear side, and hangs the network cable on a rod (7) in the cabinet With the foil fixed, it is connected down to the bottom of the cabinet, and the overall shape is S.

6. The high-efficiency heat dissipation network switch cabinet according to claim 1, wherein the network cable hanging rod (7) is provided with a groove, and the network cable (6) passes through the groove to prevent the network cable (6) from being scattered. shape, thus affecting the up and down flow of air in the cabinet.

7. The high-efficiency heat dissipation network switch cabinet according to claim 1, characterized in that, two suction fans (8) are installed in front of the bottom of the cabinet cabinet (1), which are responsible for removing air from the lower part of the cabinet cabinet (1). Cool air is drawn into the cabinet box (1).

8. The high-efficiency heat dissipation network switch cabinet according to claim 1, characterized in that, two exhaust fans (3) are installed on the inner top of the cabinet cabinet (1), which are responsible for removing air from the top of the cabinet cabinet (1). The hot air in the cabinet is discharged from the cabinet box (1).
