CN110872876B - Built-in world fossil fragments connecting piece and wall body thereof - Google Patents
Built-in world fossil fragments connecting piece and wall body thereof Download PDFInfo
- Publication number
- CN110872876B CN110872876B CN201811009158.XA CN201811009158A CN110872876B CN 110872876 B CN110872876 B CN 110872876B CN 201811009158 A CN201811009158 A CN 201811009158A CN 110872876 B CN110872876 B CN 110872876B
- Authority
- CN
- China
- Prior art keywords
- side plate
- connecting piece
- built
- keel
- roof
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 239000012634 fragment Substances 0.000 title description 11
- 229910052602 gypsum Inorganic materials 0.000 claims abstract description 23
- 239000010440 gypsum Substances 0.000 claims abstract description 23
- 238000010079 rubber tapping Methods 0.000 claims abstract description 15
- 230000001815 facial effect Effects 0.000 claims abstract description 6
- 239000002184 metal Substances 0.000 claims description 4
- 230000000149 penetrating effect Effects 0.000 claims description 4
- 230000035515 penetration Effects 0.000 claims description 2
- 229920000742 Cotton Polymers 0.000 description 7
- 241000219146 Gossypium Species 0.000 description 7
- 238000010276 construction Methods 0.000 description 6
- 230000007547 defect Effects 0.000 description 4
- 239000000463 material Substances 0.000 description 4
- 238000009434 installation Methods 0.000 description 3
- 239000000945 filler Substances 0.000 description 2
- 239000011521 glass Substances 0.000 description 2
- 239000002699 waste material Substances 0.000 description 2
- 210000002268 wool Anatomy 0.000 description 2
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000002457 bidirectional effect Effects 0.000 description 1
- 125000004122 cyclic group Chemical group 0.000 description 1
- 238000006073 displacement reaction Methods 0.000 description 1
- 239000011507 gypsum plaster Substances 0.000 description 1
- 238000011900 installation process Methods 0.000 description 1
- 238000004519 manufacturing process Methods 0.000 description 1
- 238000003466 welding Methods 0.000 description 1
Images
Classifications
-
- E—FIXED CONSTRUCTIONS
- E04—BUILDING
- E04B—GENERAL BUILDING CONSTRUCTIONS; WALLS, e.g. PARTITIONS; ROOFS; FLOORS; CEILINGS; INSULATION OR OTHER PROTECTION OF BUILDINGS
- E04B2/00—Walls, e.g. partitions, for buildings; Wall construction with regard to insulation; Connections specially adapted to walls
- E04B2/74—Removable non-load-bearing partitions; Partitions with a free upper edge
- E04B2/7407—Removable non-load-bearing partitions; Partitions with a free upper edge assembled using frames with infill panels or coverings only; made-up of panels and a support structure incorporating posts
- E04B2/7453—Removable non-load-bearing partitions; Partitions with a free upper edge assembled using frames with infill panels or coverings only; made-up of panels and a support structure incorporating posts with panels and support posts, extending from floor to ceiling
-
- E—FIXED CONSTRUCTIONS
- E04—BUILDING
- E04B—GENERAL BUILDING CONSTRUCTIONS; WALLS, e.g. PARTITIONS; ROOFS; FLOORS; CEILINGS; INSULATION OR OTHER PROTECTION OF BUILDINGS
- E04B2/00—Walls, e.g. partitions, for buildings; Wall construction with regard to insulation; Connections specially adapted to walls
- E04B2/74—Removable non-load-bearing partitions; Partitions with a free upper edge
- E04B2/82—Removable non-load-bearing partitions; Partitions with a free upper edge characterised by the manner in which edges are connected to the building; Means therefor; Special details of easily-removable partitions as far as related to the connection with other parts of the building
- E04B2/821—Connections between two opposed surfaces (i.e. floor and ceiling) by means of a device offering a restraining force acting in the plane of the partition
-
- E—FIXED CONSTRUCTIONS
- E04—BUILDING
- E04B—GENERAL BUILDING CONSTRUCTIONS; WALLS, e.g. PARTITIONS; ROOFS; FLOORS; CEILINGS; INSULATION OR OTHER PROTECTION OF BUILDINGS
- E04B2/00—Walls, e.g. partitions, for buildings; Wall construction with regard to insulation; Connections specially adapted to walls
- E04B2/74—Removable non-load-bearing partitions; Partitions with a free upper edge
- E04B2002/7461—Details of connection of sheet panels to frame or posts
- E04B2002/7477—Details of connections using screws or nails
Landscapes
- Engineering & Computer Science (AREA)
- Architecture (AREA)
- Physics & Mathematics (AREA)
- Electromagnetism (AREA)
- Civil Engineering (AREA)
- Structural Engineering (AREA)
- Joining Of Building Structures In Genera (AREA)
Abstract
The connecting piece comprises a bottom plate used for connecting a roof or the ground, a first side plate used for connecting a gypsum board, and a second side plate used for connecting a vertical keel; the wall body comprises a built-in top and bottom keel connecting piece, and the connecting piece is arranged on a roof and the ground inside the wall body; the gypsum board is fixed on the first surface of the vertical keel through self-tapping screws; the top and the bottom of gypsum board are fixed respectively on the first curb plate of the connecting piece on roof and ground, the second facial top and the bottom of vertical keel are fixed respectively on the second curb plate of the connection on roof and ground, the first face and the second facial mutually perpendicular of vertical keel.
Description
Technical Field
The application relates to but not limited to wall body technical field, especially a built-in world fossil fragments connecting piece and wall body thereof.
Background
In the prior art, light metal keels and gypsum boards are often adopted for manufacturing the inner wall body for on-site construction, so that the construction site is messy, construction wastes such as waste materials and leftover materials are too much, the detachable cyclic utilization of the wall body is not suitable, the on-site labor amount is large, the labor cost is too high, and the construction size precision is low.
The fabricated wall is a modular, removable structural system. The modules are linked through staggered joints to form a wall. Different modular construction solutions also exist with different constructional systems of assembled walls.
Wherein, the wall structure of burst formula is an assembled wall unit, and this kind of wall structure divide into two the same modules, specifically comprises gypsum board, glass cotton and fossil fragments, and concrete structure is: each module is uniformly distributed by using 4C-shaped keels as vertical keels and 7 modeling keels as transverse keels, and the modules are clamped with the vertical keels to form a keel frame, and gypsum boards are further installed on the outer side of the keel frame; the fixing operation between the wall body, the roof and the ground is realized through the heaven and earth L-shaped keel, and the connection and fixation between the two modules are realized through the bidirectional fastener.
The strength of the assembled wall body is poor, the structural stability is low, and the requirement for actually decorating the wall body cannot be effectively met; and the ceiling keel of the assembly type wall body is in an external structure form, has the defects of complex installation and poor aesthetic property, and needs to be additionally subjected to subsequent treatment operation on the external ceiling keel.
Disclosure of Invention
The technical problem that this application solved provides a built-in world fossil fragments connecting piece and wall body thereof, can effectively solve the stability defect that exists in the current wall body, can effectively improve the structural stability of wall body, also can convert the connected form of current external world fossil fragments into the connected form of built-in world fossil fragments simultaneously, can effectively improve the aesthetic property of wall body, also can avoid follow-up processing operation to external world fossil fragments.
In order to solve the technical problem, the invention provides a built-in ceiling keel connecting piece, which comprises a bottom plate, a first side plate and a second side plate, wherein the bottom plate is used for connecting a roof or the ground;
the first side plate and the second side plate are both vertically connected with the bottom plate, and the first side plate and the second side plate are mutually vertical.
The built-in ceiling keel connecting piece can also have the following characteristics:
the connecting piece is provided with two first curb plates that are the symmetry and set up, the connection structure of bottom plate and two first curb plates is U type structure or C type structure.
The built-in ceiling keel connecting piece can also have the following characteristics:
the connecting piece is provided with one first side plate, and the connecting structure of bottom plate and first side plate is L type structure.
The built-in ceiling keel connecting piece can also have the following characteristics:
the connecting piece is also provided with a third side plate for connecting adjacent connecting pieces, and the third side plate and the second side plate are symmetrically arranged at two ends of the first side plate;
the second side plate, the third side plate and the two first side plates jointly enclose a rectangular closed structure.
The built-in ceiling keel connecting piece can also have the following characteristics:
the connecting piece is also provided with a third side plate for connecting adjacent connecting pieces, and the third side plate and the second side plate are symmetrically arranged at two ends of the first side plate;
the second side plate, the third side plate and the first side plate jointly form a U-shaped opening structure.
The built-in ceiling keel connecting piece can also have the following characteristics:
and the bottom plate is provided with a connecting hole for the penetration of an expansion bolt.
The built-in ceiling keel connecting piece can also have the following characteristics:
and a connecting hole for penetrating through the tapping screw is formed in the first side plate.
The built-in ceiling keel connecting piece can also have the following characteristics:
and a connecting hole for penetrating through the tapping screw is formed in the second side plate.
The built-in ceiling keel connecting piece can also have the following characteristics:
the connector comprises a metal connector or a plastic connector.
In order to solve the technical problem, the invention also provides a wall body, which comprises a built-in ceiling keel connecting piece, wherein the connecting piece is arranged on the roof and the ground inside the wall body; the gypsum board is fixed on the first surface of the vertical keel through self-tapping screws;
the top and the bottom of gypsum board are fixed respectively on the first curb plate of the connecting piece on roof and ground, the second facial top and the bottom of vertical keel are fixed respectively on the second curb plate of the connection on roof and ground, the first face and the second facial mutually perpendicular of vertical keel.
The above technical scheme of this application has following beneficial effect:
compared with the prior art, the assembled wall body of the built-in world keel connecting piece that this application set up through preferred can effectively solve the stability defect that exists in the current wall body, can effectively improve the structural stability of wall body, also can convert the connection form of current external world keel into the connection form of built-in world keel simultaneously, can effectively improve the aesthetic property of wall body, also can avoid follow-up processing operation to external world keel.
Additional features and advantages of the application will be set forth in the description which follows, and in part will be obvious from the description, or may be learned by the practice of the embodiments of the invention. The objectives and other advantages of the application may be realized and attained by the structure particularly pointed out in the written description and claims hereof as well as the appended drawings.
Drawings
The accompanying drawings are included to provide a further understanding of the claimed subject matter and are incorporated in and constitute a part of this specification, illustrate embodiments of the subject matter and together with the description serve to explain the principles of the subject matter and not to limit the subject matter.

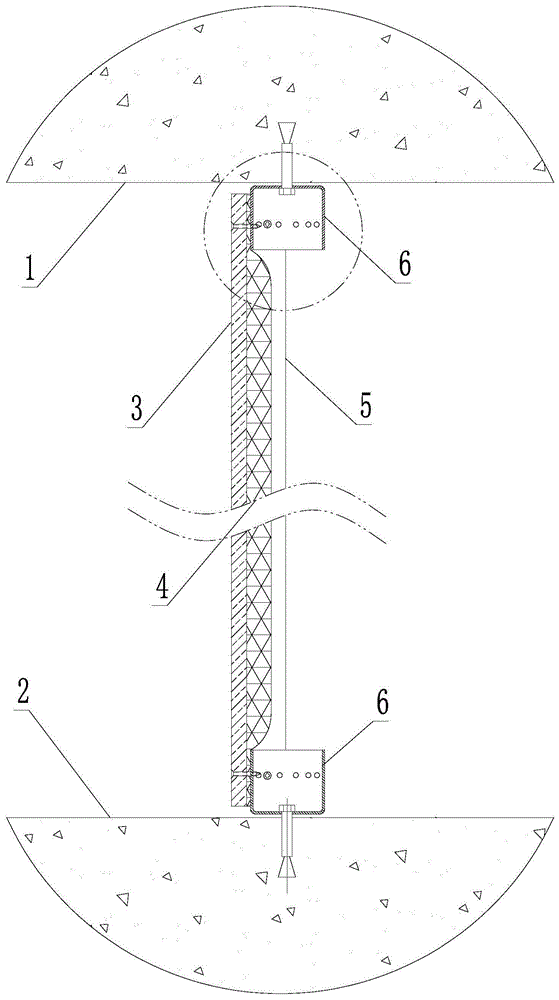

FIG. 1 is a left side view of a mounting structure for a panel unit in accordance with a first embodiment of the present invention;
FIG. 2 is an enlarged view of a portion of FIG. 1;
FIG. 3 is a front view of a mounting structure for a panel unit in accordance with a first embodiment of the present invention;
FIG. 4 is an enlarged view of a portion of FIG. 3;
FIG. 5 is a top view of a mounting structure for a piece of wall unit in accordance with a first embodiment of the present invention;
FIG. 6 is a left side view of the mounting structure of the two-piece wall unit in the first embodiment of the present invention;
FIG. 7 is a top view of a two piece wall unit mounting structure in accordance with one embodiment of the present invention;
FIG. 8 is a schematic view of the connection of the ends of two wall units according to one embodiment of the present invention;
FIG. 9 is a sectional view of a front view of a connector in accordance with a second embodiment of the present invention;
FIG. 10 is a cross-sectional view of a left side view of a connector in accordance with a second embodiment of the present invention;
FIG. 11 is a top view of a connector according to a second embodiment of the present invention;
FIG. 12 is a schematic view of a connector according to a second embodiment of the present invention;
FIG. 13 is a schematic view of a connector according to a third embodiment of the present invention;
illustration of the drawings:
1-roof, 2-ground, 3-gypsum board, 4-filling cotton, 5-vertical keel, 6-connecting piece and 7-L-shaped keel;
60-bottom plate, 61-first side plate, 62-second side plate, 63-third side plate.
Detailed Description
Hereinafter, embodiments of the present application will be described in detail with reference to the accompanying drawings. It should be noted that the embodiments and features of the embodiments in the present application may be arbitrarily combined with each other without conflict.
The first embodiment is as follows:
referring to fig. 1 to 7, a first embodiment of the present invention provides an assembly wall with a built-in ceiling keel connecting element, which includes two oppositely disposed wall units, and a connecting element 6 disposed in an inner space between the two oppositely disposed wall units; the setting of the above-mentioned built-in connecting piece 6 of accessible can convert the connection form of the external world fossil fragments that have now into the connection form of built-in world fossil fragments, can effectively improve the aesthetic property of wall body, also can avoid follow-up processing operation to external world fossil fragments.
In this embodiment, the wall surface unit includes a gypsum board 3 and a vertical keel 5, and the gypsum board 3 is fixed on a first surface of the vertical keel 5; the vertical keels 5 in the two oppositely-arranged wall units are in mutual contact and are in surface contact.
In the specific operation, the surface of the vertical keel 5 in the wall surface unit is contacted with the surface of the vertical keel 5 in the other side wall surface unit; because above-mentioned contact is face contact, the installation operation need not accurate positioning, can allow to have certain displacement between the both sides wall unit, and the construction is more convenient, and the flexibility is better.
Compared with an assembled wall body in the prior art, the wall body unit in the embodiment is not provided with the cross bracing keels, is more reasonable in structure, has fewer related components, can effectively reduce the overall cost of the wall body unit, can also effectively reduce the overall weight of the wall body unit, and is convenient for transportation, assembly and other operations. The wall unit in the embodiment can be selected to complete the assembly operation in a workshop, namely, the pre-assembly operation is completed among the gypsum boards 3, the filling cottons 4 and the vertical keels 5 in the workshop, so as to further improve the assembly efficiency on site.
In this embodiment, the connecting member 6 includes a bottom plate for connecting the roof 1 or the floor 2, a first side plate for connecting the gypsum board 3, and a second side plate for connecting the furring channel 5; the first side plate and the second side plate are both vertically connected with the bottom plate, and the first side plate and the second side plate are mutually vertical.
In the concrete operation, the top edge and the bottom edge of the gypsum board 3 can be respectively fixed on a first side plate of a connecting piece 6 of a roof 1 and a ground 2, the top edge and the bottom edge of a second surface of the vertical keel 5 can be respectively fixed on a second side plate of the connecting piece 6 of the roof 1 and the ground 2, a third surface of the vertical keel 5 is connected with a third surface of the vertical keel 5 in the wall unit through self-tapping screws, the first surface and the third surface are symmetrically arranged at two ends of the second surface, and the first surface and the third surface are both vertical to the second surface; that is, the vertical keels 5 may be U-shaped keels, or rectangular keels, or C-shaped keels, so as to have at least three faces.
In this embodiment, the assembled wall further includes filler wool 4, and the filler wool 4 is fixed between the gypsum board 3 and the mullion 5.
In the specific operation, the gypsum board 3 can be effectively prevented from being in direct contact with the keel by the preferred arrangement position of the filling cotton 4, the cold and hot bridge phenomenon between the keel and the gypsum board 3 can be effectively avoided, and the comprehensive performance of the wall unit can be effectively improved; the filling cotton 4 is preferably glass cotton, so that the comprehensive performance of the assembled wall unit can be effectively improved.
In this embodiment, among two wall units that set up relatively, be provided with on at least one wall unit and run through gypsum board 3 and erector keel 5, and the self-tapping screw on the erector keel 5 of terminal insert fixed to in another wall unit. In the concrete operation, the self-tapping screws which penetrate through the gypsum board 3, the filling cotton 4 and the vertical keels 5 and are inserted and fixed to the other vertical keel 5 at the tail ends can be longer self-tapping screws, such as 40 mm-100 mm self-tapping screws, so as to meet the actual installation and connection requirements.
In this embodiment, the bottom plate is provided with a connecting hole for passing through an expansion bolt, and the connecting member 6 can be fixed on the roof 1 or the ground 2 through the expansion bolt.
As shown in fig. 8, in order to further improve the structural stability of the assembled wall, external L-shaped keels 7 may be further disposed at two ends of the wall, and specifically include L-shaped top keels and L-shaped bottom keels, and the width of the external L-shaped keels is only the thickness of the wall, so that the overall size is small, and many defects of the external L-shaped keels disposed along the length direction of the wall in the prior art can be overcome.
In this embodiment, the connection between the connecting member 6 and the vertical keel 5 may be in various forms such as welding, self-tapping screw connection, bolt connection, riveting, and the like.
The assembled wall in this embodiment may be constructed in the following manner:
firstly, the mounting position of a built-in ceiling keel connecting piece 6 can be determined according to the position of a vertical keel 5, and the connecting pieces 6 are respectively mounted on the ground 2 of a roof 1 and fixed through expansion bolts; then, two pieces of wall units which are arranged oppositely of the assembled wall body are installed.
The assembled wall in this embodiment may also be constructed in the following manner:
firstly, a built-in ceiling keel connecting piece 6 and a vertical keel 5 in a wall surface unit can be connected by self-tapping nails; then, the wall surface units are carried and installed on the wall body position line, and after the built-in ceiling keel connecting piece 6 is connected and fixed with the roof 1 or the ground 2 through the expansion bolts, another oppositely-arranged wall surface unit is installed.
Example two:
referring to fig. 9 to 12, a second embodiment of the present invention provides a built-in ceiling keel connecting member, including a base plate 60 for connecting a roof 1 or a floor, the base plate 60 being fixed to the roof 1 or the floor by expansion bolts; the gypsum plaster board also comprises a first side plate 61 for connecting gypsum boards and a second side plate 62 for connecting the vertical keels; the first side plate 61 and the second side plate 62 are both vertically connected to the bottom plate 60, and the first side plate 61 and the second side plate 62 are perpendicular to each other.
In the present embodiment, the connecting member 6 is provided with two first side plates 61 symmetrically arranged, and the connecting structure between the bottom plate 60 and the two first side plates 61 is a U-shaped structure or a C-shaped structure; in the specific operation, the simultaneous connection operation of the wall units on two sides can be realized through the arrangement of one connecting piece 6.
The connecting piece 6 in this embodiment is further provided with a third side plate 63 for connecting adjacent connecting pieces 6 or for connecting the vertical keels, and the third side plate 63 and the second side plate 62 are symmetrically arranged at two ends of the first side plate 61; the second side plate 62, the third side plate 63 and the two first side plates 61 together enclose a rectangular closed structure.
In the specific operation, the specific connection of the third side plate 63 can be determined according to the actual situation; if only one connecting piece 6 is arranged between two vertical keels, the second side plate 62 and the third side plate 63 of the connecting piece 6 are used for connecting the vertical keels at two ends respectively; for example, when two connecting members 6 are disposed between two vertical keels, the second side plate 62 of each connecting member 6 is used to connect the vertical keels, and the third side plate 63 of each connecting member 6 is used to connect adjacent connecting members 6, so as to further improve the stability of the wall structure.
In this embodiment, the first side plate 61 and the second side plate 62 are both provided with a connecting hole for a tapping screw to penetrate through; through the arrangement of the connecting holes, the convenience of connecting operation can be effectively improved.
In this embodiment, the connecting member 6 includes a metal connecting member 6 or a plastic connecting member 6; the person skilled in the art can select the connecting member 6 made of the corresponding material according to the actual situation, so as to realize the stable connection operation of the wall body.
Example three:
as shown in fig. 13, a third embodiment of the present invention provides a built-in ceiling and ground keel connecting piece, the main structure of which is similar to that of the second embodiment, and the bottom plate of the connecting piece 6 is also fixed on the roof 1 or the ground by expansion bolts, and for the specific arrangement of the main structure, please refer to the detailed description of the second embodiment, which is intended to explain the differences between the two embodiments.
In this embodiment, the connecting member 6 is provided with a first side plate 6, and the connecting structure between the bottom plate and the first side plate is an L-shaped structure; it should be noted that, in the installation process of the wall body, one connecting piece 6 is arranged and can only be connected with one side wall unit; two connecting pieces 6 are needed to realize the connection operation of the wall units on the two sides.
In the specific operation, the connecting piece 6 is also provided with a third side plate for connecting the adjacent connecting pieces 6 or for connecting the vertical keel, and the third side plate and the second side plate are symmetrically arranged at two ends of the first side plate; the second side plate, the third side plate and the first side plate jointly form a U-shaped opening structure.
In the description of the present application, the terms "disposed," "connected," "fixed," and the like are used in a broad sense, e.g., "connected" may be a fixed connection, a detachable connection, or an integral connection; may be directly connected or indirectly connected through an intermediate. The specific meaning of the above terms in the present application can be understood by those of ordinary skill in the art as appropriate.
In the description herein, the description of the terms "one embodiment," "some embodiments," "specific embodiments," etc., means that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the application. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
It should be understood by those skilled in the art that the embodiments of the present invention are described above, but the descriptions are only for the purpose of facilitating understanding of the embodiments of the present invention, and are not intended to limit the embodiments of the present invention. It will be understood by those skilled in the art that various changes in form and details may be made therein without departing from the spirit and scope of the embodiments of the invention as defined by the appended claims.
Claims (10)
1. A built-in ceiling keel connecting piece is characterized by comprising a bottom plate used for connecting a roof or the ground, a first side plate used for connecting a gypsum board, and a second side plate used for connecting a vertical keel;
the first side plate and the second side plate are both vertically connected with the bottom plate, and the first side plate and the second side plate are mutually vertical;
the second side plate is arranged at one end of the first side plate;
the top edge and the bottom edge of the second surface of the vertical keel are respectively fixed on the second side plate of the connecting piece, the first surface and the third surface of the vertical keel are symmetrically arranged at two ends of the second surface, and the first surface and the third surface are perpendicular to the second surface.
2. The built-in ceiling keel connection according to claim 1,
the connecting piece is provided with two first curb plates that are the symmetry and set up, the connection structure of bottom plate and two first curb plates is U type structure or C type structure.
3. The built-in ceiling keel connection according to claim 1,
the connecting piece is provided with one first side plate, and the connecting structure of bottom plate and first side plate is L type structure.
4. The built-in ceiling keel connection according to claim 2,
the connecting piece is also provided with a third side plate for connecting adjacent connecting pieces, and the third side plate and the second side plate are symmetrically arranged at two ends of the first side plate;
the second side plate, the third side plate and the two first side plates jointly enclose a rectangular closed structure.
5. The built-in ceiling keel connection according to claim 3,
the connecting piece is also provided with a third side plate for connecting adjacent connecting pieces, and the third side plate and the second side plate are symmetrically arranged at two ends of the first side plate;
the second side plate, the third side plate and the first side plate jointly form a U-shaped opening structure.
6. The built-in ceiling keel connecting piece according to any one of claims 1-5,
and the bottom plate is provided with a connecting hole for the penetration of an expansion bolt.
7. The built-in ceiling keel connecting piece according to any one of claims 1-5,
and a connecting hole for penetrating through the tapping screw is formed in the first side plate.
8. The built-in ceiling keel connecting piece according to any one of claims 1-5,
and a connecting hole for penetrating through the tapping screw is formed in the second side plate.
9. The built-in ceiling keel connecting piece according to any one of claims 1-5,
the connector comprises a metal connector or a plastic connector.
10. A wall comprising the built-in ceiling keel connecting member of any one of claims 1-9, said connecting member being provided on the roof and the ground inside the wall; the gypsum board is fixed on the first surface of the vertical keel through self-tapping screws;
the top and the bottom of gypsum board are fixed respectively on the first curb plate of the connecting piece on roof and ground, the second facial top and the bottom of vertical keel are fixed respectively on the second curb plate of the connection on roof and ground, the first face and the second facial mutually perpendicular of vertical keel.
Priority Applications (1)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
CN201811009158.XA CN110872876B (en) | 2018-08-30 | 2018-08-30 | Built-in world fossil fragments connecting piece and wall body thereof |
Applications Claiming Priority (1)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
CN201811009158.XA CN110872876B (en) | 2018-08-30 | 2018-08-30 | Built-in world fossil fragments connecting piece and wall body thereof |
Publications (2)
Publication Number | Publication Date |
---|---|
CN110872876A CN110872876A (en) | 2020-03-10 |
CN110872876B true CN110872876B (en) | 2021-12-28 |
Family
ID=69714407
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
CN201811009158.XA Active CN110872876B (en) | 2018-08-30 | 2018-08-30 | Built-in world fossil fragments connecting piece and wall body thereof |
Country Status (1)
Country | Link |
---|---|
CN (1) | CN110872876B (en) |
Families Citing this family (1)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
CN112726886A (en) * | 2020-12-31 | 2021-04-30 | 北新集团建材股份有限公司 | Horizontal assembly wall system of card with extending structure |
Family Cites Families (12)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
CN2804219Y (en) * | 2005-07-04 | 2006-08-09 | 何建辉 | Light steel verticle skeleton and assembly for decorative septum |
CN201056780Y (en) * | 2007-06-21 | 2008-05-07 | 熊火生 | Light steel keel flexible structure for partition wall ceiling |
CN102094465B (en) * | 2010-12-08 | 2012-07-04 | 中冶建筑研究总院有限公司 | Composite heat-insulating containment system and construction method thereof |
CN102199949B (en) * | 2011-01-31 | 2014-06-11 | 昆明风动新材料科技有限公司 | Installation construction process of honeycomb lightweight partition wall boards |
CN102747795B (en) * | 2012-08-01 | 2014-07-16 | 宁夏筑邦墙体技术有限公司 | Quickly-assembled veneer partition wall |
CN102953454A (en) * | 2012-10-26 | 2013-03-06 | 谢培敏 | Novel combined partition wall and installation method thereof |
KR101376801B1 (en) * | 2013-09-25 | 2014-03-25 | 마스텍중공업 주식회사 | Keel block device for steel products carrying vessel |
CN203795655U (en) * | 2014-04-17 | 2014-08-27 | 中亿丰建设集团股份有限公司 | Keel partition wall |
CN204282576U (en) * | 2014-12-01 | 2015-04-22 | 中建一局集团装饰工程有限公司 | Light outer wall structure |
CN206815598U (en) * | 2017-04-18 | 2017-12-29 | 江苏建筑职业技术学院 | A kind of building assembled wall of slip |
CN207110125U (en) * | 2017-08-21 | 2018-03-16 | 湖南乐筑建工科技有限公司 | A kind of single bulkhead of light-weight steel keel plaster tablet |
CN207484747U (en) * | 2017-10-31 | 2018-06-12 | 中船第九设计研究院工程有限公司 | A kind of insulation perforated sound-absorbing Self-resetting energy consumption wall |
-
2018
- 2018-08-30 CN CN201811009158.XA patent/CN110872876B/en active Active
Also Published As
Publication number | Publication date |
---|---|
CN110872876A (en) | 2020-03-10 |
Similar Documents
Publication | Publication Date | Title |
---|---|---|
CN110872879B (en) | Modular wall | |
CN110872878B (en) | Assembled wall unit | |
US20090056255A1 (en) | Rigid wall panel system | |
CN110872876B (en) | Built-in world fossil fragments connecting piece and wall body thereof | |
CN112814211B (en) | Mounting method of assembled wall | |
CN112814216A (en) | Horizontal clamping type wall capable of accommodating pipeline and construction method | |
CN110872884B (en) | Assembly type wall with built-in top and bottom keel connecting piece | |
CN110872883B (en) | Assembled wall body of buckle connection | |
CN110778160A (en) | Assembled clean operating room | |
CN215949066U (en) | Assembled wall body connection angle sign indicating number | |
CN110872885B (en) | Wall module with side ribs | |
CN209260990U (en) | Cell curtain wall | |
CN210316100U (en) | Assembled bridge cut-off partition wall system | |
CN113530064A (en) | Assembling plug-in hanging type drop ceiling | |
CN110872880B (en) | Assembled wall body that trip was connected | |
CN110872888B (en) | Clamping hook type keel assembly and wall thereof | |
CN108797857B (en) | Back bolt dry-hanging assembly and back bolt dry-hanging system | |
CN110872881B (en) | Fastener type composite wall | |
CN110872886B (en) | Buckle type keel assembly and wall body thereof | |
CN203247721U (en) | Connecting structure for wallboards in same wall of precast house | |
CN113700148B (en) | Module system of multi-ribbed steel structure and construction method thereof | |
CN110872887B (en) | Assembled wall body connected by buckling type keels | |
CN210316299U (en) | Assembled fitment shingle nail structure | |
CN219825927U (en) | Connecting piece for male and female corners of assembled wall | |
CN211396322U (en) | Non-nail non-glue full-structure waterproof window frame structure of electric lighting smoke-discharging skylight |
Legal Events
Date | Code | Title | Description |
---|---|---|---|
PB01 | Publication | ||
PB01 | Publication | ||
SE01 | Entry into force of request for substantive examination | ||
SE01 | Entry into force of request for substantive examination | ||
GR01 | Patent grant | ||
GR01 | Patent grant |
