Abstract

The invention relates to the technical field of medicine boxes, in particular to an intelligent old people medicine box and a using method thereof, wherein a nixie tube display screen and a plurality of buttons are arranged on the top surface of a box body; a storage battery, a buzzer and an intelligent chip are fixed inside the box body; the front surface of the box body is provided with a plurality of drawer holes; the drawer holes are arranged on the box body in a matrix manner; a drawer is arranged in each drawer hole; the drawer is connected with the side wall of the drawer hole in a sliding way; the front surface of the box body is provided with a plurality of LED lamps; the number of the LED lamps is equal to that of the drawers; the arrangement mode of the drawers is the same as that of the LED lamps. When the novel medicine taking device is used, a patient can be reminded of taking medicine at regular time in the structure, and the medicine taking effect is improved.

Description

Intelligent geriatric medicine box and using method thereof
Technical Field
The invention relates to the technical field of medicine boxes, in particular to an intelligent old people medicine box and a using method thereof.
Background
Due to the change in the pace of daily life, the elderly often forget to take their medications at the times prescribed. In a common time period, the old always forgets to take medicines by trivial matters, so that the state of an illness cannot be improved, the state of the illness becomes worse when the illness is serious, and the treatment effect cannot be achieved.
Disclosure of Invention
The invention aims to provide an intelligent geriatric medicine box aiming at the defects and shortcomings of the prior art.
In order to achieve the purpose, the invention adopts the technical scheme that:
the invention relates to an intelligent geriatric medicine box which comprises a box body; a nixie tube display screen and a plurality of buttons are arranged on the top surface of the box body; a storage battery, a buzzer and an intelligent chip are fixed inside the box body; the front surface of the box body is provided with a plurality of drawer holes; the drawer holes are arranged on the box body in a matrix manner; a drawer is arranged in each drawer hole; the drawer is in sliding connection with the side wall of the drawer hole; the front surface of the box body is provided with a plurality of LED lamps; the number of the LED lamps is equal to that of the drawers; the arrangement mode of the drawers is the same as that of the LED lamps.
Further, the LED lamp is fixed on the front surface of the drawer; and each drawer is fixedly provided with an LED lamp.
Further, a handle is fixed to a front surface of the drawer.
The utility model provides an intelligent old man's medical kit's use method which characterized in that: it comprises the following steps:
a. after the box body is electrified, the nixie tube display screen is set to be zero; b. setting the current time through a button; c. after the corresponding drawer is pulled open, the corresponding nixie tube is set to be zero, the corresponding LED lamp is normally on, and the corresponding medicine is put into the corresponding drawer; d. setting corresponding medicine taking time for different drawers through button setting; e. when the corresponding drawer reaches the set time, the corresponding LED lamp is normally on, and the buzzer sounds; f. and pressing a stop button to stop the buzzer, pulling the drawer again to take out the medicine, then closing the drawer, extinguishing the corresponding LED lamp, and continuing to perform next period of timing.
Compared with the prior art, the invention has the beneficial effects that:
1) the taking time of the medicine can be set according to the time interval, and the use is convenient;
2) can regularly indicate patient to take medicine through bee calling organ and LED lamp, improve the treatment to patient of medicine.
Drawings

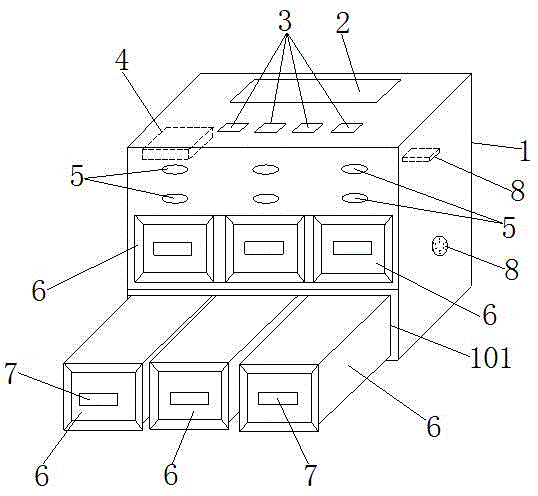

FIG. 1 is a schematic view of the LED lamp of the present invention mounted on the front surface of a housing;
FIG. 2 is a schematic view of the LED lamp of the present invention mounted on a drawer;
FIG. 3 is a workflow diagram of a method of use of a medicine chest;
description of reference numerals:
1. a box body; 101. a drawer hole; 2. a nixie tube display screen; 3. a button; 4. a storage battery;
5. an LED lamp; 6. a drawer; 7. a handle; 8. a buzzer; 9. and (4) an intelligent chip.
Detailed Description
The invention will be further described with reference to the accompanying drawings.
As shown in fig. 1 to 3, the intelligent geriatric medicine box of the present invention includes a box body 1; the top surface of the box body 1 is provided with a nixie tube display screen 2 and a plurality of buttons 3; a storage battery 4, a buzzer 8 and an intelligent chip 9 are fixed inside the box body 1; the front surface of the box body 1 is provided with a plurality of drawer holes 101; the drawer holes 101 are arranged on the box body 1 in a matrix manner; a drawer 6 is arranged in each drawer hole 101; the drawer 6 is in sliding connection with the side wall of the drawer hole 101; the front surface of the box body 1 is provided with a plurality of LED lamps 5; the number of the LED lamps 5 is equal to that of the drawers 6; the arrangement mode of the drawers 6 is the same as that of the LED lamps 5; the intelligent chip 9 has no essential difference with the prior art, and is used for receiving the signal sent by the meter system and sending a corresponding electric signal to the nixie tube display screen 2, the LED lamp 5 and the drawer 6; a timing system is arranged inside the box body 1, and an induction device is arranged inside each drawer 6 and used for identifying whether the drawer 6 is opened or not and sending a signal to the intelligent chip 9; when the drawer 6 is opened, the buzzer 8 is automatically closed, the LED lamp 5 is automatically turned off, when the drawer is closed again, the timing system times the drawer 6 again, the nixie tube display screen 2 displays the calculated time of each drawer 6, the nixie tube display screen 2 displays the timing time of the corresponding drawer 6, when the calculated time of the drawer 6 reaches a set value, the buzzer 8 makes a sound, and the LED lamp 5 at the same arrangement position with the buzzer is turned on to remind a patient to take the medicine in the drawer 6; the button 3 is used for setting corresponding time for taking the medicine; when the buzzer 8 makes a sound and the LED lamp 5 is on, the patient opens the drawer 6 at the corresponding position, then the buzzer 8 is automatically closed, and the LED lamp 5 is automatically turned off to wait for the next signal; the built-in storage battery 4 is charged through the charging module, and the drawer holes 101 and the LED lamps 5 which are arranged in the matrix facilitate the patient to observe the corresponding drawer 6; can regularly remind patient to take medicine in this structure, improve the effect of using medicine.
As a preferable mode of the present invention, the LED lamp 5 is fixed on the front surface of the drawer 6; each drawer 6 is fixed with an LED lamp 5; the LED lamp 5 is directly arranged on the front surface of the drawer 6, so that the patient can conveniently observe the corresponding drawer.
In a preferred embodiment of the present invention, a handle 7 is fixed to a front surface of the drawer 6.
The utility model provides an intelligent old man's medical kit's use method which characterized in that: it comprises the following steps:
a. after the box body 2 is electrified, the nixie tube display screen 2 is set to zero;
b. setting the current time through the button 3;
c. after the corresponding drawer 6 is pulled open, the corresponding nixie tube 2 is set to zero, the corresponding LED lamp 5 is normally on, and the corresponding medicine is put into the corresponding drawer 6;
d. corresponding medicine taking time is set for different drawers 6 through the button 3;
e. when the corresponding drawer 6 reaches the set time, the corresponding LED lamp 5 is normally on, and the buzzer (8) sounds;
f. and pressing the stop button 3 to stop the buzzer (8), pulling the drawer 6 again to take out the medicine, then closing the drawer 6, extinguishing the corresponding LED lamp 5, and continuing to perform the next period of timing.
Compared with the prior art, the invention has the beneficial effects that:
1) the taking time of the medicine can be set according to the time interval, and the use is convenient;
2) can regularly indicate patient to take medicine through bee calling organ and LED lamp, improve the treatment to patient of medicine.
The above description is only a preferred embodiment of the present invention, and all equivalent changes or modifications of the structure, characteristics and principles described in the present invention are included in the scope of the present invention.

Claims (4)

1. The utility model provides an old man's medical kit of intelligence which characterized in that: it comprises a box body (1); the top surface of the box body (1) is provided with a nixie tube display screen (2) and a plurality of buttons (3); a storage battery (4), a buzzer (8) and an intelligent chip (9) are fixed inside the box body (1); the front surface of the box body (1) is provided with a plurality of drawer holes (101); the drawer holes (101) are arranged on the box body (1) in a matrix manner; a drawer (6) is arranged in each drawer hole (101); the drawer (6) is in sliding connection with the side wall of the drawer hole (101); the front surface of the box body (1) is provided with a plurality of LED lamps (5); the number of the LED lamps (5) is equal to that of the drawers (6); the arrangement mode of the drawers (6) is the same as that of the LED lamps (5).
2. The intelligent geriatric case of claim 1, wherein: the LED lamp (5) is fixed on the front surface of the drawer (6); an LED lamp (5) is fixed on each drawer (6).
3. The intelligent geriatric case of claim 1, wherein: a handle (7) is fixed on the front surface of the drawer (6).
4. The utility model provides an intelligent old man's medical kit's use method which characterized in that: it comprises the following steps:
a. after the box body (1) is electrified, the nixie tube display screen (2) is set to zero;
b. setting the current time through a button (3);
c. after the corresponding drawer (6) is pulled open, the corresponding nixie tube (2) is set to zero, the corresponding LED lamp (5) is normally on, and the corresponding medicine is put into the corresponding drawer (6);
d. corresponding medicine taking time is set for different drawers (6) through the button (3);
e. when the corresponding drawer (6) reaches the set time, the corresponding LED lamp (5) is normally on, and the buzzer (8) sounds;
f. and (3) pressing a stop button (3), stopping the buzzer (8), pulling the drawer (6) again to take out the medicine, then closing the drawer (6), extinguishing the corresponding LED lamp (5), and continuing to perform next period of timing.
