CN110789811A - Portable cosmetic product packaging box blank and folding method thereof - Google Patents
Portable cosmetic product packaging box blank and folding method thereof Download PDFInfo
- Publication number
- CN110789811A CN110789811A CN201810872405.2A CN201810872405A CN110789811A CN 110789811 A CN110789811 A CN 110789811A CN 201810872405 A CN201810872405 A CN 201810872405A CN 110789811 A CN110789811 A CN 110789811A
- Authority
- CN
- China
- Prior art keywords
- plate
- side plate
- inner box
- supporting plate
- partition
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
- 239000002537 cosmetic Substances 0.000 title claims abstract description 55
- 238000004806 packaging method and process Methods 0.000 title claims abstract description 46
- 238000000034 method Methods 0.000 title claims abstract description 12
- 238000005192 partition Methods 0.000 claims description 77
- 238000005452 bending Methods 0.000 claims description 56
- 230000000903 blocking effect Effects 0.000 claims description 4
- 238000004519 manufacturing process Methods 0.000 abstract description 5
- 239000012535 impurity Substances 0.000 abstract description 3
- 238000012856 packing Methods 0.000 abstract 2
- 239000000463 material Substances 0.000 abstract 1
- 239000005022 packaging material Substances 0.000 description 5
- 239000000428 dust Substances 0.000 description 2
- 239000002699 waste material Substances 0.000 description 2
- 230000009286 beneficial effect Effects 0.000 description 1
- 239000006071 cream Substances 0.000 description 1
- 230000007547 defect Effects 0.000 description 1
- 239000010985 leather Substances 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
Images
Classifications
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B65—CONVEYING; PACKING; STORING; HANDLING THIN OR FILAMENTARY MATERIAL
- B65D—CONTAINERS FOR STORAGE OR TRANSPORT OF ARTICLES OR MATERIALS, e.g. BAGS, BARRELS, BOTTLES, BOXES, CANS, CARTONS, CRATES, DRUMS, JARS, TANKS, HOPPERS, FORWARDING CONTAINERS; ACCESSORIES, CLOSURES, OR FITTINGS THEREFOR; PACKAGING ELEMENTS; PACKAGES
- B65D5/00—Rigid or semi-rigid containers of polygonal cross-section, e.g. boxes, cartons or trays, formed by folding or erecting one or more blanks made of paper
- B65D5/42—Details of containers or of foldable or erectable container blanks
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B65—CONVEYING; PACKING; STORING; HANDLING THIN OR FILAMENTARY MATERIAL
- B65D—CONTAINERS FOR STORAGE OR TRANSPORT OF ARTICLES OR MATERIALS, e.g. BAGS, BARRELS, BOTTLES, BOXES, CANS, CARTONS, CRATES, DRUMS, JARS, TANKS, HOPPERS, FORWARDING CONTAINERS; ACCESSORIES, CLOSURES, OR FITTINGS THEREFOR; PACKAGING ELEMENTS; PACKAGES
- B65D5/00—Rigid or semi-rigid containers of polygonal cross-section, e.g. boxes, cartons or trays, formed by folding or erecting one or more blanks made of paper
- B65D5/42—Details of containers or of foldable or erectable container blanks
- B65D5/44—Integral, inserted or attached portions forming internal or external fittings
- B65D5/46—Handles
- B65D5/46072—Handles integral with the container
- B65D5/4608—Handgrip holes
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B65—CONVEYING; PACKING; STORING; HANDLING THIN OR FILAMENTARY MATERIAL
- B65D—CONTAINERS FOR STORAGE OR TRANSPORT OF ARTICLES OR MATERIALS, e.g. BAGS, BARRELS, BOTTLES, BOXES, CANS, CARTONS, CRATES, DRUMS, JARS, TANKS, HOPPERS, FORWARDING CONTAINERS; ACCESSORIES, CLOSURES, OR FITTINGS THEREFOR; PACKAGING ELEMENTS; PACKAGES
- B65D5/00—Rigid or semi-rigid containers of polygonal cross-section, e.g. boxes, cartons or trays, formed by folding or erecting one or more blanks made of paper
- B65D5/42—Details of containers or of foldable or erectable container blanks
- B65D5/64—Lids
Landscapes
- Engineering & Computer Science (AREA)
- Mechanical Engineering (AREA)
- Cartons (AREA)
Abstract
The invention discloses a portable cosmetic packaging box blank and a folding method thereof. The folded portable cosmetic packaging box is internally provided with a plurality of inner boxes, has a compact structure and can contain various types of cosmetics; openings are formed at the top ends of the second clapboard and the fourth supporting plate, so that cosmetics can be taken conveniently; a baffle is arranged at the top of the left side plate, so that the position of the top plate can be fixed, and impurities in the box can be prevented from falling; the packing box has simple structure, simple and convenient manufacture, small volume and low cost, the box body is provided with a handle, and a hand bag is not needed to be additionally arranged during use, thereby not only being convenient to carry, but also saving the packing material, and being economic and environment-friendly.
Description
Technical Field
The invention belongs to the field of packaging boxes, and particularly relates to a portable cosmetic packaging box blank and a folding method thereof.
Background
The existing cosmetic packaging box is generally a pasting box, the internal board is usually a gray board, a density board and a medium density board, the external pasting paper is mostly made of coated paper, embossed art paper or PU leather, and in addition, almost all the cosmetic packaging boxes are matched with a corresponding cosmetic handbag, so that the using amount of packaging materials is increased. The cosmetic packaging box is a disposable product, and consumers usually choose to discard the packaging box after purchasing cosmetics, which causes great resource waste.
On the other hand, in order to ensure the safety of cosmetics in the transportation process, the conventional cosmetic packaging box is usually internally provided with a three-dimensional lining, so that the space in the box is increased, the volume of the packaging box is increased, and the waste of packaging materials is further increased.
Disclosure of Invention
The invention aims to overcome the defects of the prior art and provides a portable cosmetic packaging box blank, the packaging box formed by folding the portable cosmetic packaging box blank has simple structure, simple and convenient manufacture and small volume, the box body is provided with a handle, and a hand bag is not needed to be additionally arranged when the portable cosmetic packaging box blank is used, so that the portable cosmetic packaging box blank is convenient to carry, saves packaging materials, and is economic and environment-friendly.
It is another object of the present invention to provide a method of folding a blank for a hand-held cosmetic product packaging box.
In order to solve the technical problems, the invention is realized by the following technical scheme:
a hand-held cosmetic product packaging blank comprising an outer blank for folding into an outer box and an inner blank for folding into an inner box, the inner box for placement within the outer box;
the outer box blank comprises a right side plate, a rear side plate, a left side plate and a front side plate which are sequentially connected from right to left, wherein the top end of the right side plate is connected with a second locking piece, the bottom end of the right side plate is connected with a first bottom plate right supporting plate, the top end of the rear side plate is connected with a second connecting plate, the top end of the second connecting plate is connected with a second handle piece, the bottom end of the rear side plate is connected with a second bottom plate, the top end of the left side plate is connected with a first locking piece, the bottom end of the left side plate is connected with a first bottom plate left supporting plate, the top end of the front side plate is connected with a first connecting plate, the top end of the first connecting plate is connected with a first handle piece, and the bottom end; the right side plate, the rear side plate, the left side plate and the front side plate are all rectangular in shape, wherein the rear side plate and the front side plate are the same in size, and the left side plate and the right side plate are the same in size; a first locking hole is formed in the center of the first locking piece, a second locking hole is formed in the center of the second locking piece, a first handle opening is formed in the center of the first handle piece, a second handle opening is formed in the center of the second handle piece, and the first bottom plate and the second bottom plate are used for forming the box bottom of the outer box;
the inner box blank comprises a first supporting plate, a second supporting plate, a first partition plate, a third supporting plate, a second partition plate and a fourth supporting plate which are sequentially connected from right to left, the top end of the first supporting plate is connected with a top plate, and the top end of the first partition plate is connected with a second inner box cover; the first support plate, the second support plate, the first partition plate, the third support plate, the second partition plate, the fourth support plate, the top plate and the second inner box cover are all rectangular in shape, wherein the first support plate, the second support plate, the first partition plate and the third support plate are the same in height, the second partition plate and the fourth support plate are the same in height and are both smaller than 2/3 of the third support plate in height, the second partition plate is close to the top end of the third support plate, the length of the side edge of the top plate is equal to the length of the top edge of the front side plate, and the second inner box cover is square in shape and has the side length equal to the side length of the top edges of the third support plate, the second partition plate and the fourth support plate; the left side of the fourth supporting plate is connected with a first connecting flap, the top end of the top plate is connected with a first dustproof flap, the top end of the second inner box cover is connected with a second dustproof flap, and the right side of the second inner box cover is connected with a third dustproof flap; the right side of first backup pad with the left side of preceding curb plate is connected and connecting wire between the two is first kinked, the connecting wire of first backup pad and second backup pad is the second kinked, the connecting wire of second backup pad and first baffle is the third kinked, the connecting wire of first baffle and third backup pad is the fourth kinked, the connecting wire of third backup pad and second baffle is the fifth kinked, the connecting wire of second baffle and fourth backup pad is the sixth kinked, the fourth backup pad with the connecting wire of first connection front of a garment piece is the seventh kinked.
In the above technical solution, the bottom end of the fourth supporting plate is connected with a third partition plate, the top side length of the third partition plate is greater than the bottom side length of the fourth supporting plate and extends toward the direction of the second partition plate, the sum of the width of the third partition plate and the width of the second supporting plate is equal to the width of the front side plate, a connection line between the third partition plate and the fourth supporting plate is an eighth bending line, the bottom end of the third partition plate is connected with a second connecting front piece, the connection line between the third partition plate and the second connecting front piece is a ninth bending line, the right side of the third partition plate is connected with a third connecting front piece, the connection line between the third partition plate and the third connecting front piece is a tenth bending line, and the tenth bending line is located below the position between the fifth bending line and the sixth bending line.
In the above technical scheme, a blocking piece is arranged on the left side plate, and a gap into which the first dustproof flap can be inserted is formed between the blocking piece and the inner wall of the left side plate.
In the above technical solution, the first connecting plate and the second connecting plate are rectangles with the same size and are symmetrically located on two sides of the first locking piece, the first handle piece and the second handle piece have the same size, the top end of the first handle piece is provided with a first right side ear and a first left side ear, and the top end of the second handle piece is provided with a second left side ear and a second right side ear; the first left side ear and the second left side ear are same in size, so that the second left side ear and the first left side ear can be inserted into the first locking hole after being mutually attached during folding, and the first right side ear and the second right side ear are same in size, so that the second right side ear and the first right side ear can be inserted into the second locking hole after being mutually attached during folding.
In the technical scheme, a rectangular lock hole is formed in the center of the bottom edge of the first bottom plate, and a lock tongue used for being inserted into the lock hole is arranged in the center of the bottom edge of the second bottom plate.
In the above technical scheme, a semicircular second notch is formed in the top end of the second partition plate, and a semicircular first notch is formed in the top end of the fourth support plate.
In the above technical solution, a chamfer is provided on the left side of the top edge of the second support plate.
In the above technical solution, the top edges of the first partition, the second partition and the fourth support plate are located on the same horizontal line and are lower than the top edge of the second support plate, and the top edge of the third support plate is lower than the top edge of the first partition.
In the technical scheme, between the right side plate and the rear side plate, crease lines are pressed between the right side plate and the second locking piece, between the right side plate and the right supporting plate of the first bottom plate, between the rear side plate and the left side plate, between the rear side plate and the second connecting plate, between the rear side plate and the second bottom plate, between the second connecting plate and the second handle piece, between the left side plate and the front side plate, between the left side plate and the first locking piece, between the left side plate and the left supporting plate of the first bottom plate, between the front side plate and the first connecting plate, between the first connecting plate and the first handle piece, between the front side plate and the first bottom plate, between the top plate and the first supporting plate, between the top plate and the first dustproof flap piece, between the first separating plate and the second inner box cover, between the second inner box cover and the second dustproof flap piece and between the second inner box cover and the third dustproof flap piece.
In the technical scheme, the outer box blank and the inner box blank are both made of coated paper.
A folding method of a portable cosmetic product packaging box blank comprises the following steps:
bending the first support plate, the second support plate and the first partition plate by 90 degrees along the corresponding first bending line, the second bending line and the third bending line respectively in sequence to form a rectangular box body with the front side plate, so as to obtain a first inner box; bending the third support plate, the second partition plate and the fourth support plate by 90 degrees along the corresponding fourth bending line, the corresponding fifth bending line and the corresponding sixth bending line respectively to form a rectangular box body with the first partition plate, so as to obtain a second inner box, bending a second inner box cover downwards to cover the top end of the second inner box, and bending the top plate downwards to cover the top end of the first inner box; respectively bending a left side plate, a rear side plate and a right side plate in sequence to form a rectangular box body structure with the front side plate, wrapping a first inner box and a second inner box in the rectangular box body structure, bending the first bottom plate upwards to form 90 degrees with the front side plate, bending the left supporting plate of the first bottom plate and the right supporting plate of the first bottom plate to cover the lower part of the first bottom plate, bending the second bottom plate upwards to form 90 degrees with the rear side plate, inserting a spring bolt into a lock hole to lock the first bottom plate (5) and the second bottom plate (6), forming a third inner box with the second partition plate of the second inner box and the front side plate, the left side plate and the rear side plate, forming a fourth inner box with the bottom part of the second inner box and the first bottom plate, bending the first connecting plate and the second connecting plate in opposite directions to enable the first handle sheet and the second handle sheet to be mutually attached, so that the first left side ear and the second left side ear are inserted into the first locking hole in an attaching manner, and the first right side ear and the second right side ear are inserted into the second locking hole in an attaching manner.
Compared with the prior art, the invention has the advantages and beneficial effects that:
(1) the folded portable cosmetic packaging box is internally provided with a plurality of inner boxes, has a compact structure and can contain various types of cosmetics.
(2) According to the folded portable cosmetic packaging box, the top ends of the second partition plate and the fourth supporting plate are provided with the notches, so that cosmetics can be taken conveniently.
(3) The top of the left side plate of the folded portable cosmetic packaging box is provided with the baffle plate, so that the position of the top plate can be fixed, and impurities in the box can be prevented from falling.
(4) The folded portable cosmetic packaging box has the advantages of simple structure, simple and convenient manufacture, small volume and low cost, the box body is provided with the handle, and a hand bag is not needed to be additionally arranged when in use, so that the portable cosmetic packaging box is convenient to carry, saves packaging materials, and is economic and environment-friendly.
Drawings

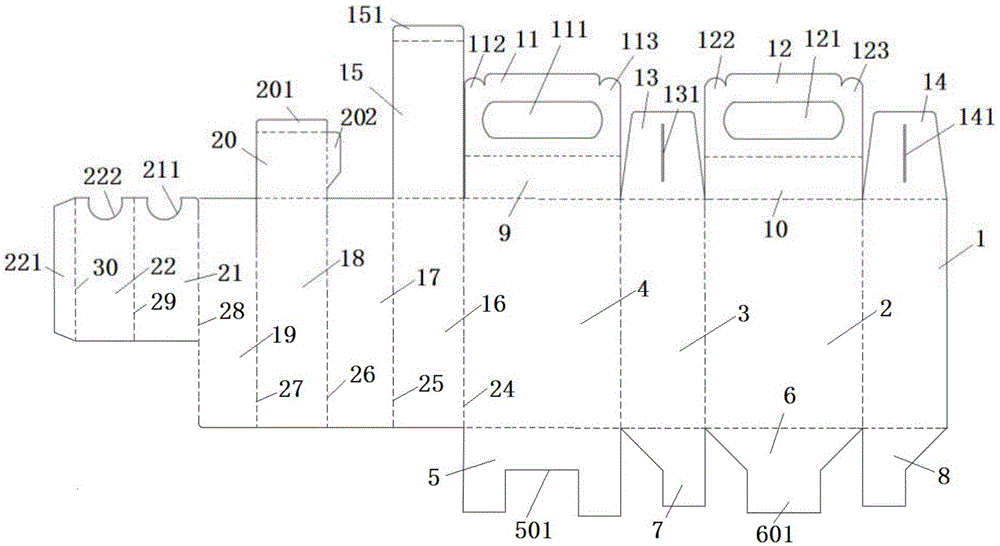

FIG. 1 is a schematic plan view of a blank for a package in accordance with one embodiment of the present invention;
FIG. 2 is a schematic plan view of a blank for a package in accordance with a second embodiment of the present invention;
FIG. 3 is a schematic plan view of a blank for a package in accordance with a third embodiment of the present invention;
fig. 4 is a schematic perspective view of the present invention.
Wherein, 1: right side plate, 2: rear side plate, 3: left side plate, 301: a baffle plate, 4: front side plate, 5: first base plate, 501: lock hole, 6: second base plate, 601: a bolt, 7: first bottom plate left pallet, 8: first bottom plate right pallet, 9: first connecting plate, 10: second connecting plate, 11: first handle sheet, 111: first handle aperture, 112: first right ear, 113: first left ear, 12: second handle sheet, 121: second handle aperture, 122: second left ear, 123: second right ear, 13: first locking piece, 131: first locking hole, 14: second locking piece, 141: second locking hole, 15: top plate, 151: first dust-proof flap, 16: first support plate, 17: second support plate, 18: first separator, 19: third support plate, 20: second inner box cover, 201: second dust flap, 202: third dust-proof flap, 21: second separator, 211: second gap, 22: fourth support plate, 221: first attachment flap, 222: first gap, 23: third separator, 231: second attachment flap, 232: third connecting flap, 24: first bend line, 25: second bend line, 26: third bend line, 27: fourth bend line, 28: fifth bend line, 29: sixth bend line, 30: seventh bend line, 31: eighth bend line, 32: ninth bend line, 33: tenth bend line, 34: handle, 35: first inner case, 36: second inner case, 37: third inner case, 38: and a fourth inner box.
For those skilled in the art, without creative efforts, other related drawings can be obtained according to the above drawings
Detailed Description
In order to make the technical solution of the present invention better understood, the technical solution of the present invention is further described below with reference to the accompanying drawings and specific embodiments. It should be noted that: the following examples are illustrative and not intended to be limiting, and are not intended to limit the scope of the invention. The portable cosmetic packaging box in the following embodiment is made by cutting and folding coated paper.
Example one
Referring to a particular embodiment of a hand-held cosmetic packaging blank shown in fig. 1, it can be seen that the invention comprises an outer blank for folding into an outer box and an inner blank for folding into an inner box, said inner box for placement within the outer box;
the outer box blank comprises a right side plate 1, a rear side plate 2, a left side plate 3 and a front side plate 4 which are sequentially connected from right to left, wherein a second locking piece 14 is connected to the top end of the right side plate 1, a first bottom plate right supporting plate 8 is connected to the bottom end of the right side plate 1, a second connecting plate 10 is connected to the top end of the rear side plate 2, a second handle piece 12 is connected to the top end of the second connecting plate 10, a second bottom plate 6 is connected to the bottom end of the rear side plate 2, a first locking piece 13 is connected to the top end of the left side plate 3, a first bottom plate left supporting plate 7 is connected to the bottom end of the left side plate 3, a first connecting plate 9 is connected to the top end of the front side plate 4, a first handle piece 11 is connected to the top end of the first connecting plate 9, and a first bottom; the right side plate 1, the rear side plate 2, the left side plate 3 and the front side plate 4 are all rectangular in shape, wherein the rear side plate 2 and the front side plate 4 are the same in size, and the left side plate 3 and the right side plate 1 are the same in size; a first locking hole 131 is formed in the center of the first locking piece 13, a second locking hole 141 is formed in the center of the second locking piece 14, a first handle opening 111 is formed in the center of the first handle piece 11, a second handle opening 121 is formed in the center of the second handle piece 12, and the first bottom plate 5 and the second bottom plate 6 are used for forming the box bottom of the outer box;
the inner box blank comprises a first supporting plate 16, a second supporting plate 17, a first partition plate 18, a third supporting plate 19, a second partition plate 21 and a fourth supporting plate 22 which are sequentially connected from right to left, the top end of the first supporting plate 16 is connected with a top plate 15, and the top end of the first partition plate 18 is connected with a second inner box cover 20; the first support plate 16, the second support plate 17, the first partition plate 18, the third support plate 19, the second partition plate 21, the fourth support plate 22, the top plate 15 and the second inner box cover 20 are all rectangular in shape, wherein the first support plate 16, the second support plate 17, the first partition 18 and the third support plate 19 have the same height, the second partition 21 and the fourth support plate 22 have the same height and are 1/2 the height of the third support plate 19, the second partition 21 is near the top end of the third support plate 19, while the top edges of the second and fourth support panels 21 and 22 are positioned on the same horizontal line as the top edge of the third support panel 19, the length of the side edge of the top plate 15 is equal to the length of the top edge of the front side plate 4, the shape of the second inner box cover 20 is square, and the side length of the second inner box cover is equal to the side length of the top edge of the third support plate 19, the second partition plate 21 and the fourth support plate 22 respectively; a first connection flap 221 is connected to the left side of the fourth support plate 22, a first dustproof flap 151 is connected to the top end of the top plate 15, a second dustproof flap 201 is connected to the top end of the second inner box cover 20, and a third dustproof flap 202 is connected to the right side of the second inner box cover; the right side of first backup pad 16 with the left side of preceding curb plate 4 is connected and the connecting wire between the two is first kinked 24, the connecting wire of first backup pad 16 and second backup pad 17 is second kinked 25, the connecting wire of second backup pad 17 and first baffle 18 is third kinked 26, the connecting wire of first baffle 18 and third backup pad 19 is fourth kinked 27, the connecting wire of third backup pad 19 and second baffle 21 is fifth kinked 28, the connecting wire of second baffle 21 and fourth backup pad 22 is sixth kinked 29, fourth backup pad 22 with the connecting wire of first connection flap 221 is seventh kinked 30.
The first connecting plate 9 and the second connecting plate 10 are rectangles with the same size and are symmetrically located on two sides of the first locking plate 13, the first handle piece 11 and the second handle piece 12 are identical in size, a first right side ear 112 and a first left side ear 113 which are mutually symmetrical are arranged on the left side and the right side of the top end of the first handle piece 11, a second left side ear 122 and a second right side ear 123 which are mutually symmetrical are arranged on the left side and the right side of the top end of the second handle piece 12, the first left side ear 113 and the second left side ear 122 are identical in size, are mutually attached to each other for being inserted into the first locking hole 131 when being folded, and the first right side ear 112 and the second right side ear 123 are identical in size, and are mutually attached to each other for being inserted into the second locking hole 141 when being folded. The bottom edge center of the first bottom plate 5 is provided with a rectangular lock hole 501, the bottom edge center of the second bottom plate 6 is provided with a lock tongue 601 for inserting the lock hole 501, the top end of the second partition plate 21 is provided with a semicircular second notch 211, the top end of the fourth support plate 22 is provided with a semicircular first notch 222, and the left side of the top edge of the second support plate 17 is provided with a chamfer.
Between the right side plate 1 and the rear side plate 2, between the right side plate 1 and the second locking piece 14, between the right side plate 1 and the first bottom plate right supporting plate 8, between the rear side plate 2 and the left side plate 3, between the rear side plate 2 and the second connecting plate 10, between the rear side plate 2 and the second bottom plate 6, between the second connecting plate 10 and the second handle piece 12, between the left side plate 3 and the front side plate 4, between the left side plate 3 and the first locking piece 13, between the left side plate 3 and the first bottom plate left supporting plate 7, between the front side plate 4 and the first connecting plate 9, between the first connecting plate 9 and the first handle piece 11, between the front side plate 4 and the first bottom plate 5, between the top plate 15 and the first supporting plate 16, between the top plate 15 and the first dust-proof flap 151, between the first partition plate 18 and the second inner box cover 20, between the second inner box cover 20 and the second dust-proof flap 201, and between the second inner box cover 20 and the third dust-proof box cover 20 Crease lines are pressed between the flaps 202.
The folding method of the present invention is described in detail below with reference to the accompanying drawings:
firstly, cutting out the outline of the whole of the outer box blank and the inner box blank (namely the outer box blank and the inner box blank are connected together) by using coated paper; then bending the first support plate 16 upwards along the first bending line 24 to form a 90 ° angle with the front side plate 4, bending the second support plate 17 downwards along the second bending line 25 to form a 90 ° angle with the first support plate 16, and bending the first partition plate 18 downwards along the third bending line 26 to form a 90 ° angle with the second support plate 17, so that a rectangular box body is enclosed among the first support plate 16, the second support plate 17, the first partition plate 18 and the front side plate 4, thereby obtaining a first inner box 35; bending the third support plate 19 along the fourth bending line 27 to be closely attached to the front side plate 4, bending the second partition plate 21 along the fifth bending line 28 to form a 90 ° angle with the third support plate 19, bending the fourth support plate 22 along the sixth bending line 29 to form a 90 ° angle with the second partition plate 21, bending the first connection flap 221 along the seventh bending line 30 to form a 90 ° angle with the seventh bending line and bonding the first connection flap to the first partition plate 18, so that a rectangular box body is formed among the third support plate 19, the second partition plate 21, the fourth support plate 22 and the first partition plate 18, and a second inner box 36 is obtained; bending the second inner box cover 20 downwards to cover the top end of the second inner box 36, and bending the top plate 15 downwards to cover the top end of the first inner box 35; a rectangular box body structure is formed between the left side plate 3, the rear side plate 2 and the right side plate 1 and the front side plate 4 by respectively bending the left side plate 3, the rear side plate 2 and the right side plate 1, the rectangular box body structure wraps the first inner box 35 and the second inner box 36, the first bottom plate 5 is bent upwards to form a 90-degree angle with the front side plate 4, the first bottom plate left supporting plate 7 and the first bottom plate right supporting plate 8 are bent to cover the lower part of the first bottom plate 5, the second bottom plate 6 is bent upwards to form a 90-degree angle with the rear side plate 2, meanwhile, the bolt 601 is inserted into the lock hole 501 of the first bottom plate 5, a third inner box 37 is formed between the second partition plate 21 of the second inner box 36 and the front side plate 4 as well as between the left side plate 3 and the rear side plate 2, and a fourth inner box 38 is formed between the bottom of the second inner box 36 and the first bottom plate 5; the height of the first inner box 35 is the highest, and the first inner box can be used for containing cosmetics (such as toner) with an appearance of a long cylindrical bottle body, the height of the second inner box 36 is lower than that of the first inner box 35 and is used for containing cosmetics (such as essence) with an appearance of a short cylindrical bottle body, the third inner box 37 is of a narrow flat cuboid structure and is used for containing cosmetic specifications, the height of the fourth inner box 38 is lower than that of the first inner box 35, the width of the fourth inner box is wider than that of the second inner box 36 and is used for containing cosmetics (such as cream) with an appearance of a cylindrical tank body, the cosmetics in the second inner box 36 can be conveniently taken through the first notch 222 and the second notch 211, and the chamfer arranged on the left side of the top edge of the second support plate 17 prevents users from being pricked when the users take the cosmetics.
And bending the first connecting plate 9 and the second connecting plate 10 oppositely, attaching the first handle sheet 11 and the second handle sheet 12 to form a handle (34), and finally, respectively locking the two sides of the handle by using the first locking sheet 13 and the second locking sheet 14. In addition, the blister is arranged in the portable cosmetic packaging box, so that the cosmetics can be effectively fixed, and the safety of the cosmetics in the transportation process can be ensured.
Example two
Referring to fig. 2, in another embodiment of the portable cosmetic packaging box, on the basis of the first embodiment, the top edges of the first partition 18, the second partition 21 and the fourth support plate 22 are located on the same horizontal line and are lower than the top edge of the second support plate 17, and the top edge of the third support plate 19 is lower than the top edge of the first partition 18; the first inner box 35 and the second inner box 36 are staggered in height, so that the packaging box is more attractive in structure and cosmetics in the packaging box can be taken more conveniently.
The top of the left side plate 3 is provided with a baffle plate 301, a gap is formed between the baffle plate 301 and the inner wall of the left side plate 3, the first dustproof flap 151 can be inserted into the gap, the position of the top plate 15 is convenient to fix, and dust and impurities are prevented from falling into the box.
EXAMPLE III
Referring to another specific embodiment of a portable cosmetic product packaging box shown in fig. 3, on the basis of the second embodiment, on the inner box blank of the present invention, a third partition 23 is connected to the bottom end of the fourth supporting plate 22, the length of the top side of the third partition 23 is greater than the length of the bottom side of the fourth supporting plate 22 and extends toward the direction of the second partition 21, the sum of the width of the third partition 23 and the width of the second supporting plate 17 is equal to the width of the front side plate 4, the connecting line between the third partition 23 and the fourth supporting plate 22 is an eighth bending line 31, the bottom end of the third partition 23 is connected with a second connecting flap 231, the connecting line between the third partition 23 and the second connecting flap 231 is a ninth bending line 32, the right side of the third partition 23 is connected with a third connecting flap 232, the connecting line between the third partition 23 and the third connecting flap 232 is a tenth bending line 33, tenth bend line 33 is located below the location between fifth bend line 28 and sixth bend line 29.
When the portable cosmetic packaging box of the present invention is manufactured, the third partition 23 is bent upward along the eighth bending line 31 and forms a 90 ° angle with the sidewall of the second inner box 36, the second connecting flap 231 is bent along the ninth bending line 32 and is bonded to the third supporting plate 19, the third connecting flap 232 is bent along the tenth bending line 33 and is bonded to the left side plate 3, and the third partition 23 separates the second inner box 36, the third inner box 37 and the fourth inner box 38, and also plays a role in manufacturing the internal structure of the box body of the packaging box.
The portable cosmetic packaging box has the advantages of simple structure, simple and convenient manufacture, small volume and low cost, the box body is provided with the handle, and a hand bag is not needed to be additionally arranged when in use, so that the portable cosmetic packaging box is convenient to carry, saves packaging materials, and is economic and environment-friendly.
Spatially relative terms, such as "upper," "lower," "left," "right," and the like, may be used in the embodiments for ease of description to describe one element or feature's relationship to another element or feature as illustrated in the figures. It will be understood that the spatial terms are intended to encompass different orientations of the device in use or operation in addition to the orientation depicted in the figures. For example, if the device in the figures is turned over, elements described as "below" other elements or features would then be oriented "above" the other elements or features. Thus, the exemplary term "lower" can encompass both an upper and a lower orientation. The device may be otherwise oriented (rotated 90 degrees or at other orientations) and the spatially relative descriptors used herein interpreted accordingly.
Moreover, relational terms such as "first" and "second," and the like, may be used solely to distinguish one element from another element having the same name, without necessarily requiring or implying any actual such relationship or order between such elements.
The invention has been described in an illustrative manner, and it is to be understood that any simple variations, modifications or other equivalent changes which can be made by one skilled in the art without departing from the spirit of the invention fall within the scope of the invention.
Claims (10)
1. A portable cosmetics packaging box base which is characterized in that: the folding box comprises an outer box blank folded into an outer box and an inner box blank folded into an inner box, wherein the inner box is used for being placed in the outer box;
the outer box blank comprises a right side plate (1), a rear side plate (2), a left side plate (3) and a front side plate (4) which are sequentially connected from right to left, wherein a second locking piece (14) is connected to the top end of the right side plate (1), a first bottom plate right supporting plate (8) is connected to the bottom end of the right side plate (1), a second connecting plate (10) is connected to the top end of the rear side plate (2), a second lifting handle piece (12) is connected to the top end of the second connecting plate (10), a second bottom plate (6) is connected to the bottom end of the rear side plate (2), a first locking piece (13) is connected to the top end of the left side plate (3), a first bottom plate left supporting plate (7) is connected to the bottom end of the left side plate (3), a first connecting plate (9) is connected to the top end of the front side plate (4), and a first lifting handle piece (11) is, the bottom end of the front side plate (4) is connected with a first bottom plate (5); the right side plate (1), the rear side plate (2), the left side plate (3) and the front side plate (4) are all rectangular in shape, wherein the rear side plate (2) and the front side plate (4) are the same in size, and the left side plate (3) and the right side plate (1) are the same in size; a first locking hole (131) is formed in the center of the first locking piece (13), a second locking hole (141) is formed in the center of the second locking piece (14), a first handle opening (111) is formed in the center of the first handle piece (11), a second handle opening (121) is formed in the center of the second handle piece (12), and the first bottom plate (5) and the second bottom plate (6) are used for forming the box bottom of the outer box;
the inner box blank comprises a first supporting plate (16), a second supporting plate (17), a first partition plate (18), a third supporting plate (19), a second partition plate (21) and a fourth supporting plate (22) which are sequentially connected from right to left, the top end of the first supporting plate (16) is connected with a top plate (15), and the top end of the first partition plate (18) is connected with a second inner box cover (20); the first supporting plate (16), the second supporting plate (17), the first partition plate (18), the third supporting plate (19), the second partition plate (21), the fourth supporting plate (22), the top plate (15) and the second inner box cover (20) are all rectangular in shape, wherein the first support plate (16), the second support plate (17), the first partition plate (18) and the third support plate (19) have the same height, the heights of the second partition board (21) and the fourth support board (22) are the same and are both smaller than 2/3 of the height of the third support board (19), the second partition plate (21) is close to the top end of the third supporting plate (19), the length of the side edge of the top plate (15) is equal to the length of the top edge of the front side plate (4), the second inner box cover (20) is square and the side length of the second inner box cover is equal to the side length of the top edge of the third supporting plate (19), the second partition plate (21) and the fourth supporting plate (22); a first connecting flap (221) is connected to the left side of the fourth supporting plate (22), a first dustproof flap (151) is connected to the top end of the top plate (15), a second dustproof flap (201) is connected to the top end of the second inner box cover (20), and a third dustproof flap (202) is connected to the right side of the second inner box cover; the right side of first backup pad (16) with the left side of preceding curb plate (4) is connected and connecting wire between the two is first kinked (24), the connecting wire of first backup pad (16) and second backup pad (17) is second kinked (25), the connecting wire of second backup pad (17) and first baffle (18) is third kinked (26), the connecting wire of first baffle (18) and third backup pad (19) is fourth kinked (27), the connecting wire of third backup pad (19) and second baffle (21) is fifth kinked (28), the connecting wire of second baffle (21) and fourth backup pad (22) is sixth kinked (29), fourth backup pad (22) with the connecting wire of first connection flap (221) is seventh kinked (30).
2. A hand-held cosmetic packaging box blank according to claim 1 wherein: the bottom end of the fourth supporting plate (22) is connected with a third clapboard (23), the top side length of the third clapboard (23) is greater than the bottom side length of the fourth supporting plate (22) and extends towards the direction of the second clapboard (21), the sum of the width of the third clapboard (23) and the width of the second supporting plate (17) is equal to the width of the front side plate (4), the connecting line of the third clapboard (23) and the fourth supporting plate (22) is an eighth bending line (31), the bottom end of the third clapboard (23) is connected with a second connecting flap (231), the connecting line of the third clapboard (23) and the second connecting flap (231) is a ninth bending line (32), the right side of the third clapboard (23) is connected with a third connecting flap (232), the connecting line of the third clapboard (23) and the third connecting flap (232) is a tenth bending line (33), the tenth bend line (33) is located below a position between the fifth bend line (28) and the sixth bend line (29).
3. A hand-held cosmetic packaging blank according to claim 1 or 2 wherein: a blocking piece (301) is arranged on the left side plate (3), and a gap into which the first dustproof flap (151) can be inserted is formed between the blocking piece (301) and the inner wall of the left side plate (3).
4. A hand-held cosmetic packaging box blank according to claim 1 wherein: the first connecting plate (9) and the second connecting plate (10) are rectangular and symmetrically located on two sides of the first locking piece (13), the first handle piece (11) and the second handle piece (12) are identical in size, a first right side lug (112) and a first left side lug (113) are arranged at the top end of the first handle piece (11), and a second left side lug (122) and a second right side lug (123) are arranged at the top end of the second handle piece (12); the first left side ear (113) and the second left side ear (122) are the same in size, so that the second left side ear (122) and the first left side ear (113) can be inserted into the first locking hole (131) after being attached to each other in the folding process, and the first right side ear (112) and the second right side ear (123) are the same in size, so that the second right side ear (123) and the first right side ear (112) can be inserted into the second locking hole (141) after being attached to each other in the folding process.
5. A hand-held cosmetic packaging box blank according to claim 1 wherein: the middle of the bottom edge of the first bottom plate (5) is provided with a rectangular lock hole (501), and the middle of the bottom edge of the second bottom plate (6) is provided with a lock tongue (601) inserted into the lock hole (501).
6. A hand-held cosmetic packaging box blank according to claim 1 wherein: the top end of the second clapboard (21) is provided with a semicircular second gap (211), and the top end of the fourth supporting plate (22) is provided with a semicircular first gap (222).
7. A hand-held cosmetic packaging box blank according to claim 1 wherein: and a chamfer is arranged on the left side of the top edge of the second supporting plate (17).
8. A hand-held cosmetic packaging box blank according to claim 1 wherein: the top edges of the first partition plate (18), the second partition plate (21) and the fourth support plate (22) are positioned on the same horizontal line and are lower than the top edge height of the second support plate (17), and the top edge height of the third support plate (19) is lower than the top edge height of the first partition plate (18).
9. A hand-held cosmetic packaging box blank according to claim 1 wherein: the locking mechanism is characterized in that the locking mechanism is arranged between the right side plate (1) and the rear side plate (2), between the right side plate (1) and the second locking piece (14), between the right side plate (1) and the first bottom plate right supporting plate (8), between the rear side plate (2) and the left side plate (3), between the rear side plate (2) and the second connecting plate (10), between the rear side plate (2) and the second bottom plate (6), between the second connecting plate (10) and the second lifting piece (12), between the left side plate (3) and the front side plate (4), between the left side plate (3) and the first locking piece (13), between the left side plate (3) and the first bottom plate left supporting plate (7), between the front side plate (4) and the first connecting plate (9), between the first connecting plate (9) and the first lifting piece (11), between the front side plate (4) and the first bottom plate (5), Crease lines are pressed between the top plate (15) and the first supporting plate (16), between the top plate (15) and the first dustproof flap (151), between the first partition plate (18) and the second inner box cover (20), between the second inner box cover (20) and the second dustproof flap (201) and between the second inner box cover (20) and the third dustproof flap (202).
10. A method of folding a hand-held cosmetic packaging blank according to any one of claims 1 to 9 wherein:
respectively bending the first support plate (16), the second support plate (17) and the first partition plate (18) for 90 degrees along the corresponding first bending line (24), the second bending line (25) and the third bending line (26) in sequence to form a rectangular box body with the front side plate (4) in a surrounding manner, so as to obtain a first inner box (35); the third supporting plate (19), the second partition plate (21) and the fourth supporting plate (22) are respectively bent for 90 degrees along a corresponding fourth bending line (27), a corresponding fifth bending line (28) and a corresponding sixth bending line (29) to form a rectangular box body with the first partition plate (18), so that a second inner box (36) is obtained, a second inner box cover (20) is bent downwards to cover the top end of the second inner box (36), and the top plate (15) is bent downwards to cover the top end of the first inner box (35); a left side plate (3), a rear side plate (2) and a right side plate (1) are respectively bent in sequence to form a rectangular box body structure with a front side plate (4) in an enclosing manner, a first inner box (35) and a second inner box (36) are wrapped in the rectangular box body structure, the first bottom plate (5) is bent upwards to form a 90-degree angle with the front side plate (4), the first bottom plate left supporting plate (7) and the first bottom plate right supporting plate (8) are bent to cover the lower part of the first bottom plate (5), the second bottom plate (6) is bent upwards to form a 90-degree angle with the rear side plate (2), a lock tongue (601) is inserted into a lock hole (501) to lock the first bottom plate (5) and the second bottom plate (6), and a third inner box (37) is defined by the second partition plate (21) of the second inner box (36) and the front side plate (4), the left side plate (3) and the rear side plate (2), and a fourth inner box (38) is defined between the bottom of the second inner box (36) and the first bottom plate (5), the first connecting plate (9) and the second connecting plate (10) are bent towards each other, and the first handle sheet (11) and the second handle sheet (12) are attached to each other, so that the first left lug (113) and the second left lug (122) are attached to and inserted into the first locking hole (131), and the first right lug (112) and the second right lug (123) are attached to and inserted into the second locking hole (141).
