Abstract

A dust-cleaning and filtering device of a floor washing machine comprises a chassis, wherein a rotating mechanism is arranged on the upper end surface of the chassis, the rotating mechanism is fixedly provided with an ash removal component which is arranged below the chassis, the right side of the rotating mechanism is provided with a dust collecting box, the dust collecting box is fixedly connected with the dust cleaning component through a dust collecting pipe, the invention relates to a dust cleaning and filtering device of a floor washing machine, by arranging the dust hood, the suction pump, the filter screen grid and the like, dust and sundries on the ground are sucked, the ground washing effect of the ground washing machine is improved, the effects of blockage of the ground washing machine and the like are avoided, the problems that the cleaning resistance is increased and the cleaning difficulty is increased when the dust and the sundries on the ground of the existing ground washing machine are more are solved, and when sewage is recycled, when a large amount of dust or impurities exist in the sewage, the water absorption is easy to block, and the floor cleaning machine cannot work normally.

Description

Ash removal and filtration device of floor washing machine
Technical Field
The invention relates to the technical field of industrial floor washers, in particular to a dust removal and filtration device of a floor washer.
Background
The floor cleaning machine is suitable for cleaning hard ground and simultaneously sucking dry sewage, and takes the sewage away from the cleaning machine on the spot, has the advantages of environmental protection, energy conservation, high efficiency and the like, but when the dust and sundries on the ground of the existing floor cleaning machine are more, the cleaning resistance can be increased, the cleaning difficulty is increased, and the phenomenon of mud mixing can also be generated.
Disclosure of Invention
The invention aims to provide a dust removal and filtration device of a floor washing machine, which aims to solve the problems in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme:
the utility model provides a scrubber deashing filter equipment, includes the chassis, be provided with slewing mechanism on the up end on chassis, slewing mechanism is last fixed mounting has the deashing part, the deashing part sets up the below on chassis, slewing mechanism's right side is provided with the dust collection box, through dust absorption pipe fixed connection between dust collection box and the deashing part.
Preferably, slewing mechanism is including the installation piece, installation piece fixed mounting is on the up end on chassis, the inside fixed mounting of installation piece has the motor, rotate on the up end of installation piece and install the dwang, the bottom of dwang and the output fixed connection of motor, fixed mounting has the trace on the dwang, the lower terminal surface of trace has the movable plate through installation pole fixed mounting, it has the shifting chute to correspond movable plate position department on the chassis, fixed mounting has the connecting rod on the lower terminal surface of movable plate, the connecting rod is pegged graft in the inside of shifting chute, the lower extreme and the deashing part fixed connection of connecting rod.
Preferably, the lower end surface of the moving plate is provided with mounting grooves which are symmetrically distributed in the left-right direction, the inside of each mounting groove is rotatably provided with a roller through a pin shaft, the upper end surface of the chassis is provided with a guide groove corresponding to the position of the roller, and the rollers are inserted into the guide grooves.
Preferably, the deashing part includes the mounting panel, mounting panel fixed mounting is in the bottom of connecting rod, fixed mounting has a plurality of symmetric distribution's electric putter on the lower terminal surface of mounting panel, electric putter's output fixed mounting has the suction hood, fixed mounting has the intercommunication hose on the suction hood, the other end and the dust absorption pipe fixed connection of intercommunication hose.
Preferably, a plurality of telescopic rods which are uniformly distributed are fixedly arranged between the dust hood and the mounting plate, and springs are sleeved on the telescopic rods.
Preferably, a mounting frame is fixedly mounted between the front end face and the rear end face inside the dust collection box, a filter screen grid is arranged on the mounting frame, and an air suction pump is arranged on the dust collection pipe.
Compared with the prior art, the invention has the beneficial effects that: a dust cleaning and filtering device of a floor washer is characterized in that a dust cleaning component is arranged on the front side of the floor washer to suck dust and sundries on the ground, the effect of subsequent floor washing of the floor washer is improved, the blockage of the floor washer is avoided, the dust cleaning area and the dust cleaning effect are improved through a rotating mechanism, a rotating rod is driven to rotate through the operation of a motor, a moving plate is driven to move through a linkage rod and an installation rod, a connecting rod moves inside a moving groove to drive the dust cleaning component to move, the dust cleaning area and the effect are improved, the dust cleaning component rolls inside a guide groove through a roller wheel, the smoothness of movement of the dust cleaning component is improved, the blockage and the mechanical abrasion are avoided, the service life is prolonged, the dust and the sundries on the ground are adsorbed through a dust hood, the dust and the sundries are communicated with a dust suction pipe through a communication hose and finally enter a dust collection box to be collected, an electric, the dust collection box has the advantages that the adsorption force on sundries is improved, the ash removal is cleaner, the air suction pump provides power for adsorption, the adsorbed dust and the sundries are filtered through the filter screen grids, the sundries are left in the filter screen grids, the dust enters the dust collection box, and the subsequent cleaning of workers is facilitated. The invention relates to a dust removal and filtration device of a floor scrubber, which is provided with a dust hood, an air suction pump, a filter screen grid and the like, so that dust and sundries on the ground are sucked, the floor scrubbing effect of the floor scrubber is improved, the effects of floor scrubber blockage and the like are avoided, and the problems that the cleaning resistance is increased and the cleaning difficulty is increased when the dust and sundries on the ground are more in the existing floor scrubber, and the floor scrubber cannot normally work due to the fact that water is easily sucked and blocked when a large amount of dust or sundries exist in the sewage when the sewage is recycled are solved.
Drawings

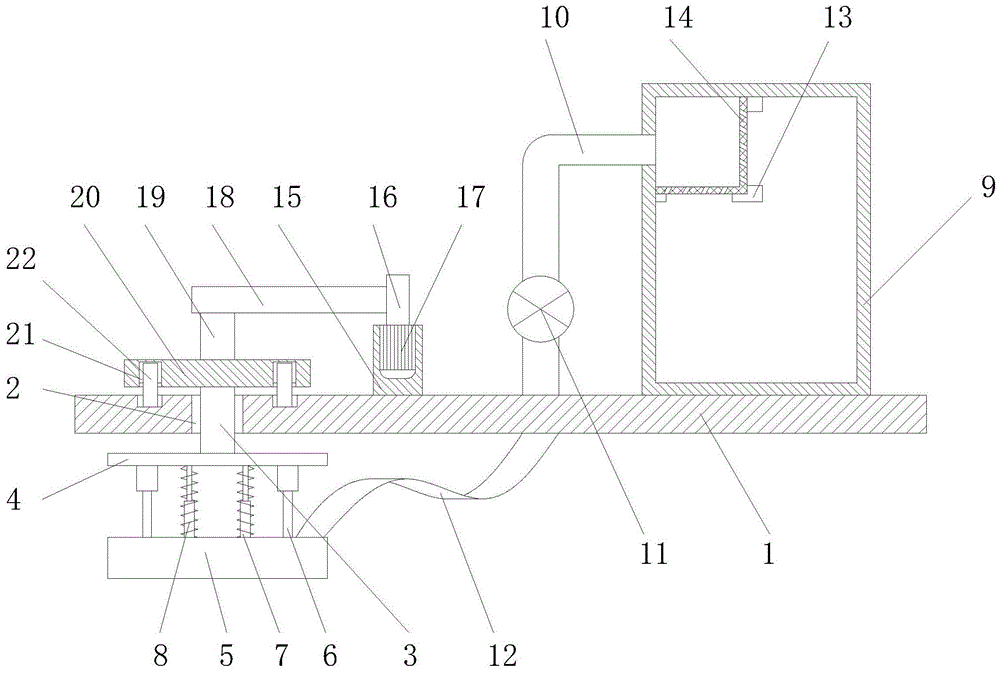

FIG. 1 is a schematic structural view of a dust-removing and filtering device of a scrubber;
FIG. 2 is a schematic view of a top view of a rotating mechanism of a soot cleaning and filtering device of a scrubber.
In the figure: 1-chassis, 2-moving groove, 3-connecting rod, 4-mounting plate, 5-dust hood, 6-electric push rod, 7-telescopic rod, 8-spring, 9-dust box, 10-dust suction pipe, 11-air suction pump, 12-communicating hose, 13-mounting frame, 14-filter screen grid, 15-mounting block, 16-rotating rod, 17-motor, 18-linkage rod, 19-mounting rod, 20-moving plate, 21-mounting groove, 22-roller and 23-guide groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution: the utility model provides a floor cleaning machine deashing filter equipment, includes chassis 1, be provided with slewing mechanism on chassis 1's the up end, slewing mechanism is last fixed mounting has the deashing part, the deashing part sets up the below on chassis 1, slewing mechanism's right side is provided with dust collection box 9, through dust absorption pipe 10 fixed connection between dust collection box 9 and the deashing part.
Through setting up the deashing part in the floor cleaning machine front side, with the dust on ground and debris suction, improved the effect that follow-up floor cleaning machine washed the ground, avoided floor cleaning machine to block up, improve deashing area and deashing effect through slewing mechanism.
Slewing mechanism is including installation piece 15, installation piece 15 fixed mounting is on the up end of chassis 1, the inside fixed mounting of installation piece 15 has motor 17, it installs dwang 16 to rotate on the up end of installation piece 15, the bottom of dwang 16 and motor 17's output fixed connection, fixed mounting has trace 18 on the dwang 16, there is movable plate 20 lower terminal surface of trace 18 through installation pole 19 fixed mounting, corresponding movable plate 20 position department has seted up moving bath 2 on chassis 1, fixed mounting has connecting rod 3 on the lower terminal surface of movable plate 20, connecting rod 3 pegs graft in the inside of moving bath 2, the lower extreme and the deashing part fixed connection of connecting rod 3.
The rotating rod 16 is driven to rotate by the operation of the motor 17, the moving plate 20 is driven to move by the linkage rod 18 and the mounting rod 19, the connecting rod 3 moves in the moving groove 2, the ash cleaning component is driven to move, and the ash cleaning area and the ash cleaning effect are improved.
The lower end face of the moving plate 20 is provided with mounting grooves 21 which are symmetrically distributed in the left-right direction, rollers 22 are rotatably mounted inside the mounting grooves 21 through pin shafts, the upper end face of the chassis 1 is provided with guide grooves 23 corresponding to the positions of the rollers 22, and the rollers 22 are inserted into the guide grooves 23.
The roller 22 rolls in the guide groove 23, so that the moving smoothness of the ash removal component is improved, the blockage and the mechanical abrasion are avoided, and the service life is prolonged.
The deashing part includes mounting panel 4, 4 fixed mounting in the bottom of connecting rod 3 of mounting panel, fixed mounting has a plurality of symmetric distribution's electric putter 6 on the lower terminal surface of mounting panel 4, electric putter 6's output fixed mounting has suction hood 5, fixed mounting has intercommunication hose 12 on the suction hood 5, the other end and the dust absorption pipe 10 fixed connection of intercommunication hose 12.
Adsorb subaerial dust and debris through suction hood 5, dust and debris pass through intercommunication hose 12 and dust absorption pipe 10 intercommunication, get into dust collection box 9 inside at last and be collected, and electric putter 6 can drive suction hood 5 and reciprocate, can improve the adsorption affinity to debris through shortening the distance between suction hood 5 and the ground for the deashing is cleaner.
Fixed mounting has a plurality of evenly distributed's telescopic link 7 between suction hood 5 and mounting panel 4, the spring 8 has been cup jointed on the telescopic link 7, through telescopic link 7 and spring 8, has improved suction hood 5's lift stability, has the guide effect.
An installation frame 13 is fixedly installed between the front end face and the rear end face inside the dust collection box 9, a filter screen grid 14 is arranged on the installation frame 13, and a suction pump 11 is arranged on the dust collection pipe 10.
The air suction pump 11 provides power for adsorption, the adsorbed dust and impurities are filtered through the filter screen grids 14, the impurities are left in the filter screen grids 14, and the dust enters the dust collection box 9, so that the follow-up cleaning of workers is facilitated.

Claims (6)

1. The utility model provides a scrubber deashing filter equipment, includes chassis (1), its characterized in that: the dust collection device is characterized in that a rotating mechanism is arranged on the upper end face of the chassis (1), a dust removal component is fixedly mounted on the rotating mechanism and arranged below the chassis (1), a dust collection box (9) is arranged on the right side of the rotating mechanism, and the dust collection box (9) is fixedly connected with the dust removal component through a dust collection pipe (10).
2. The ash removal and filtration device for the floor scrubber as claimed in claim 1, wherein: the rotating mechanism comprises a mounting block (15), the mounting block (15) is fixedly mounted on the upper end surface of the chassis (1), a motor (17) is fixedly arranged in the mounting block (15), a rotating rod (16) is rotatably arranged on the upper end surface of the mounting block (15), the bottom of the rotating rod (16) is fixedly connected with the output end of the motor (17), a linkage rod (18) is fixedly arranged on the rotating rod (16), the lower end surface of the linkage rod (18) is fixedly provided with a movable plate (20) through a mounting rod (19), a moving groove (2) is arranged on the chassis (1) corresponding to the moving plate (20), a connecting rod (3) is fixedly arranged on the lower end surface of the moving plate (20), the connecting rod (3) is inserted in the moving groove (2), and the lower end of the connecting rod (3) is fixedly connected with the ash removal component.
3. The ash removal and filtration device of the floor washing machine as claimed in claim 2, wherein: the movable plate is characterized in that mounting grooves (21) which are symmetrically distributed in the left-right direction are formed in the lower end face of the movable plate (20), idler wheels (22) are rotatably mounted inside the mounting grooves (21) through pin shafts, guide grooves (23) are formed in the positions, corresponding to the idler wheels (22), of the upper end face of the chassis (1), and the idler wheels (22) are inserted into the guide grooves (23).
4. The ash removal and filtration device of a floor scrubber as claimed in claim 3, wherein: the deashing part includes mounting panel (4), mounting panel (4) fixed mounting is in the bottom of connecting rod (3), fixed mounting has electric putter (6) of a plurality of symmetric distribution on the lower terminal surface of mounting panel (4), the output fixed mounting of electric putter (6) has suction hood (5), fixed mounting has intercommunication hose (12) on suction hood (5), the other end and dust absorption pipe (10) fixed connection of intercommunication hose (12).
5. The ash removal and filtration device of the floor washing machine as claimed in claim 4, wherein: a plurality of telescopic rods (7) which are uniformly distributed are fixedly installed between the dust hood (5) and the mounting plate (4), and springs (8) are sleeved on the telescopic rods (7).
6. The ash removal and filtration device of a floor scrubber as claimed in claim 5, wherein: an installation frame (13) is fixedly installed between the front end face and the rear end face of the interior of the dust collection box (9), a filter screen grid (14) is arranged on the installation frame (13), and a suction pump (11) is arranged on the dust collection pipe (10).
