The invention discloses a mobile phone charger with a disinfection function, which relates to the field of mobile phone accessories and comprises a box body and a box cover rotationally connected with the side edge of the top of the box body, wherein the box body forms an inwards concave accommodating space, a display screen and a control switch are respectively arranged on the box cover, an ozone generator and a wireless charger are respectively arranged at the bottom in the accommodating space of the box body, an ultraviolet lamp and a multifunctional charging connector are respectively arranged at the inner side of the accommodating space of the box body, a safety switch and a controller are respectively arranged on the upper surface of the box body, a power adapter is arranged outside the box body, and the safety switch, the controller and the power adapter are all positioned outside the accommodating space of the box body. The invention solves the problem that the mobile phone charger can not be accompanied with the disinfection and sterilization function at the present stage by arranging the control switch, the ozone generator, the wireless charger, the ultraviolet lamp, the multifunctional charging connector, the safety switch and the controller.
Description
Technical Field
The invention relates to the technical field of mobile phone accessories, in particular to a mobile phone charger with a disinfection function.
Background
With the continuous progress of society, mobile phones are more and more important in life of people, the frequency of the mobile phones used every day is extremely high, and a lot of bacteria, germs and the like are easily bred in human body parts such as hands and faces, air, pockets and the like which are contacted when the mobile phones are used and received, so that the health of people can be greatly influenced for a long time.
However, the mobile phone charger cannot be provided with a disinfection function at the present stage, and in order to solve the above problems, the mobile phone is subjected to disinfection and sterilization periodically, so that the use safety of the mobile phone is improved, and the propagation of bacteria and germs is reduced, therefore, the mobile phone charger with the disinfection and sterilization function is provided.
Disclosure of Invention
Technical problem to be solved
Aiming at the defects of the prior art, the invention provides a mobile phone charger with a disinfection function, and solves the problem that the mobile phone charger cannot be accompanied with the disinfection function in the prior art.
(II) technical scheme
In order to achieve the purpose, the invention provides the following technical scheme: the utility model provides a take cell-phone charger of disinfection function, includes box body and box body top side edge and rotates the lid of connecting, the box body forms the accommodation space of indent, be provided with display screen and control switch on the lid respectively, the bottom is provided with ozone generator and wireless charger respectively in the box body accommodation space, the accommodation space inboard of box body is provided with ultraviolet lamp and multi-functional joint that charges respectively, the upper surface of box body is provided with safety switch and controller respectively, the outside of box body is provided with power adapter, safety switch, controller and power adapter all are located the outside of box body accommodation space.
Preferably, the box body is directly connected with a power adapter, and the power adapter can directly use the existing mobile phone power adapter.
Preferably, the ozone generator directly generates ozone to comprehensively sterilize and disinfect the whole mobile phone in the box body.
Preferably, the number of the ultraviolet lamps is multiple, and the multiple ultraviolet lamps generate ultraviolet rays to directly irradiate the mobile phone in the box body for sterilization.
Preferably, the wireless charger and the multifunctional charging connector are integrated in the box body, and the requirements of multiple mobile phones are met.
Preferably, the control switch is connected with the controller, the time of the disinfection and sterilization and charging functions is set, and all the functions and the working state are displayed on the display screen.
Preferably, the safety switch is triggered when the box cover is opened to realize the function of forcibly turning off the ultraviolet lamp.
(III) advantageous effects
The invention provides a mobile phone charger with a disinfection function, which has the following beneficial effects:
according to the invention, by arranging the control switch, the ozone generator, the wireless charger, the ultraviolet lamp, the multifunctional charging connector, the safety switch and the controller, the mobile phone placed in the box body is charged through the wireless charger or the multifunctional charging connector, mould is disinfected on the mobile phone placed in the box body through the ozone generator and the ultraviolet lamp, the charging and sterilizing time is set through the control switch, the safety after opening is ensured through the display screen, the safety switch and the controller protection box cover, the purpose of realizing the integrated functions of disinfection and sterilization is achieved, and the problem that the mobile phone charger cannot be additionally provided with the disinfection and sterilization function at the present stage is solved.
Drawings

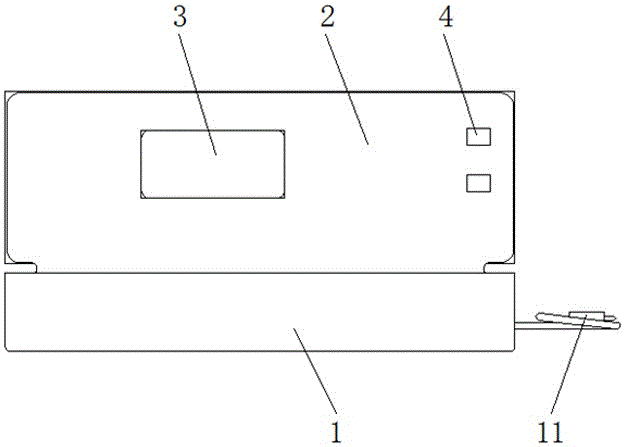

FIG. 1 is a front view of the present invention;
FIG. 2 is a top view of the present invention.
In the figure: 1. a box body; 2. a box cover; 3. a display screen; 4. a control switch; 5. an ozone generator; 6. a wireless charger; 7. an ultraviolet lamp; 8. a multifunctional charging connector; 9. a safety switch; 10. a controller; 11. a power adapter.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
As shown in fig. 1-2, the present invention provides a technical solution: a mobile phone charger with disinfection function comprises a box body 1 and a box cover 2 rotationally connected with the edge of the top side of the box body 1, the box body 1 forms an inwards concave containing space, the box cover 2 is respectively provided with a display screen 3 and a control switch 4, the bottom in the containing space of the box body 1 is respectively provided with an ozone generator 5 and a wireless charger 6, the main control parameters of the ozone generator 5 are ozone generation amount and ozone concentration, the ozone plays a role of mould, the inner side of the containing space of the box body 1 is respectively provided with an ultraviolet lamp 7 and a multifunctional charging connector 8, ultraviolet rays emitted by the ultraviolet lamp 7 can be used for sterilization, the upper surface of the box body 1 is respectively provided with a safety switch 9 and a controller 10, the outer part of the box body 1 is provided with a power adapter 11 and, the controller 10 and the power adapter 11 are both located outside the housing space of the case 1.
As a technical optimization scheme of the invention, the box body 1 is directly connected with the power adapter 11, and the power adapter 11 can directly use the existing mobile phone power adapter.
As a technical optimization scheme of the invention, the ozone generator 5 directly generates ozone to comprehensively sterilize the whole mobile phone in the box body 1.
As a technical optimization scheme of the invention, the number of the ultraviolet lamps 7 is multiple, and the multiple groups of ultraviolet lamps 7 generate ultraviolet rays to directly irradiate the mobile phone in the box body 1 for sterilization.
As a technical optimization scheme of the invention, the wireless charger 6 and the multifunctional charging connector 8 are integrated in the box body 1, so that the requirements of multiple mobile phones are met.
As a technical optimization scheme of the invention, the control switch 4 is connected with the controller 10, the time of the disinfection and sterilization and charging functions is set, and all the functions and the working state are displayed on the display screen 3.
As a technical optimization scheme of the invention, the safety switch 9 is triggered when the box cover 2 is opened to realize the function of forcibly turning off the ultraviolet lamp 7.
When in use, the charger is connected with the household plug through the power adapter 11, the mobile phone is placed in the concave accommodating space of the box body 1, the mobile phone placed in the box body 1 is charged through the wireless charger 6 or the multifunctional charging connector 8, the box cover 2 is closed, the time for charging and sterilizing is set by the control switch 4 and the ozone generator 5 and the ultraviolet lamp 7 are turned on, the mobile phone put in the box body 1 is disinfected by the ozone generator 5 and the ultraviolet lamp 7, after the mobile phone is started, ultraviolet rays irradiate the surface of the mobile phone, ozone generated by the ozone generator 5 directly covers the whole box body 1, and double effects of disinfection and sterilization and charging are achieved, function and operating time are shown through display screen 3, through safety switch 9 and controller 10 protection lid 2, ultraviolet lamp 7 closes after lid 2 is opened, guarantees to open back safety, has reached the purpose that realizes disinfection and sterilization and the integrative function of charging.
In conclusion, the invention solves the problem that the mobile phone charger cannot perform the additional disinfection function at the present stage by arranging the control switch 4, the ozone generator 5, the wireless charger 6, the ultraviolet lamp 7, the multifunctional charging connector 8, the safety switch 9 and the controller 10.

It should be noted that, in this document, terms such as "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a take cell-phone charger of disinfection function, includes box body (1) and box body (1) top side edge rotation lid (2) of connecting, box body (1) forms the accommodation space of indent, its characterized in that: be provided with display screen (3) and control switch (4) on lid (2) respectively, the bottom is provided with ozone generator (5) and wireless charger (6) respectively in box body (1) accommodation space, the accommodation space inboard of box body (1) is provided with ultraviolet lamp (7) and multi-functional joint (8) that charges respectively, the upper surface of box body (1) is provided with safety switch (9) and controller (10) respectively, the outside of box body (1) is provided with power adapter (11), safety switch (9), controller (10) and power adapter (11) all are located the outside of box body (1) accommodation space.
2. The mobile phone charger with disinfection and sterilization functions as claimed in claim 1, wherein: the box body (1) is directly connected with the power adapter (11), and the power adapter (11) can directly use the existing mobile phone power adapter.
3. The mobile phone charger with disinfection and sterilization functions as claimed in claim 1, wherein: the ozone generator (5) directly generates ozone to comprehensively sterilize the whole mobile phone in the box body (1).
4. The mobile phone charger with disinfection and sterilization functions as claimed in claim 1, wherein: the number of the ultraviolet lamps (7) is multiple, and the multiple ultraviolet lamps (7) generate ultraviolet rays to directly irradiate the mobile phone in the box body (1) for sterilization.
5. The mobile phone charger with disinfection and sterilization functions as claimed in claim 1, wherein: the wireless charger (6) and the multifunctional charging connector (8) are integrated in the box body (1), and the requirements of multiple mobile phones are met.
6. The mobile phone charger with disinfection and sterilization functions as claimed in claim 1, wherein: the control switch (4) is connected with the controller (10), the time of the disinfection and sterilization and charging functions is set, and all the functions and the working state are displayed on the display screen (3).
7. The mobile phone charger with disinfection and sterilization functions as claimed in claim 1, wherein: the safety switch (9) is triggered when the box cover (2) is opened to realize the function of forcibly turning off the ultraviolet lamp (7).
