Abstract

本发明涉及智能家居技术领域，且公开了一种用于智能家居的安防装置，包括窗框及固定安装在窗框上下两侧的顶板和底板，所述窗框的内侧壁对称铰接有第一窗扇和第二窗扇，所述第一窗扇靠近第二窗扇的一侧表面固定连接有定位块，所述第二窗扇靠近第一窗扇的一侧表面固定连接有与定位块位置对应的固定块，所述固定块的内部开设有靠右侧设置的空腔，所述空腔的上下相对一侧内壁通过滚珠轴承转动连接有同一根调节螺杆，所述固定块的下端固定连接有驱动电机，所述驱动电机上端的输出轴贯穿固定块伸入空腔内且与调节螺杆的下端固定连接。该用于智能家居的安防装置，具备能够有效提高家居安全防护性的优点。

Figure 201911026954

The invention relates to the technical field of smart home, and discloses a security device for smart home, comprising a window frame and a top plate and a bottom plate fixedly installed on the upper and lower sides of the window frame. A window sash and a second window sash, a positioning block is fixedly connected to a side surface of the first window sash close to the second window sash, and a fixing block corresponding to the position of the positioning block is fixedly connected to a side surface of the second window sash close to the first window sash, The interior of the fixing block is provided with a cavity arranged on the right side, the inner walls of the upper and lower opposite sides of the cavity are rotatably connected with the same adjusting screw rod through ball bearings, and the lower end of the fixing block is fixedly connected with a driving motor, so The output shaft of the upper end of the driving motor extends through the fixing block into the cavity and is fixedly connected with the lower end of the adjusting screw. The security device for smart home has the advantage of being able to effectively improve home security protection.

Figure 201911026954

Description

一种用于智能家居的安防装置A security device for smart home

技术领域technical field

本发明涉及智能家居技术领域，具体为一种用于智能家居的安防装置。The invention relates to the technical field of smart home, in particular to a security device for smart home.

背景技术Background technique

智能家居是以住宅为平台，利用综合布线技术、网络通信技术、安全防范技术、自动控制技术、音视频技术将家居生活有关的设施集成，构建高效的住宅设施与家庭日程事务的管理系统，提升家居安全性、便利性、舒适性、艺术性，并实现环保节能的居住环境。Smart home is based on the residential platform, using integrated wiring technology, network communication technology, security technology, automatic control technology, audio and video technology to integrate the facilities related to home life, and build an efficient management system for residential facilities and family schedule affairs. Home security, convenience, comfort, artistry, and the realization of an environmentally friendly and energy-saving living environment.

门窗处是盗贼进入家中实时盗窃的一个主要通道处，目前的门窗处仅通过简单的开关进行封闭，人们在晚上休息时需要将门窗关严，但即使这样也不能够完全保证门窗不被撬开，安全还是不能够得到彻底的保障，且大多时候由于人们的懒惰和遗忘会不给门窗上锁，这进一步的导致了安全性差容易引发盗窃危机，安全防护性差。Doors and windows are a main channel for thieves to enter the house for real-time theft. At present, doors and windows are only closed by simple switches. People need to close doors and windows when resting at night, but even this cannot completely guarantee that doors and windows will not be pried open. , security still can not be completely guaranteed, and most of the time people will not lock doors and windows due to laziness and forgetfulness, which further leads to poor security and easy to cause theft crisis and poor security protection.

发明内容SUMMARY OF THE INVENTION

(一)解决的技术问题(1) Technical problems solved

针对现有技术的不足，本发明提供了一种用于智能家居的安防装置，具备能够有效提高家居安全防护性的优点，解决了目前的门窗处仅通过简单的开关进行封闭，人们在晚上休息时需要将门窗关严，但即使这样也不能够完全保证门窗不被撬开，安全还是不能够得到彻底的保障，且大多时候由于人们的懒惰和遗忘会不给门窗上锁，这进一步的导致了安全性差容易引发盗窃危机，安全防护性差的问题。In view of the deficiencies of the prior art, the present invention provides a security device for smart home, which has the advantages of effectively improving home security protection, and solves the problem that the current doors and windows are only closed by simple switches, and people rest at night It is necessary to close the doors and windows tightly, but even this cannot completely guarantee that the doors and windows will not be opened, and the safety cannot be completely guaranteed, and most of the time people will not lock the doors and windows due to laziness and forgetfulness, which further leads to It is easy to cause theft crisis and the problem of poor security protection due to poor security.

(二)技术方案(2) Technical solutions

为实现能够有效提高家居安全防护性的目的，本发明提供如下技术方案：一种用于智能家居的安防装置，包括窗框及固定安装在窗框上下两侧的顶板和底板，所述窗框的内侧壁对称铰接有第一窗扇和第二窗扇，所述第一窗扇靠近第二窗扇的一侧表面固定连接有定位块，所述第二窗扇靠近第一窗扇的一侧表面固定连接有与定位块位置对应的固定块，所述固定块的内部开设有靠右侧设置的空腔，所述空腔的上下相对一侧内壁通过滚珠轴承转动连接有同一根调节螺杆，所述固定块的下端固定连接有驱动电机，所述驱动电机上端的输出轴贯穿固定块伸入空腔内且与调节螺杆的下端固定连接，所述调节螺杆的杆壁均匀螺纹连接有多个移动螺环，所述移动螺环靠近定位块的一侧侧壁转动连接有推拉杆，所述推拉杆远离移动螺环的一端转动连接有定位杆，所述固定块靠近定位块的一侧侧壁开设有与空腔连通且用于活动套接定位杆的通槽，所述定位块的侧壁开设有多个与定位杆对应插接的定位孔，所述第一窗扇和第二窗扇相向一侧的下端对称嵌设有第一铜片和第二铜片，所述第二窗扇的外壁固定连接有电路连接传感器，所述顶板的下端固定连接有电动收卷筒，所述电动收卷筒内的辊轴上固定绕接有防护铁网，所述防护铁网的下端固定连接有限位杆。In order to achieve the purpose of being able to effectively improve home security protection, the present invention provides the following technical solutions: a security device for smart home, comprising a window frame and a top plate and a bottom plate fixedly installed on the upper and lower sides of the window frame, the window frame. A first window sash and a second window sash are symmetrically hinged on the inner side wall of the first window sash, a positioning block is fixedly connected to the side surface of the first window sash close to the second window sash, and a side surface of the second window sash close to the first window sash is fixedly connected with The fixed block corresponding to the position of the positioning block, the interior of the fixed block is provided with a cavity arranged on the right side, and the inner walls of the upper and lower opposite sides of the cavity are rotatably connected with the same adjusting screw through ball bearings. The lower end is fixedly connected with a driving motor, and the output shaft of the upper end of the driving motor penetrates the fixing block and protrudes into the cavity and is fixedly connected with the lower end of the adjusting screw. A push-pull rod is rotatably connected to one side wall of the moving screw ring close to the positioning block, and a positioning rod is rotatably connected to one end of the push-pull rod away from the moving screw ring. The cavity is connected to a through slot for movably socketing the positioning rod, the side wall of the positioning block is provided with a plurality of positioning holes corresponding to the positioning rod, and the lower ends of the opposite sides of the first window sash and the second window sash are symmetrical A first copper sheet and a second copper sheet are embedded, the outer wall of the second window sash is fixedly connected with a circuit connection sensor, the lower end of the top plate is fixedly connected with an electric winding drum, and the roller shaft in the electric winding drum A protective iron net is fixedly wound on the upper part, and the lower end of the protective iron net is fixedly connected with a limit rod.

优选的，所述第一铜片、电路连接传感器、外界电源和第二铜片之间通过导电线依次电性连接。Preferably, the first copper sheet, the circuit connection sensor, the external power source and the second copper sheet are electrically connected in sequence through conductive wires.

优选的，所述底板的上端固定嵌设有电磁铁，所述限位杆的下端固定嵌设有与电磁铁相互吸引的铁石。Preferably, an electromagnet is fixedly embedded at the upper end of the bottom plate, and an iron stone that attracts the electromagnet is fixedly embedded at the lower end of the limit rod.

优选的，所述底板的上端固定连接有控制器，所述驱动电机、电路连接传感器、电动收卷筒和电磁铁均通过导线与控制器电性连接，所述控制器与外部电源电性连接。Preferably, a controller is fixedly connected to the upper end of the bottom plate, the drive motor, the circuit connection sensor, the electric reel and the electromagnet are all electrically connected to the controller through wires, and the controller is electrically connected to an external power source .

优选的，所述顶板和底板相向一侧侧壁之间对称固定连接有两根导向杆，所述限位杆的杆壁开设有活动套设在导向杆外的导向孔。Preferably, two guide rods are symmetrically and fixedly connected between the opposite side walls of the top plate and the bottom plate, and the rod wall of the limit rod is provided with a guide hole movably sleeved outside the guide rod.

优选的，所述定位杆位于通槽内的一端和移动螺环的外壁均固定连接有U 形卡板，所述U形卡板相向一侧侧壁之间通过转轴转动连接在推拉杆的一端。Preferably, one end of the positioning rod located in the through groove and the outer wall of the moving screw ring are fixedly connected with a U-shaped clamping plate, and the side walls on the opposite side of the U-shaped clamping plate are connected to one end of the push-pull rod through a rotating shaft. .

优选的，所述限位杆的下端固定连接有一层缓冲橡胶垫。Preferably, a layer of buffer rubber pad is fixedly connected to the lower end of the limit rod.

优选的，所述防护铁网位于第一窗扇和第二窗扇的内侧。Preferably, the protective iron mesh is located inside the first window sash and the second window sash.

(三)有益效果(3) Beneficial effects

与现有技术相比，本发明提供了一种用于智能家居的安防装置，具备以下有益效果：Compared with the prior art, the present invention provides a security device for smart home, which has the following beneficial effects:

1、该用于智能家居的安防装置，通过设有的固定块和定位块，在人们关上第一窗扇和第二窗扇后，第一铜片和第二铜片接触连接，进而连通外部电源和电路连接传感器的通电电路，使得电路连接传感器通电反应工作，电路连接传感器反馈信号至控制器内，控制器接收信号再可控制驱动电机启动，驱动电机带动调节螺杆转动，利用调节螺杆和移动螺环的螺纹连接作用使得多个移动螺环同步向上移动，进而移动螺环向上推动推拉杆，推拉杆远离移动螺环的一端推动定位杆移动，使得定位杆伸出通槽外并使定位杆伸入卡进至定位块中的定位孔内即可实现固定块和定位块之间的稳固限位连接，进而使得第一窗扇和第二窗扇得以稳固的连接在一起，在关上第一窗扇和第二窗扇后即可进行自动上锁，避免了人们忘记上锁影响窗扇处安全性的问题，便于使用，且在需要打开第一窗扇和第二窗扇时，通过控制器控制驱动电机反转即可快速将定位杆抽出定位孔外，能够实现对第一窗扇和第二窗扇之间的快速拆装，便于使用。1. The security device for smart home, through the fixed block and positioning block provided, after people close the first window sash and the second window sash, the first copper sheet and the second copper sheet are contacted and connected, and then the external power supply and The circuit is connected to the energization circuit of the sensor, so that the circuit is connected to the sensor to energize and react, and the circuit is connected to the sensor feedback signal to the controller, and the controller can control the drive motor to start after receiving the signal, and the drive motor drives the adjustment screw to rotate. The threaded connection action makes the multiple moving rings move up synchronously, and then the moving rings push the push-pull rod upward, and the push-pull rod moves away from the end of the moving screw ring to push the positioning rod to move, so that the positioning rod extends out of the through groove and the positioning rod extends into the By snapping into the positioning hole in the positioning block, a stable limit connection between the fixing block and the positioning block can be realized, so that the first window sash and the second window sash can be firmly connected together, and the first window sash and the second window can be closed. It can be automatically locked after the window sash, which avoids the problem of people forgetting to lock and affects the safety of the window sash. Pulling the positioning rod out of the positioning hole can realize quick disassembly and assembly between the first window sash and the second window sash, which is convenient for use.

2、该用于智能家居的安防装置，通过设有的电动收卷筒、防护铁网、限位杆、电磁铁和铁石，在第一铜片和第二铜片接触连接进而连通外部电源和电路连接传感器的通电电路，使得电路连接传感器通电反应工作，电路连接传感器反馈信号至控制器内，控制器接收信号驱动电动收卷筒工作，电动收卷筒带动位于其内的辊轴转动将防护铁网放出，限位杆移动至底板的上端，电磁铁吸附铁石使得限位杆得以稳固的限位固定，能够对窗户处提供二次防护，且防护铁网自动落下便于使用，进一步的提高了家居的安全防护性。2. The security device for smart home is connected to the first copper sheet and the second copper sheet through the provided electric reel, protective iron net, limit rod, electromagnet and iron stone, and then connects the external power supply and the external power supply. The circuit is connected to the power-on circuit of the sensor, so that the circuit is connected to the sensor to react and work, and the circuit is connected to the sensor to feedback the signal to the controller. The controller receives the signal to drive the electric reel to work. The iron net is released, the limit rod moves to the upper end of the bottom plate, and the electromagnet absorbs the iron stone, so that the limit rod can be fixed in a stable position, which can provide secondary protection for the window, and the protective iron net automatically falls for ease of use, which further improves the Home security protection.

3、该用于智能家居的安防装置，通过设有的防护铁网，防护铁网位于第一窗扇和第二窗扇的内侧，盗贼打开第一窗扇和第二窗扇后第一窗扇和第二窗扇抵挡在防护铁网上，使得第一窗扇和第二窗扇不能得到有效开展，且两者在碰撞时会产生声响，能够快速的提醒人们，具有警示作用。3. The security device for smart home is provided with a protective iron net. The protective iron net is located on the inner side of the first window sash and the second window sash. After the thief opens the first window sash and the second window sash, the first window sash and the second window sash. Resisting the protective iron net, the first window sash and the second window sash cannot be effectively developed, and when the two collide, they will produce a sound, which can quickly remind people and has a warning effect.

附图说明Description of drawings

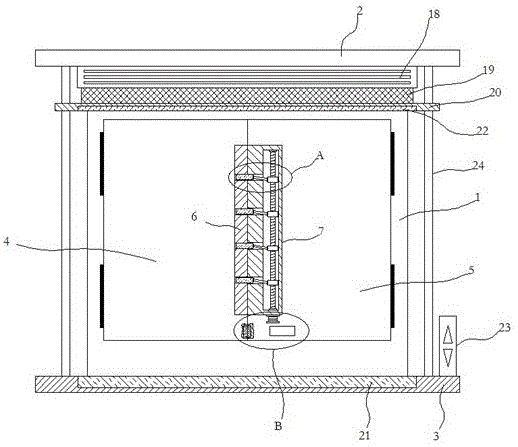

图1为本发明提出的一种用于智能家居的安防装置结构示意图；1 is a schematic structural diagram of a security device for smart home proposed by the present invention;

图2为本发明提出的一种用于智能家居的安防装置图1中A部的局部结构放大图；FIG. 2 is an enlarged view of a partial structure of part A in FIG. 1 of a security device for smart home provided by the present invention;

图3为本发明提出的一种用于智能家居的安防装置图1中B部的局部结构放大图。FIG. 3 is an enlarged view of a partial structure of part B in FIG. 1 of a security device for smart home provided by the present invention.

图中：1窗框、2顶板、3底板、4第一窗扇、5第二窗扇、6定位块、7 固定块、8空腔、9调节螺杆、10驱动电机、11移动螺环、12推拉杆、13定位杆、14通槽、15第一铜片、16第二铜片、17电路连接传感器、18电动收卷筒、19防护铁网、20限位杆、21电磁铁、22铁石、23控制器、24导向杆、 25定位孔。In the picture: 1 window frame, 2 top plate, 3 bottom plate, 4 first window sash, 5 second window sash, 6 positioning block, 7 fixing block, 8 cavity, 9 adjusting screw, 10 driving motor, 11 moving ring, 12 pushing Pull rod, 13 positioning rod, 14 through slot, 15 first copper sheet, 16 second copper sheet, 17 circuit connection sensor, 18 electric reel, 19 protective iron net, 20 limit rod, 21 electromagnet, 22 iron stone, 23 controllers, 24 guide rods, 25 positioning holes.

具体实施方式Detailed ways

下面将对本发明实施例中的技术方案进行清楚、完整地描述，显然，所描述的实施例仅仅是本发明一部分实施例，而不是全部的实施例。基于本发明中的实施例，本领域普通技术人员在没有做出创造性劳动前提下所获得的所有其他实施例，都属于本发明保护的范围。The technical solutions in the embodiments of the present invention will be described clearly and completely below. Obviously, the described embodiments are only a part of the embodiments of the present invention, rather than all the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

请参阅图1-3，一种用于智能家居的安防装置，包括窗框1及固定安装在窗框1上下两侧的顶板2和底板3，窗框1的内侧壁对称铰接有第一窗扇4和第二窗扇5，第一窗扇4靠近第二窗扇5的一侧表面固定连接有定位块6，第二窗扇5靠近第一窗扇4的一侧表面固定连接有与定位块6位置对应的固定块7，固定块7的内部开设有靠右侧设置的空腔8，空腔8的上下相对一侧内壁通过滚珠轴承转动连接有同一根调节螺杆9，固定块7的下端固定连接有驱动电机10，驱动电机10上端的输出轴贯穿固定块7伸入空腔8内且与调节螺杆9的下端固定连接，调节螺杆9的杆壁均匀螺纹连接有多个移动螺环11，移动螺环11靠近定位块6的一侧侧壁转动连接有推拉杆12，推拉杆12远离移动螺环11的一端转动连接有定位杆13，固定块7靠近定位块6的一侧侧壁开设有与空腔8连通且用于活动套接定位杆13的通槽14，定位块6的侧壁开设有多个与定位杆13对应插接的定位孔25，第一窗扇4和第二窗扇5相向一侧的下端对称嵌设有第一铜片15和第二铜片16，第二窗扇5的外壁固定连接有电路连接传感器17，顶板2的下端固定连接有电动收卷筒18，电动收卷筒 18内的辊轴上固定绕接有防护铁网19，防护铁网19的下端固定连接有限位杆20。Please refer to Fig. 1-3, a security device for smart home, including a window frame 1 and a top plate 2 and a bottom plate 3 fixedly installed on the upper and lower sides of the window frame 1, the inner side wall of the window frame 1 is symmetrically hinged with a first window sash 4 and the second sash 5, the one side surface of the first sash 4 close to the second sash 5 is fixedly connected with a positioning block 6, and the one side surface of the second window 5 close to the first sash 4 is fixedly connected with a position corresponding to the positioning block 6. The fixed block 7, the interior of the fixed block 7 is provided with a cavity 8 arranged on the right side, the inner wall of the upper and lower opposite sides of the cavity 8 is rotatably connected with the same adjusting screw 9 through a ball bearing, and the lower end of the fixed block 7 is fixedly connected with a drive The motor 10, the output shaft of the upper end of the drive motor 10 penetrates the fixing block 7 and extends into the cavity 8 and is fixedly connected with the lower end of the adjusting screw 9. The rod wall of the adjusting screw 9 is evenly threaded with a plurality of moving rings 11. 11 One side wall close to the positioning block 6 is rotatably connected with a push-pull rod 12, and one end of the push-pull rod 12 away from the moving screw ring 11 is rotatably connected with a positioning rod 13, and one side wall of the fixed block 7 close to the positioning block 6 is provided with an open space. The cavity 8 is connected and is used for the through groove 14 of the positioning rod 13 to be movably socketed. The side wall of the positioning block 6 is provided with a plurality of positioning holes 25 corresponding to the positioning rod 13. The first window 4 and the second window 5 face each other. The lower end of the side is symmetrically embedded with a first copper sheet 15 and a second copper sheet 16, the outer wall of the second window sash 5 is fixedly connected with a circuit connection sensor 17, and the lower end of the top plate 2 is fixedly connected with an electric winding drum 18. The electric winding drum A protective iron net 19 is fixedly wound around the roller shaft in 18 , and the lower end of the protective iron net 19 is fixedly connected with a limit rod 20 .

第一铜片15、电路连接传感器17、外界电源和第二铜片16之间通过导电线依次电性连接。The first copper sheet 15 , the circuit connection sensor 17 , the external power source and the second copper sheet 16 are electrically connected in sequence through conductive wires.

底板3的上端固定嵌设有电磁铁21，限位杆20的下端固定嵌设有与电磁铁21相互吸引的铁石22。The upper end of the bottom plate 3 is fixedly embedded with an electromagnet 21 , and the lower end of the limiting rod 20 is fixedly embedded with an iron stone 22 that attracts the electromagnet 21 .

底板3的上端固定连接有控制器23，驱动电机10、电路连接传感器17、电动收卷筒18和电磁铁21均通过导线与控制器23电性连接，控制器23与外部电源电性连接。A controller 23 is fixedly connected to the upper end of the base plate 3 . The drive motor 10 , the circuit connection sensor 17 , the electric reel 18 and the electromagnet 21 are all electrically connected to the controller 23 through wires, and the controller 23 is electrically connected to an external power source.

顶板2和底板3相向一侧侧壁之间对称固定连接有两根导向杆24，限位杆20的杆壁开设有活动套设在导向杆24外的导向孔。Two guide rods 24 are symmetrically and fixedly connected between the opposite side walls of the top plate 2 and the bottom plate 3 .

定位杆13位于通槽14内的一端和移动螺环11的外壁均固定连接有U形卡板，U形卡板相向一侧侧壁之间通过转轴转动连接在推拉杆12的一端。One end of the positioning rod 13 located in the through groove 14 and the outer wall of the moving ring 11 are fixedly connected with a U-shaped clamping plate.

限位杆20的下端固定连接有一层缓冲橡胶垫。A layer of buffer rubber pad is fixedly connected to the lower end of the limit rod 20 .

防护铁网19位于第一窗扇4和第二窗扇5的内侧。The protective iron mesh 19 is located on the inner side of the first window sash 4 and the second window sash 5 .

综上所述，该用于智能家居的安防装置，通过设有的固定块7和定位块6，在人们关上第一窗扇4和第二窗扇5后，第一铜片15和第二铜片16接触连接，进而连通外部电源和电路连接传感器17的通电电路，使得电路连接传感器17通电反应工作，电路连接传感器17反馈信号至控制器23内，控制器23 接收信号再可控制驱动电机10启动，驱动电机10带动调节螺杆9转动，利用调节螺杆9和移动螺环11的螺纹连接作用使得多个移动螺环11同步向上移动，进而移动螺环11向上推动推拉杆12，推拉杆12远离移动螺环11的一端推动定位杆13移动，使得定位杆13伸出通槽14外并使定位杆13伸入卡进至定位块6中的定位孔25内即可实现固定块7和定位块6之间的稳固限位连接，进而使得第一窗扇4和第二窗扇5得以稳固的连接在一起，在关上第一窗扇4和第二窗扇5后即可进行自动上锁，避免了人们忘记上锁影响窗扇处安全性的问题，便于使用，且在需要打开第一窗扇4和第二窗扇5时，通过控制器23控制驱动电机10反转即可快速将定位杆13抽出定位孔25外，能够实现对第一窗扇4和第二窗扇5之间的快速拆装，便于使用，通过设有的电动收卷筒18、防护铁网19、限位杆20、电磁铁21和铁石22，在第一铜片15和第二铜片16接触连接进而连通外部电源和电路连接传感器17的通电电路，使得电路连接传感器17通电反应工作，电路连接传感器17反馈信号至控制器23内，控制器23接收信号驱动电动收卷筒18工作，电动收卷筒18 带动位于其内的辊轴转动将防护铁网19放出，限位杆20移动至底板3的上端，电磁铁21吸附铁石22使得限位杆20得以稳固的限位固定，能够对窗户处提供二次防护，且防护铁网19自动落下便于使用，进一步的提高了家居的安全防护性，通过设有的防护铁网19，防护铁网19位于第一窗扇4和第二窗扇5的内侧，盗贼打开第一窗扇4和第二窗扇5后第一窗扇4和第二窗扇5 抵挡在防护铁网19上，使得第一窗扇4和第二窗扇5不能得到有效开展，且两者在碰撞时会产生声响，能够快速的提醒人们，具有警示作用。To sum up, the security device for smart home, through the fixed block 7 and positioning block 6 provided, after people close the first window sash 4 and the second window 5, the first copper sheet 15 and the second copper sheet 16 contact connection, and then connect the external power supply and the energization circuit of the circuit connection sensor 17, so that the circuit connection sensor 17 is energized and reacts to work, the circuit connection sensor 17 feedback signal to the controller 23, and the controller 23 can control the drive motor 10 to start after receiving the signal , the drive motor 10 drives the adjustment screw 9 to rotate, and the threaded connection between the adjustment screw 9 and the moving screw ring 11 makes the multiple moving screw rings 11 move upward synchronously, and then the moving screw ring 11 pushes the push-pull rod 12 upward, and the push-pull rod 12 moves away from One end of the screw ring 11 pushes the positioning rod 13 to move, so that the positioning rod 13 extends out of the through groove 14 and the positioning rod 13 extends into the positioning hole 25 in the positioning block 6 to realize the fixed block 7 and the positioning block 6. The stable limit connection between them, so that the first sash 4 and the second sash 5 can be firmly connected together, and the automatic locking can be performed after the first sash 4 and the second sash 5 are closed, preventing people from forgetting to lock. The lock affects the safety of the sash, which is easy to use, and when the first sash 4 and the second sash 5 need to be opened, the positioning rod 13 can be quickly pulled out of the positioning hole 25 through the controller 23 to control the driving motor 10 to reverse rotation. It can realize the quick disassembly and assembly between the first window sash 4 and the second window sash 5, which is convenient for use. The first copper sheet 15 and the second copper sheet 16 are in contact and connected to connect the external power supply and the energization circuit of the circuit connection sensor 17, so that the circuit connection sensor 17 is energized and reacts to work, and the circuit connection sensor 17 feeds back a signal to the controller 23, and the controller 23 The received signal drives the electric reel 18 to work, the electric reel 18 drives the roller shaft located in it to rotate to release the protective iron mesh 19, the limit rod 20 moves to the upper end of the bottom plate 3, the electromagnet 21 absorbs the iron stone 22 to limit the position The rod 20 can be stably fixed in a limited position, which can provide secondary protection for the window, and the protective iron net 19 automatically falls for ease of use, which further improves the safety protection of the home. 19 is located on the inner side of the first window sash 4 and the second window sash 5. After the thief opens the first window sash 4 and the second window 5, the first window 4 and the second window 5 are against the protective iron net 19, so that the first window 4 and the second window 5 are blocked. The two window sashes 5 cannot be effectively developed, and when they collide, a sound will be generated, which can quickly remind people and has a warning function.

尽管已经示出和描述了本发明的实施例，对于本领域的普通技术人员而言，可以理解在不脱离本发明的原理和精神的情况下可以对这些实施例进行多种变化、修改、替换和变型，本发明的范围由所附权利要求及其等同物限定。Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, and substitutions can be made in these embodiments without departing from the principle and spirit of the invention and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (8)

1. The utility model provides a security protection device for intelligent house, includes roof (2) and bottom plate (3) of window frame (1) and fixed mounting both sides about window frame (1), its characterized in that: the window frame is characterized in that a first window sash (4) and a second window sash (5) are symmetrically hinged to the inner side wall of the window frame (1), a positioning block (6) is fixedly connected to the surface of one side, close to the second window sash (5), of the first window sash (4), a fixing block (7) corresponding to the positioning block (6) is fixedly connected to the surface of one side, close to the first window sash (5), of the second window sash, a cavity (8) arranged close to the right side is formed in the fixing block (7), the inner wall of one side, opposite to the upper side and the lower side of the cavity (8), of the cavity is rotatably connected with a same adjusting screw rod (9) through a ball bearing, a driving motor (10) is fixedly connected to the lower end of the fixing block (7), an output shaft at the upper end of the driving motor (10) penetrates through the fixing block (7) to extend into the cavity (8) and is fixedly connected with the lower end of, the side wall of one side, close to the positioning block (6), of the movable spiral ring (11) is rotatably connected with a push-pull rod (12), one end, far away from the movable spiral ring (11), of the push-pull rod (12) is rotatably connected with a positioning rod (13), a side wall, close to the positioning block (6), of the fixing block (7) is provided with a through groove (14) which is communicated with the cavity (8) and is used for movably sleeving the positioning rod (13), the side wall of the positioning block (6) is provided with a plurality of positioning holes (25) which are correspondingly inserted with the positioning rod (13), the lower ends of the opposite sides of the first window sash (4) and the second window sash (5) are symmetrically embedded with a first copper sheet (15) and a second copper sheet (16), the outer wall of the second window sash (5) is fixedly connected with a circuit connection sensor (17), the lower end of the top plate (2) is fixedly connected with an electric winding drum (18), and a, the lower end of the protection iron net (19) is fixedly connected with a limiting rod (20).
2. The security device for smart home according to claim 1, characterized in that: the first copper sheet (15), the circuit connection sensor (17), the external power supply and the second copper sheet (16) are electrically connected in sequence through conducting wires.
3. The security device for smart home according to claim 1, characterized in that: the upper end of bottom plate (3) is fixed to be inlayed and is equipped with electro-magnet (21), the lower extreme of gag lever post (20) is fixed to be inlayed and is equipped with ironstone (22) with electro-magnet (21) inter attraction.
4. The security device for smart home according to claim 1, characterized in that: the upper end fixedly connected with controller (23) of bottom plate (3), driving motor (10), circuit connection sensor (17), electronic reel (18) and electro-magnet (21) all pass through wire and controller (23) electric connection, controller (23) and external power source electric connection.
5. The security device for smart home according to claim 1, characterized in that: two guide rods (24) are symmetrically and fixedly connected between the opposite side walls of the top plate (2) and the bottom plate (3), and guide holes which are movably sleeved outside the guide rods (24) are formed in the rod wall of the limiting rod (20).
6. The security device for smart home according to claim 1, characterized in that: one end of the positioning rod (13) positioned in the through groove (14) and the outer wall of the movable spiral ring (11) are fixedly connected with U-shaped clamping plates, and the side walls of the opposite sides of the U-shaped clamping plates are rotatably connected with one end of the push-pull rod (12) through a rotating shaft.
7. The security device for smart home according to claim 1, characterized in that: the lower end of the limiting rod (20) is fixedly connected with a layer of buffer rubber pad.
8. The security device for smart home according to claim 1, characterized in that: the protective iron net (19) is positioned on the inner sides of the first window sash (4) and the second window sash (5).
