Abstract
The invention discloses an intelligent dehumidifying device of a ring main unit, which comprises a ring main unit body, wherein a top plate is fixedly arranged at the top end of the ring main unit body, a square movable plate is movably arranged in the middle of the top end of the top plate, a fixed table which is a right-angled inclined plane is arranged at the top end of the movable plate, a solar power generation assembly is arranged on the fixed table, and exhaust fans are arranged at the tops of two sides of the ring main unit body. According to the intelligent dehumidification device for the ring main unit, the solar panel works, the storage battery is charged through the charge-discharge controller, the direct current output by the storage battery is converted into the alternating current through the inverter, and then the exhaust fan, the humidity sensor, the single chip microcomputer, the photosensitive sensor and the servo motor are powered on, so that the possibility that the ring main unit cannot be dehumidified normally due to outage of urban electricity or industrial electricity can be avoided, and the angle of the solar panel can be adjusted through the movable plate which is rotatably connected with the top plate, so that the solar panel can generate electricity more efficiently.
Description
Technical Field
The invention relates to a dehumidifying device, in particular to an intelligent dehumidifying device of a ring main unit.
Background
The ring main unit is a group of transmission and distribution electrical equipment which is arranged in a metal or nonmetal insulating cabinet body or is made into an electrical equipment of an assembled interval ring main power supply unit, and the core part of the ring main unit adopts a load switch and a fuse, so that the ring main unit has the advantages of simple structure, small volume, low price, capability of improving power supply parameters and performance, power supply safety and the like, but the ring main unit can normally and durably run only under the condition that the temperature and the humidity of the running environment are proper.
Present current looped netowrk cabinet intelligence dehydrating unit all is continuous with industrial power consumption or city distribution usually, if the condition of having a power failure takes place, then the intelligent dehydrating unit in the looped netowrk cabinet then can not carry out normal operation, can not be normal carry out dehumidification operation to the looped netowrk cabinet. Therefore, we improve the above and provide an intelligent dehumidifying device for ring main units.
Disclosure of Invention
In order to overcome the defects in the prior art, the invention provides an intelligent dehumidifying device of a ring main unit.
The invention is realized by the following technical scheme: an intelligent dehumidifying device of a ring main unit comprises a ring main unit body, wherein a top plate is fixedly arranged at the top end of the ring main unit body, a square movable plate is movably arranged in the middle of the top end of the top plate, a fixed table which is a right-angled inclined plane is arranged at the top end of the movable plate, a solar power generation assembly is arranged on the fixed table, exhaust fans are arranged at the tops of two sides of the ring main unit body, an air inlet of each exhaust fan is communicated with a connecting plate which is hollow inside, two ends of each connecting plate are fixedly connected with two ends of an inner cavity of the ring main unit body respectively, a plurality of inverted splayed suction nozzles are equidistantly arranged on one side of each connecting plate, which is far away from the corresponding exhaust fan, a mounting box is arranged in the middle of the bottom end of the inner cavity of the ring main unit body, a humidity sensor is arranged, the top of looped netowrk cabinet body inner chamber is provided with servo motor.
As a preferable technical scheme of the invention, the solar power generation assembly comprises a solar panel, a charge and discharge controller, an inverter and a storage battery, the solar panel is obliquely arranged on the fixed table, the charge and discharge controller is arranged at the bottom end of an inner cavity of the mounting box, and the inverter and the storage battery are respectively arranged at the top end of the mounting box and positioned at two sides of the single chip microcomputer.
As a preferred technical solution of the present invention, the solar panel is electrically connected to a charge and discharge controller, the charge and discharge controller is electrically connected to a storage battery, and the storage battery is electrically connected to the inverter.
As a preferred technical scheme of the invention, both sides of the solar panel are fixedly connected with the fixed station through connecting blocks, the middle of the top end of the solar panel is fixedly provided with a fixed block, and the front of the fixed block is provided with a photosensitive sensor.
As a preferred technical scheme of the invention, a connecting shaft is arranged in the middle of the bottom end of the movable plate, the connecting shaft is rotatably connected with the top plate through a bearing, the output end of the servo motor penetrates through the ring main unit body to be fixedly connected with the connecting shaft, and the servo motor is fixedly connected with the ring main unit body through fixing plates arranged on two sides of the servo motor.
As a preferred technical scheme of the invention, the single chip microcomputer is electrically connected with the storage battery, and the exhaust fan, the humidity sensor, the photosensitive sensor and the servo motor are electrically connected with the single chip microcomputer.
As a preferred technical scheme of the invention, a bottom plate is fixedly arranged at the bottom end of the ring main unit body, and four corners of the top end of the bottom plate are all provided with mounting holes in a penetrating manner.
The invention has the beneficial effects that: this looped netowrk cabinet intelligence dehydrating unit, solar panel work charges to the battery through charge-discharge controller, the direct current of rethread dc-to-ac converter battery output, then to the exhaust fan, humidity transducer, a single-chip microcomputer, photosensitive sensor and servo motor supply power, can avoid urban power consumption or industrial power consumption to break down in the appearance, can normally carry out the possibility of dehumidification to the looped netowrk cabinet, rotate with the roof through setting the fly leaf and be connected, can adjust solar panel's angle, make solar panel carry out more efficient electricity generation, through be equipped with a plurality of suction nozzles on the connecting plate, can take out through the more comprehensive moisture to different position heights in the looped netowrk cabinet of exhaust fan and leave.
Drawings
The accompanying drawings, which are included to provide a further understanding of the invention and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the principles of the invention and not to limit the invention. In the drawings:

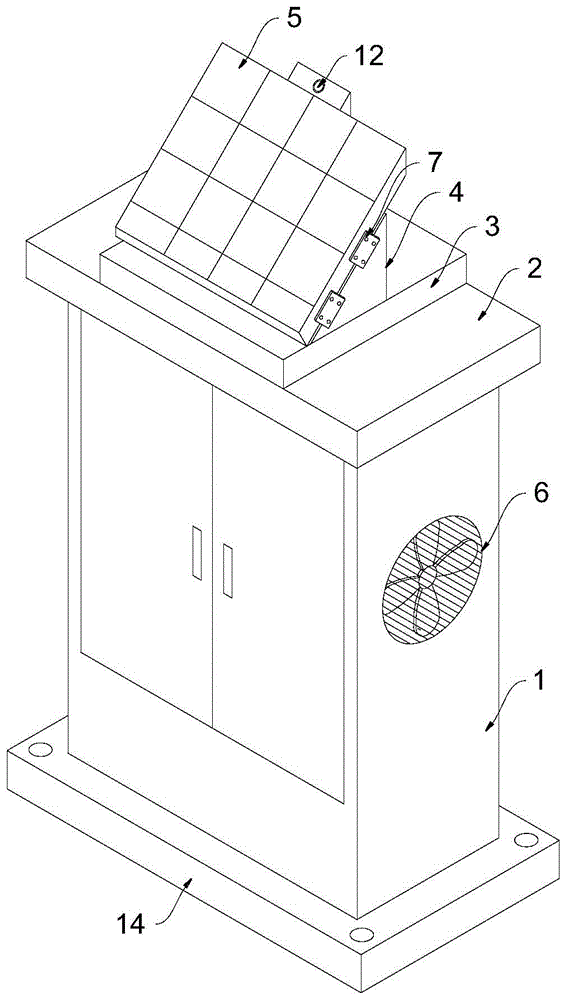

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the internal structure of the present invention;
fig. 3 is a schematic view of the internal structure of the mounting box.
In the figure: 1. a ring main unit body; 2. a top plate; 3. a movable plate; 4. a fixed table; 5. a solar power generation module; 501. a solar panel; 502. a charge and discharge controller; 503. an inverter; 504. a storage battery; 6. an exhaust fan; 7. a connecting plate; 8. a suction nozzle; 9. mounting a box; 10. a humidity sensor; 11. a single chip microcomputer; 12. a photosensitive sensor; 13. a servo motor; 14. a base plate.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are described herein for the purpose of illustration and explanation and not limitation.
Example (b): as shown in FIGS. 1-3, an intelligent dehumidifying device for ring main unit comprises a ring main unit body 1, a top plate 2 is fixedly arranged at the top end of the ring main unit body 1, a square movable plate 3 is movably arranged at the middle part of the top end of the top plate 2, a fixed table 4 with a right-angled inclined surface is arranged at the top end of the movable plate 3, a solar power generation assembly 5 is arranged on the fixed table 4, exhaust fans 6 are arranged at the top parts of the two sides of the ring main unit body 1, a connecting plate 7 with a hollow inner part is arranged at the air inlet of the exhaust fans 6 in a communicating manner, the two ends of the connecting plate 7 are respectively fixedly connected with the two ends of the inner cavity of the ring main unit body 1, a plurality of inverted splayed suction nozzles 8 are equidistantly arranged on one side of the connecting plate 7 away from the exhaust fans 6 along the vertical direction, a mounting box 9 is arranged at the middle part of the bottom end, the top of the inner cavity of the ring main unit body 1 is provided with a servo motor 13.
The solar power generation assembly 5 comprises a solar panel 501, a charge and discharge controller 502, an inverter 503 and a storage battery 504, the solar panel 501 is obliquely arranged on the fixed table 4, the charge and discharge controller 502 is arranged at the bottom end of an inner cavity of the mounting box 9, the inverter 503 and the storage battery 504 are respectively arranged at the top end of the mounting box 9 and located on two sides of the single chip microcomputer 11, the solar panel 501 is electrically connected with the charge and discharge controller 502, the charge and discharge controller 502 is electrically connected with the storage battery 504, the storage battery 504 is electrically connected with the inverter 503, the solar panel 501 charges the storage battery 504 through the charge and discharge controller 502 when working, and direct current output by the storage battery 504 can be converted into.
Wherein, solar panel 501's both sides all are through connecting block and 4 fixed connection of fixed station, and the fixed block that is provided with in middle part on solar panel 501 top, the front of fixed block are provided with photosensitive sensor 12, through the photosensitive sensor 12 that is equipped with, can respond to solar panel 501 towards the illumination intensity of environment.
Wherein, the middle part of 3 bottoms of fly leafs is provided with the connecting axle, and the connecting axle passes through the bearing to be connected with 2 rotations of roof, and servo motor 13's output passes ring main unit body 1 and connecting axle fixed connection, and servo motor 13 through the fixed plate that both sides were equipped with and ring main unit body 1 fixed connection, and servo motor 13 work can drive fly leaf 3 and rotate, and fly leaf 3 rotates and can realize adjusting solar panel 501's angle, makes solar panel 501 towards the region that illumination intensity is stronger.
The single chip microcomputer 11 is electrically connected to the storage battery 504, and the exhaust fan 6, the humidity sensor 10, the photosensitive sensor 12 and the servo motor 13 are electrically connected to the single chip microcomputer 11.
Wherein, the bottom mounting on looped netowrk cabinet body 1 is provided with bottom plate 14, and four edges on bottom plate 14 top all run through and have seted up the mounting hole, cooperate with the mounting hole through external mounting spare, can fix the position of looped netowrk cabinet body 1.
The working principle is as follows: the solar panel 501 charges the storage battery 504 through the charge-discharge controller 502, the inverter 503 converts the direct current output by the storage battery 504 into alternating current, and then supplies power to the exhaust fan 6, the humidity sensor 10, the single chip microcomputer 11, the photosensitive sensor 12 and the servo motor 13, the humidity sensor 10 can detect the humidity in the ring main unit body 1 and transmit the humidity to the single chip microcomputer 11, when the humidity in the ring main unit body 1 is higher than a certain value, the single chip microcomputer 11 controls the two exhaust fans 6 to work, the exhaust fan 6 works and extracts the moisture in the ring main unit body 1 through the suction nozzle 8, so as to ensure that the moisture in the ring main unit body 1 is not overweight, the illumination intensity of the solar panel 501 can be detected through the photosensitive sensor 12, and signals are transmitted to the single chip microcomputer 11, when the illumination intensity detected by the photosensitive sensor 12 is weaker, the single chip microcomputer 11 controls the servo motor 13 to rotate for one circle, the servo motor 13 rotates to drive the movable plate 3 to rotate, the movable plate 3 rotates to drive the solar panel 501 to rotate, in the rotating process of the solar panel 501, the photosensitive sensor 12 detects a plurality of illumination intensities in different directions and transmits the illumination intensities to the single chip microcomputer 11, the single chip microcomputer 11 compares the data, then the servo motor 13 is controlled to rotate the solar panel 501 to a position with higher illumination intensity, so that the solar panel 501 has better power generation effect, meanwhile, the storage battery 504 can be connected with an external power supply, the storage battery 504 can be charged by the external power supply under the condition of no illumination for a long time, the solar panel 501 is preferably a GHGN-D50WK type photovoltaic panel, the charge-discharge controller 502 is preferably a CLP01-16 type controller, and the inverter 503 is preferably, the single chip microcomputer 11 is preferably an STC12C5A60S2 type single chip microcomputer, the servo motor 13 is preferably an HBS57 type motor, and the humidity sensor 10 is preferably a tc-05b type sensor.
In the description of the present invention, it should be noted that the terms "vertical", "upper", "lower", "horizontal", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of describing the present invention and simplifying the description, but do not indicate or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that changes may be made in the embodiments and/or equivalents thereof without departing from the spirit and scope of the invention. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (7)
1. An intelligent dehumidifying device of a ring main unit comprises a ring main unit body (1) and is characterized in that a top plate (2) is fixedly arranged at the top end of the ring main unit body (1), a square movable plate (3) is movably arranged at the middle part of the top end of the top plate (2), a fixed table (4) which is a right-angled inclined plane is arranged at the top end of the movable plate (3), a solar power generation assembly (5) is arranged on the fixed table (4), exhaust fans (6) are arranged at the tops of two sides of the ring main unit body (1), a connecting plate (7) which is hollow inside is communicated with an air inlet of each exhaust fan (6), two ends of each connecting plate (7) are fixedly connected with two ends of an inner cavity of the ring main unit body (1) respectively, and a plurality of inverted splayed suction nozzles (8) are equidistantly arranged on one side, far away from the exhaust fans (6), of each connecting plate (, the middle part of looped netowrk cabinet body (1) inner chamber bottom is provided with mounting box (9), the top of mounting box (9) is provided with humidity transducer (10), the top of mounting box (9) inner chamber is provided with singlechip (11), the top of looped netowrk cabinet body (1) inner chamber is provided with servo motor (13).
2. The intelligent dehumidification device of the ring main unit as claimed in claim 1, wherein the solar power generation assembly (5) comprises a solar panel (501), a charge-discharge controller (502), an inverter (503) and a storage battery (504), the solar panel (501) is obliquely arranged on the fixed table (4), the charge-discharge controller (502) is arranged at the bottom end of an inner cavity of the installation box (9), and the inverter (503) and the storage battery (504) are respectively arranged at two sides of the single chip microcomputer (11) at the top end of the installation box (9).
3. The intelligent dehumidification device of a ring main unit as claimed in claim 2, wherein the solar panel (501) is electrically connected to the charge and discharge controller (502), the charge and discharge controller (502) is electrically connected to the storage battery (504), and the storage battery (504) is electrically connected to the inverter (503).
4. The intelligent dehumidification device of a ring main unit as claimed in claim 3, wherein both sides of the solar panel (501) are fixedly connected with the fixed station (4) through connection blocks, a fixed block is fixedly arranged in the middle of the top end of the solar panel (501), and a photosensitive sensor (12) is arranged on the front surface of the fixed block.
5. The intelligent dehumidification device of the ring main unit as claimed in claim 4, wherein a connection shaft is disposed in the middle of the bottom end of the movable plate (3), the connection shaft is rotatably connected to the top plate (2) through a bearing, the output end of the servo motor (13) passes through the ring main unit body (1) to be fixedly connected to the connection shaft, and the servo motor (13) is fixedly connected to the ring main unit body (1) through fixing plates disposed on two sides.
6. The intelligent dehumidifying device of a ring main unit as claimed in claim 5, wherein the single chip microcomputer (11) is electrically connected to the storage battery (504), and the exhaust fan (6), the humidity sensor (10), the photosensitive sensor (12) and the servo motor (13) are electrically connected to the single chip microcomputer (11).
7. The intelligent dehumidification device of a ring main unit as claimed in claim 1, wherein a bottom plate (14) is fixedly arranged at a bottom end of the ring main unit body (1), and four corners of a top end of the bottom plate (14) are provided with mounting holes in a penetrating manner.
