Abstract
The invention discloses a multifunctional gate-type hydraulic machine, which comprises a winding roller, discs and solder wires, wherein the discs are fixed on the left side and the right side of the winding roller, the diameter of the disc is 100mm, the solder wire is wound on the winding roller, a solder wire shell is arranged outside the solder wire, an inner core is arranged in the soldering tin wire, an anti-oxidation layer is arranged on the outer surface of the inner core, a second tin layer is arranged on the outer wall of the anti-oxidation layer, the first tin layer is arranged outside the second tin layer, the corrosion-resistant layer is coated between the first tin layer and the solder wire, the invention can increase the content of the tin wire body by arranging a plurality of convex strips between the outer surface of the solder wire and the solder wire shell, simultaneously with the inside a plurality of spliced pole that is equipped with of solder wire, through with every spliced pole and inner core surface fixed connection, can improve the stability and the crushing resistance of this solder wire.
Description
Technical Field
The invention relates to a hydraulic machine device, in particular to a multifunctional gate type hydraulic machine, and belongs to the technical field of mechanical equipment.
Background
A gate hydraulic machine is a machine that uses liquid as a working medium to transfer energy to implement various processes. The hydraulic press can be used for forging and forming, straightening, press fitting, packing, pressing blocks, pressing plates and the like. The hydraulic machine comprises a hydraulic press and an oil press. The hydraulic press using water-based liquid as working medium and the hydraulic press using oil as working medium.
Present blanking mould all can be used to hydraulic press work, however present hydraulic press is when punching press or blanking, can't solve blanking mould because displacement deviation appears when whereabouts, do not have accurate locate function, lead to the inaccurate and problem of crushing the mould of blanking terrace die location, and the heat that produces in the present blanking mould raw materials forming process can't in time discharge, lead to the mould to receive the high temperature influence for a long time, thereby influence the life of mould, and the blanking is after, can not realize unloading fast the product, bring inconvenience for the use.
Disclosure of Invention
The invention provides a multifunctional gate type hydraulic machine which is used for solving the problems in the background technology.
In order to solve the technical problems, the invention provides the following technical scheme:
the invention discloses a multifunctional gate-type hydraulic machine which comprises a base, moving wheels, a workbench, upright posts and a top plate, wherein the moving wheels are respectively installed on two sides of the bottom end of the base, the upright posts are respectively and fixedly installed on two sides of the upper end of the base, the top ends of the two upright posts are fixedly provided with the top plate, a hydraulic cylinder is installed in the middle of the top plate, a supporting seat is installed on the upper end of the outer wall of one upright post, a hydraulic machine is fixedly installed on the supporting seat, and a hydraulic pipeline is fixedly connected between the hydraulic machine and.
As a preferable technical scheme of the invention, one end of the hydraulic cylinder is connected with a hydraulic rod, the middle of the hydraulic rod penetrating through the top plate is fixedly connected with a lifting plate, and two ends of the lifting plate are fixedly connected with sliding blocks.
As a preferred technical scheme of the invention, the inner side walls of the two upright posts are respectively provided with a sliding groove, and the sliding blocks are slidably arranged in the sliding grooves.
As a preferred technical scheme of the invention, a buffer spring is fixedly arranged in the middle of the bottom surface of the lifting plate, an upper die holder is fixedly arranged at the bottom end of the buffer spring, and a male die is integrally arranged at the bottom end of the upper die holder.
As a preferred technical scheme of the invention, the upper surface of the base is provided with a workbench, the upper surface of the workbench is provided with a lower die holder, the lower die holder is provided with a female die, and the male die is matched with the female die.
As a preferred technical scheme of the invention, the middle part of the upper die base is provided with a heat dissipation mechanism, and the heat dissipation mechanism comprises a heat dissipation cavity and an air circulation groove.
The invention has the following beneficial effects:
1. the lifting plate is capable of descending gently by arranging the sliding grooves and the sliding blocks on the two sides of the inner wall of the top plate, the buffer spring is connected between the lifting plate and the upper die base, so that the upper die base is capable of buffering well when being pressed downwards, the stamping effect and the stamping quality are improved, and the moving wheels are additionally arranged on the two sides of the bottom end of the base, so that the machine can be moved more conveniently and quickly.
2. The inner side walls of the two stand columns are provided with the sliding grooves, so that when the hydraulic cylinder drives the upper die base to move downwards, the sliding blocks at the two ends of the lifting plate can slide in the sliding grooves, the blanking male die on the die can accurately enter the blanking cavity, the situation that the blanking die has displacement deviation when falling is avoided, the problem that the blanking male die is positioned inaccurately and a lower die base is damaged due to the displacement deviation of the traditional blanking die when falling is solved, meanwhile, the effect of accurately positioning the blanking male die is achieved through the matching of the sliding grooves and the sliding blocks, and the accuracy of the stamping die is improved.
3. According to the invention, the heat dissipation mechanism is arranged in the upper die base, the heat dissipation cavity and the air circulation groove are matched for use, so that the rapid heat dissipation of materials is realized, the forming speed is increased, the male die is made of the metal material breathable steel, so that the heat generated in the forming process of raw materials can be rapidly dissipated, the demoulding speed is increased, the service life of the die is prolonged, the impact strength is ensured, the wear resistance between the male die and the die cavity is improved, and the service life is prolonged.
Drawings
The accompanying drawings, which are included to provide a further understanding of the invention and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the principles of the invention and not to limit the invention. In the drawings:

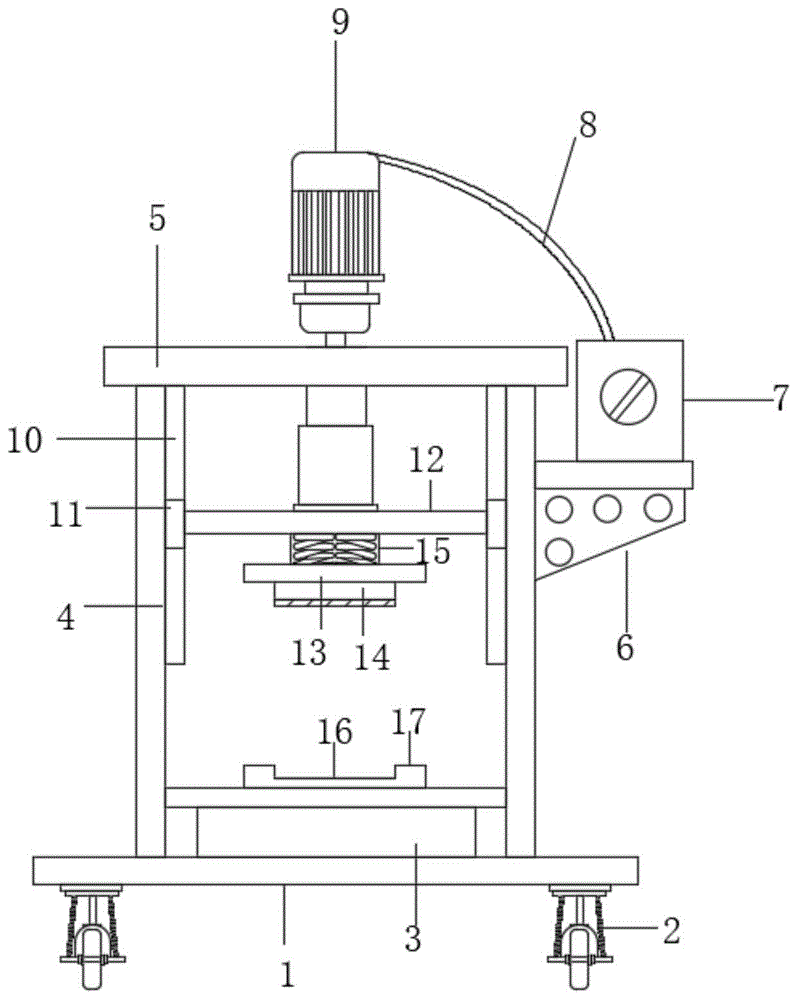

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the upper die base structure of the present invention;
FIG. 3 is a schematic perspective view of the upper and lower die holders of the present invention;
fig. 4 is a schematic structural diagram of the heat dissipation mechanism of the present invention.
In the figure: 1. a base; 2. a moving wheel; 3. a work table; 4. a column; 5. a top plate; 6. a supporting seat; 7. a hydraulic press; 8. a hydraulic line; 9. a hydraulic cylinder; 10. a chute; 11. a slider; 12. a lifting plate; 13. an upper die holder; 14. a male die; 15. a buffer spring; 16. a female die; 17. a lower die holder; 18. an air circulation groove; 19. a heat dissipation mechanism; 20. and a heat dissipation cavity.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Example (b): as shown in fig. 1-4, a multi-functional gate-type hydraulic machine, includes base 1, removes wheel 2, workstation 3, stand 4 and roof 5, the bottom both sides of base 1 are all installed and are removed wheel 2, the equal fixed mounting in base 1 upper end both sides has stand 4, two the top fixed mounting of stand 4 has roof 5, the mid-mounting of roof 5 has pneumatic cylinder 9, one supporting seat 6 is installed to the outer wall upper end of stand 4, fixed mounting has hydraulic press 7 on the supporting seat 6, fixedly connected with hydraulic line 8 between hydraulic press 7 and the pneumatic cylinder 9.
The one end of pneumatic cylinder 9 is connected with the hydraulic stem, and the hydraulic stem runs through the middle part fixedly connected with lifter plate 12 of roof 5, the equal fixedly connected with slider 11 in both ends of lifter plate 12, two spout 10 has all been seted up on the inside wall of stand 4, 11 slidable mounting of slider is in spout 10, the basal surface middle part fixed mounting of lifter plate 12 has buffer spring 15, buffer spring 15's bottom fixed mounting has upper die base 13, the bottom an organic whole of upper die base 13 is equipped with terrace die 14, the upper surface of base 1 is equipped with workstation 3, the upper surface of workstation 3 is equipped with die holder 17, die 16 has been seted up on the die holder 17, terrace die 14 and 16 looks adaptations of die, upper die base 13 middle part is equipped with heat dissipation mechanism 19, heat dissipation mechanism 19 includes heat dissipation chamber 20 and air circulation groove 18.
The working principle is as follows: the invention has simple structure and convenient operation, the lifting plate 12 can be gently descended by arranging the sliding grooves 10 and the sliding blocks 11 on the two sides of the inner wall of the top plate 5, simultaneously, the buffer spring 15 is connected between the lifting plate 12 and the upper die base 13, so that the upper die base 13 can play a good buffer role when being pressed downwards, thereby improving the stamping effect and the quality, the machine can be more conveniently and quickly moved and carried by adding the moving wheels 2 on the two sides of the bottom end of the base 1, the invention ensures that the punching male dies 14 on the dies can accurately enter the punching cavity by arranging the sliding grooves 10 on the inner side walls of the two upright posts 4, so that the sliding blocks 11 on the two ends of the lifting plate 12 can slide in the sliding grooves 10 when the hydraulic cylinders 9 drive the upper die base 13 to move downwards, thereby avoiding the situation of displacement deviation of the punching dies when falling, and solving the displacement deviation of the traditional punching dies, the punching die has the advantages that the heat dissipation mechanism 19 is arranged in the upper die base 13, the heat dissipation cavity 20 and the air circulation groove 18 are matched for use, the quick heat dissipation of materials is realized, the forming speed is increased, the male die 14 is made of the metal material breathable steel, so that the heat generated in the forming process of raw materials can be quickly dissipated, the demolding speed is increased, the service life of the die is prolonged, the impact strength is guaranteed, the wear resistance between the male die 14 and the die cavity is improved, and the service life is prolonged.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a multi-functional gate-type hydraulic press, its characterized in that, includes base (1), removes wheel (2), workstation (3), stand (4) and roof (5), the bottom both sides of base (1) are all installed and are removed wheel (2), the equal fixed mounting in base (1) upper end both sides has stand (4), two the top fixed mounting of stand (4) has roof (5), the mid-mounting of roof (5) has pneumatic cylinder (9), one supporting seat (6) are installed to the outer wall upper end of stand (4), fixed mounting has hydraulic press (7) on supporting seat (6), fixedly connected with hydraulic line (8) between hydraulic press (7) and pneumatic cylinder (9).
2. A multi-function gate-type hydraulic machine as claimed in claim 1, wherein: one end of the hydraulic cylinder (9) is connected with a hydraulic rod, the hydraulic rod penetrates through a lifting plate (12) fixedly connected to the middle of the top plate (5), and sliding blocks (11) are fixedly connected to the two ends of the lifting plate (12).
3. A multi-function gate-type hydraulic machine as claimed in claim 1, wherein: two spout (10) have all been seted up on the inside wall of stand (4), slider (11) slidable mounting is in spout (10).
4. A multi-function gate-type hydraulic machine as claimed in claim 2, wherein: the bottom surface middle part fixed mounting of lifter plate (12) has buffer spring (15), the bottom fixed mounting of buffer spring (15) has upper die base (13), the bottom an organic whole of upper die base (13) is equipped with terrace die (14).
5. A multi-function gate-type hydraulic machine as claimed in claim 1, wherein: the upper surface of base (1) is equipped with workstation (3), the upper surface of workstation (3) is equipped with die holder (17), die (16) have been seted up on die holder (17), terrace die (14) and die (16) looks adaptation.
6. A multi-function gate-type hydraulic machine as claimed in claim 1, wherein: the heat dissipation device is characterized in that a heat dissipation mechanism (19) is arranged in the middle of the upper die base (13), and the heat dissipation mechanism (19) comprises a heat dissipation cavity (20) and an air circulation groove (18).
