The invention discloses a corrugated board forming and processing device which comprises supporting legs, wherein the top ends of the supporting legs are fixedly connected with an operating platform, corrugated medium is arranged in the middle position of the inside of an inner limiting groove, corrugated paper sheets are arranged on the top of the corrugated medium, the top of each corrugated paper sheet is connected with a reinforcing paper board, a limiting module is arranged in the gap between each corrugated medium and each corrugated paper sheet, a vertical adjusting mechanism is fixedly connected to the left side of the top of the operating platform, a demolding jacking block is uniformly and fixedly connected to the surface of the top of a transmission connecting rod, and a rolling mechanism is fixedly connected to the right side of the top of the operating platform. This corrugated container board forming process device has reached and has maintained corrugated container board's whole form and not have the giant change, guarantees the compound area between glue and the cardboard, improves corrugated container board shaping quality, and this process only needs alone to accomplish, reduces the labour's of the compound equipment of corrugated container board purpose.
Description
Technical Field
The invention relates to the technical field of corrugated boards, in particular to a corrugated board forming and processing device.
Background
The corrugated paper board is made into a corrugated paper box through die cutting, indentation, box nailing or box gluing. The corrugated case is a packaging product with the widest application, and the use amount is always the first of various packaging products. Comprises a calcium plastic corrugated case. For more than half a century, corrugated cartons gradually replace transport packaging containers such as wooden boxes and the like with excellent service performance and good processing performance, and become the leading force of transport packaging. It not only protects the goods, is convenient for storage and transportation, but also beautifies the goods and publicizes the goods. The corrugated case belongs to green environmental protection product, and it does benefit to the environmental protection, does benefit to the loading and unloading transportation.
The corrugated paper board is formed by oppositely pressing an upper corrugated roller and a lower corrugated roller, pasted by a pasting roller, laminated into two layers of corrugated base paper by the surface paper and the formed corrugated paper at the tangent of the pressure roller and the upper corrugated roller, and compounded with other single corrugated base paper and the surface paper to be formed by moving and leading a belt to an overhead bridge to a double-faced machine part.
With the increase of the usage of corrugated paper boxes in various industries, users also put higher requirements on the functions of the corrugated paper boxes. In the aspect of the structural design of the carton, particularly in the aspects of container packing transportation and shelf storage, reasonable size, shape and material matching can save the cost, provide an optimal packaging solution and ensure that products can be protected most effectively in the long-term freight process. In such a case, the structure and size design of the corrugated box are also increasingly important.
At present, the small-scale production of corrugated boards is completed by pure workers, three to four workers are required to cooperate together to realize the composite connection of the corrugated boards, fixed corrugated paper sheets cannot be uniformly installed and compounded between a reinforcing paperboard and corrugated raw paper, the production quality of the corrugated raw paper is reduced, the corrugated raw paper is damaged due to the fact that the excessive force is applied in the adhesion process, and the phenomenon of bonding insecure is caused due to the excessive force.
Disclosure of Invention
Technical problem to be solved
Aiming at the defects of the prior art, the invention provides a corrugated board forming and processing device, which solves the problems that the existing small-scale corrugated board manufacturing is finished by pure manpower, three to four workers are required to cooperate together to realize the composite connection of the corrugated board, the fixed corrugated paper sheets cannot be uniformly installed and compounded between the reinforced paper board and the corrugated base paper, the production quality of the corrugated board is reduced, the damage of the corrugated base paper is caused by excessive force applied in the bonding process, and the bonding is not firm due to excessive force applied.
(II) technical scheme
In order to achieve the purpose, the invention is realized by the following technical scheme: a corrugated board forming and processing device comprises supporting legs, wherein the top ends of the supporting legs are fixedly connected with an operating platform, the middle position of the top of the operating platform is fixedly connected with an installation base, the middle position of the top of the installation base is fixedly connected with a limiting inner groove, the middle position of the inside of the limiting inner groove is provided with corrugated raw paper, the top of the corrugated raw paper is provided with corrugated paper sheets, the top of each corrugated paper sheet is connected with a reinforcing paperboard, a limiting module is arranged in a gap between the corrugated raw paper and the corrugated paper sheets, the left side of the top of the operating platform is fixedly connected with a vertical adjusting mechanism, the right side output end of the vertical adjusting mechanism is fixedly connected with a supporting connecting rod, the left end and the right end of the inside of the supporting connecting rod are both fixedly connected with a movable inner sliding groove, the inside of the movable inner sliding groove is slidably connected, the even fixedly connected with drawing of patterns kicking block in surface at transmission connecting rod top, the right side fixedly connected with rolling mechanism at operation platform top, the right side fixedly connected with transmission support that supports the connecting rod top and be located the spout in the removal, the inside intermediate position of transmission support rotates and is connected with drive gear, the right-hand member fixedly connected with transmission spur rack of transmission connecting rod bottom, the transmission spur rack is connected with the drive gear meshing.
Preferably, the axle center on the right side of the transmission gear is fixedly connected with a first hand rocker.
Preferably, the vertical adjusting mechanism comprises an inner limiting sliding groove, the bottom end of the inner limiting sliding groove is fixedly connected with the left side of the operating platform, a vertical limiting track is fixedly connected to the left side of the inner limiting sliding groove, and an internal thread sliding block is slidably connected to the outer surface of the vertical limiting track.
Preferably, the inner portion of the internal thread sliding block penetrates through and is in threaded connection with a clamping threaded rod, the inner portion of the inner limiting sliding groove is in sliding connection with an adjusting inner moving block, and one end, located inside the inner limiting sliding groove, of the clamping threaded rod is rotatably connected with the adjusting inner moving block.
Preferably, one end of the clamping threaded rod, which is positioned outside the inner limiting sliding groove, is fixedly connected with a second hand rocker.
Preferably, one end of the adjusting inner moving block, which is far away from the clamping threaded rod, is fixedly connected with the support connecting rod.
Preferably, the rolling mechanism comprises a fixed rod, the bottom end of the fixed rod is fixedly connected with the right end of the operating platform, a limiting track is fixedly connected to the top of the fixed rod, and a movable roller is slidably connected to the inside of the limiting track.
Preferably, the left side of the movable roller wheel, which is positioned outside the limiting rail, is rotatably connected with an external pressure roller wheel, and the bottom end of the external pressure roller wheel is in contact with the top of the reinforcing paperboard.
Preferably, one end of the movable roller far away from the external pressure roller is fixedly connected with a hand push handle.
Preferably, the demolding jacking blocks and the limiting modules are arranged in a one-to-one correspondence mode.
(III) advantageous effects
The invention provides a corrugated board forming and processing device. The method has the following beneficial effects:
(1) the corrugated medium forming device comprises a corrugated medium, a limiting inner groove, a plurality of limiting modules, a plurality of hand-held hand-push handles, a plurality of reinforcing paper boards, a plurality of corrugated medium rollers, a plurality of limiting modules, a plurality of glue applying rollers, a plurality of hand-push handles, a plurality of glue applying rollers, a plurality of reinforcing paper boards, a plurality of corrugated medium rollers and a plurality of corrugated medium rollers, wherein the corrugated medium rollers are arranged in the limiting inner groove, corrugated paper sheets are arranged at the top of the corrugated medium rollers at the same time, the limiting modules are inserted into the gaps between the corrugated medium rollers and the corrugated paper sheets, the corrugated paper sheets are picked up again, the glue is applied to the gaps between the limiting modules at the top of the corrugated medium rollers, the corrugated paper sheets are re-clamped and placed at the positions between the limiting modules again, the aims of maintaining the integral shape of the corrugated board not to be changed greatly, ensuring the composite area between the glue and the corrugated board and improving the forming quality of the corrugated board are fulfilled.
(2) This corrugated medium body forming processing device, support the position of connecting rod in vertical side through the adjustment, make drawing of patterns kicking block and restriction module openly correspond, wave the second hand rocker, thereby movable block and internal thread slider clamp are fixed in the adjustment, thereby realize supporting the stability of the vertical direction of connecting rod, wave first hand rocker this moment, thereby drive gear drives the straight-teeth rack back-and-forth movement of transmission, the drawing of patterns kicking block extrudees ejecting restriction module forward, treat that shaping corrugated container board glue air-dries can, it only needs alone to accomplish to have reached this process, reduce the labour's of corrugated container board composite assembly purpose.
Drawings

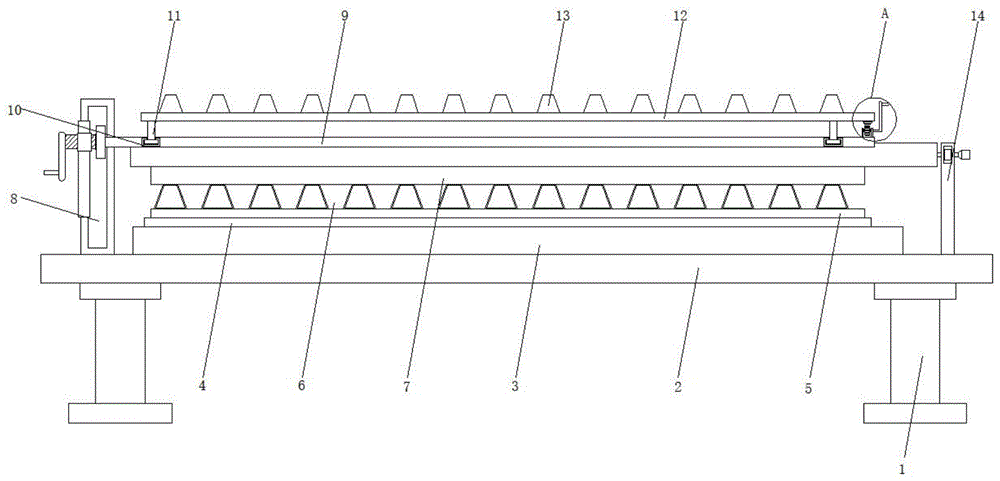

FIG. 1 is a schematic structural view of the present invention as a whole;
FIG. 2 is a schematic view of a partial structure of a corrugated paper sheet according to the present invention;
FIG. 3 is a schematic view of the structure of the present invention at A;
FIG. 4 is a schematic view of the vertical adjustment mechanism of the present invention;
fig. 5 is a schematic structural view of the rolling mechanism of the present invention.
In the figure: the device comprises 1 supporting leg, 2 operating platforms, 3 mounting bases, 4 limiting inner grooves, 5 corrugated base paper, 6 corrugated paper sheets, 7 reinforcing paper sheets, 8 vertical adjusting mechanisms, 801 inner limiting sliding grooves, 802 vertical limiting tracks, 803 inner thread sliding blocks, 804 clamping threaded rods, 805 adjusting inner moving blocks, 806 second hand rocking bars, 9 supporting connecting rods, 10 moving inner sliding grooves, 11 moving supporting sliding rods, 12 transmission connecting rods, 13 demoulding jacking blocks, 14 rolling mechanisms, 141 fixing rods, 142 limiting tracks, 143 moving rollers, 144 external pressing rollers, 145 hand push handles, 15 transmission supports, 16 transmission gears, 17 transmission spur racks, 18 first hand rocking bars and 19 limiting modules.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: a corrugated board forming and processing device comprises a supporting leg 1, wherein the top end of the supporting leg 1 is fixedly connected with an operating platform 2, the middle position of the top of the operating platform 2 is fixedly connected with a mounting base 3, the middle position of the top of the mounting base 3 is fixedly connected with a limiting inner groove 4, the middle position inside the limiting inner groove 4 is provided with a corrugated base paper 5, the top of the corrugated base paper 5 is provided with a corrugated paper sheet 6, the top of the corrugated paper sheet 6 is connected with a reinforcing paper sheet 7, a limiting module 19 is arranged in a gap between the corrugated base paper 5 and the corrugated paper sheet 6, the left side of the top of the operating platform 2 is fixedly connected with a vertical adjusting mechanism 8, the right side output end of the vertical adjusting mechanism 8 is fixedly connected with a supporting connecting rod 9, the left end and the right end inside the supporting connecting rod, the movable supporting slide rod 11 is located at one end, outside the movable inner sliding groove 10, of the movable supporting slide rod 12, the surface of the top of the movable supporting slide rod 12 is evenly and fixedly connected with a demolding jacking block 13, the right side of the top of the operating platform 2 is fixedly connected with a rolling mechanism 14, the top of the supporting slide rod 9 is located at the right side of the movable inner sliding groove 10 and is fixedly connected with a transmission support 15, the middle position inside the transmission support 15 is rotatably connected with a transmission gear 16, the right end of the bottom of the transmission slide rod 12 is fixedly connected with a transmission spur rack 17, and the transmission spur rack 17 is. A first hand rocker 18 is fixedly connected to the right axis of the transmission gear 16. The vertical adjusting mechanism 8 comprises an inner limiting sliding groove 801, the bottom end of the inner limiting sliding groove 801 is fixedly connected with the left side of the operating platform 2, a vertical limiting track 802 is fixedly connected to the left side of the inner limiting sliding groove 801, and an internal thread sliding block 803 is slidably connected to the outer surface of the vertical limiting track 802. A clamping threaded rod 804 penetrates through the inner part of the internal thread sliding block 803 and is in threaded connection with the inner adjusting moving block 805, the inner adjusting sliding groove 801 is in sliding connection with the inner adjusting moving block 805, and one end, located inside the inner adjusting sliding groove 801, of the clamping threaded rod 804 is rotatably connected with the inner adjusting moving block 805. A second hand-rocker arm 806 is fixedly connected to one end of the clamping threaded rod 804 outside the inner limiting runner 801. And one end of the inner moving block 805 away from the clamping threaded rod 804 is fixedly connected with the support connecting rod 9. The rolling mechanism 14 includes a fixing rod 141, a bottom end of the fixing rod 141 is fixedly connected to a right end of the operating platform 2, a top portion of the fixing rod 141 is fixedly connected to a limiting rail 142, and a movable roller 143 is slidably connected to an inner portion of the limiting rail 142. The left side of the movable roller 143 outside the limiting rail 142 is rotatably connected with an external pressure roller 144, and the bottom end of the external pressure roller 144 contacts with the top of the reinforced paperboard 7. One end of the movable roller 143 far away from the external pressure roller 144 is fixedly connected with a hand push handle 145. The demolding top blocks 13 are arranged in one-to-one correspondence with the limiting modules 19.
When the corrugated paper pressing device is used, the corrugated base paper 5 is placed in the limiting inner groove 4, the corrugated paper sheets 6 are placed at the top of the corrugated base paper 5, the limiting modules 19 are inserted into the gaps between the corrugated base paper 5 and the corrugated paper sheets 6, the corrugated paper sheets 6 are taken up, glue is coated on the gaps between the limiting modules 19 and the top of the corrugated base paper 5, the corrugated paper sheets 6 are clamped again and placed at the positions between the limiting modules 19, the upper surface of the glue is in protruding contact with the bottoms of the corrugated paper sheets 6, the protrusions at the tops of the corrugated paper sheets 6 are coated with the glue, the reinforcing paper sheets 7 are placed at the tops of the corrugated paper sheets 6, preliminary compounding of corrugated paper boards is achieved, the hand-held hand-push handle 145 is pushed forwards and backwards, the external pressure roller 144 rolls and extrudes on the tops of the reinforcing paper sheets 7 back and forth, and forth due to the supporting effect of the limiting modules 19, and uniform, the utility model has the advantages of reached and maintained corrugated container board's whole form and not taken place the great change, guarantee the compound area between glue and the cardboard, improve corrugated container board shaping quality's purpose, through adjustment support link 9 position in vertical direction, make drawing of patterns kicking block 13 and restriction module 19 openly correspond, wave second hand rocker 806, it is fixed with the tight clamp of internal thread slider 803 to adjust interior movable block 805, thereby realize the stability of support link 9 vertical direction, wave first hand rocker 18 this moment, thereby drive gear 16 drives transmission spur rack 17 back-and-forth movement, drawing of patterns kicking block 13 extrudees ejecting restriction module 19 forward, treat that shaping corrugated container board glue air-dries can, it only needs one person to accomplish to have reached this process, reduce the purpose of the labour of corrugated container board composite assembly.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation. The use of the phrase "comprising one of the elements does not exclude the presence of other like elements in the process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (10)
1. The utility model provides a corrugated container board contour machining device, includes supporting leg (1), its characterized in that: the corrugated paper corrugated machine is characterized in that an operating platform (2) is fixedly connected to the top end of the supporting leg (1), an installation base (3) is fixedly connected to the middle position of the top of the operating platform (2), a limiting inner groove (4) is fixedly connected to the middle position of the top of the installation base (3), corrugated paper (5) is arranged at the middle position inside the limiting inner groove (4), corrugated paper sheets (6) are arranged at the top of the corrugated paper (5), reinforcing paper sheets (7) are connected to the top of the corrugated paper sheets (6), limiting modules (19) are arranged in gaps between the corrugated paper (5) and the corrugated paper sheets (6), a vertical adjusting mechanism (8) is fixedly connected to the left side of the top of the operating platform (2), a supporting connecting rod (9) is fixedly connected to the right output end of the vertical adjusting mechanism (8), and a movable inner sliding chute (10) is fixedly connected to the left end, the inside sliding connection who removes interior spout (10) has the removal to support slide bar (11), remove and support slide bar (11) and be located the outside one end fixedly connected with transmission connecting rod (12) of removal interior spout (10), the even fixedly connected with drawing of patterns kicking block (13) in surface at transmission connecting rod (12) top, the right side fixedly connected with roll-in mechanism (14) at operation platform (2) top, support connecting rod (9) top and be located the right side fixedly connected with transmission support (15) that remove interior spout (10), the inside intermediate position of transmission support (15) rotates and is connected with drive gear (16), the right-hand member fixedly connected with transmission spur rack (17) of transmission connecting rod (12) bottom, transmission spur rack (17) are connected with drive gear (16) meshing.
2. A corrugated cardboard forming apparatus as claimed in claim 1 wherein: the right axis of the transmission gear (16) is fixedly connected with a first hand rocker (18).
3. A corrugated cardboard forming apparatus as claimed in claim 1 wherein: vertical guiding mechanism (8) are including interior restriction spout (801), the bottom and operation platform (2) left side fixed connection of interior restriction spout (801), the vertical restriction track (802) of left side fixedly connected with of interior restriction spout (801), the external surface sliding connection of vertical restriction track (802) has internal thread slider (803).
4. A corrugated cardboard forming apparatus as claimed in claim 3 wherein: the inner part of the internal thread sliding block (803) penetrates through and is in threaded connection with a clamping threaded rod (804), the inner part of the inner limiting sliding groove (801) is in sliding connection with an inner adjusting moving block (805), and one end, located inside the inner limiting sliding groove (801), of the clamping threaded rod (804) is rotatably connected with the inner adjusting moving block (805).
5. A corrugated cardboard forming and processing device as claimed in claim 4 wherein: one end of the clamping threaded rod (804) positioned outside the inner limiting sliding groove (801) is fixedly connected with a second hand rocker (806).
6. A corrugated cardboard forming and processing device as claimed in claim 4 wherein: one end, far away from the clamping threaded rod (804), of the adjusting inner moving block (805) is fixedly connected with the supporting connecting rod (9).
7. A corrugated cardboard forming apparatus as claimed in claim 1 wherein: the rolling mechanism (14) comprises a fixing rod (141), the bottom end of the fixing rod (141) is fixedly connected with the right end of the operating platform (2), a limiting track (142) is fixedly connected to the top of the fixing rod (141), and a movable roller (143) is slidably connected to the inside of the limiting track (142).
8. A corrugated cardboard forming apparatus as claimed in claim 7 wherein: the left side of the movable roller (143) positioned outside the limiting rail (142) is rotatably connected with an external pressure roller (144), and the bottom end of the external pressure roller (144) is contacted with the top of the reinforcing paperboard (7).
9. A corrugated cardboard forming apparatus as claimed in claim 8 wherein: one end of the movable roller (143) far away from the external pressure roller (144) is fixedly connected with a hand push handle (145).
10. A corrugated cardboard forming apparatus as claimed in claim 1 wherein: the demolding jacking blocks (13) and the limiting modules (19) are arranged in a one-to-one correspondence mode.
