Abstract
The invention discloses a rotary dust removal device for a computer sound, which comprises a dust removal box, wherein a rotary fixing device is fixedly arranged in the dust removal box, a cleaning dust collection device is arranged on the left side of the rotary fixing device, and a dust collection driving device is connected to the cleaning dust collection device; the cleaning dust collection device comprises a fixed installation pipe, a dust brush is fixedly installed on the installation pipe, a dust collection groove is further formed in the installation pipe, guide plates are arranged on two sides of the dust collection groove, the two guide plates are hinged to the installation pipe, a reset spring is connected between the two guide plates, a plurality of resistance reduction pulleys are installed at the end portions of the guide plates, a movable groove is formed in the inner side surface of each guide plate, rollers are installed in the movable grooves, an installation frame is jointly connected onto the two rollers, and an air flue adjusting roller is movably installed on the installation frame.
Description
Technical Field
The invention relates to the field of dust removal equipment, in particular to a rotary dust removal device for a computer sound.
Background
The sound refers to sounds other than human speech and music, and includes sounds of natural environments, sounds of animals, sounds of machine tools, various sounds generated by human motions, and the like. The sound equipment roughly comprises a power amplifier, peripheral equipment (comprising a pressure limiter, an effector, an equalizer, a VCD, a DVD and the like), a loudspeaker (a sound box and a loudspeaker), a sound console, a microphone, display equipment and the like which are added together. Among them, the sound box is a sound output device, a speaker, a subwoofer, etc. A sound box comprises three loudspeakers, namely a high loudspeaker, a low loudspeaker and a middle loudspeaker, but not necessarily three loudspeakers. The development history of the technology can be divided into four stages of electron tubes, transistors, integrated circuits and field effect transistors.
Specifically, the integral stereo set sleeving machine is provided by manufacturers, and has the advantages of complete functions, convenience in use and gorgeous appearance. All components of the combined sound equipment, such as a sound box, a power amplifier, a card seat and a CD seat, are provided by a manufacturer, so that the integral matching is better, and the appearance is uniform and beautiful; the user does not need to spend much time for debugging after purchasing, generally, the device can be directly used, is convenient to operate and has complete functionality. Many people think that the quality of the combined sound is not high, but in fact, with the development of electronic technology, the performance of the combined sound is greatly improved, so that the combined sound can completely meet the requirements of most users. Of course, the price and the quality performance of the combined sound equipment have great difference, and the combined sound equipment has thousands of yuan products and also has tens of thousands of yuan products, which is needed, and the combined sound equipment can be completely selected according to the own economic strength and the needs of users.
However, the conventional dust removing device for computer audio has the following defects:
(1) in the prior art, the dust removal device for the computer sound mostly adopts a brush product to clean and remove dust, and because the brush product is easy to generate static electricity due to friction with the surface of the computer sound, the cleaned dust is not removed in time and is easy to be adsorbed on the surface of the computer sound, so that the dust removal effect is reduced;
(2) in the prior art, the dust removal device for the computer sound can only perform dust removal operation on the outside of the computer sound, dust adsorbed by static electricity in the computer sound cannot be removed, and the tone quality of the computer sound is reduced along with the accumulation of the dust amount in the computer sound, so that certain defects exist.
Disclosure of Invention
In order to overcome the defects of the prior art, the invention provides the rotary dust removal device for the computer sound.
The technical scheme adopted by the invention for solving the technical problems is as follows:
a rotary dust removal device for a computer sound comprises a dust removal box, wherein a rotary fixing device is fixedly installed in the dust removal box, a cleaning dust suction device is arranged on the left side of the rotary fixing device, and a dust suction driving device is connected to the cleaning dust suction device;
clean dust extraction and include the installation pipe of fixed mounting in the dust removal incasement, fixed mounting has the brush cleaner on the installation pipe, still be equipped with the suction groove on the installation pipe, suction groove both sides are equipped with the guide board, two the guide board articulates on the installation pipe, and is connected with reset spring between two guide boards, guide board tip movable mounting has a plurality of drag reduction pulleys, two all be equipped with an activity groove on the guide board medial surface, equal movable mounting has the gyro wheel, two in the activity groove be connected with a installing frame jointly on the gyro wheel, movable mounting has the air flue regulating roll on the installing frame.
Furthermore, the upper end and the lower end of the guide plate are also provided with dust sweeping brushes which are fixedly arranged on the installation pipe.
Further, rotatory fixing device includes two holders, one of them holder movable mounting is at dust removal incasement bottom surface, another holder movable mounting is at dust removal incasement top surface, and is located dust removal incasement bottom surface the holder is connected with the rotating electrical machines, the holder includes the grip disc, fixed mounting has annular supporting disk in the grip disc, be equipped with a plurality of screens poles on the supporting disk, fixed mounting has spacing post on the screens pole, and spacing post is located spacing dish below, be connected with the centre gripping spring between the top surface in spacing post and the grip disc.
Further, the centre gripping dish passes through gear engagement's mode and is connected with the rotating electrical machines transmission, the centre gripping dish passes through rotary disk movable mounting at dust removal incasement bottom surface, the rotary disk includes swivel bearing, swivel bearing outer lane fixed mounting has last supporting bench, and goes up bottom surface fixed connection under supporting bench and the centre gripping dish, swivel bearing inner circle fixed mounting has a lower supporting bench, and lower supporting bench and dust removal incasement bottom surface fixed connection.
Furthermore, a fixed mounting hole is formed in the center of the upper supporting table, a bottom surface cleaning brush is arranged in the fixed mounting hole, and the bottom surface cleaning brush is fixedly mounted on the upper surface of the lower supporting table.
Further, be located dust removal case upper portion fixed mounting has the slide pipe on the centre gripping dish, install linear bearing on the slide pipe, and linear bearing passes through loose bearing and installs on dust removal case top surface, slide pipe top fixed mounting has the regulation handle, two spacing dishes of still fixed mounting on the slide pipe, and two spacing dishes distribute in dust removal case top surface both sides, are located the downside be connected with fixed spring between spacing dish and the dust removal incasement top surface.
Furthermore, a bottom surface cleaning brush is also fixedly arranged on the top surface in the dust removal box, and the bottom surface cleaning brush is positioned in the sliding pipe.
Further, dust absorption drive arrangement includes the vacuum pump of fixed mounting in the dust removal case and the cartridge filter of being connected with the vacuum pump, the cartridge filter right-hand member is equipped with the mounting groove, be equipped with the internal thread on the mounting groove inner wall, be equipped with the dust removal filter core in the mounting groove, it has fixed lid to go back threaded connection in the mounting groove, be connected with the dust absorption pipe between fixed lid and the installation pipe.
Furthermore, a partition plate is arranged between the dust collection driving device and the cleaning dust collection device, and the partition plate is fixedly installed in the dust removal box.
Furthermore, two movable doors are arranged on the front side of the dust removal box, and universal wheels are mounted on the bottom surface of the dust removal box.
Compared with the prior art, the invention has the beneficial effects that:
(1) the rotary fixing device fixes the computer sound to be dedusted and drives the computer sound to rotate together, so that dust on the surface of the computer sound can be removed comprehensively, and the dedusting effect of the computer sound is improved;
(2) the cleaning and dust-absorbing device cleans the rotating computer sound and performs dust-absorbing operation, so that not only is dust on the surface of the computer sound removed, but also dust absorbed in the computer sound can be sucked out, and the dust-absorbing effect is greatly improved.
Drawings

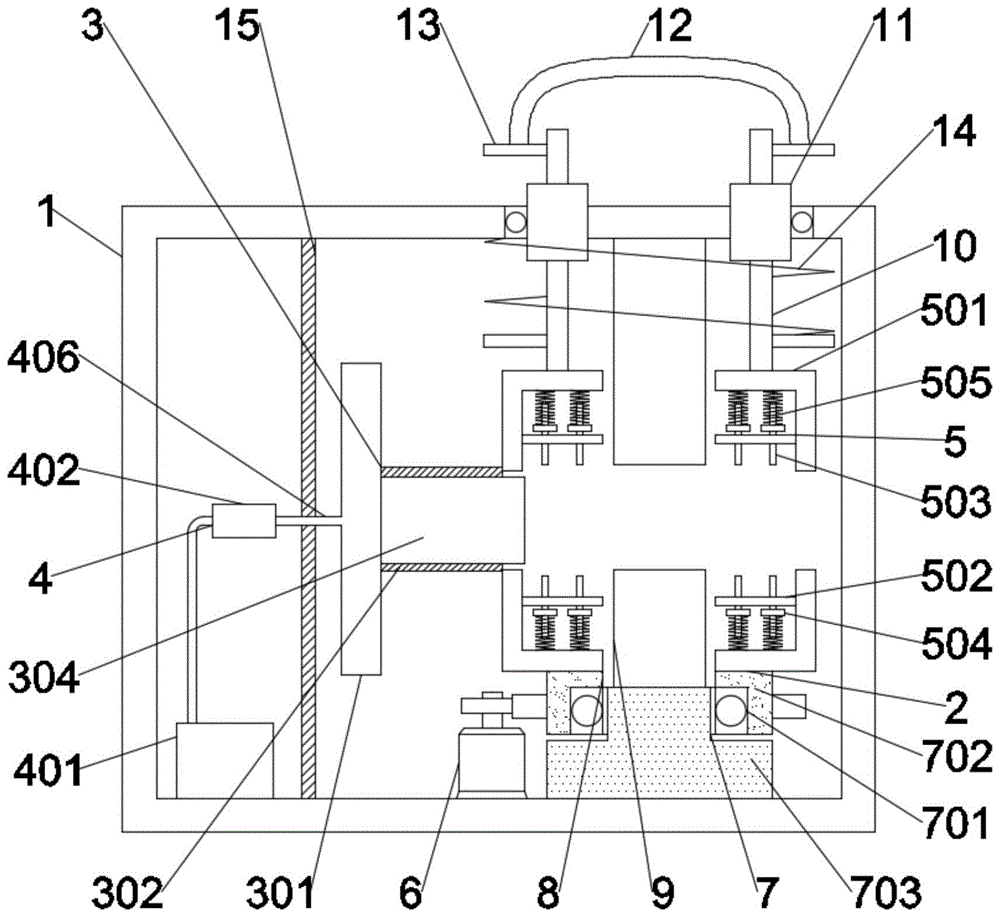

FIG. 1 is a schematic view of the internal structure of the present invention;
FIG. 2 is a schematic view of the external structure of the present invention;
FIG. 3 is a schematic view of the dust removal filter cartridge installation configuration of the present invention;
fig. 4 is a schematic structural view of the cleaning and dust-collecting device of the present invention.
Reference numbers in the figures:
1-a dust removal box; 2-rotating the fixing device; 3, cleaning a dust suction device; 4-dust collection driving device; 5-a gripper; 6-a rotating electrical machine; 7-rotating the disc; 8-fixing the mounting hole; 9-bottom surface cleaning brush; 10-a slide tube; 11-linear bearings; 12-adjusting the handle; 13-a limiting disc; 14-a fixed spring; 15-a separator; 16-a movable door; 17-a universal wheel;
301-installing a tube; 302-dust sweeping brush; 303-a dust collection groove; 304-a guide plate; 305-a return spring; 306-a drag reducing pulley; 307-active slot; 308-a roller; 309-installing a frame; 310-airway adjusting rollers;
401-a vacuum pump; 402-a filter cartridge; 403-mounting grooves; 404-a dust removal filter element; 405-a stationary cover; 406-a suction pipe;
501-clamping a disc; 502-a support disk; 503-a position clamping rod; 504-a spacing post; 505-a clamping spring;
701-a rotation bearing; 702-an upper support table; 703-lower support table.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
As shown in fig. 1, the invention provides a rotary dust removal device for a computer audio, which comprises a dust removal box 1, wherein a rotary fixing device 2 is fixedly installed in the dust removal box 1, a cleaning and dust suction device 3 is arranged on the left side of the rotary fixing device 2, and a dust suction driving device 4 is connected to the cleaning and dust suction device 3.
In the present embodiment, after the computer audio to be dedusted is fixed on the rotary fixing device 2, the computer to be dedusted is rotated on the rotary fixing device 2, and during the rotation of the computer audio, the cleaning and dust-sucking device 3 cleans and sucks dust for the rotated computer audio under the driving of the dust-sucking driving device 4.
As shown in fig. 1 and 4, clean dust extraction 3 and include the installation pipe 301 of fixed mounting in dust removal case 1, fixed mounting has dust brush 302 on installation pipe 301, still be equipped with dust absorption groove 303 on the installation pipe 301, dust absorption groove 303 both sides are equipped with guide board 304, two guide board 304 articulates on installation pipe 301, and is connected with reset spring 305 between two guide boards 304, guide board 304 tip movable mounting has a plurality of drag reduction pulleys 306, two all be equipped with a movable groove 307 on the guide board 304 medial surface, equal movable mounting has gyro wheel 308 in the movable groove 307, two be connected with a installing frame 309 jointly on the gyro wheel 308, movable mounting has air flue regulating roll 310 on the installing frame 309.
In this embodiment, the cleaning and dust-collecting device 3 cleans the rotating computer sound and performs dust-collecting operation, so that not only is dust on the surface of the computer sound removed, but also the dust absorbed in the computer sound can be sucked out, and the dust-collecting effect is greatly improved.
In this embodiment, the dust brush 302 cleans the rotating surface of the computer sound, and meanwhile, in the rotating process of the computer sound, the ends of the two guide plates 304 connected by the return spring 305 are always in rolling contact with the surface of the computer sound, and the air passage adjusting roller 310 installed between the two guide plates 304 is always kept at the same distance from the guide plates 304, so that the air flow velocity between the guide plates 304 and the air passage adjusting roller 310 is increased, and the dust collection effect is improved.
As shown in fig. 1, the upper and lower ends of the guide plate 304 are also provided with a sweeper brush 302, and the sweeper brush 302 is fixedly mounted on the mounting pipe 301.
In this embodiment, the dust brush 302 is arranged to reduce the outside air entering between the two guide plates 304, improve the air velocity between the two guide plates 304, and improve the dust collection effect, and the dust brush 302 is used for cleaning dust on the edge of the sound of the computer.
As shown in fig. 1, the rotary fixing device 2 includes two holders 5, one of them holder 5 movable mounting is in dust removal case 1 bottom surface, another holder 5 movable mounting is in dust removal case 1 top surface, and is located dust removal case 1 bottom surface holder 5 is connected with rotating electrical machines 6, holder 5 includes clamping disk 501, fixed mounting has annular supporting disk 502 in the clamping disk 501, be equipped with a plurality of screens pole 503 on the supporting disk 502, fixed mounting has spacing post 504 on the screens pole 503, and spacing post 504 is located supporting disk 502 below, be connected with centre gripping spring 505 between the top surface in spacing post 504 and the clamping disk 501.
In this embodiment, the computer sound that the dust removal was treated to rotatory fixing device 2 is fixed and is driven the computer sound and rotate together for the dust on computer sound surface can be got rid of comprehensively, has promoted the dust removal effect of computer sound.
In this embodiment, when the rotating motor fixedly installed on the bottom surface of the dust removing box 1 works, the holder 5 located at the bottom is driven to rotate, the computer sound fixed on the holder 5 rotates along with the rotating motor, and in the process of rotating the computer sound, the cleaning and dust collecting device 5 cleans and collects dust on the computer sound comprehensively.
In the present embodiment, the principle of the holder 5 fixing the computer audio is as follows: when the computer sound is placed on the clamping disc 501, the computer sound presses the clamping rod 503, and the clamping rod 503 which is not pressed wraps around the computer sound, so that the movement of the computer sound is limited, the fixation of the computer sound is realized, and meanwhile, the upper clamp 5 and the lower clamp 5 clamp the computer sound, and the fixation of the computer sound can also be carried out.
As shown in fig. 1, the centre gripping dish 501 is connected with the transmission of rotating electrical machines 6 through gear engagement's mode, centre gripping dish 501 passes through rotary disk 7 movable mounting at dust removal case 1 bottom surface, rotary disk 7 includes swivel bearing 701, swivel bearing 701 outer lane fixed mounting has last supporting bench 702, and goes up supporting bench 702 and centre gripping dish 501 bottom surface fixed connection down, swivel bearing 701 inner circle fixed mounting has lower supporting bench 703, and lower supporting bench 703 and dust removal case 1 bottom surface fixed connection.
In this embodiment, the rotary disk 7 supports the original between the bottom surfaces in the clamping disk 501 and the dust removing box 1, so that the relative rotation between the bottom surfaces in the clamping disk 501 and the dust removing box 1 is realized, the rotation of the computer sound is realized under the driving of the rotary motor 6, and the cleaning dust collection device 3 is matched to realize the comprehensive dust collection of the computer sound.
In the present embodiment, the rotary disk 7 realizes a rotation function by relative rotation of the inner ring and the outer ring of the rotary bearing 701.
As shown in fig. 1, a fixed mounting hole 8 is formed in the center of the upper supporting platform 702, a bottom surface cleaning brush 9 is arranged in the fixed mounting hole 8, and the bottom surface cleaning brush 9 is fixedly mounted on the upper surface of the lower supporting platform 703.
In this embodiment, the lower supporting base 703 is fixedly installed on the bottom surface in the dust box 1, the bottom surface cleaning brush 9 installed on the lower supporting base 703 is kept stationary, while the bottom surface of the computer sound fixed on the clamper 5 rubs against the bottom surface cleaning brush 9 in the rotation process, and the bottom surface cleaning brush 9 cleans dust on the bottom surface of the computer sound.
As shown in fig. 1, be located dust removal case 1 upper portion fixed mounting has slide pipe 10 on the centre gripping dish 501, install linear bearing 11 on the slide pipe 10, and linear bearing 11 passes through the loose bearing and installs on dust removal case 1 top surface, slide pipe 10 top fixed mounting has adjusting handle 12, two spacing dishes 13 of still fixed mounting on the slide pipe 10, and two spacing dishes 13 distribute in dust removal case 1 top surface both sides, are located the downside be connected with fixing spring 14 between spacing dish 13 and the dust removal case 1 interior top surface.
In this embodiment, when the computer audio needs to be dedusted, the adjusting handle 12 is lifted upwards to move the holder 5 at the lower end of the slide pipe 10 upwards along with the computer audio, at this time, the distance between the upper and lower holders 5 is increased, the computer audio needing to be dedusted is placed into the holder 5 at the lower end, the adjusting handle 12 is released, the holder 5 moves downwards under the action of the elastic force of the fixing spring 14, the upper and lower holders 5 fix the computer sound, and the dust on the surface and the inner wall of the computer is removed by the cleaning and dust-sucking device 3.
As shown in fig. 1, a bottom surface cleaning brush 9 is also fixedly mounted on the inner top surface of the dust removing box 1, and the bottom surface cleaning brush 9 is positioned in the sliding pipe 10.
In this embodiment, the bottom surface cleaning brush 9 is fixedly installed on the inner top surface of the dust removing box 1, and in the rotating process of the computer sound, the bottom surface cleaning brush 9 is kept still, so that the upper surface of the computer sound can be cleaned, and dust on the upper surface of the computer sound is removed.
As shown in fig. 1 and 3, the dust suction driving device 4 includes a vacuum pump 401 fixedly installed in the dust removing box 1 and a filter cartridge 402 connected to the vacuum pump 401, the right end of the filter cartridge 402 is provided with an installation groove 403, an inner wall of the installation groove 403 is provided with an internal thread, a dust removing filter element 404 is arranged in the installation groove 403, a fixed cover 405 is further connected to the installation groove 403 by a thread, and a dust suction pipe 406 is connected between the fixed cover 405 and the installation pipe 301.
In this embodiment, the dust suction driving device 4 uses the negative pressure condition generated by the vacuum pump 401 to suck the dust cleaned by the dust suction device 4 into the dust removal filter element 404 for filtering, so as to effectively remove the dust adsorbed on the sound surface and the inner wall of the computer, and meanwhile, the dust removal filter element is simple to install, thereby improving the convenience of the rotary dust removal device.
In this embodiment, the vacuum pump 401 generates a negative pressure condition during operation, so that the dust rotationally cleaned by the cleaning and dust removing device 3 passes through the mounting pipe 301 and the dust suction pipe 406 and finally enters the dust removing filter element 404 for filtering, thereby completing the dust collection of the rotary dust removing device.
As shown in fig. 1, a partition 15 is provided between the dust suction driving device 4 and the cleaning dust suction device 3, and the partition 15 is fixedly installed in the dust box 1.
In the present embodiment, the partition 15 separates the dust suction driving device from the cleaning dust suction device 3, and prevents the two devices from interfering with each other during operation.
As shown in fig. 2, two movable doors 16 are arranged at the front side of the dust removing box 1, and universal wheels 17 are mounted on the bottom surface of the dust removing box 1.
In this embodiment, the two movable doors 16 are respectively disposed on the dust suction driving device 4 side and the cleaning dust suction device 3 side, and are respectively used for replacing the dust removal filter element 404 and placing the computer sound to be removed, and the universal wheel 17 is disposed, so that the flexibility of the rotary dust removal device is improved.
It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (10)
1. The utility model provides a rotation type dust collector for computer audio, includes dust removal case (1), its characterized in that: a rotary fixing device (2) is fixedly installed in the dust removing box (1), a cleaning and dust collecting device (3) is arranged on the left side of the rotary fixing device (2), and a dust collecting driving device (4) is connected to the cleaning and dust collecting device (3);
clean dust extraction (3) including fixed mounting installation pipe (301) in dust removal case (1), fixed mounting has dust brush (302) on installation pipe (301), still be equipped with dust absorption groove (303) on installation pipe (301), dust absorption groove (303) both sides are equipped with guide board (304), two guide board (304) articulate on installation pipe (301), and are connected with reset spring (305) between two guide boards (304), guide board (304) tip movable mounting has a plurality of drag reduction pulleys (306), two all be equipped with an activity groove (307) on guide board (304) the medial surface, equal movable mounting has gyro wheel (308), two in activity groove (307) be connected with an installing frame (309) jointly on gyro wheel (308), movable mounting has air flue regulating roller (310) on installing frame (309).
2. The rotary dust removing device for a computer audio according to claim 1, wherein: the upper end and the lower end of the guide plate (304) are also provided with dust sweeping brushes (302), and the dust sweeping brushes (302) are fixedly arranged on the installation pipe (301).
3. The rotary dust removing device for a computer audio according to claim 1, wherein: rotatory fixing device (2) include two holder (5), one of them holder (5) movable mounting is in dust removal case (1) bottom surface, another holder (5) movable mounting is at dust removal case (1) interior top surface, and is located dust removal case (1) interior bottom surface holder (5) are connected with rotating electrical machines (6), holder (5) are including clamping disk (501), fixed mounting has annular supporting disk (502) in clamping disk (501), be equipped with a plurality of screens pole (503) on supporting disk (502), fixed mounting has spacing post (504) on screens pole (503), and spacing post (504) are located supporting disk (502) below, be connected with clamping spring (505) between the bottom surface in spacing post (504) and clamping disk (501).
4. The rotary dust removing device for a computer audio according to claim 3, wherein: centre gripping dish (501) are connected through gear engagement's mode and rotating electrical machines (6) transmission, centre gripping dish (501) are bottom surface in dust removal case (1) through rotary disk (7) movable mounting, rotary disk (7) include swivel bearing (701), swivel bearing (701) outer lane fixed mounting has last supporting bench (702), and goes up supporting bench (702) and centre gripping dish (501) bottom surface fixed connection down, swivel bearing (701) inner circle fixed mounting has lower supporting bench (703), and lower supporting bench (703) and dust removal case (1) bottom surface fixed connection.
5. The rotary dust removing device for a computer audio according to claim 4, wherein: go up supporting bench (702) central point and put and be equipped with fixed mounting hole (8), be equipped with bottom surface sweeper (9) in fixed mounting hole (8), bottom surface sweeper (9) fixed mounting is at the upper surface of lower supporting bench (703).
6. The rotary dust removing device for a computer audio according to claim 3, wherein: be located dust removal case (1) upper portion fixed mounting has slide pipe (10) on centre gripping dish (501), install linear bearing (11) on slide pipe (10), and linear bearing (11) install on dust removal case (1) top surface through loose bearing, slide pipe (10) top fixed mounting has regulation handle (12), go up two spacing dishes (13) of fixed mounting on slide pipe (10), and two spacing dishes (13) distribute top surface both sides on dust removal case (1), are located the downside be connected with between spacing dish (13) and dust removal case (1) interior top surface fixed spring (14).
7. The rotary dust removing device for a computer audio according to claim 1, wherein: a bottom surface cleaning brush is also fixedly arranged on the inner top surface of the dust removing box (1), and the bottom surface cleaning brush is positioned in the sliding pipe (10).
8. The rotary dust removing device for a computer audio according to claim 1, wherein: dust absorption drive arrangement (4) include vacuum pump (401) of fixed mounting in dust removal case (1) and cartridge filter (402) be connected with vacuum pump (401), cartridge filter (402) right-hand member is equipped with mounting groove (403), be equipped with the internal thread on mounting groove (403) inner wall, be equipped with dust removal filter core (404) in mounting groove (403), it has fixed lid (405) to go back threaded connection in mounting groove (403), be connected with dust absorption pipe (406) between fixed lid (405) and installation pipe (301).
9. The rotary dust removing device for a computer audio according to claim 1, wherein: a partition plate (15) is arranged between the dust collection driving device (4) and the cleaning dust collection device (3), and the partition plate (15) is fixedly installed in the dust removal box (1).
10. The rotary dust removing device for a computer audio according to claim 1, wherein: two movable doors (16) are arranged on the front side of the dust removal box (1), and universal wheels (17) are installed on the bottom surface of the dust removal box (1).
