CN108938119B - Portable tooth brushing device

Info

Publication number: CN108938119B
Application number: CN201810787477.7A
Authority: CN
Inventors: 耿华复
Original assignee: Woyang Huateng Daily Chemical Co Ltd
Current assignee: Woyang Huateng Daily Chemical Co., Ltd
Priority date: 2018-07-18
Filing date: 2018-07-18
Publication date: 2020-11-27
Anticipated expiration: 2038-07-18
Also published as: CN108938119A

Abstract

The invention discloses a portable tooth brushing device which comprises two tooth sockets arranged up and down, wherein tooth sockets are arranged on the opposite side walls of the two tooth sockets, a strip-shaped air bag is fixedly connected between the two tooth sockets together, an air inlet hole is formed in the side wall of the front end of the strip-shaped air bag, a one-way air inlet valve is arranged in the air inlet hole, device grooves are formed in the opposite side walls of the tooth sockets, a plurality of groups of air outlet channels are arranged in the tooth sockets at equal intervals, one-way air outlet valves are arranged in the air outlet channels, impeller cavities communicated with the air outlet channels one by one are further arranged in the tooth sockets, impellers are rotatably connected in the impeller cavities, and wheel shafts of the impellers penetrate through the air outlet holes in the bottom surface of the cavity and extend into the device. The tooth brush is reasonable in structure, when teeth are brushed, the tooth socket only needs to be sleeved on the teeth, the teeth are brushed by utilizing the up-and-down biting motion of the teeth, a toothbrush does not need to be held for brushing, the inside, the outside, the upper part, the lower part and the upper part of the teeth can be cleaned, and the cleaning effect is better.

Description

Portable tooth brushing device

Technical Field

The invention relates to the technical field of living appliances, in particular to a portable tooth brushing device.

Background

Tooth brushing is an important self-oral health care method for removing dental plaque, soft dirt and food residues and keeping the oral cavity clean by using a toothbrush, and is also the most important means for self-cleaning dental plaque and preventing the occurrence, development and recurrence of periodontal diseases. At present, toothbrushes are basically adopted for brushing teeth, the toothbrushes need to be held to brush the teeth from inside to outside, from top to bottom and from top to bottom, and electric toothbrushes exist at present, so that the teeth are more convenient and faster to brush, but both ordinary toothbrushes and electric toothbrushes need to be held by hands for use, so that the quality of brushing depends on the motion of hands to a great extent, and particularly for users with poor tooth brushing habits, the situation that the teeth are not cleaned in place can occur, and various dental problems can easily occur in the past.

Disclosure of Invention

The invention aims to solve the defects in the prior art, and provides a convenient tooth brushing device, which only needs to sleeve a tooth socket on teeth during tooth brushing and utilizes the up-and-down occlusal motion of the teeth to brush the teeth without holding a toothbrush by hands, so that the inside, the outside, the top, the bottom and the bottom of the teeth can be cleaned, and the cleaning effect is better.

In order to achieve the purpose, the invention adopts the following technical scheme:

the utility model provides a portable tooth brushing device, includes the facing of two upper and lower settings, two the lateral wall that the facing was carried on the back mutually all is equipped with the alveolus, two common fixedly connected with bar gasbag between the facing, the front end lateral wall of bar gasbag is equipped with the inlet port, be equipped with one-way admission valve in the inlet port, the lateral wall that the alveolus is relative all is equipped with the device groove, equidistant multiunit air outlet channel that is equipped with in the facing, install one-way air outlet valve in the air outlet channel, still be equipped with the impeller cavity with air outlet channel intercommunication one by one in the facing, the impeller cavity internal rotation is connected with the impeller, and the shaft of impeller runs through the venthole on the cavity bottom surface and extends to the device inslot and is connected rather than the lateral wall rotation, the fixed cover in the outside that the shaft is located device inslot portion is equipped with a.

Preferably, be equipped with elastic airbag in the bar gasbag, one side fixedly connected with inlet pipe of elastic airbag, the inlet pipe runs through bar gasbag's lateral wall, be equipped with the check valve in the inlet pipe, the opposite side fixedly connected with of elastic airbag arranges the material pipe, the end-to-end connection who arranges the material pipe is responsible for, the connection is responsible for's upper and lower both sides equidistant connection has many discharging pipes, the end of discharging pipe runs through strip qi bag and facing and extends to the alveolus in.

Preferably, the tooth socket, the strip-shaped air bag and the elastic air bag are all made of food-grade silica gel materials.

Preferably, the air inlet hole is located at the front end of the strip-shaped air bag, and the feeding pipe is located at the rear end of the strip-shaped air bag.

Compared with the prior art, the invention has the beneficial effects that:

1. adopt the form of two braces, be provided with the bar gasbag in the middle of the brace, utilize the interlock of tooth to extrude into the impeller intracavity with the gas in the bar gasbag, drive the impeller and rotate, finally drive a section of thick bamboo brush and scrub the tooth, need not handheld toothbrush, liberation both hands, it is more convenient to use.

2. The both sides equidistant range of alveolus is provided with a plurality of section of thick bamboo brushes, can rotate simultaneously, brushes the inside and outside two sides of tooth simultaneously, brushes fastly.

3. Be provided with the elasticity gasbag, pour into toothpaste into the elasticity gasbag in, can utilize the negative pressure to inhale the alveolus with the toothpaste in the elasticity gasbag in the interlock bar gasbag, not only saved manual process of squeezing into toothpaste in to the alveolus, convenient and fast more, toothpaste distributes more evenly in the alveolus simultaneously, can effectively improve the clear effect of tooth.

4. The gas of interlock bar gasbag in-process combustion gas blows to a section of thick bamboo brush through the venthole, can produce more toothpaste bubbles, can play good protection to the gum, and toothpaste and tooth area of contact are bigger simultaneously, and the cleaning effect of tooth is better.

Drawings

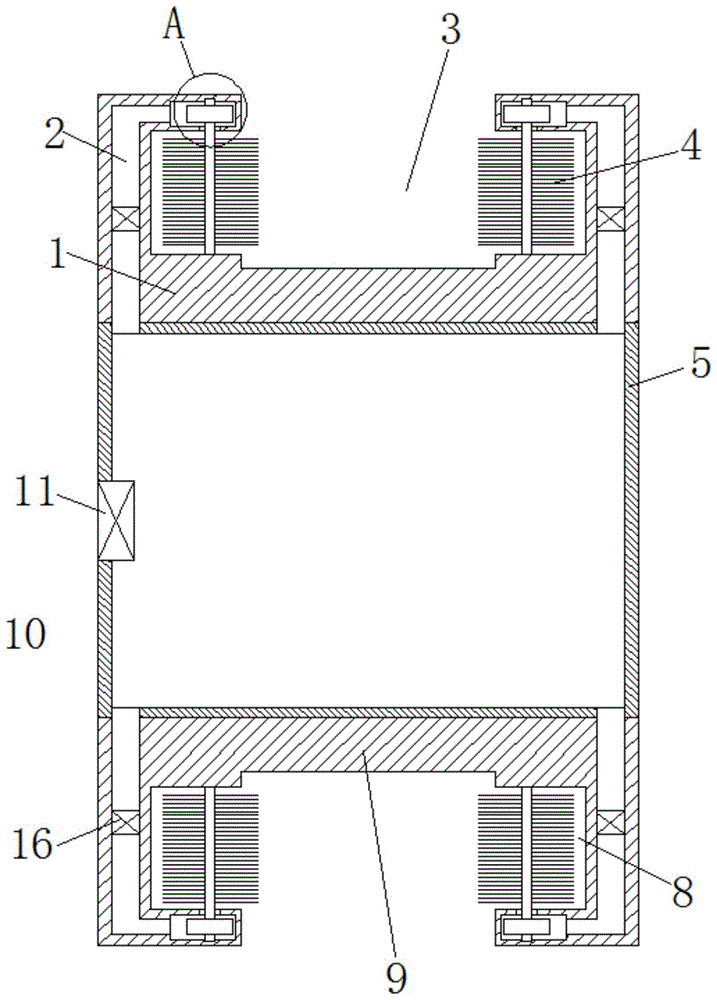

FIG. 1 is a side perspective view of an embodiment of the present invention;

FIG. 2 is an enlarged view of the structure at A in FIG. 1;

FIG. 3 is a schematic top view of FIG. 1;

FIG. 4 is a side perspective view of a second embodiment of the present invention.

In the figure: 1 tooth socket, 2 air outlet channels, 3 tooth sockets, 4 tube brushes, 5 strip-shaped air bags, 6 feeding pipes, 7 elastic air bags, 8 device grooves, 9 discharging pipes, 10 connecting main pipes, 11 air inlet holes, 12 wheel shafts, 13 impellers, 14 air outlet holes, 15 impeller cavities and 16 one-way air outlet valves.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.

The first embodiment is as follows:

referring to fig. 1-3, a portable tooth brushing device comprises two tooth sockets 1 arranged up and down, tooth sockets 3 are arranged on the opposite side walls of the two tooth sockets 1, a strip-shaped air bag 5 is fixedly connected between the two tooth sockets 1, an air inlet 11 is arranged on the front end side wall of the strip-shaped air bag 5, a one-way air inlet valve is arranged in the air inlet 11, device slots 8 are arranged on the opposite side walls of the tooth sockets 3, a plurality of groups of air outlet channels 2 are arranged in the tooth sockets 1 at equal intervals, each group of two air outlet channels 2 are symmetrically arranged on the two sides of the tooth sockets 3, a one-way air outlet valve 16 is arranged in the air outlet channel 2, impeller cavities 15 communicated with the air outlet channels 2 one by one are also arranged in the tooth sockets 1, impellers 13 are rotatably connected in the impeller cavities 15, an impeller 12 of the impeller 13 penetrates through the air outlet 14 on the bottom surface of the cavity and extends into the device slots 8 and is rotatably connected with, and a portion of the cartridge brush 4 extends to the outside of the device slot 8.

In the invention, the tooth socket 1, the strip-shaped air bag 5 and the elastic air bag 7 are all made of food-grade silica gel materials, can be bent into proper shapes to adapt to tooth shapes of different users, are made of softer materials to avoid cleaning discomfort, are food-grade and safer, the air inlet hole 11 is positioned at the front end of the strip-shaped air bag 5, and when the tooth brushing device is arranged, the air inlet hole 11 is positioned at the outer side of the oral cavity to ensure sufficient air inflow.

When the invention is used, toothpaste is respectively extruded out of the upper tooth socket 3 and the lower tooth socket 3, then the tooth brushing device is bent, a mouth is opened to place the tooth brushing device in the oral cavity, the upper row of teeth and the lower row of teeth are respectively and correspondingly placed in the tooth sockets 3 on the upper tooth socket 1 and the lower row of teeth, the two tooth sockets 1 are quickly occluded, gas in the strip-shaped air bag 5 is extruded into the air outlet channel 2 and then enters the impeller cavity 15, the impeller 13 can be driven to quickly rotate due to sufficient air quantity, the impeller 13 drives the cylinder brush 4 to quickly rotate to brush the teeth, the two rows of cylinder brushes 4 are arranged, the front side and the back side of the teeth can be simultaneously brushed, the gas in the strip-shaped air bag 5 is extruded to be discharged through the air outlet 14, the direction of the air outlet 14 faces the device groove 8, the gas is blown into the tooth sockets 3, so that the cylinder brush 4 generates more bubbles in the tooth brushing process, meanwhile, the contact area of toothpaste foam and teeth is increased, so that the cleaning effect is better.

Example two:

referring to fig. 4, be equipped with elastic airbag 7 in the bar gasbag 5, one side fixedly connected with inlet pipe 6 of elastic airbag 7, it is worth mentioning, inlet pipe 6 is located the rear end of bar gasbag 5, correspond with inlet port 11 back and forth, and each other does not influence, inlet pipe 6 runs through the lateral wall of bar gasbag 5 and rather than sealing connection, be equipped with the check valve that only supplies toothpaste to crowd in the inlet pipe 6, the row pipe is arranged to the opposite side fixedly connected with of elastic airbag 7, the end-to-end connection of arranging the pipe is responsible for 10, connect the upper and lower both sides equidistant connection who is responsible for 10 and have many discharging pipes 9, the end of discharging pipe 9 runs through bar gasbag 5 and facing 1 and extends to in alveolus.

In this embodiment, earlier squeeze toothpaste into elasticity gasbag 7 through inlet pipe 6 in, when the oral cavity opens, bar gasbag 5 is in the gas filled state, utilize the negative pressure to the toothpaste suction in the elasticity gasbag 7, finally discharge into alveolus 3 through many discharging pipes 9 in, make the even smearing of toothpaste on the tooth, along with the interlock of upper and lower tooth with loosen, toothpaste interval is arranged to alveolus 3 in, the manual process of squeezing into toothpaste in to alveolus 3 has been saved, compare in embodiment one, this embodiment convenient and fast more, and toothpaste distributes more evenly in alveolus 3, the clear effect of tooth can effectively be improved.

The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and the technical solutions and the inventive concepts thereof according to the present invention should be equivalent or changed within the scope of the present invention.

Claims

1. A portable tooth brushing device comprises two tooth sockets (1) which are arranged up and down, and is characterized in that tooth sockets (3) are arranged on the side walls of the two tooth sockets (1) which are back to each other, strip-shaped air bags (5) are fixedly connected between the two tooth sockets (1) together, air inlet holes (11) are formed in the side walls of the front ends of the strip-shaped air bags (5), one-way air inlet valves are arranged in the air inlet holes (11), device grooves (8) are formed in the side walls, opposite to the tooth sockets (3), of the tooth sockets (1), a plurality of groups of air outlet channels (2) are arranged in the tooth sockets (1) at equal intervals, one-way air outlet valves (16) are installed in the air outlet channels (2), impeller cavities (15) which are communicated with the air outlet channels (2) one by one, impellers (13) are rotationally connected in the impeller cavities (15), and air outlet holes (14) of an impeller shaft (12) of the impeller (13) penetrating through the bottom surface of a cavity extend into, the outer side of the wheel shaft (12) in the device groove (8) is fixedly sleeved with the drum brush (4), and the part of the drum brush (4) extends to the outer side of the device groove (8).

2. The portable tooth brushing device according to claim 1, wherein an elastic air bag (7) is arranged in the strip-shaped air bag (5), one side of the elastic air bag (7) is fixedly connected with the feeding pipe (6), the feeding pipe (6) penetrates through the side wall of the strip-shaped air bag (5), a one-way valve is arranged in the feeding pipe (6), the other side of the elastic air bag (7) is fixedly connected with a discharging pipe, the tail end of the discharging pipe is connected with a main pipe (10), the upper side and the lower side of the main pipe (10) are connected with a plurality of discharging pipes (9) at equal intervals, and the tail end of each discharging pipe (9) penetrates through the strip-shaped air bag (5) and the tooth socket (1) and extends into the tooth socket (3).

3. The portable tooth brushing device according to claim 1, wherein the mouthpiece (1), the strip-shaped air bag (5) and the elastic air bag (7) are made of food-grade silica gel material.

4. The portable tooth brushing device according to claim 2, wherein the air inlet holes (11) are located at the front end of the strip-shaped air bag (5), and the feed pipe (6) is located at the rear end of the strip-shaped air bag (5).
