CN108914479B - Intelligent washing machine convenient to classify and clean clothes

Info

Publication number: CN108914479B
Application number: CN201811023493.5A
Authority: CN
Inventors: 严华平
Original assignee: Anqing Jinhuihuang Electronic Technology Co ltd
Current assignee: ANQING JINHUIHUANG ELECTRONIC TECHNOLOGY Co.,Ltd.
Priority date: 2018-09-03
Filing date: 2018-09-03
Publication date: 2021-01-26
Anticipated expiration: 2038-09-03
Also published as: CN108914479A

Abstract

The invention discloses an intelligent washing machine which is convenient for sorting and cleaning clothes, comprising a main body, a cover plate and a motor. A water inlet is arranged on the upper right side of the main body, and a water outlet is arranged on the lower left side of the main body. The plate is arranged on the upper left side of the main body, and the right side of the cover plate is connected with the main body through a first rotating shaft, the motor is arranged on the inner bottom of the main body, and a second rotating shaft is arranged above the motor, and the second rotating shaft is A bearing is arranged above, and the bearing is arranged below the inside of the main body, a washing tub is arranged above the bearing, and a partition plate is arranged in the inner middle of the washing tub. The intelligent washing machine, which is convenient for sorting and cleaning clothes, is provided with a partition board, which can divide the washing tub into two areas, which can be used to wash clothes of different materials and colors, and can prevent clothes of different colors from fading from each other due to color fading. In the case of dyeing, the damage to the clothes is reduced.

Description

Intelligent washing machine convenient to classify and clean clothes

Technical Field

The invention relates to the technical field of intelligent household appliances, in particular to an intelligent washing machine convenient for classified washing of clothes.

Background

The intelligent household appliance is a household appliance product formed by introducing a microprocessor, a sensor technology and a network communication technology into household appliances, wherein the intelligent washing machine can control water quantity according to the weight of clothes, and has the function of saving energy.

The general intelligent washing machine who commonly uses can not carry out categorised washing to the clothing to lead to the clothes of different colours to be mixed together and wash, go out the mutual dyeing condition between the clothes easily, cause the damage to the clothing, it is not very convenient to use.

Disclosure of Invention

The invention aims to provide an intelligent washing machine convenient for classified washing of clothes, and aims to solve the problems that common intelligent washing machines in the background technology cannot classify and wash clothes, so that clothes with different colors are mixed and washed, mutual dyeing between the clothes is easy to occur, the clothes are damaged, and the intelligent washing machine is inconvenient to use.

In order to achieve the purpose, the invention provides the following technical scheme: an intelligent washing machine convenient for classifying and cleaning clothes comprises a main body, a cover plate and a motor, wherein a water inlet is formed in the right side above the main body, a water outlet is formed in the lower portion of the left side of the main body, the cover plate is arranged on the left side above the main body, the right side of the cover plate is connected with the main body through a first rotating shaft, the motor is arranged at the bottom inside the main body, a second rotating shaft is arranged above the motor, a bearing is arranged above the second rotating shaft and below the inside of the main body, a washing barrel is arranged above the bearing, a separation plate is arranged in the middle inside of the washing barrel, a movable plate is arranged inside the separation plate, fixed plates are arranged on two sides of the separation plate, a support rod is arranged on the upper surface of each fixed plate, a roller is arranged on the outer side of each support, the inner side of the fixed plate is clamped in the sliding grooves, the sliding grooves are formed in the surfaces of the two sides of the separation plate, the inner side end of the fixed plate is connected with the movable plate, grooves are formed in the two sides below the movable plate, sliding blocks are arranged on the two sides of the movable plate, the sliding blocks are clamped in the sliding ways, and the sliding ways are formed in the two sides above the separation plate.

Preferably, the motor and the washing tub form a rotating structure through the second rotating shaft, and the diameter of the washing tub is smaller than that of the bearing.

Preferably, the movable plate and the partition plate form a sliding structure, and the width of the partition plate is the same as the inner width of the washing tub.

Preferably, the fixed plate, the support rod and the roller are symmetrically arranged about the central axis of the movable plate, and the fixed plate and the washing tub form a lifting structure.

Preferably, the fixed rods are distributed on the outer side of the roller in an annular array manner, and the roller and the supporting rod form a rotating structure.

Preferably, the sliding block and the partition plate form a sliding structure through a sliding way, and the partition plate is connected with the movable plate through the sliding block and the groove in a clamping manner.

Compared with the prior art, the invention has the beneficial effects that: the intelligent washing machine convenient for classifying and washing the clothes,

(1) the washing machine is provided with the partition plate, the partition plate can partition the washing barrel into two areas, clothes with different materials and colors can be washed, the condition that the clothes with different colors are dyed mutually due to color fading can be prevented, and damage to the clothes is reduced;

(2) the clothes washing machine is provided with a roller and a fixed rod, clothes rotate in the washing barrel to drive the roller to rotate in the washing process, and the fixed rod on the roller can stir the clothes when rotating, so that the knotting phenomenon of the clothes in the washing process is prevented;

(3) the sliding groove and the movable plate are arranged, after clothes are washed, the movable plate can be pulled upwards to enable the fixed plate to ascend, and then the sliding block is clamped into the grooves in the two sides of the movable plate in a sliding mode, so that the movable plate is fixed, and the clothes on the fixed plate can be taken conveniently.

Drawings

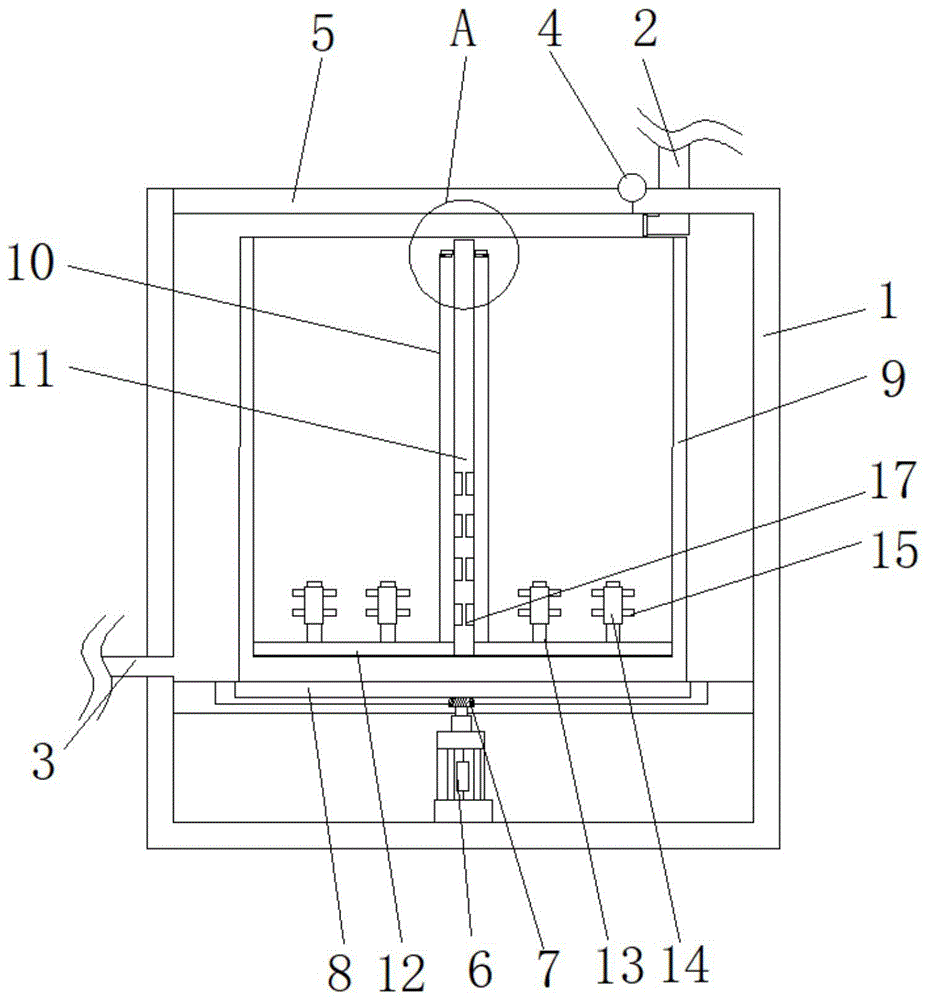

FIG. 1 is a schematic front view of the present invention;

FIG. 2 is a schematic top view of a washing tub according to the present invention;

FIG. 3 is a schematic view of the structure at A in FIG. 1 according to the present invention.

In the figure: 1. the washing machine comprises a main body, 2, a water inlet, 3, a water outlet, 4, a first rotating shaft, 5, a cover plate, 6, a motor, 7, a second rotating shaft, 8, a bearing, 9, a washing barrel, 10, a partition plate, 11, a movable plate, 12, a fixed plate, 13, a supporting rod, 14, a roller, 15, a fixed rod, 16, a sliding groove, 17, a groove, 18, a sliding block, 19 and a sliding way.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

If electrical components and the like appear in the text, the electrical components and the like are electrically connected with an external main controller and 220V mains supply, the main controller can be a computer and other conventional known devices for controlling, and meanwhile, if a motor, a water pump, a material conveying pump, a hydraulic cylinder and the like appear in the text, the conventional known devices are all adopted.

Referring to fig. 1-3, the present invention provides a technical solution: an intelligent washing machine convenient for classifying and washing clothes.

According to the figure 1, a water inlet 2 is arranged on the upper right side of a main body 1, a water outlet 3 is arranged on the lower left side of the main body 1, a cover plate 5 is arranged on the upper left side of the main body 1, and the right side of the cover plate 5 is connected with the main body 1 through the first rotating shaft 4, the motor 6 is arranged at the inner bottom of the main body 1, a second rotating shaft 7 is arranged above the motor 6, a bearing 8 is arranged above the second rotating shaft 7, and the bearing 8 is arranged at the lower part of the inner part of the main body 1, the washing tub 9 is arranged at the upper part of the bearing 8, the partition plate 10 is arranged at the middle part of the inner part of the washing tub 9, the motor 6 and the washing tub 9 form a rotating structure through the second rotating shaft 7, and the diameter of pail 9 is less than the diameter of bearing 8, and motor 6 can drive second pivot 7 and bearing 8 and rotate, and bearing 8 can drive pail 9 rotatory, and the clothing work of doing washing can be carried out to the clothes in pail 9 to the pail 9 rotation.

According to fig. 1 and 2, a movable plate 11 is disposed inside the partition plate 10, fixing plates 12 are disposed on both sides of the partition plate 10, the movable plate 11 and the partition plate 10 form a sliding structure, and the width of the partition plate 10 is the same as the width of the inside of the washing tub 9, the partition plate 10 can separate the space in the washing tub 9, and can perform classification washing on clothes of different materials and colors, thereby preventing the clothes of different colors from being dyed with each other to cause damage during washing.

According to fig. 2, a support rod 13 is disposed on the upper surface of the fixed plate 12, a roller 14 is disposed outside the support rod 13, a fixing rod 15 is disposed outside the roller 14, the fixed plate 12, the support rod 13 and the roller 14 are symmetrically disposed about the central axis of the movable plate 11, and the fixed plate 12 and the washing tub 9 form a lifting structure, so that the movable plate 11 can be pulled upwards to drive the fixed plate 12 to ascend, thereby facilitating taking of washed clothes on the fixed plate 12.

According to fig. 1 and 2, the inner side of the fixing plate 12 is clamped in the sliding groove 16, the sliding groove 16 is formed in the two side surfaces of the partition plate 10, the fixing rods 15 are distributed on the outer side of the roller 14 in an annular array manner, the roller 14 and the supporting rod 13 form a rotating structure, clothes can drive the roller 14 and the supporting rod 13 to rotate when being cleaned, and the supporting rod 13 can stir the clothes when rotating, so that the clothes can be prevented from being knotted in the cleaning process.

According to fig. 3, the inner end of the fixed plate 12 is connected to the movable plate 11, grooves 17 are formed in both sides of the lower portion of the movable plate 11, sliders 18 are disposed on both sides of the movable plate 11, the sliders 18 are clamped in the slide ways 19, the slide ways 19 are disposed on both sides of the upper portion of the separation plate 10, the sliders 18 and the separation plate 10 form a sliding structure through the slide ways 19, the separation plate 10 is clamped with the movable plate 11 through the sliders 18 and the grooves 17, the sliders 18 can be slidably clamped in the grooves 17 to fix the movable plate 11 and the fixed plate 12, and the movable plate 11 and the fixed plate 12 can be prevented from falling down.

The working principle is as follows: when the intelligent washing machine convenient for classifying and washing clothes is used, firstly, an external power supply is connected, clothes are put into the washing bucket 9 by opening the cover plate 5, the washing bucket 9 can be divided into two areas by the partition plate 10 in the washing bucket 9, clothes with different colors and materials can be respectively put into the two areas, the clothes with different colors are prevented from fading in the washing process and are dyed mutually, a water source is connected to the water inlet 2, water enters the washing bucket 9 through the water inlet 2, the motor 6 is started, the motor 6 can drive the second rotating shaft 7 and the bearing 8 to rotate, the bearing 8 can drive the washing bucket 9 to rotate, the washing bucket 9 can drive the clothes and the water in the washing bucket 9 to rotate so as to carry out washing work, when the clothes rotate, the roller 14 on the fixing plate 12 can be driven to rotate, and the fixing rod 15 can be driven to rotate by the rotation of the, rotatory dead lever 15 can stir the clothes, thereby make the laundry effect better, prevent that the phenomenon of knoing from appearing in the clothes cleaning process, wash the back well with the clothes, close motor 6, discharge water from delivery port 3, open apron 5 and upwards take movable plate 11, thereby the clothes that wash well on drive fixed plate 12 and the fixed plate 12 rise, after pulling movable plate 11 to suitable height, slide block 18 and slide and block and fix movable plate 11 and fixed plate 12 in the recess 17, then can directly take the clothes on the fixed plate 12, thereby conveniently take the clothes, the content that does not make detailed description in this specification belongs to the known prior art of professional technical personnel in this field.

The terms "central," "longitudinal," "lateral," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientation or positional relationship indicated in the drawings for simplicity of description only and are not intended to indicate or imply that the referenced devices or elements must be in a particular orientation, constructed and operative in a particular orientation, and are not to be considered limiting of the claimed invention.

Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that various changes in the embodiments and/or modifications of the invention can be made, and equivalents and modifications of some features of the invention can be made without departing from the spirit and scope of the invention.

Claims

1. The utility model provides an intelligent washing machine convenient to classify abluent clothing, includes main part (1), apron (5) and motor (6), its characterized in that: a water inlet (2) is arranged on the right side above the main body (1), a water outlet (3) is arranged below the left side of the main body (1), the cover plate (5) is arranged on the left side above the main body (1), the right side of the cover plate (5) is connected with the main body (1) through a first rotating shaft (4), the motor (6) is arranged at the bottom inside the main body (1), a second rotating shaft (7) is arranged above the motor (6), a bearing (8) is arranged above the second rotating shaft (7), the bearing (8) is arranged below the inside of the main body (1), a washing bucket (9) is arranged above the bearing (8), a partition plate (10) is arranged in the middle inside the washing bucket (9), a movable plate (11) is arranged inside the partition plate (10), and fixing plates (12) are arranged on two sides of the partition plate (10), the upper surface of fixed plate (12) is provided with bracing piece (13), and the outside of bracing piece (13) is provided with cylinder (14), and the outside of cylinder (14) is provided with dead lever (15) simultaneously, the inboard block of fixed plate (12) is in spout (16), and spout (16) set up the both sides surface at division board (10), the medial extremity of fixed plate (12) is connected with fly leaf (11), and the below both sides of fly leaf (11) all set up fluted (17), and the both sides of fly leaf (11) all are provided with slider (18) simultaneously, slider (18) block is in slide (19), and slide (19) set up the top both sides at division board (10).

2. The intelligent washing machine facilitating classified washing of clothes according to claim 1, wherein: the motor (6) and the washing tub (9) form a rotating structure through the second rotating shaft (7), and the diameter of the washing tub (9) is smaller than that of the bearing (8).

3. The intelligent washing machine facilitating classified washing of clothes according to claim 1, wherein: the movable plate (11) and the partition plate (10) form a sliding structure, and the width of the partition plate (10) is the same as the inner width of the washing tub (9).

4. The intelligent washing machine facilitating classified washing of clothes according to claim 1, wherein: the fixed plate (12), the support rod (13) and the roller (14) are symmetrically arranged about the central axis of the movable plate (11), and the fixed plate (12) and the washing tub (9) form a lifting structure.

5. The intelligent washing machine facilitating classified washing of clothes according to claim 1, wherein: the fixed rods (15) are distributed on the outer side of the roller (14) in an annular array manner, and the roller (14) and the supporting rod (13) form a rotating structure.

6. The intelligent washing machine facilitating classified washing of clothes according to claim 1, wherein: the sliding block (18) and the separation plate (10) form a sliding structure through a slide way (19), and the separation plate (10) is connected with the movable plate (11) in a clamping mode through the sliding block (18) and the groove (17).
