CN108540552B - Device interconnection method, apparatus, system, device and storage medium - Google Patents

Device interconnection method, apparatus, system, device and storage medium Download PDF

Info

Publication number
CN108540552B
CN108540552B CN201810306336.9A CN201810306336A CN108540552B CN 108540552 B CN108540552 B CN 108540552B CN 201810306336 A CN201810306336 A CN 201810306336A CN 108540552 B CN108540552 B CN 108540552B
Authority
CN
China
Prior art keywords
connection
network
information
hotspot
currently connected
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Active
Application number
CN201810306336.9A
Other languages
Chinese (zh)
Other versions
CN108540552A (en
Inventor
吴佳宝
田楠
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Guangzhou Shiyuan Electronics Thecnology Co Ltd
Guangzhou Shizhen Information Technology Co Ltd
Original Assignee
Guangzhou Shiyuan Electronics Thecnology Co Ltd
Guangzhou Shizhen Information Technology Co Ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Guangzhou Shiyuan Electronics Thecnology Co Ltd, Guangzhou Shizhen Information Technology Co Ltd filed Critical Guangzhou Shiyuan Electronics Thecnology Co Ltd
Priority to CN201810306336.9A priority Critical patent/CN108540552B/en
Publication of CN108540552A publication Critical patent/CN108540552A/en
Application granted granted Critical
Publication of CN108540552B publication Critical patent/CN108540552B/en
Active legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Images

Classifications

    • H—ELECTRICITY
    • H04—ELECTRIC COMMUNICATION TECHNIQUE
    • H04L—TRANSMISSION OF DIGITAL INFORMATION, e.g. TELEGRAPHIC COMMUNICATION
    • H04L67/00—Network arrangements or protocols for supporting network services or applications
    • H04L67/14—Session management
    • H04L67/141—Setup of application sessions
    • H—ELECTRICITY
    • H04—ELECTRIC COMMUNICATION TECHNIQUE
    • H04W—WIRELESS COMMUNICATION NETWORKS
    • H04W76/00—Connection management
    • H04W76/10—Connection setup

Landscapes

  • Engineering & Computer Science (AREA)
  • Computer Networks & Wireless Communication (AREA)
  • Signal Processing (AREA)
  • Computer And Data Communications (AREA)
  • Information Transfer Between Computers (AREA)

Abstract

本发明实施例公开了一种设备互连方法、装置、系统、设备和存储介质，该方法包括：接收到来自交互智能平板的信息标识码后向服务器发送信息请求；从所述服务器对所述信息请求的反馈消息中获取与所述信息标识码对应的网络信息；根据所述网络信息向所述交互智能平板发起连接请求。无需用户手动将终端设备和交互智能平板统一至相同的网络，即可实现设备间互连。

Figure 201810306336

Embodiments of the present invention disclose a device interconnection method, device, system, device and storage medium. The method includes: after receiving an information identification code from an interactive smart tablet, an information request is sent to a server; Obtain network information corresponding to the information identification code in the feedback message of the information request; initiate a connection request to the interactive smart tablet according to the network information. Interconnection between devices can be achieved without the need for users to manually unify terminal devices and interactive smart tablets to the same network.

Figure 201810306336

Description

Device interconnection method, apparatus, system, device and storage medium
Technical Field
The present invention relates to interactive technologies, and in particular, to a device interconnection method, apparatus, system, device, and storage medium.
Background
With the wide application of the interactive intelligent tablet, on the basis of interconnecting the terminal equipment and the interactive intelligent tablet, the application requirements of screen projection or live broadcast and the like are more and more common in education and meeting scenes. In the existing scheme, interconnection is usually realized in a mode that a user inputs a PIN code on a terminal device, wherein the PIN code encodes current network information of the interactive smart tablet.
In the process of implementing the present invention, the inventor finds that at least the following problem exists in the prior art, and the method requires the user to manually switch the network connected with the terminal device to the same network as the interactive smart tablet. That is, the terminal device side needs to be connected to the same local area network as the interactive smart tablet.
Disclosure of Invention
The embodiment of the invention provides a device interconnection method, a device, a system, a device and a storage medium, which can realize the interconnection between devices without manually unifying a terminal device and an interactive intelligent panel to the same network by a user.
In a first aspect, an embodiment of the present invention provides a device interconnection method, where the method includes:
sending an information request to a server after receiving an information identification code from the interactive intelligent tablet;
acquiring network information corresponding to the information identification code from a feedback message of the server for the information request;
and initiating a connection request to the interactive intelligent panel according to the network information.
In a second aspect, an embodiment of the present invention further provides a device interconnection method, where the method includes:
sending network information corresponding to a current access network to a server, receiving and displaying a corresponding information identification code generated by the server according to the network information;
receiving a connection request initiated by terminal equipment, wherein network information of the connection request is obtained by the terminal equipment accessing the server according to the information identification code;
and establishing connection with the terminal equipment according to the connection request.
In a third aspect, an embodiment of the present invention provides an apparatus interconnection system, including: mutual intelligent dull and stereotyped and terminal equipment, wherein:
the terminal equipment sends an information request to the server after receiving the information identification code from the interactive intelligent panel;
the interactive intelligent panel sends network information corresponding to a current access network to a server, receives and displays an information identification code generated by the server according to the network information;
the terminal equipment acquires network information corresponding to the information identification code from a feedback message of the server for the information request;
and the terminal equipment initiates a connection request to the interactive intelligent panel according to the network information.
The interactive intelligent panel receives a connection request initiated by terminal equipment, and network information of the connection request is obtained by the terminal equipment accessing the server according to the information identification code;
and the interactive intelligent panel establishes connection with the terminal equipment according to the connection request.
In a fourth aspect, an embodiment of the present invention provides an apparatus for interconnecting devices, where the apparatus is applied to a terminal device, and the apparatus includes:
the information sending module is used for sending an information request to the server after receiving the information identification code from the interactive intelligent panel;
the network information acquisition module is used for acquiring network information corresponding to the information identification code from a feedback message of the server for the information request;
and the request initiating module initiates a connection request to the interactive intelligent panel according to the network information.
In a fifth aspect, an embodiment of the present invention provides an apparatus interconnection device, which is applied to an interactive smart tablet, and includes:
the information receiving module is used for sending the network information corresponding to the current access network to the server, receiving and displaying the information identification code generated by the server according to the network information;
the request receiving module is used for receiving a connection request initiated by the terminal equipment, and the network information of the connection request is obtained by the terminal equipment accessing the server according to the information identification code;
and the connection module is used for establishing connection with the terminal equipment according to the connection request.
In a sixth aspect, an embodiment of the present invention further provides a computer device, including a memory, a processor, and a computer program stored in the memory and executable on the processor, where the processor executes the computer program to implement the device interconnection method according to any one of the embodiments of the present invention.
In a seventh aspect, the present invention further provides a computer-readable storage medium, on which a computer program is stored, where the computer program, when executed by a processor, implements the device interconnection method according to any one of the embodiments of the present invention.
In the embodiment of the invention, the terminal equipment receives the information identification code from the interactive intelligent panel and then sends an information request to the server; acquiring network information corresponding to the information identification code from a feedback message of the server for the information request; and initiating a connection request to the interactive intelligent panel according to the network information. The terminal equipment and the interactive intelligent panel are not required to be unified to the same network manually by a user, and interconnection among the equipment can be realized.
Drawings
Fig. 1 is a flowchart of a device interconnection method according to a first embodiment of the present invention;
FIG. 2 is a flow chart of a device interconnection method according to a second embodiment of the present invention;
fig. 3 is a schematic structural diagram of an apparatus interconnection system in a third embodiment of the present invention;
fig. 4 is a schematic structural diagram of an apparatus interconnection apparatus according to a fourth embodiment of the present invention;
fig. 5 is a schematic structural diagram of an apparatus interconnection apparatus according to a fifth embodiment of the present invention;
fig. 6 is a schematic structural diagram of a computer device in the sixth embodiment of the present invention.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings and examples. It is to be understood that the specific embodiments described herein are merely illustrative of the invention and are not limiting of the invention. It should be further noted that, for the convenience of description, only some of the structures related to the present invention are shown in the drawings, not all of the structures.
Example one

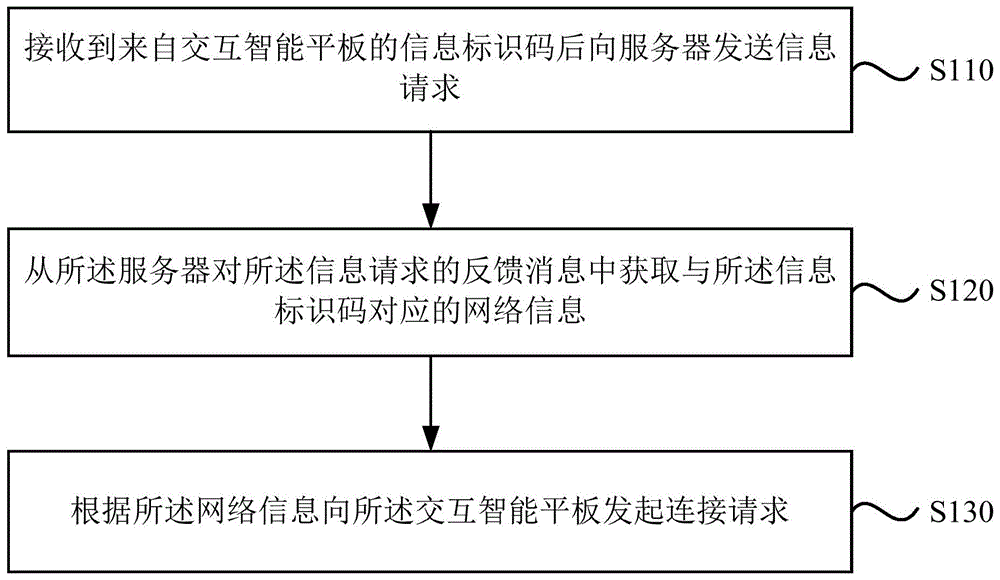

Fig. 1 is a flowchart of an apparatus interconnection method according to an embodiment of the present invention, where this embodiment is applicable to a situation where multiple apparatuses need to be connected to each other for data transmission, and the method may be executed by an apparatus interconnection device according to an embodiment of the present invention, where the apparatus may be implemented in a software and/or hardware manner, and is generally integrated in a terminal device and used in cooperation with an interactive smart tablet. Referring to fig. 1, the method may specifically include the following steps:
and S110, sending an information request to a server after receiving the information identification code from the interactive intelligent tablet.
The information identification code is a character string consisting of letters and numbers, the length can be six bits to eight bits, and the total number of devices which can be marked by the information identification code is related to the length of the information identification code. The information identification code is associated with the network information of the interactive intelligent tablet. And the terminal equipment sends an information request to the server after receiving the connection code from the interactive intelligent panel. Specifically, the server stores network information of the interactive intelligent tablet corresponding to the information identification code. Optionally, the information request may be a handshake signal, where the handshake signal carries a parameter name of a related network parameter in the network information of the interactive smart tablet that the terminal device wants to acquire.
S120, network information corresponding to the information identification code is obtained from the feedback message of the server for the information request.
Specifically, the server feeds back the information request and generates a feedback message, wherein the feedback message includes network parameters and the like in the information request of the terminal device, and the terminal device acquires the network information corresponding to the information identification code from the feedback message of the information request of the server.
S130, initiating a connection request to the interactive intelligent tablet according to the network information.
Specifically, the terminal device initiates a connection request to the interactive smart tablet, and optionally, the connection request may be a prompt box popped up on the interactive smart tablet, for example: and XXXX connection request, so as to instruct the intelligent tablet to establish connection with the terminal equipment according to the connection request.
In the embodiment of the invention, the terminal equipment receives the information identification code from the interactive intelligent panel and then sends an information request to the server; acquiring network information corresponding to the information identification code from a feedback message of the server for the information request; and initiating a connection request to the interactive intelligent panel according to the network information. The terminal equipment and the interactive intelligent panel are not required to be unified to the same network manually by a user, and interconnection among the equipment can be realized.
Optionally, the network information includes an IP of a local area network currently connected to the interactive smart tablet, a network identifier of a currently connected hotspot, an access password of the currently connected hotspot, the IP of the currently connected hotspot, and a connection port number.
The IP of the local area network currently connected with the interactive intelligent tablet is used for identifying the network currently connected with the interactive intelligent tablet; the network identifier of the current connection hotspot can be a hotspot SSID (service Set identifier), the SSID is used for distinguishing different networks, and the wireless network card can access different networks by connecting different SSIDs and inputting the passwords of corresponding wireless access points; the access password of the current connection hotspot provides security authentication; the IP of the current connection hotspot is used for identifying a hotspot network connected with the interactive intelligent panel; the connection port number is used to distinguish different computer services, such as an 80 port number for a web browsing service, a 21 port number for an FTP (File Transfer Protocol) service, and the like.
On the basis of the above technical solution, the device interconnection method provided in the embodiment of the present invention further includes: if the IP of the local area network which is currently connected is empty, connecting to the hotspot of the interactive intelligent panel according to the network identifier of the hotspot which is currently connected with the interactive intelligent panel and the access password of the hotspot which is currently connected with the interactive intelligent panel; and establishing connection with the interactive intelligent panel according to the IP and the connection port number of the current connection hotspot.
Specifically, whether the IP of the local area network currently connected in the network information is empty is judged, if yes, it is indicated that the interactive intelligent panel is not currently connected to other local area networks, the terminal device connects a hotspot signal sent by the interactive intelligent panel, the hotspot signal of the interactive intelligent panel is identified according to a network identifier of the current connection hotspot of the interactive intelligent panel, which is acquired from the network information, the network identifier is a unique identification code of the hotspot signal, and the hotspot signal is connected to the hotspot of the interactive intelligent panel according to the network identifier and an access password of the current connection hotspot. And then establishing connection with the interactive intelligent panel according to the IP and the connection port number of the current connection hotspot. The terminal equipment and the interactive intelligent panel can be interconnected without unifying the terminal equipment and the interactive intelligent panel to the same local area network, and then data transmission is carried out.
Optionally, if the IP of the currently connected local area network is not empty, connecting the interactive intelligent tablet according to the IP and the port number of the currently connected local area network of the interactive intelligent tablet; if the connection fails within the set time, connecting to the hotspot of the interactive intelligent tablet according to the network identifier of the current connection hotspot of the interactive intelligent tablet and the access password of the current connection hotspot; and establishing connection with the interactive intelligent panel according to the IP and the connection port number of the current connection hotspot.
Specifically, if the IP of the lan to which the interactive intelligent tablet is currently connected is not empty, it indicates that the interactive intelligent tablet is connected to a certain lan, and the terminal device is connected to the lan having an interconnection relationship with the interactive intelligent tablet according to the IP and the port number of the lan to which the interactive intelligent tablet is connected. If the connection is not successful within the set time, the set time can be 60 seconds, the connection is determined to be overtime, the terminal device is connected to the hotspot of the intelligent tablet according to the network identifier of the current connection hotspot of the interactive intelligent tablet and the access password of the current connection point, and connection is established with the interactive intelligent tablet according to the IP and the connection port number of the current connection hotspot. The set method has the advantages that when the terminal device and the interactive intelligent tablet are in the same local area network, a hotspot of the interactive intelligent tablet does not need to be switched, and user experience is better. It should be noted that the reason for the connection timeout may be that the network signal of the local area network is weak or unstable.
Example two
Fig. 2 is a flowchart of an apparatus interconnection method provided in the second embodiment of the present invention, where this embodiment is applicable to a case where multiple apparatuses need to be connected to each other for data transmission, and this method may be executed by an apparatus interconnection device provided in the second embodiment of the present invention, and the apparatus may be implemented in a software and/or hardware manner, and is generally integrated in an interactive smart tablet to be used in cooperation with a terminal apparatus. Referring to fig. 2, the method may specifically include the following steps:
s210, sending the network information corresponding to the current access network to a server, receiving and displaying the information identification code generated by the server according to the network information.
Specifically, the interactive intelligent tablet sends network information corresponding to a current access network to the server, wherein the current access network of the interactive intelligent tablet can be a local area network or a hotspot network sent by a network of the interactive intelligent tablet. Optionally, the network information includes an IP of a local area network currently connected to the interactive smart tablet, a network identifier of a currently connected hotspot, an access password of the currently connected hotspot, the IP of the currently connected hotspot, and a connection port number. If the interactive intelligent tablet does not have the local area network connection currently, the IP of the sent local area network is empty. In a specific example, the physical address of the interactive smart tablet and the network information may also be sent to the server in advance, wherein each device host has a physical address, and each network location has a specific IP address.
In a specific example, after receiving network information sent by the interactive intelligent panel, the server queries whether the information of the physical address exists in the server, and if so, updates the network information corresponding to the interactive intelligent panel and updates an information identification code corresponding to the network information; and if not, generating a unique information identification code associated with the interactive intelligent tablet information. Optionally, in order to ensure that the interactive intelligent tablet can be searched in the interconnection process, the network service function of the interactive intelligent tablet is preferentially started, and in a general case, the network service function is started automatically.
And the interactive intelligent panel receives and displays the information identification code generated by the server according to the network information, and waits for the terminal equipment to be connected. The information identification code is displayed on the interactive intelligent tablet, so that the user can be prompted to generate the information identification code, and can be prompted to input the information identification code into a related input box of the terminal equipment to realize equipment interconnection.
In a specific example, after acquiring the information identification code for the first time, the interactive intelligent tablet stores the information identification code to the local, if no network exists during the next start, the locally stored information identification code is displayed, and if a network connection exists during the next start, the interactive intelligent tablet requests the server to update the information identification code and updates and stores the information identification code to the local. The advantage of this setting is that other terminal equipment can obtain the network information of mutual intelligent tablet from the server through this information identification code.
S220, receiving a connection request initiated by the terminal equipment, wherein the network information of the connection request is obtained by the terminal equipment accessing the server according to the information identification code.
Specifically, the interactive intelligent panel receives a connection request initiated by the terminal device, optionally, the connection request initiated by the terminal device carries network information, the network information is obtained by the terminal device accessing the server according to the information identification code, wherein the server stores the corresponding relationship between the information identification code and the network information, and the network information corresponding to the information identification code can be obtained in the server according to the information identification code.
And S230, establishing connection with the terminal equipment according to the connection request.
Specifically, the interactive intelligent tablet responds to a connection request of the terminal device, establishes connection with the terminal device, and can perform data transmission after the connection is successfully established.
In the embodiment of the invention, the network information corresponding to the current access network is sent to the server, the server is received and displayed to generate the corresponding information identification code according to the network information, the connection request initiated by the terminal equipment is received, the network information of the connection request is obtained by the terminal equipment accessing the server according to the information identification code, and the connection is established with the terminal equipment according to the connection request. The terminal equipment and the interactive intelligent panel are not required to be unified to the same network manually by a user, and interconnection among the equipment can be realized.
On the basis of the above technical solution, before the receiving of the connection request initiated by the terminal device, and the network information of the connection request is obtained by the terminal device accessing the server according to the information identification code, the method further includes: when the network information is detected to be changed, sending an information identification code updating request to the server, and receiving an updated information identification code fed back by the server according to the changed network information; or sending an information identification code updating request to the server at preset intervals to acquire the updated information identification code.
Specifically, before receiving a connection request initiated from a terminal device, the method further includes: and when the interactive intelligent panel detects that the network information changes, sending an information identification code updating request to the server, and distributing a new information identification code to the interactive intelligent panel by the server. When at least one piece of information in the network information changes, which indicates that the network information changes, the network identifier needs to be updated, and the network information may include: the method comprises the steps of interacting the IP of the local area network currently connected with the intelligent tablet, the network identifier of the current connection hotspot, the access password of the current connection hotspot, the IP of the current connection hotspot and the connection port number.
Optionally, after the server allocates a new information identification code to the interactive intelligent tablet, the information identification code is set to an occupied state, and specifically, the information identification code can be realized by adding a set flag bit to the information identification code and the like. The advantage of this arrangement is that after the new information identification code is allocated to the interactive smart tablet, the new information identification code is prevented from being repeatedly allocated in the time difference before the interactive smart tablet uses the information identification code.
In addition, the updated information identification code may be acquired by sending an information identification code update request to the server at every preset time, which may be 5 minutes. The operation of updating the information identification code can lead the information identification code to be in a dynamic change process, thereby avoiding the potential safety hazard caused by the unchanged information identification code to the interconnection of equipment, improving the safety of network connection,
on the basis of the technical scheme, the terminal equipment feeds back the received message to the server after receiving the updated information identification code, so that connection failure caused by the fact that the server updates the information identification code but the terminal equipment does not receive the updated information identification code is avoided.
On the basis of the embodiment of the invention, the information identification code can also be generated by the following coding rule: the device unique identifier is the unique identifier of the interactive intelligent tablet on the server, a physical address can be used as the unique identifier, the unique identifier can also be formed by numbers or letters which are subjected to encoding rules, and the length is assumed to be the combination of 4-digit numbers or capital letters, such as 1A 2B; the 8-bit connection information is information including an IP and a port number of the interactive intelligent tablet, wherein the IP of the interactive intelligent tablet may preferentially select a local area network IP, and if no local area network connection exists, a hotspot IP of the interactive intelligent tablet is selected, and the hotspot IP is composed of numbers or capital letters encoded according to a design rule, such as UA67WW4RA, in this example, the information identification code displayed on the interactive intelligent tablet is 1A2BUA67WW4 RA. When the terminal equipment cannot acquire the network information of the interactive intelligent panel through the server, or the acquired information is wrong, the IP and the port number of the interactive intelligent panel can be analyzed from the information identification code to try to connect, and the terminal equipment and the interactive intelligent panel can be successfully connected as long as the terminal equipment and the interactive intelligent panel are in the same local area network.
In the process of sending an information identification code updating request to the server at preset intervals to acquire the updated information identification code, the unique identification code of the equipment under the coding rule is unchanged, but the 8-bit connection information is recoded according to a certain rule. And when the interactive intelligent panel does not request to update the information identification code after the set time, the interactive intelligent panel is considered to stop the network connection service, the server clears the unique equipment identification of the interactive intelligent panel, and a space is reserved for other interactive intelligent panels to use. The method has the advantages that in the state that the server does not work, the terminal device can still acquire the IP and the port number of the interactive intelligent tablet through the connection information identification code, and the terminal device and the interactive intelligent tablet can be connected with the interactive intelligent tablet only by ensuring that the terminal device and the interactive intelligent tablet are located in the same local area network.
EXAMPLE III
Fig. 3 is a schematic structural diagram of a device interconnection system according to a third embodiment of the present invention, and referring to fig. 3, the device interconnection system includes an interactive smart tablet 310 and a terminal device 320, where:
the terminal device 320 sends an information request to the server after receiving the information identification code from the interactive intelligent tablet 310;
the interactive intelligent panel 310 sends network information corresponding to a current access network to a server, receives and displays a corresponding information identification code generated by the server according to the network information;
the terminal device 320 acquires the network information corresponding to the information identification code from the feedback message of the server for the information request;
the terminal device 320 initiates a connection request to the interactive smart tablet 310 according to the network information.
The interactive intelligent panel 310 receives a connection request initiated by the terminal device 320, and the network information of the connection request is obtained by the terminal device 320 accessing the server according to the information identification code;
the interactive smart tablet 310 establishes a connection with the terminal device 320 according to the connection request.
In the embodiment of the invention, the terminal equipment receives the information identification code from the interactive intelligent panel and then sends an information request to the server; the interactive intelligent panel sends network information corresponding to a current access network to a server, receives and displays an information identification code generated by the server according to the network information; the terminal equipment acquires network information corresponding to the information identification code from a feedback message of the server for the information request; and the terminal equipment initiates a connection request to the interactive intelligent panel according to the network information. The interactive intelligent panel receives a connection request initiated by terminal equipment, and network information of the connection request is obtained by the terminal equipment accessing the server according to the information identification code; and the interactive intelligent panel establishes connection with the terminal equipment according to the connection request. The terminal equipment and the interactive intelligent panel are not required to be unified to the same network manually by a user, and interconnection among the equipment can be realized.
On the basis of the above embodiments of the present invention, the terminal device is used as a sending end, the interactive intelligent tablet is used as a receiving end, and the interconnection of the devices is explained by taking the connection process of the receiving end, the sending end and the server as an example.
Firstly, an interactive intelligent panel at a receiving end sends a local area network IP, a hot SSID, a hot password, a port number and a physical address of the interactive intelligent panel which are connected with the interactive intelligent panel to a server; the server stores the network information of the interactive intelligent tablet, generates an information identification code according to the network information of the interactive intelligent tablet, and associates the information identification code with the interactive intelligent tablet, wherein the information identification code is bound with a physical address of the interactive intelligent tablet, namely, one interactive intelligent tablet can be uniquely determined by searching the information identification code or the physical address on the server.
And secondly, the server returns the information identification code to the interactive intelligent panel, the interactive intelligent panel receives and displays the information identification code, and optionally, if the server does not return the information identification code, the server can try to connect by using the locally stored information identification code.
Finally, inputting the information identification code of the interactive intelligent panel on the terminal equipment, and requesting the server for network information corresponding to the information identification code; the server returns corresponding network information according to the information identification code; the terminal equipment is switched to a hotspot of the interactive intelligent panel according to the hotspot SSID and the hotspot password, and then initiates a connection request to the interactive intelligent panel according to the hotspot IP and the port number; and after the interactive intelligent panel is connected with the terminal equipment, starting data transmission. The terminal equipment and the interactive intelligent panel are not required to be unified to the same network manually by a user, and interconnection among the equipment can be realized.
Example four
Fig. 4 is a schematic structural diagram of an apparatus interconnection device according to a fourth embodiment of the present invention, which is suitable for executing an apparatus interconnection method according to the fourth embodiment of the present invention, and is generally integrated in a terminal device for use with an interactive smart tablet. As shown in fig. 4, the apparatus may specifically include:
the information sending module 410 is used for sending an information request to the server after receiving the information identification code from the interactive intelligent tablet;
a network information obtaining module 420, configured to obtain network information corresponding to the information identifier from a feedback message of the information request from the server;
and the request initiating module 430 initiates a connection request to the interactive smart tablet according to the network information.
Further, the network information includes an IP of a local area network currently connected to the interactive smart tablet, a network identifier of a currently connected hotspot, an access password of the currently connected hotspot, the IP of the currently connected hotspot, and a connection port number.
Further, the method also comprises the following steps:
the first network connection module is used for connecting to the hotspot of the interactive intelligent tablet according to the network identifier of the current connection hotspot of the interactive intelligent tablet and the access password of the current connection hotspot when the IP of the currently connected local area network is empty;
and the first equipment connection module is used for establishing connection with the interactive intelligent panel according to the IP and the connection port number of the current connection hotspot.
Further, the method also comprises the following steps:
the second device connection module is used for connecting the interactive intelligent tablet according to the IP and the port number of the local area network currently connected with the interactive intelligent tablet when the IP of the local area network currently connected with the interactive intelligent tablet is not empty;
the second network connection module is used for connecting to the hotspot of the interactive intelligent tablet according to the network identifier of the current hotspot connected with the interactive intelligent tablet and the access password of the current hotspot connected with the interactive intelligent tablet when the connection fails within a set time;
and the third equipment connection module is used for establishing connection with the interactive intelligent panel according to the IP and the connection port number of the current connection hotspot.
The device interconnection device provided by the embodiment of the invention can execute the device interconnection method provided by any embodiment of the invention, and has corresponding functional modules and beneficial effects of the execution method.
EXAMPLE five
Fig. 5 is a schematic structural diagram of a device interconnection apparatus according to a fifth embodiment of the present invention, which is adapted to execute a device interconnection method according to the fifth embodiment of the present invention, and is generally integrated in an interactive smart tablet to cooperate with a terminal device. As shown in fig. 5, the apparatus may specifically include:
the information receiving module 510 is configured to send network information corresponding to a current access network to a server, receive and display a corresponding information identifier generated by the server according to the network information;
a request receiving module 520, configured to receive a connection request initiated by a terminal device, where network information of the connection request is obtained by the terminal device accessing the server according to the information identifier;
a connection module 530, configured to establish a connection with the terminal device according to the connection request.
Further, the method also comprises the following steps:
the updating module is used for sending an information identification code updating request to the server when detecting that the network information changes before receiving a connection request initiated by terminal equipment, wherein the network information of the connection request is obtained by the terminal equipment accessing the server according to the information identification code, and receiving an updated information identification code fed back by the server according to the changed network information; or the like, or, alternatively,
and sending an information identification code updating request to the server at preset intervals to acquire the updated information identification code.
The device interconnection device provided by the embodiment of the invention can execute the device interconnection method provided by any embodiment of the invention, and has corresponding functional modules and beneficial effects of the execution method.
EXAMPLE six
Fig. 6 is a schematic structural diagram of a computer device according to a sixth embodiment of the present invention. FIG. 6 illustrates a block diagram of an exemplary computer device 12 suitable for use in implementing embodiments of the present invention. The computer device 12 shown in FIG. 6 is only an example and should not bring any limitations to the functionality or scope of use of embodiments of the present invention.
As shown in FIG. 6, computer device 12 is in the form of a general purpose computing device. The components of computer device 12 may include, but are not limited to: one or more processors or processing units 16, a system memory 28, and a bus 18 that couples various system components including the system memory 28 and the processing unit 16.
Bus 18 represents one or more of any of several types of bus structures, including a memory bus or memory controller, a peripheral bus, an accelerated graphics port number, a processor, or a local bus using any of a variety of bus architectures. By way of example, such architectures include, but are not limited to, Industry Standard Architecture (ISA) bus, micro-channel architecture (MAC) bus, enhanced ISA bus, Video Electronics Standards Association (VESA) local bus, and Peripheral Component Interconnect (PCI) bus.
Computer device 12 typically includes a variety of computer system readable media. Such media may be any available media that is accessible by computer device 12 and includes both volatile and nonvolatile media, removable and non-removable media.
The system memory 28 may include computer system readable media in the form of volatile memory, such as Random Access Memory (RAM)30 and/or cache memory 32. Computer device 12 may further include other removable/non-removable, volatile/nonvolatile computer system storage media. By way of example only, storage system 34 may be used to read from and write to non-removable, nonvolatile magnetic media (not shown in FIG. 6, and commonly referred to as a "hard drive"). Although not shown in FIG. 6, a magnetic disk drive for reading from and writing to a removable, nonvolatile magnetic disk (e.g., a "floppy disk") and an optical disk drive for reading from or writing to a removable, nonvolatile optical disk (e.g., a CD-ROM, DVD-ROM, or other optical media) may be provided. In these cases, each drive may be connected to bus 18 by one or more data media interfaces. System memory 28 may include at least one program product having a set (e.g., at least one) of program modules that are configured to carry out the functions of embodiments of the invention.
A program/utility 40 having a set (at least one) of program modules 42 may be stored, for example, in system memory 28, such program modules 42 including, but not limited to, an operating system, one or more application programs, other program modules, and program data, each of which examples or some combination thereof may comprise an implementation of a network environment. Program modules 42 generally carry out the functions and/or methodologies of the described embodiments of the invention.
Computer device 12 may also communicate with one or more external devices 14 (e.g., keyboard, pointing device, display 24, etc.), with one or more devices that enable a user to interact with computer device 12, and/or with any devices (e.g., network card, modem, etc.) that enable computer device 12 to communicate with one or more other computing devices. Such communication may be through an input/output (I/O) interface 22. Also, computer device 12 may communicate with one or more networks (e.g., a Local Area Network (LAN), a Wide Area Network (WAN), and/or a public network such as the Internet) via network adapter 20. As shown, network adapter 20 communicates with the other modules of computer device 12 via bus 18. It should be appreciated that although not shown in FIG. 6, other hardware and/or software modules may be used in conjunction with computer device 12, including but not limited to: microcode, device drivers, redundant processing units, external disk drive arrays, RAID systems, tape drives, and data backup storage systems, among others.
The processing unit 16 executes various functional applications and data processing by executing programs stored in the system memory 28, for example, implementing the device interconnection method applied to the terminal device provided by the embodiment of the present invention:
that is, the processing unit implements, when executing the program: sending an information request to a server after receiving an information identification code from the interactive intelligent tablet; acquiring network information corresponding to the information identification code from a feedback message of the server for the information request; and initiating a connection request to the interactive intelligent panel according to the network information.
The device interconnection method applied to the interactive intelligent tablet provided by the embodiment of the invention can also be realized as follows:
that is, the processing unit implements, when executing the program: sending network information corresponding to a current access network to a server, receiving and displaying a corresponding information identification code generated by the server according to the network information; receiving a connection request initiated by terminal equipment, wherein network information of the connection request is obtained by the terminal equipment accessing the server according to the information identification code; and establishing connection with the terminal equipment according to the connection request.
EXAMPLE seven
The seventh embodiment of the present invention provides a computer-readable storage medium, on which a computer program is stored, where the computer program, when executed by a processor, implements the device interconnection method applied to a terminal device, provided by the embodiment of the present invention:
that is, the processing unit implements, when executing the program: sending an information request to a server after receiving an information identification code from the interactive intelligent tablet; acquiring network information corresponding to the information identification code from a feedback message of the server for the information request; and initiating a connection request to the interactive intelligent panel according to the network information.
The device interconnection method applied to the interactive intelligent tablet provided by the embodiment of the invention can also be realized as follows:
that is, the processing unit implements, when executing the program: sending network information corresponding to a current access network to a server, receiving and displaying a corresponding information identification code generated by the server according to the network information; receiving a connection request initiated by terminal equipment, wherein network information of the connection request is obtained by the terminal equipment accessing the server according to the information identification code; and establishing connection with the terminal equipment according to the connection request.
Any combination of one or more computer-readable media may be employed. The computer readable medium may be a computer readable signal medium or a computer readable storage medium. A computer readable storage medium may be, for example, but not limited to, an electronic, magnetic, optical, electromagnetic, infrared, or semiconductor system, apparatus, or device, or any combination of the foregoing. More specific examples (a non-exhaustive list) of the computer readable storage medium would include the following: an electrical connection having one or more wires, a portable computer diskette, a hard disk, a Random Access Memory (RAM), a read-only memory (ROM), an erasable programmable read-only memory (EPROM or flash memory), an optical fiber, a portable compact disc read-only memory (CD-ROM), an optical storage device, a magnetic storage device, or any suitable combination of the foregoing. In the context of this document, a computer readable storage medium may be any tangible medium that can contain, or store a program for use by or in connection with an instruction execution system, apparatus, or device.
A computer readable signal medium may include a propagated data signal with computer readable program code embodied therein, for example, in baseband or as part of a carrier wave. Such a propagated data signal may take any of a variety of forms, including, but not limited to, electro-magnetic, optical, or any suitable combination thereof. A computer readable signal medium may also be any computer readable medium that is not a computer readable storage medium and that can communicate, propagate, or transport a program for use by or in connection with an instruction execution system, apparatus, or device.
Program code embodied on a computer readable medium may be transmitted using any appropriate medium, including but not limited to wireless, wireline, optical fiber cable, RF, etc., or any suitable combination of the foregoing.
Computer program code for carrying out operations for aspects of the present invention may be written in any combination of one or more programming languages, including an object oriented programming language such as Java, Smalltalk, C + + or the like and conventional procedural programming languages, such as the "C" programming language or similar programming languages. The program code may execute entirely on the user's computer, partly on the user's computer, as a stand-alone software package, partly on the user's computer and partly on a remote computer or entirely on the remote computer or server. In the case of a remote computer, the remote computer may be connected to the user's computer through any type of network, including a Local Area Network (LAN) or a Wide Area Network (WAN), or the connection may be made to an external computer (for example, through the Internet using an Internet service provider).
It is to be noted that the foregoing is only illustrative of the preferred embodiments of the present invention and the technical principles employed. It will be understood by those skilled in the art that the present invention is not limited to the particular embodiments described herein, but is capable of various obvious changes, rearrangements and substitutions as will now become apparent to those skilled in the art without departing from the scope of the invention. Therefore, although the present invention has been described in greater detail by the above embodiments, the present invention is not limited to the above embodiments, and may include other equivalent embodiments without departing from the spirit of the present invention, and the scope of the present invention is determined by the scope of the appended claims.

Claims (9)

1.一种设备互连方法，其特征在于，包括：1. a device interconnection method, is characterized in that, comprises: 接收到来自交互智能平板的信息标识码后向服务器发送信息请求；After receiving the information identification code from the interactive smart tablet, send an information request to the server; 从所述服务器对所述信息请求的反馈消息中获取与所述信息标识码对应的网络信息；所述网络信息包括交互智能平板当前连接的局域网的IP、当前连接热点的网络标识符、所述当前连接热点的接入密码、所述当前连接热点的IP和连接端口号；Obtain the network information corresponding to the information identification code from the feedback message of the server to the information request; the network information includes the IP of the local area network to which the interactive smart tablet is currently connected, the network identifier of the currently connected hotspot, the The access password of the current connection to the hotspot, the IP of the current connection to the hotspot and the connection port number; 根据所述网络信息向所述交互智能平板发起连接请求；Initiating a connection request to the interactive smart tablet according to the network information; 若所述当前连接的局域网的IP不为空，则根据所述交互智能平板当前连接的局域网的IP和端口号与所述交互智能平板进行连接；若在设定时间内未能成功连接，则根据所述交互智能平板当前连接热点的网络标识符和所述当前连接热点的接入密码连接到所述交互智能平板的热点；根据所述当前连接热点的IP和连接端口号与所述交互智能平板建立连接。If the IP of the currently connected local area network is not empty, connect the interactive smart tablet with the IP and port number of the local area network currently connected to the interactive smart tablet; if the connection fails within the set time, then Connect to the hotspot of the interactive smart tablet according to the network identifier of the hotspot currently connected to the interactive smart tablet and the access password of the hotspot currently connected; The tablet establishes the connection. 2.根据权利要求1所述的方法，其特征在于，还包括：2. The method of claim 1, further comprising: 若所述当前连接的局域网的IP为空，则根据所述交互智能平板当前连接热点的网络标识符和所述当前连接热点的接入密码连接到所述交互智能平板的热点；If the IP of the currently connected local area network is empty, connect to the hotspot of the interactive smart tablet according to the network identifier of the hotspot currently connected to the interactive smart tablet and the access password of the currently connected hotspot; 根据所述当前连接热点的IP和连接端口号与所述交互智能平板建立连接。Establish a connection with the interactive smart tablet according to the IP of the currently connected hotspot and the connection port number. 3.一种设备互连方法，其特征在于，包括：3. A device interconnection method, comprising: 将当前接入网络对应的网络信息发送至服务器，接收并显示所述服务器根据所述网络信息生成对应的信息标识码；所述网络信息包括交互智能平板当前连接的局域网的IP、当前连接热点的网络标识符、所述当前连接热点的接入密码、所述当前连接热点的IP和连接端口号；Send the network information corresponding to the current access network to the server, receive and display the corresponding information identification code generated by the server according to the network information; network identifier, the access password of the currently connected hotspot, the IP and connection port number of the currently connected hotspot; 接收来自终端设备发起的连接请求，所述连接请求的网络信息由所述终端设备根据所述信息标识码访问所述服务器得到；receiving a connection request initiated by a terminal device, where the network information of the connection request is obtained by the terminal device accessing the server according to the information identification code; 根据所述连接请求与所述终端设备建立连接；Establish a connection with the terminal device according to the connection request; 若所述当前连接的局域网的IP不为空，则根据所述交互智能平板当前连接的局域网的IP和端口号进行连接；若在设定时间内未能成功连接，则根据所述交互智能平板当前连接热点的网络标识符和所述当前连接热点的接入密码建立连接；根据所述当前连接热点的IP和连接端口号建立连接。If the IP of the currently connected local area network is not empty, the connection is made according to the IP and port number of the local area network to which the interactive smart tablet is currently connected; The network identifier of the currently connected hotspot and the access password of the currently connected hotspot establish a connection; the connection is established according to the IP and the connection port number of the currently connected hotspot. 4.根据权利要求3所述的方法，其特征在于，所述接收来自终端设备发起的连接请求，所述连接请求的网络信息由所述终端设备根据所述信息标识码访问所述服务器得到之前，还包括：4 . The method according to claim 3 , wherein the receiving a connection request initiated by a terminal device, the network information of the connection request is obtained by the terminal device accessing the server according to the information identification code. 5 . ,Also includes: 当检测到所述网络信息发生变化时，向所述服务器发送信息标识码更新请求，接收所述服务器根据变化后的网络信息反馈的更新后的信息标识码；或，When it is detected that the network information changes, send an information identification code update request to the server, and receive the updated information identification code fed back by the server according to the changed network information; or, 每隔预设时间向所述服务器发送信息标识码更新请求来获取更新后的信息标识码。An information identification code update request is sent to the server every preset time to acquire the updated information identification code. 5.一种设备互连系统，其特征在于，包括：交互智能平板和终端设备，其中：5. A device interconnection system, comprising: an interactive smart tablet and a terminal device, wherein: 终端设备接收到来自交互智能平板的信息标识码后向服务器发送信息请求；The terminal device sends an information request to the server after receiving the information identification code from the interactive intelligent tablet; 交互智能平板将当前接入网络对应的网络信息发送至服务器，接收并显示所述服务器根据所述网络信息生成对应的信息标识码；所述网络信息包括交互智能平板当前连接的局域网的IP、当前连接热点的网络标识符、所述当前连接热点的接入密码、所述当前连接热点的IP和连接端口号；The interactive smart tablet sends the network information corresponding to the current access network to the server, receives and displays the corresponding information identification code generated by the server according to the network information; the network information includes the IP of the local area network to which the interactive smart tablet is currently connected, the current The network identifier of the connection hotspot, the access password of the current connection to the hotspot, the IP of the current connection to the hotspot and the connection port number; 所述终端设备从所述服务器对所述信息请求的反馈消息中获取与所述信息标识码对应的网络信息；obtaining, by the terminal device, network information corresponding to the information identification code from the server's feedback message for the information request; 所述终端设备根据所述网络信息向所述交互智能平板发起连接请求；The terminal device initiates a connection request to the interactive smart tablet according to the network information; 所述交互智能平板接收来自终端设备发起的连接请求，所述连接请求的网络信息由所述终端设备根据所述信息标识码访问所述服务器得到；The interactive smart tablet receives a connection request initiated by a terminal device, and the network information of the connection request is obtained by the terminal device accessing the server according to the information identification code; 所述交互智能平板根据所述连接请求与所述终端设备建立连接；The interactive smart tablet establishes a connection with the terminal device according to the connection request; 若所述当前连接的局域网的IP不为空，则根据所述交互智能平板当前连接的局域网的IP和端口号与所述交互智能平板进行连接；若在设定时间内未能成功连接，则根据所述交互智能平板当前连接热点的网络标识符和所述当前连接热点的接入密码连接到所述交互智能平板的热点；根据所述当前连接热点的IP和连接端口号与所述交互智能平板建立连接。If the IP of the currently connected local area network is not empty, connect the interactive smart tablet with the IP and port number of the local area network currently connected to the interactive smart tablet; if the connection fails within the set time, then Connect to the hotspot of the interactive smart tablet according to the network identifier of the hotspot currently connected to the interactive smart tablet and the access password of the hotspot currently connected; The tablet establishes the connection. 6.一种设备互连装置，应用于终端设备，其特征在于，包括：6. A device interconnection device, applied to terminal equipment, characterized in that, comprising: 信息发送模块，用于接收到来自交互智能平板的信息标识码后向服务器发送信息请求；The information sending module is used to send the information request to the server after receiving the information identification code from the interactive intelligent tablet; 网络信息获取模块，用于从所述服务器对所述信息请求的反馈消息中获取与所述信息标识码对应的网络信息；所述网络信息包括交互智能平板当前连接的局域网的IP、当前连接热点的网络标识符、所述当前连接热点的接入密码、所述当前连接热点的IP和连接端口号；A network information acquisition module, configured to acquire network information corresponding to the information identification code from the feedback message of the server to the information request; the network information includes the IP of the local area network currently connected to the interactive smart tablet, the current connection hotspot the network identifier, the access password of the currently connected hotspot, the IP and connection port number of the currently connected hotspot; 请求发起模块，根据所述网络信息向所述交互智能平板发起连接请求；a request initiating module, which initiates a connection request to the interactive smart tablet according to the network information; 第二设备连接模块，用于在所述当前连接的局域网的IP不为空时根据所述交互智能平板当前连接的局域网的IP和端口号与所述交互智能平板进行连接；A second device connection module, configured to connect with the interactive smart tablet according to the IP and port number of the local area network to which the interactive smart tablet is currently connected when the IP of the currently connected local area network is not empty; 第二网络连接模块，用于在设定时间内未能成功连接时，根据所述交互智能平板当前连接热点的网络标识符和所述当前连接热点的接入密码连接到所述交互智能平板的热点；The second network connection module is configured to connect to the interactive smart tablet according to the network identifier of the hotspot currently connected to the interactive smart tablet and the access password of the hotspot currently connected when the connection fails within the set time. hot spot; 第三设备连接模块，用于根据所述当前连接热点的IP和连接端口号与所述交互智能平板建立连接。A third device connection module, configured to establish a connection with the interactive smart tablet according to the IP of the currently connected hotspot and the connection port number. 7.一种设备互连装置，应用于交互智能平板，其特征在于，包括：7. A device interconnection device, applied to an interactive smart tablet, characterized in that, comprising: 信息接收模块，用于将当前接入网络对应的网络信息发送至服务器，接收并显示所述服务器根据所述网络信息生成对应的信息标识码；所述网络信息包括交互智能平板当前连接的局域网的IP、当前连接热点的网络标识符、所述当前连接热点的接入密码、所述当前连接热点的IP和连接端口号；The information receiving module is used to send the network information corresponding to the current access network to the server, and receive and display the corresponding information identification code generated by the server according to the network information; the network information includes the information of the local area network currently connected to the interactive smart tablet. IP, the network identifier of the currently connected hotspot, the access password of the currently connected hotspot, the IP and connection port number of the currently connected hotspot; 请求接收模块，用于接收来自终端设备发起的连接请求，所述连接请求的网络信息由所述终端设备根据所述信息标识码访问所述服务器得到；a request receiving module, configured to receive a connection request initiated by a terminal device, and the network information of the connection request is obtained by the terminal device accessing the server according to the information identification code; 连接模块，用于根据所述连接请求与所述终端设备建立连接；a connection module, configured to establish a connection with the terminal device according to the connection request; 若所述当前连接的局域网的IP不为空，则根据所述交互智能平板当前连接的局域网的IP和端口号进行连接；若在设定时间内未能成功连接，则根据所述交互智能平板当前连接热点的网络标识符和所述当前连接热点的接入密码建立连接；根据所述当前连接热点的IP和连接端口号建立连接。If the IP of the currently connected local area network is not empty, the connection is made according to the IP and port number of the local area network to which the interactive smart tablet is currently connected; The network identifier of the currently connected hotspot and the access password of the currently connected hotspot establish a connection; the connection is established according to the IP and the connection port number of the currently connected hotspot. 8.一种计算机设备，包括存储器、处理器及存储在存储器上并可在处理器上运行的计算机程序，其特征在于，所述处理器执行所述程序时实现如权利要求1-4中任一所述的方法。8. A computer equipment, comprising a memory, a processor and a computer program stored on the memory and running on the processor, wherein the processor implements any of claims 1-4 when the processor executes the program. a described method. 9.一种计算机可读存储介质，其上存储有计算机程序，其特征在于，该程序被处理器执行时实现如权利要求1-4中任一所述的方法。9. A computer-readable storage medium on which a computer program is stored, characterized in that, when the program is executed by a processor, the method according to any one of claims 1-4 is implemented.
CN201810306336.9A 2018-04-08 2018-04-08 Device interconnection method, apparatus, system, device and storage medium Active CN108540552B (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CN201810306336.9A CN108540552B (en) 2018-04-08 2018-04-08 Device interconnection method, apparatus, system, device and storage medium

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN201810306336.9A CN108540552B (en) 2018-04-08 2018-04-08 Device interconnection method, apparatus, system, device and storage medium

Publications (2)

Publication Number Publication Date
CN108540552A CN108540552A (en) 2018-09-14
CN108540552B true CN108540552B (en) 2021-05-04

Family

ID=63483033

Family Applications (1)

Application Number Title Priority Date Filing Date
CN201810306336.9A Active CN108540552B (en) 2018-04-08 2018-04-08 Device interconnection method, apparatus, system, device and storage medium

Country Status (1)

Country Link
CN (1) CN108540552B (en)

Families Citing this family (5)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN109548060B (en) * 2018-12-29 2022-05-13 广州敬信药草园信息科技有限公司 A processing method for abnormal disconnection of recording and broadcasting network
CN111629371B (en) * 2020-05-06 2021-09-03 上海幻电信息科技有限公司 Screen projection method and system
CN112383970B (en) * 2020-11-02 2023-04-28 联想(北京)有限公司 Processing method and device and electronic equipment
CN116113068B (en) * 2021-11-09 2025-11-07 广州视源电子科技股份有限公司 Connection method and device for wireless screen transmission, computer equipment and storage medium
CN115022709B (en) * 2022-06-10 2023-08-29 江苏银河数字技术有限公司 Intelligent set top box wireless screen-throwing management and control system and method

Citations (5)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2005003987A1 (en) * 2003-07-02 2005-01-13 Nokia Corporation System, apparatus, and method for a mobile information server
CN102868916A (en) * 2012-08-27 2013-01-09 腾讯科技（深圳）有限公司 Method for sharing information with digital television terminal, terminals and information sharing system
CN105975225A (en) * 2016-04-26 2016-09-28 深圳Tcl数字技术有限公司 Multi-screen interaction connection method, device and system
CN107018524A (en) * 2017-04-27 2017-08-04 上海斐讯数据通信技术有限公司 Network configuration information management method and system, Cloud Server based on Cloud Server
CN107708223A (en) * 2017-09-28 2018-02-16 努比亚技术有限公司 A kind of information interacting method, equipment and computer-readable recording medium

Patent Citations (5)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2005003987A1 (en) * 2003-07-02 2005-01-13 Nokia Corporation System, apparatus, and method for a mobile information server
CN102868916A (en) * 2012-08-27 2013-01-09 腾讯科技（深圳）有限公司 Method for sharing information with digital television terminal, terminals and information sharing system
CN105975225A (en) * 2016-04-26 2016-09-28 深圳Tcl数字技术有限公司 Multi-screen interaction connection method, device and system
CN107018524A (en) * 2017-04-27 2017-08-04 上海斐讯数据通信技术有限公司 Network configuration information management method and system, Cloud Server based on Cloud Server
CN107708223A (en) * 2017-09-28 2018-02-16 努比亚技术有限公司 A kind of information interacting method, equipment and computer-readable recording medium

Also Published As

Publication number Publication date
CN108540552A (en) 2018-09-14

Similar Documents

Publication Publication Date Title
CN108540552B (en) Device interconnection method, apparatus, system, device and storage medium
US10065119B2 (en) Game accessing method and processing method, server, terminal, and system
US11716390B2 (en) Systems and methods for remote management of appliances
JP6280641B2 (en) Account login method, device and system
CN109413096B (en) A multi-application login method and device
EP3640849A1 (en) Electronic device and method of registering personal cloud apparatus in user portal server thereof
US10516666B2 (en) Authentication method, apparatus, and system
US20130262686A1 (en) Method for organizing a collaborative event and system employing same
US10063720B2 (en) Relay server enabling resumption of remote support, method of controlling the same, communication system and storage medium
CN111049946B (en) Portal authentication method, portal authentication system, electronic equipment and storage medium
CN113612861B (en) Remote access method, system and computer readable storage medium
WO2019062713A1 (en) Account login method and system thereof, video terminal, mobile terminal and storage medium
CN114585055A (en) Vehicle-mounted WiFi access method, vehicle controller, cloud server and mobile terminal
CN110795182A (en) Cloud host creation method and system
US9032541B2 (en) Information processing system, information processing apparatus, and computer-readable storage medium
CN114531486B (en) A method, device, equipment, and storage medium for industrial Internet data processing
CN114726664A (en) Household equipment binding method and equipment
US20210336853A1 (en) Control system, electronic device, and control method
US20050071768A1 (en) Method, apparatus, system, and program for providing a virtual office, and a medium storing the program
US10282527B2 (en) Information processing apparatus, information processing method, program, storage medium, and password entry apparatus
CN112187718A (en) Remote access cloud terminal and system of IDV cloud desktop
US20200301591A1 (en) Information processing system and non-transitory computer readable medium
CN114679486B (en) Communication interaction method and system, application terminal, client terminal and transfer server terminal
CN110072235A (en) Networking method, device, electronic device and the storage medium of smart machine
JP2012137871A (en) Information processor, information processing method, information processing system, computer program and recording medium

Legal Events

Date Code Title Description
PB01 Publication
PB01 Publication
SE01 Entry into force of request for substantive examination
SE01 Entry into force of request for substantive examination
GR01 Patent grant
GR01 Patent grant
