Abstract

本发明公开了一种自控式手术室输液保温护理仪，包括第一壳体，所述第一壳体的上表面通过四个连接杆与第二壳体的下表面固定连接，且左侧的两个连接杆通过第一个观察板固定连接，且后侧的两个连接杆通过第二个观察板固定连接，且右侧的两个连接杆通过第三个观察板固定连接，所述第二壳体的上表面通过四个电动推杆与安装板的下表面固定连接。该自控式手术室输液保温护理仪，通过设置第一壳体、第二壳体、加热管、挡板、转动装置、防护板和电动推杆，不需要利用加热罐对所输药液进行加热，从而不必对加热罐进行清洗灭菌，减轻了医护人员的工作强度，同时可以避免对所输药液造成污染，而手术中使用加温的液体可以促进病人的快速康复。

Figure 201810040896

The invention discloses a self-controlled operating room infusion heat preservation and nursing instrument, comprising a first casing, the upper surface of the first casing is fixedly connected with the lower surface of the second casing through four connecting rods, and the left side is connected to the lower surface of the second casing. The two connecting rods are fixedly connected through the first viewing board, the two connecting rods on the rear side are fixedly connected through the second viewing board, and the two connecting rods on the right are fixedly connected through the third viewing board. The upper surface of the second shell is fixedly connected with the lower surface of the mounting plate through four electric push rods. The self-controlled operating room infusion insulation nursing instrument does not need to use a heating tank to heat the infusion liquid by setting a first shell, a second shell, a heating tube, a baffle, a rotating device, a protective plate and an electric push rod. Therefore, it is not necessary to clean and sterilize the heating tank, which reduces the work intensity of medical staff, and at the same time can avoid contamination of the infusion liquid, and the use of heated liquid in surgery can promote the rapid recovery of patients.

Figure 201810040896

Description

一种自控式手术室输液保温护理仪A self-controlled operating room infusion heat preservation nursing instrument

技术领域technical field

本发明涉及医疗设备技术领域，具体为一种自控式手术室输液保温护理仪。The invention relates to the technical field of medical equipment, in particular to a self-controlled operating room infusion heat preservation nursing instrument.

背景技术Background technique

医护人员在对病人进行手术时需要对病人输液输血或者大量体腔冲洗，然而所输药液温度得不到保证，因此就需要相应的恒温设备，专利号CN107233642A提供的一种自控式手术室输液保温护理仪，可以对所输药液进行加热，但在对药液加热时需要将药液移动到加热罐内，同时在使用完毕后还需要对加热罐进行清洗灭菌，不仅增加了医护人员的工作强度，更容易对所输药液造成二次污染，给病人的身体造成危害，增加了医疗风险。Medical staff need to infuse the patient with blood transfusion or flush a large number of body cavities when performing surgery on the patient. However, the temperature of the infusion liquid cannot be guaranteed, so corresponding constant temperature equipment is required. The nursing device can heat the infused medicinal liquid, but when heating the medicinal liquid, the medicinal liquid needs to be moved into the heating tank, and at the same time, the heating tank needs to be cleaned and sterilized after use, which not only increases the medical staff The work intensity is more likely to cause secondary pollution to the infusion liquid, which will cause harm to the patient's body and increase the medical risk.

发明内容SUMMARY OF THE INVENTION

(一)解决的技术问题(1) Technical problems solved

针对现有技术的不足，本发明提供了一种自控式手术室输液保温护理仪，解决了在对药液加热时需要将药液移动到加热罐内，同时在使用完毕后还需要对加热罐进行清洗灭菌，不仅增加了医护人员的工作强度，更容易对所输药液造成二次污染，给病人身体造成危害的问题。Aiming at the deficiencies of the prior art, the present invention provides a self-controlled operating room infusion heat preservation and nursing instrument, which solves the need to move the medicinal liquid into the heating tank when heating the medicinal liquid, and also needs to Cleaning and sterilizing not only increases the work intensity of medical staff, but also makes it easier to cause secondary pollution to the infusion liquid and cause harm to the patient's body.

(二)技术方案(2) Technical solutions

为实现上述目的，本发明提供如下技术方案：一种自控式手术室输液保温护理仪，包括第一壳体，所述第一壳体的上表面通过四个连接杆与第二壳体的下表面固定连接，且左侧的两个连接杆通过第一个观察板固定连接，且后侧的两个连接杆通过第二个观察板固定连接，且右侧的两个连接杆通过第三个观察板固定连接，所述第二壳体的上表面通过四个电动推杆与安装板的下表面固定连接，且四个电动推杆分别位于第二壳体上表面靠近四角的位置。In order to achieve the above purpose, the present invention provides the following technical solutions: a self-controlled operating room infusion heat preservation and nursing instrument, comprising a first shell, the upper surface of the first shell is connected to the lower part of the second shell through four connecting rods. The surface is fixedly connected, and the two connecting rods on the left side are fixedly connected through the first viewing plate, and the two connecting rods on the rear side are fixedly connected through the second viewing plate, and the two connecting rods on the right side are fixedly connected through the third viewing plate The observation board is fixedly connected, and the upper surface of the second casing is fixedly connected to the lower surface of the mounting plate through four electric push rods, and the four electric push rods are respectively located on the upper surface of the second casing near the four corners.

所述第二壳体内壁的上表面通过两个固定块与固定杆的上表面固定连接，且两个固定块分别位于固定杆上表面左右两侧的位置，所述固定杆的下表面设置有若干个挂钩，所述第一壳体内壁的上表面通过四个加热管与第二壳体内壁的下表面固定连接，且四个加热管分别位于第一壳体内壁上表面靠近四角的位置，所述第一壳体内壁上表面位于挂钩正下方的位置开设有第一通孔。The upper surface of the inner wall of the second shell is fixedly connected to the upper surface of the fixing rod through two fixing blocks, and the two fixing blocks are respectively located on the left and right sides of the upper surface of the fixing rod, and the lower surface of the fixing rod is provided with a plurality of hooks, the upper surface of the inner wall of the first shell is fixedly connected to the lower surface of the inner wall of the second shell through four heating pipes, and the four heating pipes are respectively located on the upper surface of the inner wall of the first shell near the four corners, A first through hole is formed on the upper surface of the inner wall of the first casing at a position directly below the hook.

所述第一壳体下表面的左右两侧均固定连接有连接块，且两个连接块的相对面均卡接有滑套，且两个滑套内均套接有滑杆，且两个滑杆相对的一端分别与挡板的左右两侧面固定连接，且左侧滑杆的表面套接有弹簧，所述弹簧的两端分别与左侧连接块的右侧面和挡板的左侧面固定连接，所述挡板的下表面开设有第二通孔。The left and right sides of the lower surface of the first shell are fixedly connected with connecting blocks, and the opposite surfaces of the two connecting blocks are clamped with sliding sleeves, and the two sliding sleeves are sleeved with sliding rods, and the two The opposite end of the sliding rod is fixedly connected with the left and right sides of the baffle, and the surface of the left sliding rod is sleeved with a spring, and the two ends of the spring are respectively connected with the right side of the left connecting block and the left side of the baffle. The surfaces are fixedly connected, and the lower surface of the baffle is provided with a second through hole.

所述第一壳体和第二壳体的右侧面分别与两个转动装置的左侧面固定连接，且两个转动装置的正面均与防护板的背面固定连接，所述防护板的背面与第一防护垫的正面固定连接，所述第一防护垫的背面与第一壳体和第二壳体的正面搭接。The right sides of the first casing and the second casing are respectively fixedly connected to the left sides of the two rotating devices, and the front surfaces of the two rotating devices are fixedly connected to the back of the protective plate, and the back of the protective plate is fixedly connected. It is fixedly connected with the front surface of the first protective pad, and the back surface of the first protective pad overlaps with the front surfaces of the first casing and the second casing.

优选的，所述第一通孔内壁的表面设置有第二防护垫，所述第二防护垫的形状为U字形。Preferably, the surface of the inner wall of the first through hole is provided with a second protective pad, and the shape of the second protective pad is U-shaped.

优选的，所述滑杆的左端设置有把手，所述把手的形状为圆环形。Preferably, the left end of the sliding rod is provided with a handle, and the shape of the handle is a circular ring.

优选的，所述安装板的下表面设置有电源，所述电源的输出端与开关的输入端电连接。Preferably, a power supply is provided on the lower surface of the mounting plate, and the output end of the power supply is electrically connected to the input end of the switch.

优选的，所述开关设置在防护板的正面，所述开关的输出端分别与电动推杆和加热管的输入端电连接。Preferably, the switch is arranged on the front of the protective plate, and the output end of the switch is electrically connected to the electric push rod and the input end of the heating tube respectively.

优选的，所述转动装置包括两个支撑块，且两个支撑块的左侧面均与第一壳体的右侧面固定连接，且两个支撑块的相对面均卡接有轴承，且两个轴承内套接有同一个转轴，所述转轴的正面通过支撑杆与防护板的背面固定连接。Preferably, the rotating device includes two support blocks, and the left side surfaces of the two support blocks are fixedly connected to the right side surface of the first housing, and the opposite surfaces of the two support blocks are clamped with bearings, and The two bearings are sleeved with the same rotating shaft, and the front surface of the rotating shaft is fixedly connected with the back surface of the protective plate through the support rod.

(三)有益效果(3) Beneficial effects

本发明提供了一种自控式手术室输液保温护理仪，具备以下有益效果：The invention provides a self-controlled operating room infusion heat preservation nursing instrument, which has the following beneficial effects:

(1)、该自控式手术室输液保温护理仪，通过设置第一壳体、第二壳体、加热管、挡板、转动装置、防护板和电动推杆，利用第一壳体和第二壳体可以更好的对输液袋进行放置，从而利用加热管的工作可以更好的对输液袋内的药液进行升温，利用挡板可以更好的对第一通孔进行封闭，从而可以更好的保持第一壳体和第二壳体内的温度，利用防护板可以更好的对第一壳体和第二壳体进行封闭，从而可以更好的对所输药液进行升温，电动推杆伸长或缩短时可以使第二可以上下移动，从而可以对输液袋的高度进行调整，因不需要利用加热罐对所输药液进行加热，从而不必对加热罐进行清洗灭菌，大大降低了医务人员的工作强度，同时可以避免对所输药液造成污染，而手术中使用加温的液体可以促进病人的快速康复。(1), the self-controlled operating room infusion heat preservation and nursing instrument, by setting the first shell, the second shell, the heating pipe, the baffle, the rotating device, the protective plate and the electric push rod, the first shell and the second shell are used. The casing can better place the infusion bag, so that the heating tube can be used to better heat the liquid in the infusion bag, and the baffle can be used to better seal the first through hole, so that more It is good to maintain the temperature in the first shell and the second shell, and the first shell and the second shell can be better closed by using the protective plate, so that the infusion liquid can be better heated, and the electric push When the rod is extended or shortened, the second can be moved up and down, so that the height of the infusion bag can be adjusted. Because the heating tank does not need to be used to heat the infusion liquid, it is not necessary to clean and sterilize the heating tank, which greatly reduces the It can reduce the work intensity of medical staff and avoid contamination of the infused liquid, and the use of warmed liquid in surgery can promote the rapid recovery of patients.

(2)、该自控式手术室输液保温护理仪，通过设置观察板，观察板的材料为透明材质，可以更好的对输液袋内所剩余药液的量进行观察。(2) The self-controlled operating room infusion heat preservation and nursing instrument is provided with an observation board, and the material of the observation board is a transparent material, which can better observe the amount of liquid medicine remaining in the infusion bag.

(3)、该自控式手术室输液保温护理仪，通过设置第一防护垫和第二防护垫，利用第一防护垫可以对第一壳体和第二壳体进行封闭，可以更好的对所输药液进行加热，利用第二防护垫可以避免在对输液管进行放置时对输液管摩擦造成损坏，且第二防护垫相对面之间存在一定的距离，避免影响输液工作，且本发明结构紧凑，设计合理，实用性强。(3) The self-controlled operating room infusion heat preservation and nursing instrument, by setting the first protective pad and the second protective pad, can use the first protective pad to seal the first shell and the second shell, which can better protect the The infusion liquid is heated, and the second protective pad can be used to avoid damage to the infusion tube caused by friction when the infusion tube is placed, and there is a certain distance between the opposite surfaces of the second protective pad to avoid affecting the infusion work, and the present invention Compact structure, reasonable design and strong practicability.

附图说明Description of drawings

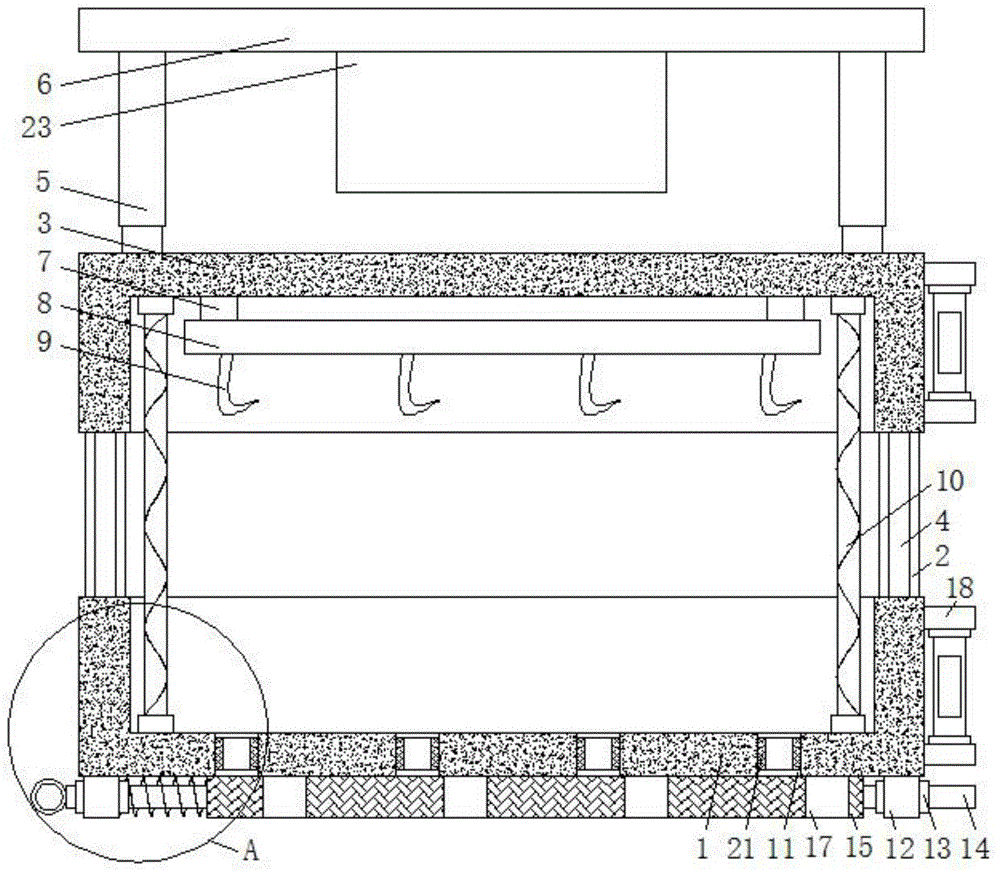

图1为本发明正视的剖面结构示意图；Fig. 1 is the cross-sectional structure schematic diagram of the front view of the present invention;

图2为本发明转动装置正视的结构示意图；Fig. 2 is the structural representation of the front view of the rotating device of the present invention;

图3为本发明A处放大的结构示意图；Fig. 3 is the enlarged structural representation at A place of the present invention;

图4为本发明防护板正视的结构示意图。FIG. 4 is a schematic structural diagram of the front view of the protective plate of the present invention.

图中：1第一壳体、2连接杆、3第二壳体、4观察板、5电动推杆、6安装板、7固定块、8固定杆、9挂钩、10加热管、11第一通孔、12连接块、13滑套、14滑杆、15挡板、16弹簧、17第二通孔、18转动装置、181支撑块、182轴承、183转轴、184支撑杆、19防护板、20第一防护垫、21第二防护垫、22把手、23电源、24开关。In the figure: 1 first shell, 2 connecting rod, 3 second shell, 4 observation board, 5 electric push rod, 6 mounting plate, 7 fixing block, 8 fixing rod, 9 hook, 10 heating pipe, 11 first Through hole, 12 connecting block, 13 sliding sleeve, 14 sliding rod, 15 baffle plate, 16 spring, 17 second through hole, 18 rotating device, 181 supporting block, 182 bearing, 183 rotating shaft, 184 supporting rod, 19 protective plate, 20 first protective pad, 21 second protective pad, 22 handle, 23 power supply, 24 switch.

具体实施方式Detailed ways

下面将结合本发明实施例中的附图，对本发明实施例中的技术方案进行清楚、完整地描述，显然，所描述的实施例仅仅是本发明一部分实施例，而不是全部的实施例。基于本发明中的实施例，本领域普通技术人员在没有做出创造性劳动前提下所获得的所有其他实施例，都属于本发明保护的范围。The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

如图1-4所示，本发明提供一种技术方案：一种自控式手术室输液保温护理仪，包括第一壳体1，第一壳体1的上表面通过四个连接杆2与第二壳体3的下表面固定连接，通过设置第一壳体1和第二壳体3，可以更好的对输液袋进行放置，从而可以更好的利用加热管10对所输药液进行加热，且左侧的两个连接杆2通过第一个观察板4固定连接，且后侧的两个连接杆2通过第二个观察板4固定连接，且右侧的两个连接杆2通过第三个观察板4固定连接，通过设置观察板4，观察板4的材料为透明材质，可以更好的对输液袋内所剩余药液的量进行观察，第二壳体3的上表面通过四个电动推杆5与安装板6的下表面固定连接，且四个电动推杆5分别位于第二壳体3上表面靠近四角的位置，通过设置电动推杆5，电动推杆5伸长或缩短时可以对第二壳体3的位置进行改变，从而可以更好的对输液袋的高度进行调整，安装板6的下表面设置有电源23，电源23的输出端与开关24的输入端电连接，通过设置电源23，可以使加热管10和电动推杆5更方便的用电进行工作。As shown in Figures 1-4, the present invention provides a technical solution: a self-controlled operating room infusion heat preservation and nursing instrument, comprising a first casing 1, the upper surface of the first casing 1 is connected to the first casing 1 through four connecting rods 2 The lower surfaces of the two casings 3 are fixedly connected, and by arranging the first casing 1 and the second casing 3, the infusion bag can be better placed, so that the heating tube 10 can be better used to heat the infusion liquid , and the two connecting rods 2 on the left side are fixedly connected through the first viewing board 4, and the two connecting rods 2 on the rear side are fixedly connected through the second viewing board 4, and the two connecting rods 2 on the right side are fixedly connected through the second viewing board 4. The three observation boards 4 are fixedly connected. By setting the observation board 4, the material of the observation board 4 is a transparent material, which can better observe the amount of liquid medicine remaining in the infusion bag. Each of the electric push rods 5 is fixedly connected to the lower surface of the mounting plate 6, and the four electric push rods 5 are respectively located on the upper surface of the second housing 3 near the four corners. By arranging the electric push rods 5, the electric push rods 5 are extended or When shortening, the position of the second housing 3 can be changed, so that the height of the infusion bag can be better adjusted. The lower surface of the mounting plate 6 is provided with a power source 23, and the output end of the power source 23 is electrically connected to the input end of the switch 24. Connection, by setting the power supply 23, the heating tube 10 and the electric push rod 5 can be more conveniently operated with electricity.

第二壳体3内壁的上表面通过两个固定块7与固定杆8的上表面固定连接，且两个固定块7分别位于固定杆8上表面左右两侧的位置，固定杆8的下表面设置有若干个挂钩9，通过设置挂钩9，可以更好的对输液袋进行放置，同时设置多个挂钩9可以放置多个输液袋，第一壳体1内壁的上表面通过四个加热管10与第二壳体3内壁的下表面固定连接，且四个加热管10分别位于第一壳体1内壁上表面靠近四角的位置，通过设置加热管10，加热管10工作时可以对输液袋内的药液进行加热，可以更好的对病人进行输液，第一壳体1内壁上表面位于挂钩9正下方的位置开设有第一通孔11。The upper surface of the inner wall of the second housing 3 is fixedly connected to the upper surface of the fixing rod 8 through two fixing blocks 7 , and the two fixing blocks 7 are located on the left and right sides of the upper surface of the fixing rod 8 respectively. The lower surface of the fixing rod 8 A number of hooks 9 are provided. By setting the hooks 9, the infusion bag can be better placed. At the same time, multiple hooks 9 can be placed to place a plurality of infusion bags. The upper surface of the inner wall of the first housing 1 passes through four heating tubes 10. It is fixedly connected with the lower surface of the inner wall of the second shell 3, and the four heating tubes 10 are respectively located at the position of the upper surface of the inner wall of the first shell 1 near the four corners. The liquid medicine can be heated by the device, so that the patient can be better transfused. The upper surface of the inner wall of the first casing 1 is provided with a first through hole 11 at the position directly below the hook 9 .

第一壳体1下表面的左右两侧均固定连接有连接块12，且两个连接块12的相对面均卡接有滑套13，且两个滑套13内均套接有滑杆14，通过设置滑杆14，可以对挡板15进行固定，从而可以更好的对第一通孔11进行封闭，滑杆14的左端设置有把手22，把手22的形状为圆环形，通过设置把手22，利用把手22可以更好的对挡板15进行移动，从而可以更好的对输液管进行放取，且两个滑杆14相对的一端分别与挡板15的左右两侧面固定连接，且左侧滑杆14的表面套接有弹簧16，弹簧16的两端分别与左侧连接块12的右侧面和挡板15的左侧面固定连接，通过设置弹簧16，利用弹簧16的弹性作用，可以使挡板15可以自动的向右移动时第二通孔17与第一通孔11错开，挡板15的下表面开设有第二通孔17，第一通孔11内壁的表面设置有第二防护垫21，第二防护垫21的形状为U字形，通过设置第二防护垫21，利用第二防护垫21可以避免在对输液管进行放置时对输液管摩擦造成损坏，且第二防护垫21相对面之间存在一定的距离，避免影响输液工作。The left and right sides of the lower surface of the first housing 1 are fixedly connected with connecting blocks 12 , and the opposite surfaces of the two connecting blocks 12 are clamped with sliding sleeves 13 , and the two sliding sleeves 13 are sleeved with sliding rods 14 . , by setting the sliding rod 14, the baffle 15 can be fixed, so that the first through hole 11 can be better closed. The left end of the sliding rod 14 is provided with a handle 22, and the shape of the handle 22 is a circular ring. The handle 22, the baffle 15 can be better moved by the handle 22, so that the infusion tube can be better put in and taken out, and the opposite ends of the two sliding rods 14 are respectively fixedly connected with the left and right sides of the baffle 15, And the surface of the left slide bar 14 is sleeved with a spring 16, and both ends of the spring 16 are fixedly connected to the right side of the left connecting block 12 and the left side of the baffle 15 respectively. The elastic action can make the second through hole 17 and the first through hole 11 staggered when the baffle 15 can move to the right automatically, the second through hole 17 is opened on the lower surface of the baffle 15, and the surface of the inner wall of the first through hole 11 A second protective pad 21 is provided, and the shape of the second protective pad 21 is U-shaped. By setting the second protective pad 21, the second protective pad 21 can be used to avoid damage to the infusion tube caused by friction when the infusion tube is placed, and There is a certain distance between the opposite surfaces of the second protective pad 21 to avoid affecting the infusion work.

第一壳体1和第二壳体3的右侧面分别与两个转动装置18的左侧面固定连接，且两个转动装置18的正面均与防护板19的背面固定连接，转动装置18包括两个支撑块181，且两个支撑块181的左侧面均与第一壳体1的右侧面固定连接，且两个支撑块181的相对面均卡接有轴承182，且两个轴承182内套接有同一个转轴183，通过设置轴承182和转轴183，可以使防护板19更好的进行转动，从而可以更好的控制防护板19与第一壳体1和第二壳体3的接触与分离，转轴183的正面通过支撑杆184与防护板19的背面固定连接，防护板19的背面与第一防护垫20的正面固定连接，第一防护垫20的背面与第一壳体1和第二壳体3的正面搭接，通过设置第一防护垫20，利用第一防护垫20可以对第一壳体1和第二壳体3进行封闭，可以更好的对所输药液进行加热，开关24设置在防护板19的正面，开关24的输出端分别与电动推杆5和加热管10的输入端电连接，通过设置开关24，可以更好的控制加热管10和电动推杆5的工作。The right sides of the first casing 1 and the second casing 3 are respectively fixedly connected to the left sides of the two rotating devices 18 , and the front surfaces of the two rotating devices 18 are both fixedly connected to the back of the protective plate 19 . The rotating devices 18 It includes two support blocks 181, and the left side surfaces of the two support blocks 181 are fixedly connected with the right side surface of the first housing 1, and the opposite surfaces of the two support blocks 181 are clamped with bearings 182, and the two The bearing 182 is sleeved with the same rotating shaft 183. By arranging the bearing 182 and the rotating shaft 183, the protective plate 19 can be rotated better, so that the protective plate 19 and the first shell 1 and the second shell can be better controlled. 3 contact and separation, the front of the rotating shaft 183 is fixedly connected to the back of the protective plate 19 through the support rod 184, the back of the protective plate 19 is fixedly connected to the front of the first protective pad 20, and the back of the first protective pad 20 is connected to the first shell. The fronts of the body 1 and the second shell 3 are overlapped, and by setting the first protective pad 20, the first protective pad 20 can be used to seal the first shell 1 and the second shell 3, which can better protect the input The medicinal liquid is heated. The switch 24 is arranged on the front of the protective plate 19. The output end of the switch 24 is electrically connected to the electric push rod 5 and the input end of the heating tube 10 respectively. By setting the switch 24, the heating tube 10 and the heating tube 10 can be better controlled. Electric putter 5 works.

使用时，打开防护板19使防护板19不再对第一壳体1和第二壳体3进行封闭，然后将输液袋挂在挂钩9上，然后用手拉动把手22使滑杆14向左移动，从而可以使挡板15向左移动，当第一通孔11与第二通孔17完全联通时使输液管处于第一通孔11内，然后松开把手22，从而弹簧16伸长使挡板15向右移动，从而可以对第一通孔11进行封闭，然后关闭防护板19并通过开关24控制加热管10升温，从而可以对输液袋内的液体进行升温，同时，通过开关24控制电动推杆5工作，电动推杆5伸长或缩短可以使第二壳体3上升或下降，从而可以控制输液袋的高度，当对输液袋的高度调整完毕后通过开关24控制电动推杆5停止工作，输液完毕后控制加热管10停止工作，打开防护板19并拉动把手22向左移动，从而可以将输液袋和输液管取出。When in use, open the protective plate 19 so that the protective plate 19 no longer closes the first shell 1 and the second shell 3, then hang the infusion bag on the hook 9, and then pull the handle 22 by hand to make the slide bar 14 to the left Move, so that the baffle 15 can be moved to the left, when the first through hole 11 and the second through hole 17 are completely communicated, the infusion tube is placed in the first through hole 11, and then the handle 22 is released, so that the spring 16 extends to make The baffle 15 moves to the right, so that the first through hole 11 can be closed, and then the protective plate 19 is closed and the temperature of the heating tube 10 is controlled by the switch 24, so that the temperature of the liquid in the infusion bag can be increased. The electric push rod 5 works, and the extension or shortening of the electric push rod 5 can make the second housing 3 rise or fall, so that the height of the infusion bag can be controlled. After the height of the infusion bag is adjusted, the electric push rod 5 is controlled by the switch 24. Stop working, after the infusion is completed, control the heating tube 10 to stop working, open the protective plate 19 and pull the handle 22 to move to the left, so that the infusion bag and the infusion tube can be taken out.

综上可得，该自控式手术室输液保温护理仪，通过设置第一壳体1、第二壳体3、加热管10、挡板15、转动装置18、防护板19和电动推杆5，利用第一壳体1和第二壳体3可以更好的对输液袋进行放置，从而利用加热管10的工作可以更好的对输液袋内的药液进行升温，利用挡板15可以更好的对第一通孔11进行封闭，从而可以更好的保持第一壳体1和第二壳体3内的温度，利用防护板19可以更好的对第一壳体1和第二壳体3进行封闭，从而可以更好的对所输药液进行升温，电动推杆5伸长或缩短时可以使第二可以上下移动，从而可以对输液袋的高度进行调整，从而不需要利用加热罐对所输药液进行加热，从而不必对加热罐进行清洗灭菌，从而降低了医务人员的工作强度，同时可以避免对所输药液造成污染，而手术中使用加温的液体可以促进病人的快速康复。To sum up, the self-controlled operating room infusion heat preservation and nursing instrument is provided with the first casing 1, the second casing 3, the heating pipe 10, the baffle 15, the rotating device 18, the protective plate 19 and the electric push rod 5, The first shell 1 and the second shell 3 can be used to place the infusion bag better, so that the temperature of the liquid medicine in the infusion bag can be better heated by the work of the heating tube 10 , and the baffle 15 can be used to better heat the liquid in the infusion bag. The first through hole 11 is closed, so that the temperature in the first shell 1 and the second shell 3 can be better maintained, and the first shell 1 and the second shell can be better protected by using the protective plate 19. 3. It is closed, so that the infusion can be better heated. When the electric push rod 5 is extended or shortened, the second can be moved up and down, so that the height of the infusion bag can be adjusted, so there is no need to use a heating tank. Heating the infused liquid eliminates the need to clean and sterilize the heating tank, thereby reducing the work intensity of medical staff, and at the same time avoiding contamination of the infused liquid. Fast recovery.

同时，该自控式手术室输液保温护理仪，通过设置观察板4，观察板4的材料为透明材质，可以更好的对输液袋内所剩余药液的量进行观察。At the same time, the self-controlled operating room infusion heat preservation and nursing instrument is provided with an observation board 4, and the material of the observation board 4 is a transparent material, so that the amount of the remaining liquid medicine in the infusion bag can be better observed.

同时，该自控式手术室输液保温护理仪，通过设置第一防护垫20和第二防护垫21，利用第一防护垫20可以对第一壳体1和第二壳体3进行封闭，可以更好的对所输药液进行加热，利用第二防护垫21可以避免在对输液管进行放置时对输液管摩擦造成损坏，且第二防护垫21相对面之间存在一定的距离，避免影响输液工作，且本发明结构紧凑，设计合理，实用性强。At the same time, the self-controlled operating room infusion heat preservation and nursing instrument, by setting the first protective pad 20 and the second protective pad 21, can use the first protective pad 20 to seal the first shell 1 and the second shell 3, and can be more It is good to heat the infusion liquid, and the second protective pad 21 can be used to avoid damage to the infusion tube friction when the infusion tube is placed, and there is a certain distance between the opposite surfaces of the second protective pad 21 to avoid affecting the infusion. The utility model has the advantages of compact structure, reasonable design and strong practicability.

尽管已经示出和描述了本发明的实施例，对于本领域的普通技术人员而言，可以理解在不脱离本发明的原理和精神的情况下可以对这些实施例进行多种变化、修改、替换和变型，本发明的范围由所附权利要求及其等同物限定。Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, and substitutions can be made in these embodiments without departing from the principle and spirit of the invention and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a self-control formula operating room infusion heat preservation care appearance, includes first casing (1), its characterized in that: the upper surface of the first shell (1) is fixedly connected with the lower surface of the second shell (3) through four connecting rods (2), the two connecting rods (2) on the left side are fixedly connected through a first observation plate (4), the two connecting rods (2) on the rear side are fixedly connected through a second observation plate (4), the two connecting rods (2) on the right side are fixedly connected through a third observation plate (4), the upper surface of the second shell (3) is fixedly connected with the lower surface of the mounting plate (6) through four electric push rods (5), and the four electric push rods (5) are respectively positioned at positions, close to four corners, of the upper surface of the second shell (3);
the upper surface of the inner wall of the second shell (3) is fixedly connected with the upper surface of the fixing rod (8) through two fixing blocks (7), the two fixing blocks (7) are respectively positioned at the positions of the left side and the right side of the upper surface of the fixing rod (8), the lower surface of the fixing rod (8) is provided with a plurality of hooks (9), the upper surface of the inner wall of the first shell (1) is fixedly connected with the lower surface of the inner wall of the second shell (3) through four heating pipes (10), the four heating pipes (10) are respectively positioned at the positions, close to four corners, of the upper surface of the inner wall of the first shell (1), and the position, right below the hooks (9), of the upper surface of the inner wall of the first shell (1) is provided with a;
the left side and the right side of the lower surface of the first shell (1) are fixedly connected with connecting blocks (12), opposite surfaces of the two connecting blocks (12) are respectively clamped with sliding sleeves (13), sliding rods (14) are sleeved in the two sliding sleeves (13), opposite ends of the two sliding rods (14) are respectively fixedly connected with the left side surface and the right side surface of a baffle (15), a spring (16) is sleeved on the surface of the left sliding rod (14), two ends of the spring (16) are respectively fixedly connected with the right side surface of the left connecting block (12) and the left side surface of the baffle (15), and the lower surface of the baffle (15) is provided with a second through hole (17);
the right flank of first casing (1) and second casing (3) respectively with the left flank fixed connection of two rotating device (18), and the front of two rotating device (18) all with the back fixed connection of guard plate (19), the back of guard plate (19) and the front fixed connection of first protection pad (20), the back of first protection pad (20) and the front overlap joint of first casing (1) and second casing (3).
2. The self-controlled operating room infusion heat preservation nursing instrument according to claim 1, characterized in that: the surface of the inner wall of the first through hole (11) is provided with a second protection pad (21), and the second protection pad (21) is U-shaped.
3. The self-controlled operating room infusion heat preservation nursing instrument according to claim 1, characterized in that: the left end of the sliding rod (14) is provided with a handle (22), and the handle (22) is circular.
4. The self-controlled operating room infusion heat preservation nursing instrument according to claim 1, characterized in that: the lower surface of mounting panel (6) is provided with power (23), the output of power (23) is connected with the input electricity of switch (24).
5. The self-controlled operating room infusion heat preservation nursing instrument according to claim 4, characterized in that: the switch (24) is arranged on the front surface of the protection plate (19), and the output end of the switch (24) is electrically connected with the electric push rod (5) and the input end of the heating pipe (10) respectively.
6. The self-controlled operating room infusion heat preservation nursing instrument according to claim 1, characterized in that: rotating device (18) include two supporting shoes (181), and the left surface of two supporting shoes (181) all with the right flank fixed connection of first casing (1), and the equal joint of opposite face of two supporting shoes (181) has bearing (182), and has cup jointed same pivot (183) in two bearing (182), the back fixed connection of bracing piece (184) and guard plate (19) is passed through in the front of pivot (183).
