CN108245718B

CN108245718B - Simple and easy jaw cyst drainage device

Info

Publication number: CN108245718B
Application number: CN201810072175.1A
Authority: CN
Inventors: 杨长喜
Original assignee: Individual
Current assignee: Individual
Priority date: 2018-01-25
Filing date: 2018-01-25
Publication date: 2020-10-30
Anticipated expiration: 2038-01-25
Also published as: CN108245718A

Abstract

The invention discloses a simple and feasible jaw cyst drainage device which comprises an outer drainage tube, wherein two through holes are symmetrically formed in the side surface of the outer drainage tube, a support pillar is connected in the through holes in a sliding mode, a fixing plate is arranged at the end part of the support pillar, a connecting spring is connected between the two fixing plates, an internal thread is formed in the side surface of an inner cavity of the outer drainage tube, an inner drainage tube is connected in the outer drainage tube, an external thread is formed in the outer surface of the inner drainage tube, the outer drainage tube and the inner drainage tube are in threaded connection through the external thread and the internal thread, and a round gasket. This simple and easy jaw cyst drainage device passes through the principle spiral of nut, bolt and fixes firm, does not have unnecessary additional installation, and the drainage mouth is sunken in the bone intracavity, does not stand out in the oral cavity, and patient's foreign body feels little, and the form of the pinhole hole that matches the syringe and use is made to the drainage mouth, conveniently washes, disinfects and attracts, effectively prevents to block up and infect.

Description

Simple and easy jaw cyst drainage device

Technical Field

The invention relates to the technical field of medical instruments, in particular to a simple and easy jaw cyst drainage device.

Background

The jaw cyst is a benign lesion of the jaw bone with high incidence rate in oral and maxillofacial surgery. Depending on the size, location and adjacent tissue relationships of the cyst, such as continuity of the teeth, maxillary sinus, mandibular canal and bone, lines of enucleation, partial jaw resection and pockets may be selected. When cysts are large and spread to healthy teeth, nerve bundles and other important tissue structures, existing treatments, such as partial jaw resection, enucleation, may damage the surrounding important tissue structures, resulting in loss of continuity of alveolar bone, extraction of adjacent teeth, facial deformity, etc. If important tissue structures are protected, the recurrence probability can be greatly increased. With the gradual deep popularization of the minimally invasive concept, more and more bag-shaped surgeries are advocated for large jaw cyst. The bag-shaped operation makes an opening on the wall of the cyst bone through a small surgical operation, so that the cyst cavity is communicated with the external environment, the hydrostatic pressure of fluid in the cyst cavity is eliminated, and the bone absorption factors are eliminated, thereby changing the epithelium of the cyst lining, thickening the cyst wall, reducing the cyst cavity and regenerating adjacent bones. When cysts shrink to the point that important surrounding tissue structures are not affected, then enucleation is performed, thereby greatly reducing the risk of operation and improving the quality of life after the operation. Clinical practice in recent ten years proves that the bag-shaped operation can effectively reduce the complications of the traditional surgical operation treatment and obtain good shape and function recovery. However, the bag-shaped operation needs to obtain continuous sac cavity drainage, and a plurality of drainage devices are invented clinically, but all the devices have the defects of large volume, easy shedding and personalized manufacture before the operation. The problems of obvious foreign body sensation, difficult cleaning, poor patient compliance and the like when the mask is worn in the mouth of a patient. Such as the earlier active cyst stoppers or obturators, and other devices that require a thickness of the cyst wall or require surgical implantation.

Disclosure of Invention

The invention aims to overcome the existing defects, provides a simple and easy jaw cyst drainage device which is simple and small, can be produced in a factory, can be simply fixed on the cyst wall, does not have obvious foreign body sensation for patients, can be conveniently flushed by an injector and sucked by negative pressure, and can effectively solve the problems in the background technology.

In order to achieve the purpose, the invention provides the following technical scheme: the utility model provides a simple and easy jaw cyst drainage device, includes the drainage outer tube, the side symmetry of drainage outer tube is equipped with two through-holes, sliding connection has the fore-set in the through-hole, the tip of fore-set is equipped with the fixed plate, is connected with connecting spring between two fixed plates, the side of drainage outer tube inner chamber is equipped with the internal thread, drainage outer tube in-connection has the drainage inner tube, the surface of drainage inner tube is equipped with the external screw thread, the drainage outer tube passes through external screw thread and internal thread threaded connection with the drainage inner tube, the tip of drainage inner tube is equipped with the gasket.

As a preferable technical scheme of the invention, the upper surface of the round gasket is provided with meshes, and the diameter of the round gasket is larger than that of the bone cavity.

As a preferable technical scheme of the invention, the upper end of the drainage outer tube is provided with a fastener.

As a preferred technical scheme of the invention, the upper surface of the fixing plate is connected with an arc-shaped plate, and the lower surface of the drainage inner tube is connected with an arc-shaped head.

As a preferable technical scheme of the invention, the inner diameter of the drainage inner tube is matched with the pintle hole of the syringe.

Compared with the prior art, the invention has the beneficial effects that: the simple and easy jaw cyst drainage device is fixed spirally by the principle of nuts and bolts, is fixed firmly, and has no redundant additional devices; the drainage port is concave in the bone cavity and does not protrude out of the oral cavity, so that foreign body sensation of a patient is small; the drainage port is made into a form of a needle hole matched with the syringe, so that the syringe is convenient to wash, disinfect and attract, and effectively prevents blockage and infection; the device is mainly made of pure titanium metal, so that side effects such as allergy, plaque retention and the like are completely prevented; after the drainage is achieved, the secondary operation is particularly easy to remove, and no harm is caused to human bodies.

Drawings

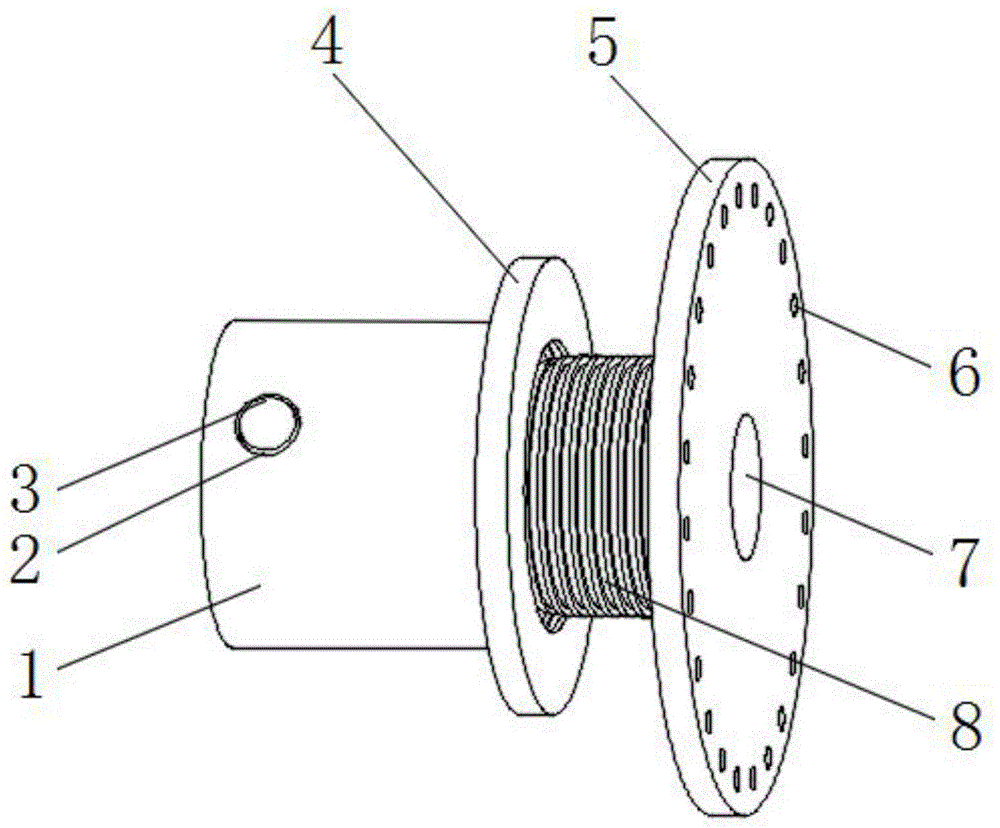

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic cross-sectional view of the present invention.

In the figure: the drainage device comprises a drainage outer pipe 1, a through hole 2, a top column 3, a fastening piece 4, a circular gasket 5, meshes 6, a drainage inner pipe 7, an external thread 8, an internal thread 9, an arc-shaped plate 10, a connecting spring 11, a fixing plate 12 and an arc-shaped head 13.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-2, the present invention provides a technical solution: a simple and easy jaw cyst drainage device comprises an outer drainage tube 1, the outer drainage tube 1 is placed in a bone cavity, a fastening piece 4 is tightly attached to the outer wall of the bone cavity, two through holes 2 are symmetrically arranged on the side surface of the outer drainage tube 1, a top column 3 is slidably connected in the through holes 2, a fixing plate 12 is arranged at the end part of the top column 3, a connecting spring 11 is connected between the two fixing plates 12, when the device is required to be disassembled, after an inner drainage tube 7 is taken out, the fixing plate 12 is under the tensile force action of the connecting spring 11, the top column 3 enters the through holes, then the outer drainage tube 1 is taken out, an internal thread 9 is arranged on the side surface of the inner cavity of the outer drainage tube 1, an inner drainage tube 7 is connected in the outer drainage tube 1, the diameter of the inner drainage tube 7 is matched with a syringe pintle hole, when the drainage effect is achieved, the outer surface of the drainage inner tube 7 is provided with an external thread 8, the drainage inner tube 7 is connected into the inner cavity of the drainage outer tube 1 through the external thread 8 and an internal thread 9 in a threaded manner, when an end arc head 13 of the drainage inner tube 7 is contacted with an arc plate 10, the top column 3 is subjected to outward extrusion force through a fixing plate 12, so that the top column 3 slides out of a through hole 2 and is propped on the inner wall of a bone cavity to play a fixing role, the drainage outer tube 1 and the drainage inner tube 7 are in threaded connection with the internal thread 9 through the external thread 8, the end part of the drainage inner tube 7 is provided with a circular gasket 5, the upper surface of the circular gasket 5 is provided with meshes 6, the meshes 6 are favorable for metabolism of oral mucosa, if the circular gasket 5 is not adhered with the oral mucosa, the self-setting plastic can be used for shaping, the diameter of the circular gasket 5 is larger than that of the bone cavity, the upper end of the, the inner diameter of the drainage inner tube 7 is matched with the pintle hole of the syringe.

When in use: the drainage outer tube 1 is placed in a bone cavity, the fastening piece 4 is tightly attached to the outer wall of the bone cavity, the drainage inner tube 7 is connected into the inner cavity of the drainage outer tube 1 through the external thread 8 and the internal thread 9 in a threaded manner, when the end arc head 13 of the drainage inner tube 7 is contacted with the arc-shaped plate 10, the top column 3 is subjected to outward extrusion force through the fixing plate 12, the top column 3 slides out of the through hole 2 and is pressed against the inner wall of the bone cavity to play a fixing role, the mesh 6 is favorable for metabolism of oral mucosa, and when the circular gasket 5 is not adhered to the oral mucosa, the self-setting plastic can be used for shaping, the diameter of the drainage inner tube 7 is matched with a needle plug hole of a syringe, so that the drainage effect is achieved, the syringe is matched and used for flushing and suction at the same time, the miniature negative pressure aspirator can also be matched and used, when the device needs to be disassembled, the top pillar 3 is put into the through hole, and then the drainage outer tube 1 is taken out.

The invention has the advantages that: 1. the screw fixation is realized by the principle of nuts and bolts, the fixation is firm, and no additional device is needed; 2. the drainage port is concave in the bone cavity and does not protrude out of the oral cavity, so that foreign body sensation of a patient is small; 3. the drainage port is made into a form of a needle hole matched with the syringe, so that the syringe is convenient to wash, disinfect and attract, and effectively prevents blockage and infection; 4. the device is mainly made of pure titanium metal, so that side effects such as allergy, plaque retention and the like are completely prevented; 5. after the drainage is achieved, the secondary operation is particularly easy to remove, and no harm is caused to human bodies.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a simple and easy jaw cyst drainage device, includes drainage outer tube (1), its characterized in that: the side symmetry of drainage outer tube (1) is equipped with two through-holes (2), sliding connection has fore-set (3) in through-hole (2), the tip of fore-set (3) is equipped with fixed plate (12), is connected with connecting spring (11) between two fixed plate (12), the side of drainage outer tube (1) inner chamber is equipped with internal thread (9), drainage outer tube (1) in-connection has drainage inner tube (7), the surface of drainage inner tube (7) is equipped with external screw thread (8), drainage outer tube (1) and drainage inner tube (7) are through external screw thread (8) and internal thread (9) threaded connection, the tip of drainage inner tube (7) is equipped with round gasket (5).

2. The simple jaw cyst drainage device of claim 1, wherein: the upper surface of the round gasket (5) is provided with meshes (6), and the diameter of the round gasket (5) is larger than that of the bone cavity.

3. The simple jaw cyst drainage device of claim 1, wherein: the upper end of the drainage outer tube (1) is provided with a fastener (4).

4. The simple jaw cyst drainage device of claim 1, wherein: the upper surface of the fixing plate (12) is connected with an arc-shaped plate (10), and the lower surface of the drainage inner tube (7) is connected with an arc-shaped head (13).

5. The simple jaw cyst drainage device of claim 1, wherein: the inner diameter of the drainage inner tube (7) is matched with the pintle hole of the injector.
