The invention discloses a multifunctional electric piano teaching device which comprises an electric piano body, wherein keys are arranged on the upper part of the electric piano body, a rectangular groove is formed in the bottom surface of the electric piano body, and a bottom cover is arranged at the bottom of the electric piano body; a support mechanism is arranged in the rectangular groove, and comprises a transverse rotating shaft, a front support leg and a rear support leg, wherein the transverse rotating shaft is rotatably arranged at the left end and the right end of the rectangular groove; the middle of the outer surface of the transverse rotating shaft is provided with gear teeth, the top of the rectangular groove is provided with a driving motor, an output shaft of the driving motor is provided with a gear matched with the gear teeth, and the front side surface of the electric piano body is provided with a control switch for controlling the driving motor to be opened and closed. The invention has simple and compact structure, and the piano teachers can carry out piano teaching anywhere without extra carrying or preparing piano supports and seats in advance.
Description
Technical Field
The invention relates to the technical field of piano teaching equipment, in particular to a multifunctional electric piano teaching device.
Background
Piano element has a name of 'king of musical instrument', which is composed of 88 keys (52 white keys, 36 black keys) and a metal string soundboard, invented by Butooro-Crisdori, Italy in 1709. The piano range is from a2 (27.5 Hz) to c5 (4186 Hz), and almost covers all tones in the tone system, and is the instrument with the widest range except for the organs. The piano is commonly used for solo, repetition, accompaniment and other performances, and is very convenient for composing music and rehearsing music. The player drives a small mallet covered with a felt in the piano by pressing keys on the keyboard, and then strikes the steel wire strings to make sound. However, since the piano is difficult to be accepted by ordinary households due to high cost and high maintenance difficulty, the electric piano has been developed in the sixties and seventies of the twentieth century. The sound production principle of the electric piano is that a keyboard is used as an on-off switch to form electrophoresis, once a key is pressed down, an internal crystal oscillator starts to work to form a pulse to generate a waveform with a certain frequency, and then the waveform is amplified by a frequency divider and sent to a loudspeaker to produce sound.
Although the electric piano is increasingly popular with mass music enthusiasts due to small volume, portability and low cost, a piano teacher needs to carry an electric piano support or prepare a shelf for placing the electric piano in advance when teaching students, so that the students can conveniently teach music, and especially the piano teacher needs to carry a seat when teaching outdoors, which brings great inconvenience to the electric piano teacher.
The utility model discloses a patent publication is CN 204834028U's utility model discloses an intelligence electric piano of practicing usefulness, including the electric piano body, the electric piano keyboard on the electric piano body is including a plurality of keys, takes digital MIDI interface and audio amplifier, a circuit board is installed to the below of electric piano keyboard, is equipped with the LED pilot lamp on the circuit board, and every key intermediate position is opened there is light transmission bar hole, and every LED pilot lamp all falls in the light transmission bar hole of every key intermediate position, and the root of electric piano keyboard is equipped with a digital display module bottom plate, is equipped with on the digital display module bottom plate with every corresponding digital display module on the electric piano keyboard, every digital display module is connected with the circuit board key, is provided with the host computer in the electric piano body, and the host computer is connected with circuit board, display screen and audio amplifier respectively. The utility model discloses an utilize the setting to set up digital display module and LED pilot lamp on the key and come to carry out the key position and gimmick to the player and indicate, can make the player learn fast and practice the piano, however, this utility model exists following not enough: the piano teacher need carry with oneself the fender support or prepare in advance and place the shelf of fender and just can conveniently teach student's music the problem of piano teacher when teaching student, especially piano teacher need still carry the seat when outdoor lecture, and this gives the fender teacher give lessons and has brought very big inconvenience.
The utility model patent with patent publication number CN 204791643U discloses a teaching electric piano. It is including the control host computer, teacher's piano, video monitoring platform, host computer camera, host computer stereo set, student uses the electrical piano, student's machine camera, earphone, study platform and pickup attachment, the last monitoring host computer that is provided with of teacher's piano, monitoring host computer and video monitoring platform, host computer camera and host computer stereo set link to each other, monitoring host computer still uses the electrical piano with the student through study platform to link to each other, be provided with student's machine camera, earphone and pickup attachment on the electrical piano for the student. The utility model discloses a can make things convenient for the teacher to carry out the piano teaching to a plurality of students, teaching is convenient and reliable, has improved the efficiency of giving lessons greatly, has reduced the cultivation cost. However, the utility model discloses a still exist when the teaching student piano mr need still hand-carry the electronic piano support or prepare in advance and place the shelf of electronic piano and just can conveniently teach student's music when carrying electronic piano problem, especially piano mr needs still to carry the seat when outdoor lecture, and this has brought very big inconvenience for electronic piano mr's lecture.
Therefore, a new electric piano teaching device is urgently needed to be designed to solve the problem that a piano teacher is inconvenient to carry when giving lessons, particularly outdoors.
Disclosure of Invention
In view of the above, the present invention is directed to overcome the disadvantages of the prior art, and an object of the present invention is to provide a multifunctional electric piano teaching device which is simple and compact in structure, and enables a piano teacher to perform piano teaching anywhere without carrying additionally or preparing a piano stand and a seat in advance.
In order to achieve the purpose, the invention adopts the following technical scheme:
a multifunctional electric piano teaching device comprises an electric piano body, wherein keys are arranged on the upper portion of the electric piano body, a rectangular groove is formed in the bottom surface of the electric piano body, dovetail grooves are formed in the bottoms of the front side edge and the rear side edge of the rectangular groove along the length direction, a bottom cover is arranged at the bottom of the electric piano body, and a dovetail matched with the dovetail grooves is formed in the upper portion of the bottom cover;
a support mechanism is arranged in the rectangular groove, the support mechanism comprises a transverse rotating shaft which is rotatably arranged at the left end and the right end of the rectangular groove, a front support leg which is arranged at the front side of the lower part of the transverse rotating shaft and a rear support leg which is arranged at the rear side of the lower part of the transverse rotating shaft, and the front support leg and the rear support leg are telescopic support legs;
the left side and the right side of the lower surface of the bottom cover are symmetrically provided with U-shaped grooves, U-shaped support legs are rotationally arranged in the U-shaped grooves, fixing plates are arranged on the lower surface of the bottom cover and beside the outer ends of the U-shaped grooves, pin holes are formed in the fixing plates, insertion holes are formed in the positions, corresponding to the pin holes, of the U-shaped support legs, and the U-shaped support legs and the fixing plates are fixed through pins arranged in the pin holes;
set up the teeth of a cogwheel in the middle of the transverse rotating shaft surface, rectangle recess top sets up driving motor, set up on driving motor's the output shaft with teeth of a cogwheel matched with gear, fender body leading flank sets up control switch and is used for controlling driving motor's switching.
Furthermore, a leg base with an arc-shaped groove on the lower surface is arranged at the top of the rectangular groove and used for placing the front leg or the rear leg, and a pressing block with an arc-shaped groove on the upper surface, matched with the leg base, on the upper surface of the bottom cover is used for pressing the front leg or the rear leg in the arc-shaped groove on the leg base.
Furthermore, threaded holes are formed in the U-shaped support legs, screws are connected in the threaded holes, and the U-shaped support legs and the U-shaped grooves are fixed through the screws.
Further, a connecting rod is arranged between the front supporting leg and the rear supporting leg at the same end of the rectangular groove.
Further, preceding landing leg with terminal surface all sets up the screw thread blind hole under the back landing leg, set up in the rectangle recess and hold the seat with base shape matched with and be used for holding the base, base upper portion set up with screw thread blind hole matched with screw thread post is used for with the base is detachable to be set up in the screw thread blind hole.
Furthermore, both ends face all sets up the link about the fender body, set up the braces in the link.
Further, the upper portion of the electric piano body is located above the keys and is rotatably provided with a key cover.
The invention has the beneficial effects that:
the invention provides a multifunctional electric piano teaching device aiming at the problem that a piano teacher can give a piano teaching only by carrying with the piano or preparing a piano support and a seat in advance in the current electric piano teaching process. Simultaneously, for the convenience of getting up the electric piano when giving lessons, be provided with supporting mechanism in the rectangle recess, and supporting mechanism sets up the horizontal pivot at both ends about the rectangle recess including rotating, set up preceding landing leg and the back landing leg of setting in horizontal pivot lower part rear side at horizontal pivot lower part front side, and like this, only need dismantle the bottom when needs earlier, then with preceding landing leg and back landing leg follow rectangle recess in roll-out can, and for the convenience of adjusting the height of preceding landing leg and back landing leg, preceding landing leg all adopts the retractable landing leg with the back landing leg. In addition, in order to facilitate a piano teacher to sit down to give a lecture on the electric piano during the lecture, the left side and the right side of the lower surface of the bottom cover are symmetrically provided with U-shaped grooves, U-shaped support legs are rotationally arranged in the U-shaped grooves, and fixing plates are arranged on the lower surface of the bottom cover and beside the outer ends of the U-shaped grooves, so that the U-shaped support legs are prevented from freely rotating outwards after being put down and further losing the supporting function of the U-shaped support legs; simultaneously in order to fix the U type stabilizer blade of putting down on the fixed plate in order to avoid unstable phenomenon when supporting the fender body, set up the pinhole on the fixed plate, set up the jack with pinhole position correspondence on U type stabilizer blade, and fixed through the pin that sets up in the pinhole between U type stabilizer blade and the fixed plate. In addition, in order to realize the automatic falling and the packing up of the front supporting leg and the rear supporting leg, gear teeth are arranged in the middle of the outer surface of the transverse rotating shaft, a driving motor is arranged at the top of the rectangular groove, a gear matched with the gear teeth is arranged on an output shaft of the driving motor, and a control switch is arranged on the front side surface of the electric piano body and used for controlling the driving motor to be switched on and switched off. The invention has simple and compact structure, and the piano teachers can carry out piano teaching anywhere without extra carrying or preparing piano supports and seats in advance.
Drawings

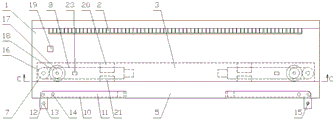

FIG. 1 is a schematic front view of the structure of a first embodiment of the present invention;
FIG. 2 is a left side view of the structure of the first embodiment of the present invention;
FIG. 3 is a schematic top view of the structure of the first embodiment of the present invention;
FIG. 4 is a schematic view of the structure of FIG. 1 along the line A-A;
FIG. 5 is a schematic front view of the structure of a second embodiment of the present invention;
FIG. 6 is a left side view of the structure of the second embodiment of the present invention;
FIG. 7 is a schematic top view of the structure of a second embodiment of the present invention;
FIG. 8 is a schematic view of the structure of FIG. 5 along the direction B-B;
FIG. 9 is a schematic front view of the structure of a third embodiment of the present invention;
FIG. 10 is a schematic top view of the structure of the third embodiment of the present invention;
FIG. 11 is a schematic view of the structure of FIG. 9 taken along the line C-C;
FIG. 12 is a schematic front view of the structure of a fourth embodiment of the present invention;
FIG. 13 is a schematic front view of a fifth embodiment of the present invention;
fig. 14 is a left side view schematically illustrating a structure of a fifth embodiment of the present invention.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions of the embodiments of the present invention will be clearly and completely described below with reference to the drawings of the embodiments of the present invention. It is to be understood that the embodiments described are only a few embodiments of the present invention, and not all embodiments. All other embodiments, which can be derived by a person skilled in the art from the described embodiments of the invention, are within the scope of the invention.
Example 1:
as shown in fig. 1 to 4, a multi-functional fender teaching device, including fender body 1, 1 upper portion of fender body sets up key 2, 1 bottom surface of fender body sets up rectangular groove 3, dovetail 4 has been seted up along length direction to both sides limit bottom around the rectangular groove 3, 1 bottom of fender body sets up bottom 5, bottom 5 upper portion set up with dovetail 4 matched with dovetail 6.
Set up supporting mechanism in the rectangle recess 3, supporting mechanism sets up including rotating the transverse rotating shaft 7 at both ends about the rectangle recess 3 sets up the preceding landing leg 8 and the setting of transverse rotating shaft 7 lower part front side are in the back landing leg 9 of transverse rotating shaft 7 lower part rear side, preceding landing leg 8 with back landing leg 9 is the retractable landing leg.
The left side and the right side of the lower surface of the bottom cover 5 are symmetrically provided with U-shaped grooves 10, U-shaped support legs 11 are arranged in the U-shaped grooves 10 in a rotating mode, the lower surface of the bottom cover 5 is located on the sides of the outer ends of the U-shaped grooves 10, fixing plates 12 are arranged on the fixing plates 12, pin holes 13 are formed in the fixing plates 12, jacks 14 are formed in the positions, corresponding to the pin holes 13, of the U-shaped support legs 11, and the U-shaped support legs 11 and the fixing plates 12 are fixed through pins 15 arranged in the pin holes 13.
Set up teeth of a cogwheel 16 in the middle of the transverse rotating shaft 7 surface, rectangle recess 3 top sets up driving motor 17, set up on driving motor 17's the output shaft with teeth of a cogwheel 16 matched with gear 18, fender body 1 leading flank sets up control switch 19 and is used for controlling driving motor 17's switching.
In this embodiment, be provided with the key on fender body upper portion, set up the rectangle recess in fender body bottom surface to both sides limit bottom has seted up the dovetail along length direction around the rectangle recess, sets up the bottom in fender body bottom, sets up the dovetail with dovetail matched with on bottom upper portion, very makes things convenient for the dismantlement of bottom and fender body like this.
Simultaneously, for the convenience of getting up the electric piano when giving lessons, be provided with supporting mechanism in the rectangle recess, and supporting mechanism sets up the horizontal pivot at both ends about the rectangle recess including rotating, set up preceding landing leg and the back landing leg of setting in horizontal pivot lower part rear side at horizontal pivot lower part front side, and like this, only need dismantle the bottom when needs earlier, then with preceding landing leg and back landing leg follow rectangle recess in roll-out can, and for the convenience of adjusting the height of preceding landing leg and back landing leg, preceding landing leg all adopts the retractable landing leg with the back landing leg.
In addition, in order to facilitate a piano teacher to sit down to give a lecture on the electric piano during the lecture, the left side and the right side of the lower surface of the bottom cover are symmetrically provided with U-shaped grooves, U-shaped support legs are rotationally arranged in the U-shaped grooves, and fixing plates are arranged on the lower surface of the bottom cover and beside the outer ends of the U-shaped grooves, so that the U-shaped support legs are prevented from freely rotating outwards after being put down and further losing the supporting function of the U-shaped support legs; simultaneously in order to fix the U type stabilizer blade of putting down on the fixed plate in order to avoid unstable phenomenon when supporting the fender body, set up the pinhole on the fixed plate, set up the jack with pinhole position correspondence on U type stabilizer blade, and fixed through the pin that sets up in the pinhole between U type stabilizer blade and the fixed plate.
In addition, in order to realize the automatic falling and the packing up of the front supporting leg and the rear supporting leg, gear teeth are arranged in the middle of the outer surface of the transverse rotating shaft, a driving motor is arranged at the top of the rectangular groove, a gear matched with the gear teeth is arranged on an output shaft of the driving motor, and a control switch is arranged on the front side surface of the electric piano body and used for controlling the driving motor to be switched on and switched off. The invention has simple and compact structure, and the piano teachers can carry out piano teaching anywhere without extra carrying or preparing piano supports and seats in advance.
Example 2:
as shown in fig. 5 to 8, a multi-functional fender teaching device, including fender body 1, 1 upper portion of fender body sets up key 2, 1 bottom surface of fender body sets up rectangular groove 3, dovetail 4 has been seted up along length direction to both sides limit bottom around the rectangular groove 3, 1 bottom of fender body sets up bottom 5, bottom 5 upper portion set up with dovetail 4 matched with dovetail 6.
Set up supporting mechanism in the rectangle recess 3, supporting mechanism sets up including rotating the transverse rotating shaft 7 at both ends about the rectangle recess 3 sets up the preceding landing leg 8 and the setting of transverse rotating shaft 7 lower part front side are in the back landing leg 9 of transverse rotating shaft 7 lower part rear side, preceding landing leg 8 with back landing leg 9 is the retractable landing leg.
The left side and the right side of the lower surface of the bottom cover 5 are symmetrically provided with U-shaped grooves 10, U-shaped support legs 11 are arranged in the U-shaped grooves 10 in a rotating mode, the lower surface of the bottom cover 5 is located on the sides of the outer ends of the U-shaped grooves 10, fixing plates 12 are arranged on the fixing plates 12, pin holes 13 are formed in the fixing plates 12, jacks 14 are formed in the positions, corresponding to the pin holes 13, of the U-shaped support legs 11, and the U-shaped support legs 11 and the fixing plates 12 are fixed through pins 15 arranged in the pin holes 13.
Set up teeth of a cogwheel 16 in the middle of the transverse rotating shaft 7 surface, rectangle recess 3 top sets up driving motor 17, set up on driving motor 17's the output shaft with teeth of a cogwheel 16 matched with gear 18, fender body 1 leading flank sets up control switch 19 and is used for controlling driving motor 17's switching.
A leg base 20 with an arc-shaped groove on the lower surface is arranged at the top of the rectangular groove 3 and used for placing the front leg 8 or the rear leg 9, and a pressing block 21 with an arc-shaped groove on the upper surface and matched with the leg base 20 and on the upper surface of the bottom cover 5 is used for pressing the front leg 8 or the rear leg 9 in the arc-shaped groove on the leg base 20.
In this embodiment, for avoiding preceding landing leg and back landing leg to rock in rectangular groove at the transportation in-process of carrying, set up the landing leg seat of lower surface area arc wall and be used for placing preceding landing leg or back landing leg at rectangular groove top to in the bottom upper surface is used for compressing tightly the arc wall on the landing leg seat with landing leg seat matched with briquetting of upper surface area arc wall.
Example 3:
as shown in fig. 9 to 11, it differs from embodiment 2 in that:
threaded holes are formed in the U-shaped supporting legs 11, screws 22 are connected in the threaded holes in a threaded mode, and the U-shaped supporting legs 11 and the U-shaped grooves 10 are fixed through the screws 22.
And a connecting rod 23 is arranged between the front supporting leg 8 and the rear supporting leg 9 at the same end of the rectangular groove 3.
In the embodiment, in order to facilitate the fixing of the U-shaped support leg in the non-use state, the U-shaped support leg is provided with the threaded hole, and the screw is connected in the threaded hole, so that the U-shaped support leg can be fixed in the U-shaped groove through the screw. In addition, in order to increase the rigidity of the front supporting leg and the rear supporting leg and avoid deformation, a connecting rod is arranged between the front supporting leg and the rear supporting leg at the same end of the rectangular groove.
Example 4:
as shown in fig. 12, it differs from embodiment 3 in that: preceding landing leg 8 with back landing leg 9 lower extreme face all sets up screw thread blind hole 24, set up in the rectangle recess 3 and hold seat 26 with base 25 shape matched with and be used for holding base 25, base 25 upper portion set up with screw thread blind hole 24 matched with screw thread post 27 is used for with base 25 detachable setting is in the screw thread blind hole 24.
In this embodiment, for make preceding landing leg and back landing leg more steady firm when falling the support fender body, the terminal surface all sets up the screw thread blind hole under preceding landing leg and the back landing leg, set up in the rectangle recess and hold the seat with base shape matched with and be used for holding the base to set up on base upper portion and be used for setting up the detachable setting of base in the screw thread blind hole with screw thread blind hole matched with screw thread post.
Example 5:
as shown in fig. 13 and 14, it differs from embodiment 3 in that: hanging rings 28 are arranged on the left end face and the right end face of the electric piano body 1, and straps 29 are arranged in the hanging rings 28.
The piano body 1 is provided with a piano lid 30 on the upper part and above the keys 2.
In this embodiment, for convenience of carrying, hanging rings are provided on both left and right end faces of the electric piano body, and braces are provided in the hanging rings. In addition, in order to avoid damaging the keys and avoiding dust falling in a non-use state, a key cover is rotatably arranged on the upper portion of the electric piano body and above the keys.
Finally, the above embodiments are only used for illustrating the technical solutions of the present invention and not for limiting, and other modifications or equivalent substitutions made by the technical solutions of the present invention by those of ordinary skill in the art should be covered within the scope of the claims of the present invention as long as they do not depart from the spirit and scope of the technical solutions of the present invention.
Claims (5)
1. The utility model provides a multi-functional fender teaching device, includes the fender body, fender body upper portion sets up key, its characterized in that: the bottom surface of the electric piano body is provided with a rectangular groove, the bottoms of the front side edge and the rear side edge of the rectangular groove are provided with dovetail grooves along the length direction, the bottom of the electric piano body is provided with a bottom cover, and the upper part of the bottom cover is provided with a dovetail joint matched with the dovetail grooves;
a support mechanism is arranged in the rectangular groove, the support mechanism comprises a transverse rotating shaft which is rotatably arranged at the left end and the right end of the rectangular groove, a front support leg which is arranged at the front side of the lower part of the transverse rotating shaft and a rear support leg which is arranged at the rear side of the lower part of the transverse rotating shaft, and the front support leg and the rear support leg are telescopic support legs;
the left side and the right side of the lower surface of the bottom cover are symmetrically provided with U-shaped grooves, U-shaped support legs are rotationally arranged in the U-shaped grooves, fixing plates are arranged on the lower surface of the bottom cover and beside the outer ends of the U-shaped grooves, pin holes are formed in the fixing plates, insertion holes are formed in the positions, corresponding to the pin holes, of the U-shaped support legs, and the U-shaped support legs and the fixing plates are fixed through pins arranged in the pin holes;
gear teeth are arranged in the middle of the outer surface of the transverse rotating shaft, a driving motor is arranged at the top of the rectangular groove, a gear matched with the gear teeth is arranged on an output shaft of the driving motor, and a control switch is arranged on the front side surface of the electric piano body and used for controlling the driving motor to be switched on and switched off;
a leg seat with an arc-shaped groove on the lower surface is arranged at the top of the rectangular groove and used for placing the front leg or the rear leg, and a pressing block with an arc-shaped groove on the upper surface, matched with the leg seat, on the upper surface of the bottom cover is used for pressing the front leg or the rear leg in the arc-shaped groove on the leg seat;
threaded holes are formed in the U-shaped supporting legs, screws are connected in the threaded holes in a threaded mode, and the U-shaped supporting legs and the U-shaped grooves are fixed through the screws.
2. A multi-functional electric piano teaching device according to claim 1, wherein: and a connecting rod is arranged between the front supporting leg and the rear supporting leg at the same end of the rectangular groove.
3. A multi-functional electric piano teaching device according to claim 1, wherein: preceding landing leg with terminal surface all sets up the screw thread blind hole under the back landing leg, set up in the rectangle recess and hold the seat with base shape matched with and be used for holding the base, base upper portion set up with screw thread blind hole matched with screw thread post is used for with the base is detachable to be set up in the screw thread blind hole.
4. A multi-functional electric piano teaching device according to claim 1, wherein: both ends face all sets up the link about the fender body, set up the braces in the link.
5. A multi-functional electric piano teaching device according to claim 1, wherein: the upper portion of the electric piano body is located above the keys and is rotatably provided with a key cover.
