Abstract
The invention discloses a coffee machine with an automatic cleaning function, which comprises a crushing structure, wherein the crushing structure comprises a crushing cavity and a crushing device; the upper part of the crushing cavity is provided with a crushing cavity cover, the lower part of the bottom surface or the side wall is provided with an outlet, the crushing cavity cover is provided with a water inlet, the position of the water inlet is provided with a spraying structure, and the spraying structure sprays water to the crushing cavity and the inner wall of the crushing cavity cover; and a filter screen is arranged below the outlet of the crushing cavity. The crushing cavity of the coffee machine is not provided with a filter screen, so that the coffee machine is convenient to clean; the spraying structure adopts a rotatable design, realizes rotation under the drive of steam, and automatically cleans a crushing cavity without dead angles by hot water; the outlet of the crushing cavity is provided with an opening device, and the opening device is closed when crushing, so that the channel is not blocked by coffee powder; the filter screen is arranged in the pulp receiving cup, so that the cleaning can not be forgotten; the coffee powder is fully contacted with hot water in the crushing cavity for first brewing and extraction, and is fully brewed and extracted for the second time in the filter screen, so that the coffee is more fragrant.
Description
Technical Field
The invention belongs to the field of household appliances, and particularly relates to a coffee machine with an automatic cleaning function.
Background
Since 1965, the drip type coffee machine in the existing market has simple principle and product structure and low cost, and is always popular with consumers, and the structure of the drip type coffee machine is always used until now (as shown in figure 1). However, since the coffee powder is used in the product, the coffee powder is not easy to retain and is easy to be affected by damp and the like, and the taste and the flavor of the coffee powder are affected, the raw materials which are supplied in the prior market are basically roasted coffee beans, and the coffee beans are required to be crushed into the coffee powder by a grinding machine before being boiled, so that the action of boiling the coffee is increased, and the operation is inconvenient.
Based on the above problems, some machines which combine functions of grinding coffee beans and boiling coffee into a whole are also on the market, and the principle is that a grinding cavity is provided with a filter screen, one mode is that after the coffee beans are ground to a certain fineness, the coffee beans enter a coffee extraction cavity (as shown in figure 2) through the filter screen on the grinding cavity under the action of centrifugal force, and after a heating pipe works, water flows into the coffee extraction cavity after being heated through siphon effect, so that coffee is produced. In this way, the coffee extraction chamber is communicated with the crushing chamber, so that a certain amount of coffee powder remains in the crushing chamber, the crushing chamber needs to be cleaned, and water vapor can enter the crushing chamber and be condensed. The cleaning objects are more and the use experience is not good. The other mode is that the coffee bean crushing cavity and the coffee extraction cavity are integrated (as shown in figure 3), the coffee beans are extracted in the crushing cavity after being crushed, the crushing cavity and the filter screen are both required to be cleaned, the cleaning parts are more, and the crushing cavity is easy to forget to clean after being manufactured.
Disclosure of Invention
The invention aims at overcoming the defects of the prior art and providing a coffee machine with an automatic cleaning function.
The aim of the invention is realized by the following technical scheme: the coffee machine with the automatic cleaning function comprises a crushing structure, wherein the crushing structure comprises a crushing cavity for containing raw materials and a crushing device positioned in the crushing cavity and used for crushing the raw materials; the upper part of the crushing cavity is provided with a crushing cavity cover, the lower part of the bottom surface or the side wall of the crushing cavity is provided with an outlet, the crushing cavity cover is provided with a water inlet, the position of the water inlet is provided with a spraying structure, and the spraying structure sprays water to the crushing cavity and the inner wall of the crushing cavity cover; and a filter screen is arranged below the outlet of the crushing cavity.
Further, the spraying structure is provided with a plurality of spraying holes, the number of the spraying holes is more than or equal to 5, and the diameter of the spraying holes is 0.5-2mm.
Further, the spray structure is rotatable under the reaction force of steam and water.
Further, the spraying structure is provided with at least one spraying opening, and at least one spraying opening sprays water towards the crushing cavity cover.
Further, an outlet valve is arranged at the bottom outlet position of the crushing cavity, and the outlet valve is closed in the raw material crushing process.
Further, the outlet valve is opened by being driven to open by a thermal deformation element, or by being driven to open by an electric appliance driving element, or by being opened manually.
Further, the filter screen is arranged inside the pulp receiving cup and is detachably connected with the pulp receiving cup, or the filter screen is detachably connected with the machine body, and the pulp receiving cup is positioned below the filter screen.
Further, the crushing device is a blade or a grinding structure.
Further, a sealing structure is arranged between the crushing cavity and the crushing cavity cover; the top of the crushing cavity cover is provided with an air hole; the comminution chamber has a blocking feature or is internally provided with a blocking member.
A pulping process with simultaneous washing and extraction, the process comprising:
(1) The raw materials are put into a crushing cavity, and an outlet valve at the bottom of the crushing cavity is in a closed state;
(2) Crushing the raw materials by a crushing device;
(3) After the crushing is finished, hot water is added into the crushing cavity through a spraying structure at the top of the crushing cavity, and water is sprayed to the crushing cavity and the inner wall of the crushing cavity cover through the spraying structure;
(4) Stirring by a crushing device, mixing the crushed raw materials with hot water in a crushing cavity, and performing first extraction;
(5) The outlet valve is opened, powder slag and water flow into the filter screen together, and flow into the slurry receiving cup after being filtered by the filter screen;
(6) And continuously adding hot water into the crushing cavity, cleaning the inner walls of the crushing cavity and the crushing cavity cover through a spraying structure, taking residual powder slag in the crushing cavity into the filter screen, and performing secondary extraction on the powder slag in the filter screen to finish coffee manufacture.
The beneficial effects of the invention are as follows:
1. the coffee bean crushing cavity is free of a filter screen, and the crushing cavity is convenient to realize automatic cleaning;
2. the water inlet of the crushing cavity adopts a rotatable design, the rotation is realized under the drive of steam, and the hot water automatically cleans the crushing cavity without dead angles.
3. The crushing cavity outlet is provided with an opening device, and is closed during crushing, and is opened after crushing is finished, so that the channel is not blocked by coffee powder.
3. The crushing cavity outlet valve is opened through the thermal deformation element, an electric driving element is not needed, the structure is simple, and the cost is low.
4. The filter screen is arranged in the pulp receiving cup, the structure is simple, the space of the whole machine is saved, and the cleaning can not be forgotten.
5. The coffee powder is fully contacted with hot water in the crushing cavity for first brewing and extraction, and is fully brewed and extracted for the second time in the filter screen, so that the coffee is more fragrant.
Drawings
FIG. 1 is a schematic view of a drip coffee maker in the background art;
FIG. 2 is a schematic view of a coffee machine with integrated functions of grinding coffee beans and brewing coffee in the prior art;
FIG. 3 is a schematic view of a coffee machine with a coffee bean pulverizing chamber and a coffee extraction chamber integrated in the prior art;

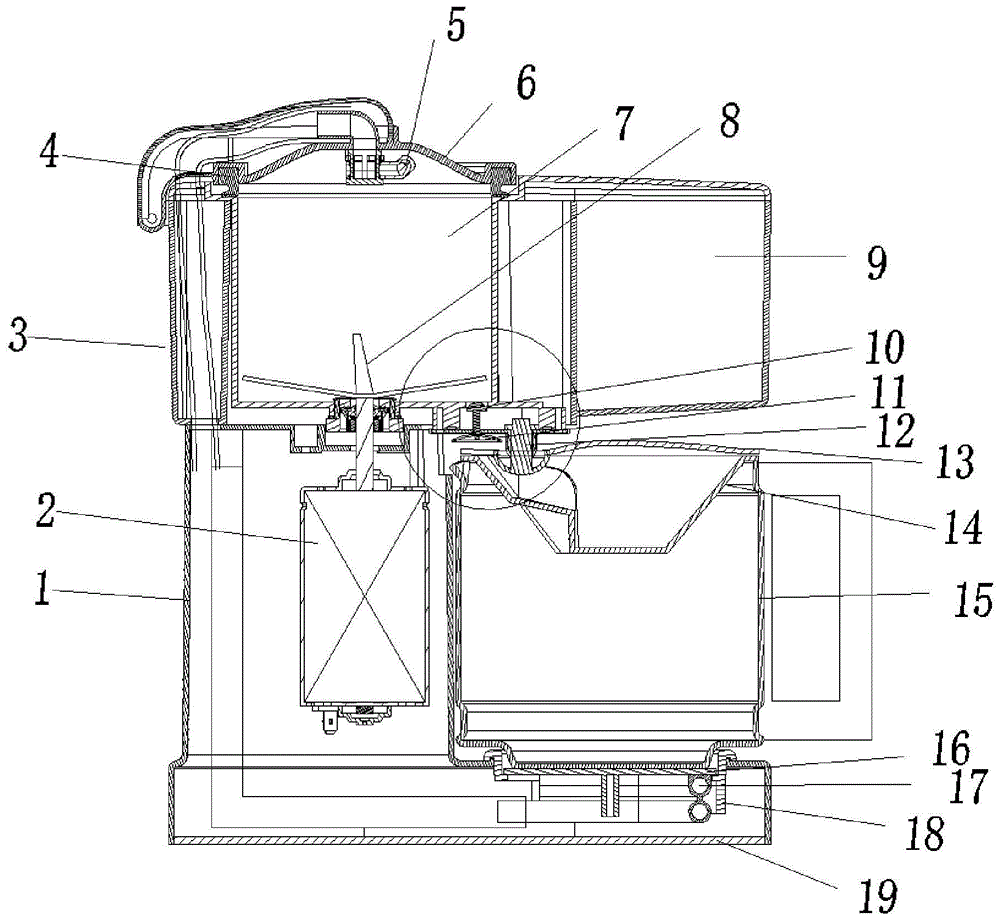

FIG. 4 is a schematic diagram of a coffee machine with an automatic cleaning function according to the present invention;
FIG. 5 is a cross-sectional view of a spray configuration of the present invention having a spray port;
FIG. 6 is a schematic view of the angle of a spray structure with a spray opening according to the present invention;
FIG. 7 is a schematic view of a spray configuration of the present invention having four spray ports;
FIG. 8 is a schematic view of the unsealed design of the crushing chamber with the outlet valve closed;
FIG. 9 is a schematic view of the sealing arrangement with the crushing chamber when the outlet valve is closed;
FIG. 10 is a schematic view of a spray pattern with spray holes according to the present invention;
in fig. 4 to 10, the lower machine base 1, the crushing motor 2, the upper machine body 3, the sealing structure 4, the spraying structure 5, the spraying holes 51, the spraying ports 52, the crushing cavity cover 6, the crushing cavity 7, the blade 8, the water tank 9, the outlet valve 10, the outlet valve driving structure 11, the leak-proof valve 12, the cup cover 13, the filter screen 14, the slurry receiving cup 15, the heat insulation plate 16, the heating pipe 17, the heat insulation sleeve 18, the base 19 and the sealing piece 20 are arranged.
Detailed Description
The invention will be described in further detail with reference to the drawings and the specific examples.
The invention provides a coffee machine with an automatic cleaning function, which comprises a crushing structure, wherein the crushing structure comprises a crushing cavity 7 for containing raw materials and a crushing device positioned in the crushing cavity 7 and used for crushing the raw materials; the upper part of the crushing cavity 7 is provided with a crushing cavity cover 6, the bottom surface or the lower part of the side wall of the crushing cavity 7 is provided with an outlet, the crushing cavity cover 6 is provided with a water inlet, the position of the water inlet is provided with a spraying structure 5, and the spraying structure 5 sprays water on the inner walls of the crushing cavity 7 and the crushing cavity cover 6; a filter screen 14 is arranged below the outlet of the crushing cavity 7.
Further, the spraying structure 5 is provided with a plurality of spraying holes 51, the number of the spraying holes 51 is more than or equal to 5, and the diameter of the spraying holes 51 is 0.5-2mm.
Further, the shower structure 5 is rotatable under the reaction force of steam and water.
Further, the spraying structure 5 is provided with at least one spraying opening 52, and the at least one spraying opening 52 sprays water towards the crushing cavity cover 6.
Further, an outlet valve 10 is provided at the bottom outlet position of the pulverizing chamber 7, and the outlet valve 10 is closed during the pulverization of the raw materials.
Further, the outlet valve 10 is opened by being driven by a thermal deformation member, or by being driven by an electric driving element, or by being opened manually.
Further, the filter screen 14 is disposed inside the slurry receiving cup 15 and detachably connected with the slurry receiving cup 15, or the filter screen 14 is detachably connected with the machine body, and the slurry receiving cup 15 is disposed below the filter screen 14.
Further, the comminution device is a blade 8 or an abrasive structure.
Further, a sealing structure 4 is arranged between the crushing cavity 7 and the crushing cavity cover 6; the top of the crushing cavity cover 6 is provided with an air hole; the comminution chamber 7 has a blocking feature or is internally provided with a blocking member.
A pulping process with simultaneous washing and extraction, the process comprising:
(1) The raw materials are put into a crushing cavity 7, and an outlet valve 10 at the bottom of the crushing cavity 7 is in a closed state;
(2) Crushing the raw materials by a crushing device;
(3) After the crushing is finished, hot water is added into the crushing cavity 7 through a spraying structure 5 at the top of the crushing cavity 7, and water is sprayed to the inner walls of the crushing cavity 7 and the crushing cavity cover 6 through the spraying structure 5;
(4) Stirring by a crushing device, mixing the crushed raw materials with hot water in a crushing cavity 7, and performing first extraction;
(5) The outlet valve 10 is opened, powder slag flows into the filter screen 14 together with water, and flows into the slurry receiving cup 15 after being filtered by the filter screen 14;
(6) And continuously adding hot water into the crushing cavity 7, cleaning the inner walls of the crushing cavity 7 and the crushing cavity cover 6 through the spraying structure 5, taking residual powder slag in the crushing cavity 7 into the filter screen 14, and performing secondary extraction on the powder slag in the filter screen 14 to finish coffee making.
Example 1
In this embodiment, as shown in fig. 4, the coffee machine comprises an upper machine body 3, a lower machine base 1 and a base 19, wherein a crushing cavity 7 and a water tank 9 are arranged on the upper machine body 3, and a heating pipe 17, a heat insulation plate 16 and a heat insulation sleeve 18 are arranged in the base 19; a blade 8 for crushing the coffee beans is arranged at the bottom of the crushing cavity 7, and the blade 8 is driven by the crushing motor 2; the driving shaft of the crushing motor 2 directly penetrates through the bottom of the crushing cavity 7 and stretches into the crushing cavity 7, a sealing structure is arranged between the driving shaft and the crushing cavity 7, the driving shaft can also drive a cutter shaft penetrating through the crushing cavity 7 through a shaft coupler, and a sealing structure is arranged between the cutter shaft and the crushing cavity 7.
The upper part of the crushing cavity 7 is provided with a crushing cavity cover 6, and a sealing structure 4 is arranged between the crushing cavity 7 and the crushing cavity cover 6; the bottom surface or the lateral wall lower part of smashing chamber 7 are equipped with the export, are equipped with the water inlet on smashing chamber lid 6, the water inlet position design has rotatable spraying structure 5, and this spraying structure 5 can 360 degrees rotations under the reaction force of steam and water, sprays water to smashing chamber 7 and smashing chamber lid 6 inner wall. As shown in fig. 5 and 6, the spray structure 5 has one spray opening 52, and the spray opening 52 sprays water toward the pulverizing chamber cover 6, in fig. 6, 90 ° <=a <180 °,0< b <90 °. When four spray ports 52 are used, the spray pattern 5 is shown in fig. 7.
An outlet valve 10 is arranged at the bottom outlet position of the crushing cavity 7, and the outlet valve 10 is closed in the crushing process of the coffee beans, so that crushed coffee powder is not easy to leave the crushing cavity 7. The outlet valve 10 and the crushing chamber 7 can be in a non-sealing design as shown in fig. 8, or in a sealing design as shown in fig. 9, and a sealing element 20 is arranged between the outlet valve 10 and the outlet valve driving structure 9.
After the crushing is finished, the heating pipe 17 is heated, hot water in a water pipe integrated with the heating pipe 17 is added into the crushing cavity 7 through the water inlet of the crushing cavity 7 and the spraying structure 5, and water is sprayed to the inner walls of the crushing cavity 7 and the crushing cavity cover 6 through the spraying structure 5; a low-speed stirring blade 8, so that the crushed coffee powder and hot water are mixed in the crushing cavity 7 for first extraction; the pulverizing chamber outlet valve 10 is opened by driving the thermal deformation member, and the coffee grounds together with water flow into the filter screen 14 disposed inside the coffee cup and detachably connected to the coffee cup, and the filtered coffee is contained in the coffee cup. The subsequent heating pipe 17 continuously heats, hot water adds hot water to smash chamber 7 and smash chamber lid 6 inner wall through smashing chamber 7 water inlet and spray structure 5 in smashing chamber 7, carry into filter screen 14 with the surplus coffee grounds in smashing chamber 7, hot water carries out the secondary extraction to the coffee grounds that stores in filter screen 14, water heating in water tank 9 is accomplished, namely coffee preparation is accomplished, smash chamber 7 and passageway also wash and accomplish, the realization scheme is simple and reliable.
Example 2
In this embodiment, the coffee machine is largely identical in structure and principle to embodiment 1, except that: the crushing cavity cover 6 is provided with a water inlet, a spraying structure 5 is arranged at the water inlet, the spraying structure 5 is provided with a plurality of spraying holes 51, as shown in fig. 10, the number of the spraying holes 51 is more than or equal to 5, and the diameter of the spraying holes 51 is 0.5-2mm.
Example 3
In this embodiment, the coffee machine is largely identical in structure and principle to embodiment 1, except that: the crushing device is of a grinding structure, and the opening mode of the outlet valve 10 is that the crushing device is driven to be opened by an electric driving element (such as an electromagnetic valve and a motor); the filter screen 14 is detachably connected with the machine body, and the coffee cup is positioned below the filter screen 14.
The present invention is not limited to the above embodiments, and those skilled in the art can practice the present invention using other various embodiments in light of the present disclosure. Therefore, the design structure and thought of the invention are adopted, and some simple changes or modified designs are made, which fall into the protection scope of the invention.
Claims (9)
1. The coffee machine with the automatic cleaning function is characterized by comprising a crushing structure, wherein the crushing structure comprises a crushing cavity (7) for containing raw materials, a crushing device and a crushing motor (2), wherein the crushing device is positioned in the crushing cavity (7) and used for crushing the raw materials, the crushing motor (2) is used for driving the crushing device, and the crushing motor (2) is arranged at the bottom of the crushing cavity (7); the upper part of the crushing cavity (7) is provided with a crushing cavity cover (6), the bottom surface or the lower part of the side wall of the crushing cavity (7) is provided with an outlet, the crushing cavity cover (6) is provided with a water inlet, the position of the water inlet is provided with a spraying structure (5), and the spraying structure (5) sprays water to the crushing cavity (7) and the inner wall of the crushing cavity cover (6); a filter screen (14) is arranged below the outlet of the crushing cavity (7), an outlet valve (10) is arranged at the outlet position of the bottom of the crushing cavity (7), and the outlet valve (10) is closed in the raw material crushing process; the filter screen (14) is used for filtering a mixture of raw materials and water discharged through the outlet when the outlet valve (10) is opened.
2. The coffee machine with the automatic cleaning function according to claim 1, wherein the spraying structure (5) is provided with a plurality of spraying holes (51), the number of the spraying holes (51) is more than or equal to 5, and the diameter of the spraying holes (51) is 0.5-2mm.
3. A coffee machine with automatic cleaning function according to claim 1, characterized in that the spray structure (5) is rotatable under the reaction forces of steam and water.
4. A coffee machine with automatic cleaning function according to claim 3, characterized in that the spraying structure (5) has at least one spraying opening (52), and that at least one spraying opening (52) sprays water towards the crushing chamber cover (6).
5. A coffee machine with automatic cleaning function according to claim 1, characterized in that the opening of the outlet valve (10) is driven by a thermally deformable element, or by an electric drive element, or manually.
6. The coffee machine with the automatic cleaning function according to claim 1, wherein the filter screen (14) is arranged inside the pulp receiving cup (15) and is detachably connected with the pulp receiving cup (15), or the filter screen (14) is detachably connected with the machine body, and the pulp receiving cup (15) is arranged below the filter screen (14).
7. A coffee machine with automatic cleaning function according to claim 1, characterized in that the comminuting means are blades (8) or grinding structures.
8. A coffee machine with automatic cleaning function according to claim 1, characterized in that a sealing structure (4) is arranged between the crushing chamber (7) and the crushing chamber cover (6); the top of the crushing cavity cover (6) is provided with an air hole; the comminution chamber (7) has a blocking feature or is internally provided with a blocking member.
9. A pulping process with simultaneous washing and extraction, the process comprising:
(1) The raw materials are put into a crushing cavity (7), and an outlet valve (10) at the bottom of the crushing cavity (7) is in a closed state;
(2) Crushing the raw materials by a crushing device;
(3) After the crushing is finished, hot water is added into the crushing cavity (7) through a spraying structure (5) at the top of the crushing cavity (7), and water is sprayed to the inner walls of the crushing cavity (7) and the crushing cavity cover (6) through the spraying structure (5);
(4) Stirring by a crushing device, mixing the crushed raw materials with hot water in a crushing cavity (7), and performing primary extraction;
(5) The outlet valve (10) is opened, powder slag and water flow into the filter screen (14) together, and flow into the slurry receiving cup (15) after being filtered by the filter screen (14);
(6) And continuously adding hot water into the crushing cavity (7), cleaning the inner walls of the crushing cavity (7) and the crushing cavity cover (6) through the spraying structure (5), taking residual powder slag in the crushing cavity (7) into the filter screen (14), and performing secondary extraction on the powder slag in the filter screen (14) to finish coffee making.
Priority Applications (3)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201710537431.5A CN107126092B (en) | 2017-07-04 | 2017-07-04 | Coffee machine with automatic cleaning function |
| CN202310364053.0A CN116350070A (en) | 2017-07-04 | 2017-07-04 | Coffee machine with novel structure and pulping method thereof |
| CN202310364067.2A CN116369743A (en) | 2017-07-04 | 2017-07-04 | Automatic abluent structure that sprays |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201710537431.5A CN107126092B (en) | 2017-07-04 | 2017-07-04 | Coffee machine with automatic cleaning function |
Related Child Applications (2)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202310364067.2A Division CN116369743A (en) | 2017-07-04 | 2017-07-04 | Automatic abluent structure that sprays |
| CN202310364053.0A Division CN116350070A (en) | 2017-07-04 | 2017-07-04 | Coffee machine with novel structure and pulping method thereof |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN107126092A CN107126092A (en) | 2017-09-05 |
| CN107126092B true CN107126092B (en) | 2023-05-02 |
Family
ID=59736714
Family Applications (3)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201710537431.5A Active CN107126092B (en) | 2017-07-04 | 2017-07-04 | Coffee machine with automatic cleaning function |
| CN202310364067.2A Pending CN116369743A (en) | 2017-07-04 | 2017-07-04 | Automatic abluent structure that sprays |
| CN202310364053.0A Pending CN116350070A (en) | 2017-07-04 | 2017-07-04 | Coffee machine with novel structure and pulping method thereof |
Family Applications After (2)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202310364067.2A Pending CN116369743A (en) | 2017-07-04 | 2017-07-04 | Automatic abluent structure that sprays |
| CN202310364053.0A Pending CN116350070A (en) | 2017-07-04 | 2017-07-04 | Coffee machine with novel structure and pulping method thereof |
Country Status (1)
| Country | Link |
|---|---|
| CN (3) | CN107126092B (en) |
Families Citing this family (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| WO2021253424A1 (en) * | 2020-06-19 | 2021-12-23 | 唐锋机电科技（深圳）有限公司 | Waste suction device and brewing machine |
| CN115040013B (en) * | 2022-07-01 | 2023-11-07 | 信恒英聚(宁波)科技有限公司 | Multifunctional tea bar machine |
Citations (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN103169377A (en) * | 2013-01-08 | 2013-06-26 | 周林斌 | Coffeepot filter device and method thereof |
| CN106214001A (en) * | 2016-08-27 | 2016-12-14 | 宁波峰亚电器有限公司 | A kind of coffee extracted machine being easy to clean |
Family Cites Families (5)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| DE102011054155A1 (en) * | 2011-10-04 | 2013-04-04 | Eugster/Frismag Ag | Coffee machine and method for introducing a quantity of beans |
| CN104605739A (en) * | 2015-02-06 | 2015-05-13 | 佛山市金星徽电器有限公司 | Coffee machine with automatic grinding and boiling functions |
| CN105125083B (en) * | 2015-07-24 | 2018-04-10 | 广东新宝电器股份有限公司 | One kind makes bean coffee machine |
| CN105615656A (en) * | 2016-03-18 | 2016-06-01 | 张毅蔚 | Coffeemaker capable of grinding coffee beans |
| CN106308520A (en) * | 2016-04-22 | 2017-01-11 | 周林斌 | Coffee machine capable of automatically adding water and milling coffee bean |
-
2017
- 2017-07-04 CN CN201710537431.5A patent/CN107126092B/en active Active
- 2017-07-04 CN CN202310364067.2A patent/CN116369743A/en active Pending
- 2017-07-04 CN CN202310364053.0A patent/CN116350070A/en active Pending
Patent Citations (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN103169377A (en) * | 2013-01-08 | 2013-06-26 | 周林斌 | Coffeepot filter device and method thereof |
| CN106214001A (en) * | 2016-08-27 | 2016-12-14 | 宁波峰亚电器有限公司 | A kind of coffee extracted machine being easy to clean |
Also Published As
| Publication number | Publication date |
|---|---|
| CN116369743A (en) | 2023-07-04 |
| CN107126092A (en) | 2017-09-05 |
| CN116350070A (en) | 2023-06-30 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN105395067B (en) | Grind the method for work of the crushing filter device of bean coffee pot machine | |
| CN206342348U (en) | Grind the flowing water exhaust apparatus of bean coffee kettle | |
| CN103169377B (en) | Coffeepot filter device and method thereof | |
| KR101424208B1 (en) | Brewed beverage appliance and method | |
| CN103040361A (en) | Bean grinding coffee maker and method thereof | |
| CN107126092B (en) | Coffee machine with automatic cleaning function | |
| CN205667514U (en) | The mill bean coffee kettle of interlayer transmission | |
| CN210144497U (en) | Straight powder falling flat coffee grinding machine | |
| CN205548336U (en) | Grind coffee pot of beans | |
| KR100622781B1 (en) | Food processing apparatus using steam | |
| CN207768166U (en) | A kind of coffee machine with automatic cleaning function | |
| KR20060108043A (en) | Multi-food maker | |
| CN206342349U (en) | The coffee pot of pulverising mill beans | |
| CN215605014U (en) | Bean grinding device and coffee machine | |
| JPH0423530B2 (en) |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| TA01 | Transfer of patent application right |
Effective date of registration: 20200716 Address after: 310018 No. 760 Yinhai street, Xiasha street, Hangzhou economic and Technological Development Zone, Zhejiang Applicant after: HANGZHOU JIUYANG HOUSEHOLD ELECTRICAL APPLIANCES CO.,LTD. Address before: 310018, room 1, unit 3, 402 Lang long garden, Guanlan times international garden, Hangzhou, Jianggan District, Zhejiang Applicant before: Deng Yanhua |
|
| TA01 | Transfer of patent application right | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant |
