CN106943828B - Corrosion-resistant combined electric dust collector - Google Patents
Corrosion-resistant combined electric dust collector Download PDFInfo
- Publication number
- CN106943828B CN106943828B CN201710226126.4A CN201710226126A CN106943828B CN 106943828 B CN106943828 B CN 106943828B CN 201710226126 A CN201710226126 A CN 201710226126A CN 106943828 B CN106943828 B CN 106943828B
- Authority
- CN
- China
- Prior art keywords
- dust collector
- electric dust
- main part
- collector main
- electric
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Classifications
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D50/00—Combinations of methods or devices for separating particles from gases or vapours
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02A—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE
- Y02A50/00—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE in human health protection, e.g. against extreme weather
- Y02A50/20—Air quality improvement or preservation, e.g. vehicle emission control or emission reduction by using catalytic converters
- Y02A50/2351—Atmospheric particulate matter [PM], e.g. carbon smoke microparticles, smog, aerosol particles, dust
Landscapes
- Chemical & Material Sciences (AREA)
- Chemical Kinetics & Catalysis (AREA)
- Electrostatic Separation (AREA)
Abstract
The invention discloses a corrosion-resistant combined electric dust collector, which comprises an electric dust collector main body, wherein a water storage tank is arranged on one side of the electric dust collector main body, the water storage tank is fixedly connected with the electric dust collector main body, a purified gas guide pipe is arranged on the side surface of the water storage tank, a display screen is arranged on one side of the water storage tank, and a movable door is arranged on the side surface of the electric dust collector main body.
Description
Technical Field
The invention relates to the technical field of dust collectors, in particular to a corrosion-resistant combined electric dust collector.
Background
The dust remover is mainly used for industrial production of power generation, metal smelting, cement manufacture and the like in China, and in the next decades, the smoke discharged by combustion still takes precedence, contains a large amount of particles, serious environmental pollution is caused, particularly, the particles with aerodynamic diameters smaller than 2.5 mu m can enter a human body from a respiratory tract, and the surface is easy to enrich a large amount of heavy metals, so that the dust remover has great harm to human health.
However, the existing dust remover is unstable in air flow conveying in the dust remover when in use, so that dust is easy to disperse on other components in the conveying process, the dust removing performance of the dust remover is poor, the working efficiency is low, and when water spraying treatment is carried out, the power resource loss of the dust remover is large due to the single structure of the water sprayer, the use cost of the dust remover is improved, the corrosion resistance of the dust remover is poor, and the service life of the dust remover is shortened.
Therefore, how to design a corrosion-resistant combined electric dust collector is a current problem to be solved.
Disclosure of Invention
According to the defects of the prior art, the technical problem to be solved by the invention is to provide the corrosion-resistant combined electric dust remover, and the annular gap ejector is connected with the electric dust remover main body in an assembled manner, so that the problems that dust is easily dispersed to other parts in the conveying process and the dust removing performance of the electric dust remover is poor due to unstable air flow conveying in the electric dust remover when the electric dust remover is used are solved, the working efficiency is low, and the working efficiency of the corrosion-resistant combined electric dust remover is greatly improved.
In order to achieve the above purpose, the present invention provides the following technical solutions: the utility model provides a corrosion-resistant combination formula electrostatic precipitator, includes the electrostatic precipitator main part, the storage water tank is installed to one side of electrostatic precipitator main part, just storage water tank and electrostatic precipitator main part fixed connection, the side-mounting of storage water tank has the purified gas pipe, the display screen is installed to one side of storage water tank, the movable door is installed to the side-mounting of electrostatic precipitator main part, display screen and electrostatic precipitator main part electric connection, screw cap is installed to one side of movable door, the side-mounting of screw cap has the gas holder, the ash bucket is installed to the bottom of gas holder, the ash bucket is through link up the electrostatic precipitator main part, and with gas holder fixed connection, the air pressure pump is installed to the bottom of ash bucket, the support frame is installed to one side of air pressure pump, the side-mounting of electrostatic precipitator main part has the air pipe, just air pipe and electrostatic precipitator main part fixed connection, the annular gap ware is installed to the bottom of air pipe, the gravity inductance ball is installed to the bottom of annular gap ejector, the internally mounted of electrostatic precipitator main part has the water conservancy diversion ware, the honeycomb duct is installed to the side-mounting of water diversion pipe evenly distributed, the bottom of water pipe has the static electricity absorption pipe is installed to the top, the static electricity absorption pipe is installed to one side of the static electricity absorption pipe.
Further, a first movable bearing is arranged on the side face of the movable door, and the movable door is movably connected with the main body of the electric dust collector through the first movable bearing.
Furthermore, a connecting pipe is arranged on the side face of the air storage tank, and the air storage tank is fixedly connected with the electric dust collector main body through the connecting pipe.
Further, a second movable bearing is arranged on one side of the damping electric tube, and the damping electric tube is movably connected with the electrostatic adsorption pole tube through the second movable bearing.
Further, an operation key is installed on one side of the electric dust collector main body, and the operation key is electrically connected with the electric dust collector main body.
Further, an electromagnetic pulse valve is arranged on one side of the electric dust collector main body, and the electromagnetic pulse valve is in signal connection with the electric dust collector main body.
Further, a power pull ring is arranged on the side face of the filter, and the power pull ring is fixedly connected with the filter.
Further, a separating strip and a filter are arranged on one side of the annular gap ejector, and the filter is fixedly connected with the annular gap ejector through the separating strip.
Compared with the prior art, the invention has the beneficial effects that: this kind of corrosion-resistant combination formula electrostatic precipitator carries out assembled with annular gap ejector and electrostatic precipitator main part and is connected during the design, and at corrosion-resistant combination formula electrostatic precipitator during operation, annular gap ejector makes and does not deviate from the center when swinging the inside air current of trachea and sprays, lets the inside that air current all enters into the filter around all to it is more
For quick with the dust adsorption filtration in the corrosion-resistant combined type electrostatic precipitator, not only make corrosion-resistant combined type electrostatic precipitator's deashing performance more, but also great promotion corrosion-resistant combined type electrostatic precipitator's work efficiency has installed the deashing sprinkler, this kind of deashing sprinkler is designed with the shape of palladium head, divide into a plurality of water spray ports, and when the deashing sprinkler carries out the water spray process, because water spray port divide into a plurality of small-size spouts, the rivers spun water pressure has been increaseed, be favorable to improving corrosion-resistant combined type electrostatic precipitator's inside dust cleaning efficiency, and corrosion-resistant combined type electrostatic precipitator's electric power resource use has been reduced, corrosion-resistant combined type electrostatic precipitator's use cost has been practiced thrift, the electrostatic precipitator main part is with the aluminium alloy material preparation of high strength, be favorable to improving the corrosion resistance of electrostatic precipitator main part, corrosion-resistant combined type electrostatic precipitator's life is prolonged.
Drawings

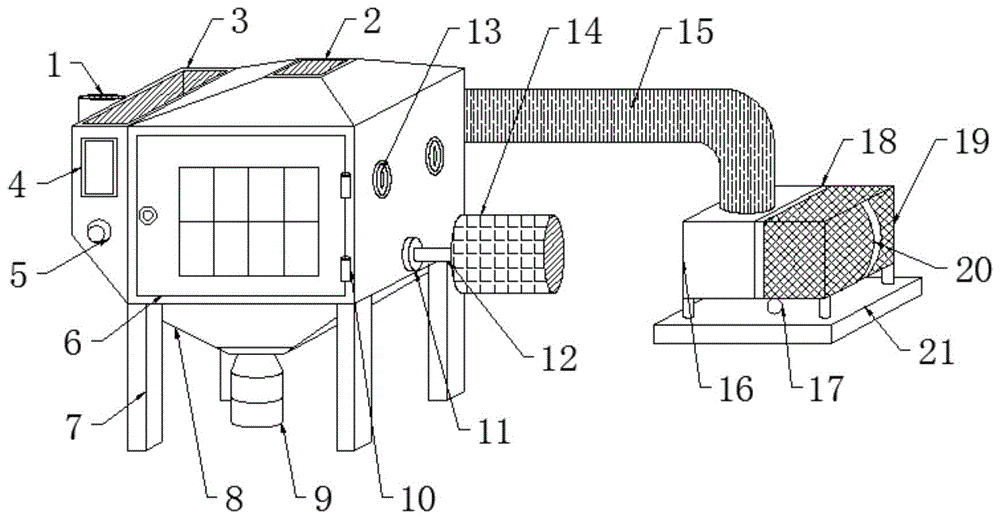

FIG. 1 is a schematic overall structure of a specific embodiment of the present invention;
FIG. 2 is a schematic view of the overall structure of an annular-gap eductor in accordance with embodiments of the invention;
FIG. 3 is a schematic view of the overall structure of an electrostatic chuck electrode tube according to an embodiment of the present invention;
in the figure: 1-a purge gas conduit; 2-an electric precipitator body; 3-a water storage tank; 4-a display screen; 5-an operation key; 6-a movable door; 7-supporting frames; 8-an ash settling hopper; 9-an air pressure pump; 10-a first movable bearing; 11-screw cap; 12-connecting pipes; 13-an electromagnetic pulse valve; 14-a gas storage tank; 15-oscillating air pipe; a 16-annulus injector; 17-gravity inductance ball; 18-separating strips; 19-a filter; 20-a power pull ring; 21-fixing a seat; 22-a flue gas outlet; 23-ash removal water sprayer; 24-a flow guiding pipe; 25-a deflector; 26-electrostatic adsorption pole tube; 27-damping electric tube; 28-a second movable bearing.
Detailed Description
The following description of the embodiments of the present invention will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present invention, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the invention without making any inventive effort, are intended to be within the scope of the invention.
Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a corrosion-resistant combination formula electrostatic precipitator, includes electrostatic precipitator main part 2, storage water tank 3 is installed to one side of electrostatic precipitator main part 2, just storage water tank 3 and electrostatic precipitator main part 2 fixed connection, the side-mounting of storage water tank 3 has purified gas pipe 1, display screen 4 is installed to one side of storage water tank 3, movable door 6 is installed to the side-mounting of electrostatic precipitator main part 2, display screen 4 and electrostatic precipitator main part 2 electrical property
The utility model provides a static electricity absorbing device, including electric dust collector, air pressure pump, support frame 7 is installed to one side of air pressure pump 9, electric dust collector, air pressure pump 15 is installed to the side of electric dust collector, spiral cover 11 is installed to one side of dodge gate 6, air storage tank 14 is installed to the side mounting of spiral cover 11, the ash bucket 8 is installed to the bottom of air storage tank 14, ash bucket 8 is through link up electric dust collector main part 2, and with air storage tank 14 fixed connection, air pressure pump 9 is installed to the bottom of ash bucket 8, support frame 7 is installed to one side of air pressure pump 9, air oscillating pipe 15 is installed to the side mounting of electric dust collector main part 2, just air oscillating pipe 15 and electric dust collector main part 2 fixed connection, annular gap injector 16 is installed to air oscillating pipe 15's bottom, gravity inductance ball 17 is installed to the bottom of gravity inductance ball 17, fixed seat 21 is installed to the bottom of gravity inductance ball 17, the internally mounted of electric dust collector main part 2 has a plurality of evenly distributed's honeycomb ducts 24, the top of honeycomb duct 24 is equipped with flue gas outlet 22, honeycomb duct 24 and air duct 25 fixed connection, ash collector 23 is installed to the bottom of 24, annular gap injector 16 is installed to the bottom of honeycomb duct 16, and is installed to the annular gap injector 26, and is installed to the electrostatic electrode 26 is absorbed by the static electricity absorber 26 to the static electricity absorbing device.
Further, the first movable bearing 10 is installed on the side face of the movable door 6, and the movable door 6 is movably connected with the electric dust collector main body 2 through the first movable bearing 10, so that the movable door 6 is convenient to move, and the corrosion-resistant combined electric dust collector is beneficial to maintain.
Furthermore, the connecting pipe 12 is installed on the side surface of the air storage tank 14, and the air storage tank 14 is fixedly connected with the electric dust collector main body 2 through the connecting pipe 12, so that the air storage tank 14 is reinforced, and the service life of the air storage tank 14 is prolonged.
Further, a second movable bearing 28 is installed on one side of the damping electric tube 27, and the damping electric tube 27 and the electrostatic absorption electrode tube 26 are movably connected through the second movable bearing 28, so that the damping electric tube 27 is convenient to move, and replacement or maintenance of the damping electric tube 27 is facilitated.
Further, the operation key 5 is installed to electric dust collector main part 2 one side, just the operation key 5 has accelerated electric dust collector main part 2's circuit transmission speed with electric dust collector main part 2 electric connection, is favorable to improving electric dust collector main part 2's work efficiency.
Further, the electromagnetic pulse valve 13 is installed on one side of the electric dust collector main body 2, and the electromagnetic pulse valve 13 is in signal connection with the electric dust collector main body 2, so that the signal transmission rate of the electromagnetic pulse valve 13 is increased, and the control performance of the electromagnetic pulse valve 13 on the electric dust collector main body 2 is enhanced.
Further, the power pull ring 20 is installed on the side surface of the filter 19, and the power pull ring 20 is fixedly connected with the filter 19, so that the power pull ring 20 is reinforced, and the service cycle of the power pull ring 20 is prolonged.
Further, a separating strip 18 and a filter 19 are installed on one side of the annular gap ejector 16, and the filter 19 is fixedly connected with the annular gap ejector 16 through the separating strip 18, so that the annular gap ejector 16 is reinforced, and the service life of the annular gap ejector 16 is prolonged.
Working principle: firstly, through the clean gas pipe of electric dust collector main part 2 one side, put through corrosion-resistant combination formula electrostatic precipitator and the region that needs to store back, with storage tank 3 inside water supply, press operating key 5, electric dust collector main part 2 switch-on circuit makes corrosion-resistant combination formula electrostatic precipitator get into operating condition, in the use, clean gas pipe 1 is with the dust in dust removal region's dust introduction to the inside of electric dust collector main part 2, electromagnetic pulse valve 13 opens this moment, because the dust settling hopper 8 through link up electric dust collector main part 2, and with gas holder 14 fixed connection, gas holder 14 begins to carry the air current for the electric dust collector main part, and the big particulate matter in the dust is deposited, enters into the inside of dust settling hopper 8 and stores, and air pressure pump 9 begins to work, and dust settling hopper 8 smashes big particulate matter, and after the work of annular space injector 16 gas holder 14 is sensed, makes the inside air current of air current injection of air oscillating pipe 15 not deviate from the center when spraying, lets the air current all get into the inside of filter 19 this moment, quick with the dust in the corrosion-resistant combination formula electrostatic precipitator adsorb and filter, dust remover 23 is to carry out high pressure washing, honeycomb duct 24 discharges the polluted dust, and the dust water after the dust cleaning operation is discharged.
Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a corrosion-resistant combination formula electrostatic precipitator, includes electrostatic precipitator main part (2), its characterized in that: the utility model discloses an electric dust collector, including electric dust collector main part (2), storage water tank (3) are installed to one side of electric dust collector main part (2), just storage water tank (3) and electric dust collector main part (2) fixed connection, the side-mounting of storage water tank (3) has purified gas pipe (1), display screen (4) are installed to one side of storage water tank (3), movable gate (6) are installed to one side of electric dust collector main part (2), display screen (4) and electric dust collector main part (2) electric connection, screw cap (11) are installed to one side of movable gate (6), air storage tank (14) are installed to the side-mounting of screw cap (11), ash settling bucket (8) are through link up electric dust collector main part (2) to with air storage tank (14) fixed connection, air pressure pump (9) are installed to the bottom of ash settling bucket (8), support frame (7) are installed to one side-mounting of air pressure pump (9), and air oscillating pipe (15) and electric dust collector main part (2) are installed to one side-mounting of spiral cover (11), and air oscillating pipe (16) are installed to the bottom of electric dust collector main part (14) are installed to the bottom of electric dust collector (16) and are penetrated by gravity, the bottom of electric dust collector (16) is installed to the bottom of electric dust collector (16), the bottom of gravity inductance ball (17) is installed fixed seat platform (21), internally mounted of electrostatic precipitator main part (2) has water conservancy diversion ware (25), the side-mounting of water conservancy diversion ware (25) has a plurality of evenly distributed's honeycomb duct (24), the top of honeycomb duct (24) is equipped with flue gas export (22), honeycomb duct (24) and water conservancy diversion ware (25) fixed connection, ash removal sprinkler (23) are installed to the bottom of honeycomb duct (24), internally mounted of annular space ejector (16) has electrostatic absorption utmost point pipe (26), damping electricity pipe (27) are installed to one side of electrostatic absorption utmost point pipe (26); the side surface of the movable door (6) is provided with a first movable bearing (10), and the movable door (6) is movably connected with the electric dust collector main body (2) through the first movable bearing (10); the side face of the air storage tank (14) is provided with a connecting pipe (12), and the air storage tank (14) is fixedly connected with the electric dust collector main body (2) through the connecting pipe (12).
2. A corrosion resistant modular electric precipitator in accordance with claim 1, wherein: a second movable bearing (28) is arranged on one side of the damping electric tube (27), and the damping electric tube (27) is movably connected with the electrostatic adsorption electrode tube (26) through the second movable bearing (28).
3. A corrosion resistant modular electric precipitator in accordance with claim 1, wherein: an operation key (5) is arranged on one side of the electric dust collector main body (2), and the operation key (5) is electrically connected with the electric dust collector main body (2).
4. A corrosion resistant modular electric precipitator in accordance with claim 1, wherein: an electromagnetic pulse valve (13) is arranged on one side of the electric dust collector main body (2), and the electromagnetic pulse valve (13) is in signal connection with the electric dust collector main body (2).
5. A corrosion resistant modular electric precipitator in accordance with claim 1, wherein: one side of the annular space injector (16) is provided with a separation strip (18) and a filter (19), and the filter (19) is fixedly connected with the annular space injector (16) through the separation strip (18).
6. The corrosion resistant modular electric precipitator of claim 5, wherein: the side face of the filter (19) is provided with a power pull ring (20), and the power pull ring (20) is fixedly connected with the filter (19).
