Abstract
The invention provides an air conditioner, wherein, the ventilation component comprises: a heat exchanger; the first air duct is connected with the heat exchanger; the first fan is arranged in the first air duct; the second air duct is connected with the heat exchanger, and the gas in the second air duct exchanges heat with the gas in the first air duct through the heat exchanger; the second fan is arranged in the second air duct; and the switching mechanism is arranged on the second air duct and controls the second air duct to be opened or closed. According to the air exchange assembly provided by the invention, the gas in the second air channel exchanges heat with the gas in the first air channel through the heat exchanger, the evaporator of the air conditioner is positioned at the air outlet of the second air channel and cools or heats the gas flowing out of the second air channel, and meanwhile, the second air channel is also provided with the switching mechanism so as to realize the control of the internal circulation mode or the external circulation mode of the air exchange assembly or the air conditioner with the air exchange assembly.
Description
Technical Field
The invention relates to the technical field of air conditioners, in particular to an air conditioner.
Background
Common traditional air conditioners in life are usually supplied air by an internal circulation mode, namely the air conditioners can only refrigerate or heat indoor air circularly, however, in a living room or an office area with a large number of people, as time goes on, the indoor oxygen content is gradually reduced, the CO2 concentration is increased, the air is turbid, the human health is not facilitated, the indoor air quality can be improved to a certain extent if window opening ventilation is carried out, the air refrigerating or heating efficiency is reduced, and energy is wasted.
Disclosure of Invention
In order to solve at least one of the above technical problems, an embodiment of the first aspect of the present invention proposes a ventilation assembly.
In a second aspect of the embodiment of the invention, an air conditioner is also provided.
In view of the above, according to an embodiment of the first aspect of the present invention, there is provided a ventilation assembly for an air conditioner, including: a heat exchanger; the first air duct is connected with the heat exchanger; the first fan is arranged in the first air channel; the second air channel is connected with the heat exchanger, and the gas in the second air channel exchanges heat with the gas in the first air channel through the heat exchanger; the second fan is arranged in the second air duct; and the switching mechanism is arranged on the second air duct and controls the second air duct to be opened or closed.
According to the ventilation assembly provided by the invention, the air in the second air channel exchanges heat with the air in the first air channel through the heat exchanger, and the evaporator of the air conditioner is positioned at the air outlet of the second air channel and is used for refrigerating or heating the air flowing out of the second air channel. Generally, the second air duct extracts outdoor or other fresh air to supply air to the air conditioner, so that fresh air can be supplemented in time in a room where the air conditioner is located, the air quality and the oxygen content are improved, meanwhile, the first air duct discharges dirty air with low oxygen content to the outdoor, and the air external circulation function of the air conditioner is realized; and through setting up heat exchanger for can preheat or precool when outdoor air gets into indoor, promote the utilization ratio of the energy, reduce the service load of the air conditioner effectively. Meanwhile, the second air duct is also provided with a switching mechanism so as to realize the control of an internal circulation mode or an external circulation mode of the air exchange assembly or the air conditioner with the air exchange assembly, and further improve the control flexibility of the air exchange assembly and the utilization efficiency of energy. And this subassembly of taking a breath self has the modular characteristic, to some old traditional air conditioners, under the prerequisite of not changing air conditioning equipment, can realize the new trend function of taking a breath of air conditioner through addding this subassembly of taking a breath, and needn't change air conditioning equipment alone, so both promoted this subassembly of taking a breath's market scope and product competitiveness, also reduced the cost to the renewal of air conditioning function simultaneously.
In addition, the ventilation assembly provided in the above embodiment of the present invention may further have the following additional technical features:
in the above technical solution, preferably, the switching mechanism includes: the wind shield controls the first air channel and the second air channel to be opened or closed simultaneously through rotation or translation.
In the technical scheme, the first air duct and the second air duct are controlled to be opened or closed simultaneously by arranging the wind shield, so that the switching of the internal circulation mode and the external circulation mode of the air exchange assembly and the air conditioner provided with the air exchange assembly is realized. Generally, can set up the air intake in first wind channel and the air outlet in second wind channel side by side, rotate or the translation is so that both open or close simultaneously with the deep bead simultaneously, has so not only realized the switching to the subassembly air feed mode of taking a breath, is favorable to simplifying this subassembly of taking a breath's overall structure moreover, is convenient for control.
In any one of the above technical solutions, preferably, the sealing rubber strip is disposed on the wind deflector and located at a matching position of the wind deflector with the first air duct and the second air duct.
In the technical scheme, the sealing rubber strips are arranged at the matching positions of the wind shield, the first air channel and the second air channel, so that the sealing performance of the ventilation assembly is improved, and the heating or refrigerating efficiency of the air conditioner with the ventilation assembly is prevented from being reduced due to air leakage.
In any of the above technical solutions, preferably, the method further includes: and the filtering component is arranged on the second air channel.
In this technical scheme, through set up filtering component on the second wind channel, filter impurity, dust etc. in the second wind channel to the air conditioner air feed, promote the air feed quality, promote user experience.
In any of the above solutions, preferably, the filter assembly includes a filter screen and activated carbon.
In the technical scheme, the filter screen, such as a high efficiency air filter (HEPA), is adopted to effectively filter pollutants such as smoke, dust, bacteria and the like in the gas in the second air duct, so that the cleanness and safety of the air supply of the air conditioner are fully guaranteed; meanwhile, the capacity of absorbing and filtering pollutants is further improved by arranging the activated carbon.
In any of the above technical solutions, preferably, the first fan is a centrifugal wind wheel exhaust fan; the second fan is a centrifugal wind wheel suction fan.
In this technical scheme, first fan adopts centrifugal wind wheel air discharge fan, and the second fan adopts centrifugal wind wheel air suction fan, through adopting centrifugal air discharge fan, can enough promote its air suction and exhaust ability, is convenient for adjust gas flow, still helps reducing the noise of subassembly of taking a breath in the use simultaneously.
In any of the above technical solutions, preferably, the method further includes: the first speed regulator is connected with the first fan; and the second speed regulator is connected with the second fan.
In the technical scheme, the first fan and the second fan are respectively controlled by arranging the first speed regulator and the second speed regulator, so that the control on the ventilation volume and the ventilation speed of the ventilation assembly can be realized, and the gas heat exchange volume and the heat exchange rate in the heat exchanger can be controlled by adjusting the rotating speed of the first fan or the second fan.
An embodiment of a second aspect of the present invention provides an air conditioner, comprising: the air exchange assembly of the embodiment of the first aspect.
According to the air conditioner provided by the invention, the air exchange assembly of the embodiment of the first aspect is additionally arranged, so that the air supply source of the air conditioner can be switched from the traditional indoor air supply mode to the selective outdoor or other fresh air supply mode, the indoor air where the air conditioner is located can be supplemented with fresh air in time, the air quality and the oxygen content are improved, meanwhile, the indoor dirty air with low oxygen content is discharged to the outdoor in time, and the use experience of the air conditioner is improved. Meanwhile, the ventilation assembly can be used as an independent module and added into an existing air conditioning system, so that the fresh air ventilation function of the air conditioner is achieved, and air conditioning equipment does not need to be replaced.
In addition, the air conditioner in the above embodiment provided by the present invention may further have the following additional technical features:
in the above technical solution, preferably, the method further includes: an evaporator; and the air supply port is arranged on the evaporator and is connected with the second air duct.
In the technical scheme, the air in the second air duct supplies air to the evaporator through the air supply port to heat or refrigerate, so that the quality and the oxygen content of the air are improved.
In any of the above technical solutions, preferably, the air supply port includes a first air supply sub-port and a second air supply sub-port, and the second air supply sub-port is connected to the second air duct; the switching structure is also used for switching the first air supply sub-port or the second air supply sub-port to supply air to the air conditioner.
In this technical scheme, realize two kinds of air feed modes to the evaporimeter through setting up first air feed sub-mouth and second air feed sub-mouth, generally, second wind channel and second air feed sub-mouth provide fresh, the high clean gas of oxygen content for the evaporimeter, promote indoor air quality, and second air feed sub-mouth can be connected as the air conditioner air supply mouth of inner loop with indoor, and the switching structure can also realize the switching to first air feed sub-mouth or second air feed sub-mouth, and then realize the switching function to air ware inner loop mode or extrinsic cycle mode.
In any of the above technical solutions, preferably, the method further includes: and the air inlet grille is arranged on the air supply port.
In this technical scheme, through set up air inlet grille on the air supply mouth, can filter some great debris, avoid because of debris mistake income evaporimeter, influence the use of evaporimeter and damage air ware equipment even, can also promote air inlet efficiency and the heating or refrigeration efficiency of air conditioner through the grid shape control air inlet direction that sets up air inlet grille simultaneously.
Additional aspects and advantages of the invention will be set forth in part in the description which follows, and in part will be obvious from the description, or may be learned by practice of the invention.
Drawings
The above and/or additional aspects and advantages of the present invention will become apparent and readily appreciated from the following description of the embodiments, taken in conjunction with the accompanying drawings of which:

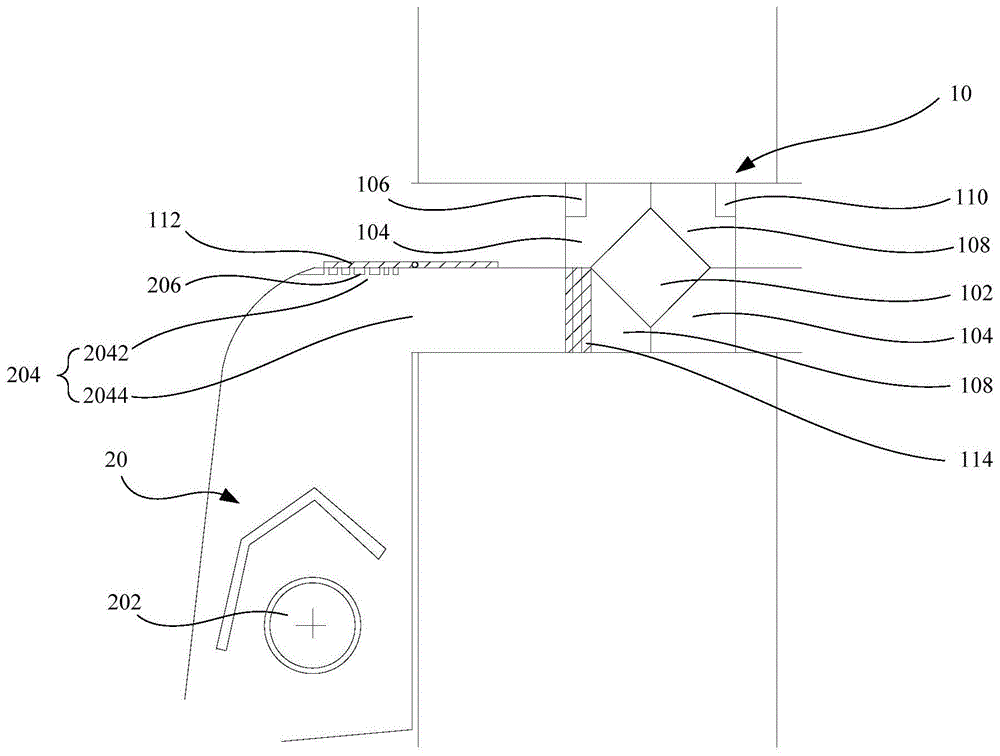

FIG. 1 is a schematic block diagram of a first embodiment of an embodiment of the present invention;
fig. 2 is a schematic structural view of a second embodiment of the structure shown in fig. 1.
Wherein, the correspondence between the reference numbers and the component names in fig. 1 and fig. 2 is:
10 air exchange component, 102 heat exchanger, 104 first air channel, 106 first fan, 108 second air channel, 110 second fan, 112 switching mechanism, 114 filtering component, 20 air conditioner, 202 evaporator, 204 air supply port, 2042 first air supply sub port, 2044 second air supply sub port and 206 air inlet grille.
Detailed Description
In order that the above objects, features and advantages of the present invention can be more clearly understood, a more particular description of the invention will be rendered by reference to the appended drawings. It should be noted that the embodiments and features of the embodiments of the present application may be combined with each other without conflict.
In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention, however, the present invention may be practiced in other ways than those specifically described herein, and therefore the scope of the present invention is not limited by the specific embodiments disclosed below.
The air exchange assembly and the air conditioner according to some embodiments of the present invention will be described with reference to fig. 1 and 2.
As shown in fig. 1 and 2, the present invention provides a ventilation assembly 10 for an air conditioner 20, including: a heat exchanger 102; a first air duct 104 connected to the heat exchanger 102; a first fan 106 disposed in the first air duct 104; a second air duct 108 connected to the heat exchanger 102, wherein the air in the second air duct 108 exchanges heat with the air in the first air duct 104 through the heat exchanger 102; a second fan 110 disposed in the second air duct 108; a switching mechanism 112, the switching mechanism 112 being disposed on the second air duct 108, the switching mechanism 112 controlling the opening or closing of the second air duct 108.
In the ventilation assembly 10 provided by the present invention, the air in the second air duct 108 exchanges heat with the air in the first air duct 104 through the heat exchanger 102, and the evaporator 202 of the air conditioner 20 is located at the air outlet of the second air duct 108 and cools or heats the air flowing out of the second air duct 108. Generally, the second air duct 108 extracts fresh air from the outside or other positions to supply air to the air conditioner, so that fresh air can be supplied to the room where the air conditioner is located in time, the air quality and the oxygen content are improved, and meanwhile, the first air duct 104 discharges dirty air with low oxygen content to the outside of the room, so that the air external circulation function of the air conditioner is realized; and through setting up heat exchanger 102 for can preheat or precool when outdoor air gets into indoor, promote the utilization ratio of the energy, reduce the use load of the air conditioner effectively. Meanwhile, the second air duct 108 is further provided with a switching mechanism 112 to control an internal circulation mode or an external circulation mode of the air exchange assembly 10 or the air conditioner with the air exchange assembly 10, thereby further improving the flexibility of controlling the air exchange assembly 10 and the utilization efficiency of energy. And this subassembly 10 of taking a breath itself has the modularization characteristic, to some old traditional air conditioners, under the prerequisite of not changing air conditioning equipment, can realize the new trend function of taking a breath of air conditioner through addding this subassembly 10 of taking a breath, and needn't change air conditioning equipment alone, so both promoted the market scope and the product competitiveness of this subassembly 10 of taking a breath, also reduced the cost to the renewal of air conditioning function simultaneously.
In one embodiment of the present invention, as shown in fig. 1 and 2, preferably, the switching mechanism 112 includes: and the wind deflector controls the first wind channel 104 and the second wind channel 108 to be opened or closed simultaneously through rotation or translation.
In this embodiment, the first air duct 104 and the second air duct 108 are controlled to be opened or closed simultaneously by providing the air blocking plate, so that the switching between the internal circulation mode and the external circulation mode of the air exchange assembly 10 and the air conditioner provided with the air exchange assembly 10 is realized. Generally, as shown in fig. 1 and fig. 2, the air inlet of the first air duct 104 and the air outlet of the second air duct 108 may be arranged side by side, and the air blocking plate is rotated to open or close both air inlets and air outlets simultaneously, so that not only the air supply mode of the air exchange assembly 10 is switched, but also the overall structure of the air exchange assembly 10 is simplified and is convenient to control. In addition, the wind deflector in fig. 1 and 2 opens and closes the two air ducts by rotating, and can also control the wind deflector by translation or other modes to achieve the same purpose, which is not described in detail in this specification.
In one embodiment of the present invention, preferably, the sealing rubber strip is disposed on the wind deflector at the matching position of the wind deflector with the first wind channel 104 and the second wind channel 108.
In this embodiment, the sealing rubber strips are disposed at the matching portions of the wind shield plate and the first air duct 104 and the second air duct 108, so as to improve the sealing performance of the ventilation assembly 10 and prevent the heating or cooling efficiency of the air conditioner with the ventilation assembly 10 from being reduced due to air leakage.
In one embodiment of the present invention, preferably, as shown in fig. 1 and 2, further comprising: and a filter assembly 114 disposed on the second air duct 108.
In this embodiment, the filtering component 114 is disposed on the second air duct 108 to filter impurities, dust, and the like in the air supply from the second air duct 108 to the air conditioner, so as to improve the air supply quality and improve the user experience. The position of the filtering unit 114 may be set according to actual conditions, and may be set before the heat exchanger 102 to filter the gas before the gas enters the heat exchanger 102, or may be set after the heat exchanger 102 to prevent pressure loss of the gas when the gas passes through the heat exchanger 102.
In one embodiment of the present invention, the filter assembly 114 preferably includes a filter screen and activated carbon.
In this embodiment, the filter screen, such as a high efficiency air filter (HEPA), is used to effectively filter the pollutants such as smoke, dust, bacteria, etc. in the air in the second air duct 108, so as to fully ensure the cleanness and safety of the air supply of the air conditioner; meanwhile, the capacity of absorbing and filtering pollutants is further improved by arranging the activated carbon.
In one embodiment of the present invention, preferably, the first fan 106 is a centrifugal wind wheel exhaust fan; the second fan 110 is a centrifugal wind wheel suction fan.
In this embodiment, the first fan 106 is a centrifugal wind wheel exhaust fan, the second fan 110 is a centrifugal wind wheel suction fan, and by using the centrifugal exhaust fan, the suction and exhaust capacity of the first fan can be improved, so that the air flow can be conveniently adjusted, and the noise of the ventilation assembly 10 in the use process can be reduced. The type and the position of the fan can be selected according to actual conditions, and the fan type which is large in flow, small in noise and easy to control tends to be selected under normal conditions.
In one embodiment of the present invention, preferably, the method further includes: the first speed regulator is connected with the first fan 106; and a second speed governor connected to the second fan 110.
In this embodiment, by providing the first speed regulator and the second speed regulator to control the first fan 106 and the second fan 110 respectively, it is able to control the ventilation amount and the ventilation speed of the ventilation assembly 10, and at the same time, it is able to control the heat exchange amount and the heat exchange rate of the gas in the heat exchanger 102 by adjusting the rotation speed of the first fan 106 or the second fan 110. For the condition of larger ventilation requirement, the rotating speed of the fan can be properly increased to increase the ventilation speed; meanwhile, the heat exchange efficiency of the heat exchanger 102 can be improved by adjusting the rotating speed of the fan, and a full heat exchanger is usually adopted to ensure a good heat exchange effect in practical application.
In one embodiment of the present invention, as shown in fig. 1, the switching mechanism 112 opens the first air duct 104 and the second air duct 108 when the switching mechanism is in a horizontal position, the air exchange assembly 10 starts air exchange and supplies air for the air conditioner, the air flows to the evaporator for cooling or heating, generally, two ends of the first air duct 104 and the second air duct 108 are respectively located indoors and outdoors, the indoor air is discharged to outdoors through the first air duct 104, and the outdoor air is sent indoors through the second air duct 108 for heating or cooling, so that the indoor air with high pollution and carbon dioxide concentration is discharged outdoors, and the outdoor fresh air with high oxygen content is sent indoors, and meanwhile, the filter assembly 114 disposed in the second air duct 108 can effectively filter the air entering indoors, thereby ensuring air cleanness. By adopting the ventilation assembly 10, the indoor and outdoor air is effectively exchanged, the heat exchanger 102 is utilized to improve the energy utilization rate, the energy loss is avoided, and the ventilation assembly 10 can be manufactured in a modularized manner and can be directly applied to the conventional air conditioner without burdening high equipment replacement cost.
In an embodiment of the present invention, as shown in fig. 2, the switching mechanism 112 is in a vertical position to close the first air duct 104 and the second air duct 108, and the air conditioner is in an internal circulation mode without ventilation from the outside, which is helpful to reduce the load of the air conditioner and save energy when the number of indoor people is small and the concentration of carbon dioxide is not high. Through the switching of the air exchange component 10 to the internal circulation or the external circulation of the air conditioner, the control of the air conditioner is strengthened, and meanwhile, a proper working mode can be adopted under various conditions, so that the waste of energy is avoided.
The present invention also provides an air conditioner 20, as shown in fig. 1 and 2, including: the air exchange assembly 10 of the first aspect embodiment.
According to the air conditioner 20 provided by the invention, by additionally arranging the ventilation assembly 10 of the first aspect, the switching of the air supply source of the air conditioner is realized, and the traditional indoor air supply mode can be changed into the selective outdoor or other fresh air supply mode, so that fresh air can be supplemented indoors in time, the air quality and the oxygen content are improved, meanwhile, the dirty indoor air with low oxygen content is discharged outdoors in time, and the use experience of the air conditioner 20 is improved. Meanwhile, the ventilation component 10 can be used as an independent module and is additionally arranged in the existing air conditioning system, so that the fresh air ventilation function of the air conditioner is realized without replacing air conditioning equipment.
In one embodiment of the present invention, preferably, as shown in fig. 1 and fig. 2, further comprising: an evaporator 202; and an air supply port 204 is arranged on the evaporator 202, and the air supply port 204 is connected with the second air duct 108.
In this embodiment, the air in the second air duct 108 is supplied to the evaporator 202 through the air supply port 204 to heat or cool, so as to improve the quality and oxygen content of the air.
In one embodiment of the present invention, preferably, as shown in fig. 1 and 2, the air supply port 204 includes a first air supply sub-port 2042 and a second air supply sub-port 2044, and the second air supply sub-port 2044 is connected to the second air duct 108; the switching structure is also used for switching the first air supply sub-port 2042 or the second air supply sub-port 2044 to supply air to the air conditioner 20.
In this embodiment, two air supply modes for the evaporator 202 are implemented by providing the first air supply sub-port 2042 and the second air supply sub-port 2044, generally, the second air duct 108 and the second air supply sub-port 2044 provide fresh clean air with high oxygen content for the evaporator 202 to improve the indoor air quality, the second air supply sub-port 2044 can be connected with the indoor space to serve as the air conditioning air supply port 204 for internal circulation, and the switching structure can also implement switching of the first air supply sub-port 2042 or the second air supply sub-port 2044 (in fig. 1, the second air supply sub-port 2044 is opened to close the first air supply sub-port 2042 to introduce fresh air into the indoor space, in fig. 2, the first air supply sub-port is opened to close the second air supply sub-port to cool or heat the air in the indoor space), thereby implementing a switching function of the air conditioner internal circulation mode or external circulation mode.
In one embodiment of the present invention, preferably, as shown in fig. 1 and fig. 2, further comprising: and an air inlet grill 206 disposed over the air inlet 204.
In this embodiment, the air inlet grille 206 is disposed on the air inlet 204, so that some large impurities can be filtered, the situation that the use of the evaporator 202 is affected or even the air conditioner equipment is damaged due to the impurities entering the evaporator 202 by mistake is avoided, and meanwhile, the air inlet direction can be controlled by setting the grille shape of the air inlet grille 206, so as to improve the air inlet efficiency and the heating or cooling efficiency of the air conditioner 20.
In the present invention, the term "plurality" means two or more unless explicitly defined otherwise. The terms "mounted," "connected," "fixed," and the like are used broadly and should be construed to include, for example, "connected" may be a fixed connection, a detachable connection, or an integral connection; "coupled" may be direct or indirect through an intermediary. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.
In the description herein, the description of the terms "one embodiment," "some embodiments," "specific embodiments," etc., means that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The above description is only a preferred embodiment of the present invention and is not intended to limit the present invention, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (7)
1. An air conditioner, comprising:
a ventilation assembly;
the air exchange assembly includes:
a heat exchanger;
a first air duct connected to the heat exchanger;
the first fan is arranged in the first air channel;
the second air duct is connected with the heat exchanger, and the gas in the second air duct exchanges heat with the gas in the first air duct through the heat exchanger;
the second fan is arranged in the second air duct;
the switching mechanism is arranged on the second air duct and controls the second air duct to be opened or closed;
the switching mechanism is arranged on one side, far away from the heat exchanger, of the second air duct;
the switching mechanism includes:
the wind shield controls the first air duct and the second air duct to be opened or closed simultaneously through rotation or translation;
the air exchange assembly can be used as a stand-alone module;
the air conditioner further includes:
an evaporator;
the air supply port is arranged on the evaporator and is connected with the second air duct;
the air supply port comprises a first air supply sub-port and a second air supply sub-port, and the second air supply sub-port is connected with the second air duct;
the switching mechanism is also used for switching the first air supply sub-port or the second air supply sub-port to supply air to the air conditioner;
when the first air duct and the second air duct are opened simultaneously, the first air supply sub-port is closed, and the second air supply sub-port is opened; when the first air duct and the second air duct are closed simultaneously, the first air supply sub-port is opened, and the second air supply sub-port is closed.
2. The air conditioner of claim 1, wherein the air exchange assembly further comprises:
and the sealing rubber strip is arranged on the wind shield and is positioned at the matching part of the wind shield, the first air channel and the second air channel.
3. The air conditioner of claim 1, wherein the air exchange assembly further comprises:
and the filtering component is arranged on the second air channel.
4. The air conditioner according to claim 3,
the filtering component comprises a filtering net and active carbon.
5. The air conditioner according to any one of claims 1 to 4,
the first fan is a centrifugal wind wheel exhaust fan;
the second fan is a centrifugal wind wheel suction fan.
6. The air conditioner according to any one of claims 1 to 4, wherein the air exchange assembly further comprises:
the first speed regulator is connected with the first fan;
and the second speed regulator is connected with the second fan.
7. The air conditioner according to claim 1, further comprising:
and the air inlet grille is arranged on the air supply port.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201710099415.2A CN106642435B (en) | 2017-02-23 | 2017-02-23 | Air conditioner |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201710099415.2A CN106642435B (en) | 2017-02-23 | 2017-02-23 | Air conditioner |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN106642435A CN106642435A (en) | 2017-05-10 |
| CN106642435B true CN106642435B (en) | 2023-01-31 |
Family
ID=58844899
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201710099415.2A Active CN106642435B (en) | 2017-02-23 | 2017-02-23 | Air conditioner |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN106642435B (en) |
Families Citing this family (4)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN109595771A (en) * | 2018-12-20 | 2019-04-09 | 北京海林节能科技股份有限公司 | A kind of Xingfeng capsule system and control method |
| CN111397109B (en) * | 2020-03-19 | 2021-08-27 | 海信（山东）空调有限公司 | Air mixing control method and air mixing control device of air conditioning system |
| CN111895506B (en) * | 2020-07-17 | 2021-11-23 | Tcl空调器(中山)有限公司 | Air conditioner fresh air control method and air conditioner |
| CN114001408A (en) * | 2021-11-02 | 2022-02-01 | 三一筑工科技股份有限公司 | Fresh air and air conditioner all-in-one machine, control method, device, equipment and readable storage medium |
Citations (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN101551141A (en) * | 2009-04-22 | 2009-10-07 | 广东美的电器股份有限公司 | Air handling device used for machinery room |
Family Cites Families (10)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN1212492C (en) * | 2001-11-19 | 2005-07-27 | 乐金电子(天津)电器有限公司 | Air conditioner with air interchanging function |
| KR100816918B1 (en) * | 2006-08-03 | 2008-03-27 | 엘지전자 주식회사 | Air conditioner with ventilation |
| JP5538272B2 (en) * | 2011-02-24 | 2014-07-02 | 三菱電機株式会社 | Heat exchange ventilator |
| CN203323289U (en) * | 2013-07-05 | 2013-12-04 | 成都昊普环保技术有限公司 | Rolling fresh air conditioner |
| CN103486674B (en) * | 2013-09-09 | 2016-08-10 | 宁波东大空调设备有限公司 | A kind of wall-mounted fresh air purifier |
| CN203718936U (en) * | 2013-12-16 | 2014-07-16 | 美的集团股份有限公司 | Air conditioner indoor unit |
| CN105546688A (en) * | 2016-01-29 | 2016-05-04 | 江苏创兰太阳能空调有限公司 | Purifying and fresh air exchanging integrated multifunctional air conditioner and control method thereof |
| CN205783537U (en) * | 2016-04-28 | 2016-12-07 | 东莞市万科建筑技术研究有限公司 | A kind of air channel switching construction of new blower fan |
| CN106288010A (en) * | 2016-09-22 | 2017-01-04 | 刘满华 | Air conditioner integrated machine |
| CN206531206U (en) * | 2017-02-23 | 2017-09-29 | 广东美的制冷设备有限公司 | Ventilation component and air conditioner |
-
2017
- 2017-02-23 CN CN201710099415.2A patent/CN106642435B/en active Active
Patent Citations (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN101551141A (en) * | 2009-04-22 | 2009-10-07 | 广东美的电器股份有限公司 | Air handling device used for machinery room |
Also Published As
| Publication number | Publication date |
|---|---|
| CN106642435A (en) | 2017-05-10 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| WO2018145501A1 (en) | Air conditioner having air purification function | |
| CN106765650B (en) | Compact fresh air exhaust and purification air conditioner integrated machine | |
| CN106642435B (en) | Air conditioner | |
| CN108302685B (en) | Air circulation system having internal air circulation, discharge and suction functions | |
| CN108397829A (en) | A kind of fresh air conditioner indoor unit | |
| CN108105937A (en) | The new wind turbine of ring window frame heat reclamation type | |
| CN111578378A (en) | Fresh air conditioning system and control method | |
| CN205351661U (en) | Air piping system's of central authorities wind channel auto -change over device | |
| CN212408979U (en) | Fresh air conditioning system | |
| CN105276722A (en) | All-purpose fresh air and air conditioning system | |
| CN106016572B (en) | Fresh air purification system | |
| CN208238002U (en) | Air conditioner indoor unit | |
| CN212511454U (en) | Fan assembly, fresh air device, air conditioner indoor unit and air conditioner | |
| CN209431606U (en) | A kind of new blower of bidirectional flow Two-way Cycle | |
| CN209459060U (en) | Machine through walls | |
| CN206531206U (en) | Ventilation component and air conditioner | |
| CN208238007U (en) | Air conditioner indoor unit | |
| CN102374601B (en) | Energy-saving-type intelligent air renewal system of integrated air conditioner | |
| CN213480476U (en) | New fan | |
| CN109442571A (en) | Machine through walls | |
| CN214406255U (en) | Machine and air conditioner in air conditioning | |
| CN211400129U (en) | One-way flow fresh air purification and ventilation device | |
| CN208750939U (en) | Aeration device and air conditioner indoor unit | |
| CN114396658A (en) | Air conditioner adopting heat recovery device with bypass valve | |
| CN209639157U (en) | A kind of novel constant-temperature purification air-conditioning |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant |
