CN1060841C - Long tube type high pressure water fog dust cleaning method and device for roll coal-cutter - Google Patents

Long tube type high pressure water fog dust cleaning method and device for roll coal-cutter Download PDF

Info

Publication number
CN1060841C
CN1060841C CN96117018A CN96117018A CN1060841C CN 1060841 C CN1060841 C CN 1060841C CN 96117018 A CN96117018 A CN 96117018A CN 96117018 A CN96117018 A CN 96117018A CN 1060841 C CN1060841 C CN 1060841C
Authority
CN
China
Prior art keywords
shearer
pressure water
long
coal
long tube
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Expired - Fee Related
Application number
CN96117018A
Other languages
Chinese (zh)
Other versions
CN1170809A (en
Inventor
陶廷云
金太
姜学云
华岁喜
杨胜强
雷文成
杨长明
时成忠
谢耀社
夏晓明
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Baodian Coal Mine Of Yanzhou Mining Group Co ltd
China University of Mining and Technology Beijing CUMTB
Original Assignee
Baodian Coal Mine Of Yanzhou Mining Group Co ltd
China University of Mining and Technology Beijing CUMTB
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Baodian Coal Mine Of Yanzhou Mining Group Co ltd, China University of Mining and Technology Beijing CUMTB filed Critical Baodian Coal Mine Of Yanzhou Mining Group Co ltd
Priority to CN96117018A priority Critical patent/CN1060841C/en
Publication of CN1170809A publication Critical patent/CN1170809A/en
Application granted granted Critical
Publication of CN1060841C publication Critical patent/CN1060841C/en
Anticipated expiration legal-status Critical
Expired - Fee Related legal-status Critical Current

Links

Images

Landscapes

  • Cleaning By Liquid Or Steam (AREA)
  • Cleaning In General (AREA)

Abstract

滚筒采煤机长筒式高压水雾吸尘方法及装置，最适用于井下双滚筒和单滚筒采煤机。在采煤机机面纵向设置一长钢板筒，长筒内设置主喷嘴组和辅助喷嘴组，将高压水引入采煤机机面上设置的长筒内，在长筒内设置的喷嘴组作用下，使长筒的一端产生负压，起到吸尘作用。在原有内外喷雾降尘的基础上，将采煤机周围空气中的粉尘浓度降低80～90%，大大改善了采煤机工作面的工作环境，其可靠性强，结构简单，成本低，操作方便，维护简单，具有广泛的实用性。

Figure 96117018

The invention discloses a long cylinder type high-pressure water mist dust suction method and device for a drum shearer, which is most suitable for underground double-drum and single-drum shearers. A long steel tube is arranged longitudinally on the face of the shearer, and the main nozzle group and the auxiliary nozzle group are arranged in the long tube, and the high-pressure water is introduced into the long tube set on the face of the shearer, and the nozzle group set in the long tube functions Down, make one end of the long tube generate negative pressure, play the role of dust suction. On the basis of the original internal and external spray dust reduction, the dust concentration in the air around the shearer is reduced by 80-90%, which greatly improves the working environment of the shearer face. It has strong reliability, simple structure, low cost and convenient operation. , easy maintenance and wide applicability.

Figure 96117018

Description

Flitting long tube type high pressure water fog dust cleaning method and device
The present invention relates to flitting long tube type high pressure water fog dust cleaning and device, be particularly useful for coal mine fully-mechanized mining face, comprehensive coal face, general twin-roll and the single ended shearer of adopting face.
Longwall machinery coal-face drum shearer depositing dust problem is one of technical barrier that coal industry faces in the world wide under the coal mine.Under the situation of not taking any measurements for reduction, one ton of coal of the every evil of coal-winning machine will produce 2 * 10 usually 5～5 * 10 5The mg coal dust.External spraying, coal seam shift to an earlier date measurements for reduction such as water filling in the cylinder that adopts at present, and the dust-producing amount that coal-winning machine whenever cuts one ton of coal can be reduced to 10 4～1.2 * 10 4Mg, but around the coal-winning machine and rear (following distinguished and admirable), the dustiness in every cubic metres of air is still up to more than 200～1000mg.Work under coal miner's sd so condition, not only reduced workman's production efficiency, increased the probability that various industrial accidents take place, but also hiding the possibility that coal-dust explosion takes place in the hiding, threaten mine safety production.
Problem in view of the prior art existence, the purpose of this invention is to provide an a kind of end sprays the long tube type high pressure water fog dust cleaning method of water smoke and realizes that this method is arranged on the long tube type high pressure water fog dust cleaning device on the flitting to the other end, it moves work simultaneously with coal-winning machine, can improve the working environment under the coal mine effectively.
Flitting long tube type high pressure water fog dust cleaning method of the present invention enters growing tube in coal-winning machine machine side on water under high pressure by high-pressure rubber pipe with high-pressure hydraulic pump, and high-pressure rubber pipe is packed into and dragged in the cable clamp, is dragged by coal-winning machine with cable; Water under high pressure enters long through high-pressure rubber pipe, and the nozzle group that is provided with in long tube sprays water smoke by an end of long to the other end.Two groups of nozzles that are provided with in the long tube are alternately opened, are stopped, and the direction that main jet is chewed spraying is always opposite with the shearer haulage direction, and is consistent with the air draught direction; Auxiliary nozzle spray direction is consistent with lead, and is opposite with the air draught direction.The pressure of the water under high pressure of being got by high-pressure pump is controlled to be 15～20MPa, and flow is 0.5～1% of a coal-winning machine coal cutting amount.
Flitting long tube type high pressure water fog dust cleaning device of the present invention, one long steel plate tube longitudinally is set on the machine side of coal-winning machine, its length is greater than coal-winning machine body length, less than the distance of shaft centers of two ends coal cutting cylinder, the two-port of long tube is the bell mouth shape of oblique cylinder, is provided with two groups of main jet spray paintings in the long tube and chews, the angle inboard at two ends, one group of auxiliary nozzle respectively is housed, and each is organized nozzle and connects high-pressure rubber pipe, and the high-pressure hydraulic pump that is provided with in high-pressure rubber pipe and the gallery is linked together.For easy accessibility, it is a gastight integral body that long tube is connected by some joints, and in coal mining machine side top, the section of long tube can be square, also can be circular with bolton.The high-pressure rubber pipe of connection nozzle group and high-pressure hydraulic pump is packed into and is dragged in the cable clamp.
Flitting long tube type high pressure water fog dust cleaning method of the present invention and device, at the flitting machine side one long steel plate tube is set vertically, in the long tube main jet is set and chews and assist the nozzle group, water under high pressure is introduced in the long tube that is provided with on the coal-winning machine machine side, under the nozzle group ejection water smoke effect that in long tube, is provided with, make an end of long letter produce negative pressure, play the dust suction effect.On the basis of original inside and outside atomizing de-dusting, the dust concentration in the coal-winning machine ambient air is reduced by 80～90%, promptly dust content can be reduced to 20～100mg/m in the work plane air 3Below, wherein respirable dust concentration can be reduced to 10～30mg/m 3Below, improved the working environment of coal-face greatly, guarantee that the workman is healthy, raise labour productivity, can stop the generation of coal-dust explosion fully.Its good reliability, simple in structure, cost is low, and is easy to operate, safeguards simply to have practicality widely.
Description of drawings:

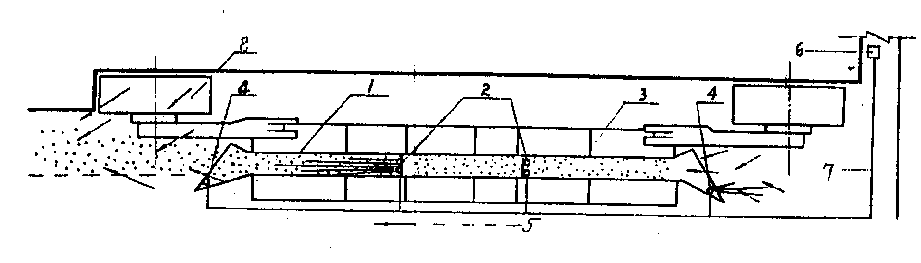

Accompanying drawing is a structure principle chart of the present invention.
Long tube 1, nozzle group 2, coal-winning machine 3, auxiliary nozzle group 4, wind direction 5, high-pressure hydraulic pump 6, high-pressure rubber pipe 7, coal mining machine roller 8.
Below in conjunction with accompanying drawing one embodiment of the present of invention are further described:
Flitting long tube type high pressure water fog dust cleaning method of the present invention, enter water under high pressure in the long tube 1 of coal-winning machine machine side by high-pressure rubber pipe 7 with high-pressure hydraulic pump 6, high-pressure rubber pipe 7 is packed into and is dragged in the cable clamp, is dragged by coal-winning machine with cable, moves with cable clamp; Water under high pressure enters in long 1 through high-pressure rubber pipe 7, under the effect of the nozzle 2 that is provided with in long tube, sprays water smoke by an end of long to the other end.Long tube one end produces negative pressure, and a large amount of coal dusts that produce when coal-winning machine is mined suck in the long tube 1, and the effect by water smoke becomes coal dust into coal slime, with the other end ejection of water smoke at long tube.Two groups of nozzles 2 that are provided with in the long tube are alternately opened, are stopped, and the direction that main jet is chewed group 2 sprayings is always opposite with the shearer haulage direction, and is consistent with the air draught direction; Auxiliary nozzle group 4 spray direction are consistent with lead, and are opposite with the air draught direction.Cut the cylinder of top coal in order to covering, and enlarge air draught negative pressure field scope.The pressure of the water under high pressure of being got by high-pressure pump 6 is controlled to be 15～20MPa, and flow is 0.5～1% of a coal-winning machine coal cutting amount.
For realizing the long tube type high pressure water fog dust cleaning device of dust suction method of the present invention, on the machine side of coal-winning machine 3, longitudinally install a long steel plate tube 1, its length is greater than the length of body 3, but less than the distance of shaft centers (when cylinder is set level) of two ends coal cutting cylinder 8.Long tube 1 profile height and width are decided on the work plane condition, are respectively 150～250m and 300～700m, and two jiaos are arcuation above the long tube section.For easy accessibility, long tube 1 can be divided into some joints, long 1 meter or 1.5 meters of every joint, and long tube two-port is made the bell mouth shape of oblique cylinder.Whole long tube 1 is an integral body, and is air tight, is secured in the machine side top, and during the coal-winning machine maintenance, its integral body can be sling hangs on the set cap.High-pressure hydraulic pump 6 is arranged in the gallery, in the long tube 1 two groups of main jet spray paintings is installed and is chewed 2, adopts the sky side in the two-port of long tube 1, and one group of auxiliary nozzle 4 respectively is housed, and each organizes nozzle can be provided with 2～3 nozzles.

Claims (6)

1．滚筒采煤机长筒式高压水雾吸尘方法，其特征在于：用高压水泵(6)将高压水通过高压胶管(7)进入采煤机机面上的长筒(1)内，高压胶管(7)装入拖移电缆夹板内，与电缆一起由采煤机拖动，高压水经高压胶管(7)进入长筒(1)，经长筒(1)内设置的喷咀组，由长筒(1)的一端向另一端喷出水雾。1. The long cylinder type high-pressure water mist suction method for the drum shearer is characterized in that: the high-pressure water pump (6) is used to enter the high-pressure water into the long cylinder (1) on the machine surface of the shearer through the high-pressure rubber hose (7), and the high-pressure rubber hose (7) Put it into the towing cable splint, drag it together with the cable by the shearer, the high-pressure water enters the long tube (1) through the high-pressure rubber hose (7), and passes through the nozzle group provided in the long tube (1), and the One end of the long tube (1) sprays water mist to the other end. 2．根据权利要求1所述的滚筒采煤机长筒式高压水雾吸尘方法，其特征在于：长筒内设置的喷咀组交替开、停，主喷咀(2)喷雾方向总是与采煤机牵引方向相反，与吸风方向一致；辅助喷咀(3)喷雾方向与牵引方向一致，与吸风方向相反。2. According to claim 1, the long cylinder type high-pressure water mist suction method for the drum shearer is characterized in that: the nozzle groups arranged in the long cylinder alternately start and stop, and the spraying direction of the main nozzle (2) is always in the same direction as that of the mining machine. The traction direction of the coal machine is opposite to that of the suction direction; the spraying direction of the auxiliary nozzle (3) is consistent with the traction direction and opposite to the suction direction. 3．根据权利要求1或2所述的滚筒采煤机长筒式高压水雾吸尘方法，其特征在于：高压水的压力为15～20MPa，流量为采煤机割煤量的0．5～1％。3. According to claim 1 or 2, the long cylinder type high-pressure water mist suction method for the drum shearer is characterized in that: the pressure of the high-pressure water is 15-20 MPa, and the flow rate is 0.5-1% of the coal cutting volume of the shearer. %. 4．滚筒采煤机长筒式高压水雾吸尘装置，其特征在于：在采煤机的机面上沿纵向设置一长钢板筒(1)，其长度大于采煤即机体长度，小于两端割煤滚筒的轴心距，长筒(1)的两端口呈斜向滚筒的喇叭口状，长筒内设置两组主喷雾咀(2)，两端的斜口内侧，各设有一组辅助喷咀(4)，各组喷咀联接高压胶管(7)，高压胶管(7)与平巷内设置的高压水泵(6)联接在一起。4. The long cylinder type high-pressure water mist suction device of the roller shearer is characterized in that: a long steel plate cylinder (1) is arranged longitudinally on the machine surface of the coal shearer, and its length is longer than the length of the coal mining machine body, and less than the length of the cutting machine at both ends. The shaft center distance of the coal drum, the two ports of the long cylinder (1) are in the shape of a bell mouth obliquely to the drum, and two sets of main spray nozzles (2) are arranged in the long cylinder, and a set of auxiliary nozzles are respectively provided on the inside of the oblique openings at both ends (4), each group of nozzles connects the high-pressure rubber hose (7), and the high-pressure rubber hose (7) is connected together with the high-pressure water pump (6) that is provided with in the tunnel. 5．根据权利要求4所述的滚筒采煤机长筒式高压水雾吸尘装置，其特征在于：长筒(1)由若干节联接而成。5. The long cylinder type high-pressure water mist suction device of the drum shearer according to claim 4, characterized in that: the long cylinder (1) is formed by connecting several joints. 6．根据权利要求4或5所述的滚筒采煤机长筒式高压水雾吸尘装置，其特征在于：长筒(1)的断面可以是方形的，也可以是圆形的。6. According to claim 4 or 5, the long cylinder type high-pressure water mist suction device for the roller shearer is characterized in that: the section of the long cylinder (1) can be square or circular.
