The invention relates to the technical field of medical instruments, in particular to acupuncture point pressing therapeutic equipment. The acupuncture point pressing therapeutic equipment comprises two moment arms, a pressure clamp and a plurality of sets of acupuncture point pressing mechanisms, wherein the acupuncture point pressing mechanisms are arranged on the two moment arms respectively, and a clamp body with a small upper opening and a large lower opening is formed by the two moment arms; the pressure clamp is fixedly arranged between the tops of the two moment arms; each acupuncture point pressing mechanism is composed of a long guide rail of an annular structure and a pressing rod installed on the guide rail, each pressing rod penetrates through the corresponding guide rail and is locked through two fastening nuts, and an acupuncture point pressing head is arranged at the inner end of each pressing rod. According to the acupuncture point pressing therapeutic equipment, continuous pressure transmitted by elastic force of the pressure clamp serves as acupuncture point stimulation, deep acupuncture points on portions such as the head can be stimulated, the stimulation of the deep acupuncture points is achieved, and continuous stimulation can be achieved; meanwhile, multiple ashi acupuncture points can be found fast, and the good curative effect is achieved.
Description
Technical field
The present invention relates to technical field of medical instruments, specifically, relate to a kind of Acupressure therapeutic instrument.
Background technology
Chinese medicine acupoint stimulation therapy plays very important effect in China's disease prevention and treatment, and in Chinese medicine acupoint stimulation therapy process, stimulation can be divided into physical stimulation and chemical stimulation, wherein: chemical stimulation generally needs professional doctor to use; Physical stimulation mainly comprises electric current, temperature, pressure etc., utilizes these to stimulate principle to produce a lot of acupoint curing instruments and acupoint stimulation Therapeutic Method.
In prior art, acupoint curing instrument needs power supply that the energy that produces stimulation is provided mostly, and shortcoming is: there are noise, electromagnetic radiation or are not easy to sterilization, and, if there is no power supply, be just difficult to use or be difficult for reaching the effect of acupoint stimulation treatment.In addition, do not need the acupuncture needle needle point method of power supply to carry out acupoint stimulation treatment, need more professional doctor; Cupping method and moxibustion therapy etc. easily leave sharp trace at skin surface in treatment, and vestige needs several days or just can disappear more for a long time, and common people are unwilling to treat at Head And Face.
In actual life, the diseases such as the rheumatism that the muscle power such as field investigation research, construction or mental work are followed, dizziness, dim eyesight, insomnia, neurasthenia usually do not have specific drug, be difficult to again obtain in time above-mentioned Chinese medicine acupoint stimulation therapy, easily delay the Best Times for the treatment of.
Summary of the invention
The object of this invention is to provide a kind of cost low, simple in structure, do not need power supply, environmental protection noiseless, and Acupressure therapeutic instrument easy and simple to handle, effect of stimulation is lasting, to solve above-mentioned technical problem.
For achieving the above object, the technical solution adopted in the present invention is:
An Acupressure therapeutic instrument, is characterized in that: comprise two arm of forces, pressure clamp and be separately positioned on some groups of Acupressure mechanisms on two arm of forces, the clamp that described two arm of forces are young on being combined into, end opening is large; Described pressure clamp is fixedly installed between the top of two arm of forces; Described Acupressure mechanism forms by the guide rail of long loop configuration and the pressing lever being arranged on guide rail, and described pressing lever runs through described guide rail, and locks by two clamp nuts, and the inner of described pressing lever is provided with point pressing head; Described guide rail comprises fixed guide and free guide rail; Described Acupressure mechanism comprises top Acupressure mechanism and sidepiece Acupressure mechanism, and described top pressing mechanism consists of fixed guide and at least one pressing lever being arranged on this fixed guide of being fixed on arm of force top; Described sidepiece Acupressure mechanism by be fixed on arm of force bottom fixed guide, at least one is arranged on the pressing lever on this fixed guide, the free guide rail being connected with fixed guide by pressing lever and at least one is arranged on the pressing lever on this free guide rail.
say further,described top Acupressure mechanism is provided with two groups, is separately positioned on the top of two arm of forces; Described sidepiece Acupressure mechanism is provided with two groups, is separately positioned on the bottom of two arm of forces.
furtherly,in described point pressing head, cover has collet.
beneficial effect:owing to having adopted technique scheme, the continuous that pressure clamp elastic force of the present invention transmits is as acupoint stimulation, can stimulate head etc. compared with the acupuncture point point of depths, reach the effect of stimulation of the acupoint degree of depth, and stimulate lasting, can find quickly many Ashi points, there is good curative effect simultaneously.Specifically, the invention has the advantages that:
1, compare with needing the acupoint curing instrument of power supply, that the present invention has is energy-conservation, pollution-free, can sterilizing, the feature such as low, simple in structure, easy and simple to handle, durable in use, radiationless, the voiceless sound of cost, stimulation therapy be effective, have no side effect, especially for positions such as caves in crown Baihui acupoint, both sides temple, volume, the faster convenience of stimulation therapy, can reach more than 10 acupoint pressing point simultaneously;
2, compare with needle point method, the present invention has overcome the shortcoming that needs medical practitioner and prick skin, and has lasting stimulation;
3, compare with moxibustion therapy with cupping method, the present invention can not leave sharp trace at skin surface in treatment, can also treat at any time at crinite position, does not affect hair; And, in the process for the treatment of, other things of can also simultaneously hurrying;
4, the present invention is easy to carry, the general population who works in the wild, can use whenever and wherever possible, can remove the diseases such as rheumatism that a part of muscle power or mental work follow, dizziness, dim eyesight, insomnia, neurasthenia does not usually have the misery (having good curative effect for student especially) of specific drug, wins the Best Times for the treatment of;
5, suitably use the present invention to stimulate the acupuncture point of health, also have therapeutic massage and the function that improves immunity.
accompanying drawing explanation

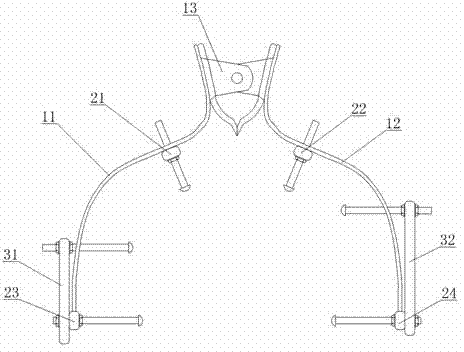

Fig. 1 is structural representation of the present invention;
Fig. 2 is the side-looking structure chart of sidepiece pressing mechanism described in the present invention;
Fig. 3 is the structural representation of pressing lever described in the present invention.
the specific embodiment
Below in conjunction with the drawings and specific embodiments, the invention will be further described.
With reference to Fig. 1, Acupressure therapeutic instrument of the present invention, comprise arm of force 11, No. two arm of force 12 pressure clamp 13 and be separately positioned on some groups of Acupressure mechanisms on two arm of forces, the described arm of force 11, No. two arm of forces 12 are combined into upper young a, clamp that end opening is large; Described pressure clamp 13 is fixedly installed between arm of force 11 and the top of No. two arm of forces 12.
Described Acupressure mechanism forms by the guide rail of long loop configuration and the pressing lever 41 being arranged on guide rail, and described pressing lever 41 runs through described guide rail, and locks by two clamp nuts.As shown in Figure 3, the inner of described pressing lever 41 is provided with point pressing head 42, in described point pressing head 42, cover has the collet that adopts the well-insulated material such as plastics or rubber to make, and the effect of collet is when temperature is lower, can eliminate the sense of discomfort that ice-cold point pressing head is brought.Described guide rail comprises fixed guide and free guide rail.
Described Acupressure mechanism comprises top Acupressure mechanism and sidepiece Acupressure mechanism.
Described top pressing mechanism consists of fixed guide and at least one pressing lever being arranged on this fixed guide of being fixed on arm of force top.Specifically, described top pressing mechanism is provided with two groups, is separately positioned on the top of an arm of force 11 and No. two arm of forces 12.Be arranged on top pressing mechanism on the arm of force 11 and comprise that fixed guide 21 and one are arranged on the pressing lever on fixed guide 21 No. one.Be arranged on No. two top pressing mechanisms on the arm of force 12 and comprise that No. two fixed guides 22 and one are arranged on the pressing lever on fixed guide 22 No. two.
As shown in Figure 2, described sidepiece Acupressure mechanism by be fixed on arm of force bottom fixed guide, at least one is arranged on the pressing lever on this fixed guide, the free guide rail being connected with fixed guide by pressing lever and at least one is arranged on the pressing lever on this free guide rail.Specifically, described sidepiece Acupressure mechanism is provided with two groups, is separately positioned on the bottom of an arm of force 11 and No. two arm of forces 12.The sidepiece Acupressure mechanism that is located at the arm of force 11 bottoms comprises that No. three fixed guides 23 and two are arranged on the pressing lever on fixed guide 23 No. three, and the free guide rail 31 being connected with No. three fixed guides 23 by one of them pressing lever and one are arranged on the pressing lever on free guide rail 31 No. one.The sidepiece Acupressure mechanism that is located at No. two arm of force 12 bottoms comprises that No. four fixed guides 24 and two are arranged on the pressing lever on fixed guide 24 No. four, and No. two free guide rails 32 that are connected with No. four fixed guides 24 by one of them pressing lever and one are arranged on the pressing lever on free guide rail 32 No. two.
The treatment principle of Acupressure therapeutic instrument of the present invention: the clamping force being produced by pressure clamp 13, by arm of force 11, No. two arm of forces 12, pass to each pressing lever respectively, a plurality of acupuncture points are produced to lasting Pressure stimulation simultaneously, reach the effect of Chinese medicine acupoint stimulation therapy.
Applicable crowd's scope of the present invention is wide, can be applicable to the Acupressure treatment at the most of positions of human body, in use, only need, according to the different therapentic parts of various disease or age groups, regulate position and the number of each point pressing head 42.That is to say, when reality is used, the position of point pressing head and number are not limited to described in above-described embodiment, can be according to practical situation, and by adjusting the position of pressing lever and the quantity of increase and decrease pressing lever meet the needs for the treatment of.
The pressure at 42 pairs of acupuncture points of point pressing head of the present invention also can regulate according to the different therapentic parts of various disease or age groups, while reaching the swollen comfortable sensation of acid, is better treatment pressure.Specifically, can adopt following regulative mode: the pressure clamp 13 of 1, selecting different pressures; 2, turn clamp nut, adjust the length that pressing lever enters, and then change the distance of point pressing head 42 and respective track, also can regulate the pressure size at 42 pairs of acupuncture points of point pressing head, that is: when the distance of point pressing head 42 and respective track is far away, pressure is larger; Otherwise pressure is less.
The present invention in use, determine the concrete time of carrying out treatment according to Chinese medicine acupoint stimulation therapy is theoretical, namely not in strenuous exercise just, just have a meal etc. in situation and carry out acupoint stimulation treatment.In addition, according to patient's the state of an illness and sensitivity, the adjusting time; Reaching the long period is better treatment time during comfortable sensation.
Above accompanying drawing explanation and the specific embodiment, it is only preferred embodiment of the present invention, not the present invention is done to any pro forma restriction, any technical solution of the present invention content that do not depart from, any simple modification, equivalent variations and the modification above embodiment done according to technical spirit of the present invention, all still belong in the scope of technical solution of the present invention.
Claims (3)
1. an Acupressure therapeutic instrument, is characterized in that: comprise two arm of forces, pressure clamp and be separately positioned on some groups of Acupressure mechanisms on two arm of forces, the clamp that described two arm of forces are young on being combined into, end opening is large; Described pressure clamp is fixedly installed between the top of two arm of forces; Described Acupressure mechanism forms by the guide rail of long loop configuration and the pressing lever being arranged on guide rail, and described pressing lever runs through described guide rail, and locks by two clamp nuts, and the inner of described pressing lever is provided with point pressing head; Described guide rail comprises fixed guide and free guide rail; Described Acupressure mechanism comprises top Acupressure mechanism and sidepiece Acupressure mechanism, and described top pressing mechanism consists of fixed guide and at least one pressing lever being arranged on this fixed guide of being fixed on arm of force top; Described sidepiece Acupressure mechanism by be fixed on arm of force bottom fixed guide, at least one is arranged on the pressing lever on this fixed guide, the free guide rail being connected with fixed guide by pressing lever and at least one is arranged on the pressing lever on this free guide rail.
2. Acupressure therapeutic instrument according to claim 1, is characterized in that: described top Acupressure mechanism is provided with two groups, is separately positioned on the top of two arm of forces; Described sidepiece Acupressure mechanism is provided with two groups, is separately positioned on the bottom of two arm of forces.
3. Acupressure therapeutic instrument according to claim 1 and 2, is characterized in that: in described point pressing head, cover has collet.
