CN103618178A - Zero-standby zero power consumption energy-saving socket - Google Patents
Zero-standby zero power consumption energy-saving socket Download PDFInfo
- Publication number
- CN103618178A CN103618178A CN201310692874.3A CN201310692874A CN103618178A CN 103618178 A CN103618178 A CN 103618178A CN 201310692874 A CN201310692874 A CN 201310692874A CN 103618178 A CN103618178 A CN 103618178A
- Authority
- CN
- China
- Prior art keywords
- module
- relay
- zero
- jack
- power
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Abstract
The invention provides a zero-standby zero power consumption energy-saving socket. The zero-standby zero power consumption energy-saving socket comprises a socket body and a main control plug hole base arranged on the socket body, wherein the socket body also internally comprises an automatic switch relay JK1, a manual touch control key switch K1, a power supply module as well as an electric current monitoring module, a signal conditioning module, a comparing module, a delay control module, a relay drive module and a J1 relay coil, wherein the electric current monitoring module, the signal conditioning module, the comparing module, the delay control module, the relay drive module and the J1 relay coil are connected successively; the relay JK1 and the manual touch control key switch K1 are connected in parallel, one end of the parallelly connected relay JK1 and manual touch control key switch K1 is connected to a live wire L of the inlet of an external connecting circuit, while the other end is connected with the power supply module and is connected with the main control plug hole base through the electric current monitoring module. The zero-standby zero power consumption energy-saving socket provided by the invention has the advantages that the socket controls the relay JK1 to open and close through signal propagation velocity and action between each module and the J1 relay coil, so as to control main and auxiliary control plug hole bases to open and close; the energy-saving environment-friendly property is really realized, the socket is convenient to use, energy-saving and environment-friendly and easy to popularize.
Description
Technical field
The invention belongs to energy-conserving and environment-protective field, relate to a kind of zero standby zero-power-consumption energy-saving socket.
Background technology
Along with being widely used of household electrical appliance, office appliance, add the habits and customs of people's electricity consumption, cause waste electric weight because of electric appliance standby every year up to 18,000,000,000 degree, be equivalent to the annual energy output of 3 Daya Bay nuclear power plants! in China, come off duty and be not related to display and the annual standby waste 1,200,000,000 degree electricity of printer! the annual market demand quantity of supply socket crosses hundred million! " the 1 watt of plan " advocated for responding International Energy Agency (IEA), also " the call of " the minimizing standby energy consumption " proposing in the ten energy-saving and emission-reduction whole people of large energy conservation project ”He Beijing " 12 " action plans such as grade that comprises zero standby zero energy consumption plan advancing during State Council " 12 ", making " energy-conservation " is no longer slogan, by design, promote the performance of common socket, common socket is carried out to technological innovation, more can adapt to the user demand of people's life, it closes the function of electrical equipment in good time automatically, solved the custom of people's electricity consumptions, and solve " unmanned plane " from technological layer, problems such as " long-time standbies ", greatly saved electric energy, meet the trend that following electrical equipment uses development, on this basis, can also expand its function from now on, finally can be to developing in intelligent socket direction and proposing more Design Conception.
The design of the zero-power socket of currently available technology is all rear governor circuit and the secondary power supply of controlling electrical equipment of automatically cutting off within governor circuit power-off a period of time, and this socket can not be realized real zero-power; And the mode of two kinds of recovery electrical works of the prior art respectively: a kind of is to utilize hand-reset, another kind is to utilize remote controller to reset.The manual reset switch of hand-reset mode and socket are one, can not be separated with jack body, can not be put into the place of handled easily.Remote controller resets and not only to exist the standby energy consumption of remote control trigger, and realization that can not be real " zero-power " is used without the place of remote controller nor be applicable to Administrative Area etc.
Summary of the invention
According to the demand in above-mentioned field and deficiency, the invention provides a kind of zero standby zero-power-consumption energy-saving socket, socket environmental protection and energy saving of the present invention, easy to use, and be applicable to any place that can use socket.
Technical scheme of the present invention is as follows:
A zero standby zero-power-consumption energy-saving socket, comprises the main control plug jack seat arranging on jack body and jack body, it is characterized in that, also comprises automatic switch relay J K1, manual touch controlled key K switch in this jack body
1, power module, current monitoring module, signal condition module, comparison module, time delay control module, relay driving module and J1 relay line bag; Described relay J K1 and manually touch controlled key K switch
1the live wire L that rear one end in parallel is connected to external circuits entrance is upper, and the other end connects respectively power module and connects main control plug jack seat by current monitoring module; Described current monitoring module and signal condition module, comparison module, time delay control module, relay driving module and J1 relay line bag are linked in sequence.
Described power module is used to described energy-saving control system that stable low pressure is provided; Described current monitoring module connects described signal condition module, for monitoring the operating current of electrical equipment on described jack base; Described signal condition module connects current monitoring module and comparison module, for the current signal that current monitoring module is detected, carries out rectification and filtering; Described comparison module connects signal condition module and time delay control module, for the rectification of signal condition module and filtered current signal and set point are compared, thereby obtains the current signal of electrical appliance operating state; Described time delay control module connects comparison module and relay driving module, for making delay circuit work, do not work according to the current signal of the electrical work state of comparison module gained, or sends electrical equipment in the signal of start or holding state not; Described relay driving module connects time delay control module and J1 relay line bag, for driving the electric current of J1 relay line bag, thus the folding of control relay JK1; Described J1 relay line bag connects described relay driving module, for the folding of control relay JK1.
Described main control plug jack seat is three hole main control plug jack seats.
Also comprise the one or more secondary control jack base being arranged in parallel with described power module.
Also comprise a normal open jack base, described normal open jack base is three hole jack bases, by described relay J K1 or described manual touch controlled key K switch
1be in parallel with described power module.
Described manual touch controlled key K switch
1be positioned at the outside of described jack body, described manual touch controlled key K switch
1be connected by wire with jack body.
Jack base on described jack body is three hole jack bases, and described three hole jack bases are connected with the live wire L being drawn by plug respectively, zero line N, ground wire G with described power module.
The beneficial effect of socket of the present invention is:
Socket of the present invention is by power module, current monitoring module, signal condition module, signal between comparison module, time delay control module, relay driving module and J1 relay line bag passes speed and effect, control the folding of JK1 relay, thereby control the folding of major-minor control jack base, thereby realize energy-conserving and environment-protective truly;
Major-minor control jack base in socket of the present invention is all connected with the live wire L being drawn by plug respectively, zero line N, ground wire G, and main control plug jack seat is directly connected with current detection module, in the present invention, by the operating state of electrical equipment on monitoring main control plug jack seat, control the folding of whole energy conserving system, thereby also control the electricity consumption situation of all secondary control jack bases simultaneously;
In socket of the present invention, normal open jack base is by relay J K1 and/or manual touch controlled key K switch
1be in parallel with power module, the control of the external power source circuit that draw in the folding of the normal open jack base source that is only subject to, is not subject to any switch or/and the impact of the energy-saving control system of the other end, therefore can be used as the normal open jack base of the electrical equipment that refrigerator etc. can not power-off; Easy to use, safety and environmental protection;
Manual touch controlled key K switch of the present invention
1can have certain distance with jack body, when jack body is installed on the ground, desk first-class be inconvenient to operate local time, manual touch controlled key K switch
1can be arranged on by wire the place of handled easily.
Accompanying drawing explanation
Fig. 1 is that the inside of preferred socket of the present invention forms and principle schematic, and wherein, 1 is manual touch controlled key K switch
1.
Embodiment
It is in order further to understand better the present invention that following embodiment is provided; be not limited to described preferred forms; content of the present invention and protection range are not construed as limiting; anyone under enlightenment of the present invention or by the present invention, combines with the feature of other prior aries and any and the present invention of drawing is identical or akin product, within all dropping on protection scope of the present invention.
Involved manual touch controlled key K switch in the present invention
11, when manual palpation or press the button or trigger point K switch
11 opens, when hand leaves button or trigger point, K switch
11 closes or disconnects.

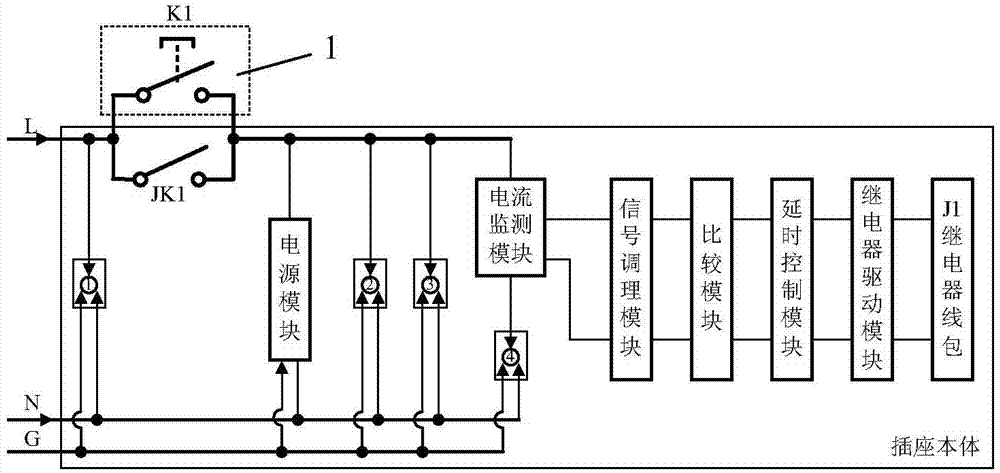

Fig. 1 is that the inside of a kind of zero standby zero-power-consumption energy-saving socket of the present invention forms and principle schematic.As shown in Figure 1, the present invention's zero standby zero-power-consumption energy-saving socket comprises the main control plug jack seat arranging on jack body and jack body, it is characterized in that, also comprises automatic switch relay J K1, manual touch controlled key K switch in this jack body
11, power module, current monitoring module, signal condition module, comparison module, time delay control module, relay driving module and J1 relay line bag; Described relay J K1 and manually touch controlled key K switch
1the live wire L that 1 rear one end in parallel is connected to external circuits entrance is upper, and the other end connects respectively power module and connects main control plug jack seat by current monitoring module; Described current monitoring module and signal condition module, comparison module, time delay control module, relay driving module and J1 relay line bag are linked in sequence.
Described power module is used to described energy-saving control system that stable low pressure is provided;
Described current monitoring module connects described signal condition module, for monitoring the operating current of electrical equipment on described Three-hole socket;
Described signal condition module connects current monitoring module and comparison module, for the current signal that current monitoring module is detected, carries out rectification and filtering;
Described comparison module connects signal condition module and time delay control module, for the rectification of signal condition module and filtered current signal and set point are compared, thereby obtains the current signal of electrical appliance operating state;
Described time delay control module connects comparison module and relay driving module, for making delay circuit work, do not work according to the current signal of the electrical work state of comparison module gained, or sends electrical equipment in the signal of start or holding state not;
Described relay driving module connects time delay control module and J1 relay line bag, for driving the electric current of J1 relay line bag, thus the folding of control relay JK1;
Described J1 relay line bag connects described relay driving module, for the folding of control relay JK1.
Preferably, described main control plug jack seat is three hole main control plug jack seats.
Preferably, the present invention's zero standby zero-power-consumption energy-saving socket also comprises the secondary control in the one or more three holes jack base being arranged in parallel with described power module.
Preferably, the present invention's zero standby zero-power-consumption energy-saving socket also comprises a normal open jack base, and described normal open jack base is three hole jack bases, by described relay J K1 or described manual touch controlled key K switch
11 is in parallel with described power module.
Preferably, the described manual touch controlled key K switch of the present invention's zero standby zero-power-consumption energy-saving socket
11 is positioned at the outside of described jack body, described manual touch controlled key K switch
11 is connected by wire with jack body.
Jack base on described jack body is three hole jack bases, and described three hole jack bases are connected with the live wire L being drawn by plug respectively, zero line N, ground wire G with described power module.
The shell of described jack body is made by insulating material, energy-conservation, environmental protection, safe ready.
Connect described manual touch controlled key K switch
11 is plurality of specifications with the length of the wire of described jack body, easy to use.The length of described plug wires is plurality of specifications, easy to use.
Described manual touch controlled key K switch
11 external form can be for various shape be to meet the different consumer groups' needs.
In socket of the present invention, the working method of each electric elements is as follows: when pressing manual touch controlled key K switch
11 o'clock, 220V power supply was connected, and power module starts to produce stable low pressure, and current monitoring module, signal condition module, comparison module, time delay control module, relay driving module etc. are started working, and finally make the adhesive of JK1 relay.Main control plug jack seat is 4., 3. secondary control jack base have electricity with pair control jack base on 2., can normal running be arranged on main control plug jack seat 4., the electrical equipment 3. 2. gone up with pair control jack base of secondary control jack base.
When being arranged on electrical equipment that 4. main control plug jack seat go up in start or normal operating conditions, 4. current monitoring module monitors goes up the operating current of electrical equipment to main control plug jack seat, by signal condition module, signal is carried out after rectification, filtering, by comparison module and set point, compare the signal of rear output electrical equipment normal operation, delay circuit in time delay control module is not worked, the line bag of relay driving module driven J1 relay, the adhesive of JK1 relay, makes circuit in running order.Main control plug jack seat 4., 3. secondary control jack base maintain electricity, electrical equipment normal operation with pair control jack base on 2..
When being arranged on the not start or during in holding state of electrical equipment that 4. main control plug jack seat go up, the operating current that 4. current monitoring module monitors goes up electrical equipment to main control plug jack seat is less than the electric current of normal operation, by signal condition module, signal is carried out after rectification, filtering, by comparison module and set point, compare rear output electrical equipment in not start or signal in holding state, the delay circuit in time delay control module is started working.If electrical equipment is still in start not or in holding state within the time of setting, send electrical equipment in not start or the signal in holding state to relay driving module.Relay driving module is received in not starting shooting or after holding state signal, disconnecting the electric current that J1 relay line is wrapped, thereby control JK1 relay, is made its disconnection.Main control plug jack seat 4. 2., 3. secondary control jack base do not have electricity, the state of the electrical equipment on it in zero stand-by power consumption with pair control jack base on 2..
Normal open jack base is 1. always in there being electric state, be suitable for can not power-off equipment use.
Socket be all be generally placed on the ground, below desk, cupboard behind or other inconvenient personnel's operations, disguised local preferably, the present invention is by manual touch controlled key K switch
11 draws, and places separately, can be shelved on the place that facilitates touch-control, facilitates touch-control.
Energy conserving system in the present invention can detect the operating state of electrical equipment on major-minor control socket, no matter be in electrical equipment normal operation or standby or be can be detected under off-mode, and the signal being detected is passed to J1 relay line bag step by step, thereby control automatic switch JK1 relay, and then control to the folding of major-minor control jack base.Socket of the present invention only need be laid a finger on manual touch controlled key K switch 11 when initial use, folding is below controlling with state by electrical equipment in master control 1 completely, can be real realize energy-conservation and zero-power, and safety and environmental protection, easy to use, be easy to popularize.
Claims (7)
1. a zero standby zero-power-consumption energy-saving socket, comprises the main control plug jack seat arranging on jack body and jack body, it is characterized in that, also comprises automatic switch relay J K1, manual touch controlled key K switch in this jack body
1, power module, current monitoring module, signal condition module, comparison module, time delay control module, relay driving module and J1 relay line bag; Described relay J K1 and manually touch controlled key K switch
1the live wire L that rear one end in parallel is connected to external circuits entrance is upper, and the other end connects respectively power module and connects main control plug jack seat by current monitoring module; Described current monitoring module and signal condition module, comparison module, time delay control module, relay driving module and J1 relay line bag are linked in sequence.
2. zero standby zero-power-consumption energy-saving socket according to claim 1, is characterized in that, described power module is used to described energy-saving control system that stable low pressure is provided; Described current monitoring module connects described signal condition module, for monitoring the operating current of electrical equipment on described jack base; Described signal condition module connects current monitoring module and comparison module, for the current signal that current monitoring module is detected, carries out rectification and filtering; Described comparison module connects signal condition module and time delay control module, for the rectification of signal condition module and filtered current signal and set point are compared, thereby obtains the current signal of electrical appliance operating state; Described time delay control module connects comparison module and relay driving module, for making delay circuit work, do not work according to the current signal of the electrical work state of comparison module gained, or sends electrical equipment in the signal of start or holding state not; Described relay driving module connects time delay control module and J1 relay line bag, for driving the electric current of J1 relay line bag, thus the folding of control relay JK1; Described J1 relay line bag connects described relay driving module, for the folding of control relay JK1.
3. zero standby zero-power-consumption energy-saving socket according to claim 1, is characterized in that, described main control plug jack seat is three hole main control plug jack seats.
4. zero standby zero-power-consumption energy-saving socket according to claim 1, is characterized in that, also comprises the one or more secondary control jack base being arranged in parallel with described power module.
5. zero standby zero-power-consumption energy-saving socket according to claim 1, is characterized in that, also comprise a normal open jack base, described normal open jack base is three hole jack bases, by described relay J K1 or described manual touch controlled key K switch
1be in parallel with described power module.
6. zero standby zero-power-consumption energy-saving socket according to claim 1, is characterized in that described manual touch controlled key K switch
1be positioned at the outside of described jack body, described manual touch controlled key K switch
1be connected by wire with jack body.
7. zero standby zero-power-consumption energy-saving socket according to claim 1, it is characterized in that, jack base on described jack body is three hole jack bases, and described three hole jack bases are connected with the live wire L being drawn by plug respectively, zero line N, ground wire G with described power module.
