Abstract
The invention discloses a toothpaste pipe capable of reducing residual toothpaste volume. The pipe comprises a toothpaste pipe body, a diversion type pipe shoulder, an elliptic paste outlet and a bayonet type pipe lid, wherein the diversion type pipe shoulder is arranged at the upper end of the toothpaste pipe body with a closed lower end; the elliptic paste outlet is formed in the middle of the diversion type pipe shoulder; a circular small outer boss is arranged on the outer wall of the elliptic paste outlet; the elliptic paste outlet is sleeved by the bayonet type pipe lid; the bayonet type pipe lid is matched with the elliptic paste outlet in shape; a circular bayonet groove is formed on the inner wall of the bayonet type pipe lid and corresponds to the position of the circular small outer boss; the upper end surface of the diversion type pipe shoulder takes the shape of transversely placed 8; two sides of the diversion type pipe shoulder are aslant standing cones; the two aslant standing cones and the toothpaste pipe body form a gradually shrunk pipe cavity; and a small opening of the pipe cavity is aligned to the elliptic paste outlet. Through the mode, the novel toothpaste pipe can effectively reduce the residual toothpaste volume, and has the advantages of simple technique, lower cost and more convenience in actual operation.
Description
Technical field
The present invention relates to packaging field, particularly relate to a kind of dentifrice tube that reduces the toothpaste residual volume.
Background technology
Toothpaste is as daily necessities in people's daily life, and its consumption is larger, and every toothpaste is when using fast end, and always some toothpaste can squeeze not out in package tube, has so just relatively wasted.Existing remaining expelling device for toothpaste or design comparison complexity, used cumbersomely, or separately separately buys, and easily loses, and effect neither be very desirable.Have a kind of dentifrice tube inside that layer of plastic film is arranged, a wheel word is arranged at the dentifrice tube bottom, and this wheel word stretches out outside dentifrice tube, and closely is connected with plastic sheeting in dentifrice tube.As long as the wheel word plastic sheeting of the moving toothpaste of dress bottom will be rolled, toothpaste is extruded thereupon, and due to plastic sheeting, to roll inner space very little, so the toothpaste residual volume just seldom reaches the effect of saving toothpaste; Its manufacturing cost is higher, the manufacturing process complexity, and the practical operation working costs is bothersome.
Summary of the invention
The technical matters that the present invention mainly solves is to provide a kind of dentifrice tube that reduces the toothpaste residual volume, can effectively reduce the toothpaste residual volume, and the simple cost of its manufacturing process is lower, and practical operation is also more convenient.
For solving the problems of the technologies described above, the technical scheme that the present invention adopts is: a kind of dentifrice tube that reduces the toothpaste residual volume is provided, this dentifrice tube that can reduce the toothpaste residual volume comprises toothpaste tube body, flow-guiding type pipe shoulder, oval paste outlet and bayonet type pipe lid, the toothpaste tube body upper end of described lower end closed is provided with flow-guiding type pipe shoulder, the middle part of flow-guiding type pipe shoulder is provided with oval paste outlet, the outer wall of oval paste outlet is provided with the little outer lug boss of going in ring, on oval paste outlet, cover has the bayonet type pipe lid of shape Corresponding matching, the corresponding position of going in ring little outer lug boss of the inwall of bayonet type pipe lid is provided with belt bayonet slot, " 8 " shape of described flow-guiding type pipe shoulder upper surface one-tenth traverse, the both sides that the flow-guiding type pipe is takeed on are tiltedly vertical cone, and two are tiltedly found cone and a diminishing tube chamber of toothpaste tube body formation, and the tube chamber osculum faces out oval cream mouth,
Preferably, the described material that reduces the dentifrice tube of toothpaste residual volume is aluminium plastic composite material.
The invention has the beneficial effects as follows: a kind of dentifrice tube that reduces the toothpaste residual volume of the present invention, can effectively reduce the toothpaste residual volume, the simple cost of its manufacturing process is lower, and practical operation is also more convenient.
The accompanying drawing explanation

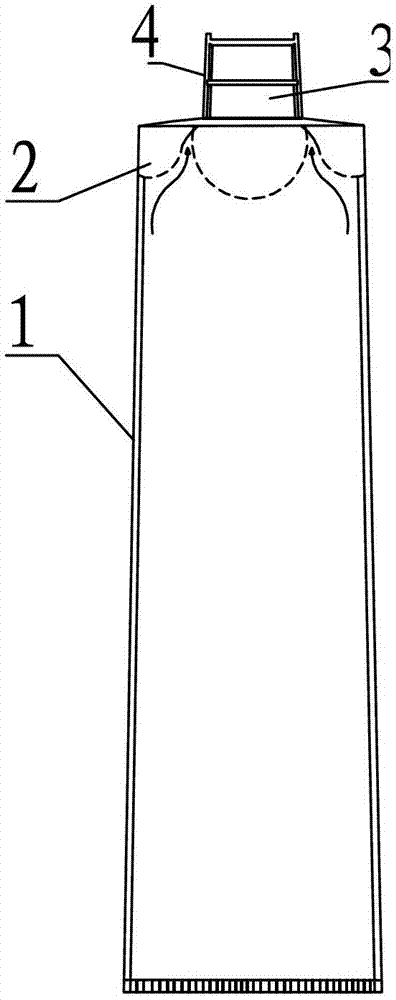

Fig. 1 is a kind of structural representation that reduces the dentifrice tube of toothpaste residual volume of the present invention;
Fig. 2 is a kind of whole section-drawing of side-looking that reduces the dentifrice tube of toothpaste residual volume of the present invention;
Fig. 3 is that whole section-drawing is faced in a kind of part amplification that reduces the dentifrice tube of toothpaste residual volume of the present invention;
Fig. 4 be a kind of dentifrice tube that reduces the toothpaste residual volume of the present invention flow-guiding type pipe shoulder overlook enlarged drawing.
The specific embodiment
Below in conjunction with accompanying drawing, preferred embodiment of the present invention is described in detail, thereby so that the advantage of invention and feature can be easier to be it will be appreciated by those skilled in the art that, protection scope of the present invention is made to more explicit defining.
Refer to Fig. 1, the embodiment of the present invention comprises:
A kind of dentifrice tube that reduces the toothpaste residual volume, this dentifrice tube that can reduce the toothpaste residual volume comprises toothpaste tube body 1, flow-guiding type pipe shoulder 2, oval paste outlet 3 and bayonet type pipe lid 4, toothpaste tube body 1 upper end of described lower end closed is provided with flow-guiding type pipe shoulder 2, the middle part of flow-guiding type pipe shoulder 2 is provided with oval paste outlet 3, the outer wall of oval paste outlet 3 is provided with the little outer lug boss 31 of going in ring, on oval paste outlet 3, cover has the bayonet type pipe lid 4 of shape Corresponding matching, and the corresponding position of going in ring little outer lug boss 31 of the inwall of bayonet type pipe lid 4 is provided with the bayonet slot 41 of going in ring; Described flow-guiding type pipe is takeed on " 8 " shape that 2 upper surfaces become traverses, and the both sides of flow-guiding type pipe shoulder 2 be tiltedly vertical cone, two tiltedly vertical cones and diminishing tube chambers of toothpaste tube body 1 formation, and the tube chamber osculum faces oval paste outlet 3; The described material that reduces the dentifrice tube of toothpaste residual volume is aluminium plastic composite material.
When a kind of dentifrice tube that reduces the toothpaste residual volume is used, when toothpaste is used up soon, with finger, " 8 " shape recessed position of flow-guiding type pipe shoulder is puted forth effort to extruding, can only run towards paste outlet after toothpaste is squeezed in small space, extruding reduces the remaining amount of paste in body repeatedly.
A kind of dentifrice tube that reduces the toothpaste residual volume of the present invention, can effectively reduce the toothpaste residual volume, and the simple cost of its manufacturing process is lower, and practical operation is also more convenient.
The foregoing is only embodiments of the invention; not thereby limit the scope of the claims of the present invention; every equivalent structure or conversion of equivalent flow process that utilizes specification sheets of the present invention and accompanying drawing content to do; or directly or indirectly be used in other relevant technical fields, all in like manner be included in scope of patent protection of the present invention.
Claims (2)
1. the dentifrice tube that can reduce the toothpaste residual volume, it is characterized in that: this dentifrice tube that can reduce the toothpaste residual volume comprises toothpaste tube body, flow-guiding type pipe shoulder, oval paste outlet and bayonet type pipe lid, the toothpaste tube body upper end of described lower end closed is provided with flow-guiding type pipe shoulder, the middle part of flow-guiding type pipe shoulder is provided with oval paste outlet, the outer wall of oval paste outlet is provided with the little outer lug boss of going in ring, on oval paste outlet, cover has the bayonet type pipe lid of shape Corresponding matching, and the corresponding position of going in ring little outer lug boss of the inwall of bayonet type pipe lid is provided with belt bayonet slot; " 8 " shape of described flow-guiding type pipe shoulder upper surface one-tenth traverse, the both sides that the flow-guiding type pipe is takeed on are tiltedly vertical cone, and two are tiltedly found cone and a diminishing tube chamber of toothpaste tube body formation, and the tube chamber osculum faces oval paste outlet.
2. a kind of dentifrice tube that reduces the toothpaste residual volume according to claim 1, it is characterized in that: the described material that reduces the dentifrice tube of toothpaste residual volume is aluminium plastic composite material.
