Abstract
The invention relates to a jacket, in particular to a multifunctional jacket for cross-protection of the lumbar vertebra and the cervical vertebra, which belongs to the technical field of costume designing. According to the technical scheme provided by the invention, the multifunctional jacket for cross-protection of the lumbar vertebra and the cervical vertebra comprises a jacket body. A neckpillow is arranged at the collar of the jacket body, the neckpillow is internally provided with a protective groove formed on the cervical vertebra, and the protective groove has an arc matched with the physiological curvature of the cervical vertebra. The neckpillow is internally provided with a medicine bag for promoting blood circulation to remove blood stasis, dispelling wind and removing obstruction in the meridians, and decreasing swelling to relieving pain. According to the invention, the cervical vertebra is effectively protected by the neckpillow, and the lumbar vertebra is protected by the lumbar vertebra pillow. During daily rest, the lumbar vertebra and the cervical vertebra can be protected by match of the neckpillow, the lumbar vertebra pillow and the jacket body, so that the multifunctional jacket for cross-protection of the lumbar vertebra and the cervical vertebra is compact in structure, wide in application range, and convenient to detach and is safe and reliable.
Description
Technical field
The present invention relates to a kind of upper garment, especially a kind of Multifunctional coat of cross protection waist cervical vertebra belongs to the technical field of dress designing.
Background technology
Cervical vertebra and lumbar vertebrae are often to sit the position that the people of office needs protection especially.If cervical vertebra and lumbar vertebrae can not get effective protection for a long time, and cause easily pathology, bring great inconvenience to life.And clothes are the necessity in the human daily life, and are closely related with the mankind's productive life.By clothes are transformed, utilize the ergonomic designs principle, it is in recent years development trend that the health care theory is blended in the dress-goods.At present, existing dressmakers design all can not fine realization to the protection of cervical vertebra and lumbar vertebrae.
Summary of the invention
The objective of the invention is to overcome the deficiencies in the prior art, a kind of Multifunctional coat of cross protection waist cervical vertebra is provided, its compact conformation is realized the effective protection to the waist cervical vertebra, and wide accommodation is safe and reliable.
According to technical scheme provided by the invention, the Multifunctional coat of described cross protection waist cervical vertebra comprises the upper garment body; The neckline section of described upper garment body is provided with neckpillow, is provided with in the described neckpillow for the groove that protects of placing on the cervical vertebra, and protects groove and have the cambered surface that is complementary with the human cervical spine physiologic radian; Be provided with the medicine bag for promoting blood circulation and removing blood stasis, dispelling wind and removing obstruction in the meridians, swelling and pain relieving in the neckpillow.
Described neckpillow comprises that for the flexible bag of encapsulation medicine bag also be filled with filler in the described flexible bag, described filler comprises buckwheat shell or cotton; To protect contact corresponding cambered surface and medicine bag of groove and cervical vertebra by buckwheat shell or cotton in the flexible bag isolates.
Also be provided with lumbar vertebra pillow on the described upper garment body, described lumbar vertebra pillow is positioned at the relative human body waist location of upper garment body rear panel.
Described lumbar vertebra pillow links to each other with neckpillow by connecting band.Described lumbar vertebra pillow is provided with some equally distributed lumbar vertebra pillow hidden discounts, and lumbar vertebra pillow is fixedly connected with the upper garment body with upper garment body hidden discount on the upper garment body rear panel by the lumbar vertebra pillow hidden discount.
Described upper garment body comprises vest, long sleeves or cotta.When described upper garment body is vest, be provided with dismountable inner bag in the upper garment body.
Be filled with memory sponge, buckwheat shell or cotton in the described lumbar vertebra pillow.Described connecting band is provided with for the fixing VELCRO of lumbar vertebra pillow.Be provided with flexible partition in the described neckpillow.
Advantage of the present invention: cervical vertebra is effectively protected by neckpillow; lumbar vertebrae by lumbar vertebra pillow protection human body; cooperate with the upper garment body by neckpillow, lumbar vertebra pillow; enforcement can realize the effect to cervical vertebra, lumbar vertebrae protection during to daily rest; compact conformation; wide accommodation, convenient disassembly, safe and reliable.
Description of drawings

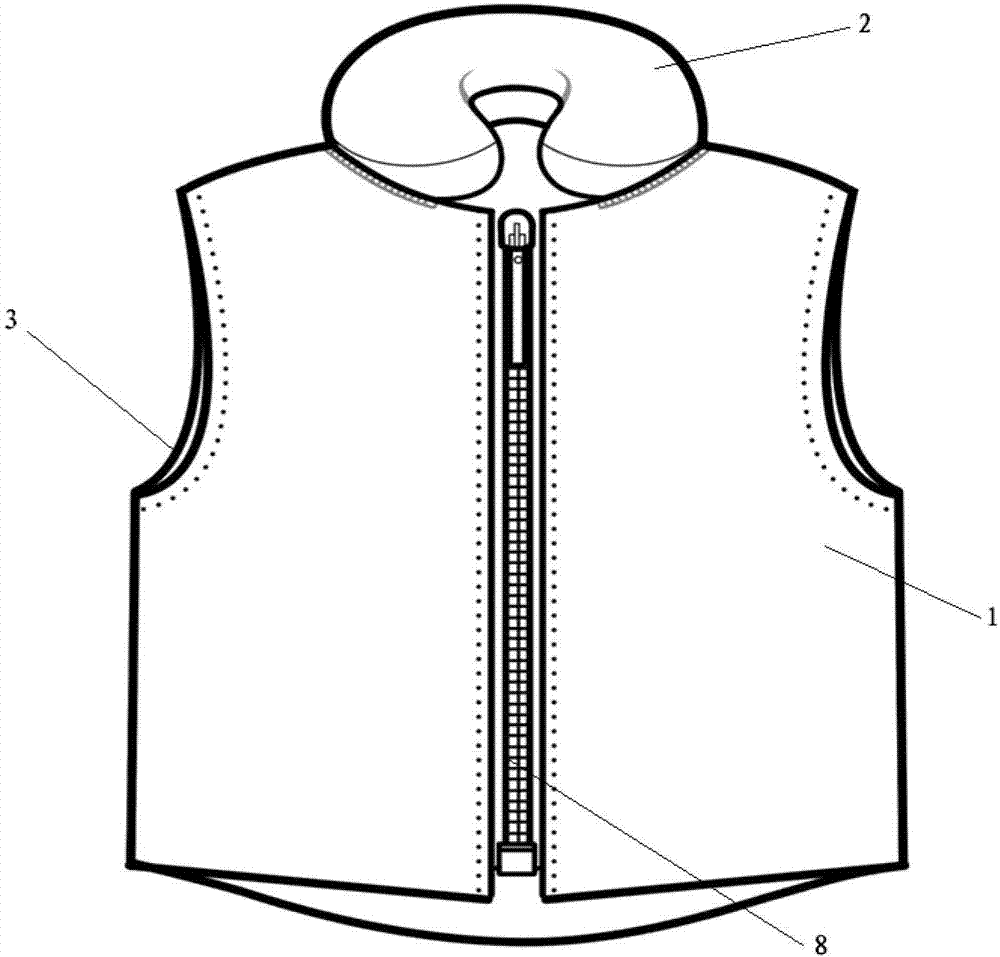

Fig. 1 is structural representation of the present invention.
Fig. 2 is the schematic rear view of Fig. 1 of the present invention.
Fig. 3 is the schematic rear view of upper garment body of the present invention.
Fig. 4 is neckpillow of the present invention and the schematic diagram that cooperates of lumbar vertebra pillow.
Description of reference numerals: 1-upper garment body, 2-neckpillow, 3-inner bag, 4-neckline section, 5-connecting band, 6-lumbar vertebra pillow, the hidden discount of 7-upper garment body, 8-slide fastener, the hidden discount of 9-lumbar vertebra pillow and 10-protect groove.
The specific embodiment
The invention will be further described below in conjunction with concrete drawings and Examples.
As shown in Figure 1: in order can the neckpillow of human body to be effectively protected, namely in rest, effectively safeguard cervical vertebrae physiological bend degree, lax neck tissue, reduce injury to cervical vertebra, reduce cervical spondylopathy generation, improve the effect that incidence blood circulation machine promotes tissue repair, the present invention includes upper garment body 1; The neckline section 4 of described upper garment body 1 is provided with neckpillow 2, is provided with in the described neckpillow 2 for placing and protects groove 10 on the cervical vertebra, and protect groove 10 and have the cambered surface that is complementary with the human cervical spine physiologic radian; Be provided with the medicine bag for promoting blood circulation and removing blood stasis, dispelling wind and removing obstruction in the meridians, swelling and pain relieving in the neckpillow 2.
Particularly, described upper garment body 1 can be vest, cotta or long sleeve blouse, in the accompanying drawing of the embodiment of the invention, all illustrates as an example of vest example.When upper garment body 1 is vest, in vest, be provided with dismountable inner bag 3, inner bag 3 is interior can fill eider down, is filled with the ice wire material in the vest, by the detachable combination of vest and inner bag 3, realizes the general effect of equal energy of the four seasons of the upper garment body 1 that forms; And the anter of upper garment body 1 is provided with slide fastener 8.No matter upper garment body 1 adopts vest, during arbitrary form in cotta or the long sleeves, neckpillow 2 all is positioned over the neckline section 4 of upper garment body 1, the bottom of neckpillow 2 and neckline section 4 form and adapt, and the bottom of neckpillow 2 contacts with neckline section 4 and is connected, neckpillow 2 is placed on the cervical vertebra of human body by protecting groove 10, thereby when the cervical vertebra of human body contacts with the cambered surface of protecting groove 10, medicine bag in the neckpillow 2 can carry out promoting blood circulation and removing blood stasis to the cervical vertebra of human body, dispelling wind and removing obstruction in the meridians, the treatment of swelling and pain relieving reaches and effectively safeguard cervical vertebrae physiological degree in the wrong in rest, lax neck tissue, minimizing is to the injury of cervical vertebra, reduce the generation of cervical spondylopathy, improve the effect that incidence blood circulation machine promotes tissue repair.
Further, medicine bag in neckpillow 2 directly contacts the discomfort that causes with the skin of human cervical spine, in the embodiment of the invention, be filled with filler in the neckpillow 2, described filler and medicine bag all are positioned at flexible bag, medicine bag is by filler and the cambered surface isolation of protecting groove 10, and described filler comprises buckwheat shell or cotton; Thereby the surface of human cervical spine directly contacts with filler and flexible bag, and the drug effect of medicine bag acts on the cervical vertebra place after by filler and flexible bag.Also be provided with flexible partition in the neckpillow 2, by flexible partition flexible bag and the filler of neckpillow 2 be separated into some sections, the rolling of filler in avoiding using.Medicine in the described medicine bag comprises Radix Angelicae Sinensis, dried human placenta, rhizome of chuanxiong, myrrh, safflower, the red sage root, WEILINGCAO etc., to directly act on the waist neck, improve the local blood circulation, relieve muscle spasms, alleviate the nerve endings compressing, reduce local organization tension force, anti-inflammatory, analgesia, calm the nerves, alleviate rapidly the discomfort that cervical spondylopathy is brought.
Such as Fig. 2, Fig. 3 and shown in Figure 4: in order to protect lumbar vertebrae simultaneously, also be provided with lumbar vertebra pillow 6 on upper garment body 1, described lumbar vertebra pillow 6 is positioned at the relative human body waist location of upper garment body 1 rear panel.In the specific implementation, lumbar vertebra pillow 6 can be positioned at inside or the outside of upper garment body 1.Lumbar vertebra pillow 6 is provided with lumbar vertebra pillow hidden discount 9, and lumbar vertebra pillow 6 is fixedly connected with upper garment body 1 with upper garment body hidden discount 7 on upper garment body 1 rear panel by lumbar vertebra pillow hidden discount 9.
The present invention effectively protects by 2 pairs of cervical vertebras of neckpillow; lumbar vertebrae by lumbar vertebra pillow 6 protection human bodies; cooperate with upper garment body 1 by neckpillow 2, lumbar vertebra pillow 6; enforcement can realize the effect to cervical vertebra, lumbar vertebrae protection during to daily rest; compact conformation; wide accommodation, convenient disassembly, safe and reliable.
Claims (10)
1. the Multifunctional coat of a cross protection waist cervical vertebra comprises upper garment body (1); It is characterized in that: the neckline section (4) of described upper garment body (1) is provided with neckpillow (2), is provided with in the described neckpillow (2) for placing and protects groove (10) on the cervical vertebra, and protect groove (10) and have the cambered surface that is complementary with the human cervical spine physiologic radian; Be provided with the medicine bag for promoting blood circulation and removing blood stasis, dispelling wind and removing obstruction in the meridians, swelling and pain relieving in the neckpillow (2).
2. the Multifunctional coat of cross protection waist cervical vertebra according to claim 1 is characterized in that: described neckpillow (2) comprises that for the flexible bag of encapsulation medicine bag also be filled with filler in the described flexible bag, described filler comprises buckwheat shell or cotton; To protect contact corresponding cambered surface and medicine bag of groove (10) and cervical vertebra by buckwheat shell or cotton in the flexible bag isolates.
3. the Multifunctional coat of cross protection waist cervical vertebra according to claim 1, it is characterized in that: also be provided with lumbar vertebra pillow (6) on the described upper garment body (1), described lumbar vertebra pillow (6) is positioned at the relative human body waist location of upper garment body (1) rear panel.
4. the Multifunctional coat of cross protection waist cervical vertebra according to claim 3 is characterized in that: described lumbar vertebra pillow (6) links to each other with neckpillow (2) by connecting band (5).
5. the Multifunctional coat of cross protection waist cervical vertebra according to claim 3; it is characterized in that: described lumbar vertebra pillow (6) is provided with some equally distributed lumbar vertebra pillow hidden discounts (9), and lumbar vertebra pillow (6) is fixedly connected with upper garment body (1) with upper garment body hidden discount (7) on upper garment body (1) rear panel by lumbar vertebra pillow hidden discount (9).
6. the Multifunctional coat of cross protection waist cervical vertebra according to claim 1, it is characterized in that: described upper garment body (1) comprises vest, long sleeves or cotta.
7. the Multifunctional coat of cross protection waist cervical vertebra according to claim 6 is characterized in that: when described upper garment body (1) is vest, be provided with dismountable inner bag (3) in the upper garment body (1).
8. the Multifunctional coat of cross protection waist cervical vertebra according to claim 3, it is characterized in that: described lumbar vertebra pillow is filled with memory sponge, buckwheat shell or cotton in (6).
9. the Multifunctional coat of cross protection waist cervical vertebra according to claim 4 is characterized in that: described connecting band (5) is provided with for the fixing VELCRO of lumbar vertebra pillow (6).
10. the Multifunctional coat of cross protection waist cervical vertebra according to claim 1, it is characterized in that: described neckpillow is provided with flexible partition in (2).
