Abstract
The invention discloses an easy-fetch wardrobe, which comprises a wardrobe upper box body, wherein a slide rail is fixedly assembled on the left side and the right side of the wardrobe upper box body respectively; a first connecting rod fixed to the slide rail is fixedly arranged on the slide rails on the left side and the right side of the wardrobe upper box body respectively; a first connecting rod hinged with a wardrobe body is hinged with the slide rails on the left side and the right side of the wardrobe upper box body respectively; a second connecting rod hinged with the wardrobe body is hinged with the first connecting rod fixed to the slide rail; the first end of the first second connecting rod hinged with the wardrobe body is hinged with the slide rails, and the second end of the first second connecting rod hinged with the wardrobe body is hinged with a box body bracket for supporting the wardrobe upper box body; and the box body bracket is fixed to the wardrobe body. The lower end of a second connecting rod hinged with the wardrobe body is hinged with an air spring. The first connecting rod hinged with the wardrobe body is provided with a clothes rack cross rod. The easy-fetch wardrobe has the advantages of convenience and quickness in movement, convenience in fetching clothes above the wardrobe body, capability of solving the problem of potential safety hazard of high probability of fall of old people and children for ascending to fetch objects and the like.
Description
Technical field
The present invention relates to a kind of Household wardrobe, each age level crowd easy taking type wardrobe of clothing of taking in especially a kind of convenient family.
Background technology
Along with the progress of human spirit's civilization and material progress, 21 century has entered the epoch that enjoy life, and the very large one side of the high-quality life of life staying idle at home is just embodied in high-quality and hommization furniture.China is the first in the world populous nation, is also the first aged big country.From 2000 to 2007 more than 60 years old elderly population of Nian， China, by 1.26 hundred million, rise to 1.53 hundred million people.Along with the arrival of China's aging population, the elderly's quality of the life has progressively caused the concern of the whole society.
And in daily family life the most frequently used wardrobe, but exist some very important problems, the direct or indirect raising that affects family life quality.In the prior art, common wardrobe is generally at 2.1m.～2.3m, far above ordinary people's height.In wardrobe, be divided into a plurality of grid, the grid on top is due to too high, and common people stretch out one's hand and cannot obtain clothing.And in daily life, usually need to pick and place clothing in the cupboard on top.For general kinsfolk, get the clothing that eminence deposits is a troubling problem always, need to step on auxiliary can the getting such as chair stool, very inconvenient and danger coefficient is high when old man or children take clothes.And for old man or children, be more dangerous, once meet accident, to fall down, consequence is hardly imaginable.
Summary of the invention
The present invention is the weak point existing in above-mentioned prior art for avoiding, and a kind of easy taking type wardrobe is provided, so that the grid on the wardrobe top clothing on adjustable, the wardrobe top of being convenient to take up and down.
The present invention be technical solution problem by the following technical solutions.
Easy taking type wardrobe, its design feature is, comprises that the left and right sides is fixedly assembled with respectively the wardrobe upper box of a slide rail, on the slide rail of the wardrobe upper box left and right sides, be fixedly installed respectively first with slide rail stationary links; On the slide rail of the wardrobe upper box left and right sides, be hinged with respectively first with cabinet articulated linkage, described first with slide rail stationary links on be hinged with second with cabinet articulated linkage; Described first is hinged with first end and the described slide rail of cabinet articulated linkage, and described first with the second end of cabinet articulated linkage and be hinged for holding up the casing bracket of described wardrobe upper box; Described casing bracket is fixed on wardrobe body.
The design feature of easy taking type wardrobe of the present invention is also:
Described second is hinged with cabinet articulated linkage lower end and air spring; One end of described air spring and second and cabinet articulated linkage be hinged, the other end of described air spring is fixedly installed on wardrobe body.
Described easy taking type wardrobe is also provided with clothes hanger cross bar, and the two ends of described clothes hanger cross bar are individually fixed in described first and cabinet articulated linkage hinged on the fixing slide rail in the wardrobe upper box left and right sides.
Described first with cabinet articulated linkage, described first with slide rail stationary links and second with cabinet articulated linkage be all to fix by two orthogonal straight-bars the L character form structure forming, and be provided with fastening floor inside the turning of L character form structure.
Compared with the prior art, beneficial effect of the present invention is embodied in:
Easy taking type wardrobe of the present invention, can effectively guarantee the space availability ratio in family, and the invention object described in this is placed among bedroom or parlor to not only simplicity generosity, and can abdicate more space and strengthen indoor euphorosia degree.Select similar LXing Lei delta link mechanism, the independent case body in wardrobe upper strata can be pulled after the wardrobe of upper strata people, by rotating counterclockwise of articulated linkage, casing can move down into the height that facilitates people to take.The height of wardrobe can be tried one's best highly like this, has solved like this problem of the space availability ratio deficiency of existing wardrobe.And reduced the dangerous possibility occurrence occurring because picking and placeing clothing in family.Being hidden in linkage clothes hanger cross bar below neither affects casing and moves down, and also can not cause the waste in space, is to kill two birds with one stone.Both adapt to modern social development, met the object that people-oriented.The most useful innovative point of this programme is the revolution quadric chain that it adopts translation, forms parallelogram lindage, and this bar linkage structure has very strong reliability and it has extremely strong stability, and different dimensions makes it can be applicable to all kinds of wardrobes.
Easy taking type wardrobe of the present invention, has that conveniently moving is quick, the clothing of being convenient to obtain cabinet top, has solved old man children and ascend a height and get the advantages such as security hidden trouble that thing is easily fallen down.
Accompanying drawing explanation

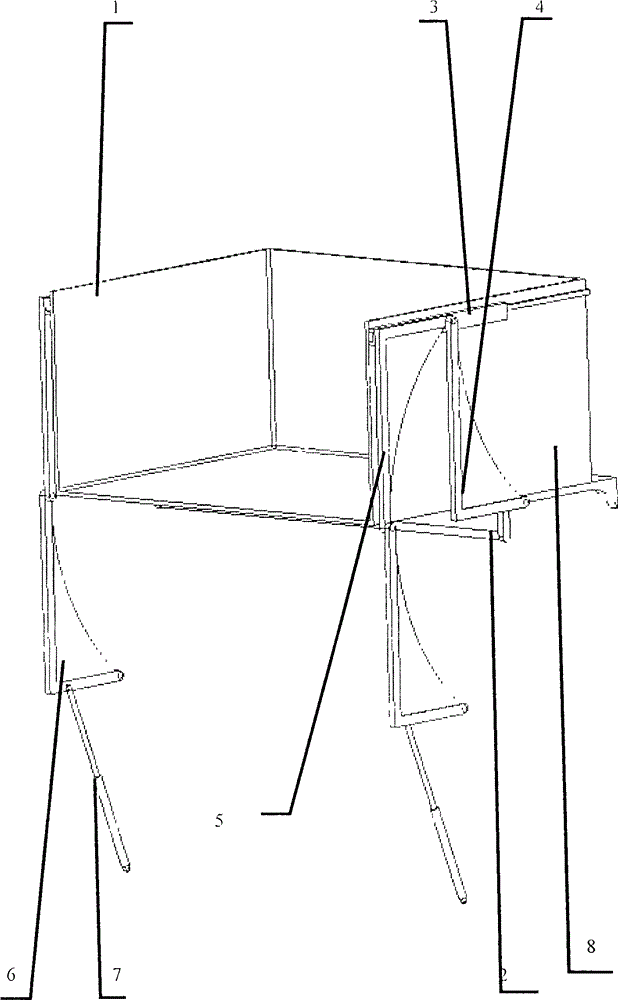

Fig. 1 is the stereogram in home position before easy taking type wardrobe of the present invention is left behind.
Fig. 2 is the stereogram of easy taking type wardrobe of the present invention while leaving behind.
Label in accompanying drawing 1～accompanying drawing 2: 1 wardrobe upper box, 2 clothes hanger cross bars, 3 slide rails, 4 first with cabinet articulated linkage, 5 first with slide rail stationary links, 6 second with cabinet articulated linkage, 7 air springs, 8 casing brackets.
Below pass through the specific embodiment, and the invention will be further described by reference to the accompanying drawings.
The specific embodiment
Referring to Fig. 1～Fig. 2, easy taking type wardrobe, comprises that the left and right sides is fixedly assembled with respectively the wardrobe upper box 1 of a slide rail 3, on the slide rail 3 of wardrobe upper box 1 left and right sides, be fixedly installed respectively first with slide rail stationary links 5; On the slide rail 3 of wardrobe upper box 1 left and right sides, be hinged with respectively first with cabinet articulated linkage 4, described first with slide rail stationary links 5 on be hinged with second with body articulated linkage 6; Described first is hinged with first end and the described slide rail 3 of cabinet articulated linkage 4, and described first with the second end of cabinet articulated linkage 4 and be hinged for holding up the casing bracket 8 of described wardrobe upper box 1; Described casing bracket 8 is fixed on wardrobe body.Described wardrobe upper box is the rectangular box of upper end and leading flank opening, comprises base plate, left side plate and back side panel, and described slide rail is arranged on left side plate.Slide rail comprises trapped orbit and slip rail; Described trapped orbit is anchored on described left side plate, and described slip rail clip is placed on described trapped orbit and can slides along described trapped orbit.Described wardrobe upper box, in used time not, is positioned on described casing bracket; Now first with body articulated linkage, described first with slide rail stationary links and second and the equal state perpendicular to ground, another root straight-bar level in a straight-bar of cabinet articulated linkage; Clothes hanger cross bar is positioned at casing bracket below.During clothing in need to taking wardrobe upper box, pull wardrobe upper box, between the trapped orbit of wardrobe upper box and slip rail, slide, wardrobe upper box outwards moves; When wardrobe upper box outwards moves to certain distance, can depart from casing bracket; Clothing machine upper box departs from after casing bracket, can move to front lower place; When wardrobe upper box drops to certain distance, just can take easily the clothing within wardrobe upper box.Described first with cabinet articulated linkage, described first with slide rail stationary links and second and cabinet articulated linkage hinged successively, described first is fixed on slide rail with slide rail stationary links, first with the other end of cabinet articulated linkage and second and the other end of cabinet articulated linkage be separately fixed on wardrobe body, so first with cabinet articulated linkage, described first with slide rail stationary links and second with cabinet articulated linkage formed parallelogram lindage, wherein first and cabinet articulated linkage and second and cabinet articulated linkage be parallel to each other.In wardrobe upper box moving process, first with cabinet articulated linkage and second and cabinet articulated linkage rotate, wardrobe upper box can be moved to the front lower place of wardrobe smoothly, thereby need not ascend a height, just can take easily the clothing within wardrobe upper box, avoided old man or children to ascend a height and got thing, solved old man children and ascended a height and get the security hidden trouble that thing is easily fallen down.
Described second is hinged with cabinet articulated linkage 6 lower ends and air spring 7; One end of described air spring 7 and second and cabinet articulated linkage 6 be hinged, the other end of described air spring 7 is fixedly installed on wardrobe body.
Described easy taking type wardrobe is also provided with clothes hanger cross bar 2, and the two ends of described clothes hanger cross bar 2 are individually fixed in described first and cabinet articulated linkage 4 hinged on the fixing slide rail 3 in wardrobe upper box 1 left and right sides.
Described first with cabinet articulated linkage 4, described first with slide rail stationary links 5 and second with cabinet articulated linkage 6 be all to fix by two orthogonal straight-bars the L character form structure forming, and be provided with fastening floor inside the turning of L character form structure.
Due to second with cabinet articulated linkage below be provided with air spring, wardrobe upper box air spring 7 in moving down process can play drag effect, make wardrobe upper box 1 rely on deadweight steadily to fall, when air spring 7 moves on wardrobe upper box 1 after use, play power-assisted effect simultaneously, save manpower.
When wardrobe upper box 1 moves down, drive first to rotate with cabinet articulated linkage 4, the clothes hanger cross bar 2 being connected is thereon thereupon to wardrobe upper box 1 rear to rotation.Because wardrobe upper box 1 rear portion has reserved enough spaces, can not have influence on and hang over clothes hanger cross bar 2 clothing above, effectively saved space.
When not using wardrobe, first with cabinet articulated linkage 4 first and slide rail stationary links 5 and second vertical hinged with cabinet articulated linkage 6 in the vertical directions, spatially misplace concordant, guarantee the 1 not landing of balance of wardrobe upper box.Wardrobe upper box 1 while moving down, drive first with cabinet articulated linkage 4 and second and cabinet articulated linkage 6 synchronize and rotate counterclockwise, now second with cabinet articulated linkage 6 keep first with framework articulated linkage 4 and second and cabinet articulated linkage 6 relative positions constant, make wardrobe upper box 1 steadily move down and not turn on one's side.
Claims (3)
1. easy taking type wardrobe, it is characterized in that, comprise that the left and right sides is fixedly assembled with respectively the wardrobe upper box (1) of a slide rail (3), on the slide rail (3) of wardrobe upper box (1) left and right sides, be fixedly installed respectively first with slide rail stationary links (5); On the slide rail (3) of wardrobe upper box (1) left and right sides, be hinged with respectively first with cabinet articulated linkage (4), described first with slide rail stationary links (5) on be hinged with second with cabinet articulated linkage (6); Described first is hinged with first end and the described slide rail (3) of cabinet articulated linkage (4), and described first with the second end of cabinet articulated linkage (4) and be hinged for holding up the casing bracket (8) of described wardrobe upper box (1); Described casing bracket (8) is fixed on wardrobe body;
Described first with cabinet articulated linkage (4), described first with slide rail stationary links (5) and second and cabinet articulated linkage (6) be all to fix by two orthogonal straight-bars the L character form structure forming, and be provided with fastening floor inside the turning of L character form structure.
2. easy taking type wardrobe according to claim 1, is characterized in that, described second is hinged with cabinet articulated linkage (6) lower end and air spring (7); One end of described air spring (7) and second and cabinet articulated linkage (6) be hinged, the other end of described air spring (7) is fixedly installed on wardrobe body.
3. easy taking type wardrobe according to claim 1, it is characterized in that, also be provided with clothes hanger cross bar (2), the two ends of described clothes hanger cross bar (2) are individually fixed in the fixing slide rail (3) in wardrobe upper box (1) left and right sides upper hinged described first and cabinet articulated linkage (4).
