Abstract
The invention relates to the medical field, and discloses a nasal irrigator. In the invention, the nasal irrigator comprises a nasal obstruction device (1), a washing liquor duct (3), a recycled liquor duct (2), a one-way water valve (4), a one-way air valve (7), a nasal washing liquor bottle (6) and a recycled liquor bottle (5), so the nasal washing liquor can flow along one direction into the recycled liquor bottle, the pollution of the nasal washing liquor to the ambient environment is reduced, and the infection which can be caused by the pollution of the nasal obstruction device and the inner side of the bottles can be avoided. The washing speed can be controlled by the hand power of a user, and the nasal irrigator is simple to operate and is very comfortable.
Description
Technical field
The present invention relates to medical domain, particularly in medical domain, wash nose device.
Background technology
Nasal irrigation is things of part terror In the view of many people, and its historical origin for a long time in fact.It is one of yoga and Chinese Taoist health care's method for a long time.Its method is the clean water that with the hands holds with both hands with both hands, and head is lower curved, firmly water is sucked in nostril, then from face, water is spued, and removes by this nasal mucus and the dirt of nasal cavity.The method sounds simply, in fact operates very difficulty, accidentally will be choked.Believe the experience that many people have swimming to be choked by water.In China, wash the rare use of nose, and westerner has followed the method for yoga and Taoist school on the contrary and invented and washed nose device.In the last hundred years, washing the use of nose device in west was never interrupted.
People have the good custom of brushing teeth and washing one's face every day, but when washing one's face, wash the few of nostril, but nasal cavity hygienic is also extremely important.We,, in the life and work of a day, have a large amount of dusts and pathogenic bacteria and enter nasal cavity, so the very high reason of sickness rate of flu, rhinitis is the attention that nasal cavity hygienic does not cause everybody.
Nasal mucosa is the suitable environment of flu pathogenic bacteria survival and reproduction, medically claims the target of susceptible bacterium. cold virus is not afraid of antibiotics, but will lose fertility under running into the ambient temperature of 40～60 ℃ and during the variation of Acidity of Aikalinity.At common cold initial stage, if with 40 ℃ of light salt brine nasal irrigations, just can make the pathogenic bacteria being attached on nasal mucosa wash out, make flu treatment rapidly in early days.As form the civilization custom of nasal irrigation every day, will reduce common cold and rhinitis popular.Scientist carries out the inspection of sinusitis X-ray film in more than seven years old healthy children, finds that nearly 50% child has Paranasal sinus diseases, that is to say that 50% healthy children is suffered from sinusitis.Though sinusitis does not have life danger, can affect healthy and vision and audition intelligent development child.The health care of child's nasal cavity should cause all circles and the head of a family's attention.According to International Environmental Protection expert determination: industrial development is over more than 100 year, in each big city air, floating dust content has surpassed the self-cleaning ability of nasal cavity defence dust from far away in the world.Analyze according to investigations many big cities because dust has surpassed people's self-cleaning ability, have every day the thousands of people can not orthobiosis and work, the big city even having be because of the long-term attack of dust to people, and have a few people to tens people to be injured and to die average every day.
Following sanitation and health-care field, nasal cavity health care will be an emerging healthy cause, especially a cause that benefits the people.The health care status of nasal cavity is at all not second to oral cavity, even more important than oral cavity.Its indication comprises: nasal cavity cleaning, tracheitis, bronchitis and the asthma after the cleaning before rhinitis, sinusitis, allergic rhinitis, the bacterial halitosis of nasopharynx, surgical operations on noses and postoperative care, nasopharyngeal carcinoma, rhinorrhea, sneeze, Allergic Rhinitis etc.
The history of washing nose device has also experienced process from simple to complex.There are in the international market three classes to wash nose product.A kind of is, with household small-size electric water pump, normal saline is sprayed into nasal cavity; The second is traditional teapot type undine, is called and exceedes gal undine; The third is generally to wash nose device.The nose device of washing once occurring has: hand rubber cast, plastic bottle type, aerosol type, vapor type etc. are multiple.
But, various, to wash in nose product, the comfort of simplicity of design is poor, more difficult control; Design complicated user and experience, but expensive, and due to Reusability, increased the risk infecting.
Summary of the invention
The object of the present invention is to provide a kind of nose device of washing, make nasal wash be able to one-way flow, and enter in returnable bottle, reduce the pollution of nasal wash to surrounding, the infection that can avoid having a stuffy nose device and bottle internal contamination may cause.And flushing speed is by the automatic control of user hand-power, simple to operate, very comfortable.
For solving the problems of the technologies described above, embodiments of the present invention provide a kind of nose device of washing, and comprise nasal obstruction device 1, washing liquid conduit 3, reclaim fluid catheter 2, water check valve 4, nasal wash bottle 6 and reclaim liquid bottle 5;
One end of washing liquid conduit 3 connects nasal obstruction device 1, and the other end connects nasal wash bottle 6, and washing liquid conduit 3 is provided with water check valve 4 with the junction of nasal wash bottle 6;
The one end of reclaiming fluid catheter 2 connects nasal obstruction device 1, and the other end connects recovery liquid bottle 5, reclaims fluid catheter 2 and is provided with water check valve 4 with the junction of reclaiming liquid bottle 5.
Compared with prior art, the main distinction and effect thereof are embodiment of the present invention:
By nasal obstruction device 1, washing liquid conduit 3, recovery fluid catheter 2, water check valve 4, nasal wash bottle 6 and recovery liquid bottle 5, form and wash nose device, make nasal wash be able to one-way flow, and enter in returnable bottle, reduce the pollution of nasal wash to surrounding, the infection that can avoid having a stuffy nose device and bottle internal contamination may cause.Flushing speed is by the automatic control of user hand-power, simple to operate, very comfortable.By the lower cover washing nose device, water check valve is housed, makes washing liquid can only flow to intranasal, can not, to bottle internal reflux, therefore avoid bottle internal contamination.
Further, on the bottle cap of nasal wash bottle 6 and recovery liquid bottle 5, Non-return air valve 7 is housed, during extruding, makes nasal wash bottle not produce negative pressure, reclaim liquid bottle and do not produce malleation.Because mobile washing liquid is without γ-ray emission, guaranteed that washing liquid can rinse in nasal meatus depths and nasal sinuses continuously, therefore, can reach the effect of thorough cleaning.
Further, nasal obstruction device 1 within one week, have a side opening, can efficient recovery nasal wash, the nasal wash of recovery enters in returnable bottle through reclaiming fluid catheter and water check valve.
Further, nasal obstruction device 1 is conical, and top is thin, and bottom is thick, is applicable to various shapes and big or small nostril, thereby can guarantee to make nasal wash enter nasal cavity smoothly and outwards do not leak.
Further, washing liquid conduit and recovery fluid catheter elongated flexible are flexible, are convenient to the hand-held control of user.
Further, nasal wash bottle 6 is made by elastoplast bottle with reclaiming liquid bottle 5, disposable use, the infection that can further avoid having a stuffy nose device and bottle internal contamination may cause.
Accompanying drawing explanation

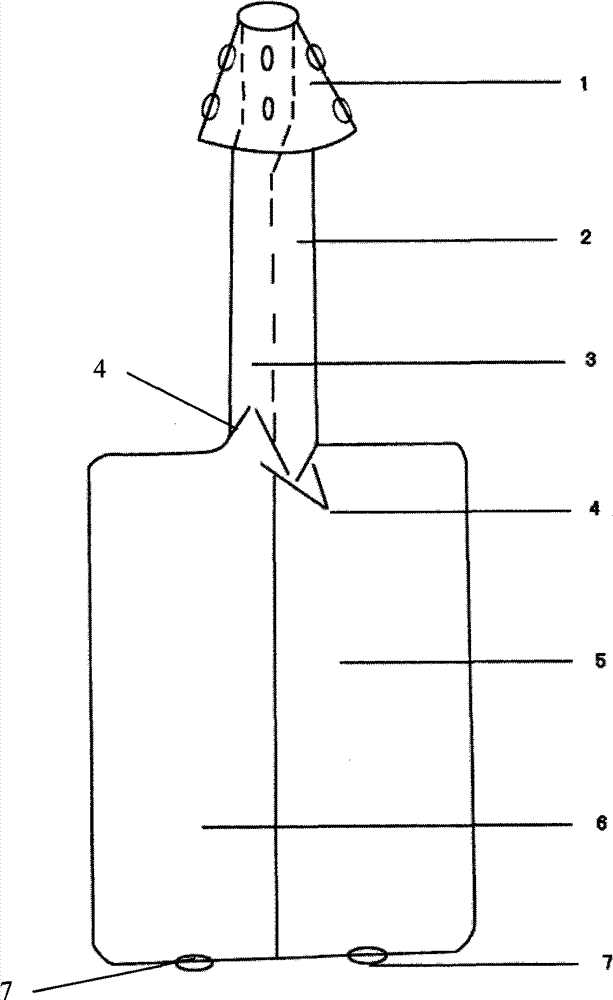

Fig. 1 is the structural representation of washing nose device of one better embodiment according to the present invention.
The specific embodiment
In the following description, in order to make reader understand the application better, many ins and outs have been proposed.But, persons of ordinary skill in the art may appreciate that even without these ins and outs and the many variations based on following embodiment and modification, also can realize each claim of the application technical scheme required for protection.
For making the object, technical solutions and advantages of the present invention clearer, below in conjunction with accompanying drawing, embodiments of the present invention are described in further detail.
A better embodiment of the present invention relates to a kind of nose device of washing.Fig. 1 is this structural representation of washing nose device.This is washed nose device and comprises nasal obstruction device 1, washing liquid conduit 3, reclaim fluid catheter 2, water check valve 4, Non-return air valve 7, nasal wash bottle 6 and reclaim liquid bottle 5.
Wherein, one end of washing liquid conduit 3 connects nasal obstruction device 1, and the other end connects nasal wash bottle 6, and washing liquid conduit 3 is provided with water check valve 4 with the junction of nasal wash bottle 6.The one end of reclaiming fluid catheter 2 connects nasal obstruction device 1, and the other end connects recovery liquid bottle 5, reclaims fluid catheter 2 and is provided with water check valve 4 with the junction of reclaiming liquid bottle 5.Non-return air valve 7 is positioned on the bottle cap of nasal wash bottle 6 and reclaims on the bottle cap of liquid bottle 5.
Specifically, nasal obstruction device 1 is made by soft silica gel, is conical, and top is thin, and bottom is thick.And opening is arranged at the top of nasal obstruction device 1, surrounding has a plurality of side openings, and open top diameter is 2m m left and right, and the diameter of surrounding side opening is 1mm left and right.Washing liquid conduit 3 communicates with the open top of nasal obstruction device 1, reclaims fluid catheter 2 and communicates with the side opening of nasal obstruction device 1.Due to nasal obstruction device 1 within one week, have a side opening, can efficient recovery nasal wash, the nasal wash of recovery enters in returnable bottle through reclaiming fluid catheter and water check valve.And nasal obstruction device 1 is conical, top is thin, and bottom is thick, is applicable to various shapes and big or small nostril, thereby can guarantee to make nasal wash enter nasal cavity smoothly and outwards do not leak.
Washing liquid conduit 3 connects central openings and the nasal wash bottle 6 of nasal obstruction device 1, wherein has water check valve 4 with nasal wash bottle junction, can prevent that nasal wash from blowing back in bottle for handling liquid toilet or cosmetic substance.The shape of washing liquid conduit 3 is elongated, and quality is soft, can, by arbitrarily crooked, be convenient to user and be convenient to hand-held control.
The bottle cap place that Non-return air valve 7 is positioned at nasal wash bottle 6 and reclaims liquid bottle 5, can one-way exhaust/air inlet, but can not draining, can prevent from that nasal wash bottle from producing negative pressure and reclaiming liquid bottle to produce malleation.Because mobile washing liquid is without γ-ray emission, guaranteed that washing liquid can rinse in nasal meatus depths and nasal sinuses continuously, therefore, can reach the effect of thorough cleaning.
Be not difficult to find, by nasal obstruction device 1, washing liquid conduit 3, reclaim fluid catheter 2, water check valve 4, Non-return air valve 7, nasal wash bottle 6 and reclaim that liquid bottle 5 forms wash nose device, user squeezes and washing liquid continuously can be flowed into nose and paranasal sinuses via nasal wash conduit and nasal wash tap in bottle with hands, make nasal wash be able to one-way flow, and enter in returnable bottle, reduce the pollution of nasal wash to surrounding, the infection that can avoid having a stuffy nose device and bottle internal contamination may cause.Flushing speed is by the automatic control of user hand-power, simple to operate, very comfortable.By the lower cover washing nose device, water check valve is housed, makes washing liquid can only flow to intranasal, can not, to bottle internal reflux, therefore avoid bottle internal contamination.
In addition, by the bottle cap at nasal wash bottle 6 and recovery liquid bottle 5, Non-return air valve being housed, during extruding, make nasal wash bottle not produce negative pressure, reclaim liquid bottle and do not produce malleation.Because mobile washing liquid is without γ-ray emission, guaranteed that washing liquid can rinse in nasal meatus depths and nasal sinuses continuously, therefore, can reach the effect of thorough cleaning.
Although pass through with reference to some of the preferred embodiment of the invention, the present invention is illustrated and described, but those of ordinary skill in the art should be understood that and can do various changes to it in the form and details, and without departing from the spirit and scope of the present invention.
Claims (7)
1. wash a nose device, it is characterized in that, comprise nasal obstruction device (1), washing liquid conduit (3), reclaim fluid catheter (2), water check valve (4), nasal wash bottle (6) and reclaim liquid bottle (5);
One end of described washing liquid conduit (3) connects described nasal obstruction device (1), and the other end connects described nasal wash bottle (6), and described washing liquid conduit (3) is provided with described water check valve (4) with the junction of described nasal wash bottle (6);
One end of described recovery fluid catheter (2) connects described nasal obstruction device (1), the other end connects described recovery liquid bottle (5), and described recovery fluid catheter (2) is provided with described water check valve (4) with the junction of described recovery liquid bottle (5);
The described nose device of washing also comprises Non-return air valve (7);
Described Non-return air valve (7) is positioned on the bottle cap of described nasal wash bottle (6) and on the bottle cap of described recovery liquid bottle (5), can one-way exhaust or air inlet, but can not draining, can prevent from that nasal wash bottle from producing negative pressure and reclaiming liquid bottle to produce malleation;
Described nasal wash bottle (6) and described recovery liquid bottle (5) are two elastoplast bottles in parallel.
2. the nose device of washing according to claim 1, is characterized in that, opening is arranged at the top of described nasal obstruction device (1), and surrounding has N side opening, and N is natural number;
Described washing liquid conduit (3) communicates with the open top of described nasal obstruction device (1);
Described recovery fluid catheter (2) communicates with the side opening of described nasal obstruction device (1).
3. the nose device of washing according to claim 2, is characterized in that, the open-topped diameter of described nasal obstruction device (1) is 2mm;
The diameter of the side opening of described nasal obstruction device (1) is 1mm.
4. the nose device of washing according to claim 2, is characterized in that, described nasal obstruction device (1) is made by soft silica gel, is conical, and top is thin, and bottom is thick.
5. according to washing nose device described in any one in claim 1 to 4, it is characterized in that, described washing liquid conduit (3) is elongated with described recovery fluid catheter (2) shape, and quality is soft, can be by arbitrarily crooked.
6. according to washing nose device described in any one in claim 1 to 4, it is characterized in that, described nasal wash bottle (6) be ellipse or rectangle with the cross section of described recovery liquid bottle (5).
7. according to washing nose device described in any one in claim 1 to 4, it is characterized in that, described nasal wash bottle (6) be circular or square with the cross section of described recovery liquid bottle (5).
