Abstract
The invention relates to a folding umbrella-shaped laundry rack which comprises a base, a supporting rod and a bracket. The bottom of the supporting rod is inserted in an inserted slot on the upper surface of the base. The top of the supporting rod is connected to the center of a disk-shaped top end. The bracket consists of a plurality of skeletons and fulcrum bars. The top parts of the skeletons are movably connected into the inserted slot at the disk-shaped top end. One ends of the fulcrum bars are movably connected onto the skeletons, and the other ends of the fulcrum bars are movably connected with a sleeve sleeved on the supporting rod. An elastic bulge is arranged in the inserted slot at the upper end of the supporting rod. One side of the sleeve is provided with an opening. An elastic catch is arranged at the position of the opening. The surfaces of the skeletons are provided with check blocks at equal intervals. The supporting rod is formed in a mode that two sections of rod bodies are nested. The corresponding lateral surfaces of the two rod bodies are respectively provided with screw thread through holes. Screws are inserted in the screw thread through holes. The folding umbrella-shaped laundry rack is convenient to use, has a reasonable design, can be used for conveniently air-drying clothes, can be folded to be stored and is space-saving.
Description
Technical field
The present invention relates to a kind of daily necessities.
Background technology
Clothes hanger is the clothing airing instrument that people use always; But prior clothes can only be suspended on airing on the clothes-horse; A lot of families that do not have balcony can only adopt the mode of indoor airing, and existing indoor clothes hanger volume is bigger, the airing negligible amounts; It is separated to be difficult for grasping locker room, the airing poor effect.
Summary of the invention
The purpose of this invention is to provide a kind of airing clothes easily, the collapsible umbrella clothes hanger of collapsible storage.
The present invention includes base, support bar and support, the support bar bottom is plugged in the slot of base upper surface, and the top is connected the disc shaped upper end center; Said support is made up of many skeletons and pole, and the skeleton top movable is connected in the slot of disc shaped upper end, and pole one end is movably connected on the skeleton; The other end flexibly connects with the sleeve pipe that is socketed on the support bar, is provided with elastic bumps in the post upper slot, and sleeve pipe one side is provided with opening; Opening part is provided with the elastic force catch, and skeleton surface equidistance is provided with block, and support bar is by the two periods body of rod nested compositions; Both are respectively equipped with tapped through hole at corresponding side surface, tapped through hole place grafting screw rod.
During use, can promote sleeve pipe and move up, in the time of in elastic bumps inserts ferrule openings along support bar; Pole is propped up skeleton, similar umbrella shape, and people hang over airing on the skeleton after can utilizing clothes hanger to prop up clothing; Block on the skeleton can prevent that clothes hanger from sliding, and spacing is suitable between the clothing simultaneously, stepped arrangement; Accelerated airing speed, people also can adjust the height of support bar as required, finish using and press the elastic force catch; Elastic bumps is return from opening, and skeleton and pole are folded up, and is convenient to storage.
The present invention compared with prior art has following advantage: easy to use, reasonable in design, and airing clothes easily, the space is saved in collapsible storage.

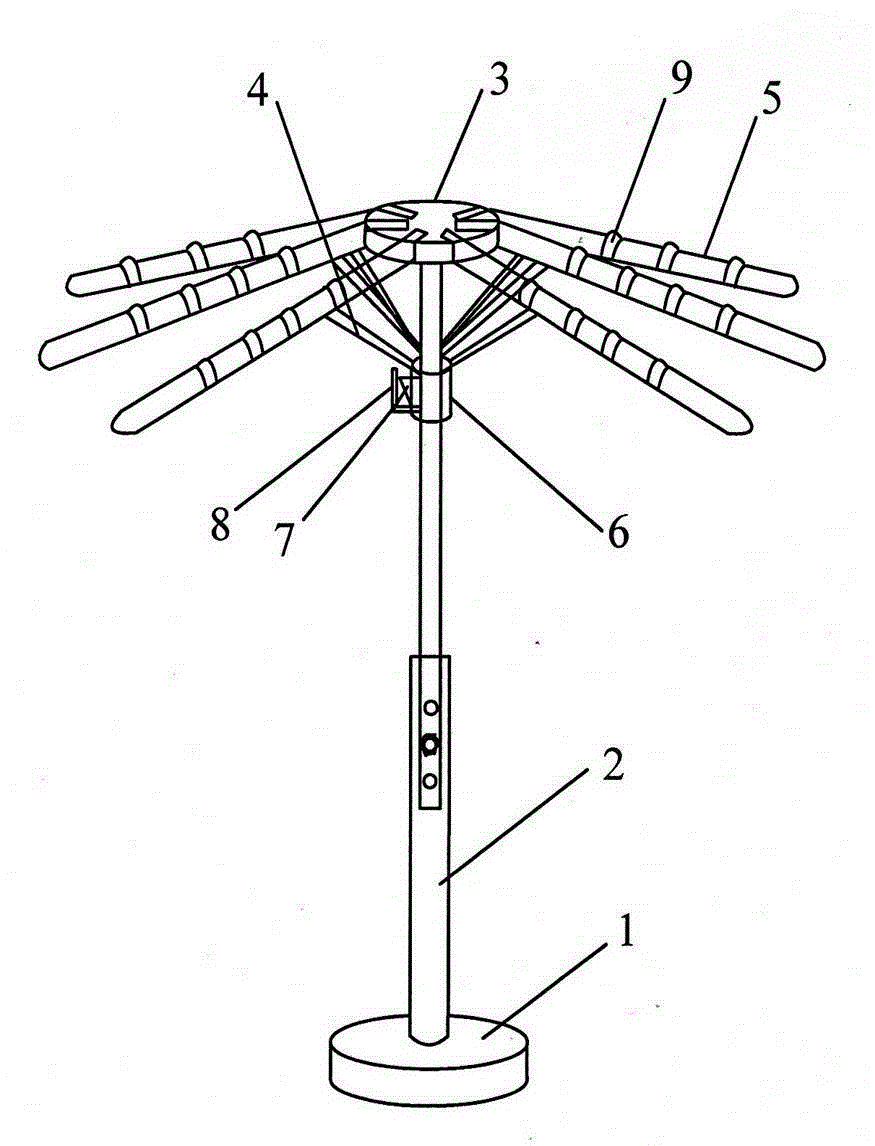

Description of drawingsFig. 1 is a stereochemical structure sketch of the present invention.
The specific embodimentIn stereochemical structure sketch of the present invention shown in Figure 1, comprise base 1, support bar 2 and support, support bar 2 bottoms are plugged in the slot of base 1 upper surface; The top is connected disc shaped upper end 3 centers, and said support is made up of many skeletons 4 and pole 5, and skeleton 4 top movable are connected in the slot of disc shaped upper end 3; Pole 5 one ends are movably connected on the skeleton 4, and the other end flexibly connects with the sleeve pipe 6 that is socketed on the support bar 2, is provided with elastic bumps 7 on the support bar 2 in the end slot; Sleeve pipe 6 one sides are provided with opening; Opening part is provided with elastic force catch 8, and skeleton 4 surperficial equidistance are provided with block 9, and support bar 2 is by the two periods body of rod nested compositions; Both corresponding side surface are respectively equipped with tapped through hole 10, tapped through hole 10 places grafting screw rod.
Claims (2)
1. collapsible umbrella clothes hanger; Comprise base (1), support bar (2) and support, it is characterized in that: support bar (2) bottom is plugged in the slot of base (1) upper surface, and the top is connected disc shaped upper end (3) center; Said support is made up of many skeletons (4) and pole (5); Skeleton (4) top movable is connected in the slot of disc shaped upper end (3), and pole (5) one ends are movably connected on the skeleton (4), and the other end flexibly connects with the sleeve pipe (6) that is socketed on the support bar (2); Support bar (2) is gone up in the end slot and is provided with elastic bumps (7); Sleeve pipe (6) one sides are provided with opening, and opening part is provided with elastic force catch (8), and the surperficial equidistance of skeleton (4) is provided with block (9).
2. a kind of collapsible umbrella clothes hanger according to claim 1 is characterized in that: support bar (2) is by the two periods body of rod nested compositions, and both corresponding side surface are respectively equipped with tapped through hole (10), and tapped through hole (10) is located the screw rod of pegging graft.
