Abstract
The invention provides a concave pillow, and relates to the field of sleeping pillows, which is used for solving the problems such as high pillow required during side-lying and low pillow required during lying. The width of the pillow is about 30cm and the height of the pillow is about 8cm, the middle (2) of the pillow is sunken, and the width of the sunken part is about 5cm; and the width of the back (1) of the pillow is about 15cm, and the width of the upper flat part in the front (3) of the pillow is about 5cm. In the invention, during side-lying, ears are positioned at the sunken position in the middle (2) of the pillow, and cheeks are positioned at the pillow part with the width of about 5cm in the front (3) of the pillow, wherein, most part of the weight of head is supported by the pillow part, and a small part of head is positioned at the back (1) of the pillow; and during lying, the back of head is positioned in the middle (2) of the pillow, and the front (3) of the pillow is positioned under neck so as to protect cervical vertebra. The concave pillow has the beneficial effects of meeting the requirements for the pillow according to different sleeping modes and reducing cervical spondylosis caused by discomfort of the pillow.
Description
Technical field
The present invention relates to sleeping pillow header territory.
Background technology
If pillow is smooth, to raise head to influence cervical vertebra healthy thereby the pillow height lies low, pillow too the sleep musculi colli that then stretches of downside causes Muscular injuries.
Summary of the invention
Can not satisfy simultaneously for overcoming common pillow that side is slept and the requirement that lies low, the present invention just can satisfy side simultaneously with pillow mid portion depression and sleep and lie low to the requirement of pillow.
The technical scheme that the present invention solves its technical problem is: when people's side was slept, the main weight of head was born by cheek, is mainly born by hindbrain and cervical vertebra when lying low.
Beneficial effect of the present invention: nerve and rich blood vessel near people's the ear, people's cheek is less with back neck blood vessel, and side is slept and is fewer to the compressing of head blood vessel when lying low, thereby does not influence the head nutrition supply basically, guarantees good sleep; Alleviate side and sleep, protection ear and hearing the compressing of auricle; When lying low, head is not raised, and helps protecting cervical vertebra.
Description of drawings

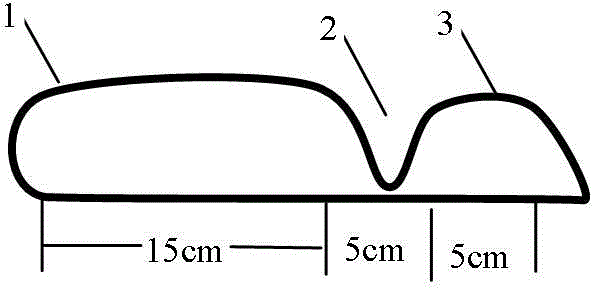

Fig. 1 is the Concave pillow side schematic view.
Wherein, 1, the pillow rear portion, 2, the pillow middle part, 3, pillow front.
The specific embodiment
The about 30cm of pillow width, highly about 8cm, pillow middle part 2 depressions, the about 5cm of sunk part width.Pillow rear portion 1 about wide 15cm, top about 5cm of pillow front 3 puts down, and the pillow front is 45 degree and tilts.
In the time of when side is slept, ear is in pillow middle part 2 recessed position, and cheek is in most of weight that the pillow front wide pillow of 3 about 5cm partly supports head, and skull partly is in the rear portion 1 of pillow less.
When lying low, back skull is in pillow middle part 2, and pillow front 3 is in below the neck, the protection cervical vertebra.
Claims (1)
1. Concave pillow of the present invention mainly is the ditch that pillow has one depression, and its principal character is: the about 30cm of pillow width, highly about 8cm, pillow medial recess, the about 5cm of sunk part width; The about wide 15cm in pillow rear portion, top about 5cm of pillow front puts down, and the pillow front is 45 degree and tilts.
