CN102350652A - Double-pin positioning mechanism - Google Patents
Double-pin positioning mechanism Download PDFInfo
- Publication number
- CN102350652A CN102350652A CN2011102859942A CN201110285994A CN102350652A CN 102350652 A CN102350652 A CN 102350652A CN 2011102859942 A CN2011102859942 A CN 2011102859942A CN 201110285994 A CN201110285994 A CN 201110285994A CN 102350652 A CN102350652 A CN 102350652A
- Authority
- CN
- China
- Prior art keywords
- pin
- bolt
- base plate
- hole
- screw rod
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
- 230000007246 mechanism Effects 0.000 title claims abstract description 14
- 230000009286 beneficial effect Effects 0.000 abstract description 2
- 230000014759 maintenance of location Effects 0.000 description 7
- 230000001105 regulatory effect Effects 0.000 description 1
Images
Landscapes
- Insertion Pins And Rivets (AREA)
Abstract
本发明提供一种双销定位机构，包括底板、固定销、移动销、螺栓A和螺栓B；底板上设置有圆孔和腰形孔；固定销和移动销内设置有螺纹通孔；螺栓A的螺杆穿过底板上的圆孔位于固定销的螺纹孔内，螺栓B的螺杆穿过底板上的腰形孔位于移动销的螺纹孔内。本发明的有益效果，运用一面两销定位原理，通过改变两销固定的距离及更换不同尺寸的销，同时满足多种零部件定位要求，提高生产成本。
The invention provides a double-pin positioning mechanism, which includes a bottom plate, a fixed pin, a moving pin, bolt A and bolt B; round holes and waist-shaped holes are arranged on the bottom plate; threaded through holes are arranged in the fixed pin and the moving pin; bolt A The screw rod of bolt B passes through the circular hole on the base plate and is located in the threaded hole of the fixed pin, and the screw rod of bolt B passes through the waist-shaped hole on the base plate and is located in the threaded hole of the moving pin. The beneficial effect of the present invention is that by using the positioning principle of two pins on one side, by changing the fixed distance between the two pins and replacing pins of different sizes, the positioning requirements of various parts can be met at the same time, and the production cost can be increased.
Description
Technical field
The invention belongs to the positioning link technical field, be specifically related to a kind of pair of pin retention mechanisms.
Background technology
At component of machine; In particularly box parts processing, the assembling; Usually utilization plane and two pits positioning principle carries out the location of parts when processing, assembling; The unadjustable two pin distances of common plane and two pits detent mechanism; Then the common plane and two pits of cover mechanism can only be applied to a kind of processing, assembling of parts, and then different parts processing, assembling need the plane and two pits mechanisms of overlapping to accomplish more.
Summary of the invention
The purpose of this invention is to provide a kind of pair of pin retention mechanisms, can not regulate the problem of two pin distances to overcome existing plane and two pits detent mechanism.
The technical scheme that the present invention adopted is that a kind of pair of pin retention mechanisms comprises base plate, steady pin, moving pin, bolt A and bolt B; Base plate is provided with circular hole and mounting hole; Be provided with tapped through hole in steady pin and the moving pin; The screw rod of bolt A passes the screwed hole that circular hole on the base plate is positioned at steady pin, and the screw rod of bolt B passes the screwed hole that mounting hole on the base plate is positioned at moving pin.
Beneficial effect of the present invention, utilization plane and two pits positioning principle through changing the pin of fixing distance of two pins and replacing different size, satisfies multiple position components requirement simultaneously, improves production cost.
Description of drawings

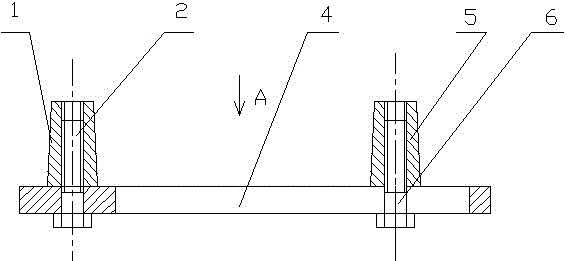

Fig. 1 is the structural representation of the two pin retention mechanisms of the present invention;
Fig. 2 is that the A of Fig. 1 is to view.
Among the figure, 1. steady pin, 2. bolt A, 3. mounting hole, 4. base plate, 5. moving pin, 6. bolt B.
The specific embodiment
Below in conjunction with the accompanying drawing and the specific embodiment the present invention is elaborated.
As depicted in figs. 1 and 2, the present invention provides a kind of pair of pin retention mechanisms, comprises base plate 4, steady pin 1, moving pin 5, bolt A2 and bolt B 6; Base plate 4 is provided with circular hole and mounting hole 3; Be provided with tapped through hole in steady pin 1 and the moving pin 5; The screw rod of bolt A2 passes the screwed hole that circular hole on the base plate 4 is positioned at steady pin 1, and the screw rod of bolt B 6 passes the screwed hole that mounting hole 3 on the base plate 4 is positioned at moving pin 5.
During use; The circular hole that the screw rod of bolt A2 passes on the base plate 4 is tightened in the screwed hole of steady pin 1; Orientation distance needs during for different parts processing, assembling; Moved horizontally the position of moving pin 5 along mounting hole 3, the mounting hole 3 that the screw rod of bolt B 6 passes on the base plate 4 is tightened in the screwed hole of moving pin 5.
Because the dimensions of required alignment pin is different when different parts processing, assembling; The pin that can corresponding replacing has threaded central aperture; Promptly change steady pin 1 and moving pin 5; And through regulating moving pin and steady pin distance; Location, the connection of completion when different parts are used the processing of plane and two pits formula, assembling and positioning; Adjustable pair of pin retention mechanisms of the present invention can realize the order ground that parts carried out flexible positioning, connection under the parts plane and two pits formula locate mode reducing production costs.
Claims (1)
